MIRRORS

INSIDE DAY/NIGHT
MIRROR (for versions/
markets, where provided)

A two-point pivot system allows for
horizontal and vertical adjustment of
the mirror. Adjust the mirror to center
on the view through the rear window.

Headlight glare can be reduced by
moving the small control under the
mirror to the night position (toward
the rear of the vehicle). The mirror
should be adjusted while set in the day
position (toward the windshield).

AUTOMATIC DIMMING
MIRROR (for versions/
markets, where provided)

This mirror automatically adjusts for
headlight glare from vehicles behind
you. You can turn the feature on or off
by pressing the button at the base of
the mirror. A light to the left of the
button will illuminate to indicate
when the dimming feature is acti-
vated. The sensor to the right of the
button does not illuminate.

NOTE: This feature is disabled
when the vehicle is moving in re-
verse.

CAUTION!

To avoid damage to the mirror dur-
ing cleaning, never spray any
cleaning solution directly onto the
mirror. Apply the solution onto a
clean cloth and wipe the mirror
clean.

OUTSIDE MIRRORS

To receive maximum benefit, adjust
the outside mirror(s) to center on the
adjacent lane of traffic with a slight
overlap of the view obtained on the
inside mirror.

WARNING!

Vehicles and other objects seen in
an outside convex mirror will look
smaller and farther away than they
really are. Relying too much on side
convex mirrors could cause you to
collide with another vehicle or
other object. Use your inside mirror
when judging the size or distance of
a vehicle seen in a side convex mir-
ror.

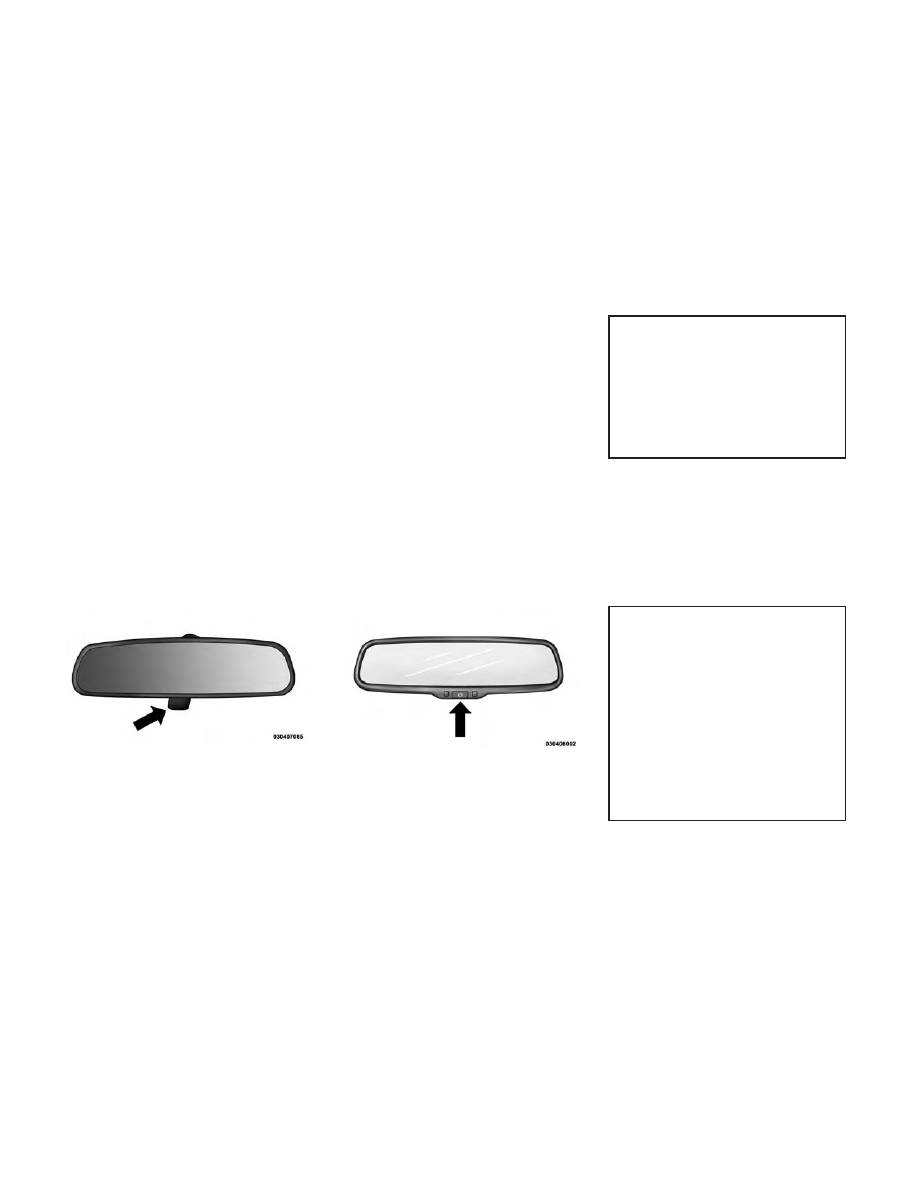

Manual Rearview Mirror

Automatic Dimming Mirror

82

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER'S AUTOMATIC
DIMMING MIRROR (for
versions/markets, where
provided)

The driver's outside mirror will auto-
matically adjust for glare from ve-
hicles behind you. This feature is con-
trolled by the inside automatic
dimming mirror and can be turned on
or off by pressing the button at the
base of the inside mirror. The mirror
will automatically adjust for head-
light glare when the inside mirror ad-
justs.

OUTSIDE MIRROR
FOLDING FEATURE

All outside mirrors are hinged and
may be moved either forward or rear-
ward to resist damage. The hinges
have three detent positions: full for-
ward, full rearward and normal.

POWER MIRRORS (for
versions/markets, where
provided)

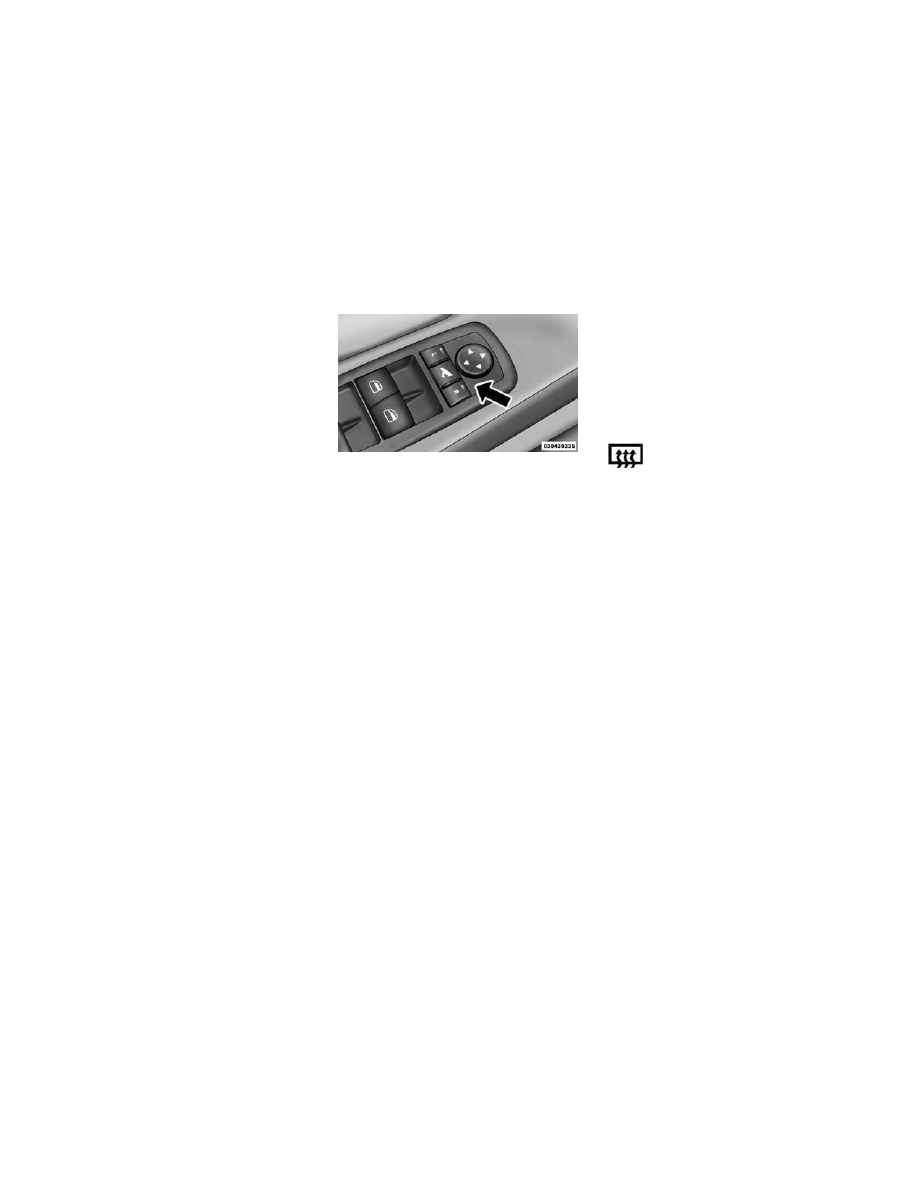

The power mirror controls are located
on the driver's door trim panel.

The power mirror controls consist of
mirror select buttons and a four-way
mirror control switch. To adjust a mir-
ror, press either the L (left) or R
(right) to select button the mirror that
you want to adjust.

NOTE: A light in the selected but-
ton will illuminate indicating the
mirror is activated and can be ad-
justed.

Using the mirror control switch, press
on any of the four arrows for the di-
rection that you want the mirror to
move.

Driver's side power mirror preselected
positions can be controlled by the op-
tional Driver Memory Seat Feature.
Refer to “Driver Memory Seat” in

“Understanding the Features Of Your
Vehicle” for further information.

HEATED MIRRORS (for
versions/markets, where
provided)

These mirrors are heated to
melt frost or ice. This feature is

activated whenever you turn on the
rear window defroster. Refer to “Rear
Window Features” in “Understanding
the Features of Your Vehicle” for fur-
ther information.

TILT MIRRORS IN
REVERSE (available with
memory seat only), (for
versions/markets, where
provided)

Tilt Mirrors in Reverse provides auto-
matic outside mirror positioning
which will aid the drivers view of the
ground rearward of the front doors.
The driver's outside mirror will move
slightly downward from the present
position when the vehicle is shifted
into REVERSE. The driver's outside

Power Mirror Controls

83

-------------------------------------------------------------------------------------------------------------------------------------------------------------

mirror will then return to the original
position when the vehicle is shifted
out of REVERSE position. Each
stored memory setting will have an
associated Tilt Mirrors in Reverse po-
sition.

NOTE: The Tilt Mirrors in Re-
verse feature is not enabled when
delivered from the factory. The Tilt
Mirrors in Reverse feature can be
enabled or disabled in the Elec-
tronic Vehicle Information Center
(EVIC). Refer to “Electronic Ve-
hicle Information Center (EVIC)/
Customer-Programmable

Fea-

tures” in “Understanding Your
Instrument Panel” for further in-
formation.

POWER FOLDING
MIRRORS (for
versions/markets, where
provided)

The switch for the power folding mir-
rors is located between the power mir-
ror switches L (left) and R (right).
Press the switch once and the mirrors

will fold in, pressing the switch a sec-
ond time will return the mirrors to the
normal driving position.

If the mirrors are in the folded posi-
tion, and vehicle speed is equal or
greater than 16 km/h, they will auto-
matically unfold.

ILLUMINATED VANITY
MIRRORS (for
versions/markets, where
provided)

An illuminated vanity mirror is lo-
cated on the sun visor. To use the
mirror, rotate the sun visor down and
swing the mirror cover upward. The
lights turn on automatically. Closing
the mirror cover turns off the lights.

BLIND SPOT
MONITORING (BSM) (for
versions/markets, where
provided)

The Blind Spot Monitoring (BSM)
system uses two radar-based sensors,
located inside the rear bumper fascia,
to detect highway licensable vehicles
(automobiles, trucks, motorcycles,
etc.) that enter the blind spot zones
from the rear/front/side of the ve-
hicle.

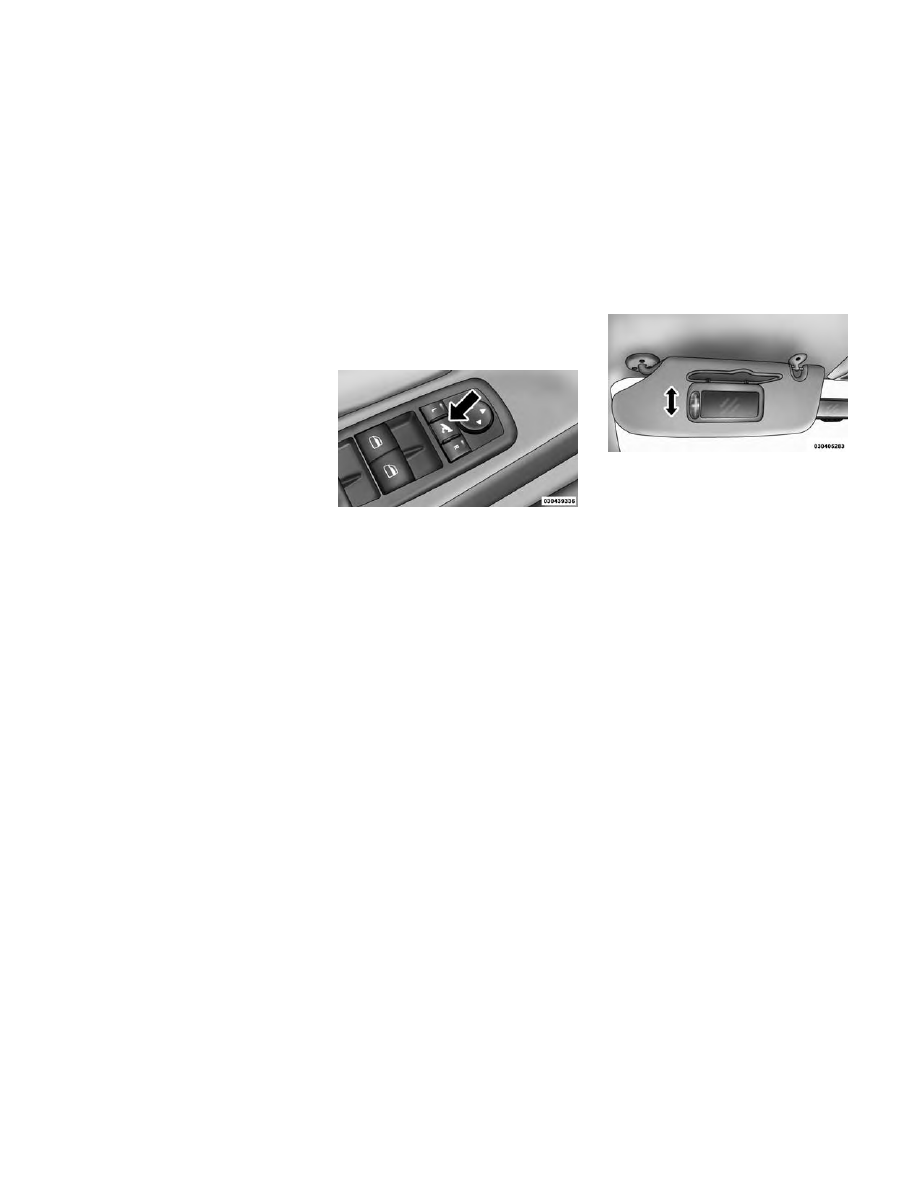

Power Folding Mirror Switch

Illuminated Mirror

84

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When the vehicle is started, the BSM
warning light will momentarily illu-
minate in both outside rear view mir-
rors to let the driver know that the
system is operational. The BSM sys-
tem sensors operate when the vehicle
is in any forward gear or REVERSE
and enters stand-by mode when the
vehicle is in PARK.

The BSM detection zone covers ap-
proximately one lane on both sides of
the vehicle or 3.8 m. The zone starts
at the outside rear view mirror and
extends approximately 7 m to the rear
of the vehicle. The BSM system moni-
tors the detection zones on both sides
of the vehicle when the vehicle speed
reaches approximately 10 km/h or
higher and will alert the driver of ve-
hicles in these areas.

NOTE:

• The BSM system does NOT alert

the driver about rapidly ap-
proaching vehicles that are out-
side the detection zones.

• The BSM system detection zone

DOES NOT change if your ve-
hicle is towing a trailer. There-
fore, visually verify the adjacent
lane is clear for both your ve-
hicle and trailer before making
a lane change. If the trailer or
other object (i.e., bicycle, sports
equipment) extends beyond the
side of your vehicle, this may re-
sult in the BSM warning light
remaining illuminated the en-
tire time the vehicle is in a for-
ward gear.

The area on the rear fascia where the
radar sensors are located must remain
free of snow, ice, and dirt/road con-
tamination so that the BSM system
can function properly. Do not block
the area of the rear fascia where the
radar sensors are located with foreign
objects (bumper stickers, bicycle
racks, etc.).

The BSM system notifies the driver of
objects in the detection zones by illu-
minating the BSM warning light lo-
cated in the outside mirrors in addi-
tion to sounding an audible (chime)
alert and reducing the radio volume.
Refer to “Modes Of Operation” for
further information.

The BSM system monitors the detec-
tion zone from three different entry
points (side, rear, front) while driving

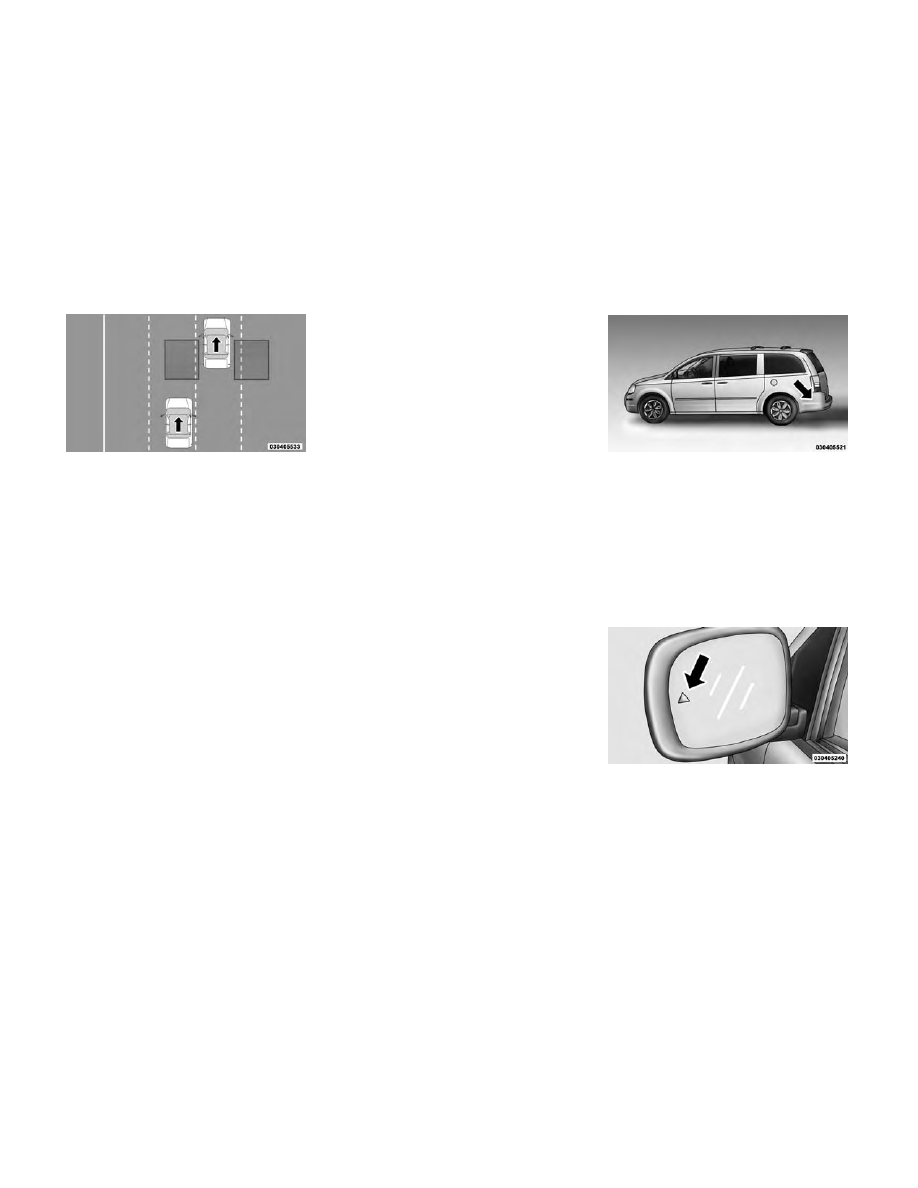

Rear Detection Zones

Sensor Locations

BSM Warning Light

85

-------------------------------------------------------------------------------------------------------------------------------------------------------------

to see if an alert is necessary. The BSM
system will issue an alert during these
types of zone entries.

Entering From The Side

Vehicles that move into your adjacent
lanes from either side of the vehicle.

Entering From The Rear

Vehicles that come up from behind
your vehicle on either side and enter
the rear detection zone with a relative
speed of less than 48 km/h.

Overtaking Traffic

If you pass another vehicle slowly
with a relative speed of less than
24 km/h and the vehicle remains in
the blind spot for approximately 1.5
seconds, the warning light will be il-
luminated. If the difference in speed
between the two vehicles is greater
than 24 km/h, the warning light will
not illuminate.

The BSM system is designed not to
issue an alert on stationary objects
such as guardrails, posts, walls, foli-
age, berms, etc. However, occasion-
ally the system may alert on such ob-
jects. This is normal operation and
your vehicle does not require service.

The BSM system will not alert you of
objects that are traveling in the oppo-
site direction of the vehicle in adjacent
lanes.

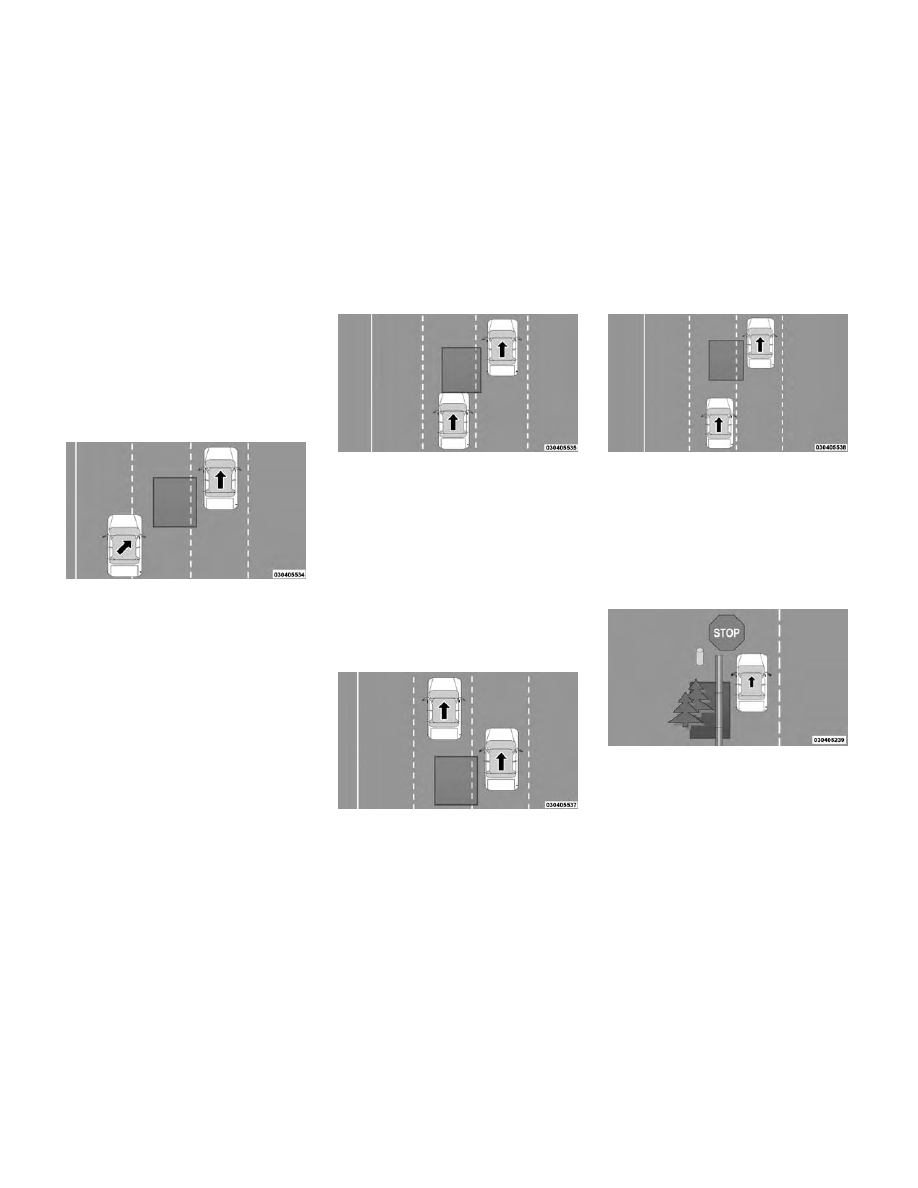

Side Monitoring

Rear Monitoring

Overtaking/Approaching

Overtaking/Passing

Stationary Objects

86

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING!

The Blind Spot Monitoring system
is only an aid to help detect objects
in the blind spot zones. The BSM
system is not designed to detect pe-
destrians, bicyclists, or animals.
Even if your vehicle is equipped
with the BSM system, always check
your vehicle's mirrors, glance over
your shoulder, and use your turn
signal before changing lanes. Fail-
ure to do so can result in serious
injury or death.

REAR CROSS PATH (for
versions/markets, where
provided)

The Rear Cross Path (RCP) feature is
intended to aid the driver when back-
ing out of parking spaces where their
vision of oncoming vehicles may be
blocked. Proceed slowly and cautiously
out of the parking space until the rear
end of the vehicle is exposed. The RCP
system will then have a clear view of
the cross traffic and if an oncoming
vehicle is detected, alert the driver.

RCP monitors the rear detection
zones on both sides of the vehicle, for
objects that are moving toward the
side of the vehicle with a minimum
speed of approximately 5 km/h, to
objects moving a maximum of ap-
proximately 32 km/h, such as in
parking lot situations.

NOTE: In a parking lot situation,
oncoming vehicles can be ob-
scured by vehicles parked on ei-
ther side. If the sensors are
blocked by other structures or ve-
hicles, the system will not be able
to alert the driver.

When RCP is on and the vehicle is in
REVERSE, the driver is alerted using
both the visual and audible alarms,
including reducing the radio volume.

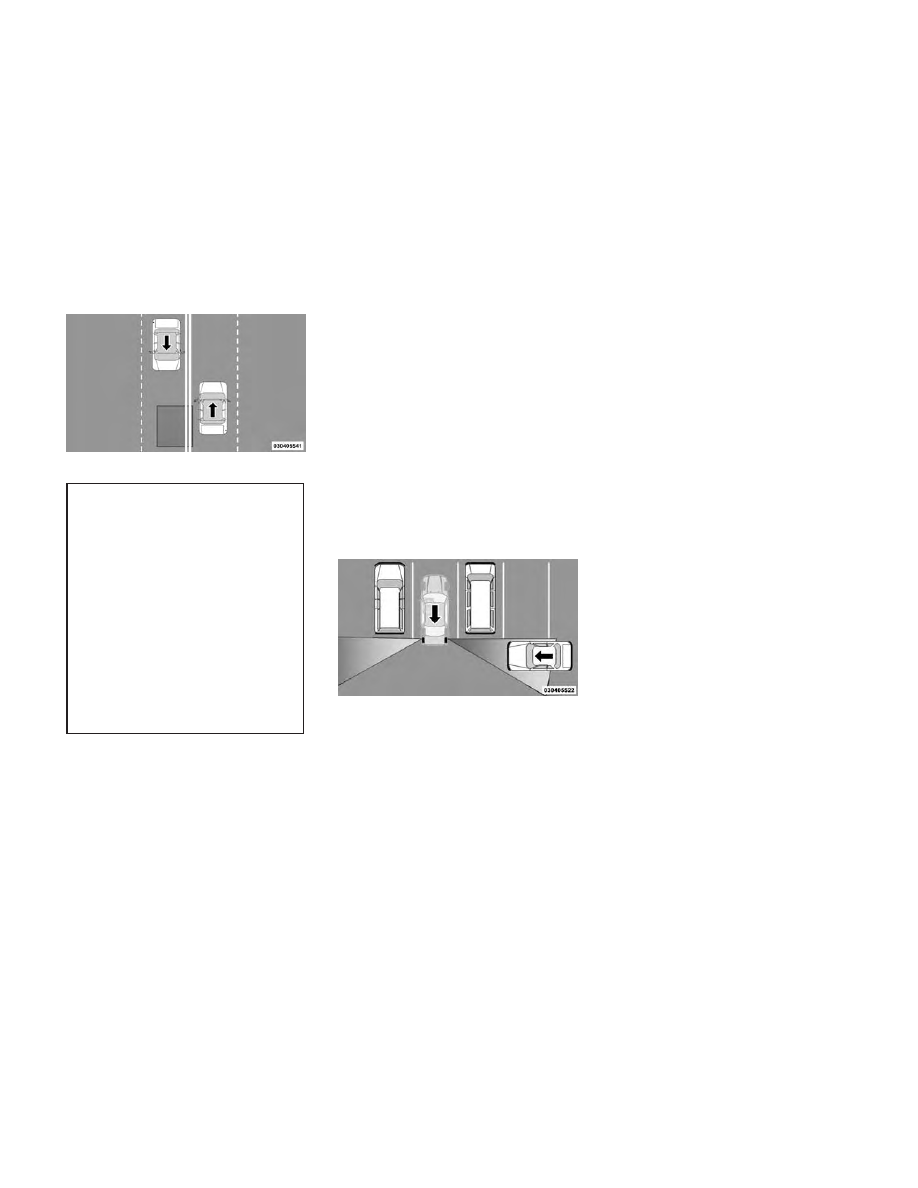

Opposing Traffic

RCP Detection Zones

87

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING!

RCP is not a Back Up Aid system. It
is intended to be used to help a
driver detect an oncoming vehicle
in a parking lot situation. Drivers
must be careful when backing up,
even when using RCP. Always
check carefully behind your ve-
hicle, look behind you, and be sure
to check for pedestrians, animals,
other vehicles, obstructions, and
blind spots before backing up. Fail-
ure to do so can result in serious
injury or death.

MODES OF OPERATION

Modes Of Operation With EVIC

Three selectable modes of operation
are available in the Electronic Vehicle
Information Center (EVIC). Refer to
“Electronic Vehicle Information Cen-
ter

(EVIC)/Personal

Settings

(Customer-Programmable

Fea-

tures)” in “Understanding Your In-
strument Panel” for further informa-
tion.

Modes

Of

Operation

With

Uconnect®

System

(for

versions/markets,

where

pro-

vided)

Three selectable modes of operation
are available in the Uconnect® sys-
tem screen. Refer to “Customer- Pro-
grammable Features — Uconnect®
Access settings ” in “Understanding
Your Instrument Panel” for further
information.

Blind Spot Alert Lights Only

When operating in Blind Spot Alert
mode, the BSM system will provide a
visual alert in the appropriate side
view mirror based on a detected ob-
ject. However, when the system is op-
erating in RCP, the system will re-
spond with both visual and audible
alerts when a detected object is pres-
ent. Whenever an audible alert is re-
quested, the radio volume is reduced.

Blind Spot Alert Lights/Chime

When operating in Blind Spot Alert
Lights/Chime mode, the BSM system
will provide a visual alert in the ap-
propriate side view mirror based on a

detected object. If the turn signal is
then activated, and it corresponds to
an alert present on that side of the
vehicle, an audible chime will also be
sounded. Whenever a turn signal and
detected object are present on the
same side at the same time, both the
visual and audio alerts will be issued.
In addition to the audible alert the
radio (if on) volume will be reduced.

NOTE:

• Whenever an audible alert is re-

quested by the BSM system, the
radio volume is reduced.

• If the hazard flashers are on, the

system will request the appropriate
visual alert only.

When the system is in RCP, the system
shall respond with both visual and
audible alerts when a detected object
is present. Whenever an audible alert
is requested, the radio volume is re-
duced. Turn/hazard signal status is
ignored; the RCP state always re-
quests the chime.

88

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Blind Spot Alert Off

When the BSM system is turned off
there will be no visual or audible
alerts from either the BSM or RCP
systems.

NOTE: The BSM system will store
the current operating mode when
the vehicle is shut off. Each time
the vehicle is started the previ-
ously stored mode will be recalled
and used

Uconnect® PHONE

NOTE: For

Uconnect®

Phone

with Navigation or Multimedia ra-
dio, refer to the Navigation or Mul-
timedia radio's User's Manual
(separate

booklet)

Uconnect®

Phone section.

Uconnect®

Phone

is

a

voice-

activated, hands-free, in-vehicle com-
munications

system.

Uconnect®

Phone allows you to dial a phone
number with your mobile phone* us-
ing simple voice commands (e.g.,
“Call”…“Jim”…

“Work”

or

“Dial”…“151-1234 -5555”). Your
mobile phone's audio is transmitted

through your vehicle's audio system;
the system will automatically mute
your radio when using the Uconnect®
Phone.

Uconnect® Phone allows you to
transfer calls between the Uconnect®
Phone and your mobile phone as you
enter or exit your vehicle and enables
you to mute the Uconnect® Phone's
microphone for private conversation.

The Uconnect® Phone is driven
through your Bluetooth® “Hands-
Free

profile”

mobile

phone.

Uconnect®

Phone

features

Bluetooth® technology - the global
standard that enables different elec-
tronic devices to connect to each other
without wires or a docking station, so
Uconnect® Phone works no matter
where you stow your mobile phone
(be it your purse, pocket, or brief-
case), as long as your phone is turned
on and has been paired to the vehicle's
Uconnect® Phone. The Uconnect®
Phone allows up to seven mobile
phones to be linked to the system.
Only one linked (or paired) mobile
phone

can

be

used

with

the

Uconnect® Phone at a time. The
Uconnect® Phone is available in Eng-
lish, Dutch, French, German, Italian
or Spanish languages (as equipped).

WARNING!

Any voice commanded system
should be used only in safe driving
conditions following all applicable
laws, including laws regarding
phone use. Your attention should be
focused on safely operating the ve-
hicle. Failure to do so may result in
a collision causing serious injury or
death.

Uconnect® Phone Button

The radio or steering wheel
controls will contain the
two

control

buttons

(Uconnect® Phone

but-

ton and Voice Command

button)

that will enable you to access the sys-
tem. When you press the button you
will hear the word Uconnect® fol-
lowed by a BEEP. The beep is your
signal to give a command.

89

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Voice Command Button

Actual button location may
vary with radio. The indi-
vidual buttons are described
in the “Operation” section.

The Uconnect® Phone can be used
with Hands-Free Profile certified
Bluetooth® mobile phones. Some
phones may not support all the
Uconnect® Phone features. Refer to
your mobile service provider or the
phone manufacturer for details.

The Uconnect® Phone is fully inte-
grated with the vehicle's audio sys-
tem. The volume of the Uconnect®
Phone can be adjusted either from the
radio volume control knob or from the
steering wheel radio control, if so
equipped.

The radio display will be used for
visual prompts from the Uconnect®
Phone such as CELL or caller ID on
certain radios.

COMPATIBLE PHONES

* The Uconnect® Phone requires a
mobile phone equipped with the
Bluetooth® “Hands-Free Profile”,
version 1.0 or higher.

See Uconnect® website for supported
phones.

• www.UconnectPhone.com

To find the list of compatible phones
navigate

through

the

following

menus:

• Select model year for the vehicle

• Select type of the vehicle

• In the getting started tab, select

compatible phones

OPERATION

Voice commands can be used to oper-
ate the Uconnect® Phone and to navi-
gate through the Uconnect® Phone
menu structure. Voice commands are
required after most Uconnect® Phone
prompts. You will be prompted for a
specific command and then guided
through the available options.

• Prior to giving a voice command,

one must wait for the beep, which
follows the “Ready” prompt or an-
other prompt.

• For certain operations, compound

commands can be used. For ex-
ample, instead of saying “Setup”
and then “Phone Pairing”, the fol-
lowing compound command can be
said: “Setup Phone Pairing”.

• For each feature explanation in this

section, only the compound form of
the voice command is given. You
can also break the commands into
parts and say each part of the com-
mand when you are asked for it.
For example, you can use the com-
pound

form

voice

command

“Phonebook New Entry”, or you
can break the compound form
command into two voice com-
mands: “Phonebook” and “New
Entry”.

Please

remember,

the

Uconnect® Phone works best when
you talk in a normal conversational
tone, as if speaking to someone sit-
ting a few meters away from you.

90

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Voice Command Tree

Refer to “Voice Tree” in this section.

Cancel Command

At any prompt, after the beep, you
can say “Cancel” and you will be re-
turned to the main menu. However, in
a few instances the system will take
you back to the previous menu.

Help Command

If you need assistance at any prompt,
or if you want to know your options at
any prompt, say “Help” following the
beep. The Uconnect® Phone will play
all the options at any prompt if you
ask for help.

To activate the Uconnect® Phone
from idle, simply press the

button

and follow the audible prompts for
directions. All Uconnect® Phone ses-
sions begin with a press of the

but-

ton on the radio control head.

Pair (Link) Uconnect® Phone To
A Mobile Phone

To begin using your Uconnect®
Phone, you must pair your compat-
ible

Bluetooth®

enabled

mobile

phone (refer to “Compatible Phones”
section to learn about the phone
type).

To complete the pairing process, you
will need to reference your mobile
phone

owner's

manual.

The

Uconnect® website may also provide
detailed instructions for pairing.

The following are general phone to
Uconnect® Phone pairing instruc-
tions:

• Press the

button to begin.

• After the “Ready” prompt and the

following beep, say “Setup Phone
Pairing”.

• When prompted, after the beep, say

“Pair a Phone” and follow the au-
dible prompts.

• You will be asked to say a four-digit

Personal

Identification

Number

(PIN), which you will later need to
enter into your mobile phone. You
can enter any four-digit PIN. You
will not need to remember this PIN
after the initial pairing process.

• For identification purposes, you

will be prompted to give the
Uconnect® Phone a name for your
mobile phone. Each mobile phone
that is paired should be given a
unique phone name.

• You will then be asked to give your

mobile phone a priority level be-
tween 1 and 7, with 1 being the
highest priority. You can pair up to
seven mobile phones to your
Uconnect® Phone. However, at any
given time, only one mobile phone
can be in use, connected to your
Uconnect® System. The priority
allows the Uconnect® Phone to
know which mobile phone to use if
multiple mobile phones are in the
vehicle at the same time. For ex-
ample, if priority 3 and priority 5
phones are present in the vehicle,
the Uconnect® Phone will use the
priority 3 mobile phone when you
make a call. You can select to use a
lower priority mobile phone at any
time (refer to “Advanced Phone
Connectivity”).

91

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Dial By Saying A Number

• Press the

button to begin.

• After the “Ready” prompt and the

following beep, say “Dial.”

• The system will prompt you to say

the number you want to call.

• For

example,

you

can

say

“151-1234-5555.”

• The Uconnect® Phone will confirm

the phone number and then dial.
The number will appear in the dis-
play of certain radios.

Call By Saying A Name

• Press the

button to begin.

• After the “Ready” prompt and the

following beep, say “Call.”

• The system will prompt you to say

the name of the person you want to
call.

• After the “Ready” prompt and the

following beep, say the name of the
person you want to call. For ex-
ample, you can say “John Doe”,
where John Doe is a previously

stored

name

entry

in

the

Uconnect® Phonebook or down-
loaded phonebook. To learn how to
store a name in the phonebook ,
refer to “Add Names to Your
Uconnect® Phonebook”.

• The Uconnect® Phone will confirm

the name and then dial the corre-
sponding phone number, which
may appear in the display of certain
radios.

Add Names To Your Uconnect®
Phonebook

NOTE:

Adding names to the

Uconnect® Phonebook is recom-
mended when the vehicle is not in
motion.

• Press the

button to begin.

• After the “Ready” prompt and the

following beep, say “Phonebook
New Entry”.

• When prompted, say the name of

the new entry. Use of long names
helps the Voice Command and it is

recommended. For example, say
“Robert Smith” or “Robert” in-
stead of “Bob”.

• When prompted, enter the number

designation

(e.g.,

“Home”,

“Work”, “Mobile”, or “Other”).
This will allow you to store multiple
numbers for each phonebook entry,
if desired.

• When prompted, recite the phone

number for the phonebook entry
that you are adding.

After you are finished adding an entry
into the phonebook, you will be given
the opportunity to add more phone
numbers to the current entry or to
return to the main menu.

The Uconnect® Phone will allow you
to enter up to 32 names in the phone-
book with each name having up to
four associated phone numbers and
designations. Each language has a
separate 32-name phonebook acces-
sible only in that language. In addi-
tion, for versions/markets, where pro-
vided, and supported by your phone,

92

-------------------------------------------------------------------------------------------------------------------------------------------------------------
