CD Changer Unit

REMOVING/INSERTING THE MAGAZINE

Loading & unloading the magazine

ICE0096

Fully open the sliding cover (1) to insert or remove the magazine.

Keep the cover closed at all other times to prevent dust and dirt

ICE0043

from entering. Press the button (2) to eject the magazine.

Holding the magazine as shown (arrow on magazine casing

uppermost), remove each CD tray in turn.

Place a disc (label side uppermost) onto each tray - holding ONLY

the outside edge and centre hole of the disc. Load only one disc in

each tray. Correctly align the tray with the parallel slots on each

side of the magazine and slide the tray into the magazine.

To unload the magazine, hold the magazine with the arrow

uppermost, pull out each tray in turn, holding the tray securely so

as not to drop the disc. Unload one disc at a time and handle only

the edge and centre of the disc.

ICE0097A

NOTE: Additional magazines can be obtained from an MG Rover

dealer.

Insert the magazine (3) in the direction of the arrow marked on the

magazine casing and push it fully into the changer. Finally, close

the sliding cover.

162

CD Changer Unit

CARING FOR COMPACT DISCS

Dirt, dust, condensation and heat can damage discs. Always

IMPORTANT

observe the following precautions:

• Use standard 12cm CDs only.

NEVER touch the horizontal playing surface (the unlabelled side)

• DO NOT use irregularly shaped or damaged CDs - these may

of a disc! Handle discs by holding the outer edges, or the edge of

damage the compact disc changer.

the central hole and the outer edge, between finger and thumb.

•

8cm CD singles must NOT be used, even if a CD adaptor is

fitted.

ALWAYS return discs to their boxes after use (dirt detracts from

• If temperatures in excess of 70°C occur in the autochanger, the

the sound quality).

message ‘HIGH TEMP’ will be displayed - change to radio or

NEVER leave the disc or the box exposed to excessive heat or

tape mode until the unit has cooled.

direct sunlight!

• The CD autochanger should only be used as described - any

other application or method of use could result in the user being

NEVER use a solvent or abrasive cleaner! Dust or dirt should be

exposed to invisible laser radiation exceeding the limit of laser

removed from the playing surface by wiping with a clean, dry, lint-

class 1.

free cloth always wipe in a straight line from the centre to the edge

of the disc!

163

Care of Cassette Player and Tapes

CARE OF CASSETTE PLAYER AND TAPES

Cassette tapes

Use only good quality tapes with a maximum capacity of ninety

• Always store cassettes in their boxes when not in use.

minutes (C90). Check that both spools rotate freely and remove

• Never leave cassettes in the vehicle during extremes of

any loose turns at the start of the tape by winding one spool with

temperature. In particular, do not leave tapes in direct sunlight

a pen or pencil.

as they may warp and become unusable, or jam the tape player

mechanism.

Cassette player

• Fast forward, or rewind tapes every 8 to 10 plays to prevent

In use, the tape head accumulates dust and contamination,

them from becoming too tightly wound.

gradually impairing sound reproduction and, in extreme cases,

• Ensure that labels attached to the cassette are glued firmly in

reducing volume too. To combat contamination, clean the tape

place.

head periodically (after approximately every 20 hours playing

time) by passing a wet type cleaning cassette through the player.

• DO NOT leave tapes in the cassette player for more than a few

hours in very cold or humid conditions - the oxides on the tape

NOTE: Because your cassette player is fitted with auto reverse, the

surface may contaminate the cassette player mechanism.

cleaning cassette must be played in both directions.

NOTE: After continuous playing, cassettes may become hot to touch.This

The tape will require more frequent cleaning in winter, as

is normal and will not harm good quality tape.

contamination is greater in conditions of low temperature and

increased humidity. However, the use of good quality tapes keeps

the build up to a minimum.

164

Satellite Navigation

INTRODUCTION

• Audio and visual destination guidance, including automatically

updated instructions (in case of ignored instructions, or if road

works cause a diversion). Audio instruction is provided via a

speaker located in the driver’s footwell. Visual instruction is

displayed in the message centre in the upper centre of the

instrument pack.

• General information on destination and present location

(hotels, restaurants, parking etc).

• An address book to store frequently needed destinations.

There are 24 GPS satellites in orbit (at a height of 21,000 km)

around the earth. The GPS navigation system will pick up and

utilise any available signals to plot your position. To accurately

determine your position, the GPS receiver needs to be able to pick

H2931

up the signals from at least four satellites.

The satellite navigation system fitted to your car uses the Global

Obstacles such as tall buildings, tunnels and mountains can

Positioning System (GPS). GPS works in conjunction with

sometimes shield a vehicle from satellite signals, which may cause

direction and speed sensors incorporated into the car’s electronic

a temporary interruption to the operation of the navigation system.

systems, to continually monitor the position of the car. The

However, the car’s direction and speed sensors minimise any effect

navigation computer then integrates this data with the information

on the performance of the navigation system, if this should occur.

stored on the navigation CD, enabling you to plan and follow a

Normal operation will resume once the obstruction has been

route map to your desired destination. This is particularly useful if

passed.

you are travelling to or through unfamiliar territory.

The navigation system is designed only as a guide and does not

In addition, the satellite navigation system provides the following

relieve the driver of the responsibility for driving in accordance

facilities:

with traffic regulations.

• Recommended routes allowing for personal preferences (fastest

route, without using motorways etc).

In the interests of road safety, information should only be

programmed into the navigation system when the car is stationary.

• Destination input using either town /road name, or by

selecting a point of interest.

165

Satellite Navigation

OPERATING INFORMATION

The navigation system can only provide information and guidance

for the area covered by the navigation CD - ensure that you are

using the latest version of the correct CD for your country.

Some maps contain areas of unattributed geometry. In these areas

the navigation system will announce that “you are leaving the

registered road network”. The navigation screen will revert to a

‘Target Direction Arrow’ which displays the direction and distance

to your destination ‘as the crow flies’. No audible instructions will

be given in these areas,.

NOTE: Navigation CDs are updated approximately every 6 months and

you will automatically receive the first update free, along with information

on how to order further updates.

Under normal operating conditions, the satellite navigation system

requires approximately 8 seconds to confirm the car's position

using the satellites.

If the car battery has been disconnected, or if the car has been

transported to a new location on another vehicle (e.g. by trailer or

train), the navigation system will require approximately 15

minutes to identify the new position. Entering the new location

manually will reduce this delay (see ‘ENTERING THE CAR’S

POSITION’, page 178).

Metallic objects interfere with satellite signal reception. For this

reason, do not store any metallic objects in close proximity to the

satellite receiver, located on the rear shelf.

166

Satellite Navigation

INSTALLING THE NAVIGATION CD

To eject the navigation CD press the eject button (1).

NOTE: If the navigation system is switched on and there is no navigation

CD loaded, the warning ‘NOTE: NO CD IN NAV. -

COMPUTER! PLEASE INSERT CD!’ will appear in the display.

Insert the CD and wait for a few seconds until the display reverts to the

GPS display.

CD-IN

H2902

The navigation computer is located on the right hand side of the

luggage compartment. Check that the ‘ON’ indicator light is

illuminated, if not, press the eject button (1) to activate the system.

Partially insert the navigation CD until it is automatically drawn

into the computer (the ‘CD-IN’ indicator light will illuminate).

DO NOT insert any CD into the navigation computer, other

than a genuine navigation CD.

Once the navigation CD is loaded, it is unnecessary to remove it

unless the following applies:

• You are travelling in an area not covered by the current CD

(another country, for example). Obtain the correct CD for the

new country and install it at the appropriate time.

• If you are updating the computer with the latest version of the

navigation CD (the CDs are updated approximately every 6

months).

167

Satellite Navigation

USER CONTROLS

4. Re-route control

Press to select the re-route function, then rotate the menu select

control to set the detour distance (to avoid roadworks or traffic

queues, for example). Press the menu select control to enter the

detour distance.

When the navigation computer has plotted the new route, audio

and visual instructions are given.

5. Repeat control

Press to listen to the last audio navigation instruction for a second

time. The repeat function will only operate if the last instruction

H2903

given is still valid.

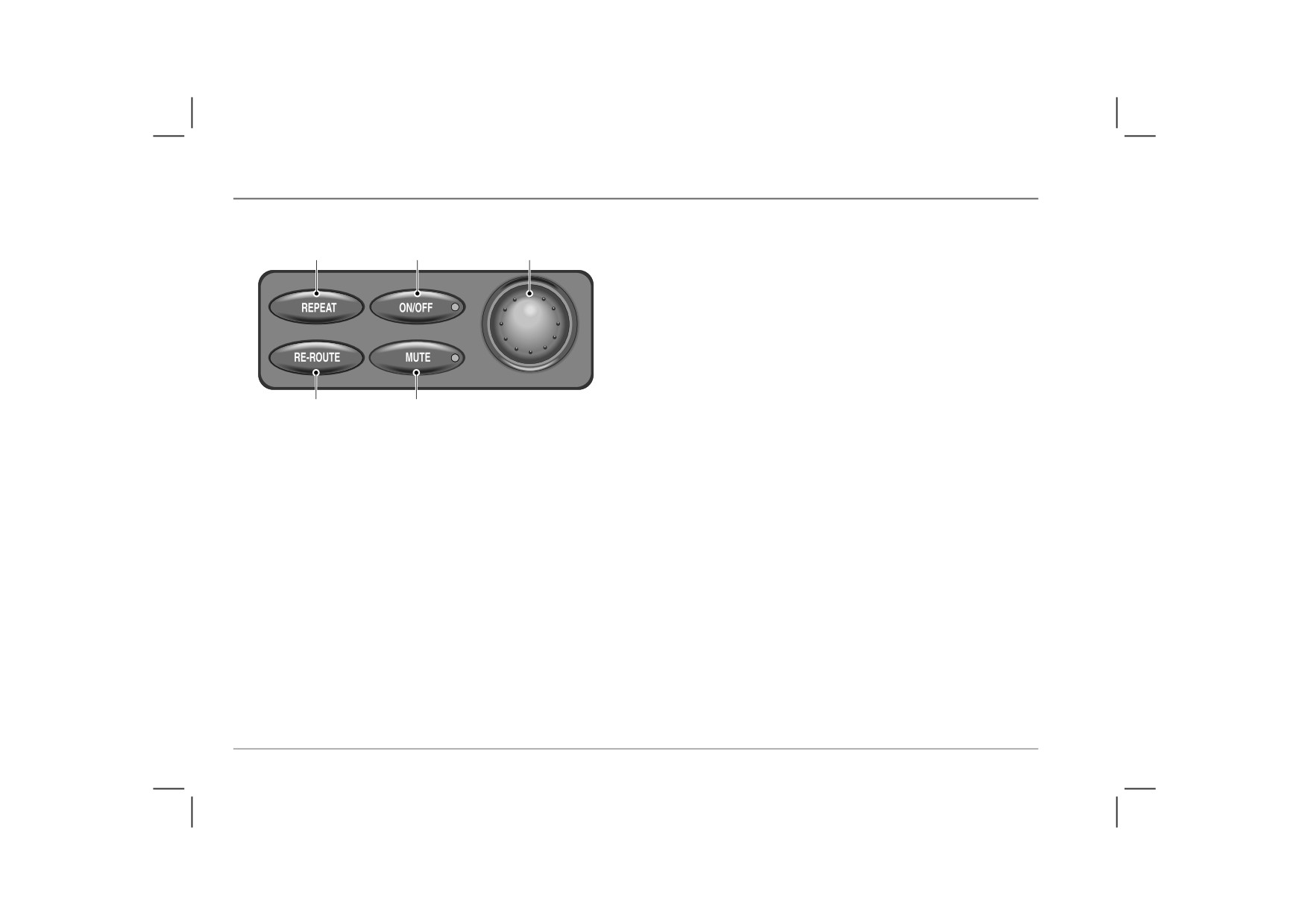

1. Navigation on/off control

Press to turn the navigation system on or off (the switch indicator

light illuminates when the navigation system is turned on).

2. Menu select control

The menu select control operates most functions of the navigation

system.

Rotate the control clockwise to scroll up through a vertical menu

and from left to right on a horizontal menu. Rotate the control

anti-clockwise to scroll down through a vertical menu and from

right to left on a horizontal menu.

Press the control to select the highlighted option.

3. Audio mute control

Press to mute the audio navigation instructions (the switch

indicator light illuminates). Press again to reactivate audio

instructions.

168

Satellite Navigation

NAVIGATION DISPLAY

DISPLAY SYMBOLS

The escape icon

Using the menu select control, highlight and select this icon

to return to the previous menu without altering any

HOWARD ST .

information programmed into the navigation computer.

350 m

Arrows

This symbol indicates that there is an additional screen

‘above’ the display currently being viewed. Rotate the menu

select control clockwise to scroll up to the next screen.

This symbol indicates that there is an additional screen

‘below’ the display currently being viewed. Rotate the menu

select control anti-clockwise to scroll down to the next screen.

This symbol indicates that there are additional screens, both

AS0015a

above and below the display currently being viewed. Use the

The navigation system shares the larger display panel at the top of

menu select control to scroll up or down to the next screen.

the instrument pack with the message centre. From time to time it

On menu displays, the display will revert to warning light display

may be necessary for message centre information to be displayed

after approximately 20 seconds of inactivity. Further operation of

while the navigation system is in use. In this case, the message

the menu select control will restore the navigation display.

centre display will alternate with the navigation display. However,

audible information accompanying navigation displays will be

On navigation guidance displays, the display reverts to the warning

unaffected.

light display, every twenty seconds (approx.). When the next

relevant navigation instruction is valid, the navigation guidance

display reappears (until the instruction is completed).

NOTE: New warnings in the message centre will always take precedence

over the navigation display.

169

Satellite Navigation

ENTERING A DESTINATION

Rotate the menu select control until the first letter of the town or

city is highlighted, then press the control to select. Repeat this

procedure until the full name of the country has been entered,

ENTER DESTINATION

then highlight ‘ENTER’ and press to select.

ADDRESS BOOK

NOTE: On the typewriter menu, the left pointing arrow deletes the last

POSITION INFO

selection, the right pointing arrow creates a space, and a dot replaces an

invalid letter or number.

DESTINATION INFO

As an aid to the selection process, when entering a name, the

navigation computer automatically displays only the letters that,

H2862

according to the computer, could follow the preceding letter to

With the navigation system turned on, turn the menu select

give a valid name. Once the navigation computer has been

control until ‘ENTER DESTINATION’ is highlighted, then

provided with enough information, the system may suggest a

press the control to select.

completed name before it is fully entered manually.

In most markets, the country is read from the navigation CD as a

Repeat this procedure to enter the road name and, if possible, the

default setting and is entered automatically. If this does not occur

house number of your destination.

a ‘typewriter’ menu appears and it will be necessary to enter the

NOTE: The navigation system can only give information on your

country name manually as you would the town or city, as follows:

destination when a valid country and town have been entered.

Using the index

CITY?

By highlighting and selecting ‘INDEX’ after entering a few letters

ABCDEFGHIJKLMNO

of either a town or road name, the relevant part of the index is

displayed. Rotate the menu select control to scroll through the

PQRSTUVW YZ

index until the correct destination is highlighted, then press the

control to select.

INDEX

H2863

Using the menu select control, highlight the ‘CITY?’ option, and

then press the control to select. A ‘typewriter’ menu appears in the

display.

170

Satellite Navigation

Using destination information

When entering a destination and the exact address is not known (if

you are travelling to a museum for example), the destination

DEST . INFO

information function enables you to select a specific building or

MONUMENT

monument as your destination.

MUSEUM

PARK + RIDE

ENTER DESTINATION

PARK/FITNESS

ADDRESS BOOK

H2870

POSITION INFO

• Scroll through the list until the desired category is highlighted

and press to select. A list of all available entries for the chosen

DESTINATION INFO

category is displayed. Scroll through the list to highlight and

select your chosen destination (see ‘INFORMATION ON

H2921

LOCATIONS’, page 177).

• From the main menu, highlight and select ‘DESTINATION

INFO’.

UNITED KINGDOM

O. -ABINGDON

ROAD?

DEST . INFO

H2919

• The display shows the last destination entered. Change the

destination town, if necessary, as described in ‘ENTERING A

DESTINATION’, page 170, then highlight and select

‘DEST.INFO’.

171

Satellite Navigation

Route preference

ROUTE SELECT.

UNITED KINGDOM

SHORTEST ROUTE

O. -ABINGDON

QUICKEST ROUTE

RADLEY RD.

VIA MOTORWAYS

DEST . GUIDE

H2867

H2866

•

‘SHORTEST ROUTE’ - this selection plots the shortest route

After selecting the chosen destination, highlight and select

possible (in terms of distance).

‘DEST.GUIDE’. The navigation computer asks whether you wish

•

‘QUICKEST ROUTE’ - this selection plots your route using

to travel using the last selected preference (see below).

the fastest roads and avoiding town centres etc.

•

‘VIA MOTORWAYS’ - motorways and main arterial roads

are given priority.

ROUTE PLANNING

•

‘AVOID MOTORWAYS’ - motorways are avoided,

USING

wherever possible (to select ‘AVOID MOTORWAYS’ it is

SHORTEST ROUTE

necessary to scroll down to the next screen of the menu).

Highlight and select your preferred choice of route.

YES

CHANGE

NOTE: The navigation system plots routes according to the road

H2922

information and characteristics stored on the navigation CD. Therefore, the

route suggested by the navigation system may differ from the route that may

If the last route preference is still valid, highlight and select ‘YES’.

be expected.

If you do not wish to use the last route preference, highlight and

select ‘CHANGE’. You can now choose one of four methods;

highlight and select your choice.

172

Satellite Navigation

ROUTE INFORMATION

VEHICLE POSITION

HOWARD ST .

UNITED KINGDOM

OXFORDSHIRE

350 m

ROMAN WAY

H2868

H2874F

Rotate the menu select control clockwise (for two ‘notches’) to

After the chosen route method is selected, the navigation

view the vehicle position screen, which states the country, town

computer displays the distance to the next relevant junction and

and road of the car's current position.

the direction which should be taken at that junction (a solid

arrow).

From this screen, rotate the menu select control anti-clockwise to

view the route information screen, which provides the following

information:

ROUTE INFORMATION

DISTANCE

6.5

REM. TIME

0:16

SHORTEST ROUTE

H2869

• Distance to destination.

• Remaining time to destination (estimated).

• Route preference (via motorways etc.).

173

Satellite Navigation

USING THE ADDRESS BOOK

Entering an address

ENTER DESTINATION

RETRIEVE ADDRESS

ADDRESS BOOK

ENTER ADDRESS

POSITION INFO

DELETE ADDRESS

DESTINATION INFO

LAST DESTINATION

H2923

H2928

•

From the main menu, highlight and select ‘ADDRESS

From the address book menu, highlight and select ‘ENTER

BOOK’

ADDRESS’. The last address programmed into the navigation

•

Select the required function from the address menu.

computer appears on the display, with an additional entry at the

top providing the facility to enter a name for the address. If this is

the address that you want to enter, highlight and select ‘NAME’;

use the alphanumerical menu to programme the chosen name and

then highlight and select ‘ENTER’. Then, from the enter address

menu, highlight and select ‘ENTER’ - the address is now listed in

the address book.

If you want to enter a different address, highlight and select each

part of the address in turn and enter using the ‘typewriter’ menu

(see ‘ENTERING A DESTINATION’, page 170).

174

Satellite Navigation

Retrieving an address

Deleting an address

RETRIEVE ADDRESS

ENTER ADDRESS

DELETE ADDRESS

LAST DESTINATION

H2929

H2927

From the address book menu, highlight and select ‘RETRIEVE

To delete an entry from the address book, highlight and select

ADDRESS’. The address that was last entered into the address

‘DELETE ADDRESS’ in the address book menu. Use the menu

book is displayed (along with an arrow to indicate that there are

select control to scroll through the addresses until the correct one

other addresses listed), as a default. Use the menu select control to

is displayed, then highlight and select ‘DELETE’. The display

scroll through the addresses until the correct one is displayed, then

returns to the address book menu. If you decide not to delete any

highlight and select ‘RECALL’. The destination guide screen is

of the addresses, highlight and select the ‘Escape’ icon.

then displayed (‘DEST.GUIDE’), see ‘Route preference’, page 172.

175

Satellite Navigation

Emptying the address book

Last destination

DELETE

RETRIEVE ADDRESS

ALL ENTRIES?

ENTER ADDRESS

DELETE ADDRESS

LAST DESTINATION

YES

H2930

H2872

From the address book menu, highlight (but not select) ‘DELETE

The navigation computer stores the last ten destinations

ADDRESS’ using the menu select control. Then, press and hold

programmed into the system. To recall an address, highlight and

the menu select control; the navigation computer asks you to

select ‘LAST DESTINATION’ from the address book menu. The

confirm that you want to delete all entries. If you do, highlight and

computer asks if you want to retrieve or delete an address from the

select ‘YES’, if not, highlight and select ‘NO’. If ‘YES’ is selected,

list, if you do, highlight and select the appropriate prompt. A list is

the display returns to the destination guide menu (see ‘Route

then displayed with either ‘RECALL’ or ‘DELETE’ at the bottom

preference’, page 172). If ‘NO’ is selected, the display will ask if you

of the display. Scroll through the list until the chosen address is

want to delete the last entry made in the address book (see ‘Deleting

displayed, then highlight and select ‘RECALL’ or ‘DELETE’. If

an address’, page 175).

the address is being recalled, the display returns to the destination

guide menu (see ‘Route preference’, page 172), if an address is being

deleted, or if the ‘Escape’ icon is selected, the display will revert to

the previous screen.

176

Satellite Navigation

INFORMATION ON LOCATIONS

Information on your destination

A large number of facilities associated with your current location,

Having entered a destination town or city, highlight and select the

or any listed destination town or city are stored on the navigation

escape icon to return to the main menu. Highlight and select

CD (e.g. hotels, airports, museums etc). These facilities can be

‘DESTINATION INFO’ from the main menu to display the

viewed and, if desired, can then be selected as your destination.

destination and ‘DEST. INFO’.

Highlight and select ‘DEST. INFO’, to display an alphabetical list

Information on current locations

of facilities in the vicinity of your destination.

This option can be used to find facilities closest to the car’s current

position; the nearest petrol station for example.

DEST . INFO

POSITION INFO

GOLF COURSE

PARK / FITNESS

HOSPITAL

PETROL STATION

HOTEL

RAILWAY STATION

MONUMENT

H2924

RESTAURANT

H2871

Scroll through the list, then highlight and select the desired facility

(e.g. hotels) to display the ‘typewriter’ menu. Use the typewriter

From the main menu, highlight and select ‘POSITION INFO’ to

menu to enter the hotel name, if known, or highlight and select

display an alphabetical list of facilities.

the index prompt to display a list of all the hotels close to your

Scroll through the list, then highlight and select the desired facility

destination.

(e.g. petrol stations), to display a list of up to ten of the closest

Scroll through the list until the hotel of your choice appears in the

petrol stations.

display, then highlight and select ‘RECALL’ to enter it as your

Scroll through the list until the petrol station of your choice

new destination. The new destination appears in the display, with

appears in the display, then highlight and select ‘RECALL’ to

‘DEST. GUIDE’ highlighted. Select this prompt if you wish to

enter it as your new destination. The new destination appears in

alter your route to the destination (see ‘Route preference’, page 172).

the display with ‘DEST. GUIDE’ highlighted. Select

‘DEST.GUIDE’ if you wish to alter your route to the destination

(see ‘Route preference’, page 172).

177

Rover 75. Service Manual - part 11
