Parking Heater
Remote handset controls
To deactivate the parking heater at any time during operation,
press and hold the ‘OFF’ button for approximately 1 second (or
1
until the indicator light illuminates constantly). The indicator light
should then stop flashing.
2
4
Checking the preset running time
3
The preset running time can be adjusted, in 10 minute increments,
between 10 minutes and 60 minutes. To check the duration of the
current programmed running time, press and release both the
‘ON’ and ‘OFF’ buttons simultaneously three times in quick
succession. The number of times the indicator light flashes
corresponds to the time (in minutes x 10) that the parking heater
HB0489
will operate for (e.g. a single flash = 10 minutes, 4 flashes = 40
minutes).

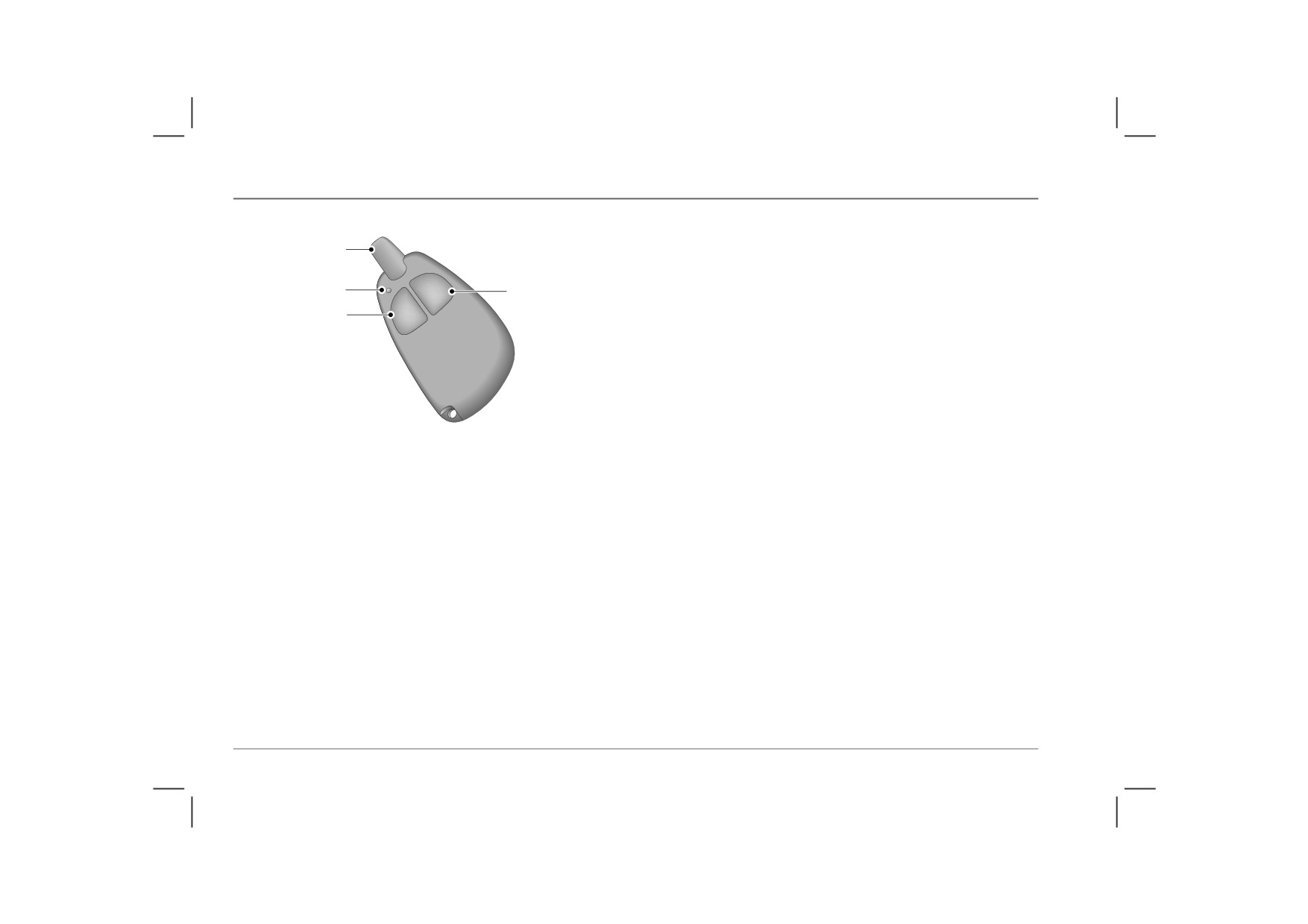

1. Aerial
2. Indicator light
If you do not wish to alter the running time, leave the handset for
3. ON button
10 seconds, after which it will return to operating mode.
4. OFF button
Operating the parking heater
To activate the parking heater, press and hold the ‘ON’ button for
approximately 1 second, or until the red indicator light in the
handset illuminates. The indicator light will then flash at 1 second
intervals, to indicate that the parking heater is operating.
If there is an error (if the handset is out of range, for example), the
indicator light will flash rapidly. If an error occurs, reduce the
distance between the handset and the car and press and hold the
‘ON’ button again.
NOTE: If the indicator light flashes orange, it indicates that the handset
batteries may need replacing (see ‘REPLACING THE HANDSET
BATTERIES’, page 52 for further information).
50
Parking Heater
Changing the preset running time
EFFECTS OF CAR BATTERY DISCONNECTION
Press and release both the ‘ON’ and ‘OFF’ buttons simultaneously
If the car battery is disconnected or discharged for a short time, the
1
three times in quick succession. The indicator light flashes as
timer control unit's programmed time settings and presets will be
described above. Within 10 seconds, press the ‘OFF’ button, to
lost (the control unit display flashes). The time and preset settings
increase the running time by 10 minutes - the indicator light will
will need to be re-entered before the system will operate
flash the correct number of times to confirm the new running time
automatically (see ‘SETTING & OPERATING THE PARKING
(one flash for 10 minutes, two flashes for twenty minutes et.c.).
HEATER’, page 47).
Continue to press and release the ‘OFF’ button until the desired
If the car battery is disconnected or discharged for a prolonged
running time is reached. To set the new running time, either
period of time, the remote handset may lose synchronisation with
briefly press the ‘ON’ button, or do not press any button for 10
the control unit. Although this is unlikely, the handset can be
seconds - the new running time is now set.
resynchronised by following the procedure detailed below.
IMPORTANT
SYNCHRONISING THE HANDSET/
PROGRAMMING ADDITIONAL HANDSETS
To avoid inadvertent drain on the car battery, it is not recommended
that the preset running time be increased from the default
If the remote handset has lost synchronisation with the parking
(30 minutes), except in extreme conditions.
heater receiver (if the car battery has been disconnected for a
prolonged period, for example), or if an additional handset is to be
programmed, the handset will need to be synchronised.
To return the running time to its default value (30 minutes), press
Disconnect the negative lead on the car battery for a minimum of
and hold both the ‘ON’ and ‘OFF’ buttons simultaneously for 10
5 seconds. Reconnect the negative lead and, within 2 seconds,
seconds, at which point the indicator light will extinguish.
press and hold the handset ‘OFF’ button for a further 2 seconds
(approximately). The handset indicator light will flash once to
confirm that the handset is now synchronised correctly. If the light
fails to flash, repeat the above procedure.
NOTE: Up to 2 additional remote handsets can be synchronised for use
with your parking heater. Replacement or additional handsets can be
ordered through your MG Rover dealer.
51
Parking Heater
REPLACING THE HANDSET BATTERIES
Battery replacement
Battery condition
The handset indicator light automatically informs the user of the
condition of the batteries when the handset is used. Press either of
the handset buttons and check the battery condition as follows:
Battery condition
Indicator light
Batteries good
Illuminates RED after 1 second, for
0.5 seconds.
Batteries low
Flashes ORANGE after 1 second,
for 3 seconds.
Replace batteries
Flashes ORANGE after 1 second,
for 5 seconds.
If the ambient temperature is lower than 0° C and the handset is
HB0490
cold, the batteries may falsely be indicated as needing replacement
(alkaline batteries do not operate as well in cold temperatures). If

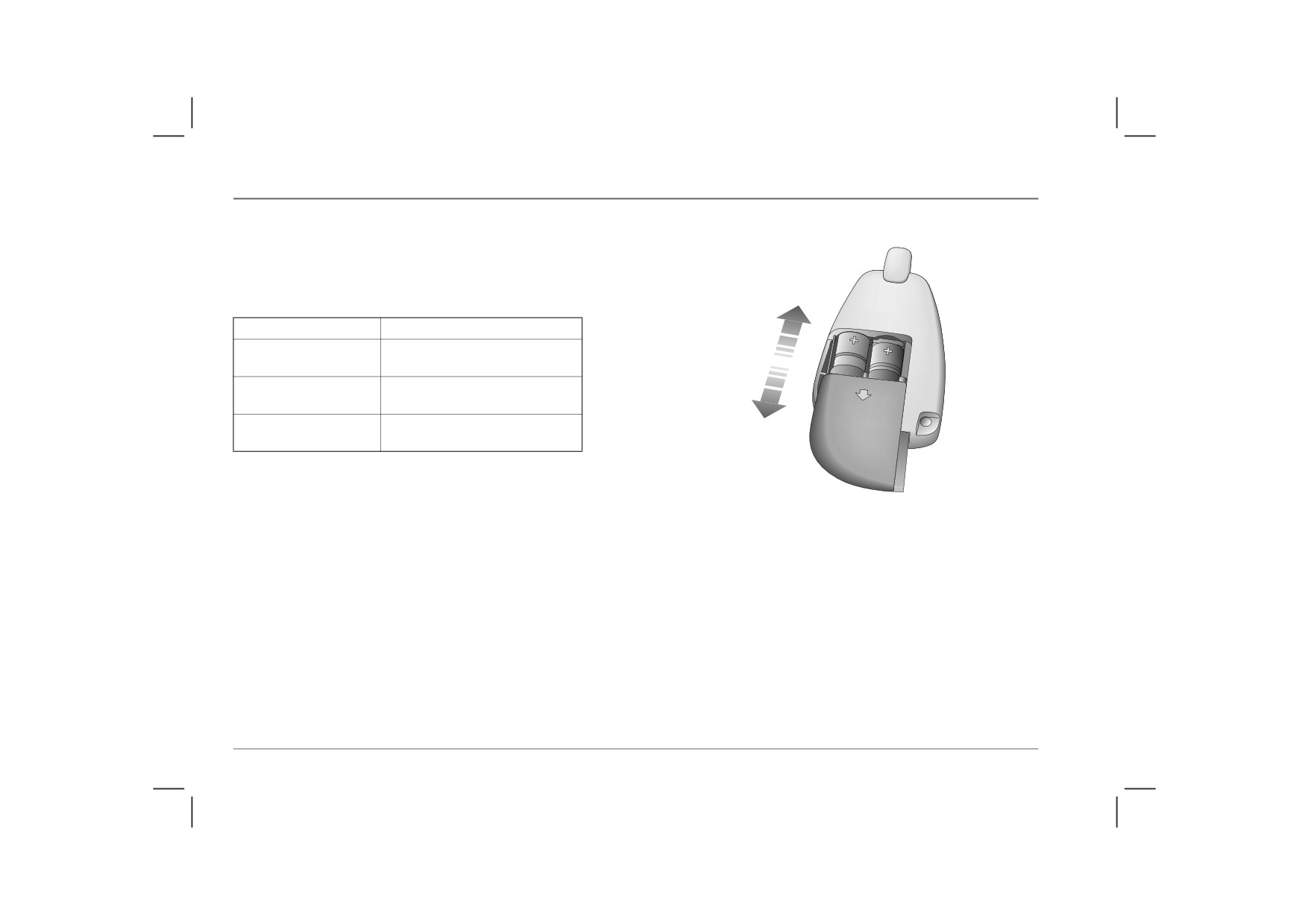

With the back of the remote handset facing uppermost, slide off
this occurs, place the handset somewhere warm (a pocket, for
the battery compartment cover and remove the discharged
example) until the batteries have warmed sufficiently to work
batteries. Replace with two MN21 12V alkaline batteries,
correctly.
ensuring that the correct battery polarity is maintained.
After replacing the batteries, ensure that the cover is refitted
securely.
52
Interior Equipment
Interior Equipment
FRONT COURTESY AND MAP READING LIGHTS
‘Permanent off’
If necessary, the automatic illumination features described above
1
can be switched off, as follows:
Press and hold the courtesy light switch (arrowed in illustration)
for a full 5 seconds. The interior lights (including the luggage
compartment light) will flash and then extinguish. Automatic
operation is now suppressed (manual operation is still available).
To restore automatic operation, repeat the above process (i.e. press
and hold the front courtesy light switch for a further 5 seconds).
H2675a
Manual operation
Press the appropriate switch to turn the courtesy or map reading
lights on, press again to turn off.
The front courtesy light switch (arrowed) will also operate the rear
courtesy lights.
Automatic operation
Courtesy light illumination occurs automatically whenever the car
is unlocked, when a door or the boot lid or tailgate is opened, or
when the starter switch is turned off, providing the headlights have
been illuminated during the previous 30 seconds. The lights
remain illuminated for 20 seconds after the doors are closed, or
until the starter switch is turned on.
After driving, the courtesy lights will fade and then extinguish 20
seconds after the last door is closed, or as soon as the car is locked.
NOTE: If a door or the boot is left open for longer than 16 minutes, a
‘time-out’ function will extinguish the interior lights automatically to
prevent the battery from discharging.
53
Interior Equipment

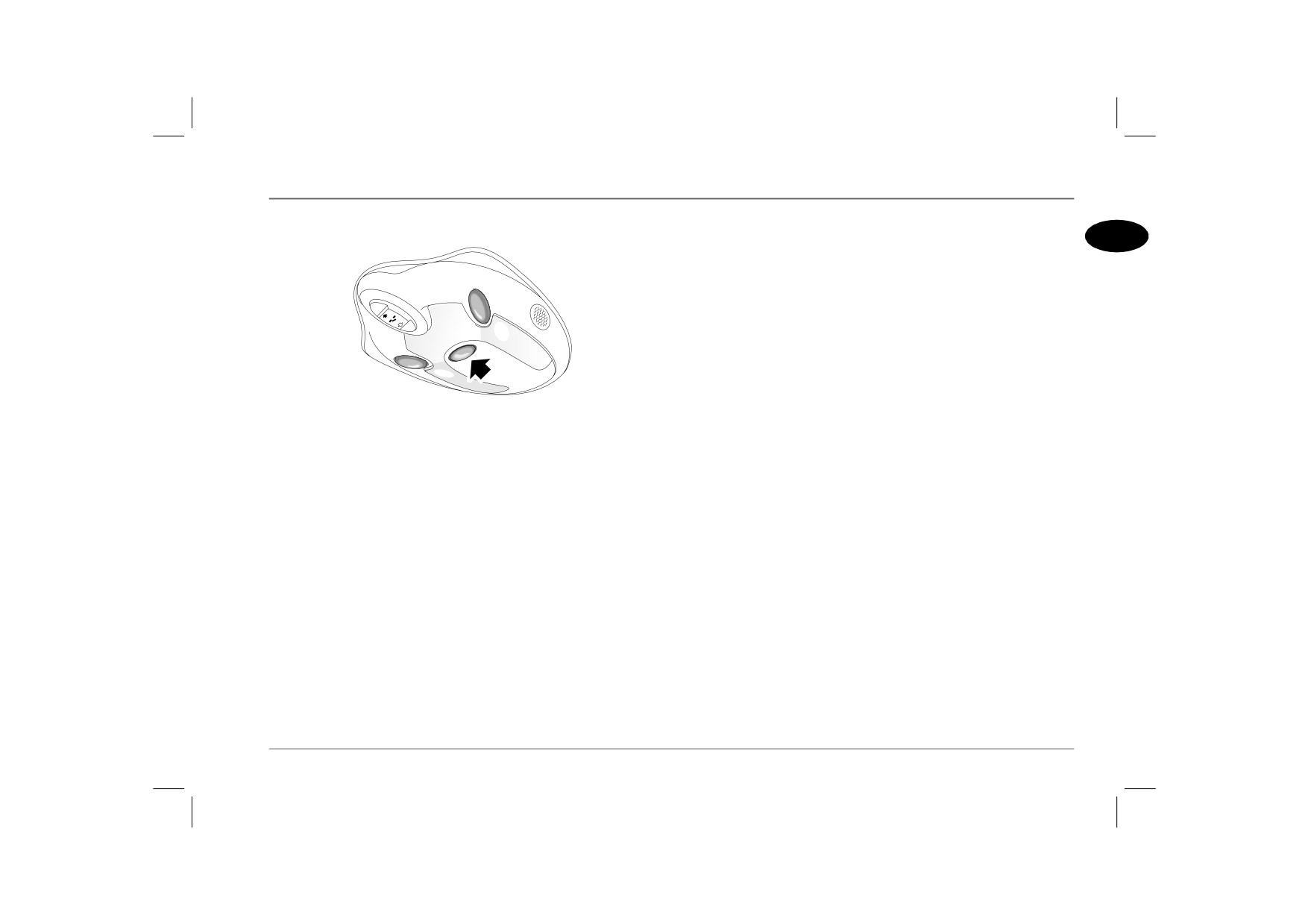

REAR COURTESY AND READING LIGHTS
CLOCK
1112
1
10
2
9
3
8
4
6
5
H2677
The rear courtesy lights illuminate and extinguish automatically in
conjunction with the front courtesy lights. Press the appropriate
H2678
switch to illuminate the relevant map reading light - press again to
switch off.

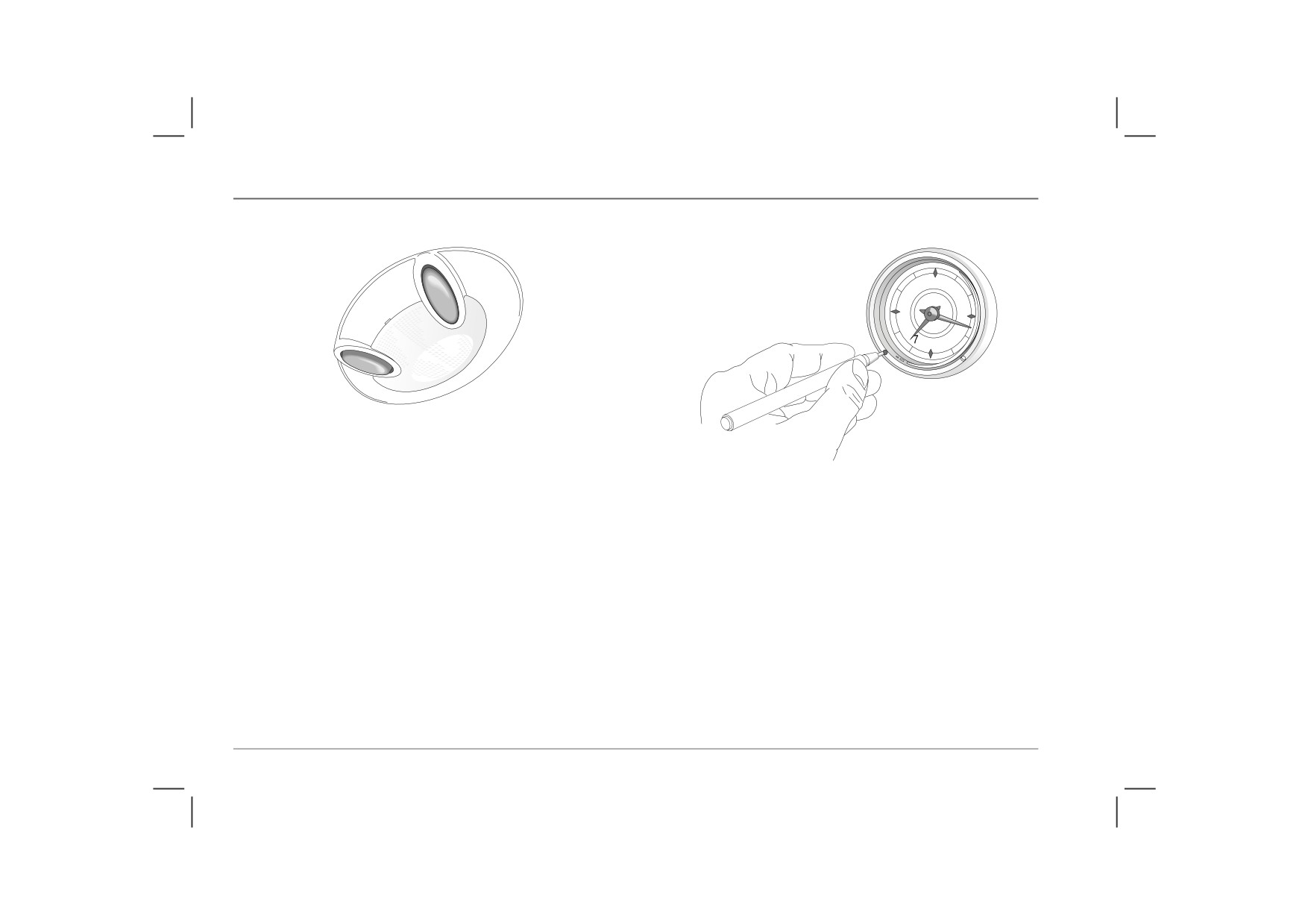

To adjust the clock, use a ball point pen or similar probe to
advance or retard the hands, by pressing the right or left hand
buttons at the bottom of the clock bezel.
NOTE: The clock will need to be reset if the battery has been
disconnected.
54
Interior Equipment

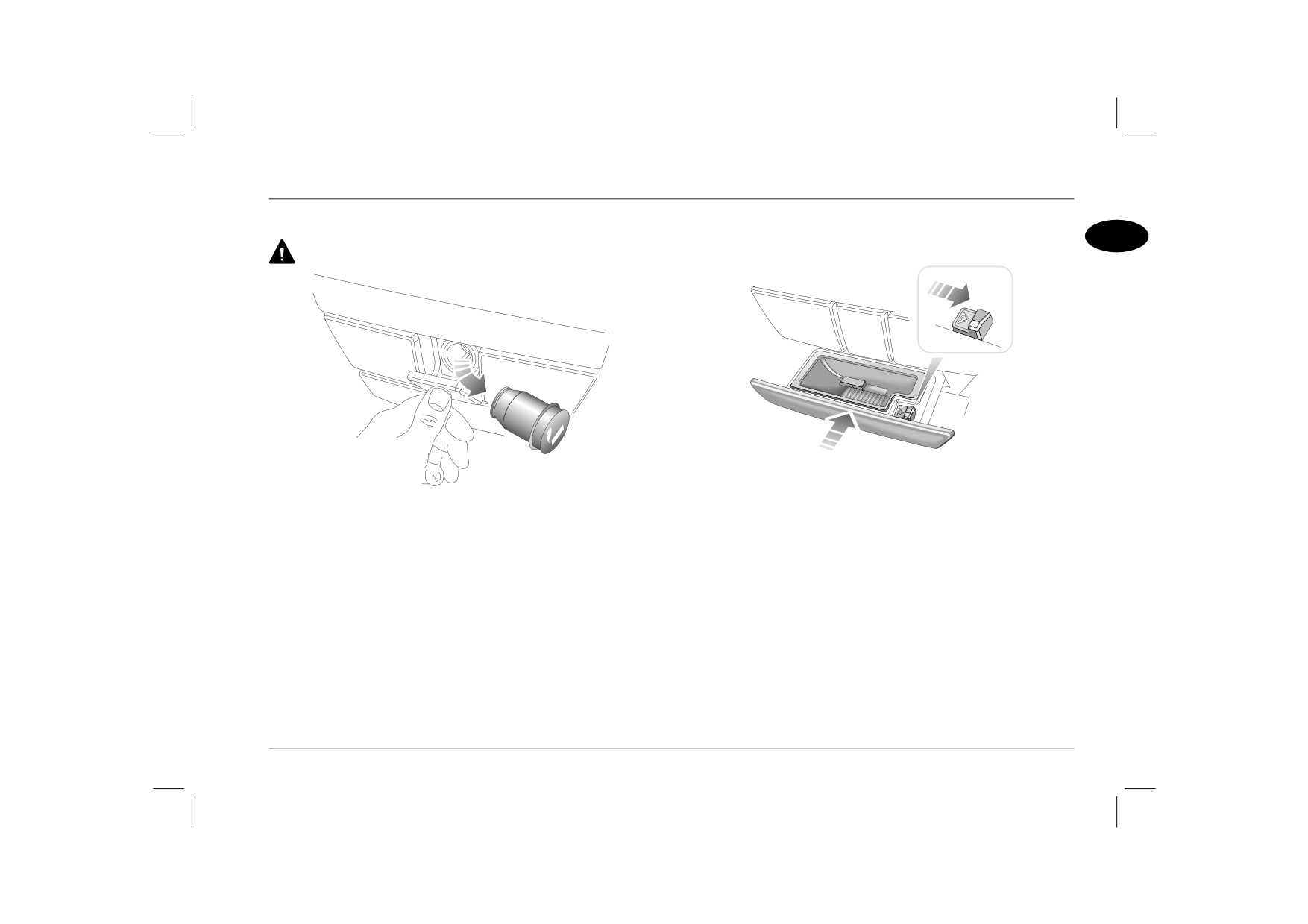

CIGAR LIGHTER
ASHTRAYS
Front ashtray
1
ONLY hold the cigar lighter by the handle.
H2730a
Press the leading edge of the ashtray to open.
H2737b
To empty the front ashtray, press the tray eject catch (see inset) and
With the starter switch turned on, press the cigar lighter cover to
lift the inner tray from the surround.
open. Press the lighter in to heat up; when it has reached the
correct temperature, it will partially eject and can then be
withdrawn for use.
NOTE: DO NOT plug accessories into the cigar lighter socket (an
auxiliary power socket is available as an accessory - consult your dealer).
The cigar lighter cover will not close again until it has been
allowed to open fully.
55
Interior Equipment
Rear ashtray
CUBBY BOX
H2697

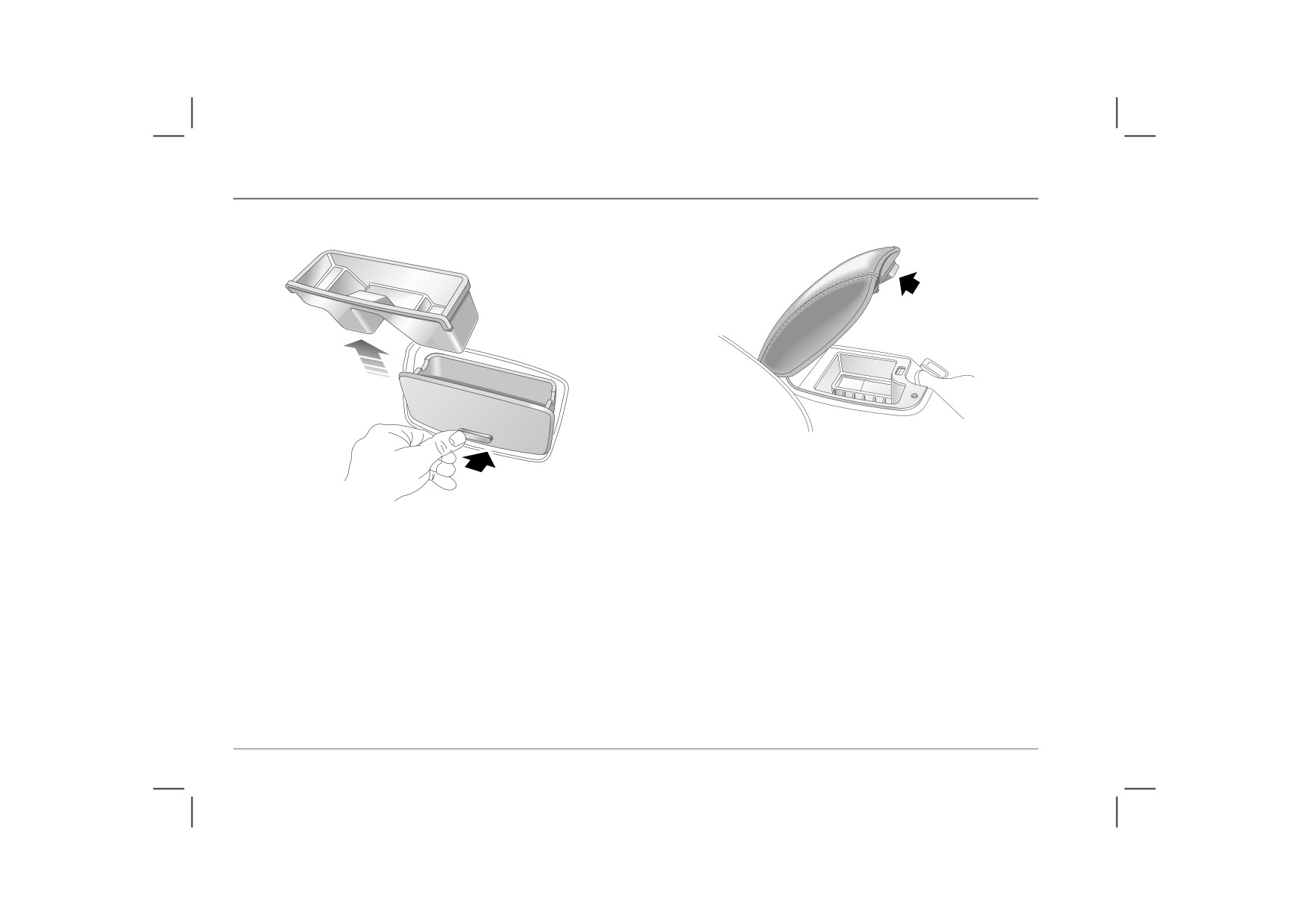

Lift the release catch (arrowed) to open the lid. The cubby box is
designed to securely hold tapes or compact discs and the accessory
torch available from an MG Rover dealer.
H2721
NOTE: If an auxiliary power socket is fitted to the vehicle, it will be
Press the button to open.
located in the cubby box.
To empty the rear ashtray, hold the inner tray by the sides and
carefully pull out.
56
Interior Equipment
REAR ARM REST STOWAGE*
CUP HOLDERS
Front cup holder*
1
H2718

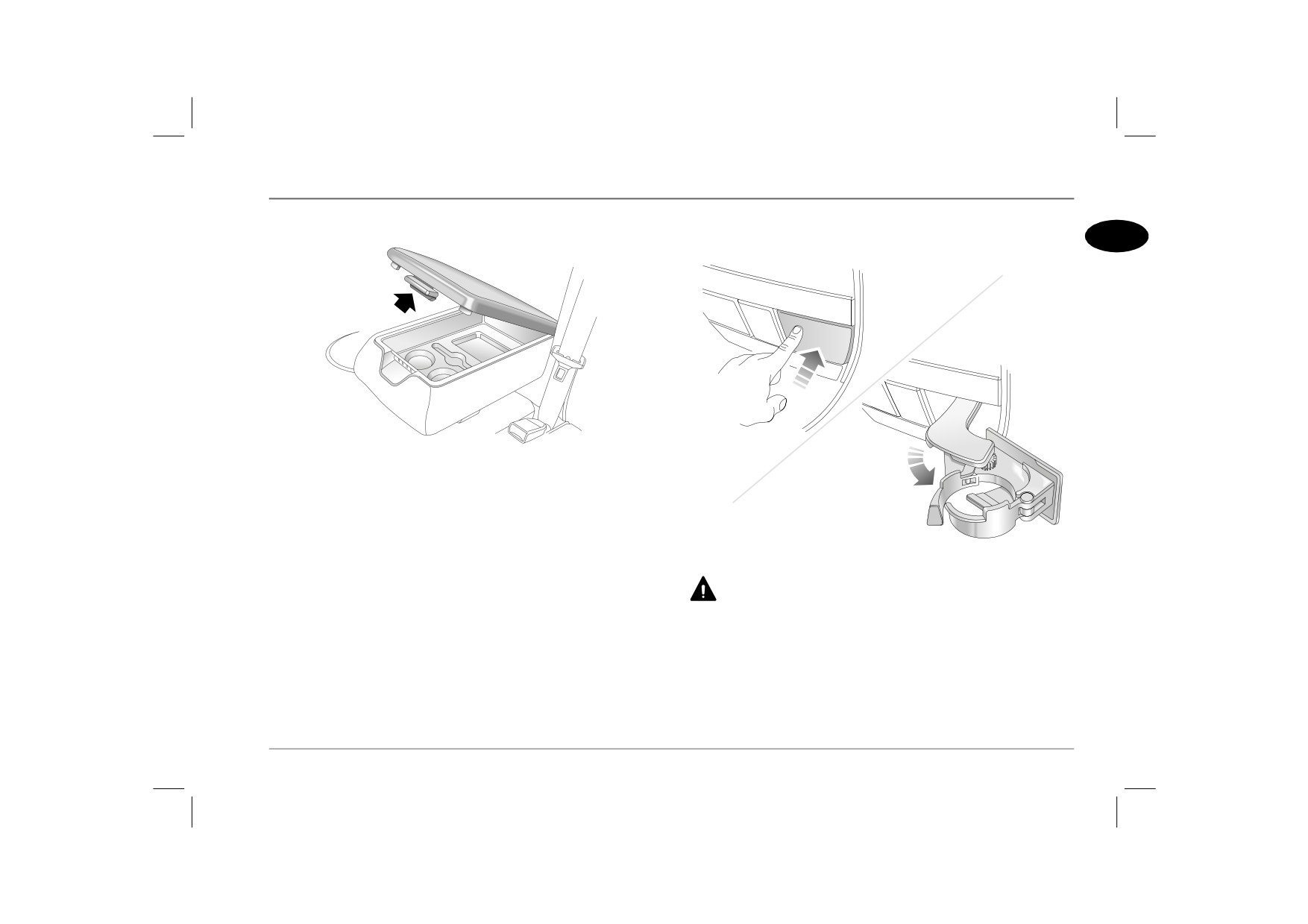

Lift catch (arrowed) to open. Stowage spaces are provided for a
pen, memo pad and cup rests for use when the car is stationary.
Space is also provided for the optional first aid kit.
H3030a
Press the passenger side panel to open.
The cup holder should not be used while the car is in motion.
57
Interior Equipment

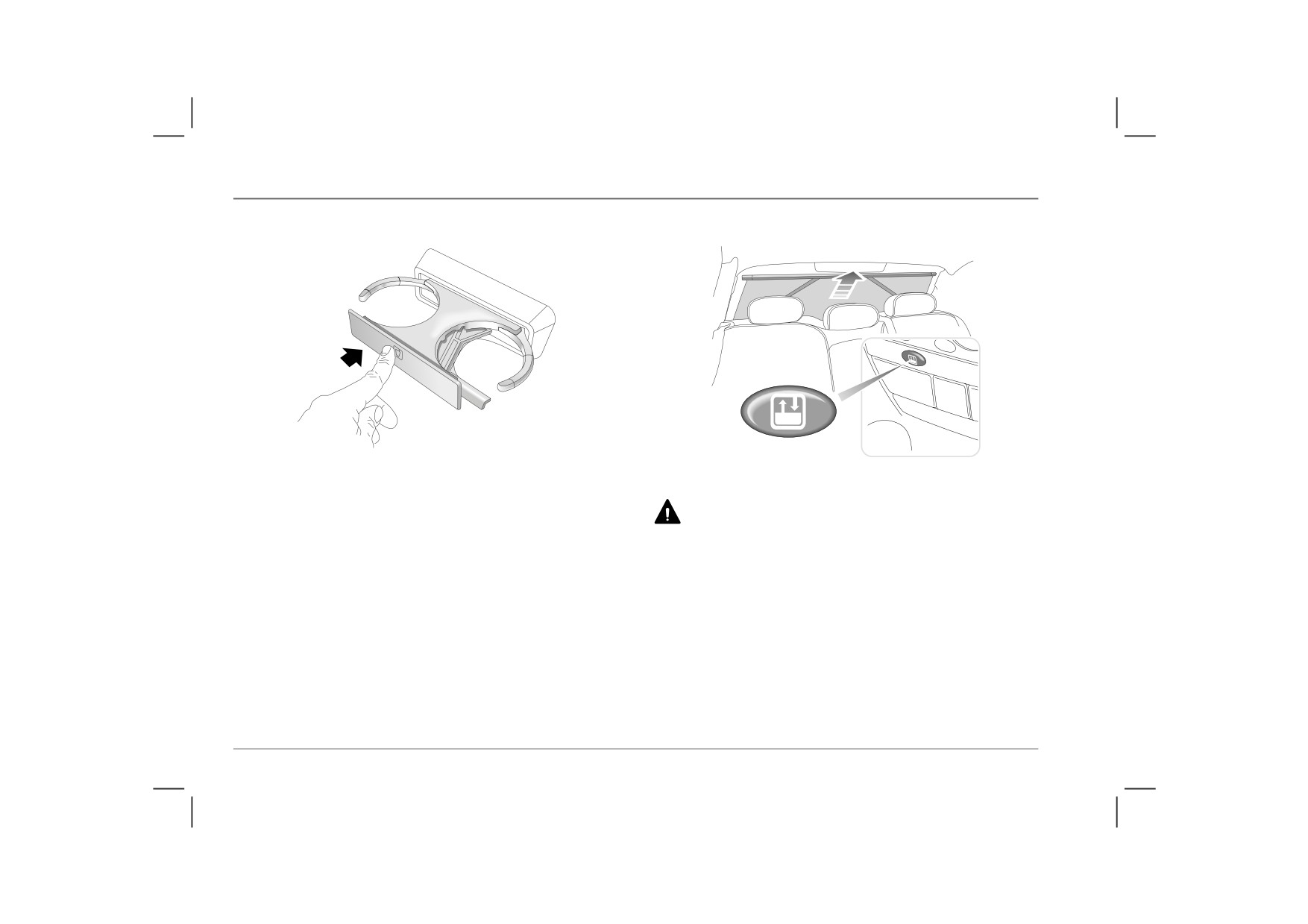

Rear cup holder*
REAR SUNBLIND*
H2729
H2779a
Press the front of the cup holder to open.
Press the switch to raise or lower the blind.
Ensure that passengers are warned to keep clear of the sunblind
while it is being operated.
58
In-Car Telephones
In-Car Telephones
IN-CAR TELEPHONES
1
Refrain from operating a telephone fitted with its own aerial
inside the car (see main text).
Your car uses a number of electronic systems designed to provide
you with maximum comfort, safety and economy. These systems
may be affected by the use of non-approved mobile
communication equipment inside the car. However, the use of an
external aerial will greatly reduce the likelihood of this occurrence.
Using any hand-held appliance while driving can be
dangerous. Always stop the car before making or receiving a
call and ensure the telephone is switched off while you are driving.
For your safety, always note the following precautions before
fitting or using an in-car telephone, or any electrical equipment:
Only use an installation kit incorporating an aerial external to
the vehicle.
Ensure that the installation is carried out by a competent
installer.
Refrain from operating a mobile phone fitted with its own
aerial inside the car - the electromagnetic field radiated by the
phone may interfere with the car's electrical systems.
59
Load Carrying - Saloon
Load Carrying - Saloon
FOLDING THE REAR SEATS
‘Latch secure’ indicators

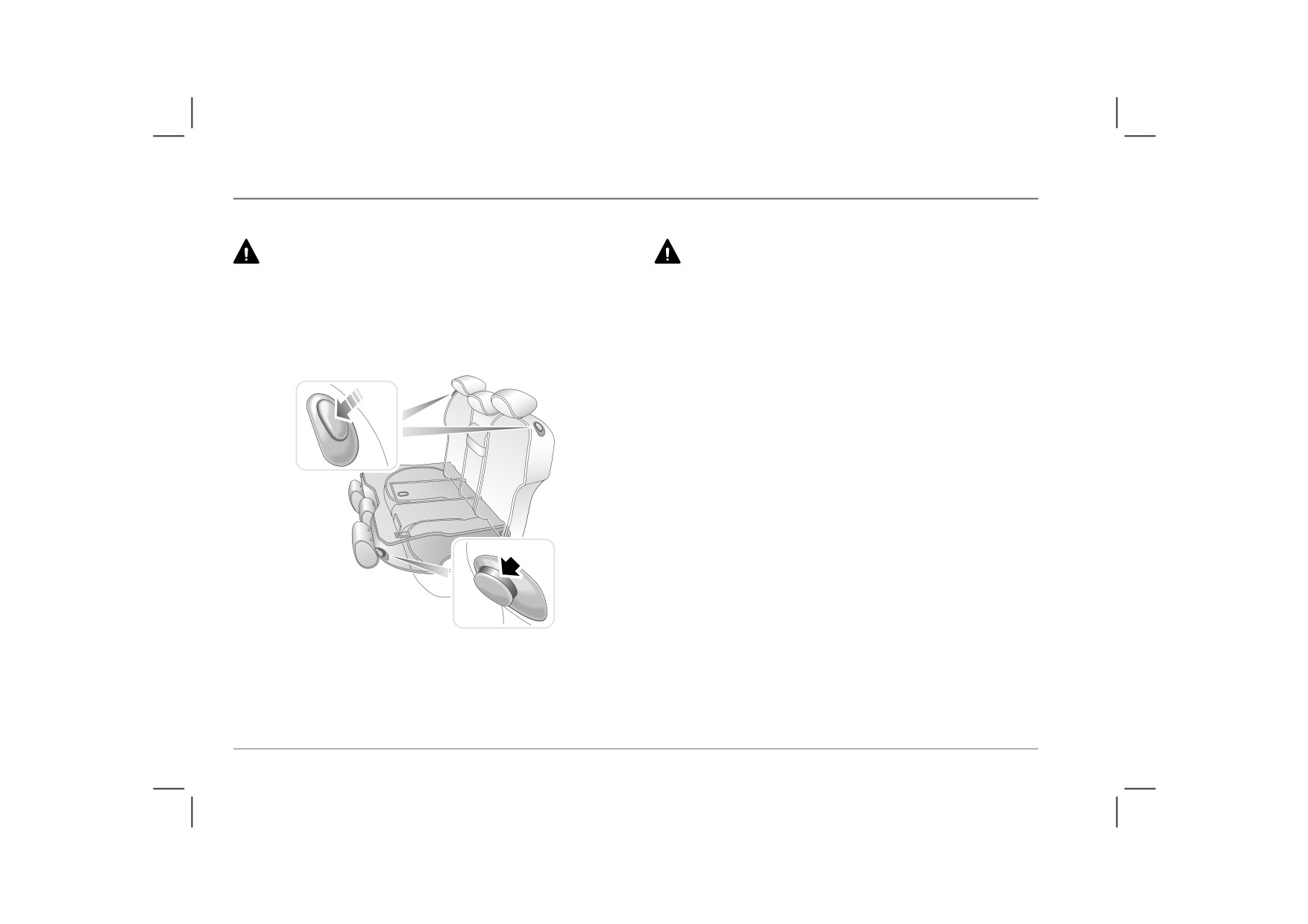

DO NOT carry objects on the rear shelf - they could become
Ensure that the rear seat backrests are securely latched in the
dangerous projectiles in the event of an accident.
upright position when the seat is in use and when loads are
carried in the luggage area behind.
DO NOT carry unsecured equipment, tools or luggage that could
move, causing personal injury in the event of an accident, or

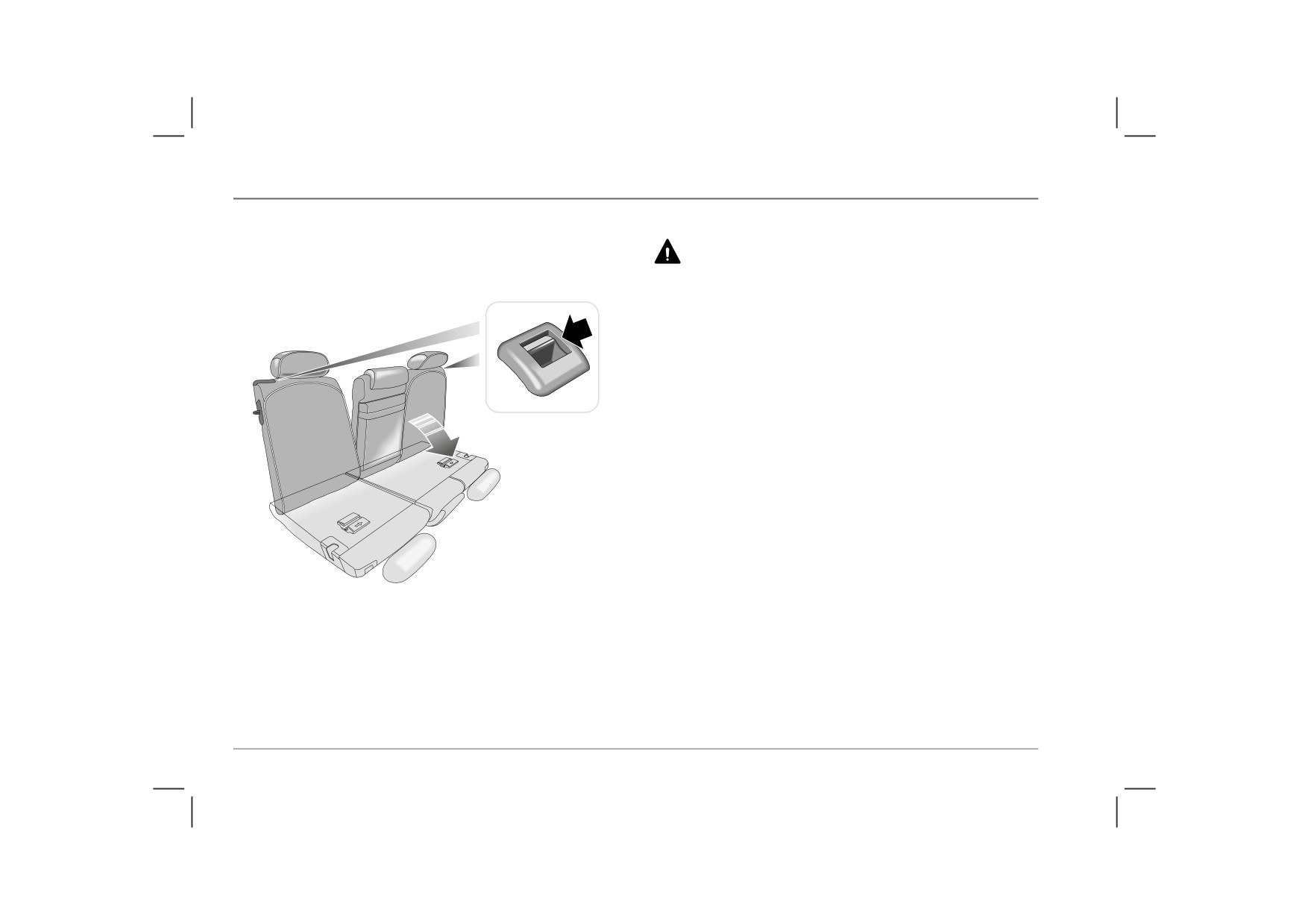

The release catches pop up when the rear seat is folded forward,
emergency manoeuvre - where possible, use the seat belts to secure
revealing a red band around the catch.
luggage carried on seats.
When returning the seat to the upright position, ensure that the
catches drop back into the backrest and that the red band (arrowed
in lower inset) is no longer visible - this confirms that the backrest
is secure.
NOTE: When returning the seat to the upright position, ensure that the
seat belts are not trapped.
H2742a
To increase luggage space, press either of the release catches (see
top inset) and fold the seat backrest forward.
Note that only one of the backrest release catches needs to be
depressed in order to fold the seat.
60
Load Carrying - Saloon
CARRYING LONG LOADS
ROOF RACKS
To ensure absolute safety, only fit accessories that have been
1
Ensure that all long loads which project into the passenger
designed and tested for your car. Your MG Rover dealer will
compartment are securely restrained.
provide details of approved tow bars and roof racks.
The total load must NEVER exceed that given in ‘TOWING
WEIGHTS’, page 269, and must include the weight of the roof
rack within the load.
A loaded roof rack can reduce the stability of the car,
particularly when cornering and encountering cross winds. All
loads should be evenly distributed and secured within the periphery
of the roof rack.
H2725
A fold down hatch is fitted in the middle of the rear seat. This
enables longer loads to be carried at the same time as two rear
passengers.

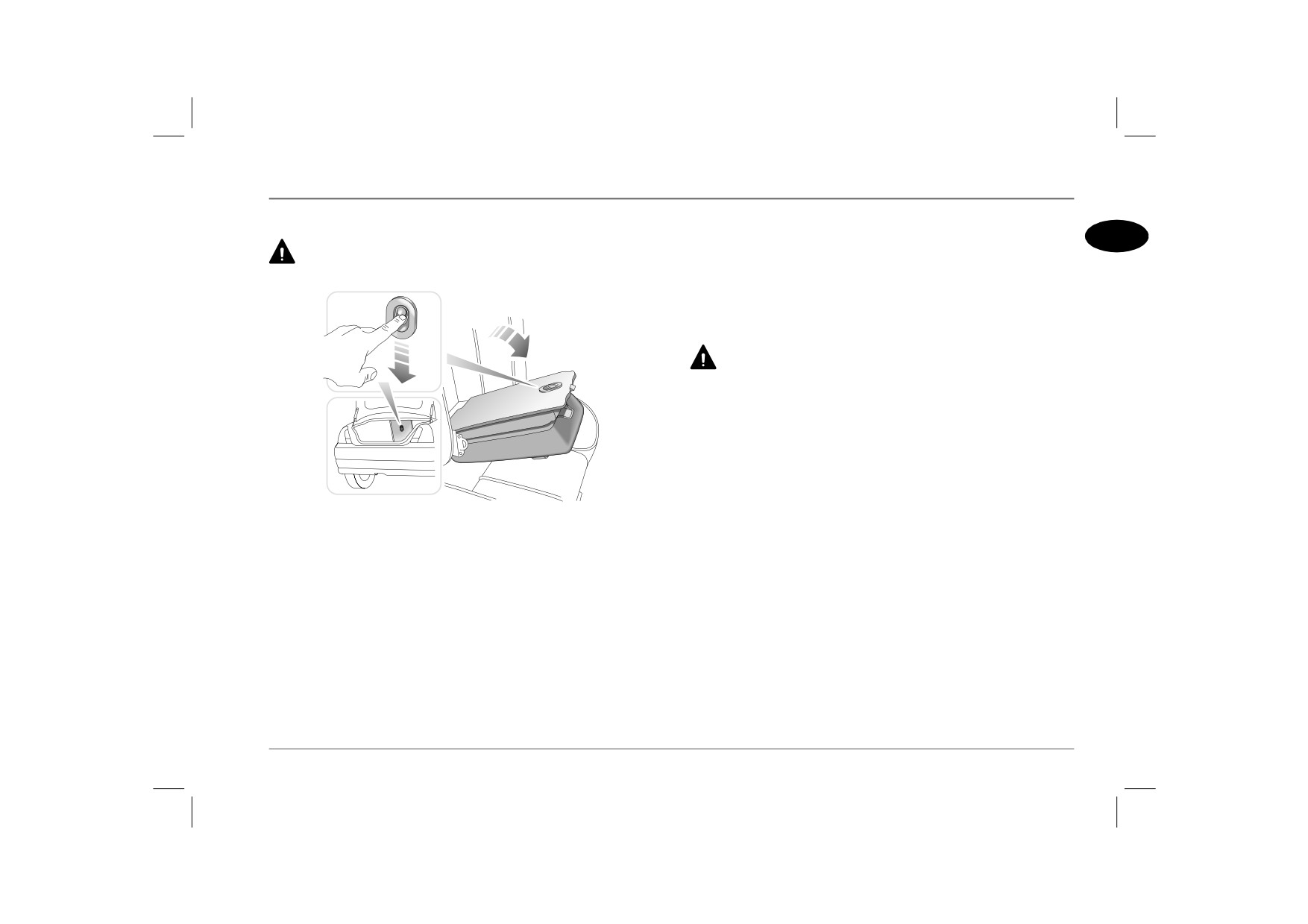

To open the hatch, press down the catch (see inset) and fold the
hatch cover forwards onto the rear seat.
Carrying heavy loads
Luggage carried in the loadspace will shift position in the event of
an accident or sudden stop. On saloon models, always ensure
heavy items are placed as low and as far forward as possible,
preferably pushed against the rear seat squab.
61
Load Carrying - Tourer
Load Carrying - Tourer
FOLDING THE REAR SEATS
‘Latch secure’ indicators
The rear seat backrest is divided into two parts, either, or both, of
Ensure that the rear seat backrests are securely latched in the
which can be folded forward onto the seat cushion to increase the
upright position when the seat is in use and when loads are
loadspace area.
carried in the loadspace behind.
After returning either (or both) parts of the backrest to the upright
position, check to ensure that the RED band on each release catch
(arrowed in inset) is no longer visible - this will confirm that the
latches retaining the backrest have engaged and that the backrest is
secure.
When returning the backrest to the upright position, ensure that
the seat belts are not trapped.
NOTE: The centre seat belt is prevented from operating if the backrest
latch is not fully engaged.
HB0023a
To release the backrest, press one or both of the release catches (as
required) shown in the illustration.
62
Load Carrying - Tourer
LOAD CARRYING
Lashing rings
Carrying long loads
1
HB0201
On some models, a fold down hatch is fitted into the rear seat. This
enables longer loads to be carried at the same time as one or two
rear passengers.
To open the hatch, fold the centre armrest down then, from inside
the loadspace, press down the catch (see inset) and fold the hatch
HB0021
cover back into the loadspace area.
Luggage carried in the loadspace will shift position in the event of
Ensure that all long loads, which project into the passenger

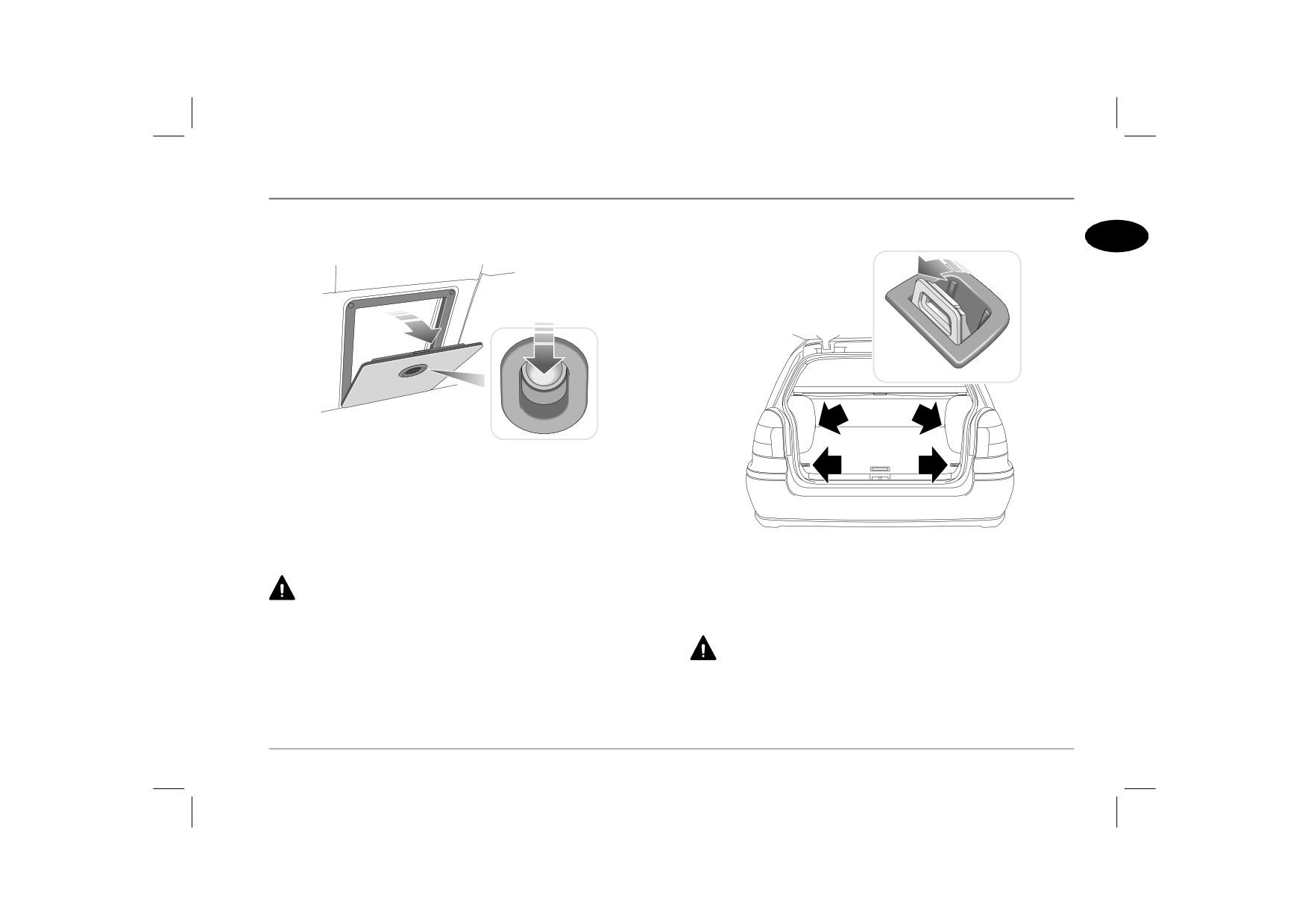

an accident or sudden stop. Four lashing rings are set into recesses
compartment, are securely restrained.
in the loadspace floor and wheel arches, where shown. Raise the
rings from the floor (see inset) and secure all loads before driving.
DO NOT carry unsecured equipment, tools or luggage that
could move, causing personal injury in the event of an accident,
or emergency manoeuvre.
63
Load Carrying - Tourer
Carrying hooks*
Side storage compartments*
HB0026
HB0022

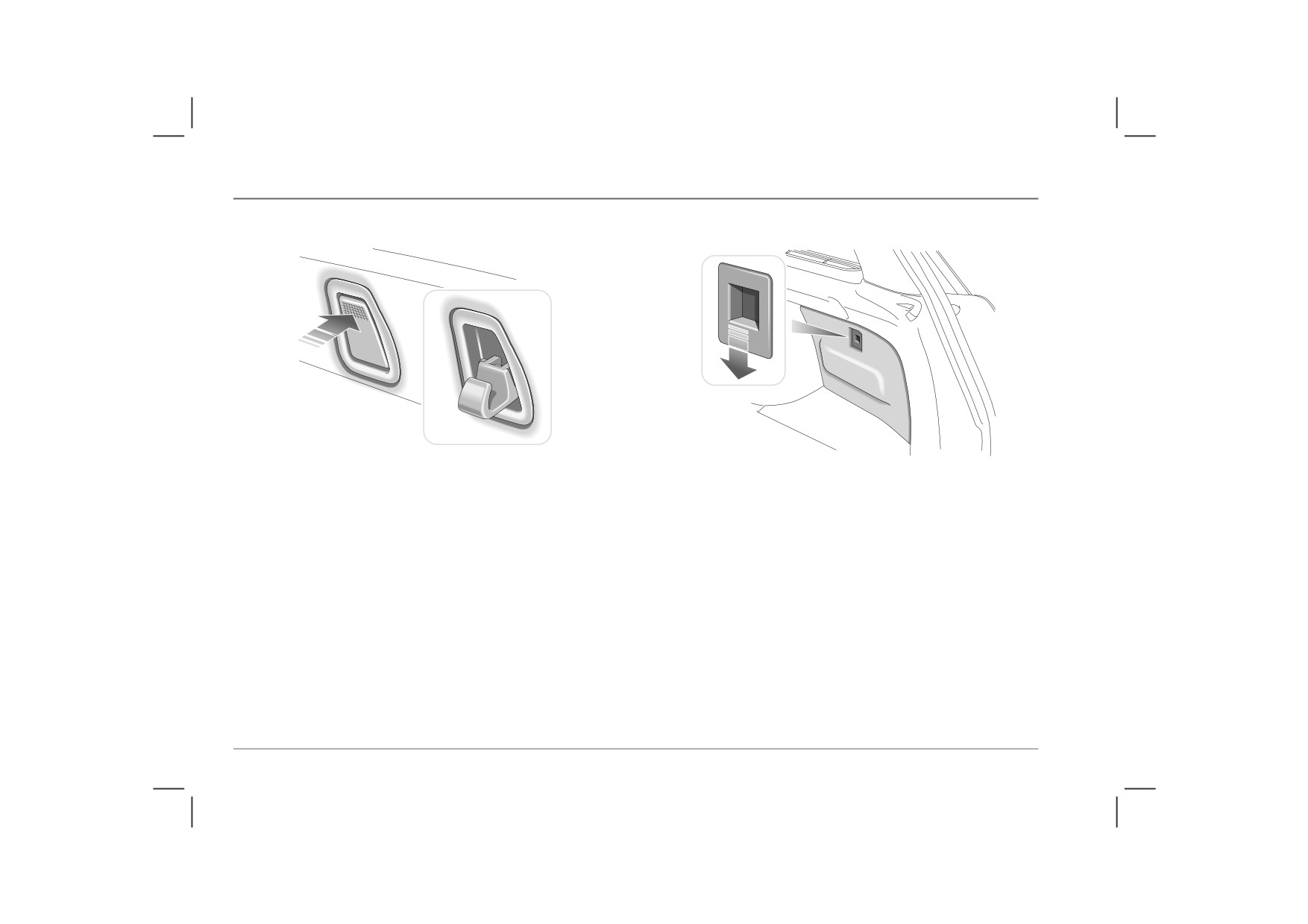

On some cars, two retractable carrying hooks are set into the side
Some cars are equipped with enclosed storage compartments, one
trim panels in the loadspace. Use these to secure bags or loose
on each side of the loadspace. To remove a storage compartment
items, which might, otherwise, move around the loadspace in
cover, pull the catch down (see inset). When replacing, ensure the
response to the car’s momentum.
catch is pushed up fully to secure the cover in position.
Restraint strap*
NOTE: On cars equipped with a navigation system, the right hand
Some cars are fitted with a fabric strap on the left side of the
storage compartment is used to house the navigation computer. Also, on
loadspace. Use the strap to secure loose items such as a first aid kit
some cars, both the left and right hand compartments are used to house the
(available as an accessory from MG Rover dealers), or to restrain
audio system amplifier and woofer.
the movement of fluid containers.
64
Load Carrying - Tourer
Tailgate storage
Underfloor storage*
1
HB0029a

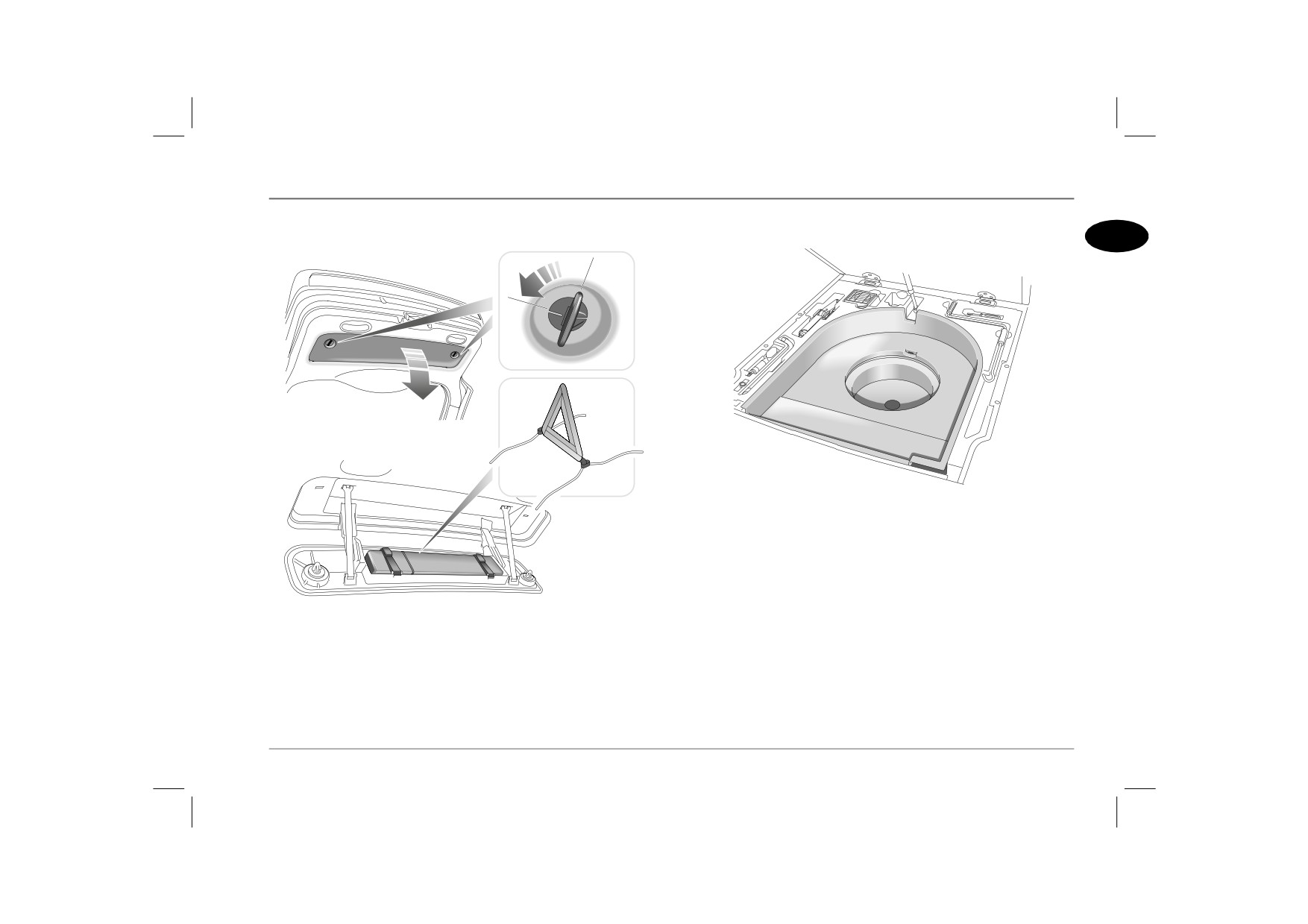

Raise the hinged portion of the loadspace floor (see ‘SPARE
WHEEL & TOOLS (Tourer)*’, page 224) to reveal the shallow
underfloor storage tray. A deeper, circular storage compartment is
set into the centre of the tray.
HB0030
A shallow storage compartment is set into the tailgate trim. This is
principally intended to house the emergency warning triangle,
available as an accessory from MG Rover dealers.
Twist the two turnbuckles (shown in upper inset) a quarter turn
anti-clockwise to release the cover.
65















Content      ..     2      3      4      5     ..
