Rover 75. Service Manual

Mirrors

POWER-OPERATED DOOR MIRRORS

Mirror folding*

The body of each door mirror is designed to fold flat against the

NOTE: Objects viewed in exterior mirrors may appear further away than

side of the car on impact. The mirrors can also be folded back

they actually are.

manually towards the side windows into a ‘park’ position to enable

the car to negotiate narrow openings.

H3279

HB0509

Mirror glass adjustment

On some cars the ‘park’ position can be achieved electrically, as

• With the starter switch turned on (first position), press the

follows:

appropriate switch (1) to select the left or right mirror.

• Use switch (2) to tilt the mirror glass up/down/left or right.

With the starter switch turned on, press the mirror fold switch (3);

both mirrors will fold back towards the side window. Press the

Heating elements

switch a second time to return the mirrors to their normal position.

The door mirrors have integral heating elements which disperse

If one mirror is accidentally knocked out of position, a single press

ice or mist from the glass. The heating elements operate

of the switch will resynchronise both.

continuously while the starter switch is in the second position.

NOTE: The mirror fold switch can also be operated for up to 40 seconds

after the starter switch has been turned off.

Mirrors

INTERIOR REAR-VIEW MIRROR

VANITY MIRROR

Adjust the body of the mirror by hand to achieve the best possible

The driver’s vanity mirror* should only be used when the car

view to the rear. The dipping function of both the automatic and

is stationary

manual mirrors helps to reduce glare from the headlights of

following vehicles at night.

Automatic mirror*

H2936a

H2829

Pivot the sun visor downward to use the vanity mirror. On some

models, the vanity mirror has a cover and is illuminated when the

The interior mirror is equipped with a light sensor (arrowed)

cover is raised. Close the cover to extinguish the lights.

which activates the automatic dipping function.

Manual mirror*

Move the lever at the base of the mirror forward to ‘dip’ the

mirror. Normal visibility is restored by pulling the lever back

again.

NOTE: In some circumstances, the view reflected in a ‘dipped’ manual

mirror can confuse the driver as to the precise location of following vehicles.

Remember to take additional care!

Windows

POWER-OPERATED WINDOW CONTROLS

Operating the windows

The electric windows can be operated when the starter switch is

Accidental closing of a power-operated window on fingers,

in the first or second position and for up to 40 seconds after the

hands or on any other vulnerable parts of the body can result in

starter switch is turned off (provided neither front door is opened

serious injury.

in the meantime).

Push the switch down to lower, and lift the switch up to raise the

window. The window will stop moving as soon as the switch is

released (unless the ‘one-touch’ feature is active).

ENSURE children are kept clear when raising or lowering a

window.

Rear window isolation switch*

Press the switch to isolate the rear window controls (an indicator

light in the switch illuminates), press again to restore control.

NOTE: ISOLATE the rear window switches when carrying children.

‘One-touch’ down

By briefly pressing and then releasing a switch (within half a

H2809

second), a window can be opened at a single touch. Window

Driver's door console

movement can be stopped at any time by pressing the switch again.

The switches on the driver's door operate the following:

‘One-touch’ up and ‘Anti-trap’*

1. Left hand front window.

On some models, the driver's door has a ‘one-touch’ up facility

2. Right hand front window.

which acts in the same way as ‘one-touch’ down. Window

3. Right hand rear window*.

movement can be stopped at any time by pressing the switch again.

4. Left hand rear window*.

5. Rear window isolation switch*.

The ‘anti-trap’ function is a safety feature which prevents the

driver's window from fully closing if an obstruction is sensed - if

NOTE: The front and rear passenger windows can also be operated by

this happens the window will open slightly to allow the

individual window switches, mounted on each door. The rear window

obstruction to be removed.

switches will not operate if the isolation switch has been activated.

Sunroof

SUNROOF OPERATION*

The sunroof opens and closes in two separate phases, as follows:

• To TILT the roof:

Accidental closing of a sunroof on fingers, hands or any

With the sunroof either open or closed, press and release the

vulnerable part of the body, can result in serious injury.

central portion of the sunroof button. The sunroof will

DO NOT allow passengers to extend any part of their bodies

automatically close (if open) and then tilt upwards. Sunroof

through the sunroof aperture while the car is moving - injury

movement can be stopped at any time by pressing the tilt

from flying debris, branches of trees or other obstructions could

button for a second time. Push the sunroof switch forward to

occur.

lower the tilt and return the roof to the closed position.

• To OPEN the roof:

Push the sunroof switch rearwards, releasing when the sunroof

is in the desired position. Push the switch forward to close the

sunroof.

‘One-touch’ operation

Firmly push the switch rearwards and release (the switch will be

felt to click into position), the sunroof will fully open. Push the

switch firmly forward and release to fully close the sunroof at a

single touch. Sunroof movement can be stopped at any time by

briefly pressing the centre of the switch.

‘Anti-trap’ function

NOTE: The anti-trap feature does not function when the roof is closing

from a tilt open position.

The anti-trap function is a safety feature which prevents the

sunroof from closing fully if there is an obstruction. If an

H2707

obstruction is detected, the sunroof will open slightly to allow the

object to be removed.

The sunroof can be operated when the starter switch is in the first

or second position and for up to 40 seconds after the starter switch

is turned off (provided the driver's door is not opened in the

meantime).

Heating & Ventilation

VENTILATION

Cars fitted with Automatic Temperature Control (ATC) are

equipped with an additional outlet which supplies unheated or

cooled air to the rear of the passenger compartment.

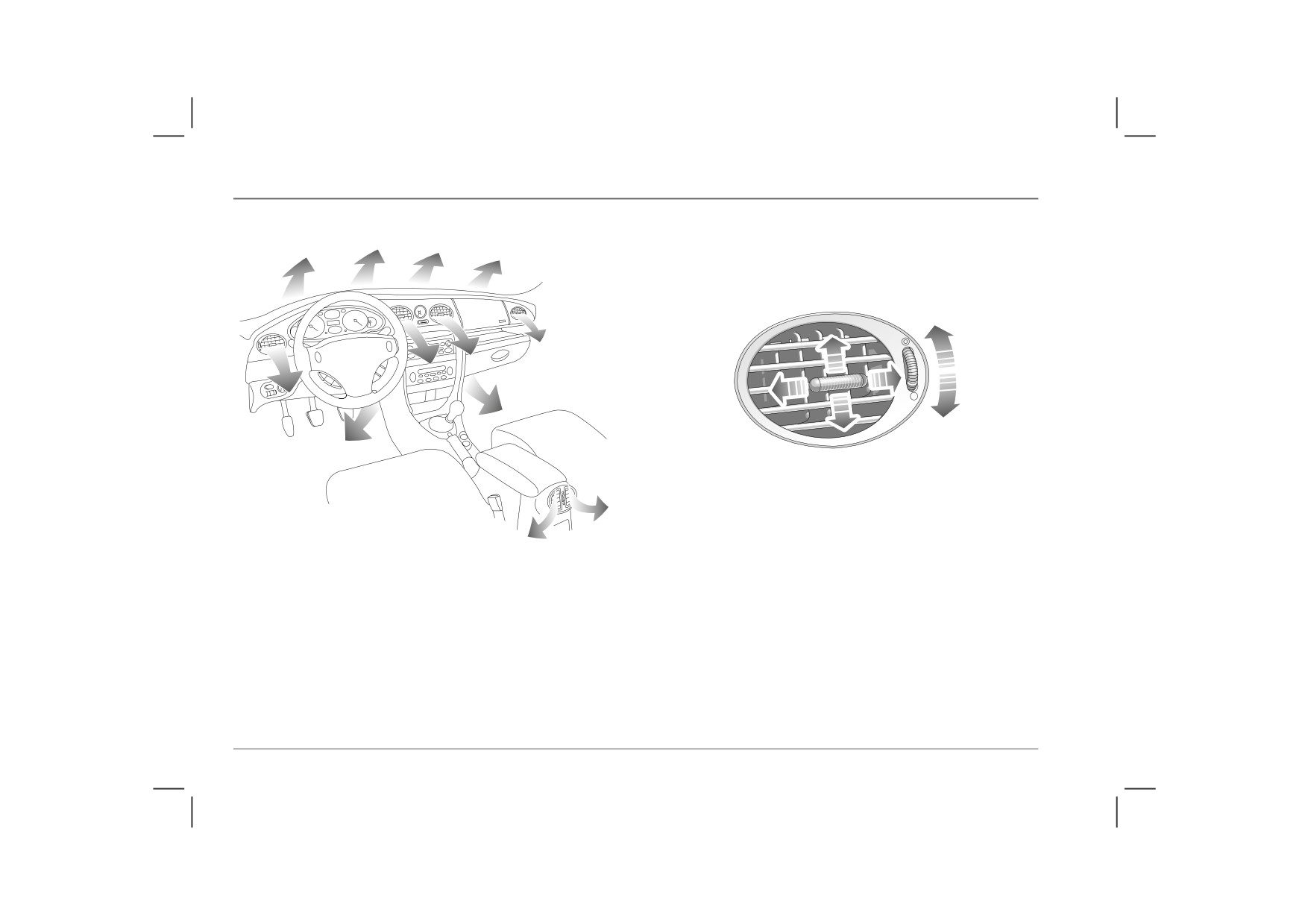

Face level vents

H2733

Rotate the thumbwheel down to close or up to open the vents.

Direct the air flow by moving the control in the centre of the

louvres up or down, or from side to side.

H2833b

When carrying rear seat passengers, direct air from the outer vents

towards the front seat occupants and use the centre vents to direct

The heating and ventilation system provides fresh or heated air to

air towards the rear seat passengers.

the interior of the car from the air intake grille in front of the

NOTE: To increase output from the centre face vents, shut the outer

windscreen. Always keep the air intake grille clear of obstructions

vents.

such as leaves, snow or ice.

Air outlets are provided to the windscreen, face and feet - the

location of those vents is shown in the illustration above - and to

rear seat passengers from ducts beneath the front seats.

NOTE: On saloon models, keep the air grille in the rear window shelf

uncovered to enable air flow through the whole of the interior.

Heating & Ventilation

HEATING

Air distribution control

Control panel

NOTE: When distributing air to the face level vents, they must be

FULLY open to ensure best performance.

Face level vents only.

Foot and face level vents.

Foot level vents.

Foot level, windscreen and side window vents.

Windscreen and side window vents.

HB0502

Blower switch

Turn the switch clockwise to increase the blower speed.

1. Air temperature controls

NOTE: With the blower switched off, the volume of air entering the

• BLUE: Unheated air

car is dependent on driving speed alone.

• RED: Heated air

Recirculated air supply button

Where dual temperature controls are fitted (as illustration),

Press to operate (the indicator light in the switch illuminates).

the left hand dial controls air temperature from the vents on

With this button pressed, the heater recirculates the air

the left side of the car and the right hand dial controls air

already inside the car, preventing the entry of traffic fumes.

temperature from the vents on the right side of the car.

Press again to switch off.

Where a single control is fitted, the dial controls air

If the air conditioning is switched on, air recirculation will

temperature from the vents on both sides of the car.

remain active until fresh air is selected, or until the air

conditioning is switched off.

With air conditioning switched off (and on cars not equipped

with air conditioning), air recirculation will automatically

switch off after 4 minutes operation. This reduces the risk of

misting windows. To override this timed feature, press and

Heating & Ventilation

hold the recirculation button for 2 seconds (until the light in

6. Rear screen demister

the switch flashes) - but note that the function must then be

The demister will only function with the engine running.

switched off manually.

Press to operate; the indicator light in the switch illuminates

NOTE: Leaving the system in recirculation mode can cause the

whenever the demister is on and extinguishes when the

windscreen to mist. If this happens, switch off recirculation and turn

demister is turned off.

the controls to maximum demisting.

If the exterior temperature is below 10° C (50° F), the

Air conditioning switch*

demister will switch on automatically and operate for a period

With the engine running, press to operate. The indicator light

of 20 minutes before switching off. However, if the exterior

in the switch illuminates when the air conditioning is

temperature is greater than 10° C (50° F), the demister will

switched on.

not switch on automatically, but will respond to any manual

operation by switching off automatically after 12 minutes.

In addition, note that air recirculation is activated

automatically whenever the air conditioning is switched on as

The heating elements on the inside of the rear screen are easily

an aid to more efficient cooling of the car's interior. In

damaged. DO NOT scrape or scratch the glass. DO NOT

conditions of high humidity, slight screen misting may be

stick labels over the heating elements.

experienced when the air conditioning is first switched on.

This is not a fault, misting will clear after a few seconds once

the system is in operation.

NOTE: The air conditioning will not operate without the engine

running nor when the blower switch is turned to position 'O'.

NOTE: Because the system dehumidifies the air supplied to it,

surplus water is produced and expelled via drain tubes beneath the car.

This may result in a small pool of water forming under the car when

stationary and is not a cause for concern.

Heating & Ventilation

Operating advice

Heater bypass control

The following procedures will enable you to gain maximum

benefit from the heating and ventilation system. However, because

the system uses heat from the engine to warm the air, full heating

will not be available until the engine reaches its normal operating

temperature.

To achieve maximum demisting/defrosting

• Select ‘windscreen’ on the air distribution control.

• Turn the air temperature control(s) to the RED segment.

• Turn the blower switch to ‘IV’.

To achieve maximum heating

H2861

• Turn the air distribution control to foot level vents.

Air supply from the face level vents is further controlled by the

• Turn the air temperature control(s) to the RED segment.

heater bypass control in the centre of the fascia panel.

• Select ‘IV’ on the blower switch (increase as required).

The enables cooler air to be directed towards the face at those

To achieve maximum ventilation

times when the heater is required to provide hot air to keep the

• Turn the air distribution control to face level vents and ensure

interior of the car warm - particularly useful during winter. The

the vents are open.

bypass is controlled by turning the thumbwheel:

• Turn the air temperature control(s) to the BLUE segment.

• towards the BLUE spot to open the bypass.

• Select ‘IV’ on the blower switch (adjust as required).

• towards the WHITE spot to close the bypass.

• Switch on air conditioning (where fitted).

If the air distribution control is set to foot, screen or window vents:

• Heater bypass closed - all air flow is prohibited.

• Heater bypass open - unheated (fresh) air supply only.

If the air distribution control is set to face or foot and face vents:

• Heater bypass closed - heated air supply (temperature as heater

setting).

• Heater bypass open - a blend of heated and unheated air (which

has bypassed the heater) providing a cooler output.

Heating & Ventilation

Particle/pollen filter/odour filter*

AUTOMATIC TEMPERATURE CONTROL (ATC)*

A particle filter will help to keep the car interior free from pollen

and dust. To remain fully effective, the filter should be replaced

every 2 years or 50,000 km, at the time of an oil service or

inspection.

TEMP

The particle filter can be combined with an odour filter to help

inhibit the smell of traffic fumes. The combined filter requires

replacement every 12 months or 25,000 km.

H2734b

Auto mode

In brief

• Press the 'AUTO' button for fully automatic operation.

• Press the temperature control switches to select the required

temperature (see ‘Temperature control’) - a temperature of 22° C

(72° F) is recommended.

• Let the automatic temperature control system do the rest.

The system features automatic temperature and air distribution

control, which is programmed to maintain optimum levels of

comfort within the car in all but the most severe climatic

conditions.

Heating & Ventilation

While the controls can be adjusted manually to satisfy individual

Temperature control

requirements, allowing the system to function automatically (in

Operate the rocker switches on either side of the display to set the

Auto mode) is by far the simplest method of operation for the

required temperature for the corresponding side of the passenger

owner and is preferable in most operating conditions.

compartment (left hand switch for the left side of the car, and right

hand switch for the right side). The system will not achieve

In Auto mode, air temperature, air distribution and blower speeds

temperatures on the passenger side of the car more than 5° C

are adjusted automatically to achieve and then maintain the desired

greater or less than the temperature set for the driver's side.

temperature.

Temperatures above 28° C and below 16° C cannot be set. Above

NOTE: In Auto mode, following a cold start at low exterior temperatures,

or below these maximum and minimum settings ‘HI’ or ‘LO’ will

the blower speed will not increase until the engine coolant temperature has

appear in the display.

started to rise.

NOTE: The temperatures shown on the display are target temperatures

Both the air distribution and blower controls can be operated

only and are not reflective of any specific temperature measured within the

independently to override the automatic setting. In this case, the

interior of the car.

relative symbols will move outside the enclosed central area of the

display, to indicate that they are no longer controlled

Defrost

automatically.

Press the button at the beginning of a journey to clear

NOTE: For ATC to function correctly, all windows (and sunroof) should

frost or mist (the indicator in the switch illuminates and

be closed and the air intake must be free from obstructions (ice, snow, leaves

the defrost symbol, along with the blower symbol, appears in the

and other debris). In addition, the solar sensor centrally positioned on the

display).

top of the fascia panel must not be covered.

The defrost facility automatically activates the following:

• The most efficient heater settings to clear the windscreen and

front side windows.

• The heated rear screen - for a maximum of 20 minutes.

Press the button again to cancel defrost and restore the original

settings, or press ‘Auto’ to go straight into Auto mode.

Heating & Ventilation

Economy mode

Air distribution control

Press the ‘ECON’ button to operate (the display shows

Press the button to adjust. Air distribution changes

‘ECON’).

sequentially with each press of the control, as follows:

In economy mode, the air conditioning compressor is switched off

Face level vents only.

and the system functions as a conventional heating and ventilation

system. This reduces the load on the engine, thereby reducing fuel

Foot and face level vents.

consumption.

Foot level vents.

The air distribution, blower and recirculation controls can be

operated independently.

Foot level, windscreen and side window vents.

Pressing the ‘ECON’ button a second time will switch the air

Windscreen and side window vents.

conditioning on, and return the system to Auto mode.

NOTE: In economy mode, it may not be possible for the system to always

A further operation of the control returns to the start of the

maintain a comfortable temperature.

sequence.

Blower control

NOTE: For optimum comfort, ensure all the vents are open and that the

Use the control to adjust the blower speed. Press the ‘+’

slider in the centre of each vent is in its central position.

symbol to increase, and the ‘-’ symbol to decrease

blower speed. The display will show a number of segments (0 - 6)

Recirculation

which represent the blower speed. When no segments are

The air recirculation feature can be used to prohibit the

showing, the blower fan is not operating. However, note that the

entry of air from outside the car, recirculating the air

blower speed can only be reduced to zero in economy mode.

inside the car instead. This is useful to prevent the entry of traffic

fumes.

NOTE: If the air distribution and blower controls are operated

independently, the system may not be able to achieve or maintain the

The feature also significantly influences the dehumidifying and

required temperature settings.

cooling performance of the air conditioning system. Therefore, in

Auto mode, air recirculation is controlled automatically to enable

the air conditioning system to achieve its optimum performance.

Heating & Ventilation

To operate recirculation manually, press the switch (the indicator

Temperature conversion

in the switch illuminates). Note that if ECON mode has been

Press the switch to convert the temperature display to or

selected, or the air conditioning is off, recirculation will switch off

from Fahrenheit or Centigrade.

automatically after 4 minutes. To override this timed feature, press

On/off button

and hold the switch for 2 seconds (a double bleep will sound).

Press to switch on and off. When switching on, note that

NOTE: Prolonged recirculation can cause the windows to mist.

the system automatically recalls the mode and control

settings that were last used.

Heated rear screen

The heated rear screen will switch on automatically for

Heated seats*

20 minutes if the engine is started when the outside

Press the switch to operate (the indicator light in the

temperature is less than 10° C.

switch illuminates) - press again to switch off.

The heated rear screen will also operate automatically in

When operating, the heating elements in the seat will function

association with the automatic temperature control.

intermittently in order to reach and then maintain a temperature

To operate manually, press the switch (the indicator in the switch

within a predetermined range of 33° C to 45° C.

illuminates). The heated rear screen has two pre-set operation

NOTE: Seat heaters consume considerable power from the battery. For

times, which are dependant on the outside temperature:

this reason they should only be operated when the engine is running.

• If the outside temperature is less than 10° C, the rear screen

heater will operate for 20 minutes before switching off

automatically.

• If the outside temperature is 10° C or greater, the rear screen

heater operates for 12 minutes before switching off.

NOTE: The heated rear screen will not operate unless the engine is

running.

The heating elements on the inside of the rear screen are easily

damaged. DO NOT scrape or scratch the glass. DO NOT

stick labels over the heating elements.

Parking Heater

PARKING HEATER*

DO NOT operate the parking heater in enclosed spaces, such

Some diesel engine cars are equipped with a programmable

as garages or workshops. A hazardous build up of exhaust

automatic heating facility, which enables the owner to pre-heat

fumes may occur.

the interior of the car (and warm up the engine) prior to use. The

DO NOT operate the parking heater where there is a risk of

parking heater can also be operated remotely, using the handset

fire (areas such as filling stations where flammable liquids or

supplied.

gases may be present, for example).

In addition to warming the vehicle interior and engine, the

parking heater facility also reduces engine start-up emissions.

SETTING THE CAR’S HEATER CONTROLS

To warm the interior of the car, the parking heater economically

The parking heater utilises the car’s interior heating and ventilation

burns a small amount of fuel drawn from the main fuel tank to

system settings, it is therefore recommended that the car is left with

generate heat, which is then distributed to the engine and the car's

the following heater settings selected if the parking heater is to be

heating system.

programmed for automatic operation. These settings have been

found to provide the optimum comfort with acceptable battery

The parking heater will then operate until the preset running time

power usage when used for a duration of 30 minutes. These

has elapsed, heating and maintaining the car's interior at the desired

settings are recommended, but can be adjusted for individual

temperature. The heating programme can be cancelled at any time

comfort.

by pressing the ‘OFF’ button on the remote handset.

• Set the individual temperature controls to 22° C.

Avoid repeated operation of the parking heater, as this can

• Press the ‘AUTO’ button to activate Auto mode.

discharge the car battery - it will take the car's charging system

approximately 20 minutes of normal driving to recover the charge

expended during 30 minutes operation of the parking heater

(sometimes longer in extremely cold conditions).

NOTE: The parking heater operates independently of the car's ignition

system - there is no need to leave the starter key in the starter switch and

do not leave the car with the starter switch turned on.

Parking Heater

SETTING & OPERATING THE PARKING HEATER

Timer unit controls

SET

HB0492

HB0491

1. Manual operation control.

The parking heater timer unit is located in the centre console

Press to manually turn the parking heater on or off.

cubby box. Up to three separate preset operating start times can be

2. Display.

programmed, each running for a maximum of 30 minutes.

Shows the current time or preset time and preset number.

Indicates whether manual operation has been selected.

3. Clock control.

Press to enable the current time to be changed. Change the

clock using the timer adjustment controls (5).

4. SET control.

Press to cycle through the parking heater time presets.

Change the presets using the timer adjustment controls (5).

5. Timer adjustment controls.

Press either the ‘forward’ or ‘backward’ arrow button to

change the clock or preset time.

Parking Heater

Setting the current time

Setting the heater start time presets

Up to three different preset start times can be programmed using

NOTE: Both the current time and any preset start-up time are set and

the timer unit, as follows:

displayed in 24 hour clock format.

• Press the ‘SET’ control (4) in the timer unit - the display

If the power supply to the unit has been interrupted (by vehicle

illuminates, showing a preset programme number (on the right

battery disconnection, for example), the time of day will need to

hand side of the display) and previously programmed start time

be reset and any preset programmes will be lost. Reset the time as

associated with that preset.

follows:

• If the desired preset is not displayed, press and release the ‘SET’

• Press the clock control (3) - the display illuminates and the

control again. This cycles through the presets - repeat until the

clock symbol and ‘:’ flash.

desired preset number is displayed.

• Set the time using the timer adjustment controls (5), pressing

• To adjust the start time for that preset, use the timer adjustment

the right control to advance the time and the left control to turn

controls (5) to set the desired time.

the clock back. The time increments in minutes, with the

NOTE: You must begin to set the start time within approximately 10

incremental change accelerating the longer the control is kept

seconds of selecting the desired preset (before the display illumination

depressed.

ceases), otherwise the above procedure must be repeated.

• Once the correct time is displayed, release the control and leave

the unit for approximately 10 seconds, until the display

If at any time you wish to cancel the programming process, press

extinguishes.

and release the ‘SET’ control repeatedly (cycling through the

preset numbers) until the display and preset number extinguish.

NOTE: To display the current time, press the clock control. The display

illumination ceases 10 seconds after the control is released.

Selecting a preset programme

Press and release the ‘SET’ control (4) repeatedly until the desired

preset number is displayed (‘1’, ‘2’ or ‘3’) and check that the start

time is correct. After 10 seconds, the start time will extinguish, but

the display remains illuminated. The timer is now set to activate

the heater at the programmed time.

To cancel a programmed preset start-up time, press and release the

‘SET’ control repeatedly (cycling through the preset numbers)

until the display extinguishes.

Parking Heater

Manual operation

USING THE REMOTE HANDSET

Manual operation allows you to switch on the heater, either when

leaving the vehicle for a short time, or when parked up, to keep

the car interior warm.

To switch the heater on, press the manual operation control (1) -

the flame symbol in the display illuminates. The heater will operate

until the set temperature is reached, or until 30 minutes has

elapsed.

To manually switch off the heater, press the control again - the

flame symbol and the display extinguish.

HB0488

The remote handset supplied with your parking heater, has an

approximate unobstructed range of 300 metres, but this range can

be substantially reduced by buildings, obstructions or mountainous

terrain.

NOTE: If the handset is operated within 2 metres of the car, the signal

may be too strong, causing the handset indicator light to flash rapidly

(signifying an error). If this occurs, move further away from the car and try

again.

Rover 75. Service Manual - part 3
