有关安全的几点说明

您 和 他 人 的 安 全 都 是 非 常 重 要

的。因此安全驾驶本车辆是用户的重
要责任。

为 了 使 您 了 解 有 关 安 全 注 意 事

项，我们通过车辆上的各种标牌和本
手册，提供了有关操作步骤和其他事
项的说明。这些说明提醒您注意那些
会伤及您或他人的潜在危险。

当然，将所有与操作及保养车辆

有关的危险均列举出来是不现实的，
也是不可能的。因此，应靠您本人及
时做出正确的判断。

这些重要的安全说明具有多种形式，其中包括 ：



• 安全标牌

  - 贴于车上。



• 安全提示

  -  前面标有警告注意符号以及“危险”、“警告”或“注意”三种

字样之一的文字。

这些文字的含义是 ：

 危  险

对高度危险要警惕，无视这些信息可能危及生命 ；

 警  告

对中度危险要警惕，无视这些信息可能导致受伤 ；

 注  意

对轻微危险要关注，无视这些信息可能导致车辆损坏 ；

 提  示

一般及不会造成伤害的说明。



• 安全章节

  - 有关驾驶员和乘员的安全事项。



• 指

    导  - 如何正确和安全地操纵本车。

整套手册包含重要的安全信息

 - 请仔细阅读。

目

    录

I

2.1.1 仪表及操纵机构总布置 ····························· 32
2.1.2 指示灯 ·················································· 34
2.1.3 组合仪表 ··············································· 38
2.1.4 组合仪表显示屏 ······································ 41
2.1.5 组合仪表显示屏菜单 ································ 43
2.1.6 方向盘 ·················································· 44

2.2 开启和关闭汽车 ·········································· 47

2.2.1 点火钥匙 ··············································· 47
2.2.2 遥控器 ·················································· 50
2.2.3 中央门锁系统 ········································· 52
2.2.4 车门  ···················································· 55
2.2.5 行李箱盖 ··············································· 56
2.2.6 电动门窗 ··············································· 58
2.2.7 电动天窗（适用于某些车型） ····················· 60
2.2.8 发动机舱盖 ············································ 64

2.3 车灯及视野 ················································ 65

2.3.1 车灯  ···················································· 65
2.3.2 车内照明灯 ············································ 70
2.3.3 风窗玻璃雨刮器 ······································ 72
2.3.4 风窗  ···················································· 74

1.安全操作指示 ········································ 1

1.1 安全驾驶 ·····················································1

1.1.1 一般说明 ·················································1
1.1.2 驾乘人员正确坐姿 ·····································2
1.1.3 踏板区域 ·················································5

1.2 安全带 ························································7

1.2.1 一般说明 ·················································7
1.2.2 为何须佩戴安全带 ··································· 11
1.2.3 安全带 ·················································· 14

1.3 安全气囊系统 ············································· 18

1.3.1 一般说明 ··············································· 19
1.3.2 前排正面安全气囊 ··································· 21
1.3.3 前排侧面安全气囊（适用于某些车型） ········· 24
1.3.4 侧窗帘式安全气囊（适用于某些车型） ········· 26

1.4 儿童安全乘车 ············································· 28

1.4.1 一般说明 ··············································· 28
1.4.2 儿童座椅 ··············································· 29
1.4.3 正确安装儿童座椅 ··································· 30

2.操作系统及装备 ····································32

2.1 驾驶室 ······················································ 32

目

    录

II

2.6.5U 盘   ·················································· 120
2.6.6AUX 外部音源 ······································· 121
2.6.7 注意事项 ············································· 122
2.6.8 特性规格 ············································· 123

2.7 触摸屏 DVD 导航（适用于某些车型） ············· 124

2.7.1 基本操作 ············································· 125
2.7.2 收音机 ················································ 127
2.7.3CD/MP3/WMA ······································ 131
2.7.4DVD   ·················································· 134
2.7.5VCD   ·················································· 140
2.7.6U 盘   ·················································· 141
2.7.7AUX 外部音源 ······································· 145
2.7.8 系统设定 ············································· 146

3.驾驶指南 ··········································· 151

3.1 启动和驾驶 ·············································· 151

3.1.1 点火开关 ············································· 151
3.1.2 启动发动机 ·········································· 155
3.1.3 关闭发动机 ·········································· 157
3.1.4 行车说明 ············································· 158

2.3.5 后视镜 ·················································· 75
2.3.6 视野  ···················································· 78

2.4 座椅和储物设施 ·········································· 80

2.4.1 正确调整座椅的重要性 ····························· 80
2.4.2 头枕  ···················································· 81
2.4.3 前排座椅 ··············································· 83
2.4.4 后排座椅 ··············································· 87
2.4.5 储物设施 ··············································· 88
2.4.6 饮料杯架 ··············································· 91
2.4.7 烟灰盒、点烟器 ······································ 92
2.4.8 行李箱 ·················································· 94
2.4.9 附件与改装 ············································ 95

2.5 空调系统 ··················································· 97

2.5.1 一般说明 ··············································· 97
2.5.2 自动空调系统 ········································· 98

2.6 单碟 CD （适用于某些车型） ························· 104

2.6.1 基本操作 ············································· 106
2.6.2 收音机 ················································ 108
2.6.3CD 光碟 ···············································111
2.6.4MP3/WMA ············································117

目

    录

III

4.3 外部保养 ················································· 198
4.4 检查和添加油液 ········································ 204

4.4.1 检查和添加燃油 ···································· 206
4.4.2 发动机机油 ·········································· 207
4.4.3 冷却液 ················································ 212
4.4.4 风窗清洗液和雨刮器片 ··························· 217
4.4.5 制动液 ················································ 219
4.4.6 转向助力液 ·········································· 222
4.4.7 蓄电池 ················································ 224
4.4.8 车轮  ·················································· 228

5.技术数据 ··········································· 234

5.1 识别代号 ················································· 234
5.2 规格 ······················································· 235

6.意外事故处理 ····································· 242

6.1 随车工具、备用轮胎 ·································· 242
6.2 三角警示牌的使用 ····································· 244
6.3 更换漏气轮胎 ··········································· 245
6.4 保险丝 ···················································· 249
6.5 保险丝的配置 ··········································· 251

3.1.5 换挡杆挡位显示 ···································· 166
3.1.6 驻车制动器 ·········································· 167

3.2 驾驶员驻车辅助系统（适用于某些车型） ········ 168
3.3ABS 与 EBD 装置 ······································ 173

3.3.1 防抱死制动系统（ABS） ························· 173
3.3.2 电子稳定程序（ESP）（适用于某些车型） ··· 176
3.3.3 液压制动辅助系统（适用于某些车型） ······· 179

3.4 定速巡航控制系统（适用于某些车型）············ 180
3.5 轮胎气压监测系统（TPMS） ························ 182
3.6 启停控制系统（适用于某些车型）·················· 184
3.7 汽车与环境 ·············································· 188

3.7.1 行车安全检查 ······································· 188
3.7.2 磨合期驾驶 ·········································· 189
3.7.3 不同情况下的驾驶要领 ··························· 191
3.7.4 车辆的高效使用 ···································· 192

3.8 附件与改装 ·············································· 193

4.使用保养 ··········································· 195

4.1 保养说明 ················································· 195
4.2 内部保养 ················································· 196

目

    录

IV

6.6 更换灯泡 ················································· 253
6.7 应急启动 ················································· 255
6.8 紧急牵引 ················································· 258

1.安全操作指示

1

 危  险



• 行驶中切勿因外界因素分散注意

力。



• 切勿在反应能力下降时驾驶汽车，

如药品、酒精及毒品等会削弱人
的反应能力。



• 严格遵守交通法规及车速的限制

规定。

驾驶员行驶前务必进行下列检查 ：



- 检查并确保所有车灯和转向信号灯

工作正常。



- 检查轮胎气压和燃油存量。



- 确保所有车窗清晰，视野良好。



- 确保无物品妨碍驾驶员脚部空间踏

板运动。



- 按身高及体型调整前排座椅、头枕

和后视镜。



- 用合适的儿童座椅保护儿童，并帮

其系好安全带。



- 正确佩戴安全带，并提醒车内所有

乘员系好安全带。

1.1 安全驾驶

1.1.1 一般说明

本 章 节 介 绍 安 全 驾 驶 的 重 要 信

息、操作要领、建议及安全注意事项，
请仔细阅读，为了您和乘员的安全请
遵守相关规定。

 危  险

请务必随车携带用户手册。若

将汽车借于或转卖他人，请务必将
全套随车文件交给新车主。

2

1.安全操作指示

 警  告

驾驶员坐姿不正确可能导致

下列严重后果：



• 驾驶员胸部与方向盘之间的距

离太近，则安全气囊系统不能
提供有效保护，并有可能对驾
驶员造成更严重的伤害。



• 驾驶员的双手应一直握在方向

盘外圈（

9 点和 3 点位置），以

确保能够看到组合仪表上的所
有仪表和指示灯。



• 调整方向盘，使其正对驾驶员

的前胸，能有效降低安全气囊
触发时可能造成的伤害。



• 行驶过程中，座椅不可倾斜过

度，必须正确佩戴安全带，保
持正确的坐姿，以免急刹车造
成伤害。



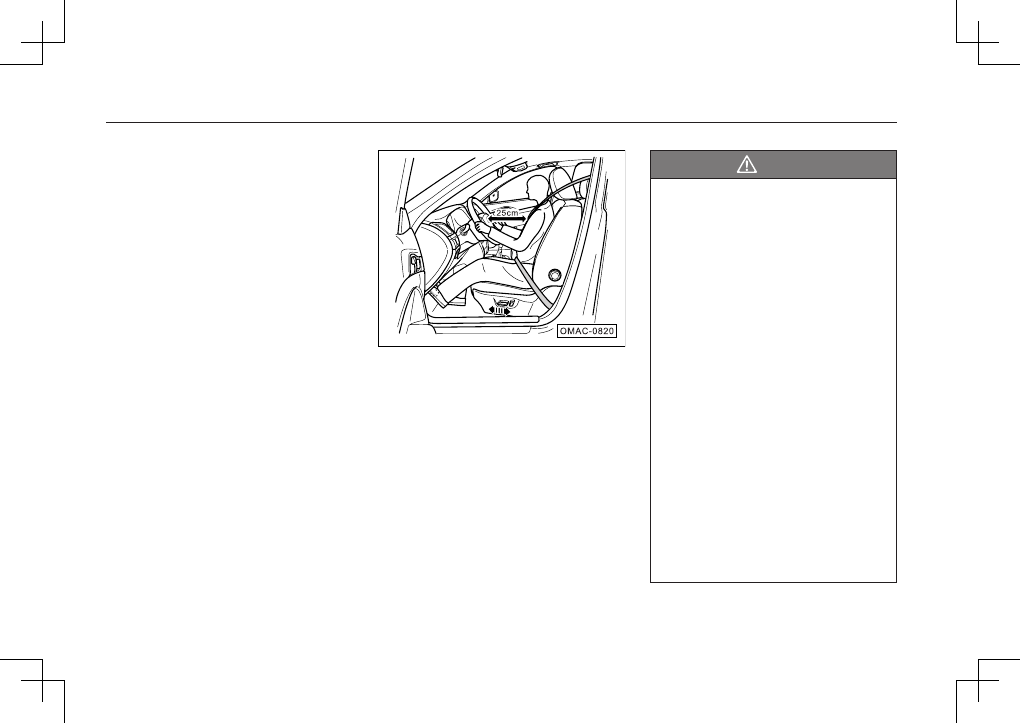

- 前后调整驾驶员座椅，在略微弯腿

的情况下，可对油门踏板、制动踏
板和离合器踏板进行有效操作。



- 调整方向盘，确保方向盘和胸部之

间的距离不小于

25 cm。



- 正 确 佩 戴 安 全 带（ 请 参 见 第

 14

页）。

1.1.2 驾乘人员正确坐姿

驾驶员正确坐姿

驾驶员坐姿正确与否直接影响到

行驶安全性与驾驶员的疲劳程度。

为了您自身及乘员的安全、降低

事故伤亡风险，建议驾驶员进行以下
操作 ：



- 将驾驶员座椅靠背调至合适位置，

使 背 部 完 全 与 驾 驶 员 座 椅 靠 背 贴
合。



- 调整驾驶员座椅的头枕，使您的脑

后部中央正好枕在头枕的中央。

3

1.安全操作指示

后排乘员正确坐姿

为确保后排乘员的安全、降低事

故伤亡风险，后排乘员必须遵循以下
事项 ：



- 根据身高，调整头枕高度，使头枕

位置与头部保持一致。



- 保持端正的坐姿，尽量使背部紧贴

座椅靠背。



- 双脚放置在后排座椅前的脚部空间

内，并紧贴地板。



- 正 确 佩 戴 安 全 带（ 请 参 见 第

 14

页）。



- 携带幼龄乘客时，必须按照相关规

定采取合适的措施（如采用合适的
座 椅 保 护 儿 童 ）。（ 请 参 见 第

 28

页）

 警  告

前排乘员坐姿不正确可能导

致严重后果：



• 若乘员距仪表板过近，则安全

气囊系统将不能提供有效保护。



• 行驶过程中，双脚切勿放在仪

表板上、伸出窗外或盘在座椅
上，必须始终置于脚部空间内。
否则，紧急制动或发生事故时
极易受伤。



• 行驶过程中，座椅不可倾斜过

度，必须正确佩戴安全带，保
持正确的坐姿，以免急刹车造
成伤害。

前排乘员正确坐姿

为确保前排乘员的安全、降低事

故伤亡风险，前排乘员应进行以下操
作 ：



- 尽可能调整座椅，使前排乘员与仪

表板之间保持合适的距离，这样在
安全气囊触发时才能提供最有效的
安全保护。



- 调整头枕，使头枕位置与头部保持

一致。



- 调整靠背，使背部与靠背贴合。



- 正确佩戴安全带。



- 双脚应置于前排座椅前的脚部空间

内。

4

1.安全操作指示

 警  告

为降低事故的伤亡风险，务

必严格遵守下列事项：



• 头枕必须始终处在安装位置，

并正确调整。



• 所有驾乘人员必须按自身体型

将头枕调整至正确位置。头枕
上缘必须尽可能与头顶等高，
但勿低于眼睛

, 头后部尽可能

贴近头枕。



• 行驶中切勿调整头枕。

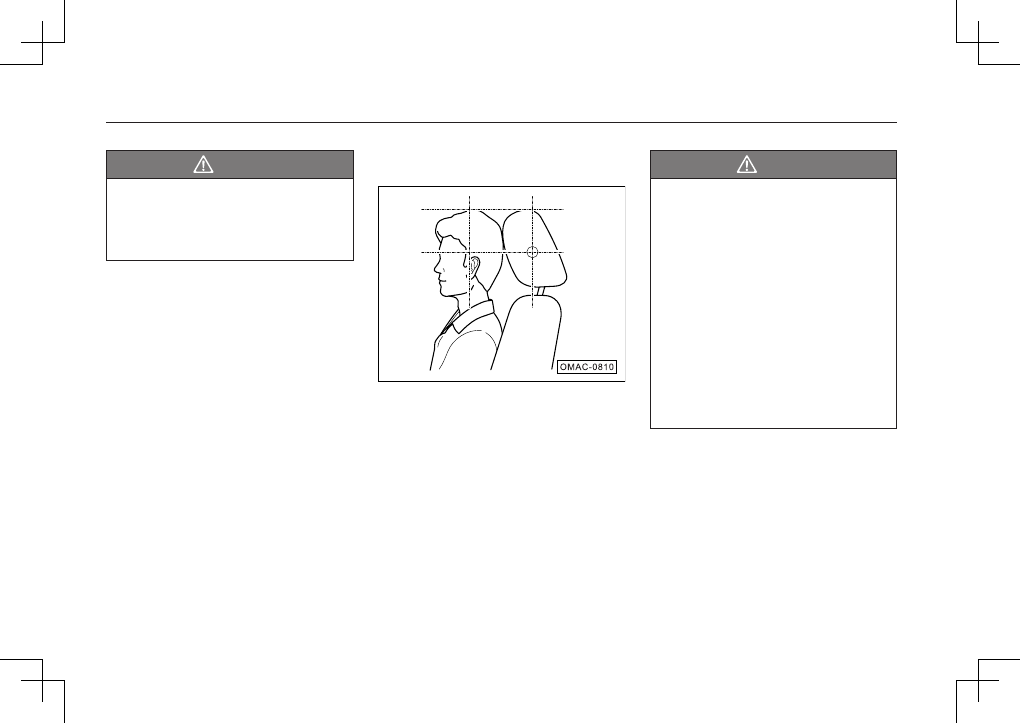

正确调整头枕



- 调整头枕，使您的脑后部中央正好

枕在头枕的中央，使头枕上缘与头
顶等高（或尽可能等高）。

 警  告

若后排乘员坐姿不合理，安

全 带 佩 戴 不 正 确 ， 则 发 生 事 故
时，将加大受伤的风险。

5

1.安全操作指示

配备机械式自动变速器汽车的踏板

1. 油门踏板
2. 制动踏板

配备自动变速器汽车的踏板

1. 油门踏板
2. 制动踏板

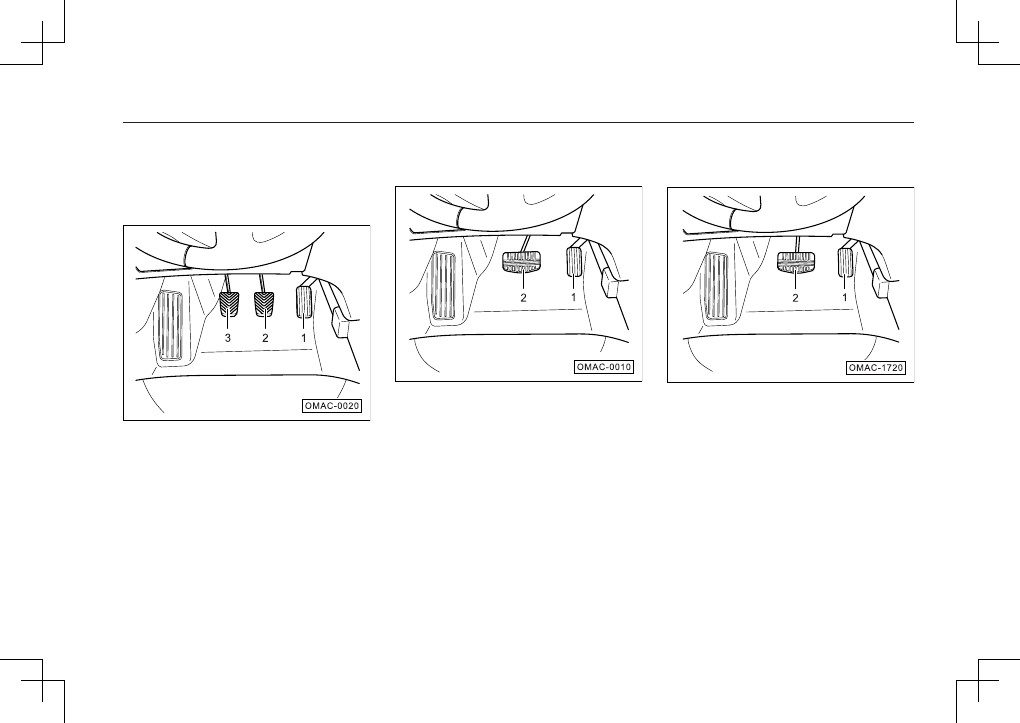

1.1.3 踏板区域

配备手动变速器汽车的踏板

1. 油门踏板
2. 制动踏板
3. 离合器踏板

6

1.安全操作指示

驾驶员侧踏脚垫

踏脚垫应固定在脚部空间内，并

不能妨碍踏板运动。

 警  告



• 必须确保踏脚垫牢固地固定在

驾驶员侧脚部空间内。



• 装好的脚垫上不得再铺设其他

脚垫或覆盖物，使踏板行程缩
小，阻碍踏板运动。



• 脚垫从车内取出清洗后，安装

时必须重新加以固定。

务必穿合适的鞋

驾驶员务必穿合脚并能灵敏感知

踏板运动的鞋。



- 汽车行驶时必须确保所有踏板随时

均能毫无障碍地踩踏到底。



- 必须确保所有踏板均能毫无障碍地

回位。

制动回路出现故障时，制动踏板

需要更大的踏板行程来停止车辆。

 警  告

踏板受到阻碍极易引发严重

事故，严重致伤人员。



• 驾驶员脚部空间内切勿存放任

何物品。否则，物品可能滑入
踏板区域，妨碍驾驶员对踏板
的操作，紧急制动或遇突发情
况时，驾驶员无法操纵制动踏
板、 离 合 器 踏 板 或 油 门 踏 板，
极易引发事故。

7

1.安全操作指示

 警  告

不使用安全带或安全带使用

不当，会加大引发严重伤亡的风
险。



• 汽车行驶时，必须正确佩戴安

全带才能保证紧急制动或事故
发生时大大降低车上人员所受
的伤害。



• 孕妇和残疾人也必须正确使用

安全带。



• 携带儿童时应按照儿童的体型

采用合适的儿童保护系统进行
保护。

 注  意

为了您及他人的生命安全，

请务必正确佩戴安全带。车辆使
用过程中，必须仔细阅读和遵守
本章所有信息及警告说明。

1.2 安全带

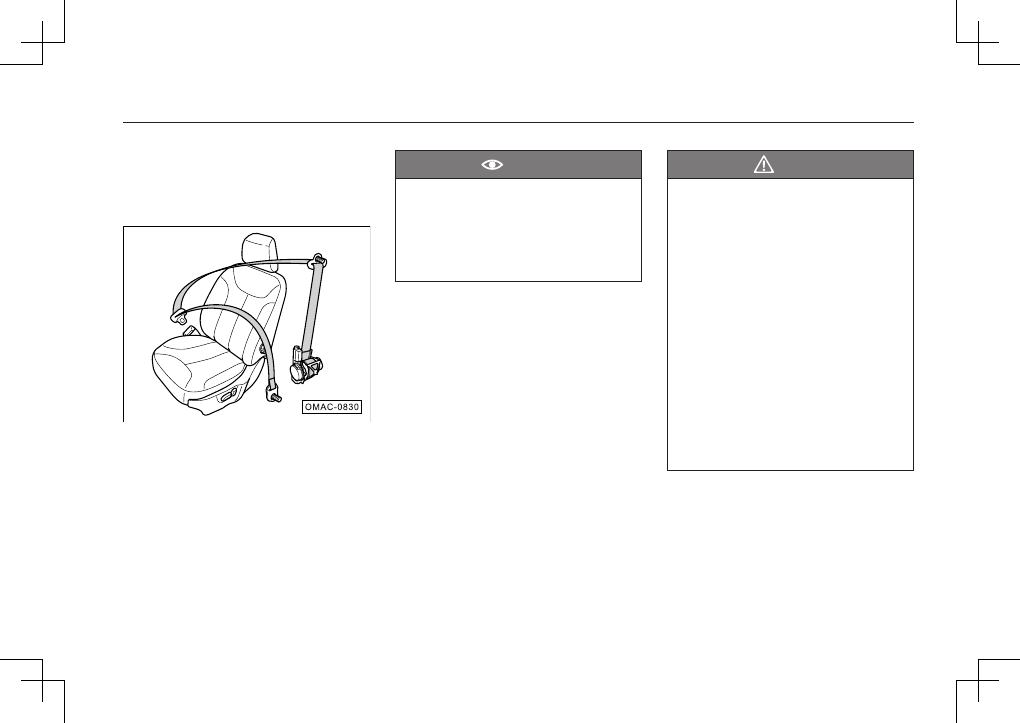

1.2.1 一般说明

正确佩戴安全带可以有效降低事

故对车上人员造成的伤害。

8

1.安全操作指示

 注  意

起步行驶前，请检查前排乘

员座椅，保证座椅上无重物，以
免系统误以为有乘员就坐，发出
错误警报。

 警  告

汽车行驶时，必须正确佩戴

安全带才能保证紧急制动或事故
发 生 时 大 大 降 低 乘 员 所 受 的 伤
害。

安全带提示灯

点火开关接通后，当驾驶员或前

排乘员（若有人就座）尚未扣紧安全
带时，该提示灯将点亮，提示驾驶员
需立即系好安全带。（适用于某些车
型）

座椅安全带系统的组件

您车辆上的座椅安全带系统包括

所有（五个）座位上的三点式安全带
以及仪表板上的安全带提示灯。

9

1.安全操作指示

前排乘员座椅安全带提示灯（

）



（适用于某些车型）

前排乘员座椅安全带提示灯用来

指示前排乘员座椅安全带状态。

当车速较低时，如果前排乘员未

系安全带，提示灯将闪烁约

6 秒后保

持常亮。

 注  意

当安全带装置或乘员感应器

失效时，提示灯也会闪烁约

6秒后

保持常亮。此时，请及时前往本
公司汽车销售店，对车辆进行检
修。

当车速较高时，如果驾驶员未系

安全带，提示灯闪烁约

20 秒后保持

常亮，并将持续声音报警，直至系上
安全带。

 注  意

当安全带装置失效时，提示

灯也会闪烁约

20秒后保持常亮，

并将持续声音报警。此时，请及
时前往本公司汽车销售店，对车
辆进行检修。

驾驶员座椅安全带提示灯（

）

驾驶员座椅安全带提示灯用来指

示驾驶员座椅安全带状态。

当车速较低时，如果驾驶员未系

安全带，提示灯将闪烁约

6 秒后保持

常亮。

 注  意

当安全带装置失效时，提示

灯也会闪烁约

6秒后保持常亮。此

时，请及时前往本公司汽车销售
店，对车辆进行检修。

10

1.安全操作指示

安全带预紧装置

发生严重碰撞时，已佩戴的安全

带上的预紧装置通过传感器触发，并
将安全带反向收紧，阻止乘员向前运
动，从而更加可靠地提高驾驶员及乘
员的安全性。

当车速较高时，如果前排乘员未

系安全带，提示灯闪烁约

20 秒后保

持常亮，并将持续声音报警，直至系
上安全带。

 注  意

当安全带装置或乘员感应器

失 效 时 ， 提 示 灯 也 会 闪 烁 约

20

秒后保持常亮，并将持续声音报
警。此时，请及时前往本公司汽
车销售店，对车辆进行检修。
