Smart 2012. Audio system navigation, multimedia. Manual

Press d in the navigation main menu

(

page 31).

The settings menu appears.

Press

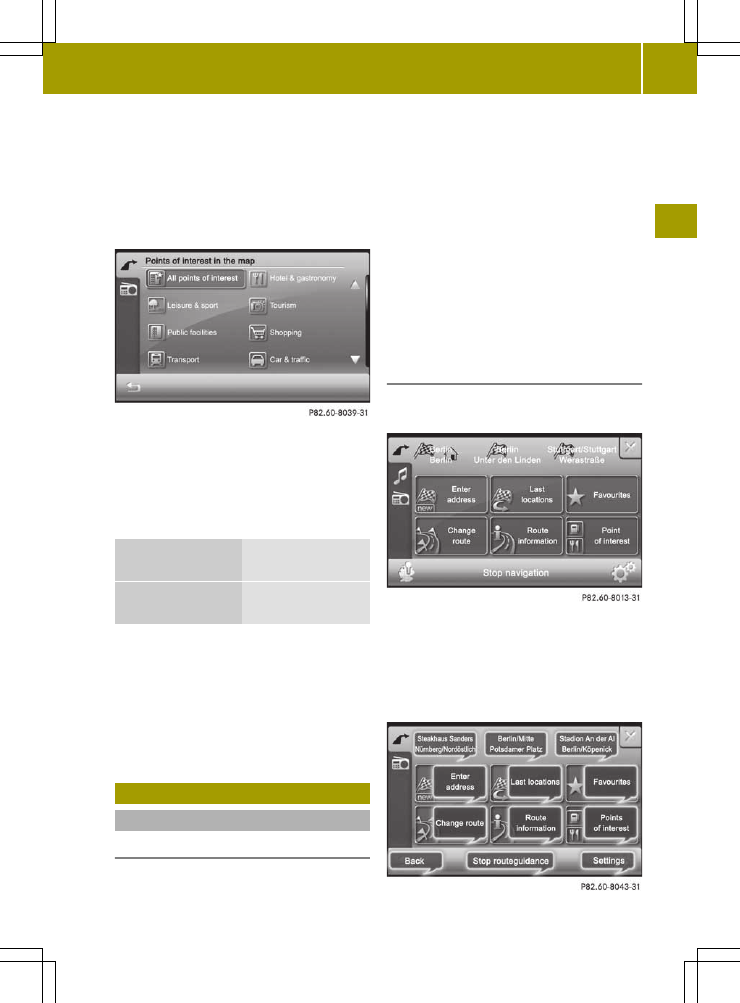

POIs on map

The points of interest in the map menu

appears. It shows the available

categories.

To scroll in the list, press 9

or :.

To switch the category display on/off:

press a symbol.

Depending on the previous setting, the

display is switched on or off.

Blue tick

All sub-entries are

shown.

White tick

Some of the sub-

entries are shown.

To call up a sub-category: press a

category name.

Depending on the category, sub-

categories are shown for selection.

Changes within a category may also have

an impact on other categories.

Voice control system
At a glance

Overview

You can operate navigation mode using the

Voice Control System. Available commands

are shown in the individual displays and

are announced in some menus.
The voice control system confirms

important commands and gives

instructions when entries are

unsuccessful.
If you speak the command unclearly or speak

a non-existent or incorrect command, the

device responds with "Please repeat your

comment".

While driving, you can only enter a

destination using the Voice Control

System.

Switching the Voice Control System on

Switch on navigation mode (

page 31)

and call up the navigation main menu.

Press the display for longer than 2

seconds.

The Voice Control System is switched on.

The available commands are shown as

light blue speech bubbles. An active

audio source is muted.

Voice control system

Navigation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

You can start the Voice Control System in

this way from any navigation display.
The commands depend on the respective

navigation menu. With the Voice Control

System, almost all functions are available

as with manual entry.

Switching the Voice Control System off

Say "Cancel".

The Voice Control System is switched off.

Press a menu option.

The Voice Control System is switched off

and the selected function is carried out.

The Voice Control System is switched

off automatically at the end of an input

sequence (e.g. when starting route

guidance).

Adjusting the volume

Start the dialog.

Say a command, e.g. "Main menu".

Set the volume by turning cVd the

control knob.

The volume increases or decreases

during the voice output.

Controls

Please bear the following in mind:

WARNING

The navigation system cannot take the

prevailing traffic situation into account

or recognize any dangers or obstacles. You

must therefore be constantly aware of the

prevailing road and traffic conditions so

that you can recognize any dangers and

react to them.
Route guidance only provides

recommendations. You must always comply

with the applicable road traffic

regulations and adapt your driving style to

the prevailing conditions. You could

otherwise become involved in an accident

in which you or others could be injured.

General commands

Voice commands are marked by ? in this

manual. The following voice controls are

always available.

? Back
The previous menu is shown.

? Cancel
The Voice Control System is switched off.

? Help
The Voice Control System starts the help

function. You can use the "Help" command

to have all of the basic commands read

out.

? Main menu
The navigation main menu is displayed.

Announcement of the available commands

In some menus, e.g. the navigation main

menu (

page 31), the Voice Control System

informs you of the available commands.
Voice Control System voice outputs have

the ^ symbol in this manual.
Example announcement in the navigation

main menu (Expert mode)
^ Here you can say: enter address,

recent locations, favorites, route

manager, route information, points

of interest, start navigation, stop

navigation, settings, back or last

destination.

Dialog example

Displays have the _ symbol in this

manual.
Entering the address and calculating the

route
? Enter address

_ The enter new destination menu

appears.

Voice control system

Navigation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

^ Please select.

? Entering the city

_ The enter city menu appears.

^ Name the city or say change country,

enter zip code, enter coordinates or

back.

? Berlin

_ The system shows a numbered list of

city names in the display.

^ Please select an entry number from

the list.

? Say the number.

^ Name the street or say change zip

code, city center, point of interest,

cancel or back.

? Unter den Linden.

_ The system shows a numbered list of

street names in the display.

^ Please select an entry number from

the list.

? Say the number.

^ Name the house number or say change

street, middle of street, crossroads,

cancel or back.

? Say a house number.

_ The system shows a numbered list of

house numbers in the display.

^ Please select an entry number from

the list.

? Say the number.

_ The address is now complete and the

detailed information menu appears.

^ Would you like a route to this

destination be calculated?

? Yes.

^ Route calculation completed.

? Start route guidance.

Voice control system

Navigat

ion

-------------------------------------------------------------------------------------------------------------------------------------------------------------

General notes
Introduction

Telephony via the Bluetooth

interface is

available in conjunction with a

Bluetooth

-capable phone. With a suitable

mobile phone, you can use the hands-free

system via the Bluetooth

interface and

download contacts from the mobile phone,

e.g. via PBAP (Phone Book Access Profile).
For more information on suitable mobile

phones and on connecting Bluetooth

capable mobile phones to audio system

navigation/multimedia, contact your

smart Center.

Safety notes

WARNING

Excessive electromagnetic radiation may

constitute a health hazard to yourself and

others.
There is scientific discussion

surrounding the possible health risks

posed by electromagnetic fields. You can

reduce this risk by using an exterior

antenna. Therefore, only use mobile

communication equipment if it is

connected to the exterior antenna of the

vehicle.
Two-way radios and fax machines without

low-reflection exterior antennas may

interfere with the vehicle electronics and

thereby compromise the operational safety

of the vehicle and thereby your safety as

well. Therefore, only use these if they are

correctly connected to a separate, low-

reflection exterior antenna.

WARNING

Excessive electromagnetic radiation may

constitute a health hazard to yourself and

others. The use of an exterior antenna takes

into consideration the scientific

discussion surrounding the possible

health risk posed by electromagnetic

fields.

General notes

Call disconnection while the vehicle is

in motion

A call may be disconnected if:

the mobile phone battery is not

sufficiently charged.

there is insufficient GSM network

coverage in certain areas.

you move from one GSM transmitter/

receiver area (GSM cell) into another and

no channels are free.

you use a SIM card which is not

compatible with the available network.

you are using a mobile phone with

"Twincard" and the mobile phone with

the second SIM card is already logged

into the network.

Function restrictions

You will not be able to use the telephone,

will no longer be able to use the telephone,

or you may have to wait before using it, in

the following situations:

if the mobile phone is not switched on

when the "Bluetooth

" function is

switched off in the mobile phone

if the mobile phone is not logged into a

mobile phone network
the telephone automatically tries to log

on to a network. If no network is

available, you will not be able to make a

"911" emergency call.

if you switch off audio system

navigation/multimedia during a call in

hands-free mode, the call is transferred

to the mobile phone.

General notes

Telep

hone.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

911 emergency call

Making emergency calls without entering a

PIN is only possible using the mobile

phone.
The following conditions must be fulfilled

in order to make a 911 emergency call:

the mobile phone must be switched on.

a network must be available.

a valid and operational SIM card must be

inserted in the mobile phone.

the PIN must have been entered.

If you cannot make an emergency call, you

must arrange rescue measures yourself.
The 911 emergency call number is a public

service. Any misuse is punishable by law.

Telephony via the Bluetooth

interface

Conditions

Making calls via the Bluetooth

interface

with audio system navigation/multimedia

requires a Bluetooth

-capable mobile

phone.
Not all mobile phones available on the

market are equally suitable. Further

information about suitable mobile phones

and connecting Bluetooth

-capable mobile

phones to audio system navigation/

multimedia can be obtained at your smart

Center.
The battery of the mobile phone should

always be kept sufficiently charged in

order to prevent malfunctions.
In preparation for telephoning via the

Bluetooth

interface, you should check the

following items on your mobile phone (see

the mobile phone operating instructions):

Hands-Free Profile

The mobile phone must support Hands-

Free Profile 1.0 or above.

Some displays depend on the supported

version of the Hands-Free Profile.

Bluetooth

visibility

On certain mobile phones, the device

itself must be made "visible" for other

devices, as well as activating the

Bluetooth

function (see the mobile

phone operating instructions).

Bluetooth

device name

Every Bluetooth

device has its own

Bluetooth

device name. This device

name is freely definable, but can be

identical for all devices from the same

manufacturer. It is therefore

recommended that you change this name

so that you can easily recognize your

mobile phone (see the mobile phone

operating instructions).

Registering and connecting the mobile

phone

General information

You will need to register your mobile phone

before using it with the audio system

navigation/multimedia operating system

for the first time. The mobile phone is then

entered in the audio system navigation/

multimedia Bluetooth

phone list.

This process includes:

the search by the Bluetooth

mobile

phone

subsequent registration

If you want to reconnect a phone that has

already been registered, it is connected

automatically.
The Bluetooth

device name for audio

system navigation/multimedia is

smart

Radio

You can register a maximum of five

Bluetooth

devices (mobile phones and

Bluetooth

audio devices).

If the

smart Radio

Bluetooth

device

name is already in the mobile phone's

Bluetooth

device list, it may not be

possible to connect a mobile phone.

Telephony via the Bluetooth

interface

Telep

hone.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Searching for and registering a mobile

phone

Press

Cell phone

in the main menu

(

page 10).

The telephone menu appears.

Press

Options

in the telephone menu.

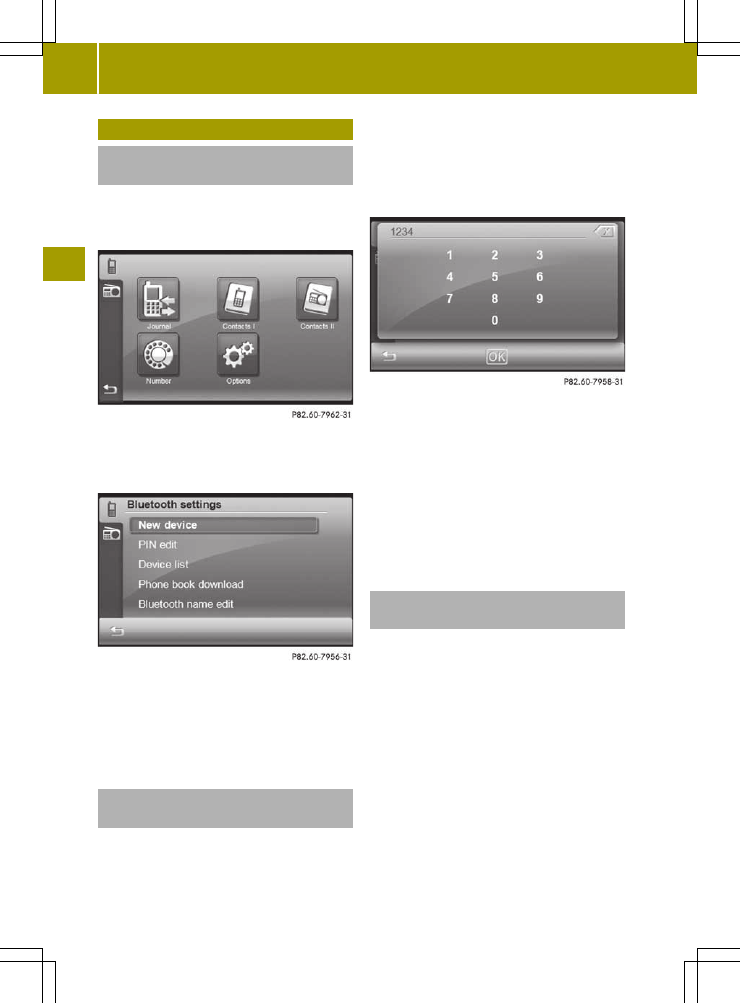

The "Bluetooth

settings" menu appears.

Press

New device

in the menu.

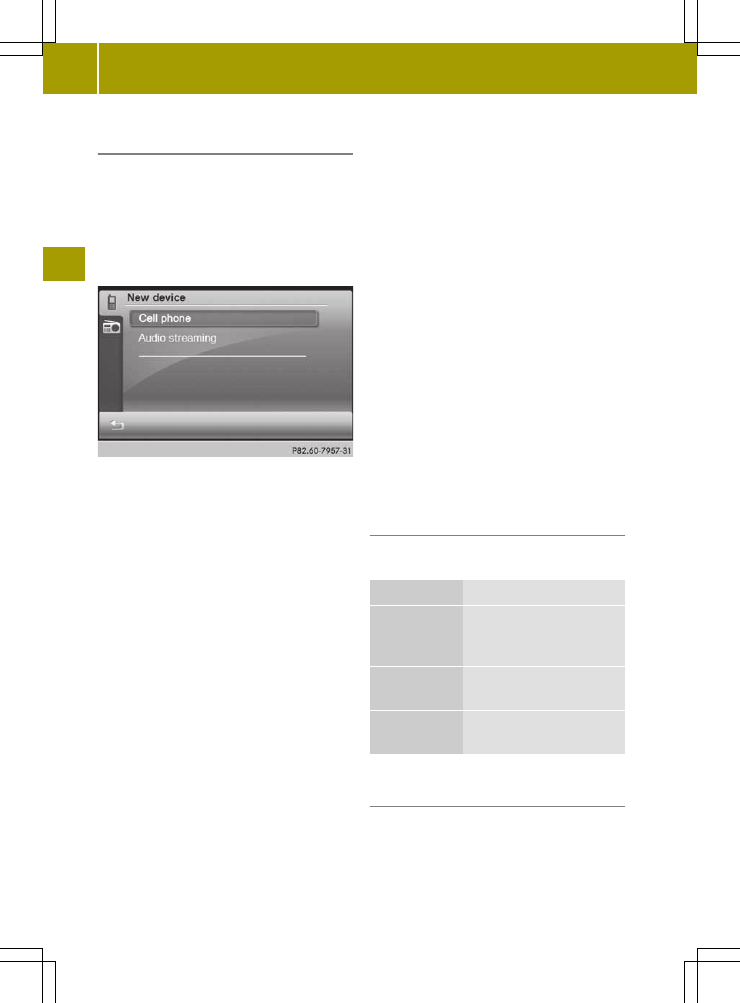

New device menu (for Bluetooth

connection)

Press

Cell phone

The

Please start searching from

mobile device! PIN xxxx

message

appears.

To start a search: start the Bluetooth

search on the mobile phone (see mobile

phone operating instructions).
Example input: select the "New device"

entry in the mobile phone's Bluetooth

device list.

The mobile phone starts the search for

Bluetooth

devices within range. If

audio system navigation/multimedia is

found, the

smart Radio

Bluetooth

device name appears in the mobile

phone's Bluetooth

device list.

Select the audio system navigation/

multimedia operating system on your

mobile phone.

To register the mobile phone: enter the

PIN that is shown on the audio system

navigation/multimedia display into the

mobile phone and connect the mobile

phone.

The following messages are shown one

after another in the audio system

navigation/multimedia display when

registering:

Calling...

Phone connected <Device name>

The LED lights up blue.

Call history downloading...

Downloading phonebook...

The Bluetooth

device name for the

mobile phone is entered in the audio

system navigation/multimedia

telephone device list. The mobile phone

is registered on audio system

navigation/multimedia.

If you connect a mobile phone with the

Bluetooth

audio function, the

Streaming connected

message also

appears.

LED display for Bluetooth

connection

The LED shows whether a Bluetooth

device

is connected or not (

page 8).

LED display

Explanation

Blue

Bluetooth

device

(mobile phone, audio

equipment) is connected

Flashes blue Bluetooth

connection is

being established

Unlit

No Bluetooth

device is

connected

Selecting a mobile phone from the

telephone device list

If you have registered multiple mobile

phones, you can select a mobile phone from

the Bluetooth

telephone list and connect

it to audio system navigation/multimedia.

Telephony via the Bluetooth

interface

Telephone.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

You can only switch to another

registered mobile phone if no phone call

is active.

Press

Cell phone

in the main menu

(

page 10).

The telephone menu appears.

Press

Options

in the telephone menu.

The "Bluetooth

settings" menu appears.

Press

Device list

in the menu.

Select an entry.

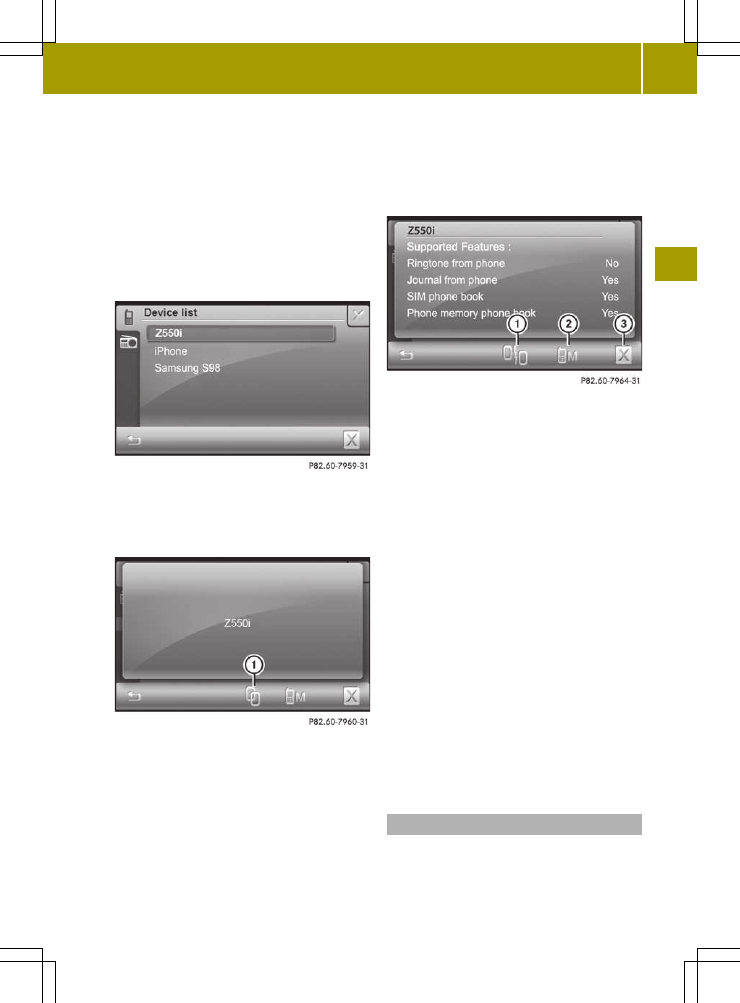

Depending on the connection status, one

of the following displays is shown

(example 1 and 2).

Example 1: mobile phone not connected
:

To connect a mobile phone

In this display, the mobile phone can be:

connected to audio system navigation/

multimedia

determined as a master device

(

page 65)

de-registered (

page 66)

To connect: press symbol :.

The

Connecting...

message appears.

When the mobile phone is connected, the

Phone connected <Device name>

message appears.

Example 2: the mobile phone is connected and

supported Bluetooth

features are displayed

To disconnect the mobile phone

;

To determine a master device

To de-register a mobile phone

The supported Bluetooth

features are

displayed after a Bluetooth

audio

device is connected.

In this display, the mobile phone can be:

determined as a master device

(

page 65)

de-registered (

page 66)

disconnected from audio system

navigation/multimedia

To disconnect a mobile phone: press

symbol :.

The mobile phone is no longer connected

to audio system navigation/multimedia

but is still entered in the telephone

device list and can be connected again

later.

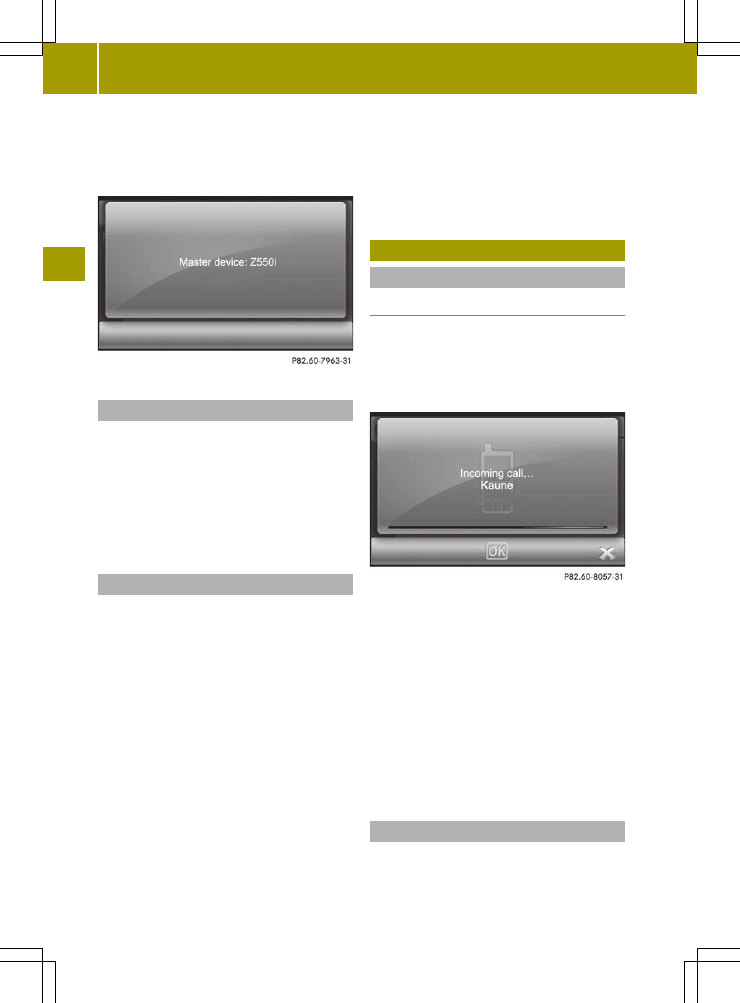

Determining a master device

You can determine a mobile phone as a

master device, but not a Bluetooth

audio

device. A master device is given priority

when reconnecting automatically.

Telephony via the Bluetooth

interface

Telephone

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Press symbol ; in example 2.

The selected mobile phone is entered in

the telephone device list as a master

device.

Reconnecting automatically

Audio system navigation/multimedia

searches for a master device automatically

when it is switched on. If no master device

has been determined, the telephone list is

searched for a mobile phone and the

Bluetooth

device list is searched for an

audio device.

De-registering a mobile phone

You can either de-register an individual

mobile phone or delete all mobile phones

from the telephone device list.

Bluetooth

audio devices can be deleted

from the corresponding display in the same

way.

To de-register a mobile phone: press

= in example 2.

The

Please

Please confirm

confirm to

to delete

delete

message

appears.

Press

The

Deleted

message appears.

The mobile phone display shows a

message that connection with audio

system navigation/multimedia has been

terminated.

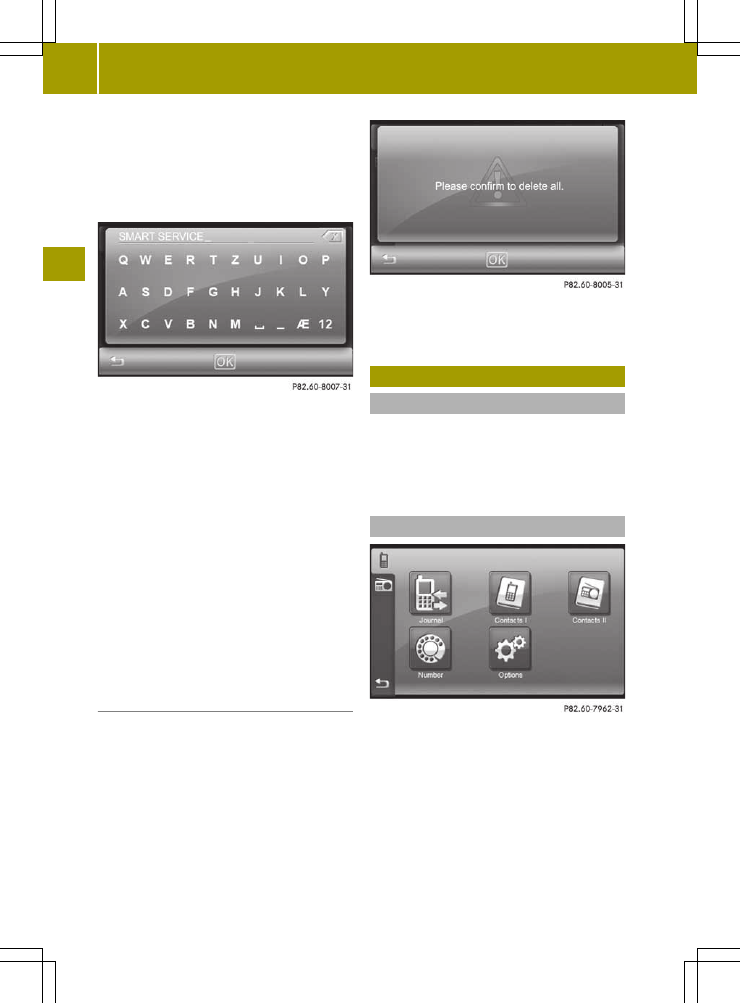

To de-register all mobile phones: press

1 in the telephone device list.

Please confirm to delete all

Press

The

Deleted

message appears.

Telephone operation
Incoming call

Rejecting or accepting a call

When a call is being received, the

Incoming call...

message is shown.

Either the phone number, the name or

Unknown

is shown in the display (phone

number is not sent).

To reject: press1.

To accept: press

Once you have accepted the call, you can

use hands-free mode.

Set the call volume by turning

cVd the control knob.

For more information, see the "Functions

available during a call" section

(

page 67).

After the call is finished, the previous

display is shown again.

Making a call

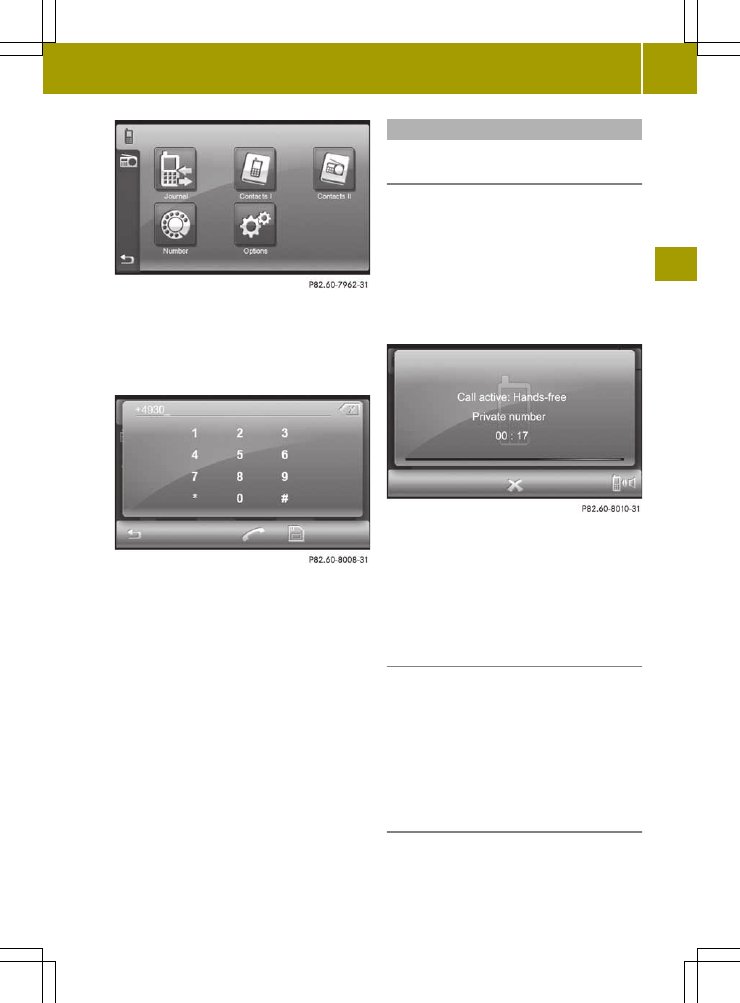

Press

Telephone

in the main menu

(

page 10).

The telephone menu appears.

Telephone operation

Telephone.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Press

Number

An input menu appears.

Type in the phone number. Press and hold

to enter "+".

The phone number is shown at the top left.

To delete a number: press 1.

To delete a phone number: press and hold

1 until the whole phone number has

been deleted.

To store a phone number in the radio:

press the memory card symbol.

Enter a name and then press

The contact is stored in "Radio phone

book" (Contacts II) (

page 69).

To make a call: press ;.

The

Calling....<Name>

message

appears.

Functions available during a call

Transferring a hands-free call to the

mobile phone

The display shows either the phone number

or the name.
The following information is shown in the

display during a call:

type of connection (hands-free, mobile

phone)

name or phone number of the caller

call duration

Press the symbol on the bottom right.

You are now conducting the call using the

mobile phone.

Call

Call active:

active: Handset

Handset

shown in the display.

To return to the call using the hands-

free system: press the symbol again.

Adjusting the call volume

Option 1

Turn cVd the control knob.

Option 2

Call up the volume settings menu and set

the volume for telephone calls

(

page 22).

Ending a call

Press 1.

The call is ended and the previous

display appears.

Telephone operation

Telephone.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Using the phone book
Introduction

Audio system navigation/multimedia

shows the mobile phone's phone book

(Contacts I) and the audio system

navigation/multimedia phone book

(Contacts II). The contacts in the phone

book in the mobile phone are automatically

downloaded when the mobile phone is

connected (

page 63). They are updated

after every call and after the mobile phone

is connected again. You can also download

the contacts from the mobile phone

yourself (

page 72).

Mobile phone contacts can be stored

permanently in the audio system

navigation/multimedia phone book. These

are then available independently of the

mobile phone connected.

Phone book in the mobile phone

(Contacts I)

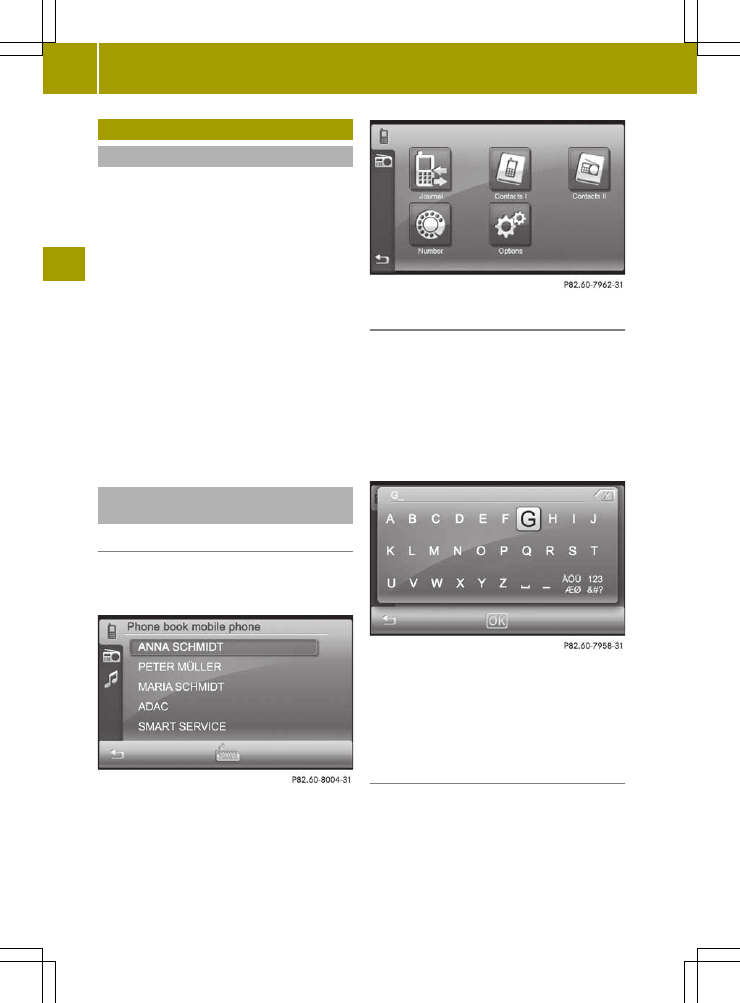

Opening the phone book

Option 1: the phone book in the mobile

phone is shown as soon as downloading is

complete.

Option 2: press

Contacts I

in the

telephone menu.

Searching for a contact

Press the keyboard symbol (see the

illustration below option 1).

An input menu appears.

Enter up to three letters of the entry to

be searched for. Instructions for

entering characters can be found in the

"Entering characters in the phone book"

section (

page 15).

Press

in the phone book in the mobile

phone.

The phone book is opened at the

corresponding place.

Showing the contact's phone number(s)

and making a call

Press a contact in the mobile phone's

phone book.

The available phone numbers are

displayed.

Using the phone book

Telephone

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Press a phone number and then

press ;.

The

Calling...<Name>

message

appears.

Storing a contact in the audio system

navigation/multimedia phone book

(Contacts II)

Press the memory card symbol when the

available phone numbers are displayed.

An input menu appears.

Change the contact names if desired.

Instructions for entering characters can

be found in the "Entering characters in

the phone book" section (

page 15).

Press

The

Saved

message appears.

Audio system navigation/multimedia

phone book (Contacts II)

Opening the phone book

Press

Contacts II

in the phone book.

The radio phone book appears.

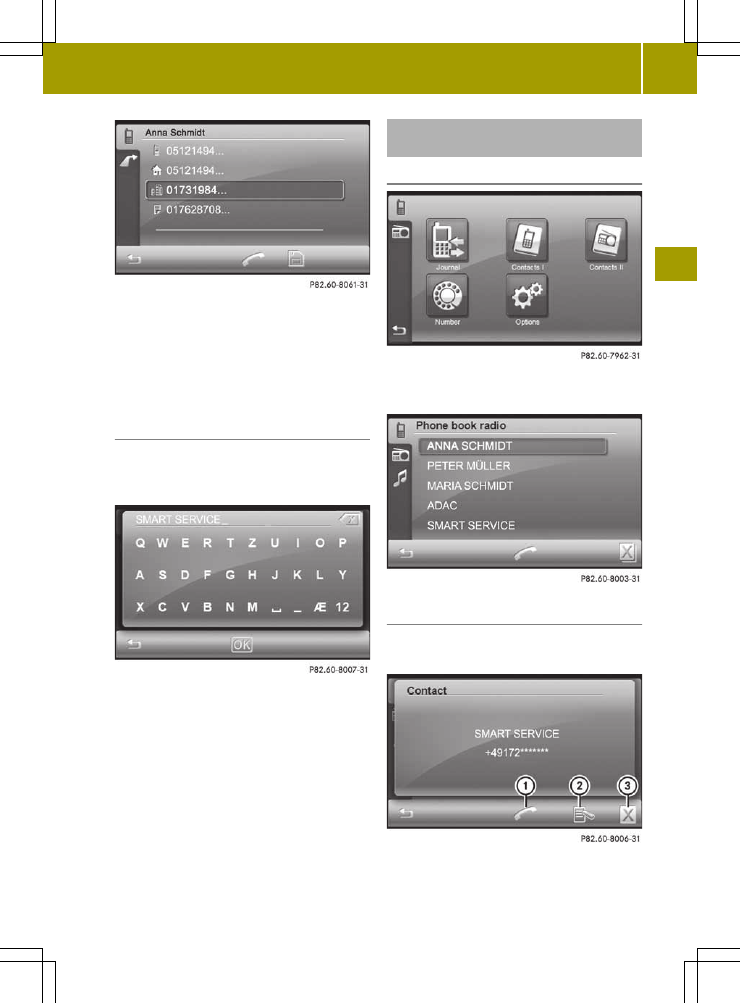

Calling and editing a contact

Press a contact in the phone book.

The contact is shown.

To call the contact

;

To edit the contact

To delete the contact

Using the phone book

Telephon

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To call the contact: press :.

The

Calling....<Name>

message

appears.

To edit the contact: press ;.

The input menu for the name appears.

Change the contact name. Instructions

for entering characters can be found in

the "Entering characters in the phone

book" section (

page 15).

Press

The input menu for the phone number

appears.

Change the phone number.

Press

The

Saved

message appears.

To delete a contact: press =.

The

Please

Please confirm

confirm to

to delete

delete

message

appears.

Press

The

Deleted

message appears.

Deleting all contacts

Press 1 in the phone book.

Press

The

Deleted

message appears.

Using call lists
Introduction

Audio system navigation/multimedia

shows separate lists of all phone calls

made, received or missed when in

telephone mode.

Opening call lists

Press

Journal

in the telephone menu.

The call lists are displayed.

Using call lists

Telephone.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

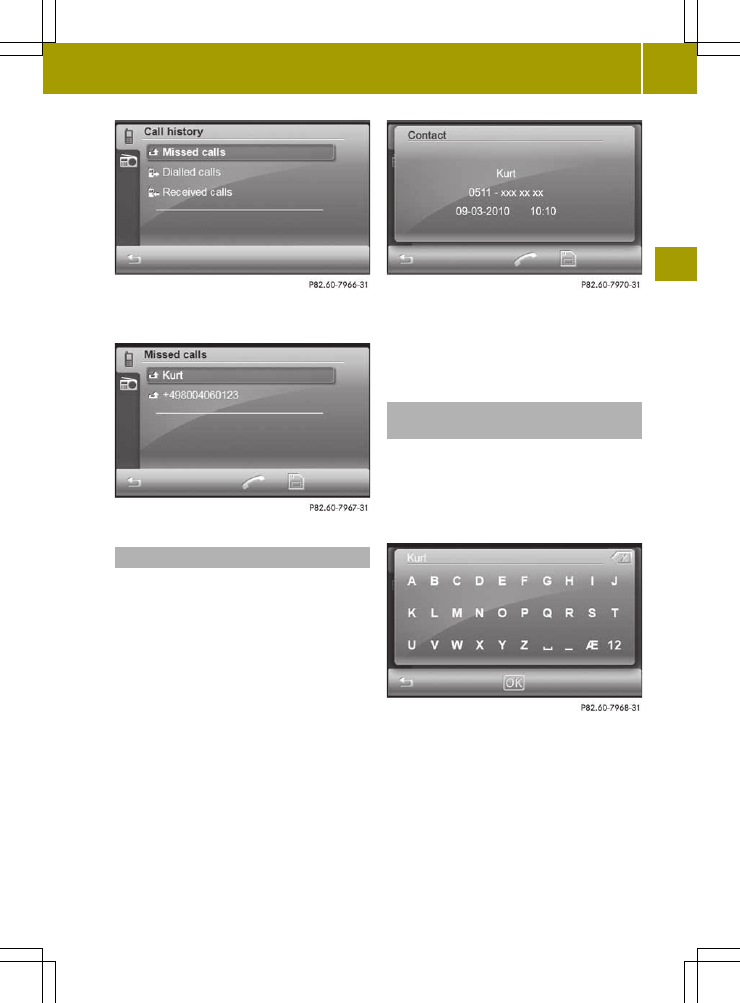

Select a call list, e.g.

Missed calls

The calls are displayed.

Calling a contact

Option 1

Press ; briefly to select the

highlighted entry.

The

Calling...<Name>

message

appears.

Option 2

Select an entry.

The contact details (name, phone number,

date, time) are shown.

Example: contact details

Press ;.

The

Calling...<Name>

message

appears.

Saving a contact in the phone book of

audio system navigation/multimedia

Select an entry in the call list and then

press the memory card symbol.

Press the memory card symbol in the

contact details display.

Change the name if desired. Instructions

for entering characters can be found in

the "Entering characters in the phone

book" section (

page 15).

Press

The

Saved

message appears.

Using call lists

Tele

phon

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Telephone settings
Calling up the "Bluetooth

settings"

menu

Press

Cell phone

in the main menu

(

page 10).

The telephone menu appears.

Telephone menu

Press

Options

in the telephone menu.

The "Bluetooth

settings" menu appears.

"Bluetooth

settings" menu

The

New

New device

device

and

Device

Device list

list

functions

are described in the "Telephony via the

Bluetooth

interface" section under

"Connecting a mobile phone" (

page 63).

Editing the PIN for connection with

Bluetooth

devices

The PIN is required to connect audio system

navigation/multimedia with Bluetooth

mobile phones and Bluetooth

audio

equipment. The default PIN is

1234

You can change the PIN. The PIN is a four-

digit number sequence.

Press

PIN edit

in the "Bluetooth

settings" menu.

An input menu appears.

Select the numbers one by one by

pressing briefly.

The numbers are entered at the top left.

To delete: briefly press1 to delete the

last number.
Press and hold 1 to delete the entry.

Press

to confirm the entry.

The input menu is closed and the

"Bluetooth

settings" menu appears.

Downloading the mobile phone's phone

book

The mobile phone is connected to audio

system navigation/multimedia (

page 63).

The phone book is automatically

downloaded to audio system navigation/

multimedia after connection.

Press

Phone book download

in the

"Bluetooth

settings" menu.

The

Downloading phonebook...

message appears. When the download is

complete, the

Phone book downloaded

message and the number of entries

downloaded are shown.

Telephone settings

Teleph

one.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Smart 2012. Audio system navigation, multimedia. Manual - part 4
