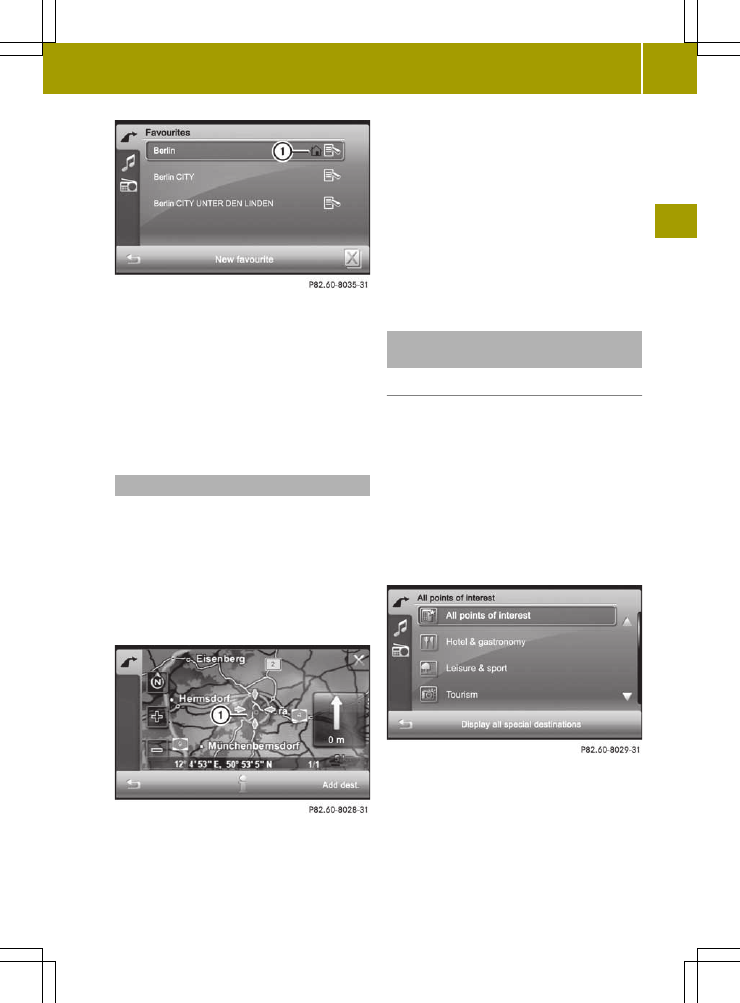

Entering the destination using the map

Press the map when it is displayed.

A light blue circle appears on the map.

If there are destinations available for

this city, these are shown as an address

or as geo-coordinates. If further

destination information is available,

the specification"1/3" and the symbols

9, : are shown after the entry.

Circle marking the destination on the

map

To call up further destination

information (if available): press 9

or :.

To display an address: press ã.

To move the destination on the map: press

the crosshair and move it on the map.

To select a destination: press

Add

destination

The detailed information menu appears

(

page 36).

Entering a point of interest (Expert

mode)

Initiating point of interest entry

Set Expert mode (

page 32).

Press

Points of interest

in the

navigation main menu (option 1),

(

page 31) or in the "Entering a street

name" menu (option 2).

The "All points of interest" menu

appears. You can display all points of

interest or search for points of interest

within a category, e.g.

Sport &

leisure

Destination input

Navigation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Option 1: calling up from the navigation main menu

Press

All points of interest

or select a category first (

page 43).

A menu appears.

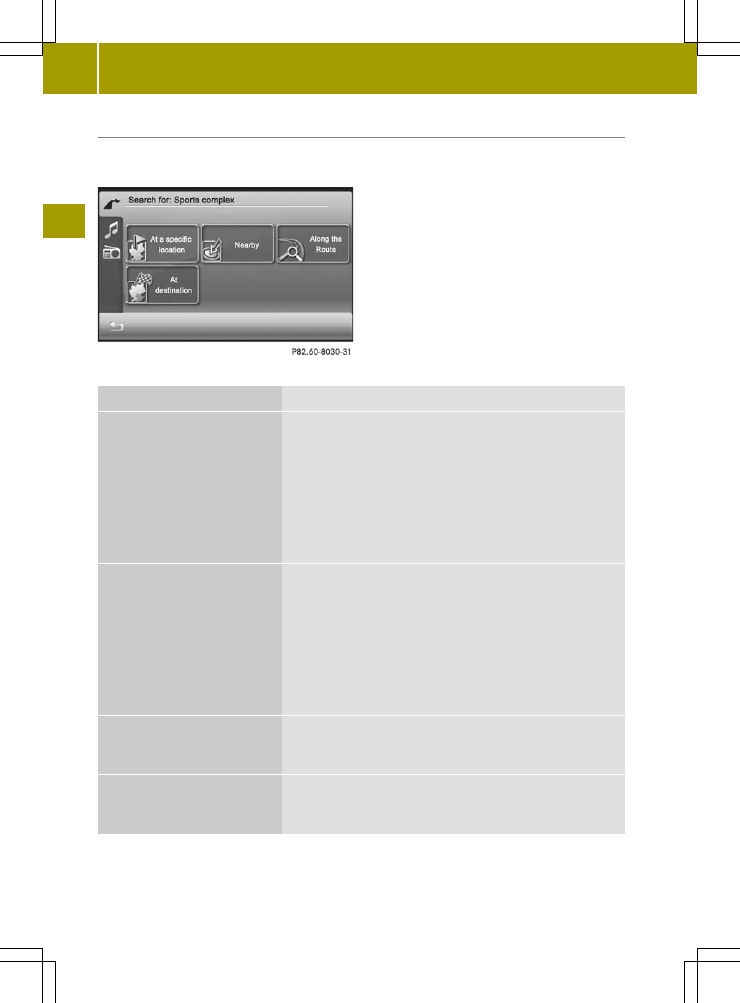

Searching for a point of interest in the "Sports complex" category

Selection

Instructions

At a specific location

Enter a city name or press

Display all points of

interest

Depending on the selection, an input menu or a list

appears.

Enter a point of interest and press

Display

selection

Select a point of interest from the list.

The detailed information menu appears (

page 36).

Nearby

Enter a destination or press

Display all points

of interest

Depending on the selection, an input menu or a list

appears.

Enter a point of interest and press

Display

selection

Select a point of interest from the list.

The detailed information menu appears (

page 36).

Along the Route

(available

when the route has been

calculated)

Proceed as described under

Nearby

At destination

(available

when the route has been

calculated)

Proceed as described under

Nearby

Destination input

Navi

gati

on.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Option 2: calling up from the "Entering

a street name" menu

Press

All

All points

points of

of interest

interest

or select

a category first (

page 43).

The "Entering a point of interest in

<city>" menu appears.

Option 1: enter a point of interest and

press

Display selection

Option 2: press

All points of

interest

The points of interest are displayed and

shown on the left of the map.

Selecting a point of interest.

The detailed information menu appears

(

page 36). You can place a call to the

point of interest if a telephone number

is stored and the mobile phone has been

connected (

page 63).

The phone number displayed may be

outdated due to the data's date of

creation.

Press

Call now

This initiates dialing.

Selecting a category

Example: you would like to go to an Indian

restaurant.

Press

Hotel & gastronomy

in the "All

points of interest" menu (

page 41).

The "Hotel & gastronomy" menu shows the

available categories.

Press

Restaurant/Nightlife

The "Restaurant/Nightlife" menu shows

the available categories.

Press 9 or : until

Indian

selected.

Press

Indian

Either the "Searching for a point of

interest" menu (option 1), (

page 42) or

the "Entering a point of interest in

<city>" menu (option 2) appears.

Proceed as described under option 1 or 2.

Route guidance
General notes

Audio system navigation/multimedia

guides you to your destination with

driving recommendations in the form of

navigation announcements or route

guidance displays.
If you do not follow the navigation

announcements or if you leave the

calculated route, the device automatically

calculates a new route to the destination.
If the digital map contains the

corresponding information, the following

applies:

when selecting a route, audio system

navigation/multimedia tries to avoid

roads that only have limited access, e.g.

roads closed to through traffic and non-

residents.

roads that have time restrictions (e.g.

closed on Sundays and public holidays)

are avoided for route guidance.

If the digital map provides no information

or incomplete information during route

guidance, the current vehicle position is

shown using geo-coordinates.
This occurs in the following situations,

e.g.:

the vehicle is outside of the area covered

by the digital map section (off-map

location).

the vehicle is traveling through an area

that is only partially shown on the map.

the vehicle is within the area covered by

the digital map section but not on a

digitalized road (off-road location).

Starting route guidance

Calculate a route or alternative route

(

page 37) and then press

Route guidance starts.

Route guidance

Navigation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Displaying the map during route guidance

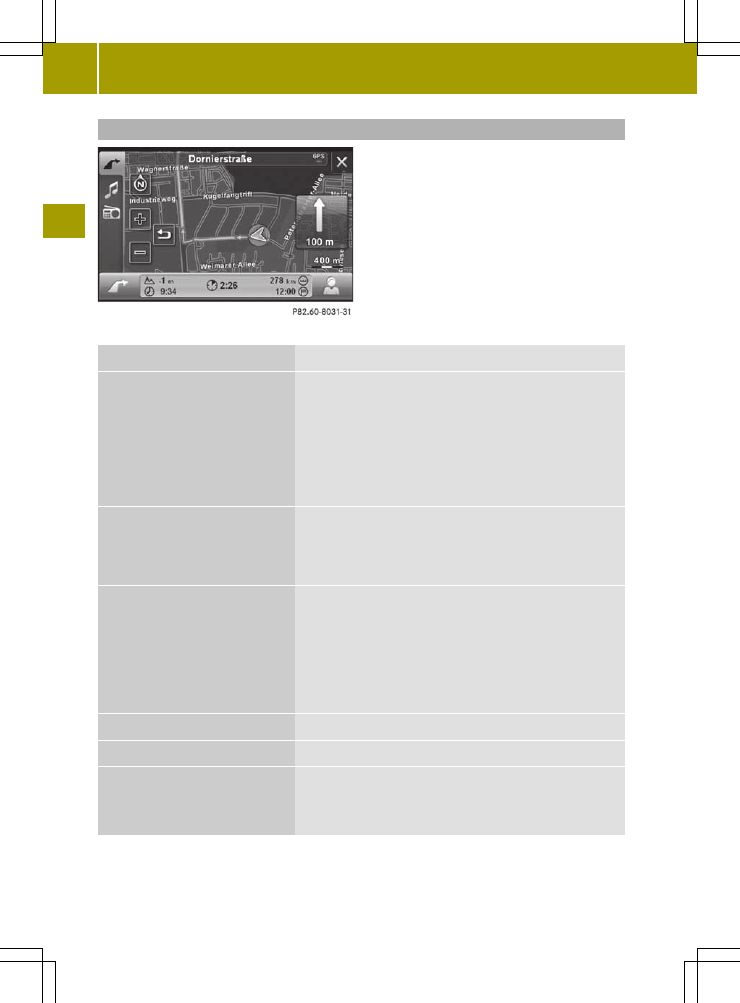

Example: map during route guidance

Function

Explanation

Route guidance display with

arrow indicating the direction

of travel (example shows an

arrow pointing straight ahead

and a distance of 100 m)

The upcoming change of direction is shown with an

arrow indicating the direction of travel and the

distance.
The route guidance display can also be seen in other

operating modes, e.g. radio mode.

To repeat the current navigation announcement:

press the route guidance display.

Auto zoom

As you approach a change in direction, the area of the

intersection is zoomed in on the map.
In Expert mode, you can set how much the map section

is zoomed in (

page 54).

Lane recommendations

Lane recommendations may be shown for multi-lane

roads. The corresponding data must be available in

the digital map. Recommended lanes are shown with a

green arrow, lanes that are not recommended are shown

with a red cross.
Lane recommendations apply to the next change of

direction.

Current map scale

Appears under the route guidance display.

Map view

Enables different map orientations (

page 54).

Setting the map scale

Zoom in on the map section using W or zoom out

using X.

Press % to return to the original auto zoom view.

Route guidance

Navi

gati

on.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Function

Explanation

Speed Limit Assist (Expert

mode)

The maximum permissible speed is shown when the

corresponding map data is available and the

Speed

limit

function is not deactivated (

page 56).

A warning tone sounds if the maximum permissible

speed is exceeded and one of the

Warning at x

km/h

settings is activated.

The maximum permissible speed display may

differ from the actual traffic situation, e.g. as a

result of incorrect map data.

GPS display

Blue display: reception
Red display: no reception

Destination information

The current height above average sea level is shown

at the bottom edge of the screen.
For the next destination (intermediate stop, final

destination), you will also see:

the estimated driving time to the destination

the distance to the destination

the estimated time of arrival at the destination

Press the field with the destination information to

show the "Trip info" display with additional

information (

page 48).

Displaying point of interest

symbols

Points of interest are

Restaurant/Nightlife

Gas

station

, for example. The corresponding symbols can

be displayed on the map (

page 56).

Selecting a route guidance display

You can choose between the

Map

Map only

only

Turn

Icons

Compass

display, see the

"Display" section (

page 53).

Example: "Turn Icons" display

Turn

Turn icons

icons

has been selected, the arrow

indicating the direction of travel and the

Route guidance

Navi

gati

on.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

distance before the next change of

direction are shown.

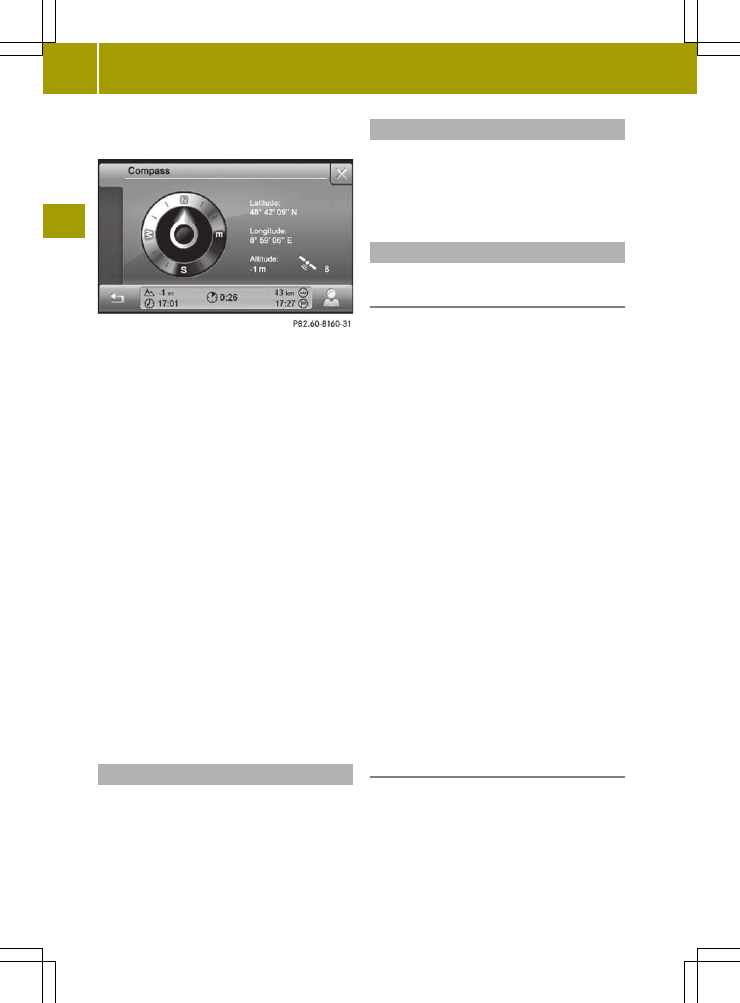

Example: compass display

You see the following information:

current direction of travel

latitude coordinates

longitude coordinates

current height above mean sea level

number of satellites currently being

used

The bar underneath shows the following

information:

current height above mean sea level

current time (if route guidance is not

active)

remaining time to next destination

(intermediate stop, final destination)

remaining distance to next destination

(intermediate stop, final destination)

estimated time of arrival at next

destination (intermediate stop, final

destination)

To close the compass display: press &.

Stopping route guidance

Press

Stop route guidance

in the

navigation main menu (

page 31).

Route guidance is interrupted.

Destination reached

When you reach your destination, a

checkered flag is displayed on the right-

hand side of the display and route guidance

is ended automatically.

Navigation announcements

Switching navigation announcements on/

off

Option 1

To switch off: press W the control knob

briefly during a navigation

announcement.

To switch on: press the arrow indicating

the direction of travel on the map

(

page 44).

The current navigation announcement is

repeated.

Navigation announcements are

suppressed during incoming or active

telephone calls.

Option 2

Press the arrow at the bottom left of the

map (

page 44).

The navigation main menu appears.

Press d.

The settings menu appears.

Press

Speech output

The "Speech output" menu appears.

Press

Speech output

again.

Depending on the previous setting, the

function is switched on or off.

Announcing the street names

Press the arrow at the bottom left of the

map (

page 44).

The navigation main menu appears.

Press d.

The settings menu appears.

Route guidance

Navigation.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Press

Speech output

The "Speech output" menu appears.

Press

Street names

Depending on the previous setting, the

function is switched on or off.

Adjusting the volume for navigation

announcements

Turn cVd the control knob during a

navigation announcement.

Set the volume of traffic announcements

compared to the volume of the active

audio source (

page 18).

The volume of the active audio source is

lowered to the selected value for the

duration of the navigation

announcement.

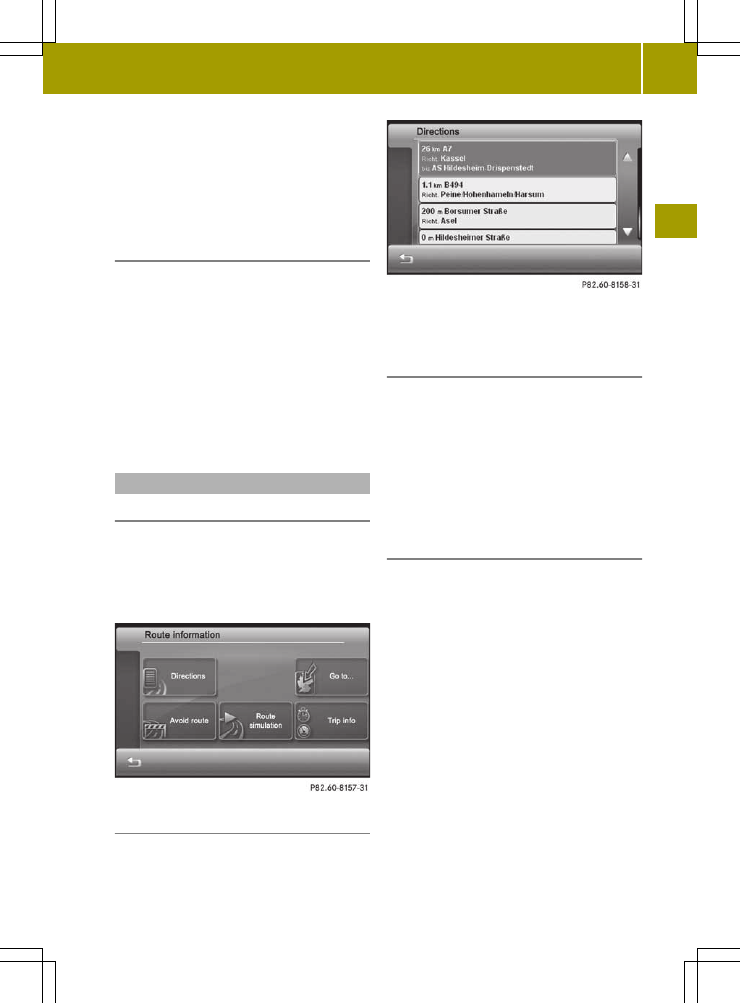

Route information (Expert mode)

Calling up the "Route information" menu

Press the arrow at the bottom left of the

map (

page 44).

The navigation main menu appears.

Press

Route information

The "Route information" menu appears.

Calling up a route list

Press

Directions

in the "Route

information" menu.

The route list shows the street sections

yet to be traveled.

Press 9 or : to scroll in the list.

To close the route list: press &.

Setting the map to a route position

Press

Go to...

in the "Route

information" menu (

page 47).

A menu appears.

Press

Current position

Destination

area

Overview

Starting point

The map shows the route section with the

selected route position or a complete

overview of the route.

Blocking a section of the route

It is possible to block more than one route

section. The number of active blocks can be

seen in the "Length of avoided route" and

"Start of avoided route" lists at the top

right.

Press

Avoid route

in the "Route

information" menu (

page 47).

The "Length of avoided route" list

appears.

Press a selection option, e.g.

5 km

, to

select the extension of the block.

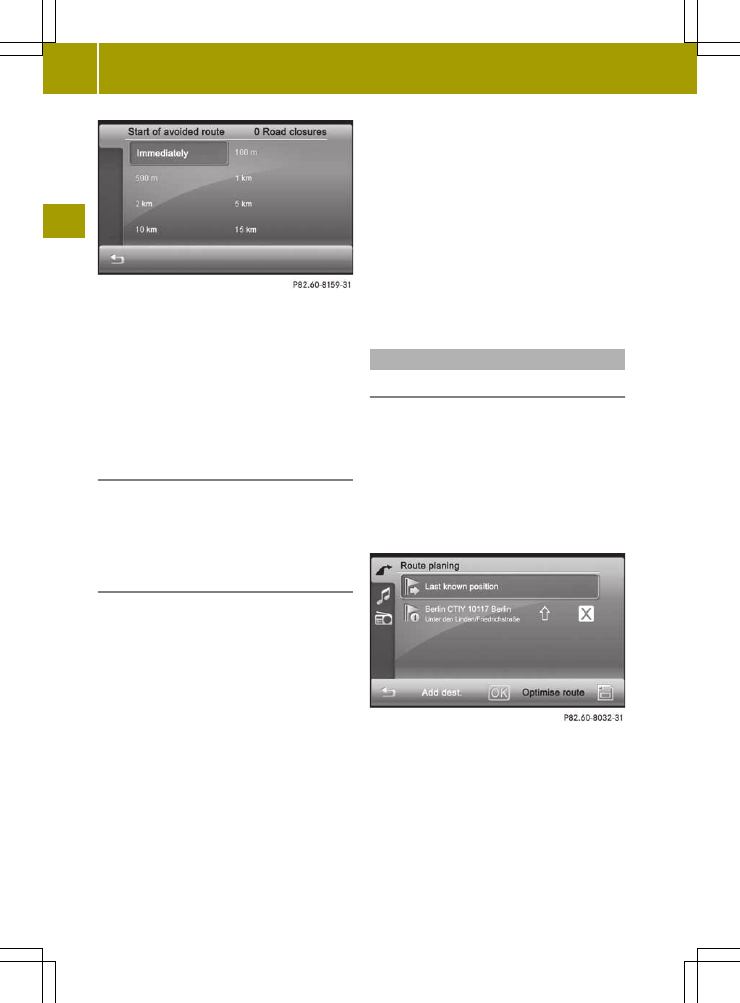

The "Start of avoided route" list

appears.

Route guidance

Navigation.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Press

Immediately

or another selection

option to determine when the block

should start.

The route section is blocked. The route

is recalculated.

To delete blocks: press 1 at the bottom

right in the "Length of avoided route"

list.

Starting route simulation

Press

Simulation mode

in the "Route

information" menu (

page 47).

The route is shown from the start (or

previous position) to the destination.

Displaying trip info

Press

Trip info

in the "Route

information" menu (

page 47).

You see the following information:

maximum speed

average speed

distance covered

driving time

total remaining driving time

total remaining journey distance

The bar underneath shows the following

information:

current height above sea level

current time (if route guidance is not

active)

remaining time to next destination

(intermediate stop, final destination)

remaining distance to next

destination (intermediate stop, final

destination)

estimated time of arrival at next

destination (intermediate stop, final

destination)

To close trip info: press &.

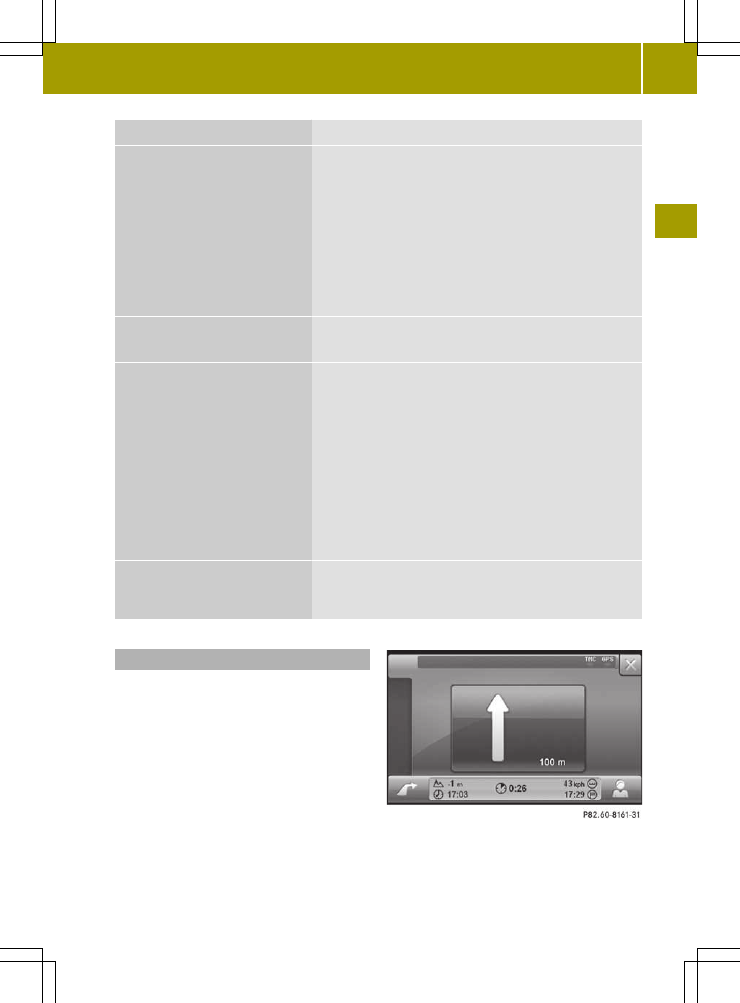

The information can also be shown by

pressing the field with the destination

information at the bottom of the map

(

page 44).

Editing a route

Introduction

You can add additional destinations to the

route, optimize route guidance or change

the order of the destinations.

Press the arrow at the bottom left of the

map (

page 44).

The navigation main menu appears.

Press

Edit route

The edit route menu appears.

The following functions can be selected:

adding a destination

optimizing a route (available with four

or more destination entries)

changing the order of the destinations

within the route

loading/saving a route

Route guidance

Navigati

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Adding a destination

Press

Add dest.

The new destination menu appears.

Select destination entry.

Entering an address (

page 34)

Last locations (

page 40)

Current position (if available)
Points of interest (

page 41)

Select option 1.

Favorites (

page 40)

Press

in the detailed information

menu (

page 36).

The destination is entered in the edit

route menu.

To calculate a new route: press

Optimizing a route

This function is available when there are

four or more entries (including the

starting point and the destination).

Press

Optimize route

in the edit route

menu.

The order of the destinations is checked

and the route is optimized according to

the distance. The route's starting point

and destination are not changed.

Changing the order of the destinations

within the route

Press the up or down arrow in the edit

route menu.

The destination is moved up or down.

Deleting a destination from the route

Press 1 after an entry in the edit route

menu.

The destination is deleted from the

route.

Loading/saving a route

Press the memory card symbol in the edit

route menu (

page 49).

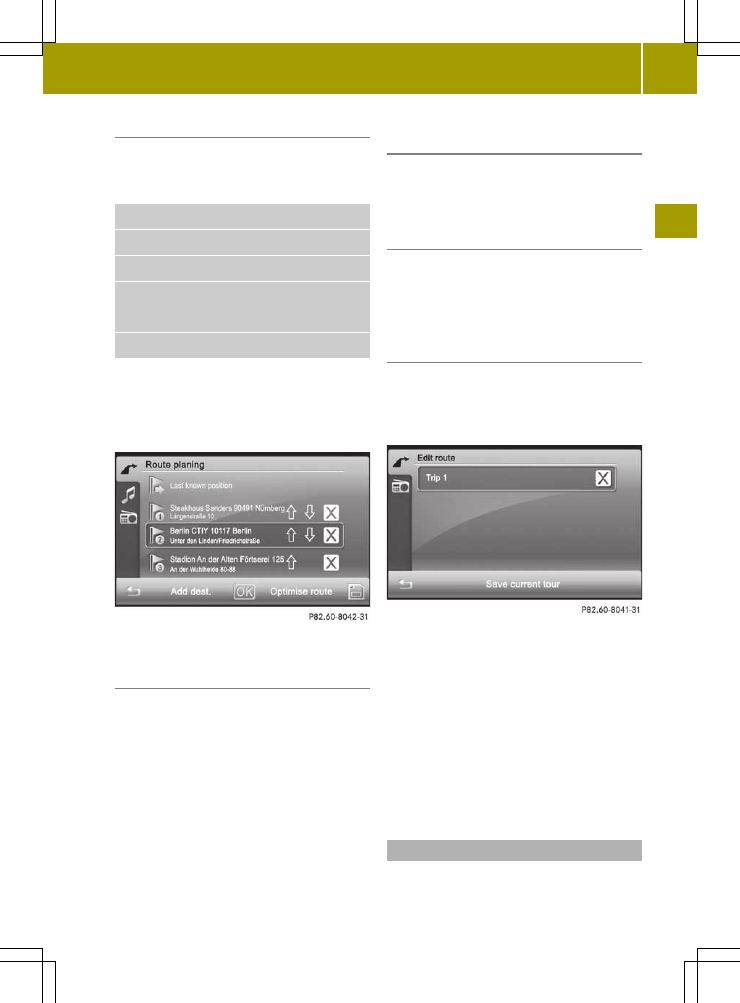

The loading and saving a route menu

appears.

To save a route: press

Save current

route

An input menu appears.

Enter a name for the route and then press

The route is stored.

To load a route: press an entry.

The route is loaded.

To delete a route: press 1 after an

entry.

Recording the GPS track (Expert mode)

If this function is activated and an SD/MMC

memory card has been inserted

Route guidance

Navigati

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(

page 83), the route taken is recorded.

The route is saved as a GPX file in the "GPS

tracks" folder on the SD/MMC memory card.

You can view the route later, in Google

Earth for example.
Feature specific to simultaneous playback

of SD/MMC memory cards or USB devices:

Playback may be interrupted

occasionally.

If audio system navigation/multimedia

is switched off and back on, the first

music track of the data carrier will be

played.

Press d in the navigation main menu

(

page 31).

The settings menu appears.

Press

Program settings

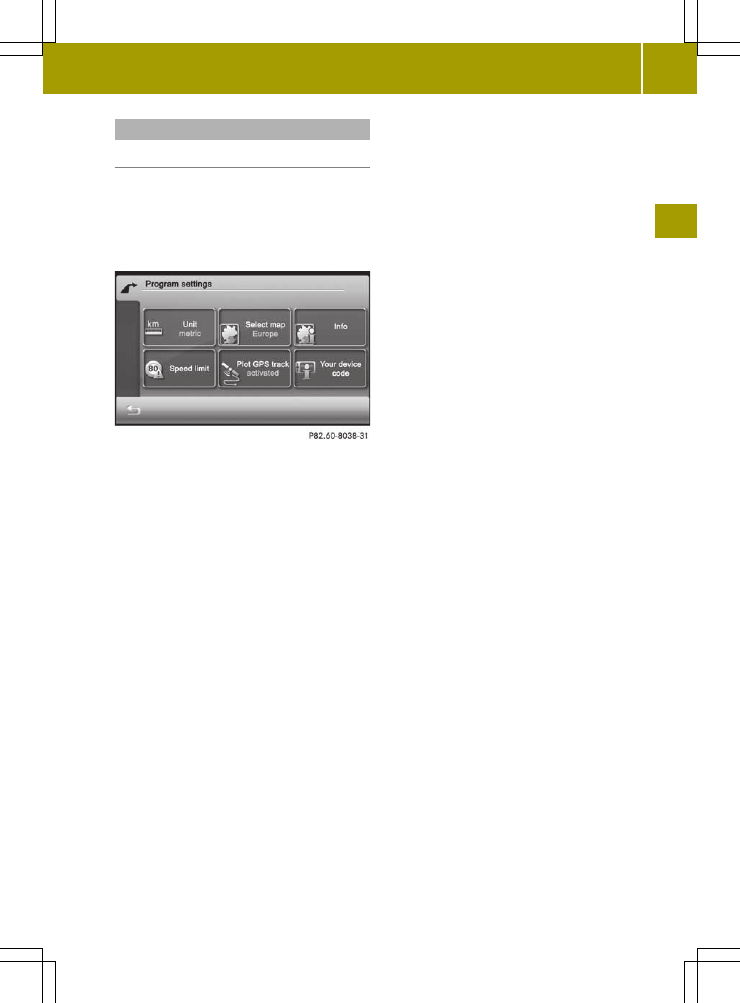

The program settings menu appears.

Press

Plot GPS track

Depending on the previous setting, the

function is activated or deactivated.
GPS track recording is started after you

have activated the setting.

If you switch off navigation and switch

it on again later, the function is

deactivated.

Quick menu (Expert mode)

Calling up the Quick menu

The Quick menu enables fast access to six

frequently used functions during route

guidance. You can personalize these six

functions.

Press the symbol at the bottom right of

the map.

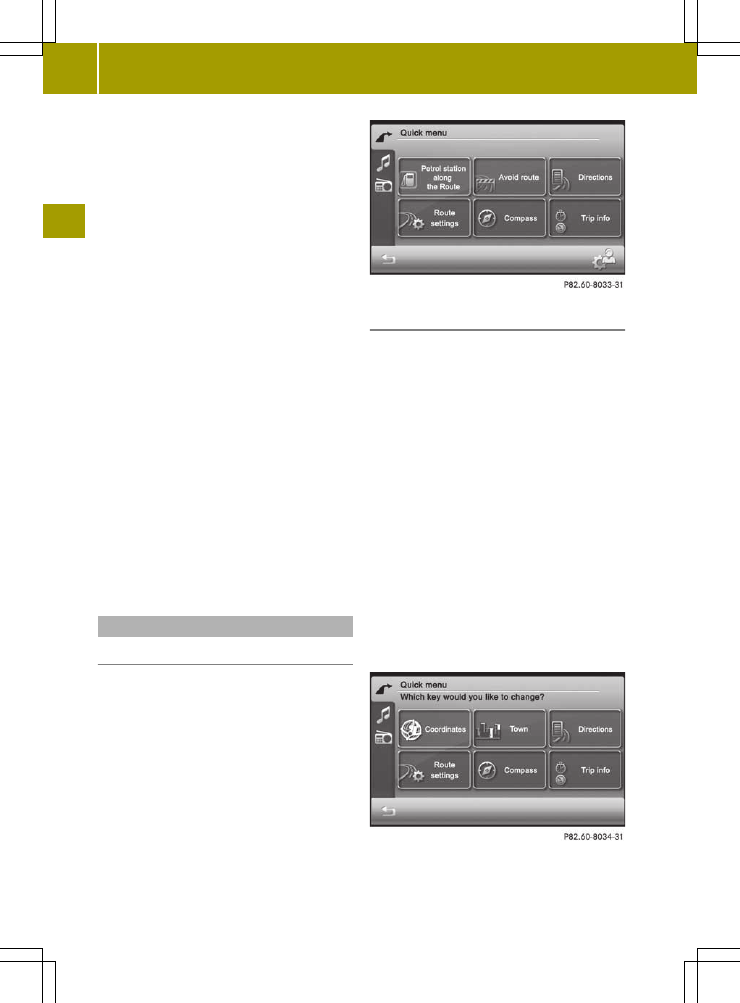

The Quick menu appears and shows the

functions that are currently available.

Editing the Quick menu

Press the symbol at the bottom right of

the menu.

The quick menu settings appear with the

Which key would you like to

change?

prompt.

Press a button.

The change key menu appears.

Press one of the following functions:

Select destination

Points of interest

Route information

Settings

Other views

The keys available for the respective

selection are shown.

Select a key.

The Quick menu appears and shows the

new key assignment.

Route guidance

Navigation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Last locations
Introduction

Audio system navigation/multimedia

automatically stores the previous towns for

which route calculation is started. If the

list is full, the device deletes the oldest

destination. You can also delete

destinations yourself.

Deleting all destinations

Press

Last locations

in the navigation

main menu (

page 31).

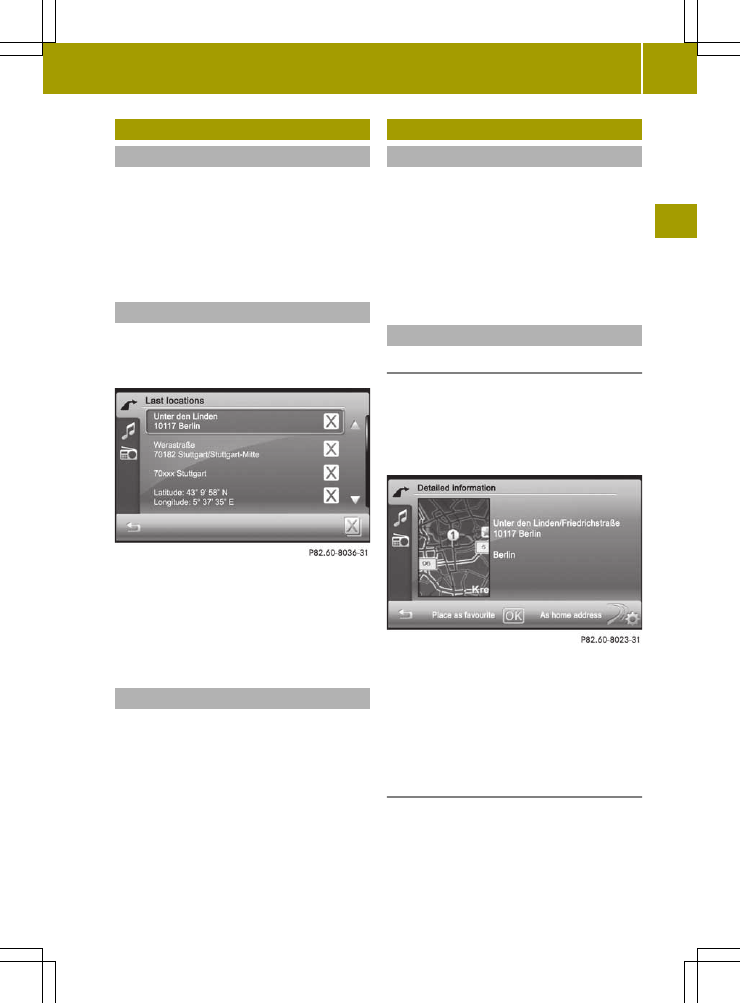

The last locations list appears.

Press 1 on the bottom right.

A query appears.

Press

All destinations are deleted from the

last locations list.

Deleting a destination

Press 1 after an entry in the last

locations list.

A query appears.

Press

The destination is deleted from the last

locations list.

Favorites (destination memory)
Storing your home address

Enter your home address as a destination,

e.g. as a city, street and house number

(

page 34).

Before route calculation is started,

press

as home address

in the detailed

information menu and store the address

(

page 36).

Saving a destination to your favorites

Option 1: after destination entry

Enter the destination, e.g. as a city,

street and house number.

Before route calculation is started,

press

Place as favorite

in the

detailed information menu.

Enter a name for the new favorite.

Proceed as described under "Character

entry" in the "At a glance" chapter

(

page 15).

Press

to save the destination to the

favorites.

Option 2: create a new favorite

Press

Favorites

in the navigation main

menu (

page 31).

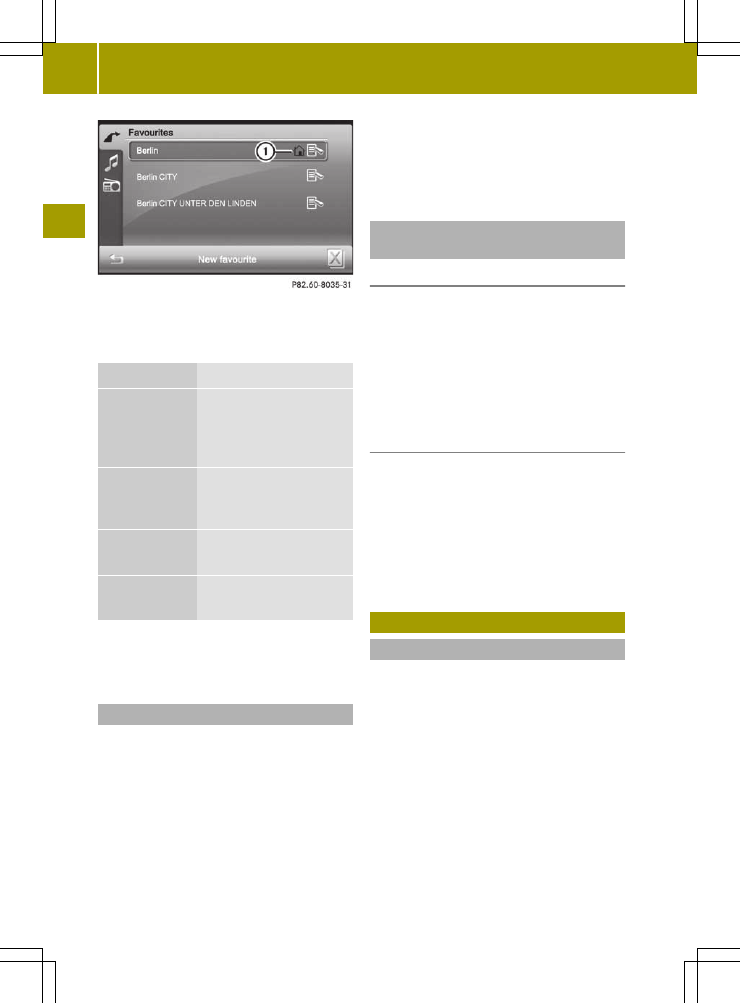

The "Favorites" list appears.

Favorites (destination memory)

Nav

iga

tio

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Home address symbol

Press

New favorite

Select an option from the menu.

Selection

Step

Enter

address

Enter the destination

address, e.g. as a city,

street and house

number (

page 34).

Last

locations

Select a destination

from "Last locations"

(

page 40).

Current

position

Select the current

position.

Points of

interest

Enter a point of

interest (

page 41).

Continue as described under "Option 1:

after destination entry".

Renaming a destination in favorites

Press a destination or the edit symbol to

the right while the "Favorites" list is

shown.

The detailed information menu appears.

Press

Rename

Rename favorite

favorite

Rename

Rename home

home

address

Enter a new name for the favorite.

Proceed as described under "Character

entry" in the "At a glance" chapter

(

page 15).

Press

and save the destination to the

favorites with a new name.

Deleting a destination from the

favorites

Deleting all destinations

Press 1 on the bottom right in the

"Favorites" list.

The

Are

Are you

you sure

sure you

you want

want to

to delete

delete

all favorites?

message appears.

Press

All destinations, including a home

address, are deleted from the favorites.

Deleting a destination

Press the edit symbol on the right-hand

side of the destination entry in the

"Favorites" list.

Press 1 on the bottom right of the input

menu.

The destination is deleted from the

favorites.

Map operation and settings
Note

Company logos displayed on the map are

trademarks of the respective companies

and used solely for the purpose of

indicating the location of these

companies. The use of such logos on the map

does not indicate approval of, support of

or advertising by these companies for the

navigation system itself.

Map operation and settings

Navigation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Setting the map scale

When the map is displayed (

page 44),

press W or X.

The section of the map is then zoomed in

or zoomed out.

Press the % symbol to return to the

original auto zoom view.

Moving the map

Press the map (

page 44) and move the

map using your finger.

The map moves in the corresponding

direction.

Display

Calling up the display menu

Press d in the navigation main menu

(

page 31).

The settings menu appears.

Press

Display

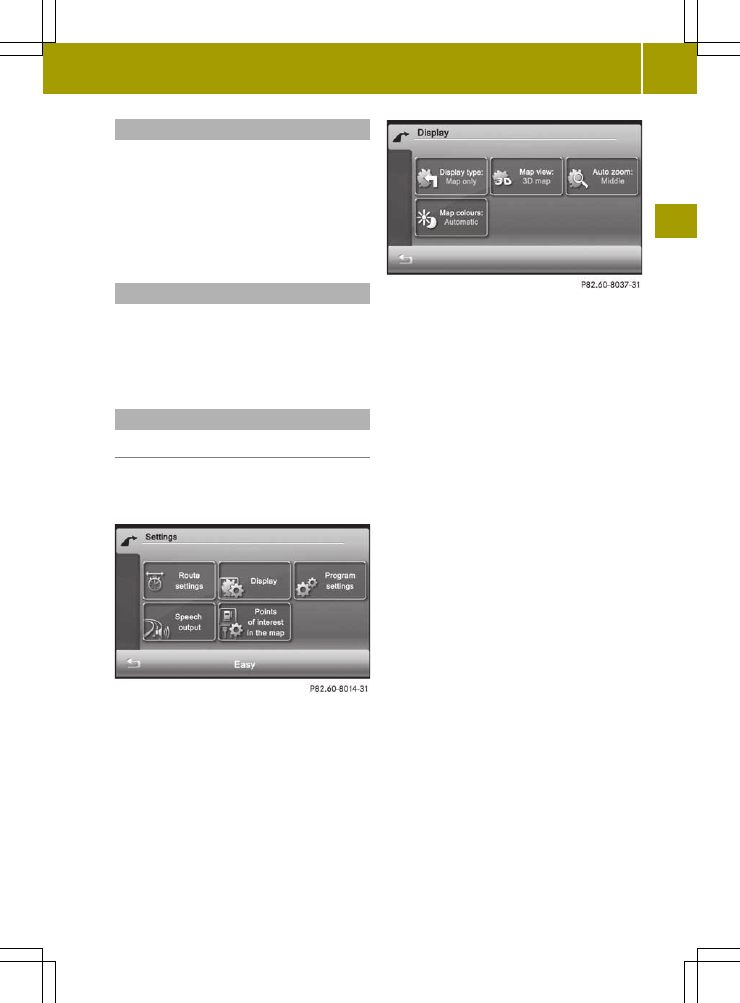

The display menu appears.

Map operation and settings

Navigation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Explanation of functions

Function

Explanation

Step

Display type

Options for different

displays during route

guidance

Press

Display type

Select

Map only

Turn Icons

Compass

Map view

Options for different

map orientations

Press

Map view

Select

Align map to north

Align map automatically

Dynamic map

3D map

North up: the map is displayed so that

north is at the top, the point of the

north arrow always points up.
Map in driving direction: the map is

displayed so that the heading is

always up. The north arrow turns. The

point of the current vehicle position

always points up.
Dynamic map: when a smaller map

scale is used (e.g. when driving on the

freeway), the map is displayed so that

north is always up in order to make

orientation easier.
3D map: the map is shown from the

bird's-eye view.

Auto zoom

(Expert

mode)

Selects how much a map

section will be zoomed

in before a change in

direction.

Press

Auto zoom

Select

Nearby

Medium

Far

Map colors

(Expert

mode)

Sets the display to day

or night display or

switches

automatically.

Press

Map colors

Press

Automatic

Day design

Night design

in the list.

Automatic: the display design

changes depending on the brightness

determined by the light sensor.
Day design: the display is always set

to day design.
Night design: the display is always

set to night design.

Map operation and settings

Navigation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Explanation of functions

Function

Explanation

Step

Units

Selects km-display

(metric) or mi-display

(imperial) for the map
mi = miles

Press

Units

The setting switches between

metric and imperial.

Info

Shows the respective map

data version for all

countries contained in

the map

Press

Info

Press 9 or : to scroll in the

list.

Speed limit

(Expert mode)

The maximum permissible

speed is shown when the

corresponding map data

is available and the

Speed limit

function is

not deactivated.
A warning tone sounds if

the maximum permissible

speed is exceeded and one

of the

Warning at x

km/h

settings is

activated.

The maximum

permissible speed

display may differ from

the actual traffic

situation, e.g. as a

result of incorrect map

data.

Press

Speed limit

Press

Warning

Warning at x

at x km/h

km/h

(several

settings possible),

Show

without warning

Do not

show

in the list.

Your device code

The device code is

required for map updates.

Press

Your device code

The device code is shown.

The

Plot GPS track

function (Expert mode) is described in the "Route guidance"

section (

page 49).

Point of interest on the map (Expert

mode)

Displaying point of interest symbols on

the map

Points of interest are, for example,

Restaurant/Nightlife

Shopping

center

Cinema

Gas station

. The

corresponding symbols can be displayed on

the map.

The symbols are not shown on all map

scales.

Map operation and settings

Navigatio

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Smart 2012. Audio system navigation, multimedia. Manual - part 3
