134

5

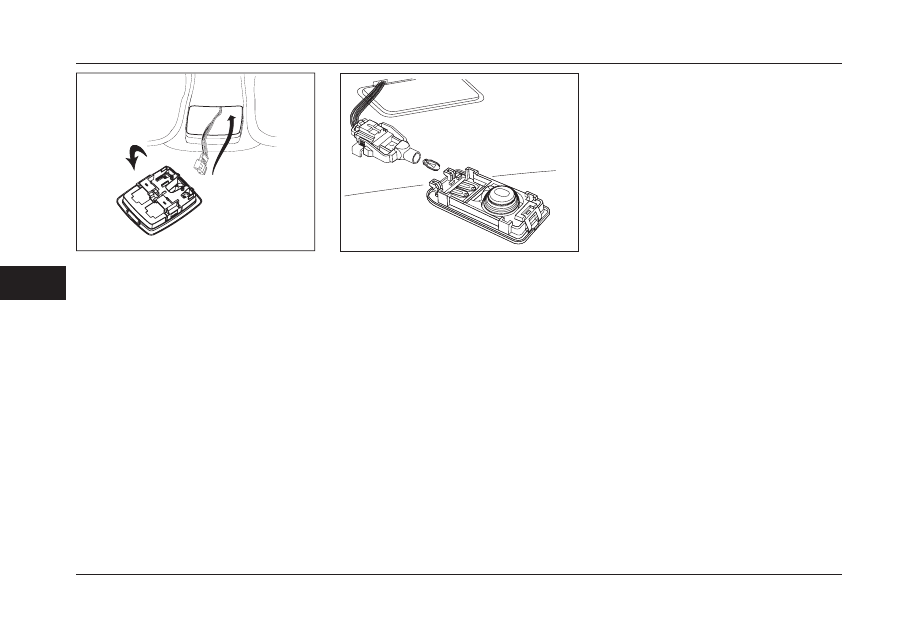

Front roof light

Put a screwdriver carefully at the tail of

lamp and release the whole lamp set

completely.

Hold the whole lamp set and release the

lamp base. Put out the lamp and replace

it.  Make  sure  that  the  base  is  fixed

appropriately, and then fix the whole set

in its correct location.

Back roof light

Put a screwdriver carefully at the tail of

lamp and release the whole lamp set

completely. Hold the whole lamp set and

release the lamp base. Put out the lamp

and replace it. Make sure that the base is

fixed appropriately, and then fix the whole

set in its correct location.

CHANGING LAMPS

135

5

CHANGING LAMPS

Vehicle's plate light

Pull the light into left side, then rotate it

down to release it. Turn the lamp base and

release it, release the lamp from its base.

Replace the lamp.

Door light

This light is equipped with the diode.

Please refer to IRAN KHODRO authorized

workshop in case of any failure.

Third warning light (red)

This light is equipped with the diode.

Please refer to IRAN KHODRO authorized

workshop in case of any failure.

136

5

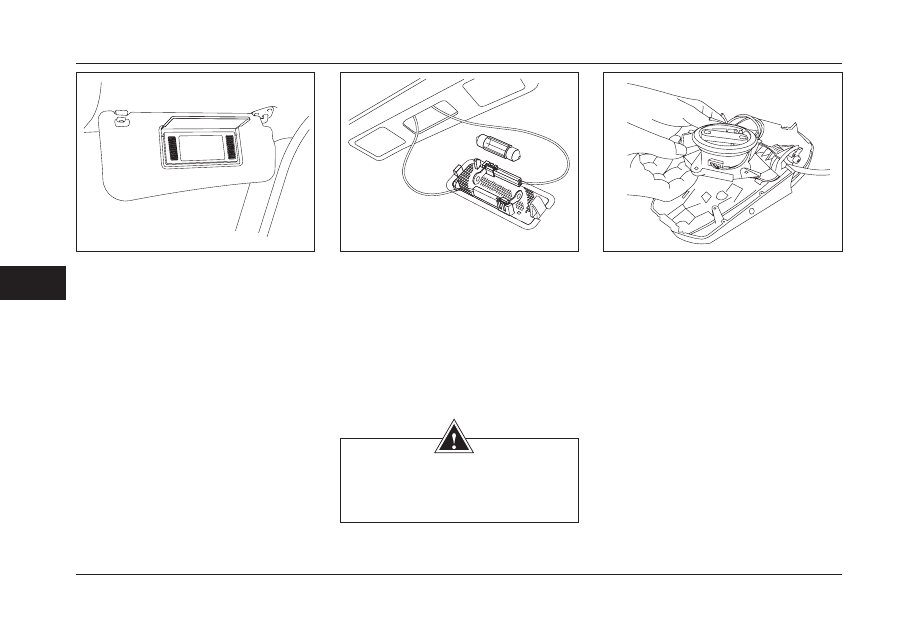

Make-up mirror light

This lamp is not renewable. To do that,

you shall purchase the whole set from

IRAN KHODRO authorized workshop.

WARNING

Lamps are vacum which may be

broken at replacing and cause injury.

Boot light

Put a screwdriver at the tail of lamp line,

take put the whole set and release the

lamp, then replace it with a new one and

appropriately put in the whole set in its

correct location.

Indicator light on the mirror

First release the clamps of side mirror.

Open the screws of mirror motor and

mirror template, open two screws at the

end and finally replace its LED with a new

LED, and fix it again.

CHANGING LAMPS

137

TECHNICAL INFORMATION

6

WARNING AND PLATES LABELS ...................... 136-137

ID NUMBERS ................................................................. 138

TECHNICAL INFORMATION OF THE ENGINE .. 139-141

FUEL CONSUMPTION ................................................. 142

WEIGHTS  ....................................................................... 143

VEHICLE DIMENSION  ................................................ 144

POLLUTION CONTROL  ............................................. 145

138

6

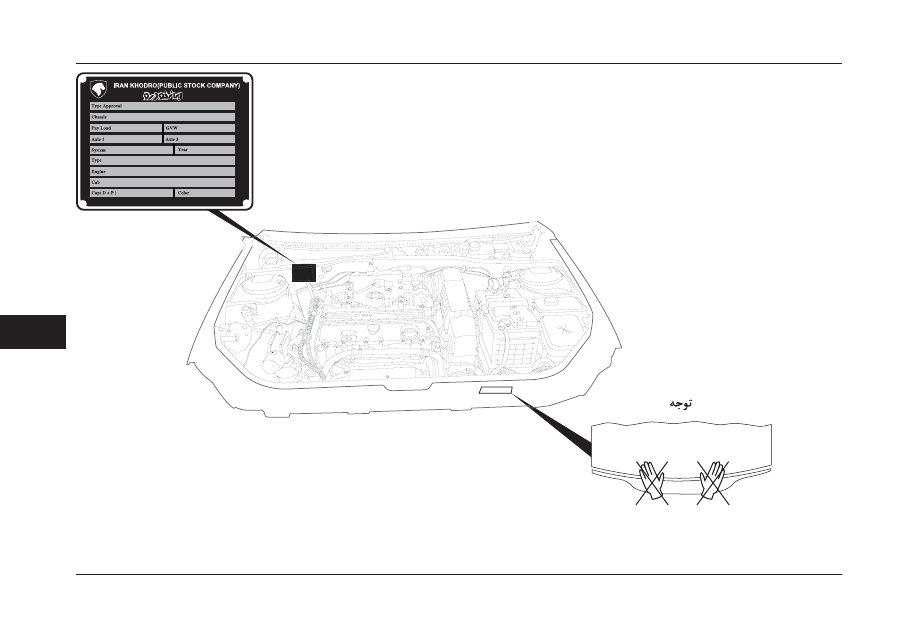

WARNING LABELS AND PLATES

To open the hood:

Hold it in 30 cm distance, and then

release it to be closed.

Never force on the hood by hand.

139

6

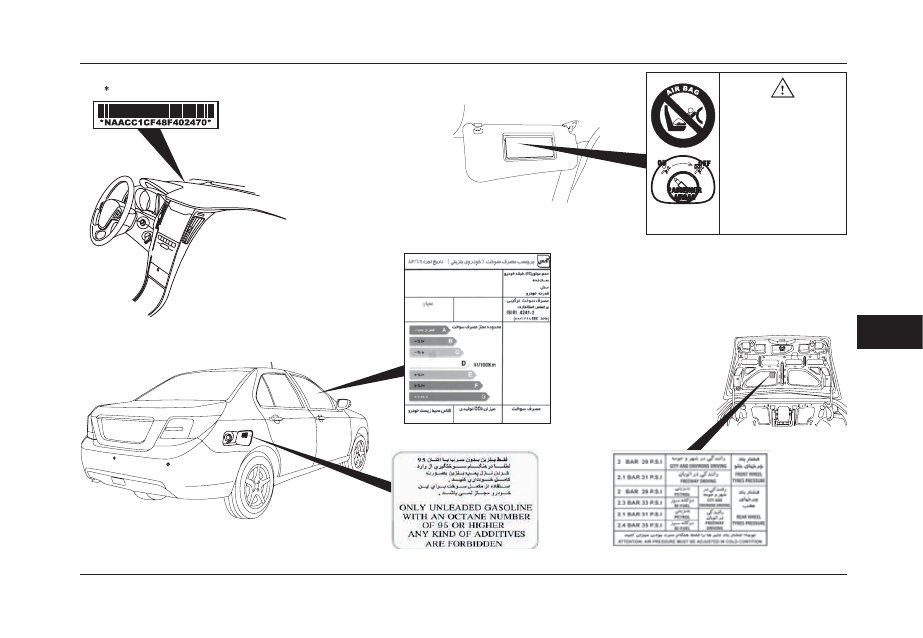

Do not place rear facing

child seat on the front

passenger seat with air

bag death or serious

injury can occur.

In necessary, you shall

turn of the airbag of front

passenger.

Please turn off the

airbag located on side

direction of dashboard.

Air bag Warning

VIN label

WARNING LABELS AND PLATES

140

6

ID NUMBERS

ID Numbers

You shall read out these numbers in case

of contacting IRAN KHODRO workshops

and have any question about the engine

or gear box.

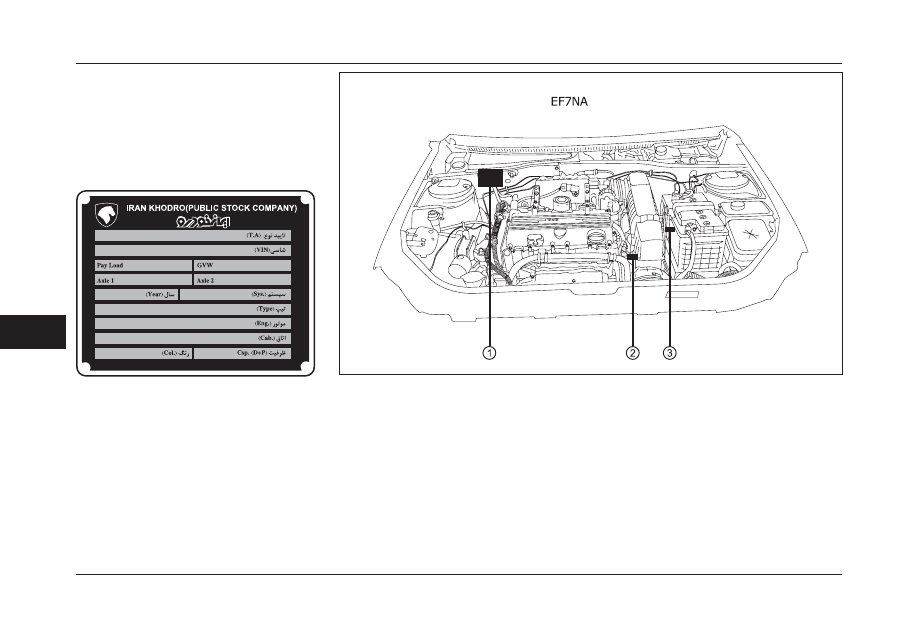

Vehicle's ID plate

1.The plate with vehicle's ID numbers

inserted on it is located in hood, in

a separate plate above the engine

compartment.

2.Engine No.: this is inserted opposite

cylinder block in a horizontal manner.

3.Gear box No.: this is inserted in front of

gear box on a plate.

141

6

ENGINE TECHNICAL DATA

Characteristics / engine

EF7NA 1/7 i

Capacity (cc)

1646

Ignition priority

1-3-4-2

Slow round of engine

750 rpm

Inner diameter of the cylinder

78.6 mm

Pistons stroke

85 mm

Number of cylinders

4

Number of valves

16

Compression ratio

11:1

Gear box

BE 3 5gears+1 rear gear

Maximum engine capacity

(gasoline consumption)

Maximum engine torque

(gasoline consumption)

115 hp at 6000 (rpm)
157NM/4500(rpm)

Fuel octane

95

142

6

Capacities and consumable

fuel tank

60 L

Gear box (dry mode)

1.9 L

Cooling system (dry mode)

Capacity: 7.5 L (ethylene glycol fluid

/mixing ratio is 46 to 54, antifreeze

and water)

Windows washer tank

3.4 L

Windows washer liquid

Isopropanol liquid
- Mixing ration is 17 to 83 washer
liquid /water(in summer)
- Mixing ration is 44 to 56 washer
liquid /water(in Winter)

Hydraulic steering wheel oil

1.2 L (ATF Dexron II-D oil)

Brake oil

0.52 L (ABS) (DOT4)

Technical characteristics of appropriate engine oil to be used*

Allowed engine oil (standard

with high quality)

10W40 API SL

Volume of needed engine oil at

replacing

5.5 L (with filter)
5 L (without filter)

Correct KM of oil replacing

Per 12000  km (easy mode)

Per 10000  km (had mode)

Oil filter

Cartridge

Oil filter replacing time

Coincident with engine oil

Engine oil checkup period

Per 1000 LM

Allowed Range: 4.45 L to 5.2 L

Allowed vaporization of

engine oil per 1000 km

0.2 L (200 cc)

Important tip:

All SAE 20W50 pols are not allowed in EF7 motors.

Hard conditions:

Towing, caravan transport, barn installation in long journeys, driving in dirt roads and dusty areas,  repetitive driving of a short road less

than 8 km in each period, driving at low speed in long roads, long term of vehicle resting.

ENGINE TECHNICAL DATA

143

6

Battery details

Type of battery

MF 7 SEALED OR LMF

Voltage

12 v

Charge system

Alternator

Cooler

Type of cooler gas

R-134a

Wheels and rubbers

Wheels

Steel 6J15 or aluminum 6.5 J15

Rubbers

185/65R15

Adjust please

Tires air pressure

Front

Back

In ordinary driving conditions

(urban and suburban)

2 bar (29 psi)

2 bar (29 psi)

Driving in highway

2.1 bar (31 psi) 2.1 bar (31 psi)

ENGINE TECHNICAL DATA

144

6

Fuel Consumption

In order to decrease the fuel consumption

and accessing the least fuel consumption,

please pay attention to the following tips:

1.Always make sure of appropriate

functioning of engine by means of

periodical inspections according to the

user manual for example for air filter on-

time replacing.2.Make use of appropriate

tires for the vehicle according to the use

manual and always adjust the tires air

pressure.

3. Drive at patience and avoid sudden

brakes and speedy driving.

4. Avoid driving at high speed at roads.

The optimized fuel consumption is at 90

km/h.

5. Put out extra objects from the vehicle.

6. Power off the vehicle's engine in long

stops.

7. Plan for inter-city driving so as not to

drive at rush hours and not to stock long

hours in the traffic.

8. Park the vehicle in appropriate places

in different seasons, for example in

respect of sunlight or snowing, and try to

park your vehicle in roofed parking.

9. Try to make use of heavy gear when

you are driving at slope roads in way that

there is no need to press the gas pedal

anymore.

FUEL CONSUMPTION

145

6

DENA (kg)

          Engine

Weights (kg)

EF7 Engine (gasoline consumption)

EF7 NA

Approximate vehicle weight without passenger with full

fuel tank and without extra equipment

1258

Maximum vehicle weight with passenger and load

1650

Maximum allowed load of back axles

810

Maximum allowed load of front axles

900

WEIGHTS

146

6

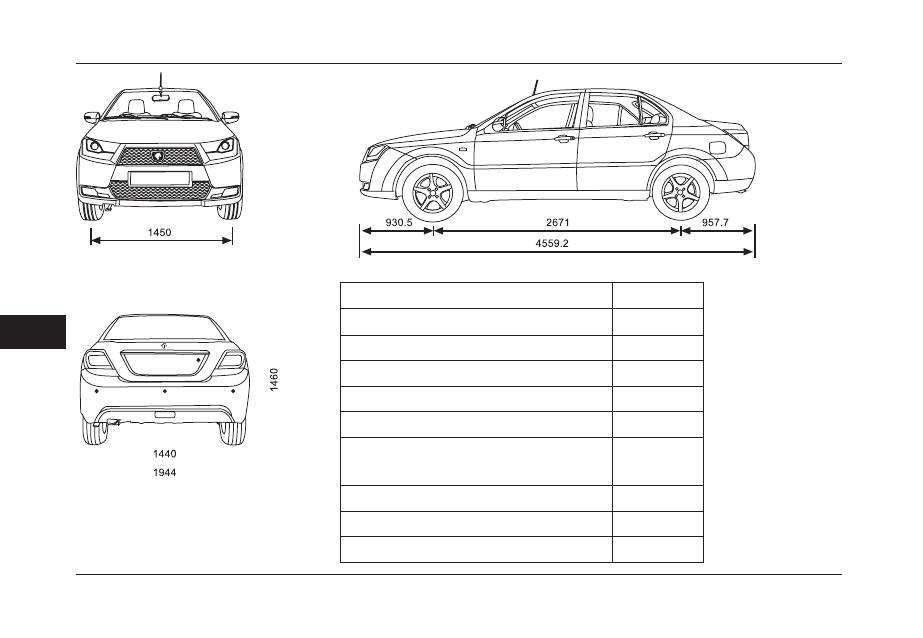

VEHICLE DIMENSIONS

Length of vehicle

4559.2 mm

Vehicle's width with side mirrors

1944 mm

Vehicle's height

1460 mm

Distance of wheels

2671 mm

Front wheels axle distance with front shield

930.5 mm

back wheels axle distance with back shield

957.7 mm

Wheels width distance

- Front

- Back

1450mm

1440 mm

Turning steering wheel to lock

3.1

Vehicle's turning circle diameter

11 m

Boot capacity

500 L

147

6

AIR POLLUTION CONTROL

Air pollution control

Fortunately, your vehicle is equipped with

a modern air pollution system in order to

control automobile pollutants.

Catalyst converter

A catalyst converter or catalyzer is

designed in your vehicle in order to

convert output gases into non-pollutant

gases.

Leaded gasoline is the most effective

factor in failure of this system, hence,

making use of unleaded gasoline is

necessary.

CAUTION

Negligence in making use of

unleaded gasoline will damage your

vehicle's catalyst.

Avoid adding any non-original

additives like injector washers,

gasoline oil and gasoline octane

protector with the standard unleaded

gasoline.
