OPERATING THE TRACTOR

REVERSING THE SEAT

The seat is reversible for backhoe operation. Follow the
procedure below to turn the seat around.
1. Loosen the knob nut behind the ROPS and move the

bracket left as shown in the illustration.

2. Pull the lever up as shown in the illustration to release

the seat lock.

3. Raise the seat until the seat pin comes in to the detent

notch (see illustration).

4. Turn the seat around rearward.

(A) "TRACTOR DRIVING POSITION"
(B) "BACKHOE POSITION"

(1) Bracket

(A) "LEFT"

(1) Seat lock lever

(A) "RELEASE"

(1) Seat pin

OPERATING THE TRACTOR

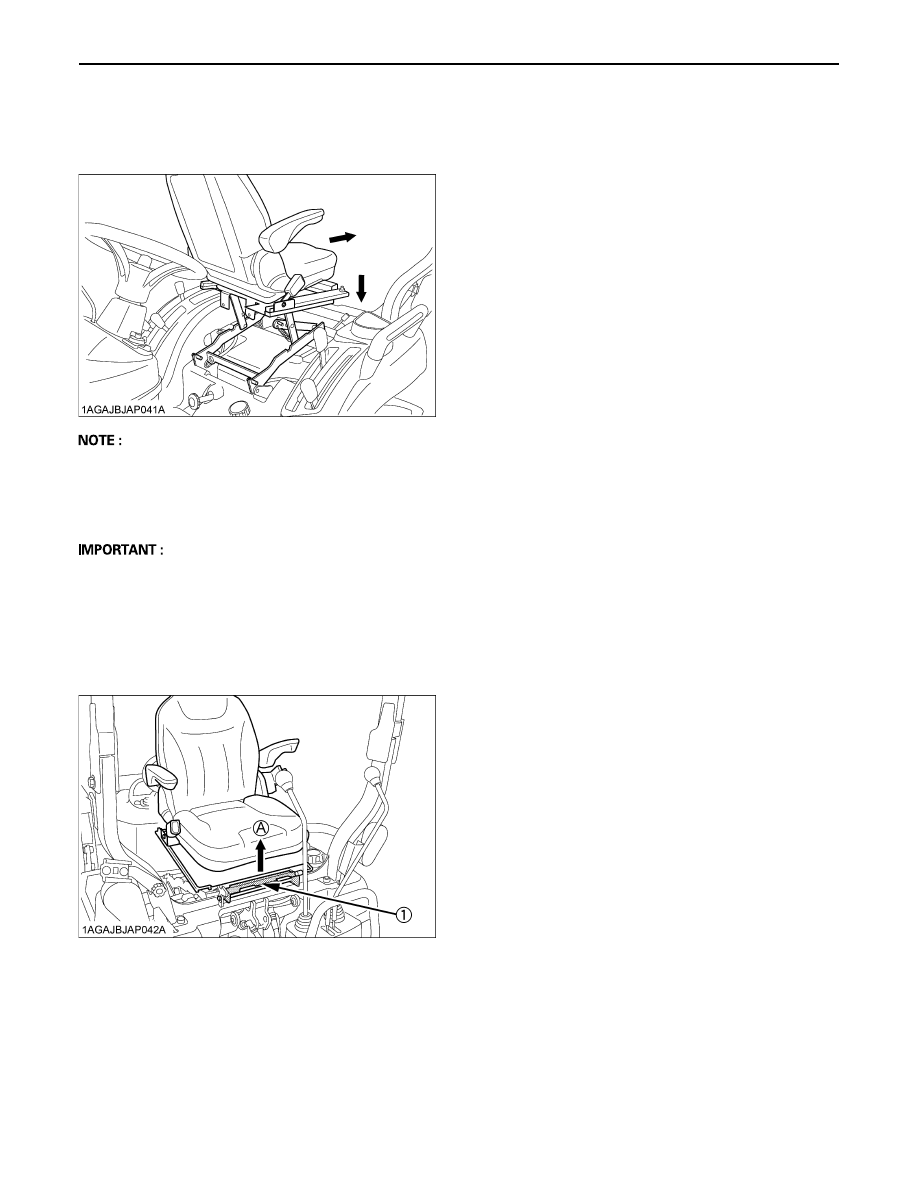

42

5. Push the seat backward, then the seat pin will come

out from detent notch.
Push the seat down until the lever is locked at the
backhoe position.

A

If the seat pin does not come out from the detent
notch, apply grease in the notch.

6. After reversing the operator's seat, be sure to check to

see that the seat is properly locked.

A

Turn the seat at detent position to avoid damage of
seat locking mechanism and hitting to the range gear
shift lever.

A

See "Operator's Seat" section when using seat in
driving position.

7. For tractor driving position, pull the lever up, and follow

the reverse procedure mentioned above.

(1) Seat lock lever

(A) "RELEASE"

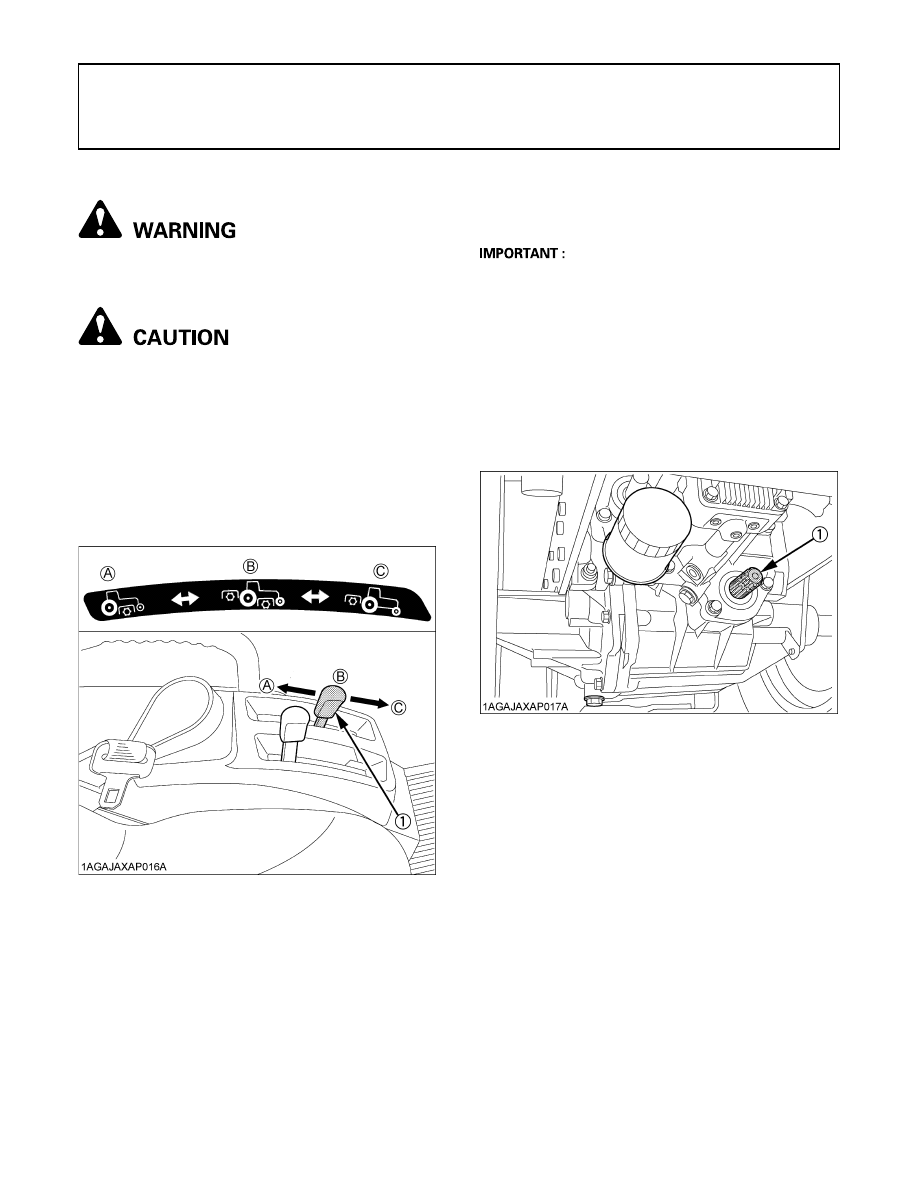

43

PTO

PTO

PTO OPERATION

To avoid personal injury:
A

Before operation, be sure to select the correct
PTO lever (mid, mid/rear, rear).

To avoid personal injury:
A

Disengage PTO, stop engine, and allow all
rotating components to come to a complete
stop before connecting, disconnecting,
adjusting, or cleaning any PTO driven
equipment.

B

PTO Select Lever

The tractor has a 540 rpm rear PTO speed and a 2500
rpm mid-PTO speed.

C

Mid-PTO

To use Mid-PTO, shift the PTO select lever to Mid-PTO
position and the PTO clutch lever to "ON" position.

C

Mid-Rear PTO

To use mid and rear PTO at the same time, shift the PTO
select lever to mid-rear PTO position and the PTO clutch
lever to "ON" position.

C

Rear PTO

To use rear PTO, shift the PTO select lever to rear PTO
position and the PTO clutch lever to "ON" position.

A

To avoid shock loads to the PTO, reduce engine
throttle from full to half speed by pushing up on engine
throttle when engaging the PTO, then open the throttle
to full.

A

To avoid damage of transmission, when PTO select
lever is not smoothly shifted, slightly shift PTO clutch
lever.

C

Mid-PTO

The Mid-PTO is available for KUBOTA approved
implements.

(1) PTO select lever

(A) Mid-PTO position
(B) Mid-Rear-PTO position
(C) Rear-PTO position

(1) Mid-PTO

PTO

44

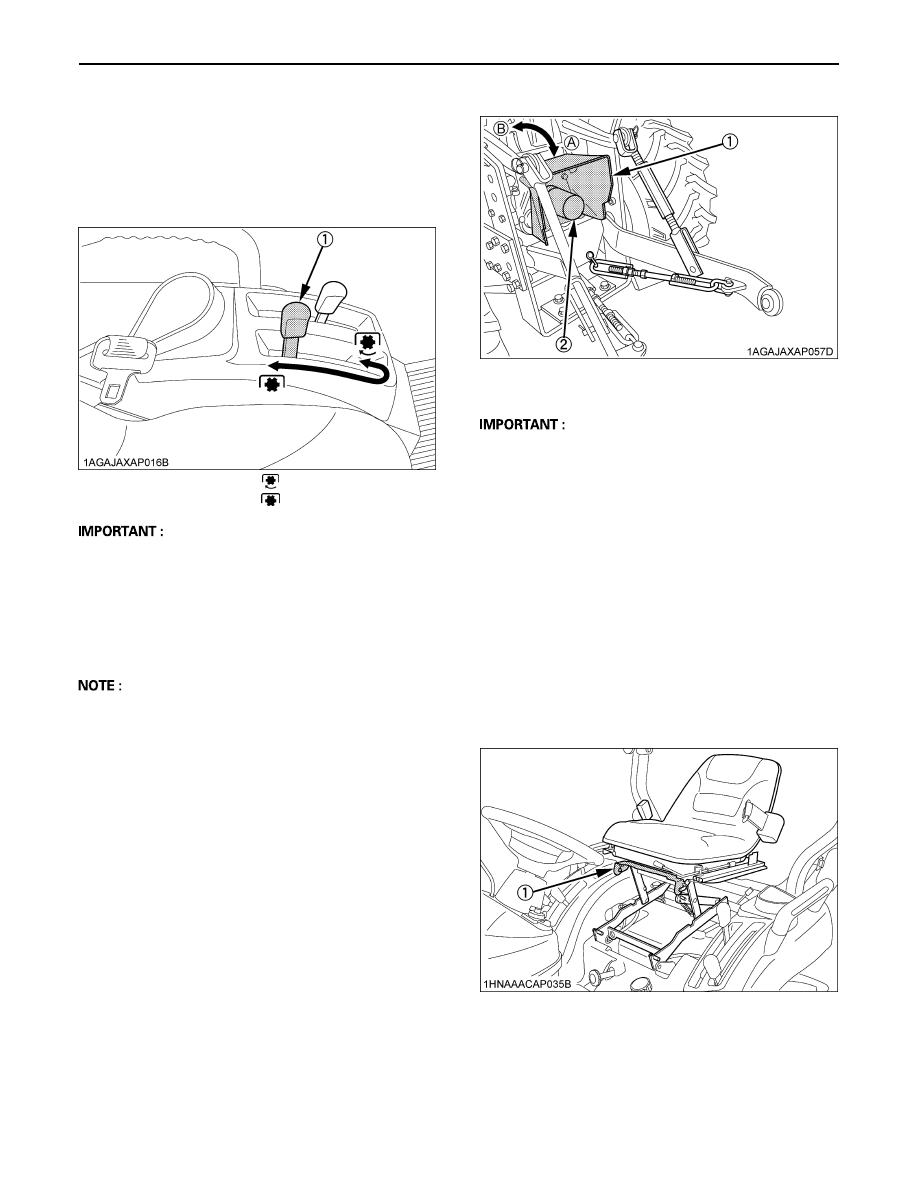

B

PTO Clutch Lever

1. The PTO clutch lever engages or disengages the PTO

clutch which gives the PTO independent control.

2. Shift the lever to "ON" to engage the PTO clutch. Shift

the lever to "OFF" to disengage the PTO clutch.

A

To avoid shock loads to the PTO, reduce engine
throttle from full to half speed by pushing up on engine
throttle when engaging the PTO, then re-engage the
engine to full.

A

To avoid damage to PTO clutch and implement, shift
the PTO clutch lever slowly, when engaging the PTO
clutch. Do not keep the PTO clutch lever half way.

A

Tractor engine will not start if the PTO clutch lever is in
the engaged "ON" position.

A

When you stand up from the seat with the PTO clutch
lever at "ON" (Engaged) position, the engine will stop
regardless of the position of the PTO select lever.
This is because the tractor is equipped with Operator
Presence Control system (OPC).

B

PTO Shaft Cover and Shaft Cap

Keep the PTO shaft cover in place at all times. Replace
the PTO shaft cap when the PTO is not in use. Before
connecting or disconnecting a drive shaft to PTO shaft, be
sure engine is "OFF" and raise up the PTO shaft cover.
Afterward be sure to return the PTO shaft cover to
"NORMAL POSITION".

A

The universal joint of the PTO drive shaft is technically
limited in its moving angle. Refer to the PTO Drive
Shaft Instructions for proper use.

B

Stationary PTO

To park the tractor and use the PTO system (for chipper
or pump, for example), start the PTO system in the
following steps.
1. Apply the parking brakes and place blocks at the tires.
2. Make sure all shift levers are at "NEUTRAL", and start

the engine.

3. Set the PTO gear shift lever to engage "ON".
4. Set the engine speed to provide recommended rear

PTO speed.

5. Unlock the seat lock lever and stand up and raise the

seat.

6. Turn the seat around rearward and lock the seat at

backhoe position. (See "REVERSING THE SEAT" in
"OPERATING THE TRACTOR" section.)

(1) PTO clutch lever

 "ON" "ENGAGE"
 "OFF" "DISENGAGE"

(1) PTO shaft cover
(2) PTO shaft cap

(A) "NORMAL POSITION"
(B) "RAISED POSITION"

(1) Seat lock lever
