Model MA TOW Tractor. Manual - part 78

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 197

55-1

152 O218-2900

T6-8005-101

park brake lever

1

001 & Up

55-2

—— ----------------

T6-8205-111

mounting bracket, park brake

1

Note 1

55-3

—— ----------------

7/16-14NCX1-3/4"

hex head bolt

1

“

55-4

—— ----------------

7/16

flat washer

2

“

55-5

—— ----------------

7/16-14NC

locknut

1

“

55-6

—— ----------------

T6-8005-103

spacer, park brake lever

1

001 & Up

55-7

—— ----------------

3/8-16NCX1-1/2"

hex head bolt

4

Note 1

55-8

—— ----------------

T6-8005-111

strap, park brake, gasoline engine

2

362 & Up

55-9

79 87443

T6-500-123

clevis pin

2

362 & Up

55-10 —— ----------------

1/8X1-1/4"

cotter pin

5

“

55-10a ----- ----------------

T6-8005-121

yoke

1

“

55-11 —— ----------------

T6-8205-107

bell crank

1

Note 1

55-12

404 D3TZ-2857A

MD-CB21-113

clevis

1

362 & Up

55-13

79 87442

MD-CB21-115

clevis pin

2

“

55-14

256 385554S2

T6-8005-115

stud

1

“

55-15

256 TPG-44880-52 ----------------

washer

1

“

55-16

256 TPG-386034-5100 ----------------

nut

1

“

55-17

256 TAG-B9TZA710D ----------------

cam shaft

1

“

55-18

256 D6TZ-2A703A

T6-8005-153

shield, brake drum

1

“

55-19

256 B9TZ-2A636A

T6-8005-135

plate

1

“

55-20

256 B9T-2634B

T6-8005-147

spring

2

“

55-21

256 B9T-2749A

T6-8005-149

spring

1

“

55-22

256 58675-S2

T6-8005-131

hex head bolt

4

“

55-23

256 34794-S2

T6-8005-137

lock washer

4

“

55-24

256 380952-S2

T6-8005-133

nut

4

“

55-25

22 B4088

T6-8005-143

brake lining assembly

1

“

55-26

256 D3TZ-7089B

T6-8005-139

flange

1

“

55-27

256 385524-S2

----------------

stud

4

“

55-28 —— ----------------

1/2-13NC

locknut

4

“

55-29

256 D3TZ-2614A

T6-8005-141

drum, 9"x3"

1

362 & Up

55-30 —— ----------------

T6-2006-101

drive shaft assembly

1

“

55-31

256 C6TZ-4A254B

T6-2006-105

saddle, drive shaft

2

“

55-32

256 382884S

T6-2006-103

bolt, drive shaft saddle

4

“

55-

259 BZE6-2RN2

42-100-801

SWITCH, PARK BRAKE LIGHT

1

As Req’d

55-

—— ----------------

T6-7010-213

bracket, park brake light switch

1

“

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

1. Used on all tractors equipped with Perkins diesel engines from serial number 2237.

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 198

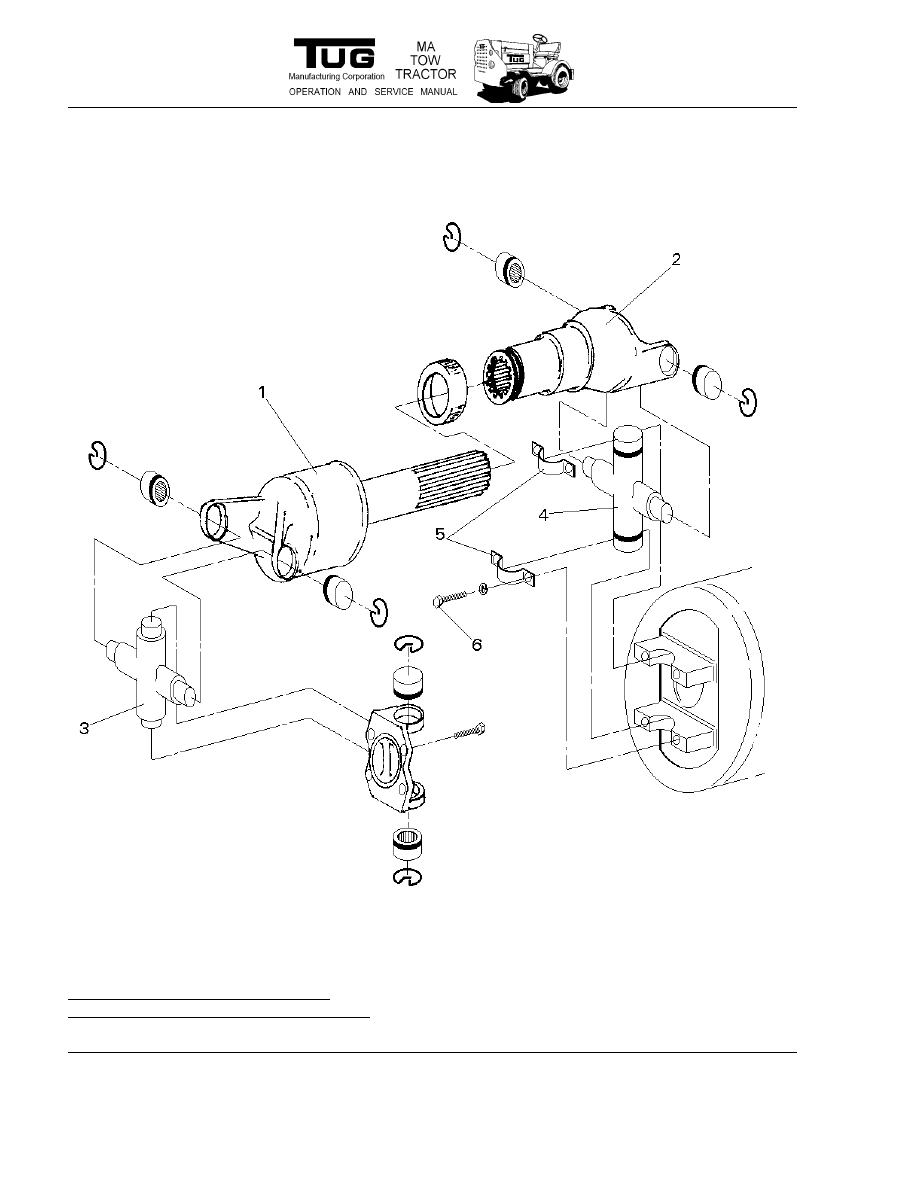

Figure 56: Drive Shaft Assembly, FMX Transmission,
Serial Numbers 001 through 361

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 199

56-1

—— ----------------

T6-2002-111

drive shaft assembly

1

001-084

—— ----------------

T6-2002-101

drive shaft assembly

1

085-361

56-2

—— ----------------

T6-2002-113

flange, front end

1

001-084

—— ----------------

T6-2002-103

flange, front end

1

085-361

56-3

—— ----------------

T6-2006-111

flange yoke end

1

001 & Up

56-4

—— ----------------

T6-2002-109

bolt & Locknuts

4

085-361

56-5

256 TPG382884-S2 T6-2006-103

hex head bolt, spicer

4

001 & Up

56-

—— ----------------

3/8-24NF

locknut

4

“

56-

127 20058

T6-2006-107

universal joint kit, front (note 1)

1

001-361

56-

127 20026

T6-2002-107

universal joint kit, rear (note 1)

1

001 & Up

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

1. Universal joint kits T6-2006-109 and T6-2002-107 include spider, seals, snap rings, bearings and grease

fitting.

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 200

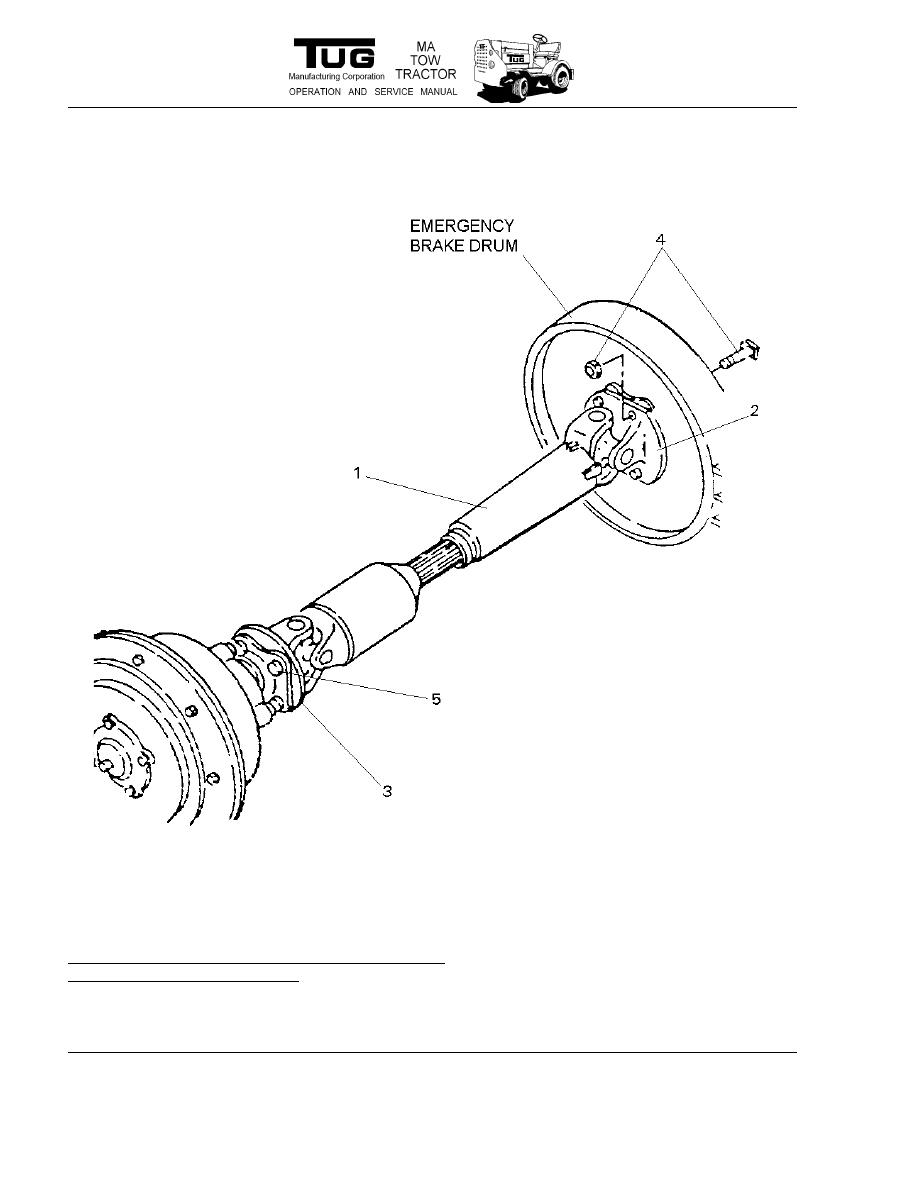

Figure 57: Drive Shaft Assembly, C-6
Transmission, Serial Numbers 362 and Up
