Model MA TOW Tractor. Manual - part 76

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 189

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

52a-1

227 7812

T6-6011-111

Tee

1

As Req’d

52a-2

364 22555667

MD-CB21-121

Clip

2

“

52a-3

266 2HBH19-3MIX-1.75-3FI MH-ND-543

Brake Hose

3

“

52a-4

227 S306

T6-6011-151

Brake Line, 6”

2

“

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 190

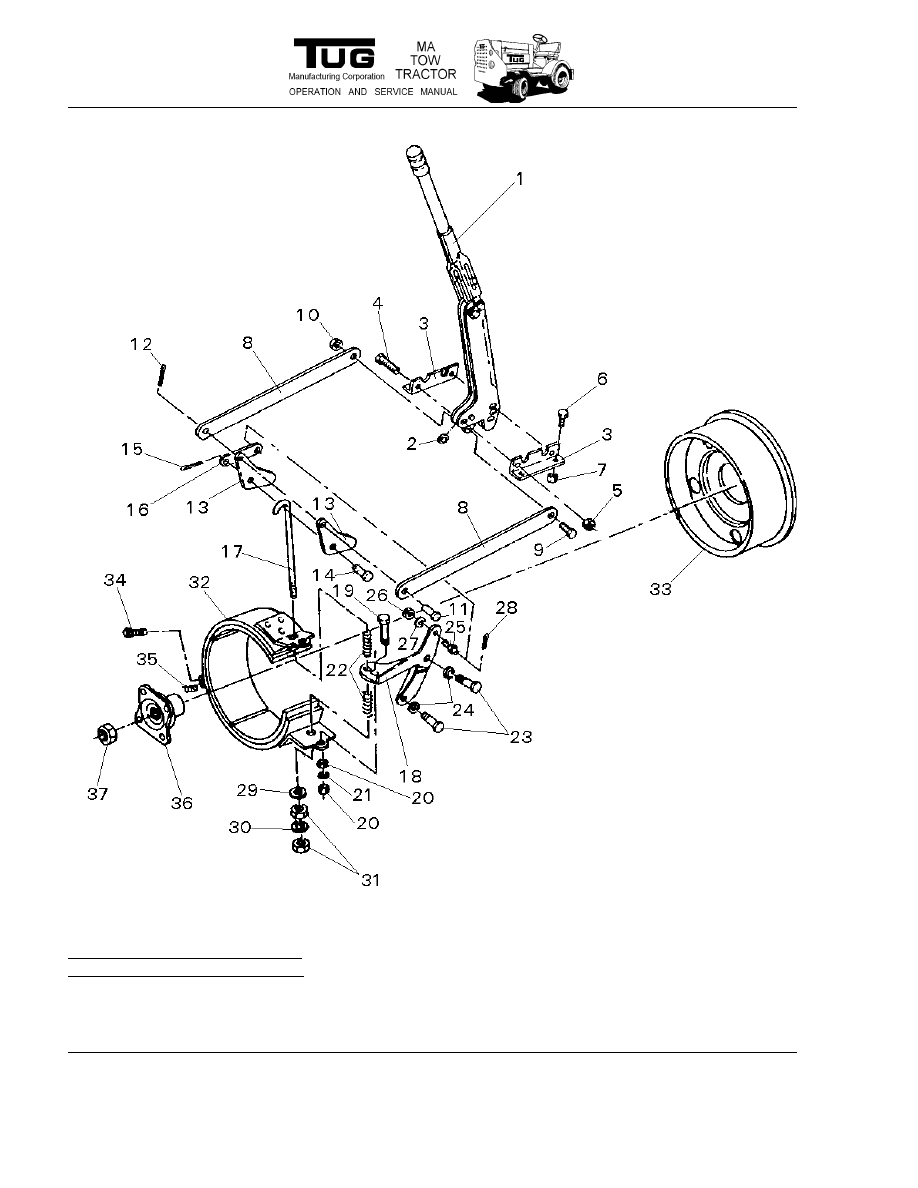

Figure 53: Park Brake Assembly,
Serial Numbers 001 Through 361

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 191

53-1

152 0218-2900

T6-8005-101

PARK BRAKE LEVER

1

001 & Up

53-2

—— ----------------

T6-8005-103

spacer, park brake lever

1

“

53-3

—— ----------------

T6-8005-105

mounting bracket, park brake

2

001-361

53-4

—— ----------------

3/8-16NCX1-1/2"

hex head bolt

2

“

53-5

—— ----------------

3/8-16NC

locknut

2

“

53-6

—— ----------------

1/4-20NCX1"

hex head bolt

4

“

53-7

—— ----------------

1/4-20NC

locknut

4

“

53-8

—— ----------------

T6-8005-107

strap, park brake, 13"  (Discontinued)

2

001-079

—— ----------------

T6-8005-109

strap, park brake, 10"

2

080-361

53-9

—— ----------------

5/16-18NCX1"

hex head bolt

1

001-362

53-10 —— ----------------

5/16-18NC

locknut

1

“

53-11

79 87443

T6-500-123

clevis pin

1

“

53-12 —— ----------------

1/8X1"

cotter pin

1

“

53-13 —— ----------------

T6-8002-107

cam, park brake

2

“

53-14

256 OIT-73928-S

T6-8002-117

retaining pin, cam

1

“

53-15

256 OIT-72035-S

T6-8002-119

cotter pin

1

“

53-16

256 OIT-2630

T6-8002-105

strap, brake stabilizer

1

“

53-17

256 OIT-2642

T6-8002-131

rod, brake band adjusting

1

“

53-18

256 D2TZ-2654B

T6-8002-121

bracket, park brake mounting, FMX transmission 1

“

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 192

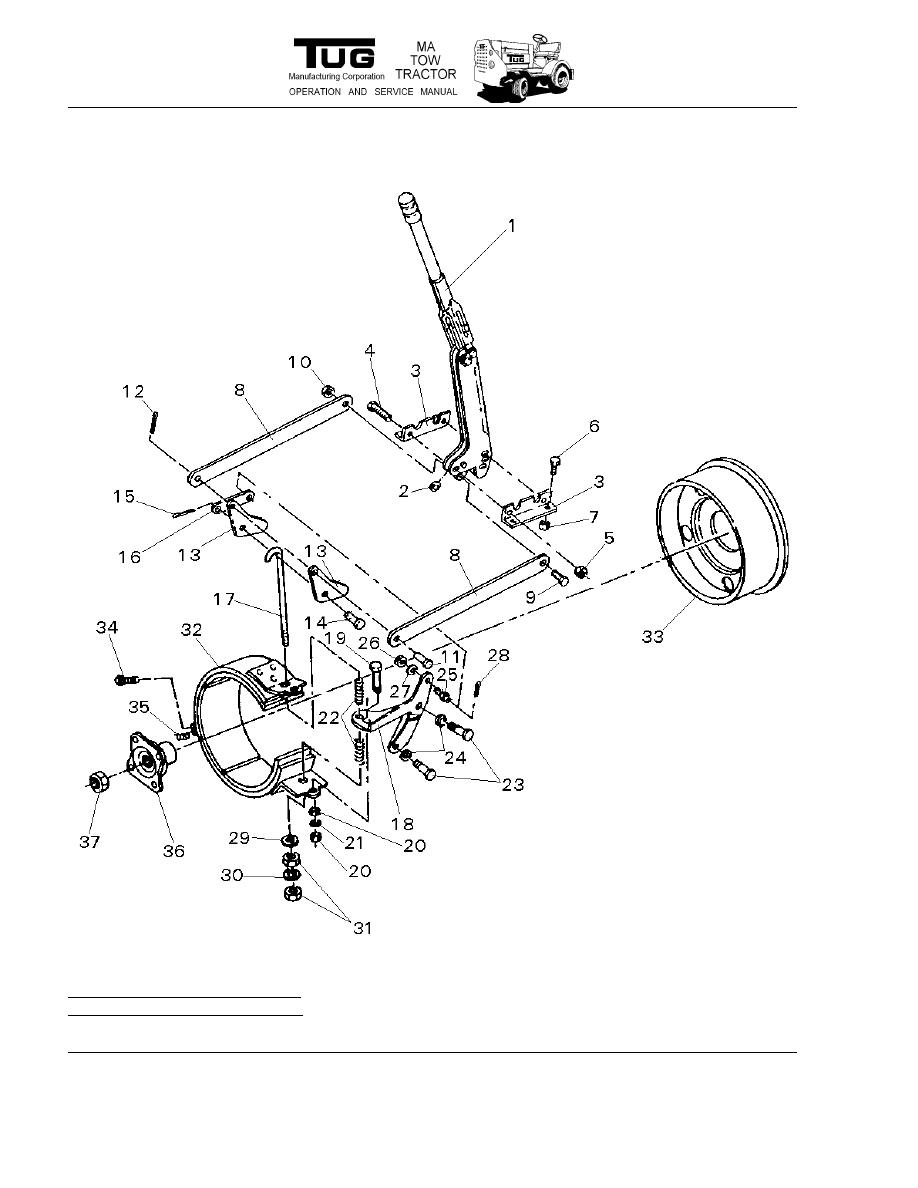

Figure 53: Park Brake Assembly,
Serial Numbers 001 Through 361
