Model MA TOW Tractor. Manual - part 53

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 97

27-1

----- ----------------

mg-nd-589

l.p. tank (portable)

1

As Req'd

27-2

250 betb-2

md-w02-105

tank bracket, l.p. gas (set)

1

"

27-

250 tb25

md-w02-103

shrouded tank bracket, l.p. gas

1

"

27-3

----- ----------------

md-h02-107

l.p. tank (asme)

1

"

27-4

----- ----------------

T6-4018-113

l.p. tank stand

1

"

27-5

----- ----------------

3/8-16ncx1"

hex head bolt

Ref.

"

27-6

----- ----------------

3/8

flat washer

Ref.

"

27-7

----- ----------------

3/8-16nc

locknut

Ref.

"

27-8

----- ----------------

1/4-20cnx1"

hex head bolt

Ref.

"

27-9

----- ----------------

1/4-20nc

locknut

Ref.

"

27-

----- ----------------

mg-nd-590

fuel level sensing unit

1

"

27-

----- ----------------

mg-nd-591

Fuel gauge

1

"

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 98

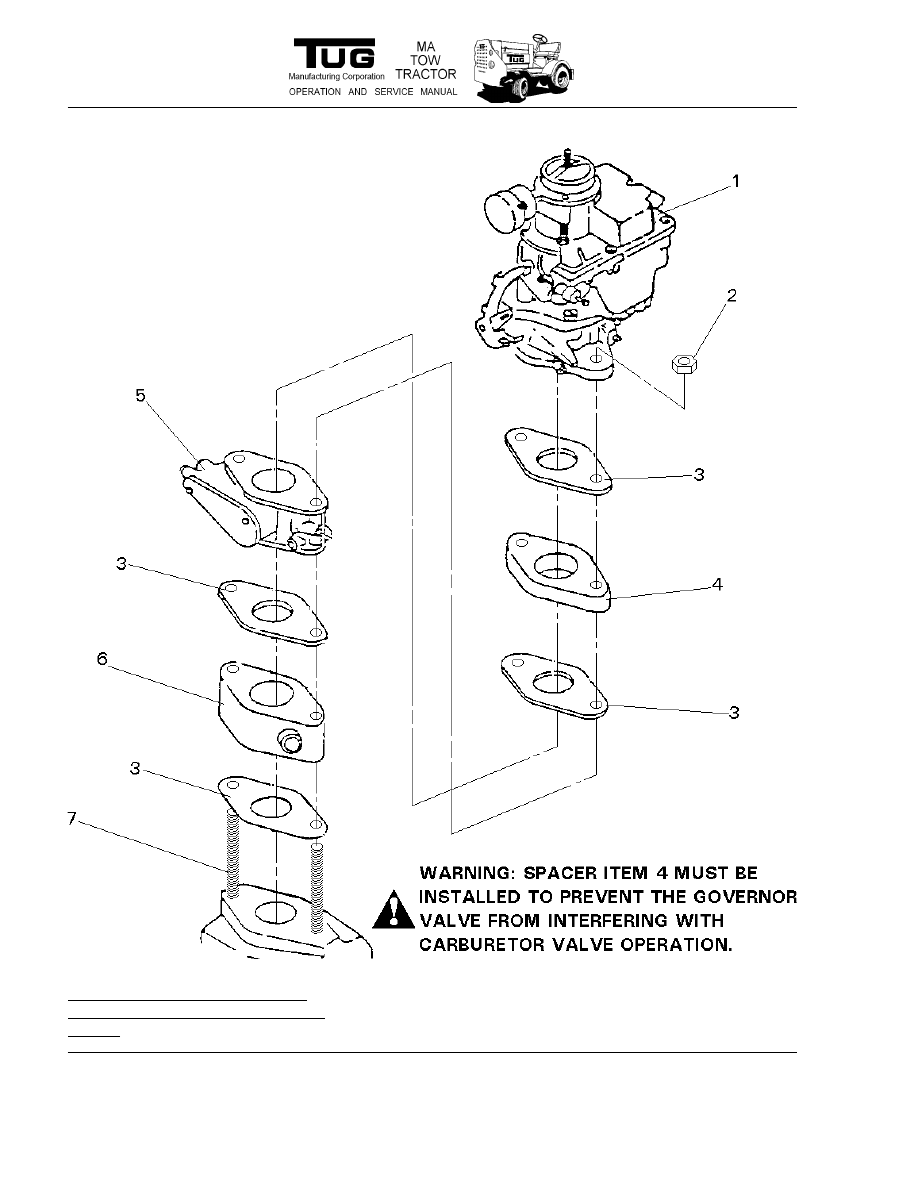

Figure 28:Carburetor Installation,
Ford 300 CID Engine - Gasoline and
LP Gas

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 99

28-1

127 7051

T6-1001-107

carburetor, gasoline

1

As Req'd

250 ca125m-3

-----------------

carburetor, l.p. gas

1

"

28-

250 a2-7

-----------------

mixer, l.p. gas

1

"

28-2

----- ----------------

3/8-24nf

locknut

2

001 & Up

28-3

246 d7jl-12a450a

T6-1001-163

carburetor gasket

4

"

28-4

246 d7jl-12a479a

-----------------

spacer, carburetor to governor

1

"

28-5

104 s372pe

T6-1001-105

hoof governor, oval

1

As Req'd

370 355510

T6-9011-366

hyster governor

1

"

28-6

246 d7tz-9a589h

-----------------

spacer, governor to manifold

1

001 & Up

28-7

----- ----------------

3/8-24x3/816x5"

stud

2

"

28-

----- ----------------

T6-9011-247

throttle restrictor plate

1

As Req'd

28-8

246 c8dz-9654a

-----------------

air cleaner gasket

1

“

----- -----------------

T6-1011-103

Barb Rebuild Kit

1

“

----- c9uz-9652a

T6-1001-137

Flex Tube -Preheater

1

“

----- napa 813-1232 T6-6017-114

5/16” x 30” steel fuel line

ref

“

----- napa 3081

T6-6017-115

Fuel Filter

1

“

----- ----------------

T6-1001-123

Spring, Throttle

1

“

SPACER ITEM 4 MUST BE INSTALLED TO PREVENT THE GOVERNOR VALVE FROM INTERFERING

WITH CARBURETOR VALVE OPERATION.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 100

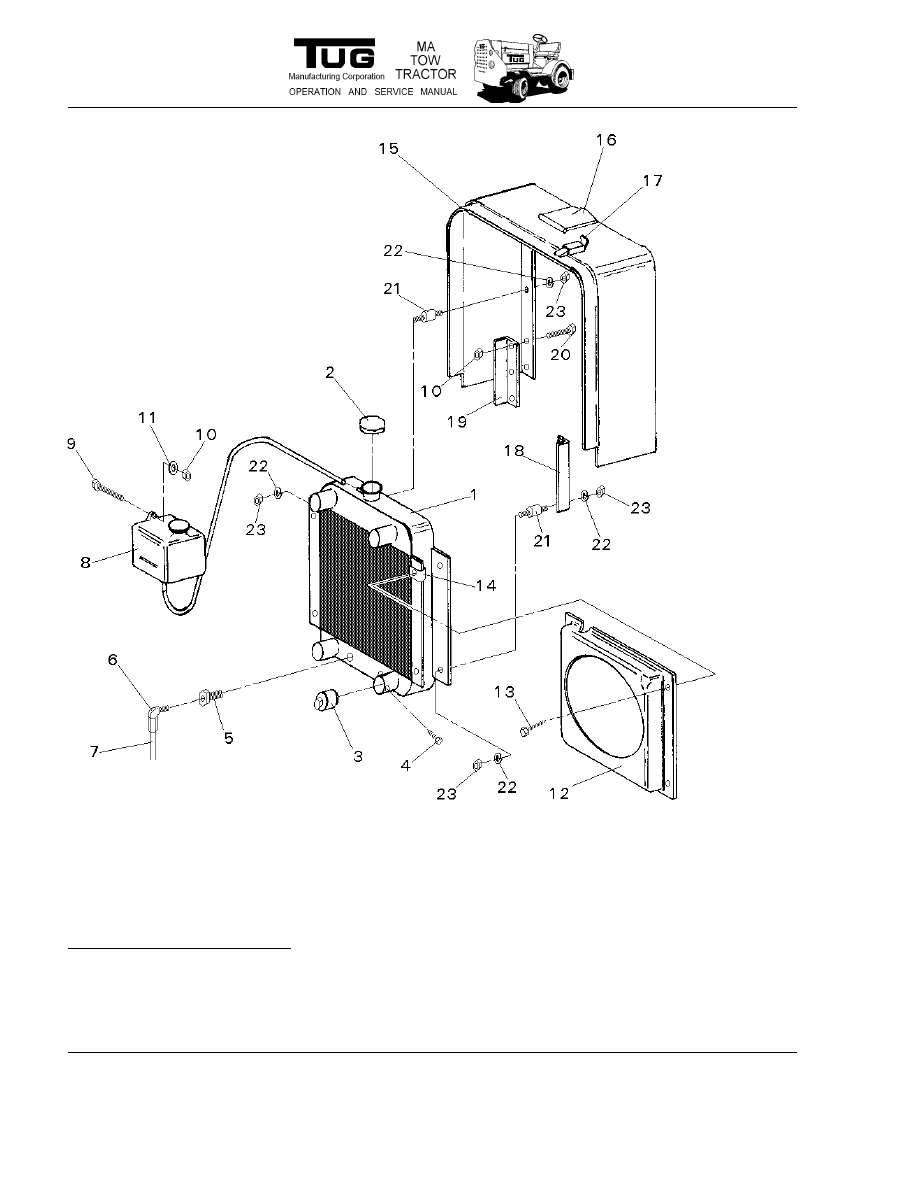

Figure 29: Radiator Installation
