Model MA TOW Tractor. Manual - part 48

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 77

23-1

46 fhg065359

T6-1201-217

air precleaner assembly (note 1)

1

As Req'd

23-

----- ----------------

T6-1201-217-01

air precleaner element  (note 1)

1

"

23-2

----- ----------------

#40

hose clamp

5

"

23-3

46 x001966

T6-1201-213

inlet hood, air filter

1

"

23-4

46 dnp00-7191

T6-1206-103

mounting strap, air cleaner

2

"

23-5

----- ----------------

1/4-20ncx1"

hex head bolt

8

"

23-6

----- ----------------

1/4

flat washer

8

"

23-7

----- ----------------

1/4-20nc

locknut

8

"

23-8

46 dnfwg08-0023

mj-nd-6201

air filter assembly (note 2)

1

"

23-9

46 dnp00-4307

mj-nd-6202

mounting strap, air cleaner

2

"

23-10

----- ----------------

mj-nd-6201-01

air filter element (note 2)

1

"

1. Air precleaner assembly T6-1201-217 (item 1) includes air precleaner element T6-1201-217-01.
2. Air filter assembly MJ-ND-6201 (item 8) includes air filter element MJ-ND-6201-01 (item 10).

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 78

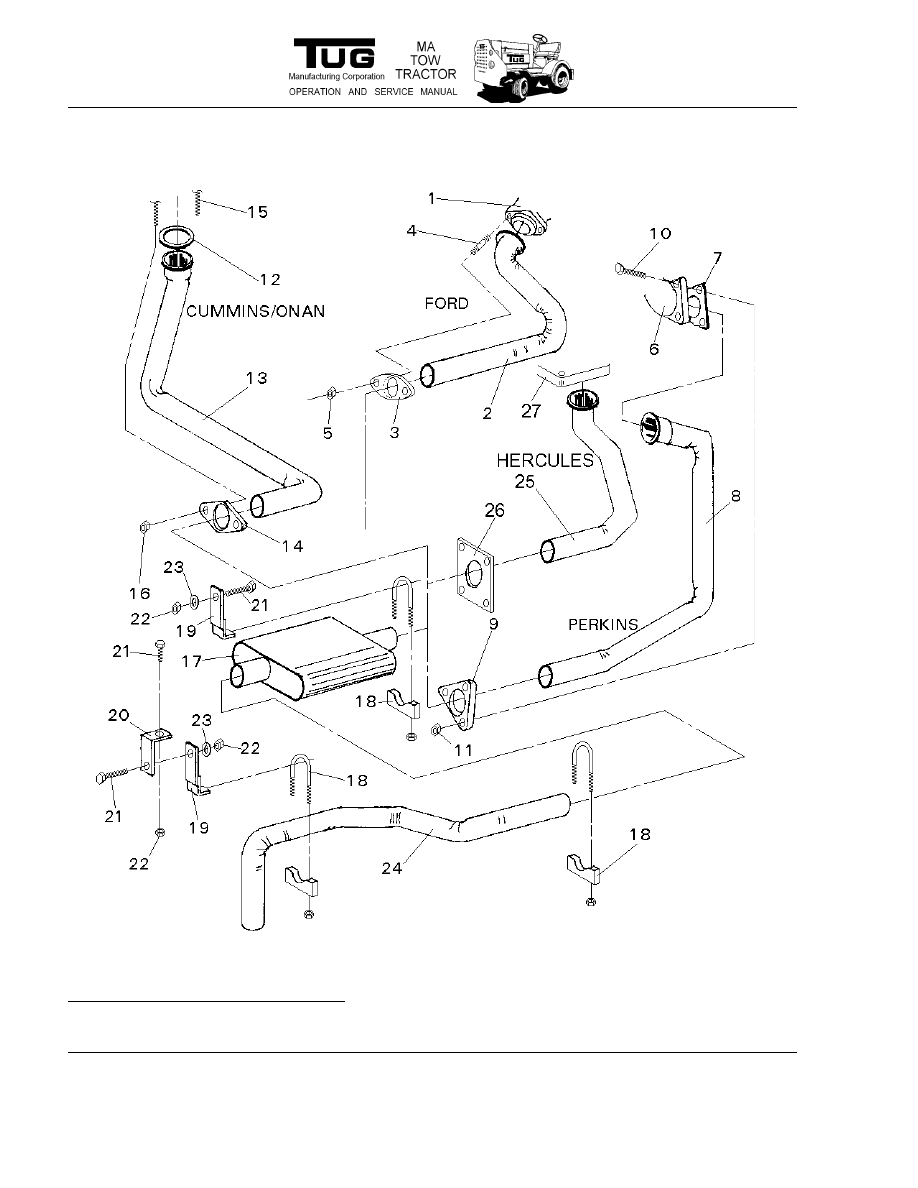

Figure 24: Exhaust System Installation

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 79

24-

----- ----------------

T6-1005-129

Exhaust System, Gas

1

362 & Up

24-1

246 d7tz-9424m

-----------------

exhaust manifold, 300 cid Gasoline engine

1

“

24-

246 d9tz-9a603b

T6-1001-179

Exhaust Manifold shroud

1

“

24-

246 e3tz-9439a

-----------------

gasket, exhaust manifold, 300 cid Gasoline engine

1

"

24-

246 d3az-9c67b

T6-1001-181

Exhaust manifold Bracket

1

“

24-2

----- ----------------

T6-1005-131

exhaust pipe, 300 cid Gasoline engine

1

"

----- ----------------

T6-1005-125

exhaust pipe, 240 cid Gasoline engine

1

130-361

----- ----------------

T6-1005-107

exhaust pipe, 240 cid Gasoline engine

1

001-129

24-

127 f17250

T6-1005-111sp

exhaust gasket, 240 cid Gasoline engine

1

001-361

24-3

256 d42a-5296aa

T6-1005-113

exhaust flange, gasoline engine

1

001 & Up

24-4

----- ----------------

7/16-14ncx2-1/2"

Stud, exhaust flange, gasoline engine

2

"

24-5

----- ----------------

7/16-14nc

locknut, exhaust flange, gasoline engine

2

"

24-6

200 37738234

-----------------

exhaust elbow, perkins diesel engine

1

"

24-7

22 f-7192

T6-1205-107

gasket, exhaust elbow, perkins diesel engine

2

"

24-

----- 37781321

-----------------

exhaust manifold, perkins diesel engine

1

"

24-

110 36862159

-----------------

gasket, exhaust manifold, perkins diesel engine

2

"

24-

110 o826439

-----------------

stud, elbow, perkins diesel engine

3

"

24-

110 o576065

-----------------

nut,  elbow, perkins diesel engine

3

"

24-

110 o920005

-----------------

washer,  elbow, perkins diesel engine

3

"

24-8

291 ----------------

T6-1205-103

exhaust pipe, perkins diesel engine

1

"

24-9

110 36233431

-----------------

exhaust flange, perkins diesel engine

1

"

24-10

----- ----------------

3/8-24nfx1-1/2"

hex head bolt

3

"

24-11

----- ----------------

3/8-24nf

locknut

3

"

24-

----- ----------------

T6-7200-095

Flange, Hercules

1

“

24-

----- ----------------

T6-7200-101

Down Pipe

1

“

24-

----- 40-3094607

----------------

Gasket

1

“

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 80

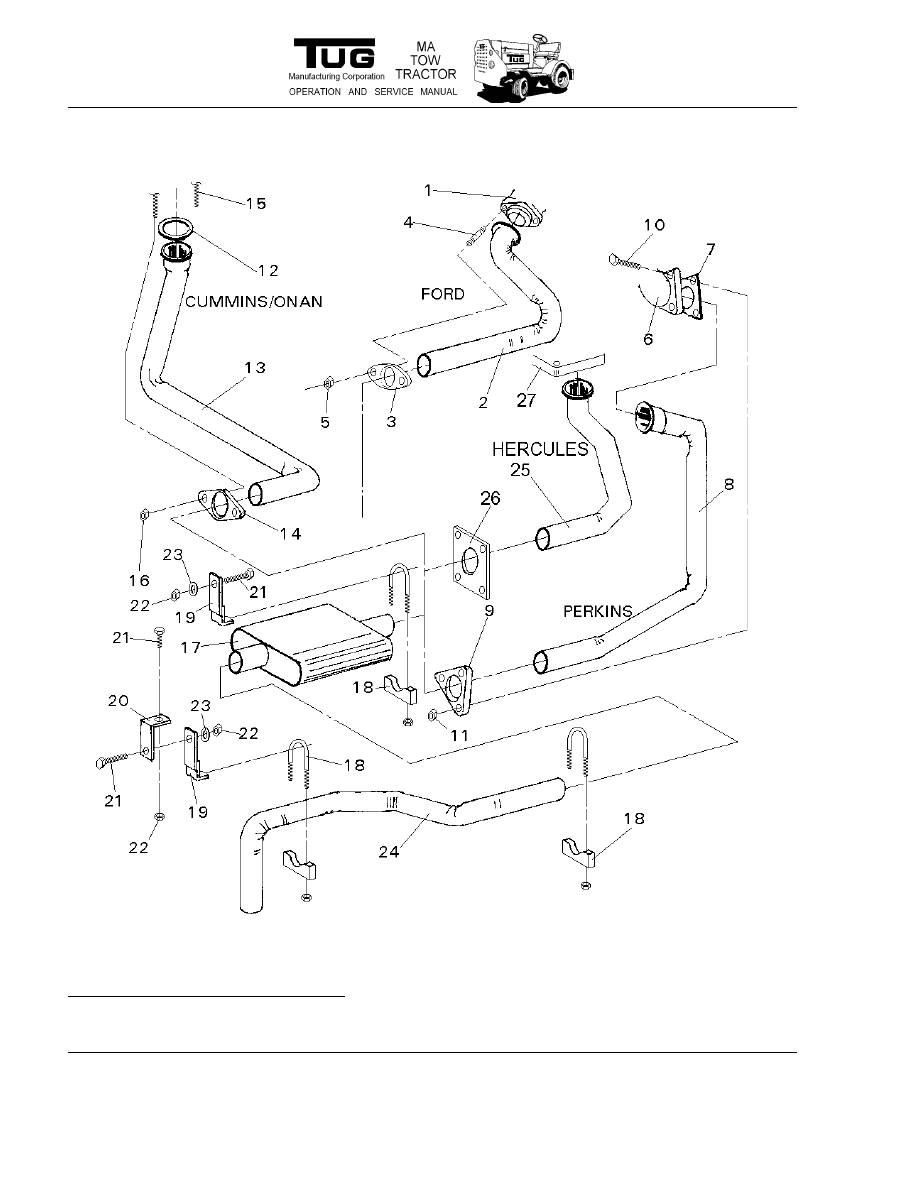

Figure 24: Exhaust System Installation
