Model MA TOW Tractor. Manual - part 38

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 37

9-1

140 304242-003-0035 T6-1023-105

cable, shifter, 35", gas (note 1)

1

As Req'd

140 304242-003-0032 T6-1023-103

cable, shifter, 32", diesel (note 1))

1

"

----- ----------------

T6-1004-105

rod, long (note 1)

1

001-361

----- ----------------

T6-1004-103

bell crank assembly (note 1)

1

"

----- ----------------

T6-1004-104

rod, short (note 1)

1

"

----- ----------------

T6-1004-109

yoke assembly (note 1)

3

"

9-2

----- ----------------

T6-1021-103

Shifter Linkage plate

1

001 & Up

9-3

162 dr50-2

T6-1004-119

swivel, shift cable

1

"

9-4

----- ----------------

3/8-16ncx1"

hex head bolt

2

"

9-5

----- ----------------

3/8-16nc

locknut

1

"

9-6

----- ----------------

T6-1021-107

anchor, cable, standard shifter

1

"

9-7

----- ----------------

3/8

lock Washer

1

"

9-8

162 q10-272

T6-1002-155

cable clamp

2

"

9-9

----- ----------------

1/4-20ncx1/2"

hex head bolt

3

"

9-10

----- ----------------

1/4-20nc

locknut

7

"

9-11

----- ----------------

1/4-20ncx1"

hex head bolt

4

"

9-12

----- ----------------

T6-1001-101t

transmission, gas (note 2)

1

362 & Up

246 F2FP-7000GA

T6-1008-111

transmission, c-6 3-speed

1

"

9-13

140 e300911

T6-1002-151

Morse Shifter

1

Note 3

----- ----------------

T6-1002-101

Morse shifter (Obsolete -use T6-1002-151)

1

Note 4

162 t37001

T6-1002-153

Quadrastat Shifter

1

As Req'd

----- ----------------

T6-1002-153m

Quadrastat Shifter, full Range

1

"

9-14

162 dr50-2

T6-1004-119

swivel, shifter

1

"

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

1. 35" shifter cable T6-1023-105 (gas) or 32" shifter cable T6-1023 103 (diesel) replaces assemblies T6-

1004-109, T6-1004-105, T6-1004-103 and T6-1004-104 used as original equipment through serial number
361.

2. FMX transmission (original equipment through serial number 361) is no longer available. Replace with 2-

speed transmission T6-1001-101T (gas) or 3-speed transmission T6-1008-111 (diesel). This requires
replacement of 240 CID engine with 300 CID engine and replacement of mounts.

3. Used on all units equipped with Morse shifter from serial number 096.
4. Used on all units equipped with Morse shifter through serial number 095.

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 38

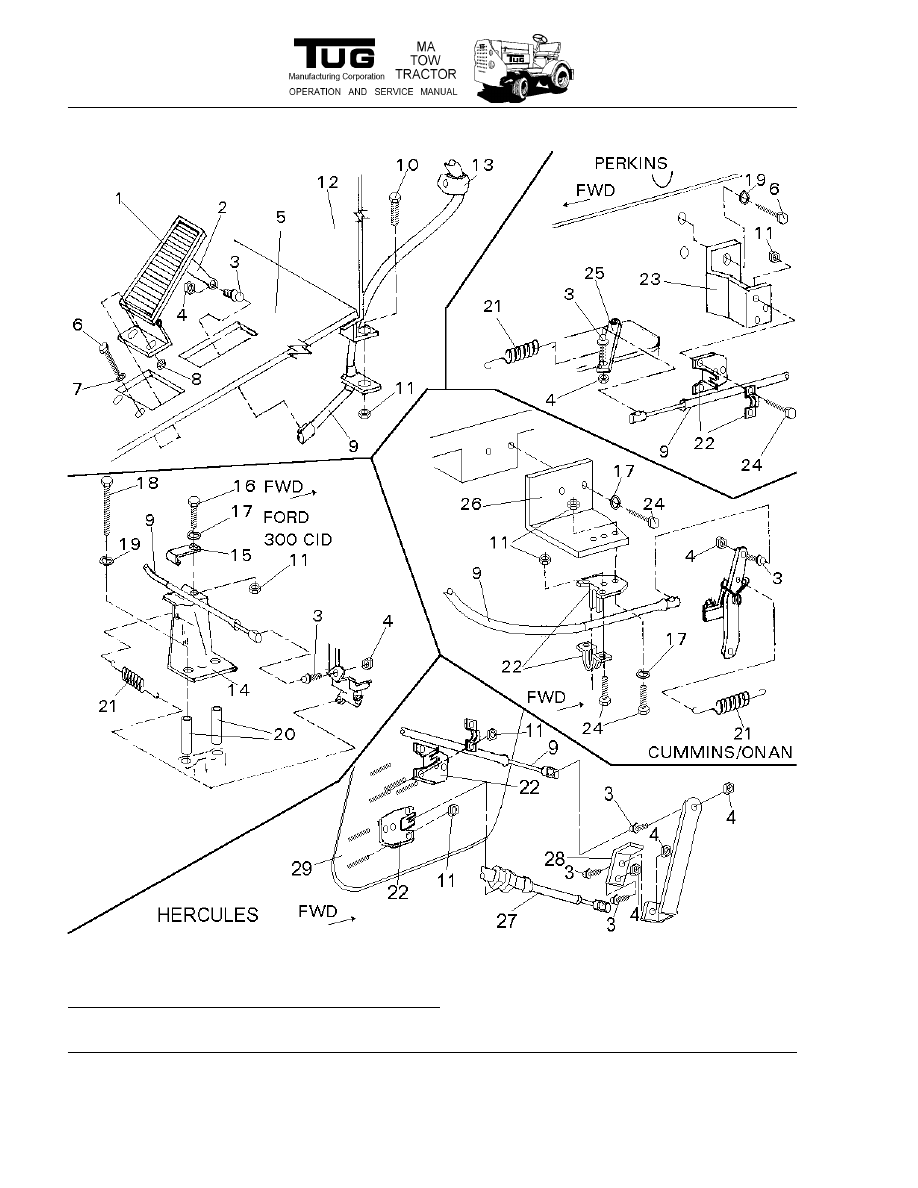

Figure 10: Accelerator Cable and Linkage Assembly

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 39

10-1

246 eohz-9735c

T6-1009-103

Accelerator Pedal

1

001 & Up

10-

----- ----------------

T6-1009-104

Cap, morton cast, accelerator pedal

1

As Req'd

10-2

----- ----------------

T6-1009-113

Arm, Accelerator Pedal

1

001 & Up

10-3

79 89831

T6-1009-109

stud, accelerator cable

Ref.

"

10-4

----- ----------------

#10-32nf

Locknut (Note 1)

Ref.

"

10-5

----- ----------------

T6-4021-105

floorboard, 45°

1

001-361

----- ----------------

T6-4048-103

floorboard, one-piece, gas

1

362-3344

----- ----------------

T6-4048-107

floorboard, one-piece, Diesel

1

"

----- ----------------

T6-4048-103/7

floorboard,  universal

1

3345 & Up

10-6

----- ----------------

3/8-16ncx1"

hex head bolt

Ref. 001 & Up

10-7

----- ----------------

3/8

flat washer

2

"

10-8

----- ----------------

3/8-16nc

locknut

2

"

10-9

256 epgc6tz-9a758e T6-1009-105

accelerator cable

1

"

10-10

----- ----------------

1/4-20ncx1"

hex head bolt

1

"

10-11

----- ----------------

1/4-20nc

locknut

Ref.

"

10-12

----- ----------------

T6-4004-103

firewall

1

"

10-13

79 86082

T6-500-138

P-clamp

1

"

10-14

256 c8uz-9723d

T6-1001-119

accelerator cable stand-off, Gas

1

As Req'd

10-15

256 epgc5tz-9792a T6-1001-119c

clip, accelerator cable stand-off, gas

1

"

10-16

----- ----------------

1/4-20ncx1/2"

hex head bolt

1

"

10-17

----- ----------------

1/4

lock washer

1

"

10-18

----- ----------------

3/8-16ncx3"

hex head bolt

2

"

10-19

----- ----------------

3/8

lock washer

Ref.

"

10-20

256 epgc5tz-9k706d T6-1001-121

spacer, accelerator cable stand-off, gas

2

"

10-21

----- ----------------

T6-1001-123

accelerator spring

1

001 & Up

10-22

162 q10-272

T6-1002-155

cable clamp, diesel

Ref. As Req'd

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

1. Accelerator cable stud T6-1009-109 (item 3) may be welded in certain applications, eliminating the need

for #10-32NF locknut (item 4).

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 40

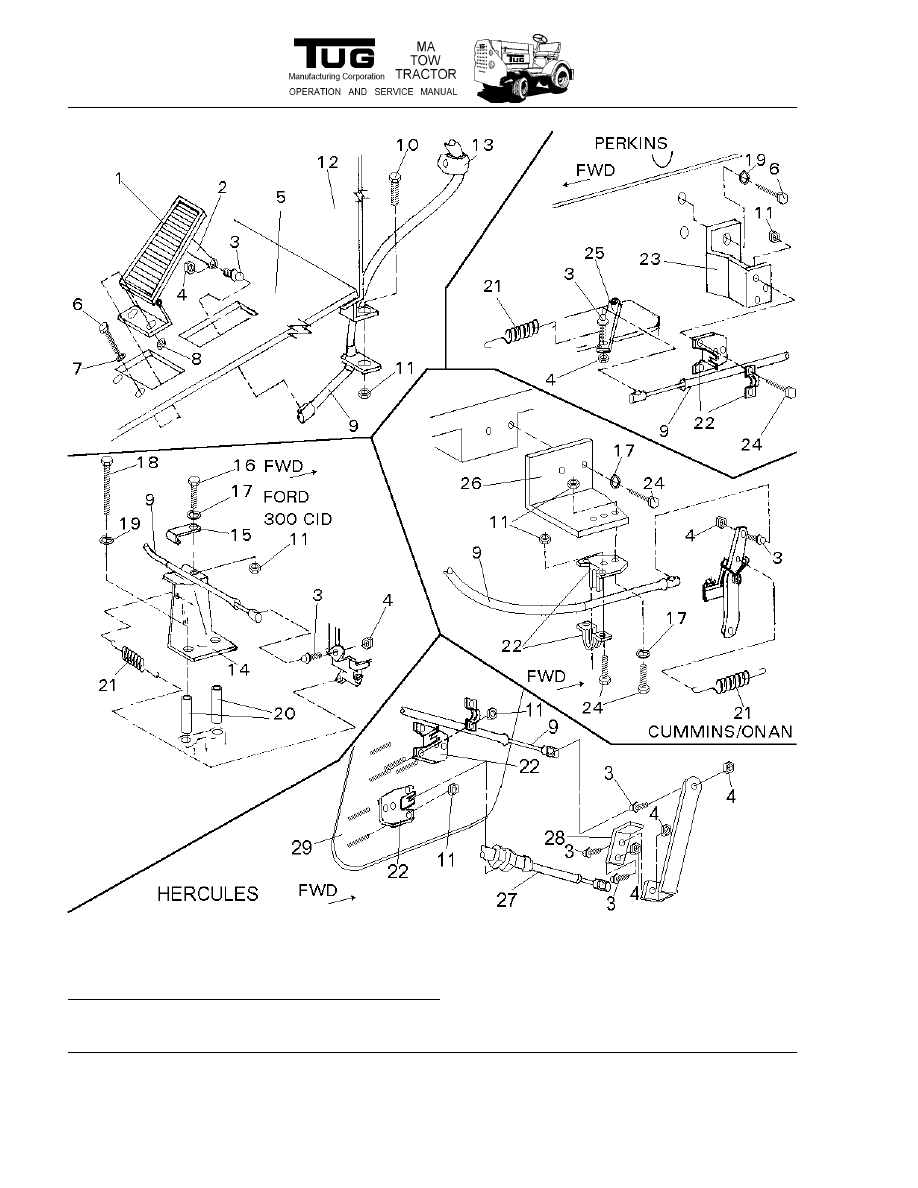

Figure 10: Accelerator Cable and Linkage Assembly
