Model MA TOW Tractor. Manual - part 36

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 29

6-

131 fsa-102

x6005-101

fuel level sensing unit, gasoline and diesel

1

"

----- ----------------

mg-nd-590

fuel level sensing unit, l.p.

1

"

196 280ec(280ee)

x6006-101

transmission oil temperature sensing unit

1

"

6-9

371 104680

T6-7010-153

water temperature gauge

1

001 & Up

6-

371 0202400

T6-1001-201

water temperature sensing unit

1

"

6-10

371 06215-00

T6-7010-129

light socket with bulb

3

"

6-

146 ----------------

T6-8011-111

Flange Holder

1

As Req'd

6-

146 93f3586

T6-7010-120

Red Warning Light,Flat Head

1

“

6-

146 60f1481

T6-7010-122

Green Warning Light,Flat Head

1

“

6-

146 25f1638

T6-8011-111-2

Dome Lens

1

“

6-

298 ZB2-B554

660-nd-1676

shutdown button, engine

1

"

6-

298 zb2-bz102

660-nd-1445

contact block, engine shutdown

1

"

6-11

----- ----------------

T6-7010-319

instrument panel, pollack ignition switch, no fuel gauge

1

"

----- ----------------

T6-7010-323

instrument panel, cole hersee ignition switch, no fuel gauge

1

"

----- ----------------

T6-7010-321

instrument panel, with fuel gauge

1

"

----- ----------------

T6-7010-325

instrument panel, with fuel gauge and indicator lights

1

"

----- ----------------

T6-7010-335

instrument panel, with engine kill switch, fuel gauge and indicator lights 1

"

6-

----- ----------------

T6-7010-326

cover, instrument panel, plexiglass

1

"

6-

293 .250idx.375od

T6-9011-237

spacer, instrument panel cover

4

"

6-12

----- ----------------

#10-32nfx1"

screw

6

001 & Up

6-

----- ----------------

#10-32nf

locknut

6

"

6-

----- ----------------

T6-7010-324

instrument panel closeout

1

Note 2

6-

102 020-113

T6-7200-015

Water Temp Switch Hercules (Hewett)

1

As Req’d

6-

131 10020870-34

T6-1300-165

Kysor Water Alarmstat (diesel) 210

1

“

6-

131 1002-04870-240

T6-7010-207

Kysor Water Alarmstat (gas) 240

1

“

6-

131 104224900-10

T6-7010-209

Kysor Oil Pressure Stat

1

“

6-

22 ts-6471

T6-9011-115

Water Temp Sender (Hercules)

1

“

6-

74 wa 0277-1

T6-8011-117

Switch, Brake Warning

1

“

6-

----- ----------------

T6-7011-105

Wiring Harness, Gas

1

“

6-

----- ----------------

T6-1300-1270

Wiring, Harness, 4.236

1

“

2. Used on tractors equipped with firewall insulation only.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 30

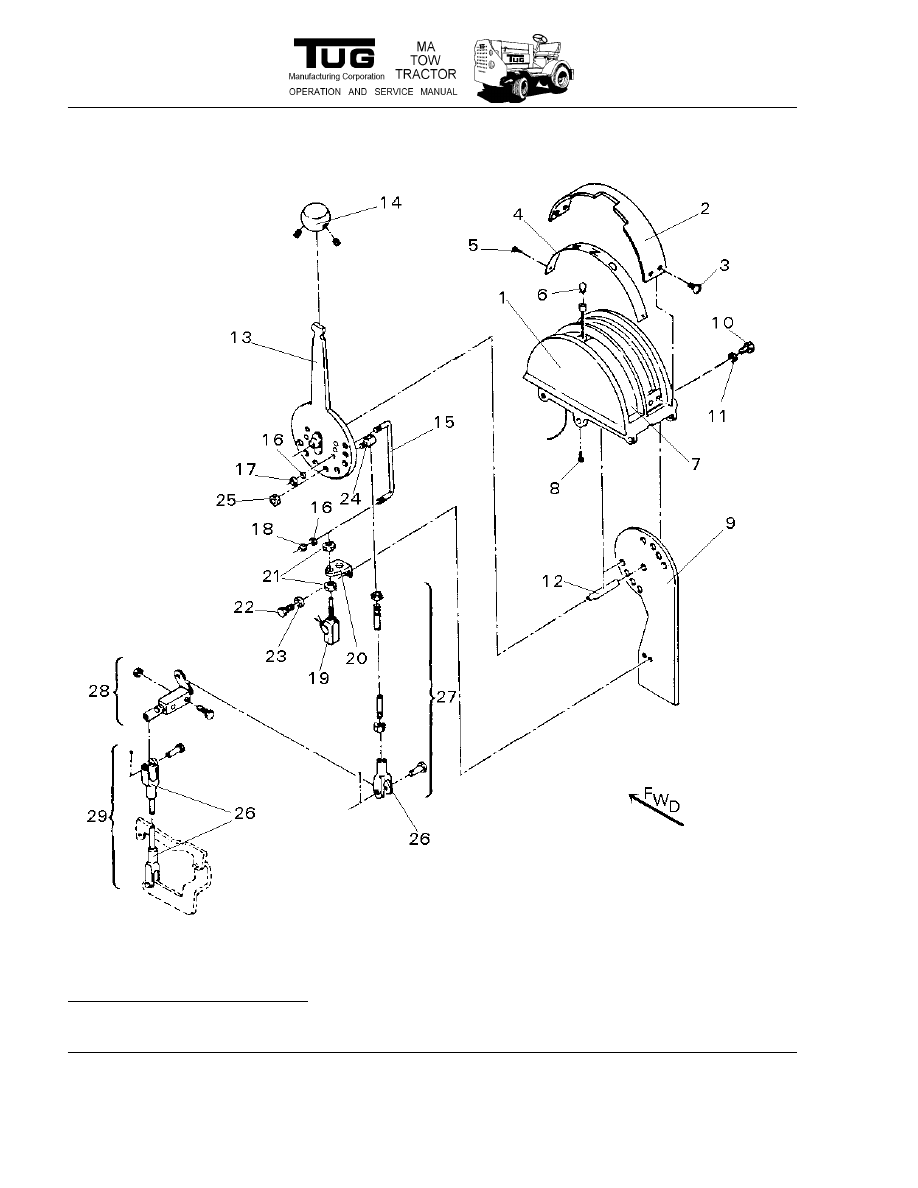

Figure 7: Morse Shifter Assembly

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 31

7-

140 e300911

T6-1002-151

Morse Shifter

1

Note 1

----- ----------------

T6-1002-101

Morse shifter

1

001-095

7-1

140 e044405-001

T6-1002-107

housing

1

Note 2

7-2

140 b044724

T6-1002-103

Gate Plate, shifter

1

"

7-3

----- ----------------

#10-24ncx5/16"

Phillips truss head screw

4

"

7-4

140 b300144-002

T6-1002-105

Decal strip, Shifter

1

"

7-

140 b44406

T6-1002-131

Light Pipe, shifter

1

"

7-5

----- ----------------

#6-32ncx7/16"

Phillips head truss screw

2

"

7-6

----- ----------------

T6-1002-129

Pigtail Assembly

1

"

7-

----- ----------------

T6-1002-135

shim

1

"

7-7

----- ----------------

T6-1002-133

reflector strip

2

"

7-8

----- ----------------

#10-24ncx1/2"

screw

1

"

7-9

----- ----------------

T6-1002-141

Plate, Hanger

1

Note 1

----- ----------------

T6-1002-113

plate, hanger

1

001-095

7-10

----- ----------------

3/8-24nfx3/4"

Allen head bolt

2

Note 2

7-11

----- ----------------

3/8

lock washer

2

"

7-12

----- ----------------

T6-1002-115

shaft, lever

1

"

7-13

140 300140

T6-1002-139

shifter lever, Morse

1

Note 1

----- ----------------

T6-1002-111

shifter lever, Morse

1

001-095

7-14

140 a68444

T6-1002-137

knob, shifter

1

Note 1

----- ----------------

T6-1002-109

knob, shifter (Split)

1

001-095

----- ----------------

5/16-18ncx3/8"

Phillips head bolt

1

"

----- ----------------

5/16-18nc

nut

1

"

7-15

----- B 048353

T6-1002-145

Arm, switch actuator

1

Note 1

140 b43681

T6-1002-119

Arm, switch actuator

1

001-095

7-16

----- ----------------

T6-1002-123

O-ring

2

Note 2

7-17

----- ----------------

#10-32nf

fiber locknut

1

"

7-18

----- ----------------

#10-32nf

locknut

1

"

7-19

140 301527

T6-1002-147

switch, neutral start

1

"

7-20

----- ----------------

T6-1002-127

switch support

1

"

7-21

----- ----------------

T6-1002-125

nut, switch

2

"

7-

----- ----------------

T6-1002-247

Switch, Safety (red)

1

“

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

1. Used on all units equipped with Morse shifters from serial number 096.
2. Used un all units equipped with Morse shifters

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 32

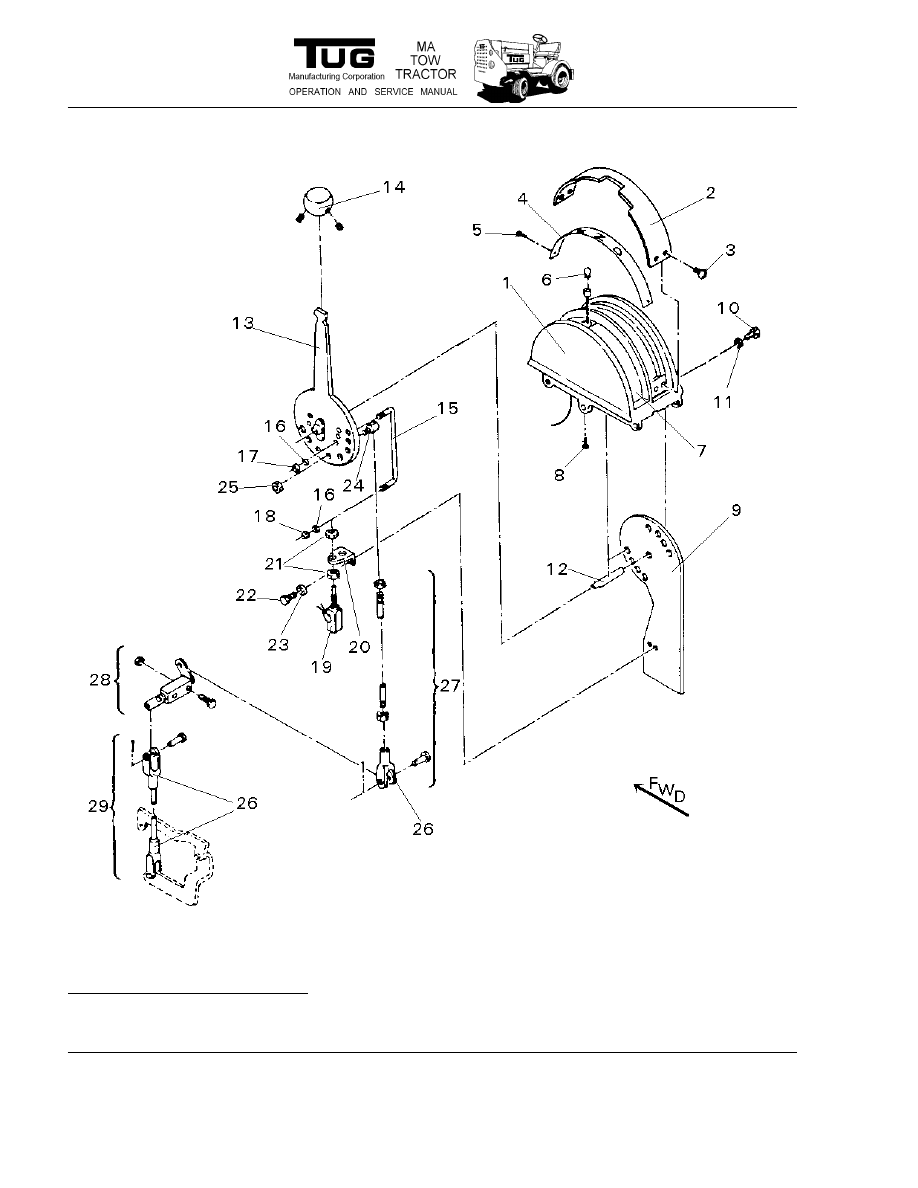

Figure 7: Morse Shifter Assembly
