Model MA TOW Tractor. Manual - part 34

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 21

4-28

----- ----------------

#12

hose Clamp

2

As Req’d

4-29

----- ----------------

5/8"

Heater hose

2

"

4-30

127 81081

cma-607

defroster hose (note 4)

1

"

----- ----------------

T6-9003-205

defroster elbow, 45°, rubber (note 4)

1

"

----- ----------------

T6-9003-145

defroster elbow, 45°, steel (note 4)

1

"

----- ----------------

CMA-608

Heater Shutoff Valve

1

“

4-31

----- ----------------

#28

hose clamp

1

"

4-32

48 10# purple k

T6-9005-101

Dry chemical fire extinguisher, (class b, c)

1

"

4-33

----- ----------------

3/8-16ncx1-1/2"

hex head bolt

1

"

----- ----------------

1/4-20ncx1"

hex head bolt

3

"

4-34

----- ----------------

3/8-16nc

locknut

1

"

----- ----------------

1/4-20nc

locknut

3

"

4-35

----- ----------------

3/32x3/16

wire rope, vinyl coated

Ref.

"

4-36

----- ----------------

1/4-20ncx1"

hex head bolt, self tapping

2

"

4-37

----- ----------------

1/4x1-1/2"

flat washer

2

"

4-38

----- ----------------

mh-1-563

mirror bracket

2

"

4-39

----- ----------------

T6-9011-347

mirror, 5", round

2

"

4-

256 c0322035400

----------------

light socket, glow plug

1

Note 5

4-

256 c0322035300

----------------

bulb, glow plug light

1

"

4-

----- ----------------

T6-7022-103p

plug, button, 1/2"

Ref. 001 & Up

4-

----- ----------------

T6-7022-105p

plug, button, 3/4"

Ref.

"

4-

----- ----------------

T6-500-109

plug, button, 1-1/4"

Ref.

"

4

102 030-411

T6-7200-005

Multi Alarm (note 6)

1

As Req'd

4-

102 020-111

T6-7200-010

Oil Pressure Switch, 7 psi

1

"

4-

102 020-113

T6-7200-015

Water Temperature Switch, 210 (note 6)

1

"

4-

309 M4502-3899

T6-7200-020

Low Fuel Switch (note 6)

1

"

4-

102 020-004

T6-7200-025

Low Coolant Switch (note 6)

1

"

4. Defroster hose CMA-607 replaces both defroster elbows T6-9003-143 and T6-9003-145 on later model tractors.

5. Used on ractors equipped with Cummins/Onan diesel engine.

6. Oil pressure switch T6-7200-010, water temperature switch T6-7200-015, low fuel switch T6-7200-020 and low

coolant switch T6-7200-025 are used with multi alarm T6-7200-005.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 22

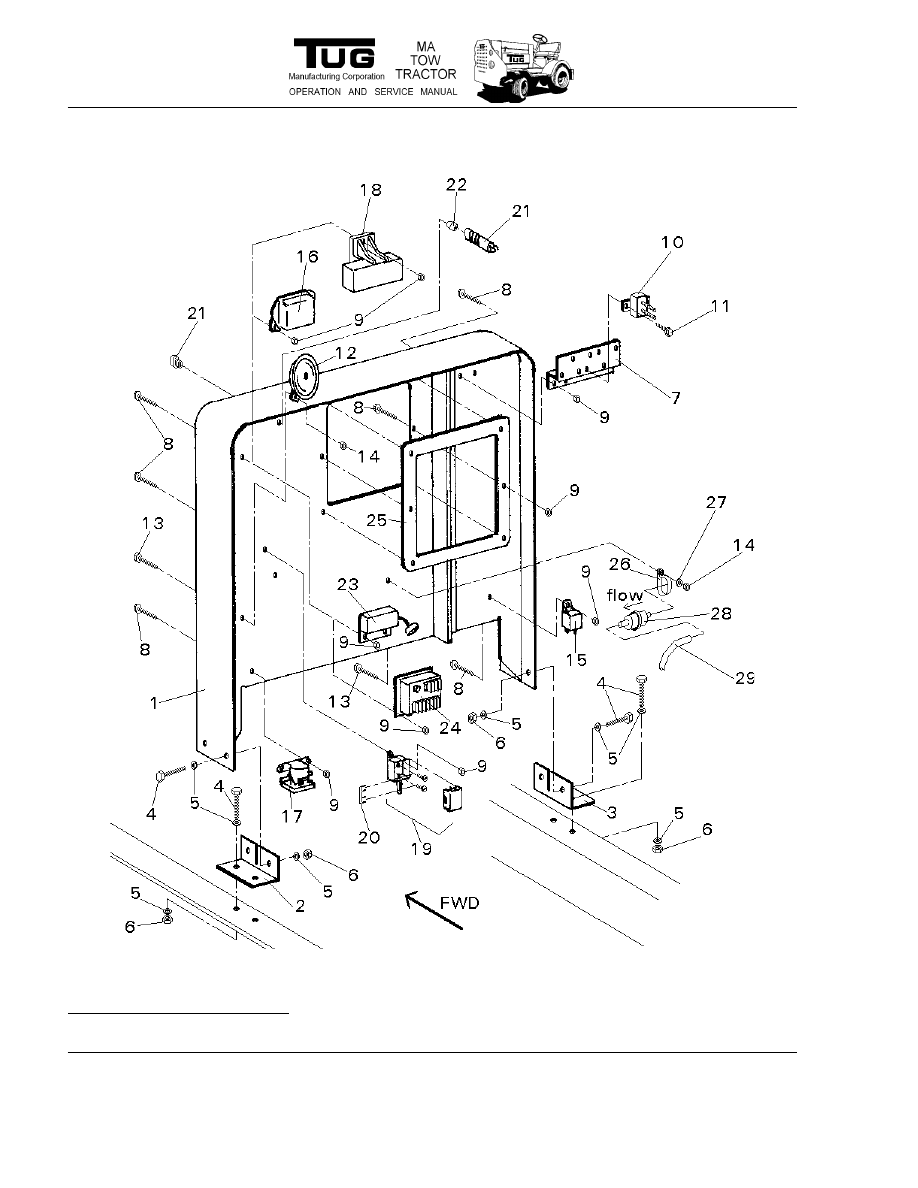

Figure 5: Firewall, Engine Side

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 23

5-1

----- ----------------

T6-4004-103

firewall

1

001 & Up

5-2

----- ----------------

T6-4004-116

mounting angle, firewall, rh

1

"

5-3

----- ----------------

T6-4004-115

mounting angle, firewall, lh

1

"

5-4

----- ----------------

3/8-16ncx1"

hex head bolt

8

"

5-5

----- ----------------

3/8

flat washer

16

"

5-6

----- ----------------

3/8-16nc

locknut

8

"

5-7

----- ----------------

T6-7010-211

circuit breaker mount

1

5293 & Up

----- ----------------

X6007-203P

fuse panel (note 1)

1

241-5292

----- ----------------

T6-7008-101b

fuse panel with lugs

1

As Req'd

----- ----------------

T6-7008-101a

fuse panel, used with bus (Note 1)

2

001-240

5-

56 70016/900605

T6-7009-109

Bus panel (note 1)

1

"

5-8

----- ----------------

#10-32nfx1"

screw

Ref. 001 & Up

5-9

----- ----------------

#10-32nf

locknut

Ref.

"

5-10

56 72125

660-4-0741-5

circuit breaker

Ref. 5293 & Up

127 cb5

T6-7010-203

circuit breaker, plug into fuse panel

8

As Req'd

5-11

----- ----------------

#10-1/2"

sheet metal screw

Ref. 5293 & Up

5-12

186 a270801-15

T6-7013-101

horn

1

001-3129

----- ----------------

T6-7013-208

Horn, Delco (UPS Option)

1

As Req’d

399 40354-21

T6-7013-207

horn

1

3130 & Up

5-13

----- ----------------

1/4-20ncx1-1/2"

hex head bolt

1

001 & Up

5-14

----- ----------------

1/4-20nc

locknut

1

"

5-15

186 a23788-13

T6-7013-103

Relay, Horn

1

001-3129

100 87106

T6-7013-209

relay, horn

1

3130 & Up

5-16

127 vr301

T6-7002-103

voltage regulator, gas

1

001-164

----- ----------------

T6-7002-111

voltage regulator, gas (Obsolete -use T6-7002-103)

1

165 & Up

5-17

127 ss157

T6-7010-201

starter relay, motorcraft starter

1

As Req'd

61 24059

660-4-0741-6

starter relay, perkins dsl with low fuel shutdown

2

As Req'd

1. Fuse panel X6007-203P replaces 2 fuse panels T6-7008-101A and bus panel T6-7009-101.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 24

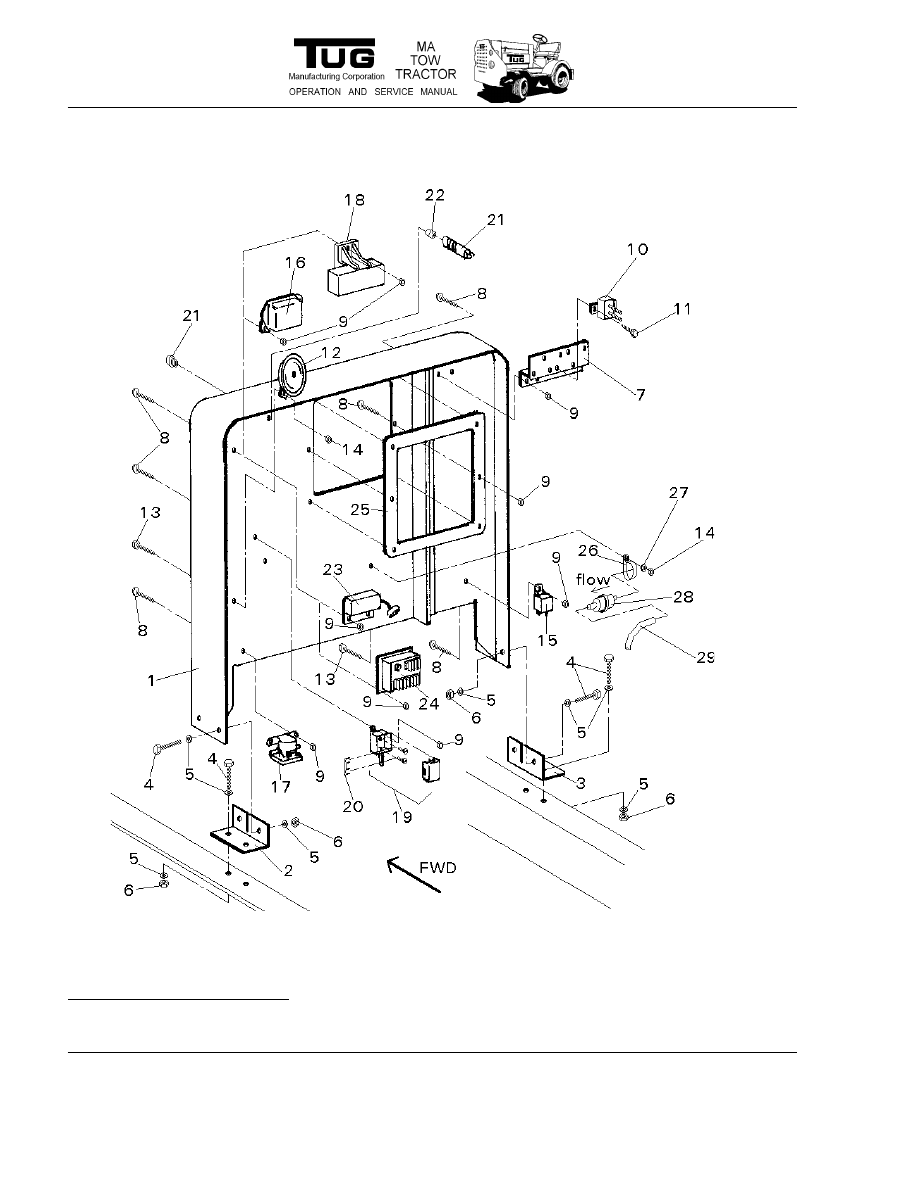

Figure 5: Firewall, Engine Side
