Model MA TOW Tractor. Manual - part 33

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 17

4-1

----- ----------------

T6-4004-103

firewall

1

001 & Up

4-2

436 9512396

T6-5001-101

steering sector (See Fig 37)

1

"

4-

----- ----------------

T6-9011-331

cover, steering column

1

As Req'd

4-3

----- ----------------

T6-5005-121

bracket, upper steering sector

1

001 & Up

4-4

----- ----------------

3/8-16ncx1-1/4"

hex head bolt

2

"

4-5

----- ----------------

3/8-16nc

locknut

4

"

4-6

----- ----------------

T6-5005-105

clamp, steering column

1

"

4-7

----- ----------------

3/8-16ncx2"

hex head bolt

2

"

4-8

----- ----------------

----------------

spacer, steering column clamp

1

"

4-9

158 24-360

X6042-101

switch, (push button), glow plug

1

AS Req'd

4-

158 24-360

X6042-101

switch, Low oil pressure override switch.

1

"

4-10

140 310180

T6-1002-151

Morse Shifter

1

Note 1

----- ----------------

T6-1002-101

Morse shifter

1

Note 2

162 t37001

T6-1002-153

Quadrastat Shifter

1

As Req'd

----- ----------------

T6-1002-153m

Quadrastat Shifter, full range

1

"

4-11

----- ----------------

1/4-20ncx3/4"

socket head cap screw

2

001 & Up

4-12

----- ----------------

1/4

lock washer

4

"

4-13

----- ----------------

T6-1003-103

shifter cover

1

"

4-

----- ----------------

T6-1300-320

cover, steering mount, lh

1

As Req'd

4-

----- ----------------

T6-1300-321

cover, turn signal wire

1

"

4-14

----- ----------------

1/4-20ncx3/4"

hex head bolt

2

001 & Up

4-15

297 900

T6-7007-101

turn signal switch

1

As Req'd

4-

127 550

T6-7007-105

flasher

1

"

4-

79 85791

T6-500-137

flasher base

1

"

4-

----- ----------------

T6-9011-149

Plate, Data -Drawbar

1

101 & Up

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

1. Used on all units equipped with Morse shifter from serial number 096.
2. Used on all units equipped with Morse shifter through serial number 095. (Replace using part # T6-1002-

151.)

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 18

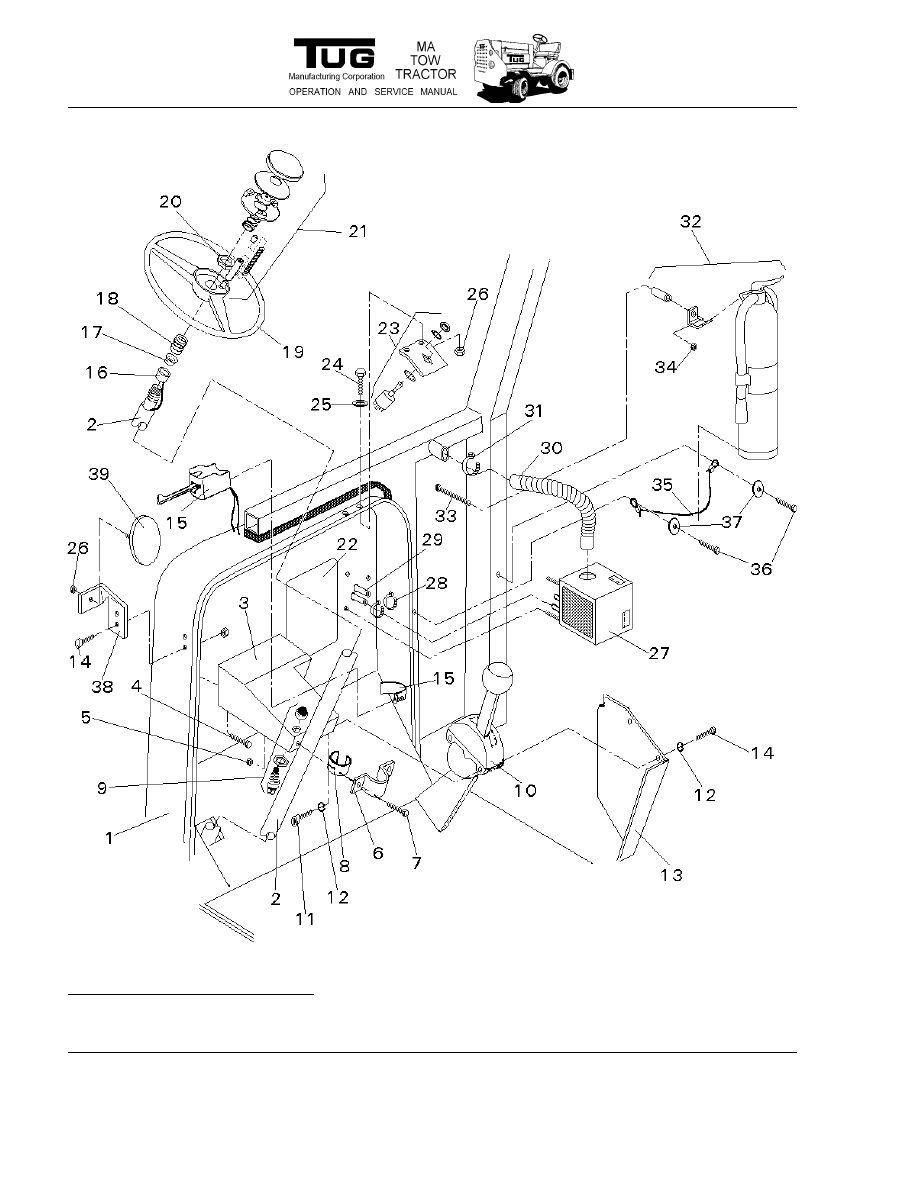

Figure 4: Firewall, Operator's Side

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 19

4-16

436 7801596

md-cs3-109

upper bearing, steering column

1

001 & Up

4-17

436 264831

md-cs3-113

seat, spring, steering column

1

"

4-18

436 264832

md-cs3-111

spring, steering column

1

"

4-19

182 79219a1

T6-5003-101

steering wheel

1

001 & Up

4-20

----- ----------------

T6-5001-103

steering wheel mounting nut

1

"

4-

----- ----------------

1/2

washer

1

"

4-21

436 5692044

T6-7012-107

horn button kit, steering wheel

1

As Req'd

78 fcs-2

T6-9011-241

horn pedal, foot operated

1

"

4-

186 A23788-13

T6-7013-103

relay, horn

1

001-3129

100 87106

T6-7013-209

relay, horn

1

3130 & Up

4-

186 a27801-15

T6-7013-101

Horn

1

001-3129

399 40354-21

T6-7013-207

horn

1

3130 & Up

4-22

----- ----------------

T6-7010-319

instrument panel: pollack ignition switch, no fuel gauge

1

As Req'd

----- ----------------

T6-7010-323

instrument panel: cole hersee ignition switch, no fuel gauge

1

"

----- ----------------

T6-7010-321

instrument panel: fuel gauge

1

"

----- ----------------

T6-7010-325

instrument panel: fuel gauge, indicator lights

1

"

----- ----------------

T6-7010-335

instrument panel: eng. kill switch, fuel gauge, indicator lights 1

"

4-23

136 22092

T6-1300-197-33

switch, snow plow, 4-way, lift/angle (note 3)

1

"

136 21919

T6-1300-197-31

Lift switch, snow plow (note 3)

1

"

136 21918

T6-1300-197-32

Angle switch, snow plow (note 3)

1

"

4-

136 15680

T6-1300-197-22a

harness, single Lever   (note 3)

1

"

136 15478

T6-1300-197-22

harness, dual Lever     (note 3)

1

"

4-24

----- ----------------

1/4-20ncx3/4"

hex head bolt

2

"

4-25

----- ----------------

1/4

flat washer

2

"

4-26

----- ----------------

1/4-20nc

locknut

Ref. As Req'd

4-27

317 2057C003C

T6-9004-103

heater, 12-volt assembly

1

"

----- ----------------

T6-9004-103ger

heater, 12-volt, Padded

1

"

----- ----------------

T6-9004-101

Heater Repair Kit

1

“

4-

id tc101036

T6-9004-103-1a

core, heater, amfab (new)

1

"

178 x98-850-002-BES

T6-9004-103-1

core, heater, sgm

(old)

1 "

4-

id tc140009

T6-9004-103-2a

motor, heater, amfab

1

"

178 0071-0068

T6-9004-103-2

motor, heater, sgm

1

"

4-

id tc19002

T6-9004-103-3a

fan, heater, amfab

1

"

178 pc-1000-3

T6-9004-103-3

fan, heater, sgm

1

"

3. 4-Way switch T6-1300-197-33 replaces both switches T6-1300-197-31 and T6-1300-197-32 on later model

tractors equipped with snow plow.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 20

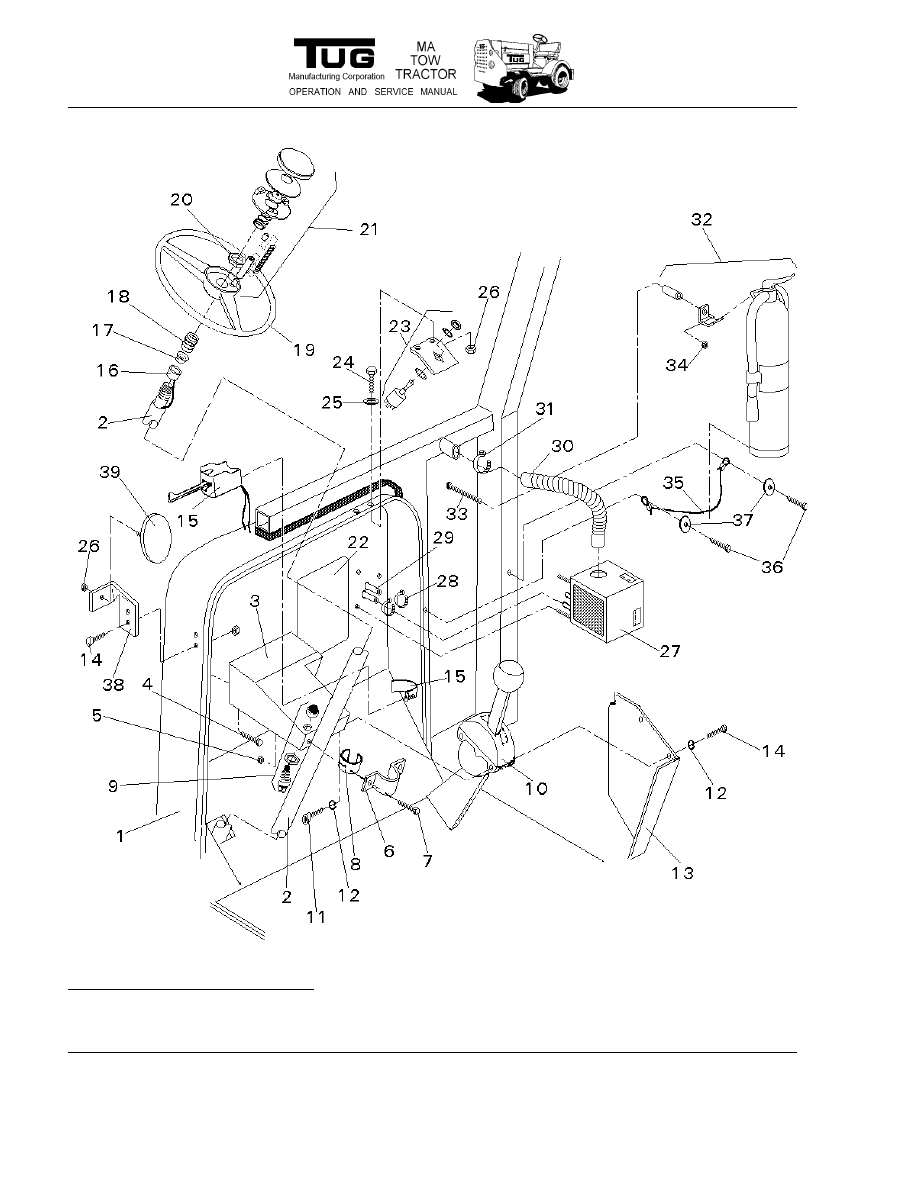

Figure 4: Firewall, Operator's Side
