Snowmobile Arctic Cat Panther 570 (2006 year). Manual - part 11

2006 Panther 570

39

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

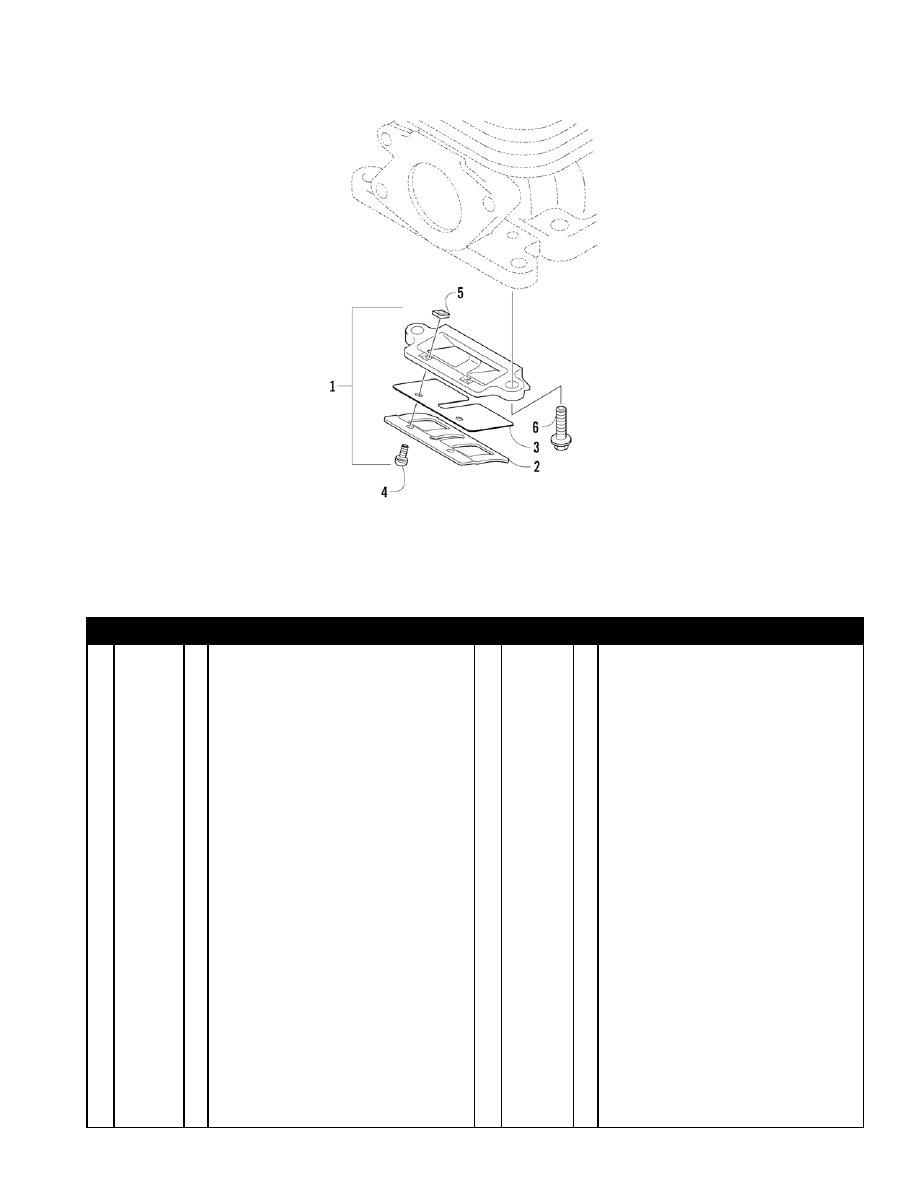

REED VALVE ASSEMBLY



0739-381

1 3006-012

2

Valve, Reed - Assembly (inc. 2-5)

2 3006-013

2

‹ Stopper, Reed Valve

3 3006-014

2

‹ Valve, Reed

4 3006-083

4

‹ Screw

5 3006-084

4

‹ Plate

6 3006-529

4

Bolt

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

40

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

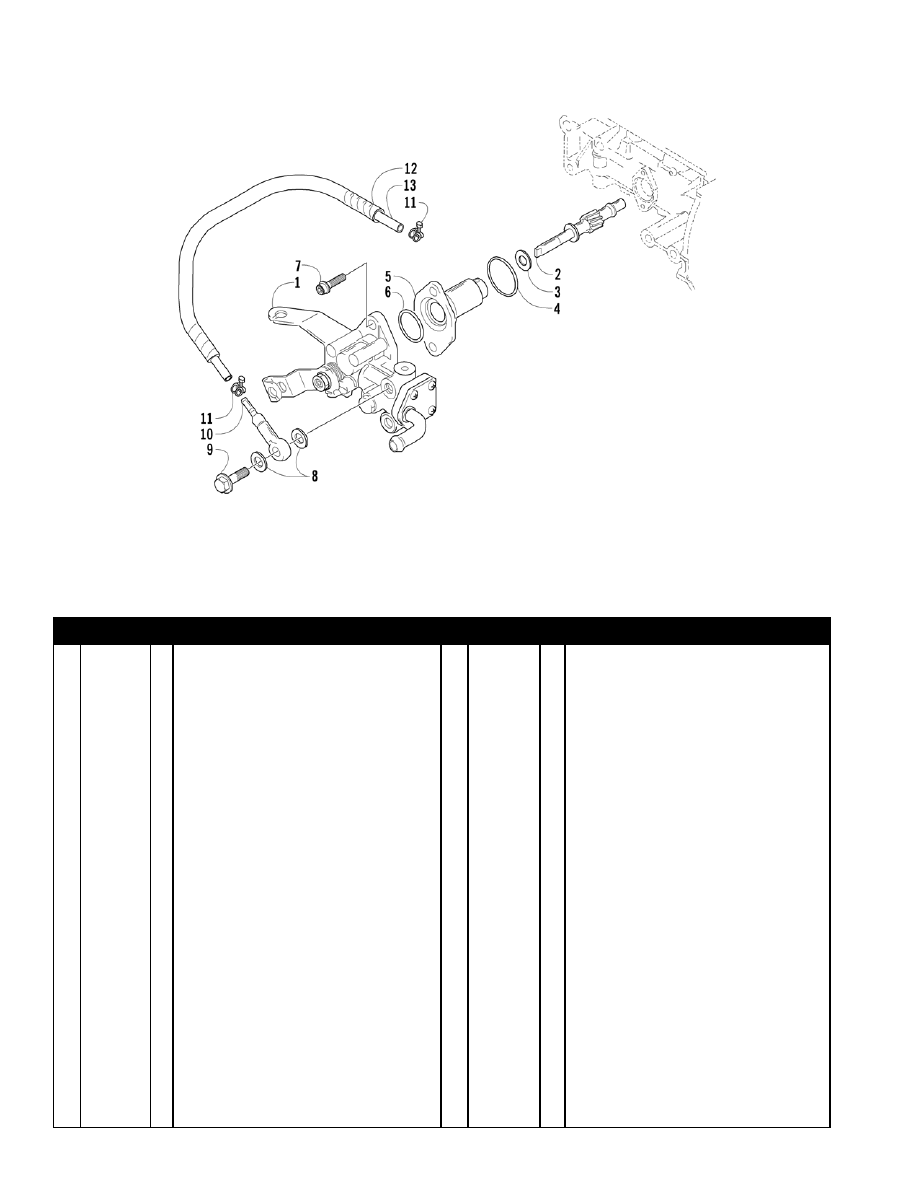

OIL PUMP



0739-382

1 3006-015

1

Oil Pump Assembly

2 3002-770

1

Gear, Oil Pump Driven

3 3002-749

1

Shim

4 3005-126

1

O-Ring

5 3003-749

1

Retainer, Oil Pump

6 3008-030

1

O-Ring

7 3006-085

2

Bolt

8 3402-009

2

Gasket

9 3004-346

1

Bolt, Union

10 3005-224

1

Valve, Check

11 3003-218

2

Clamp, Hose

12 3005-032

1

Protector

13 3005-225

2

Hose, Oil Pump

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

41

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

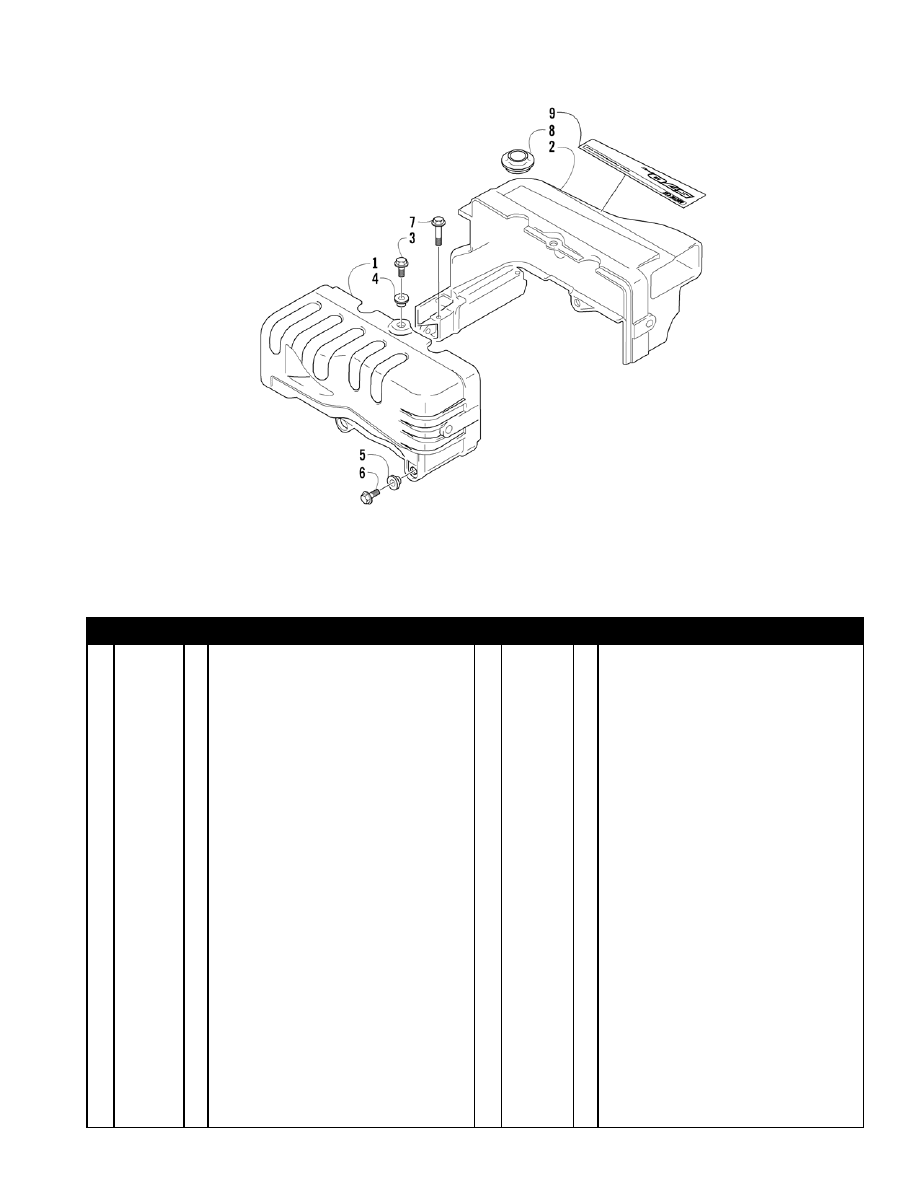

CYLINDER COWLING ASSEMBLY



0739-383

1 3006-017

1

Cowling, Front

2 3006-018

1

Cowling, Rear

3 3006-086

1

Bolt

4 3006-089

1

Spacer

5 3006-088

7

Spacer

6 3006-530

7

Bolt

7 0693-914

2

Bolt

8 3005-996

2

Grommet

9 4611-448

1

Decal, “570”

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

42

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

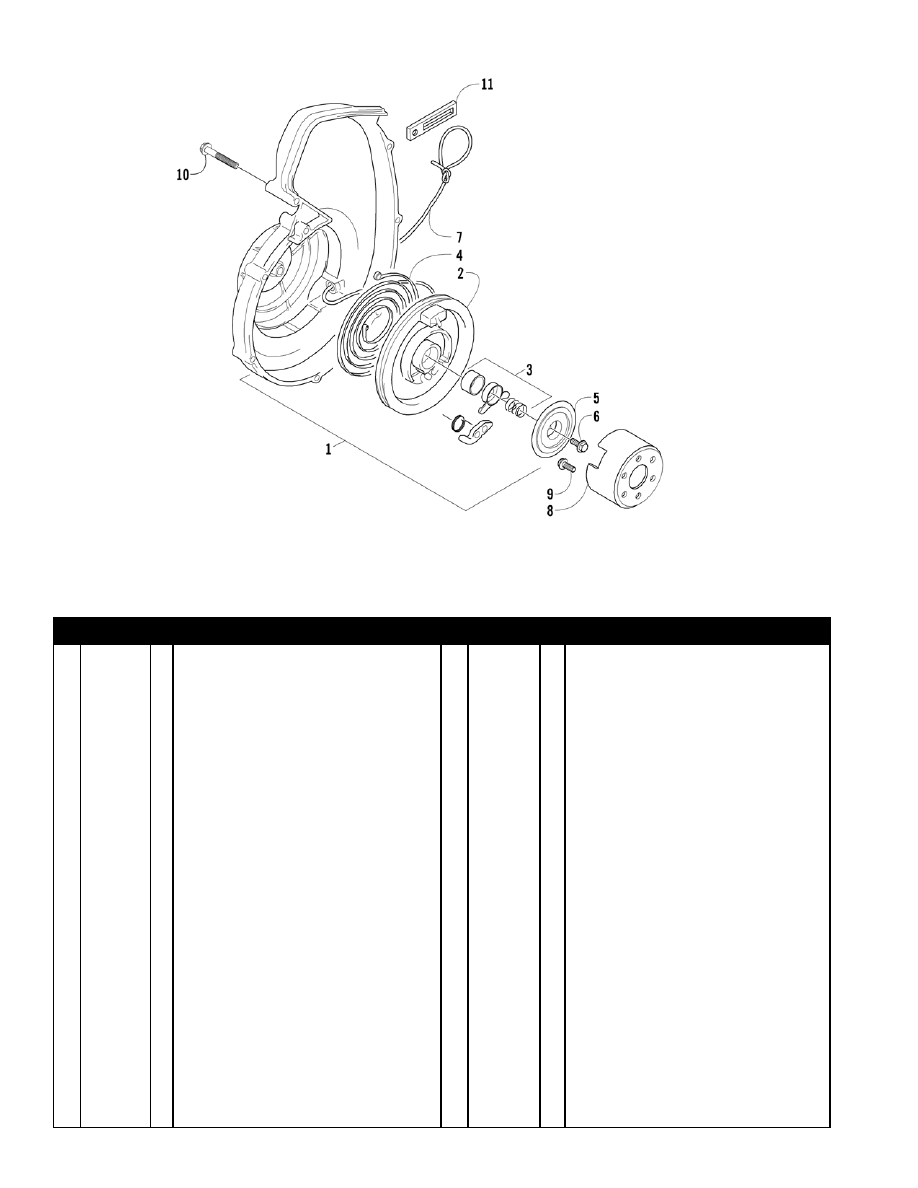

RECOIL STARTER



0739-386

1 3006-687

1

Starter Assembly (inc. 2-6)

2 3006-090

1

‹ Roller, Starter

3 3006-091

1

‹ Ratchet Set

4 3002-921

1

‹ Spring

5 3006-092

1

‹ Plate, Friction

6 3006-093

1

‹ Bolt

7 3003-327

1

Rope, Starter

8 3006-020

1

Pulley, Starter

9 3006-463

3

Bolt

10 3006-094

8

Bolt

11 3002-964

1

Clamp, Wire

Parts available from    www.Worldofpowersports.com     217-233-1245
