Snowmobile Arctic Cat Panther 570 (2006 year). Manual - part 9





2006 Panther 570

31

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

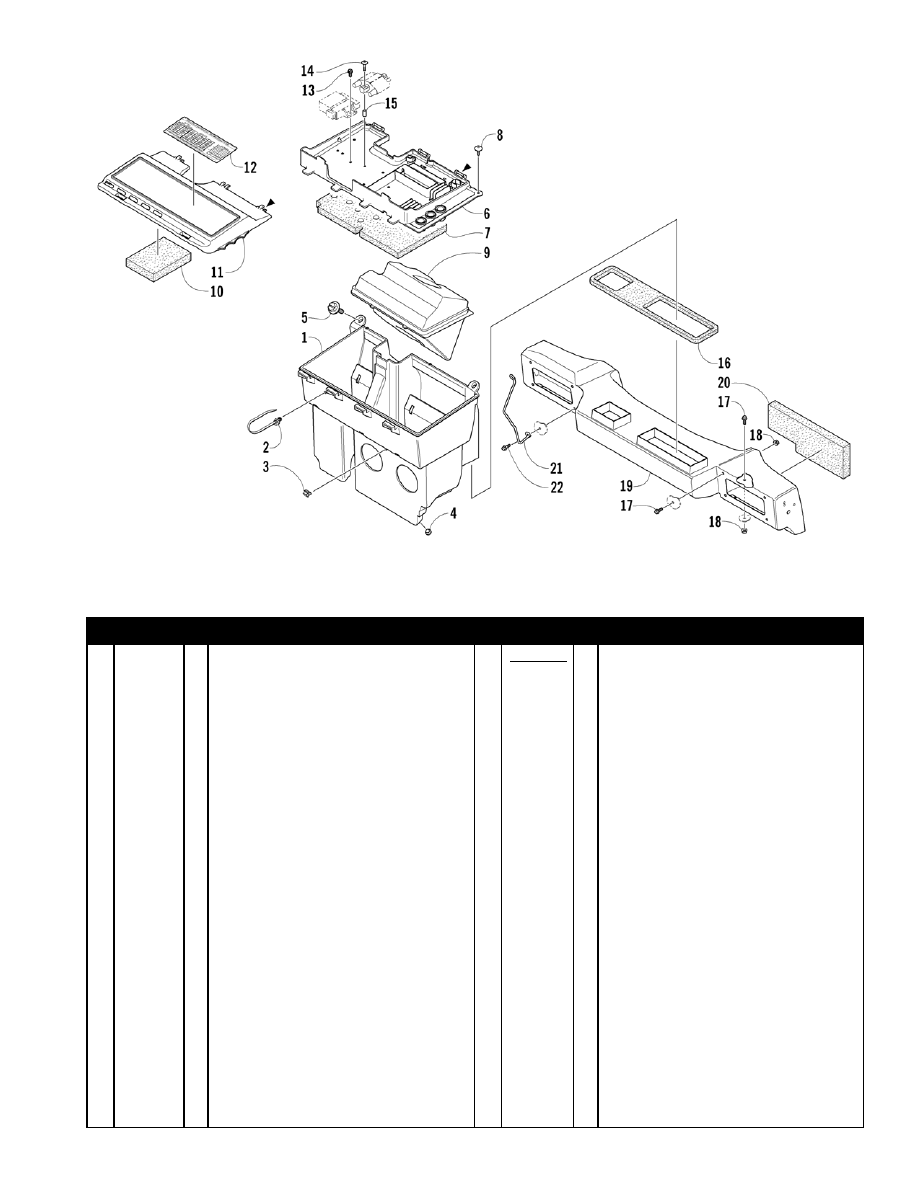

AIR SILENCER ASSEMBLY

0740-418

1 0770-579

1

Silencer, Air - Assembly

2 0623-677

1

Cable Tie, Push-Mount

3 0623-403

1

Clamp, Push-Mount

4 1606-038

2

Bumper, Air Silencer

5 0623-780

2

Screw, Machine - Hex Shoulder

6 1670-197

1

Cover, Air Silencer

7 0617-393

1

Foam, Cover - Air Silencer

8 0623-727

3

Screw, Self-Tapping

9 1670-061

1

Resonator, Q-Wave

10 0617-411

1

Foam, Tool Tray

11 1670-049

1

Cover, Tool Tray

12 7611-141

1

Decal, Jet Chart

13 0623-057

2

Screw, Self-Tapping

14 8017-406

2

Screw, Machine

15 1623-045

2

Spacer

16 0617-245

1

Seal, Plenum/Air Silencer

17 8020-039

9

Screw, Cap

18 8048-366

10 Nut, Lock

19 1670-327

1

Plenum, Air Silencer

20 0617-270

2

Foam, Plenum - Intake

21 0707-705

1

Bracket, Guard - Harness/Rope

22 8020-040

1

Screw, Cap

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

32

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

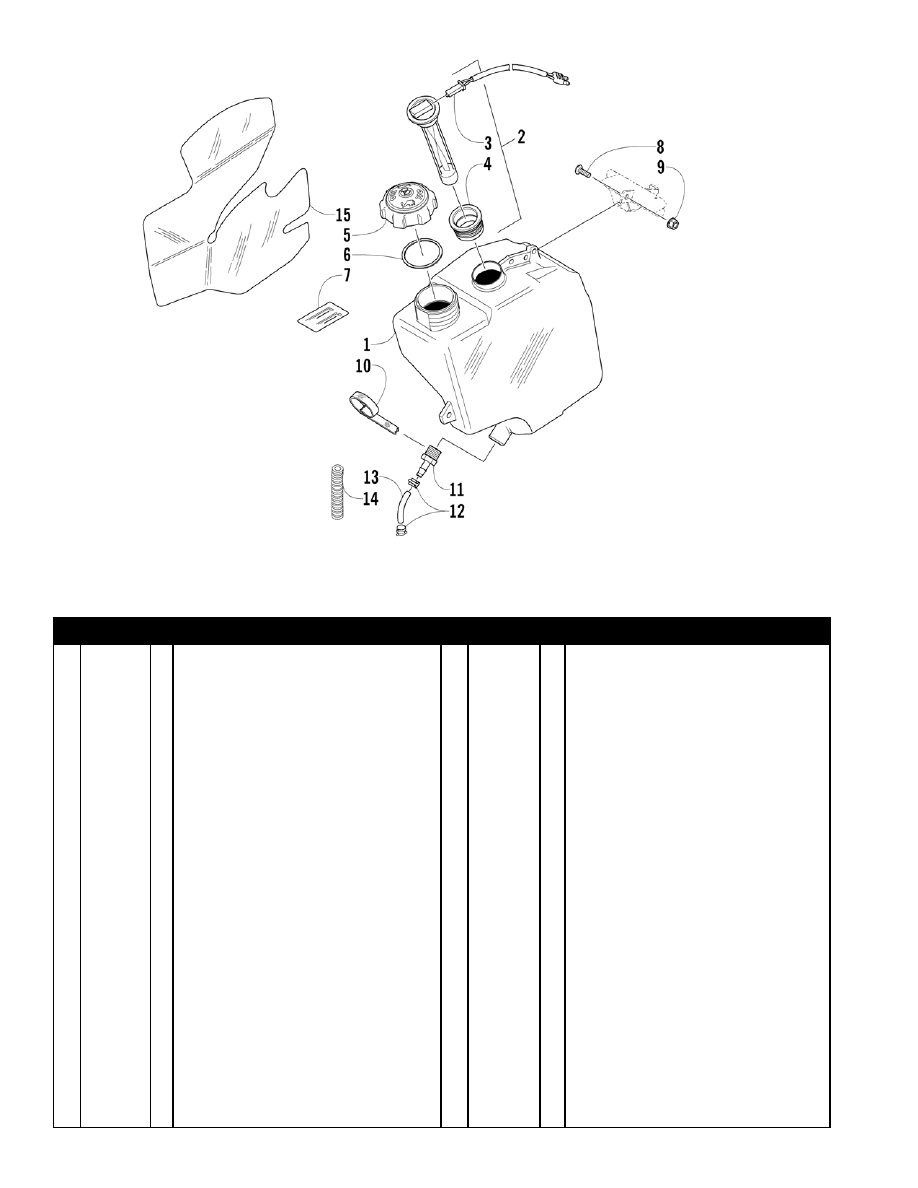

OIL TANK ASSEMBLY

0739-449

1 1670-026

1

Tank, Oil

2 0609-503

1

Sensor, Low Oil - Assembly (inc. 3-4)

3 0609-518

1

‹ Switch, Oil Sensor w/Harness

4 0609-237

1

‹ Seal, Grommet - Oil Sensor

5 0670-871

1

Cap, Tank (inc. 6)

6 0109-733

1

‹ Seal, Tank Cap

7 1611-564

1

Decal, Oil Tank

8 8017-580

1

Screw, Machine

9 8048-366

1

Nut, Lock

10 0670-289 AR Tape, Teflon
11 0670-733

1

Outlet, Oil Tank

12 1623-351

2

Clamp, Hose

13 6101-001 AR Hose, Oil Line - 100 ft

6101-009 AR Hose, Oil Line - 50 ft

14 0716-558 AR Conduit, Flexible - 10 ft
15 1670-234

1

Foil, Protective

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

33

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

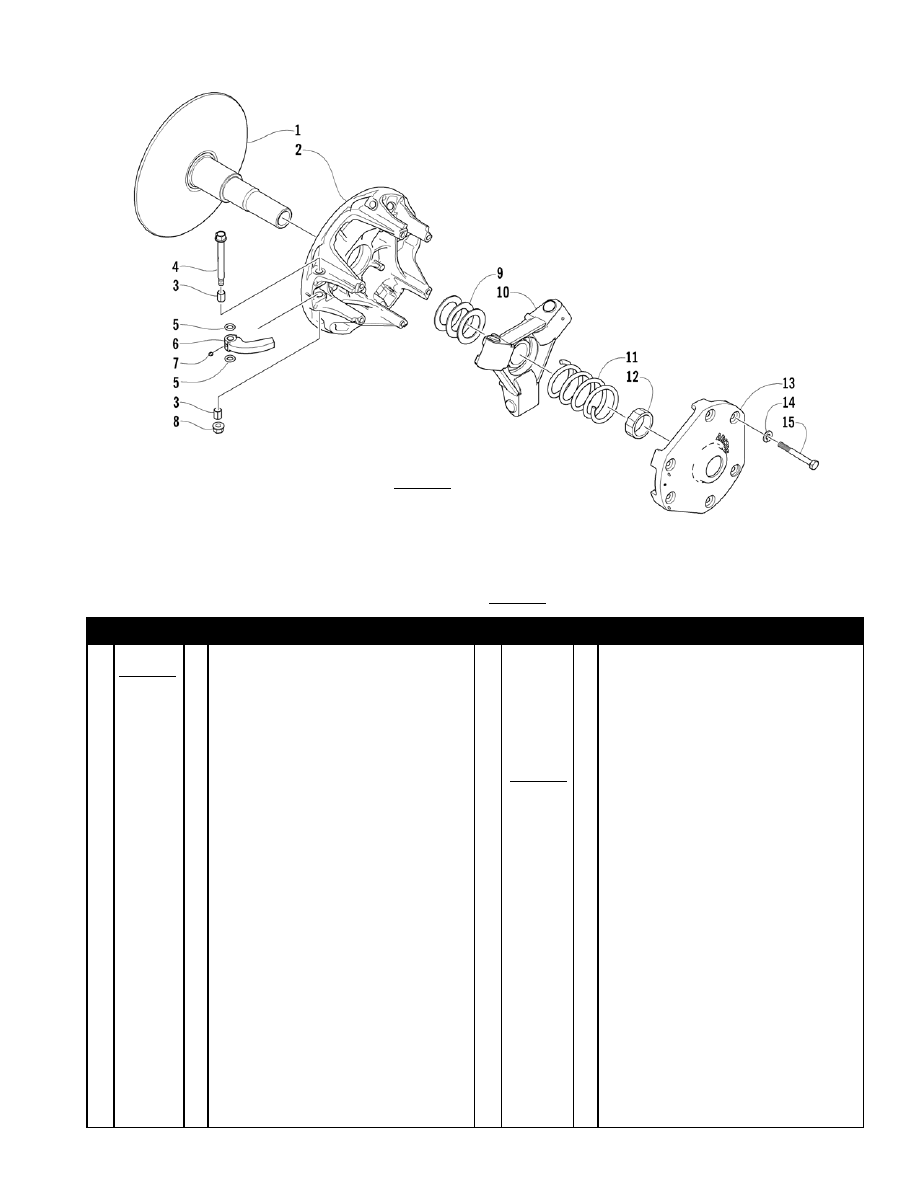

DRIVE CLUTCH

(Assembly p/n 0725-496)

0738-469

1 0646-325

1

Sheave, Stationary

2 0746-159

1

Sheave, Movable (inc. 3)

3 0646-372

6

‹ Bearing

4 0646-747

3

Pin, Cam Arm

5 1602-692

6

O-Ring

6 0746-666

3

Arm, Cam (inc. 7)

0746-661

3

Arm, Cam (inc. 7) (Over 6,000 ft Alt.)

7 1623-183

3

‹ Screw, Set

8 8048-366

3

Nut, Lock

9 0646-265

3

Spacer

10 0746-118

1

Spider Assembly

11 0646-149

1

Spring, Drive Clutch - Red

0646-147

1

Spring, Drive Clutch - Yellow/Green

(Over 9,000 ft Alt.)

12 0646-140

1

Nut

13 0746-160

1

Cover

14 8051-212

6

Washer, Lock - Spring

15 1623-442

6

Screw, Machine

Cam Arm Kit - p/n 4639-217
(inc. 3-5 and 7-8)
Uncalibrated Drive Clutch - p/n 0746-168

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

34

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

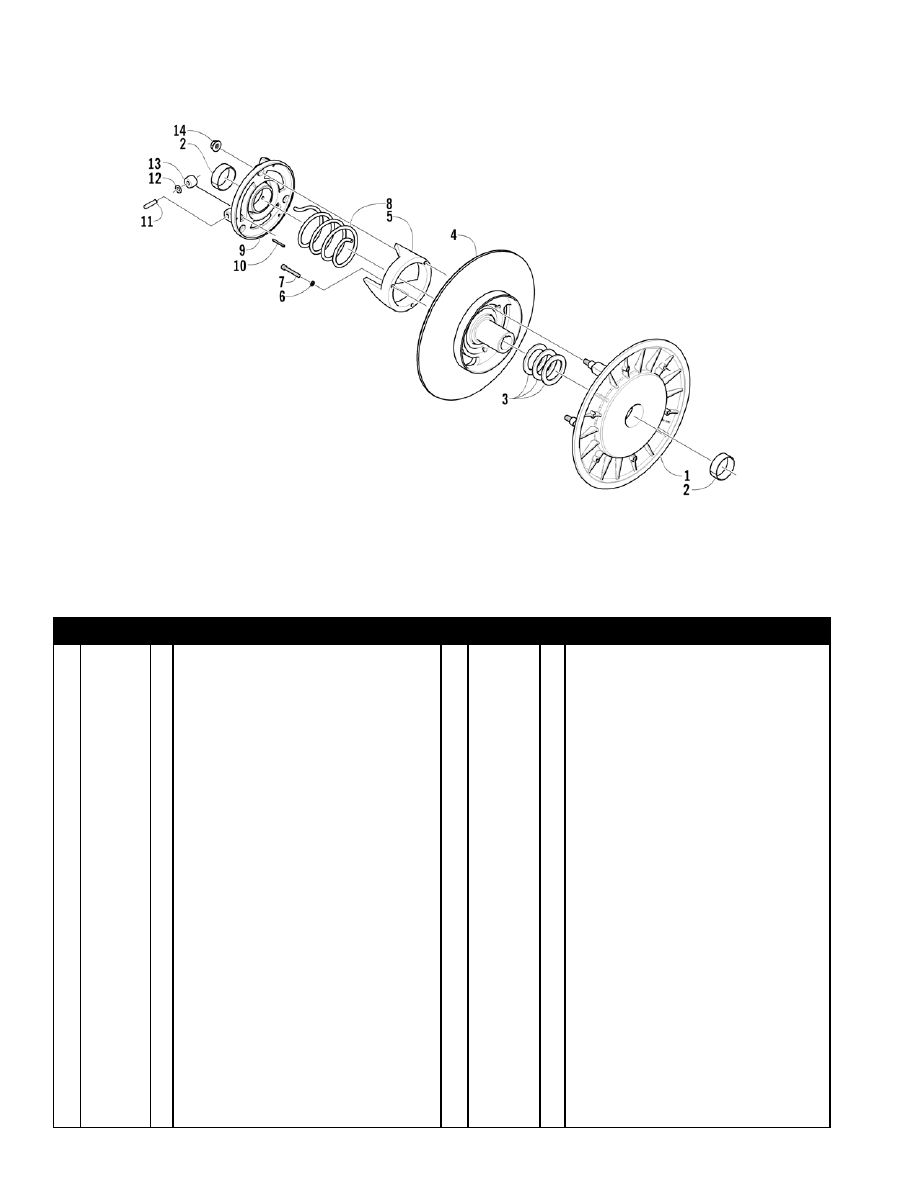

DRIVEN CLUTCH

 (Assembly p/n 0726-162)

0738-472

1 0748-023

1

Sheave, Movable (inc. one No. 2)

2 0648-009

2

‹ Bearing

3 0148-198

1

Washer, Thrust: 0.030 in.

0148-199

2

Washer, Thrust: 0.060 in.

4 0748-021

1

Sheave, Stationary

5 0648-014

1

Bracket, Torque - 49°

0648-002

1

Bracket, Torque - 53° (Over 6,000 ft Alt.)

6 8051-152

3

Washer, Lock

7 8005-404

3

Screw, Socket Head

8 0148-227

1

Spring, Driven Clutch - Yellow

9 0748-018

1

Plate, Roller - Assembly

(inc. one No. 2 and 10-13)

10 8070-224

3

‹ Pin, Spring

11 0648-097

3

‹ Pin, Cam Roller

12 0648-082

3

‹ Washer, Thrust - Cam Roller

13 0648-079

3

‹ Roller, Cam

14 8048-426

3

Nut, Lock

Parts available from    www.Worldofpowersports.com     217-233-1245
