Snowmobile Arctic Cat Panther 570 (2006 year). Manual - part 7

2006 Panther 570

23

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

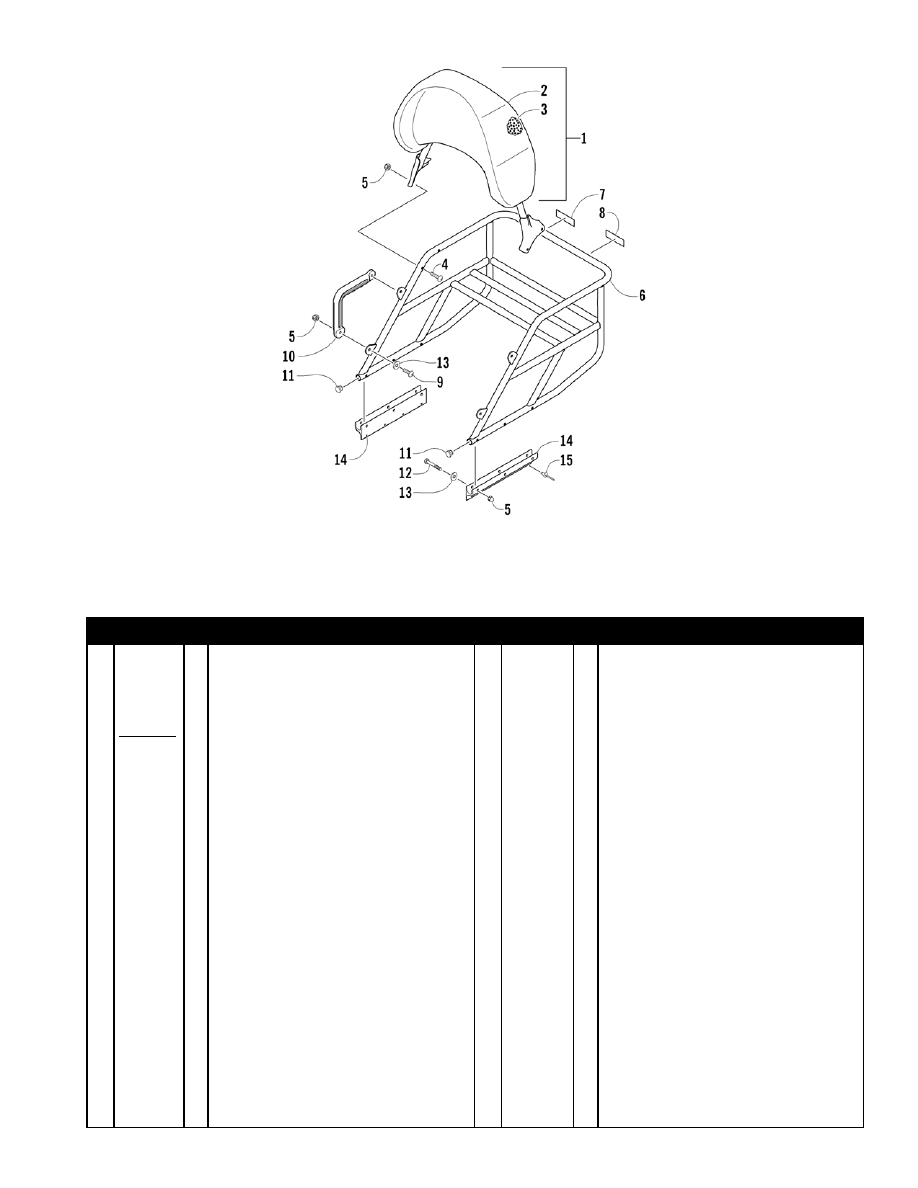

RACK AND BACKREST ASSEMBLY



0737-798

1 0716-677

1

Backrest - Complete (inc. 2-3)

2 0716-679

1

‹ Cover, Backrest

3 0716-705

1

‹ Foam, Backrest

4 8017-584

4

Screw, Machine

5 0123-108

14 Nut, Cap

6 3706-185

1

Rack

7 1611-568

1

Decal, Caution - Max Payload (English)

8 1611-569

1

Decal, Caution - Max Payload (French)

9 8017-581

4

Screw, Machine

10 0606-750

2

Handgrip, Backrest

11 0606-487

2

Closure, Tube

12 0623-032

6

Screw, Cap

13 8050-217

10 Washer

14 2706-318

2

Bracket, Mounting - Rack

15 8060-506

8

Rivet

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

24

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

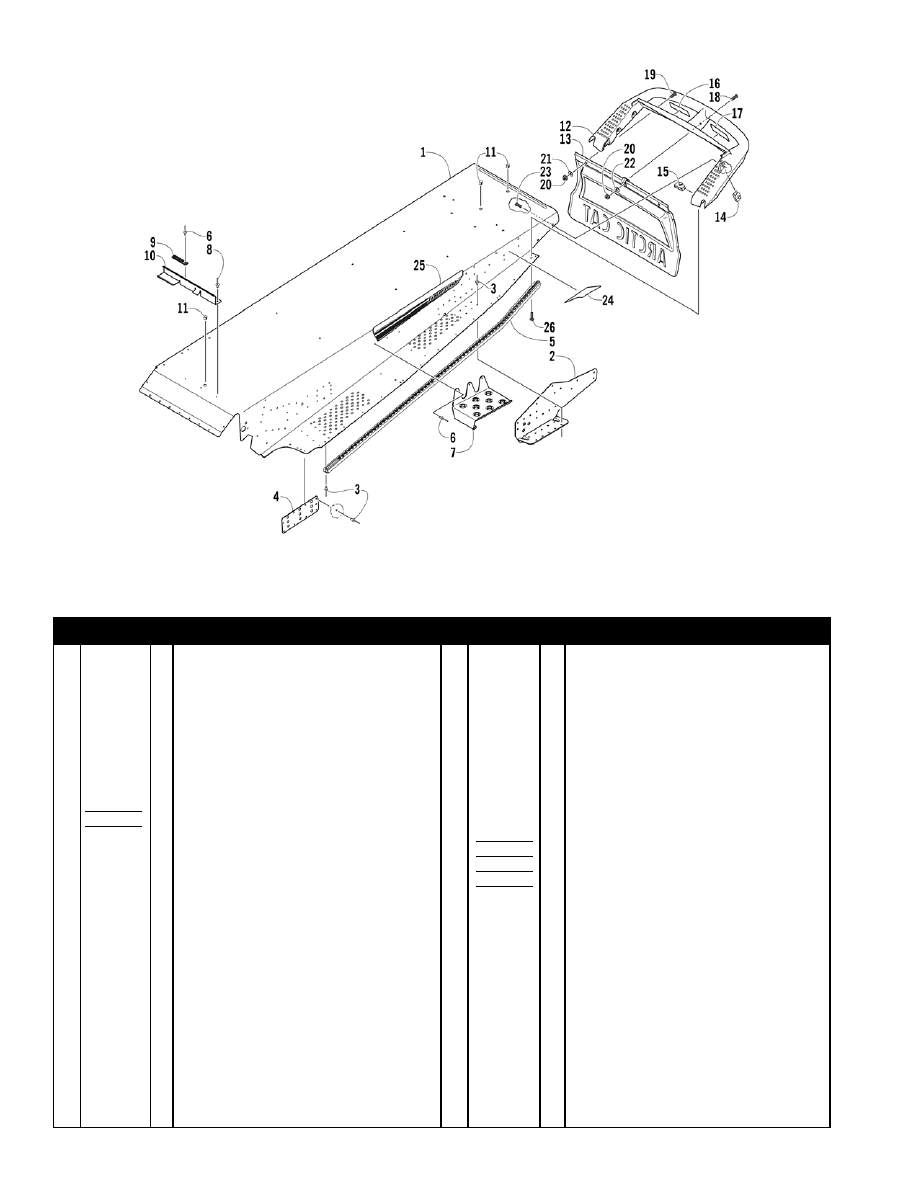

TUNNEL AND REAR BUMPER



0740-434  *Optional

1 1718-540

1

Tunnel Assembly (inc. 2-3)

2 0716-868

1

‹ Bracket, Suspension Mounting - Right

0716-869

1

‹ Bracket, Suspension Mounting - Left

3 0623-072 AR ‹ Rivet, Solid

0123-418 AR ‹ Rivet, Solid
8060-506 AR ‹ Rivet*

4 2706-111

2

Plate, Suspension Mounting - Front

5 2706-118

1

Roll, Tunnel - Right

2706-119

1

Roll, Tunnel - Left

6 8060-506

19 Rivet

7 3706-098

1

Footrest, Rear - Right

3706-099

1

Footrest, Rear - Left

8 0623-166

2

Rivet

9 3002-964

1

Clamp, Wire

10 0707-704

1

Bracket, Main Harness Protector

11 0623-562

3

Plug, Hole

12 1606-200

1

Bumper, Rear

13 1606-507

1

Snowflap, Reverse

14 0623-771

4

Nut, U

15 0623-427

2

Nut, U

16 5611-852

1

Decal, Warning - Towing (French)

17 5611-853

1

Decal, Warning - Towing (English)

18 8017-580

1

Screw, Machine

19 8017-579

2

Screw, Machine

20 8048-366

3

Nut, Lock

21 0623-184

2

Washer

22 8050-217

1

Washer

23 8017-580

4

Screw, Machine

8017-581

4

Screw, Machine (International)

24 6611-688

1

Decal, Reflector - Right

6611-689

1

Decal, Reflector - Left

25 6611-610

1

Decal, Tunnel - Right

6611-611

1

Decal, Tunnel - Left

26 8017-580

2

Screw, Machine

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

25

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

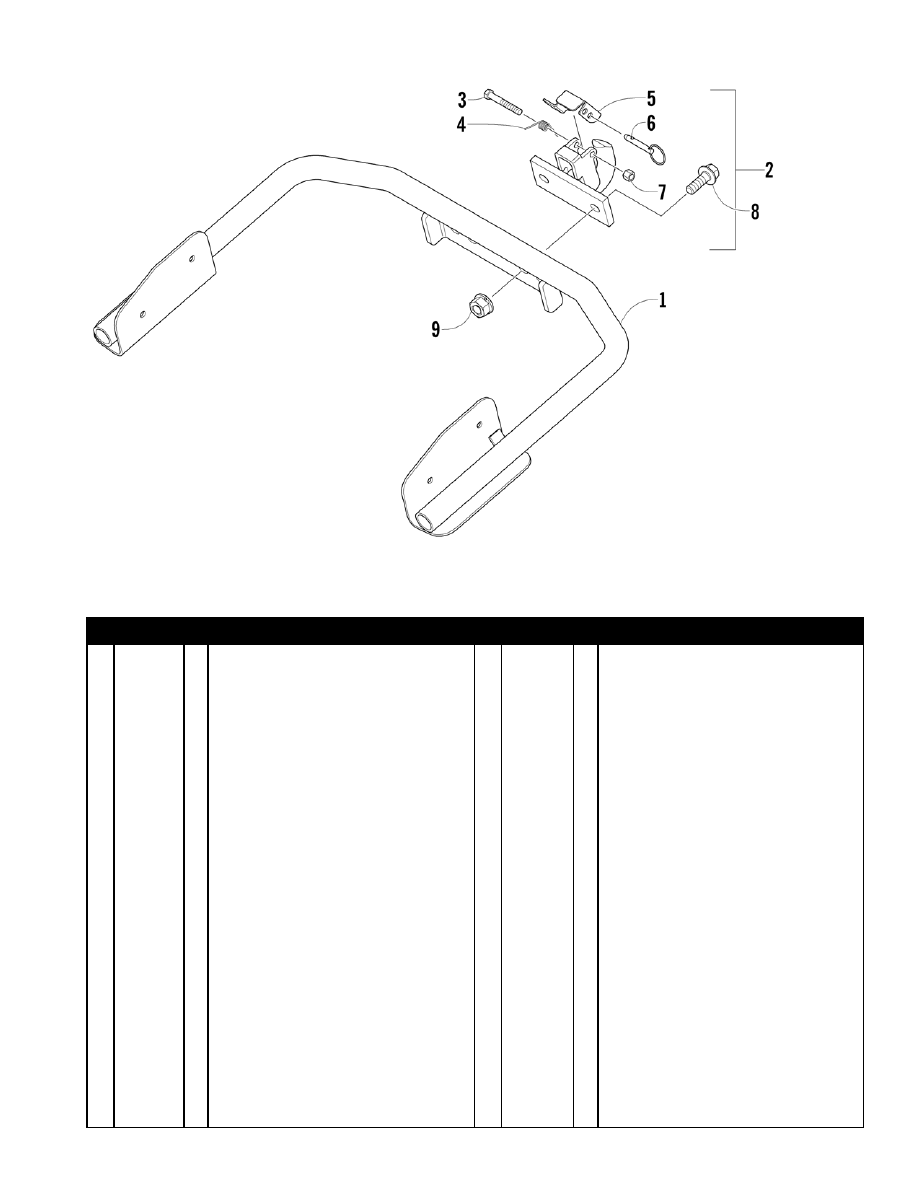

HITCH ASSEMBLY (International)

0739-924

1 2706-759

1

Support, Hitch

2 0706-727

1

Hitch, Pintle - Assembly (inc. 3-7)

3 8002-046

1

‹ Screw, Cap

4 0623-335

1

‹ Spring, Hitch

5 2706-229

1

‹ Latch, Hitch

6 0623-213

1

‹ Pin, Hitch

7 8040-366

1

‹ Nut, Lock

8 8020-134

2

Screw, Cap

9 8048-426

2

Nut, Lock

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

26

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

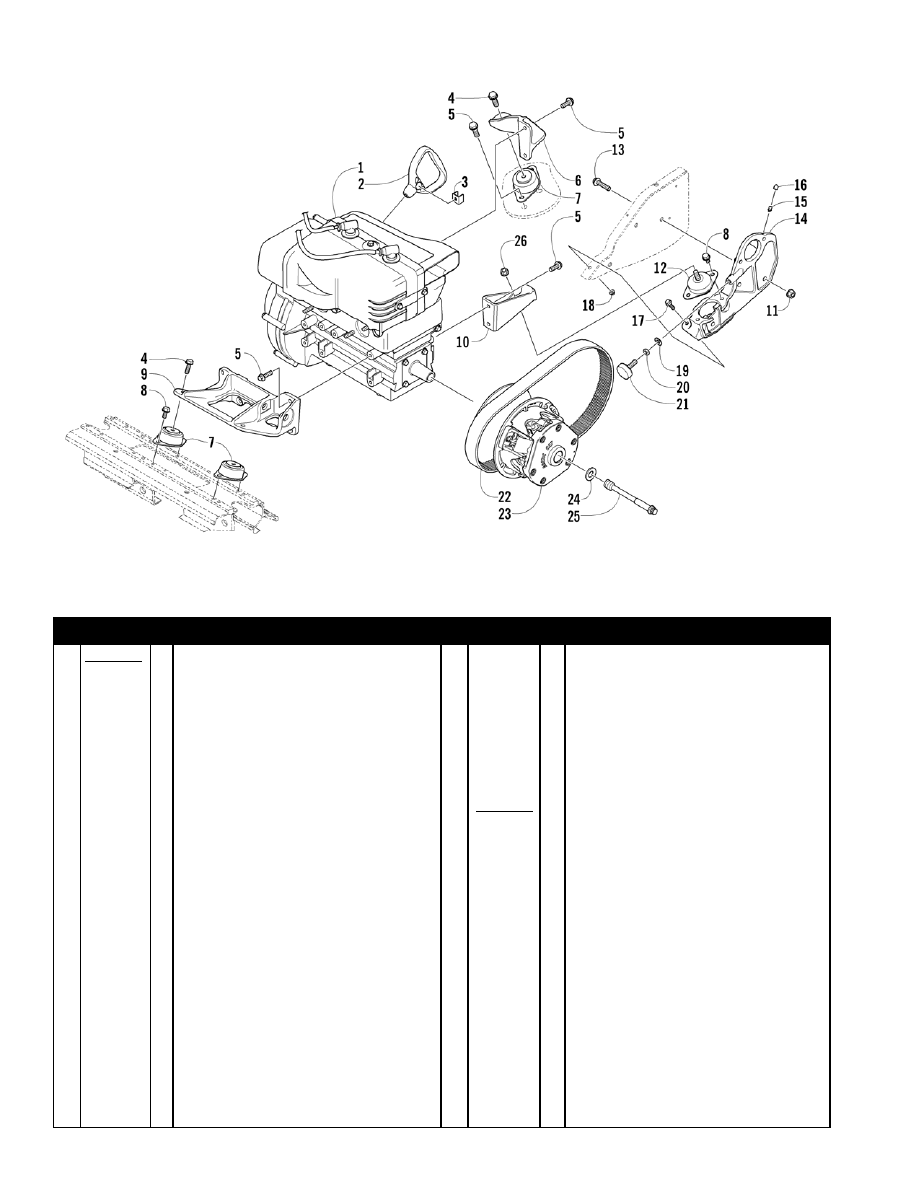

ENGINE AND RELATED PARTS



0740-437

1 0662-420

1

Engine, AA56A5

2 0636-363

1

Handle, Recoil

3 0606-885

1

Cap, Recoil Handle

4 8020-220

3

Screw, Cap

5 8020-130

11 Screw, Cap

6 0708-132

1

Bracket, Mounting - Engine - Right - Rear

7 0608-347

3

Mount, Engine

8 0623-765

6

Screw, Self-Tapping

9 0745-154

1

Bracket, Mounting - Engine - Front

10 0708-133

1

Bracket, Mounting - Engine - Left - Rear

11 8048-486

3

Nut, Lock

12 0708-145

1

Mount, Engine - Assembly

13 8020-224

3

Screw, Cap

14 0708-139

1

Bracket, Mounting - Engine/Bearing

Support (inc. 15-16)

15 1623-010

1

‹ Fitting, Grease

16 0623-904

1

‹ Cap, Grease Fitting

17 8020-040

1

Screw, Cap

18 8048-366

1

Nut, Lock

19 8050-272

1

Washer

20 0123-191

1

Nut

21 0608-355

1

Bumper, Torque - Engine

22 0627-021

1

Belt, Drive

23 0725-496

1

Clutch, Drive

24 0623-210

1

Washer, High Collar

25 0623-804

1

Bolt, Clutch

26 8047-486

1

Nut, Lock

Parts available from    www.Worldofpowersports.com     217-233-1245
