Snowmobile Arctic Cat Panther 570 (2006 year). Manual - part 4

2006 Panther 570

11

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

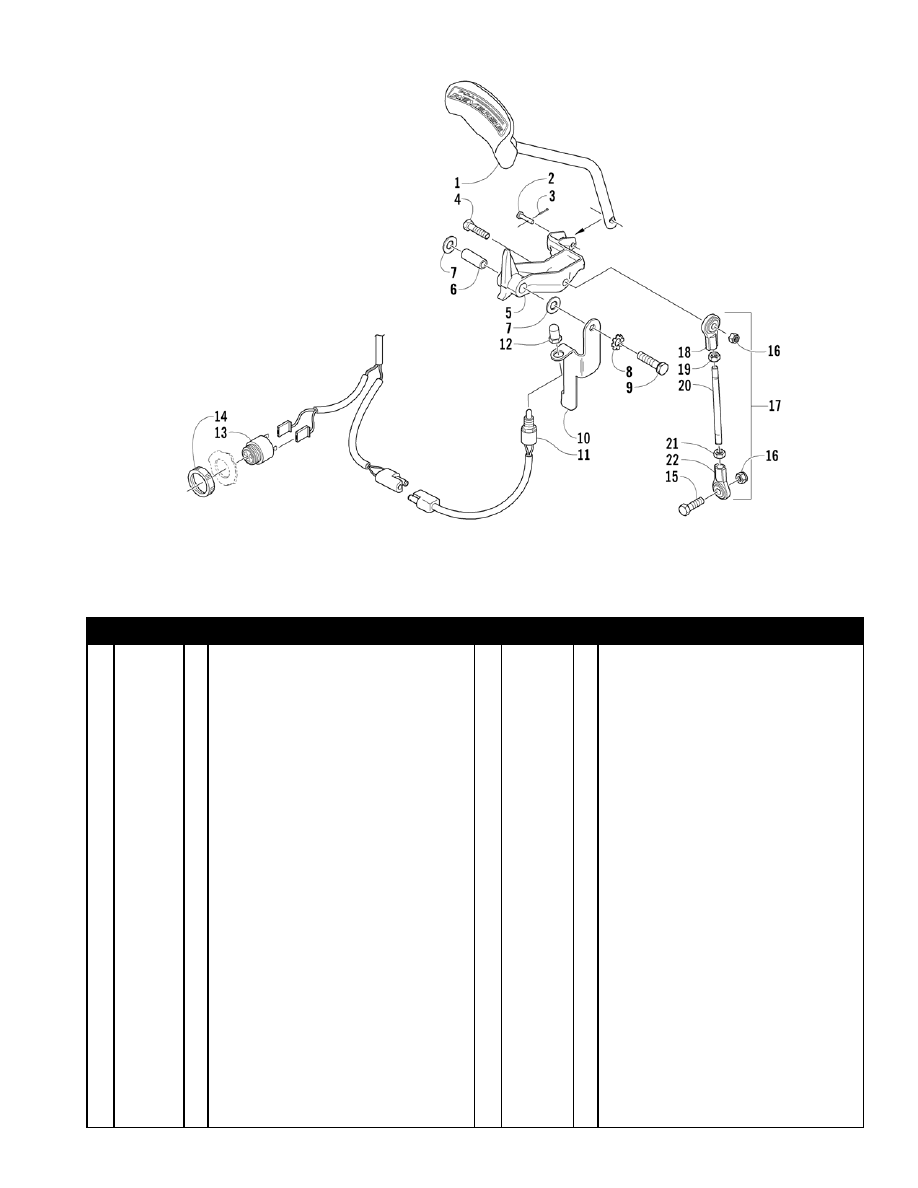

REVERSE SHIFT LEVER ASSEMBLY

0739-453 *Not a Service Part

1 0602-978

1

Lever

2 0623-641

1

Pin, Clevis

3 0117-868

1

Pin, Cotter

4 8002-137

1

Screw, Cap

5 0702-632

1

Shift Pivot

6 1602-830

1

Axle

7 8050-247

2

Washer

8 8053-242

1

Washer, Lock - External Tooth

9 8002-140

1

Screw, Cap

10 0702-465

1

Bracket, Reverse Switch

11 0630-011

1

Switch, Alarm

12 0630-013

1

Boot, Switch

13 0630-010

1

Alarm, Reverse (inc. 14)

14 0630-017

1

‹ Ring, Retaining

15 8002-132

1

Screw, Cap

16 8040-426

2

Nut, Lock

17 0702-347

1

Linkage, Shifting - Assembly (inc. 18-22)

18 0602-305

1

‹ Rod End - Left

19 0623-260

1

‹ Nut, Jam - Left

20

*

1

‹ Rod, Linkage

21 0123-144

1

‹ Nut, Jam - Right

22 0602-322

1

‹ Rod End - Right

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

12

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

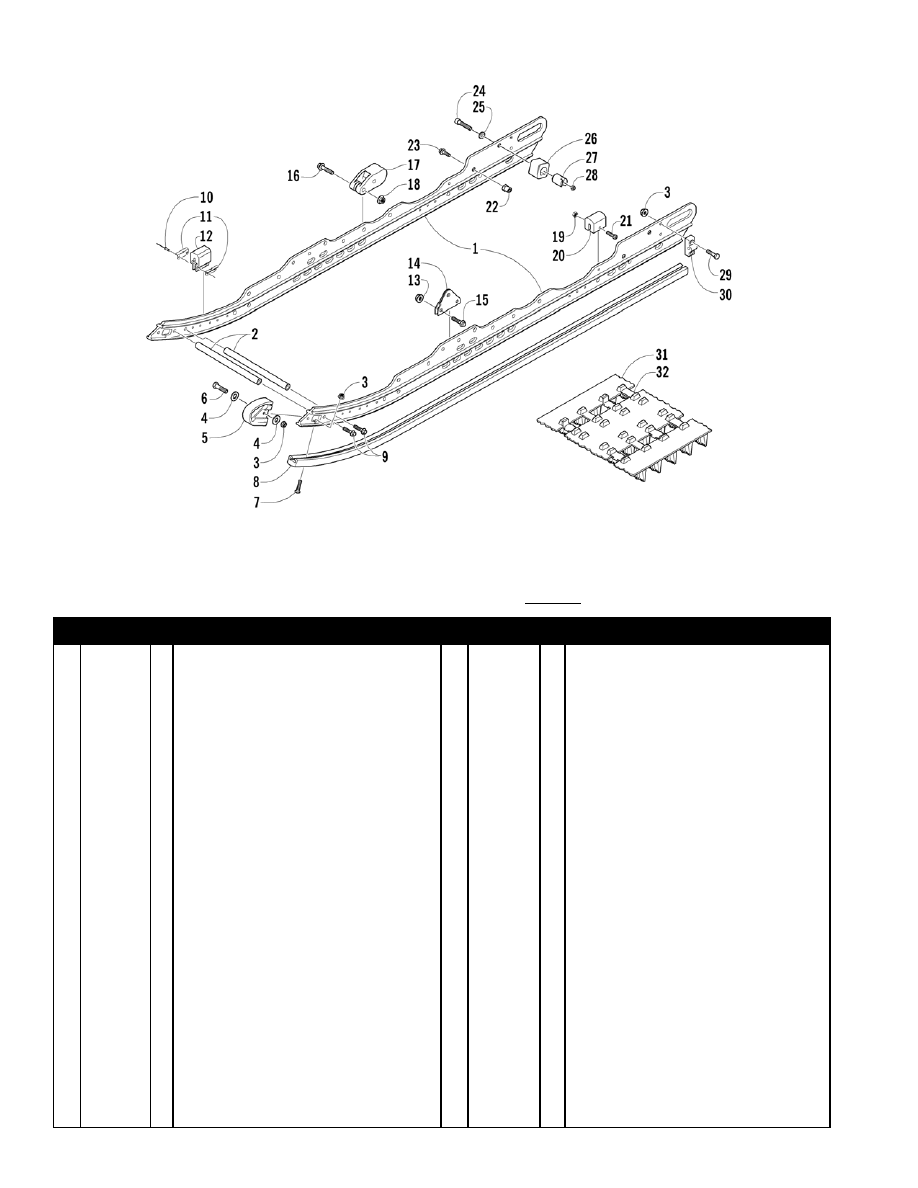

SLIDE RAIL AND TRACK ASSEMBLY

 (Complete Skid Frame Assembly p/n 7998-962)

0739-484 *Optional

1 2604-712

2

Rail, Formed

2 0604-426

2

Support, Rail

3 8047-366

8

Nut, Lock

4 8050-217

4

Washer

5 2604-842

2

End Cap, Slide Rail

6 8002-043

2

Screw, Cap

7 0123-859

2

Screw, Machine

8 2604-257

2

Wearstrip, Slide Rail - Black

9 8020-134

4

Screw, Cap

10 8060-633

4

Rivet, Solid

11 0604-967

4

Bracket, Retaining

12 0604-918

2

Pad, Shock

13 8047-426

4

Nut, Lock

14 0704-395

2

Bracket, Mounting - Front Arm

15 8020-132

4

Screw, Cap

16 8020-227

2

Screw, Cap

17 1604-413

2

Block, Spring Tension

18 8047-486

2

Nut, Lock

19 8041-246

2

Nut, Lock

20 1604-429

2

Pad, Shock

21 8017-405

2

Screw, Machine

22 2604-562

2

Stop, Rear Arm

23 8020-222

2

Screw, Cap

24 8005-676

2

Screw, Cap*

25 0623-044

2

Washer*

26 2604-545

2

Block, Rear Arm Coupler*

27 2604-046

2

Bushing, Rear Arm Coupler Block*

28 8041-486

2

Nut, Lock*

29 8002-042

4

Screw, Cap

30 0704-352

2

Adjuster, Track

31 1602-518

1

Track Assembly (inc. 32)

32 1602-907

54 ‹ Clip, Guide

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

13

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

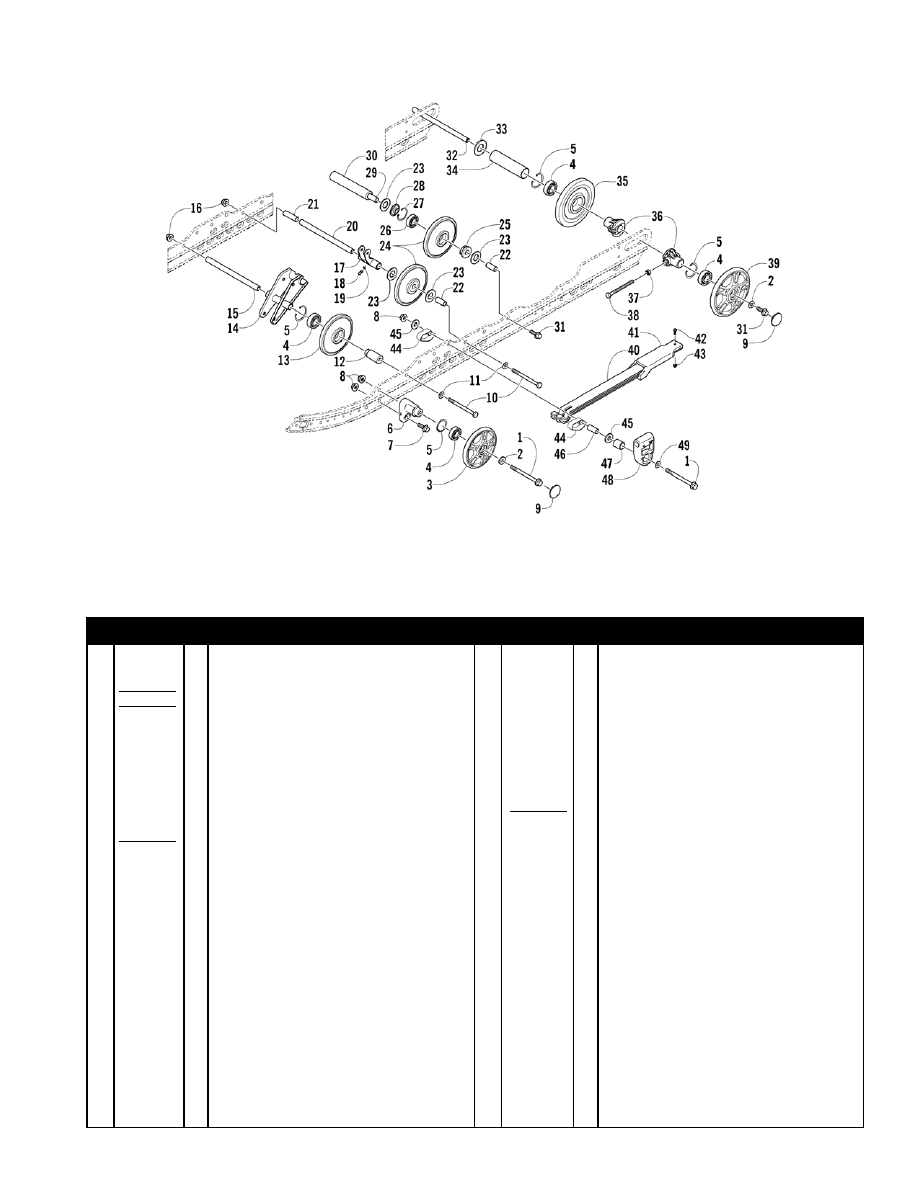

IDLER WHEEL ASSEMBLY

0740-443

1 8020-232

4

Screw, Cap

2 0623-664

4

Washer

3 3604-044

2

Wheel, Idler (inc. 4-5)

4 3604-033

7

‹ Bearing

5 0623-946

7

‹ Ring, Retaining

6 2604-579

2

Block, Mounting - Idler Wheel

7 8020-224

2

Screw, Cap

8 8047-486

6

Nut, Lock

9 1604-952

4

Cap, Idler Wheel

10 1623-037

2

Screw, Cap

11 0623-044

2

Washer

12 2604-964

2

Block, Mounting - Idler Wheel

13 3604-039

2

Wheel, Idler (inc. 4-5)

14 1704-235

1

Bracket, Mounting - Front Shock

15 2604-737

1

Axle, Steel

16 8047-490

2

Nut, Lock

17 1704-016

1

Pivot, Shock (inc. 18-19)

18 1623-010

1

‹ Fitting, Grease

19 1623-011

1

‹ Washer, Grease Fitting

20 1604-209

1

Axle, Steel

21 0603-105

1

Spacer

22 1604-213

4

Spacer

23 0623-675

8

Washer

24 1604-684

4

Wheel, Idler (inc. 25-28)

25 1604-773

4

‹ Insert, Wheel - Outside

26 0107-598

4

‹ Bearing

27 0123-798

4

‹ Ring, Retaining

28 1604-772

4

‹ Insert, Wheel - Inside

29 0604-930

1

Axle

30 1604-214

1

Spacer

31 8020-223

4

Screw, Cap

32 2604-283

1

Axle, Rear Wheel

33 0623-921

1

Washer

34 1604-940

1

Spacer

35 1604-838

1

Wheel, Idler (inc. 4-5)

36 1704-489

3

Bushing, Adjuster

37 8042-486

2

Nut

38 0623-123

2

Screw, Cap

39 2604-740

2

Wheel, Idler (inc. 4-5)

40 1704-279

2

Spring, Overload Assembly (inc. 41-44)

41 2604-788

2

‹ Block, Wear

42 0623-121

2

‹ Screw, Machine

43 8041-276

2

‹ Nut, Lock

44 1604-412

4

‹ Clip, Retaining

45 0623-746

4

Washer

46 0604-739

2

Bushing, Overload Spring

47 1604-430

2

Spacer, Spring Slide

48 2604-516

2

Slide, Spring

49 8050-282

2

Washer

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

14

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

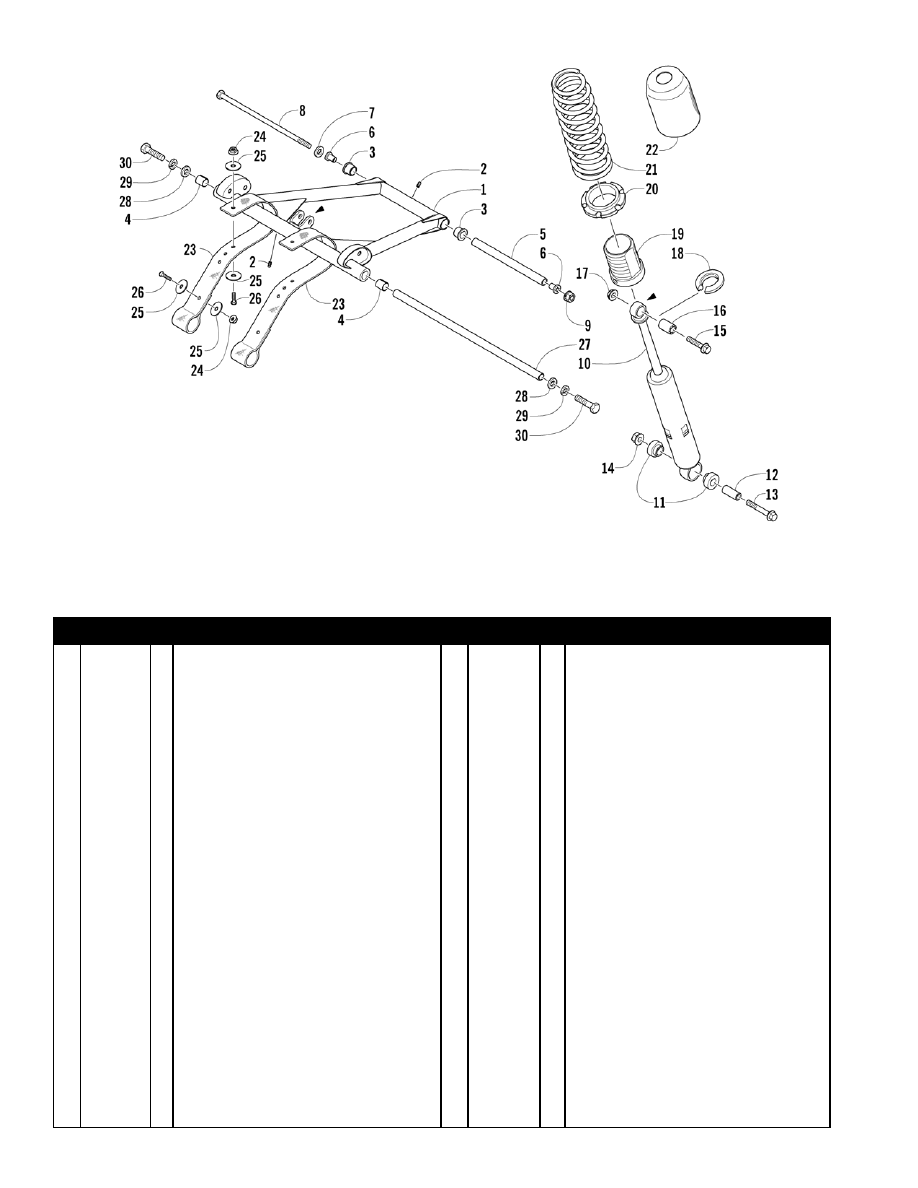

REAR SUSPENSION FRONT ARM ASSEMBLY



0739-434

1 1704-335

1

Arm, Front Suspension (inc. 2-4)

2 1623-010

2

‹ Fitting, Grease

3 0104-386

2

‹ Bushing, Front Arm

4 0603-083

2

‹ Bearing

5 2604-963

1

Axle, Front Arm - Inner

6 2603-497

2

Bushing, Front Arm

7 0623-664

1

Washer

8 1623-037

1

Screw, Cap

9 8047-490

1

Nut, Lock

10 1604-369

1

Shock Absorber, Front Arm

11 1604-384

2

Bushing, Shock

12 1604-329

1

Axle, Pivot - Shock

13 8020-228

1

Screw, Cap

14 8048-486

1

Nut, Lock

15 8020-226

1

Screw, Cap

16 1603-531

1

Axle, Shock - Front Arm

17 8041-486

1

Nut, Lock

18 1603-889

1

Retainer, Spring

19 0603-147

1

Sleeve, Threaded

20 0603-259

1

Nut, Retainer - Spring

21 0603-860

1

Spring, Compression

22 0604-590

1

Cover, Shock

23 2604-305

2

Strap, Limiter

24 8047-366

4

Nut, Lock

25 0623-184

8

Washer

26 8002-043

4

Screw, Cap

27 0114-163

1

Axle, Inner Carriage

28 0623-044

2

Washer

29 8051-277

2

Washer, Lock

30 8002-224

2

Screw, Cap
