Snowmobile Arctic Cat Panther 570 (2006 year). Manual - part 1

  Panther  570

Model Number S2006PADFCUSB

Model Number S2006PADFCOSB (International)

2006

Illustrated Parts Manual

®

Parts available from    www.Worldofpowersports.com     217-233-1245

„ NOTE: The illustrations used in this Parts Manual are for reference to replacement part numbers only and are not to
be used for assembly. For assembly procedures, use an Arctic Cat Service Manual. Underlined part numbers are new
for the 2006 model year.

2005 Arctic Cat Inc.

Printed July 2005

®™ Trademarks of Arctic Cat Inc., Thief River Falls, MN 56701

TABLE OF CONTENTS

2006 Panther 570

(Model No. S2006PADFCUSB)

(Model No. S2006PADFCOSB - International)

SKI AND SPINDLE ASSEMBLY  ........................................................................................................................... 1
A-ARM ASSEMBLY  .............................................................................................................................................. 2
SHOCK ABSORBER AND SWAY BAR ASSEMBLY ........................................................................................... 3
STEERING POST ASSEMBLY  ............................................................................................................................ 4
TIE ROD ASSEMBLY  ........................................................................................................................................... 5
HANDLEBAR AND CONTROLS ........................................................................................................................... 6
HYDRAULIC BRAKE CONTROL ASSEMBLY  ..................................................................................................... 7
DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES ........................................................................................... 8
DRIVE/REVERSE DROPCASE ASSEMBLY  ....................................................................................................... 9
DROPCASE AND CHAIN TENSION ASSEMBLY .............................................................................................. 10
REVERSE SHIFT LEVER ASSEMBLY  .............................................................................................................. 11
SLIDE RAIL AND TRACK ASSEMBLY  .............................................................................................................. 12
IDLER WHEEL ASSEMBLY  ............................................................................................................................... 13
REAR SUSPENSION FRONT ARM ASSEMBLY ............................................................................................... 14
REAR SUSPENSION REAR ARM ASSEMBLY  ................................................................................................. 15
FRONT FRAME AND FOOTREST ASSEMBLY ................................................................................................. 16
HOOD AND WINDSHIELD ASSEMBLY ............................................................................................................. 17
HEADLIGHT, INSTRUMENTS, AND WIRING ASSEMBLIES ............................................................................ 18
CONSOLE AND SWITCH ASSEMBLY  .............................................................................................................. 19
BELLY PAN AND FRONT BUMPER ASSEMBLY .............................................................................................. 20
BELT GUARD ASSEMBLY ................................................................................................................................. 21
GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY  ............................................................................................. 22
RACK AND BACKREST ASSEMBLY ................................................................................................................. 23
TUNNEL AND REAR BUMPER .......................................................................................................................... 24
HITCH ASSEMBLY (International) ..................................................................................................................... 25
ENGINE AND RELATED PARTS  ....................................................................................................................... 26
EXHAUST ASSEMBLY ....................................................................................................................................... 27
FLEX-DRIVE STARTER MOTOR ASSEMBLY  .................................................................................................. 28
BATTERY, SOLENOID, AND CABLES  .............................................................................................................. 29
CARBURETOR AND FUEL PUMP ASSEMBLY ................................................................................................ 30
AIR SILENCER ASSEMBLY ............................................................................................................................... 31
OIL TANK ASSEMBLY  ....................................................................................................................................... 32
DRIVE CLUTCH  ................................................................................................................................................. 33
DRIVEN CLUTCH  ............................................................................................................................................... 34
CARBURETOR ................................................................................................................................................... 35
CRANKCASE AND CYLINDER  .......................................................................................................................... 36
PISTON AND CRANKSHAFT ............................................................................................................................. 37
INTAKE ASSEMBLY ........................................................................................................................................... 38
REED VALVE ASSEMBLY  ................................................................................................................................. 39
OIL PUMP  ........................................................................................................................................................... 40
CYLINDER COWLING ASSEMBLY  ................................................................................................................... 41
RECOIL STARTER  ............................................................................................................................................. 42
MAGNETO .......................................................................................................................................................... 43
ELECTRICAL ...................................................................................................................................................... 44
ALTERNATE CARBURETOR PARTS................................................................................................................. 45
RELATED ITEMS ..................................................................................................................................Back Cover

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

1

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

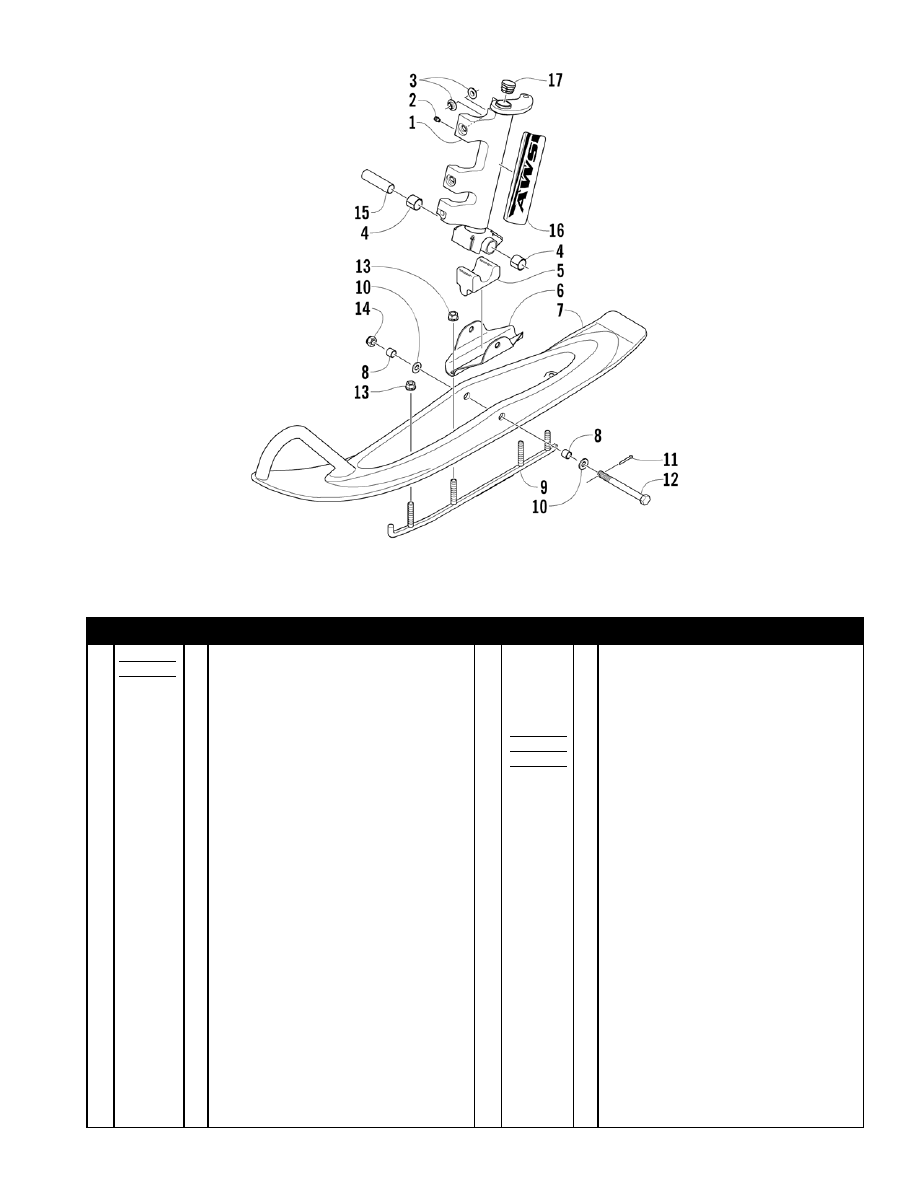

SKI AND SPINDLE ASSEMBLY



0740-410

1 1703-998

1

Spindle, Steering - Right - Black (inc. 2-4)

1703-999

1

Spindle, Steering - Left - Black (inc. 2-4)

2 1623-010

2

‹ Fitting, Grease

3 0603-647

8

‹ Insert, Spindle

4 0603-158

4

‹ Bearing

5 1603-257

2

Damper, Ski

6 1603-256

2

Saddle, Ski - Black

7 1603-231

2

Ski - Black (inc. 8)

8 1603-258

4

‹ Insert, Ski

9 1703-003

2

Wearbar

10 8050-307

4

Washer

11 0123-458

2

Pin, Cotter

12 0623-776

2

Screw, Cap

13 8047-486

8

Nut, Lock

14 0123-296

2

Nut, Lock

15 2603-548

2

Axle, Spindle

16 6611-612

1

Decal, “AWS” - Spindle - Right

6611-613

1

Decal, “AWS” - Spindle - Left

17 0623-831

2

Cap, Spindle

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

2

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

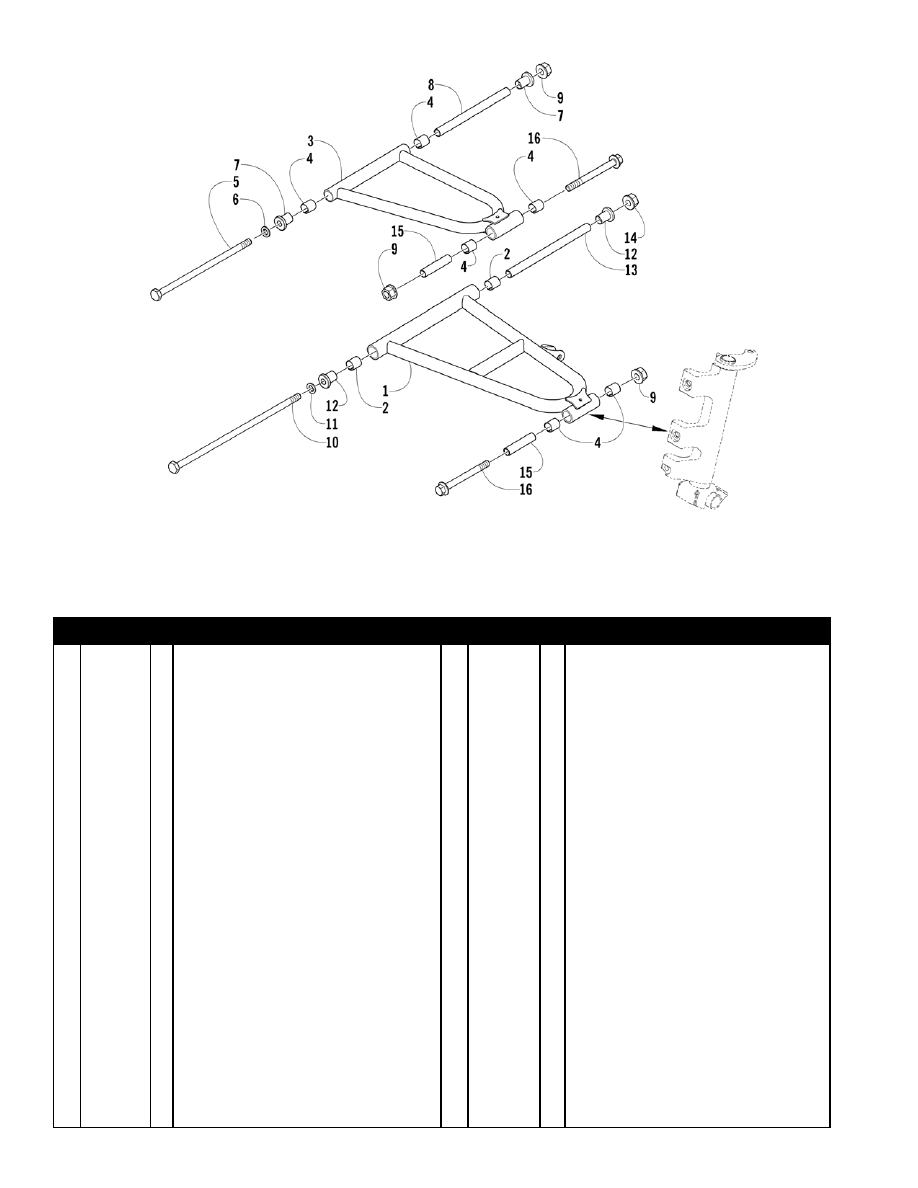

A-ARM ASSEMBLY



0738-350

1 0703-526

1

Arm, Lower - Right - Black

(inc. 2 and two No. 4)

0703-527

1

Arm, Lower - Left - Black

(inc. 2 and two No. 4)

2 0603-158

4

‹ Bearing

3 0703-494

2

Arm, Upper - Black (inc. four No. 4)

4 0603-083

12 ‹ Bearing

5 0623-509

2

Screw, Cap

6 0623-664

2

Washer

7 1603-244

4

Axle, Powder Metal

8 0603-692

2

Tube, Axle

9 8048-486

6

Nut, Lock

10 0623-508

2

Screw, Cap

11 0623-663

2

Washer

12 1603-397

4

Axle, Non-Serrated

13 0603-693

2

Tube, Axle

14 8048-546

2

Nut, Lock

15 0603-830

4

Axle, Spindle Mount

16 8026-234

4

Screw, Cap
