10.8

Chassis

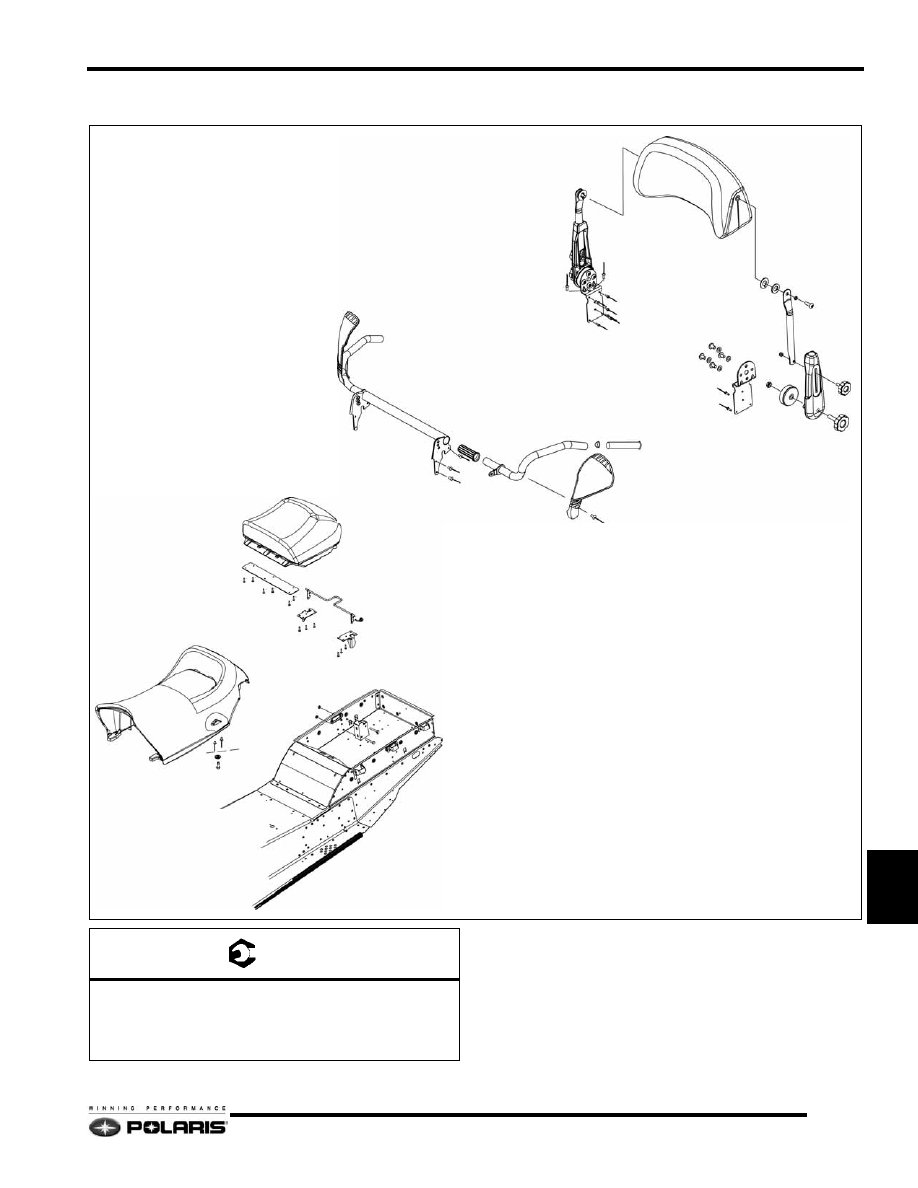

2007 IQ Touring Seat Assembly

PASSENGER SEAT ASSEMBLY

COVER

SEAT ASSEMBLY

LATCH BRACKETS

SEAT LATCH

HAND GUARD

LUMBAR ADJUSTER

A

= T

A: 5.5 Ft.Lbs. (7.5 Nm)

10.9

Chassis

10

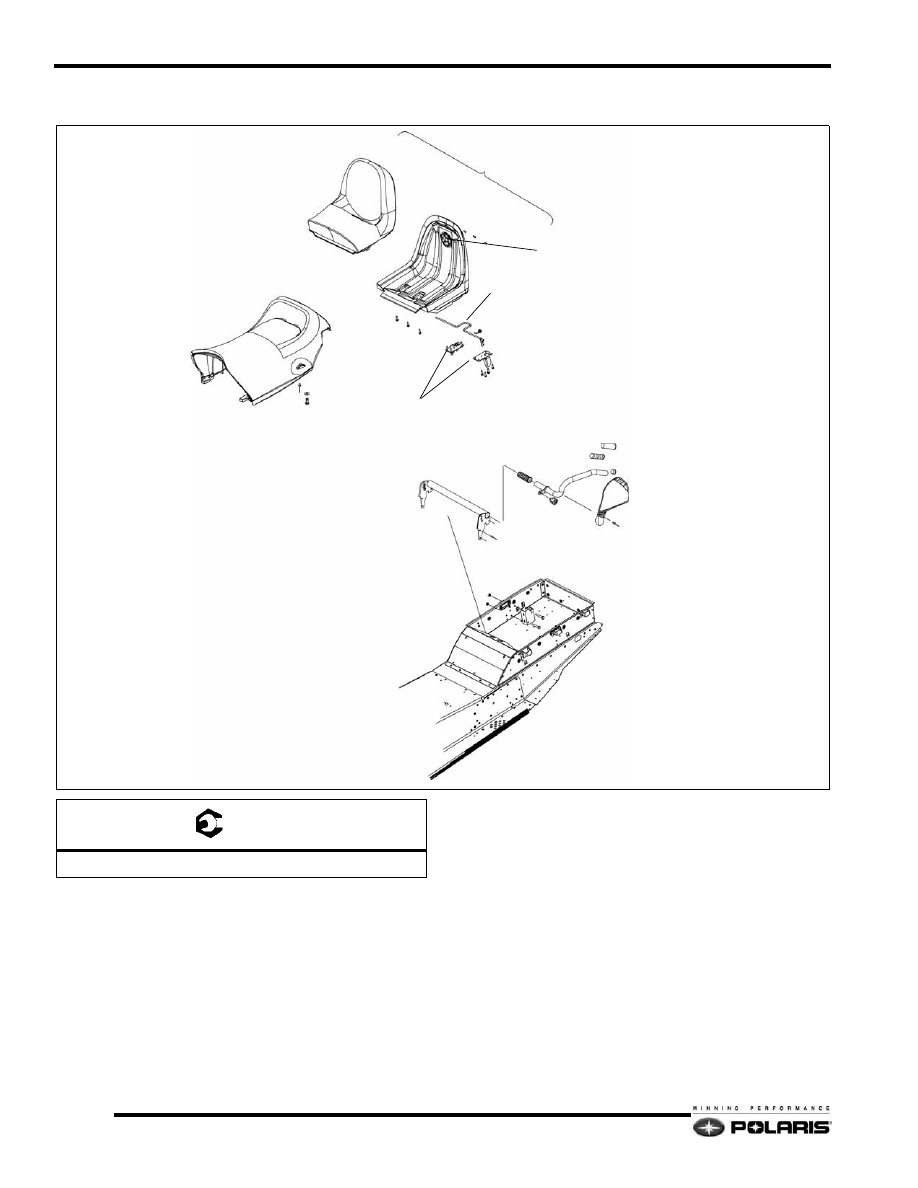

2008 IQ Touring Seat Assembly

HAND GUARD

BACK REST

MOUNT

RIVETS

A

C

C

BACK REST ADJUSTER

B

D

= T

A: 18 Ft.Lbs. (24 Nm)
B: Hand Tight (Do not crush washers.)
C: Hand Tight
D: 5.5 Ft.Lbs. (7.5 Nm)

10.10

Chassis

Seat Cover Replacement

1.

Remove seat.

2.

Remove the old covering by removing the staples that hold
it on the base.

3.

Drape the new cover over the seat foam.

4.

Turn the assembly over and begin upholstering by lining up
the seat cover vinyl side flaps with the indented square
location indicators located on the plastic seat base.

5.

Using a staple gun, tack each side of the vinyl cover in place
using two staples (1). If cover has a “POLARIS” emblem
carefully align emblem with the bottom edge of the seat.
This will help ensure that the cover is positioned properly.

6.

Align the two sewn seams located at the rear of the seat
cover with the two back corners of the seat base.

7.

Pull the vinyl tight and tack the seat cover to the plastic seat
base in each corner. Use two or three staples per corner.

8.

Now that the cover is positioned, and tacked to the plastic
seat base in for places, turn the assembly over an inspect it.
If the seat cover seems to fit correctly and everything looks
straight, continue.

9.

Staple the remainder of the unattached seat cover to the
plastic seat base. Always staple between two existing
staples and follow this procedure until the seat cover is
completely stapled to the seat base see the staple sequence
above.

10. Turn the seat cushion assembly over and inspect for

wrinkles or imperfections. If imperfections are visible,
remove the staples in the affected area and staple correctly.

11. Trim excess vinyl from the bottom around the back of the

seat area only after a satisfactory fit is obtained.

DECALS

Decal Removal

Before beginning, read these instructions and check to be sure
all parts and tools are accounted for.

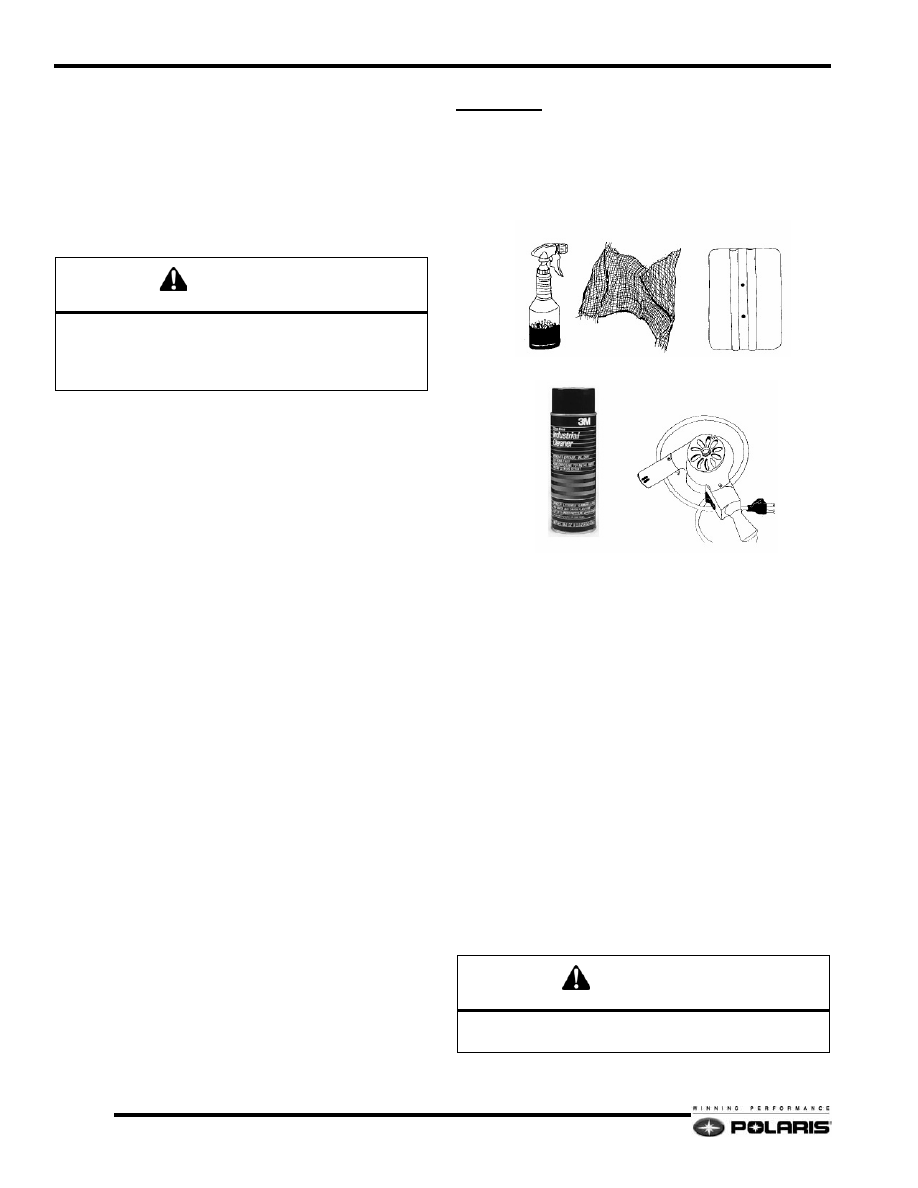

Use the following items:

• Squeegee

• Cheese Cloth or a non abrasive cloth

• Paper Shop Towels

• Hair Drier or Heat Gun

• Wallpaper seam roller or similar roller

• 3Mt citrus based clear (3Mt PN 62-4615-430-5)

available at most auto parts stores

• Cleaning solution (99% water 1% mild dish washing

detergent)

• ScotchR 233 Performance masking tape

Perform the decal removal procedures carefully! If care is not
taken, the possibility exists that paint could peel from the hood.
Follow each step thoroughly and completely to avoid hood
damage!  Polaris is not responsible for any hood or paint
damage resulting from this decal replacement procedure.

WARNING

Apply staples in the stapling channel only. If you apply
staples outside the channel, you will damage the fuel
tank reservoir in the seat base. If this happens you will
have to replace the entire seat assembly.

CAUTION

U

SE



SAFETY



GLASSES



AND



RUBBER



GLOVES



WHEN



PER

-

FORMING



THIS



PROCEDURE

.

Cleaning Solution

Cheese Cloth

Squeegee

3Mt Cleaner

Hair Dryer

10.11

Chassis

10

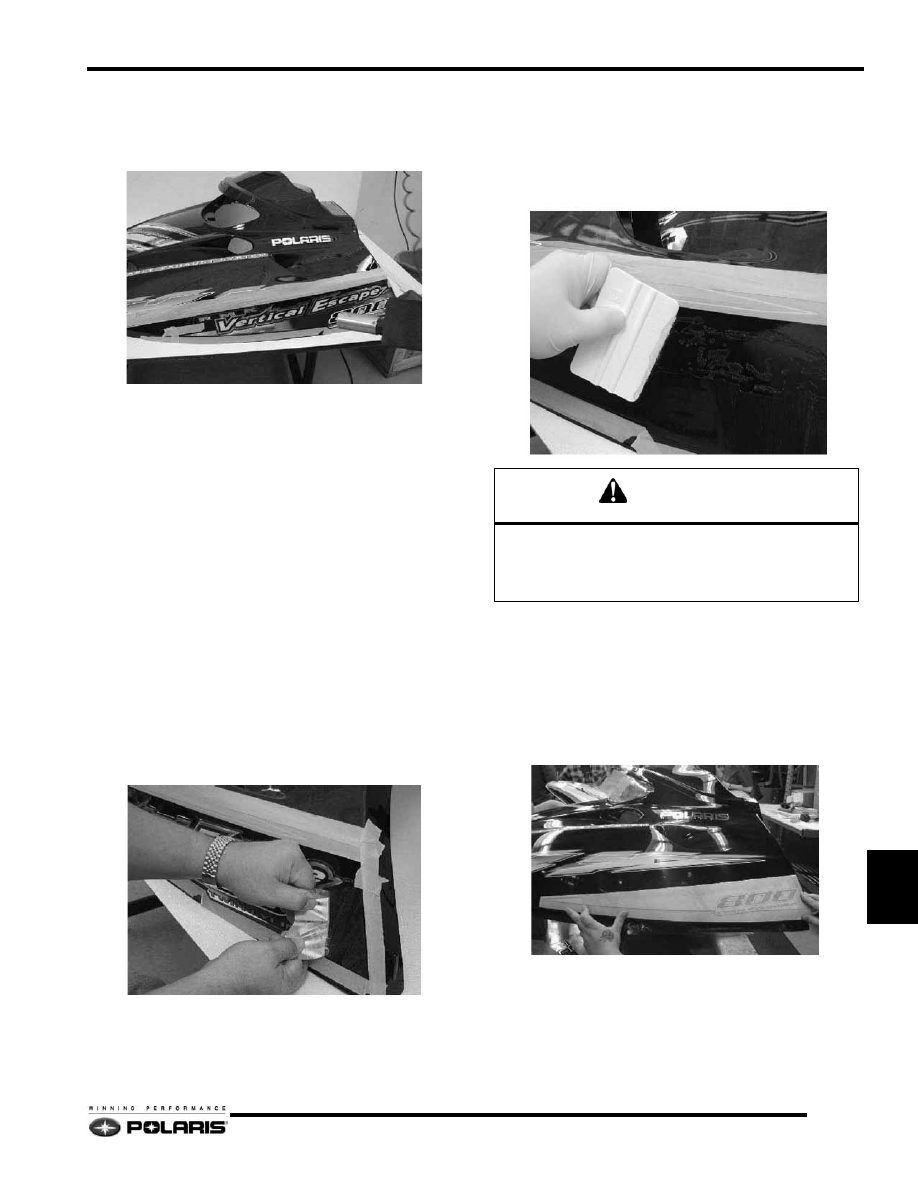

1.

Using masking tape, tape off all decals that are not going
to be replaced. If you do not tape off the other decals, the
cleaning solution used later in the process may cause the
adhesive to break down in the non-affected decals.

2.

Using a hair dryer (preferable) or low setting on a heat gun,
carefully heat the decal to loosen the adhesive. Heat until
the decal is warm to touch. DO NOT OVER HEAT!
Overheating may cause damage to the paint and to the
integrity of the hood. Polaris is not responsible for any
hood damage resulting from this decal replacement
procedure.

3.

Once the decal is warm to touch and the adhesive is loose,
peel the decal off slowly and evenly. Use of a hair dryer
or heat gun is required! If heat is not applied, the decal
will be very hard to remove and paint from the hood may
peel off with the decal.

4.

After the decal is removed, apply 3Mt citrus based cleaner
to the decal area to remove the adhesive. Be sure to follow
the instructions and the precautions on the container, and
use rubber gloves and safety glasses. Spray the cleaner on
the adhesive and let set for 15-20 seconds. Using a
squeegee, wipe the adhesive from the hood and deposit it
in a paper shop towel. You may have to repeat this process
several times to remove all of the adhesive from the hood.
Use care not to get the cleaner on any other decals.

5.

When the bulk of the adhesive is removed from the hood
by using the squeegee, remove any left over residue with a
clean, non-abrasive shop towel or cheese cloth that is wet
with the 3Mt cleaner.

6.

Once all of the adhesive is removed from the decal area,
follow with a cleaning solution of 99% water to 1% mild
dishwasher detergent. Use a non-abrasive cloth with the
solution to remove dirt, grease, cleaning solvent, and finger
prints. Always clean the surface where the decal will be
applied.

Decal Installation

All decals should be applied indoors, free from dust, dirt, cold
air, and humidity. Room temperature must be between 40_ and
100_F (4 - 38_C). These decals are to be applied dry.

1.

Make sure the surface area of the hood where the decal is
to be placed is free of any dirt, debris, or adhesive.

2.

Place the decal in the area to be installed and make sure that
everything lines up properly.

3.

Carefully peel away the adhesive side of the decal.

CAUTION

It is extremely important to remove all traces of dirt and
debris from the hood where the decal is to be applied.

Left over debris will be magnified through the chrome

decals.
