THE PERFECT FIT

Rear Suspension Adjustments

Rider weight, riding style, trail conditions, and vehicle speed all affect
suspension action. Each rear suspension can be adjusted to suit rider
preference and deliver excellent performance for a given set of
conditions. However, all suspension designs and adjustments involve a
compromise, or trade-off. For example, a suspension set up for snow-
cross racing would provide a very stiff ride on the trail. A suspension set
up for trail riding would bottom out harshly on a snow-cross course.

See your POLARIS dealer for initial suspension setup information.
Additional adjustments can be made after initial setup. Make
adjustments to one area at a time so you can evaluate the change. For
further assistance, see your dealer.

Suspension Performance Tips

• Rider weight usually determines the position at which the spring

preload should be set. However, this may vary with riding style. With
a little experimentation, each rider can find a preferred set-up. These
adjustments are easy to make, involve very little time or effort, and
greatly affect the ride.

• In deep snow, a new rail slide will offer improved performance over a

worn rail slide. It can also improve top speed.

• When riding on ice or hard-packed snow, adding a set of bogie wheels

to the rail may enhance the snowmobile’s performance. Bogie wheel
kits are available from your dealer.

• POLARIS offers track kits for improved flotation in deep snow. See

your dealer for assistance.

Tip: Keep the suspension pivot points lubricated. This will reduce moisture and

rust build-up and ensure proper function of the suspension components.
Grease rear suspension pivots before adjusting the rear suspension. See
page 66.

Track Tension

Track adjustment is critical for proper handling. Always maintain
correct tension and alignment. Refer to the track tension maintenance
section beginning on page 89.

35

THE PERFECT FIT

Rear Suspension Adjustments

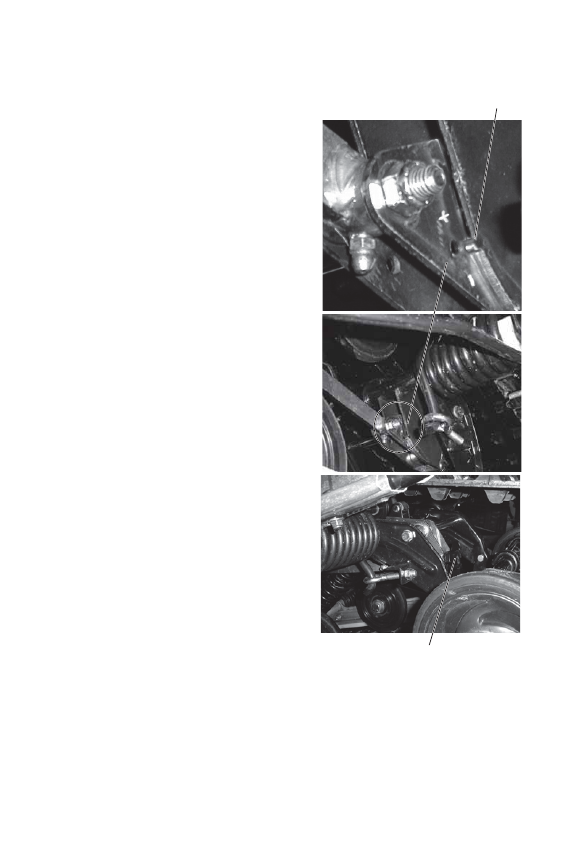

Suspension Coupling

For most riding conditions, the
alignment tab should be positioned
at the open hole, about half way
between the plus (+) and minus (-)
marks.

1. If more ski pressure is pre-

ferred (for riding in hilly ter-
rain on hard surfaces with a
high vehicle load), turn the
adjuster knob clockwise. Ski
pressure will increase as vehi-
cle load increases.

Tip: For maximum comfort, set the

suspension to bottom out
occasionally.

2. If less ski pressure is preferred,

turn the adjuster knob counter-
clockwise. Ski pressure will
decrease as vehicle load
increases.

3. Turn the knob fully counter-

clockwise (minimum setting)
for riding in deep snow with-
out a passenger and with a low
vehicle load.

Tip: Do not exaggerate adjustments. A

couple of turns on the adjuster
knob will usually give the desired
effect.

Alignment Tab

Adjuster Knob

36

THE PERFECT FIT

Rear Suspension Adjustments

Rear Spring Settings

1. To check for the recommended rear spring settings, lift the rear of

the snowmobile, then slowly lower it. Measure the distance between
the ground and the running board.

2. Without letting the suspension settle, the rider should carefully

mount the snowmobile. Measure the distance between the ground
and the same spot on the running board.

3. The difference between the two measurements should be

approximately 1.5 inches (3.8 cm). If the difference is greater,
adjust the rear spring equally on both sides and repeat steps 1-3.

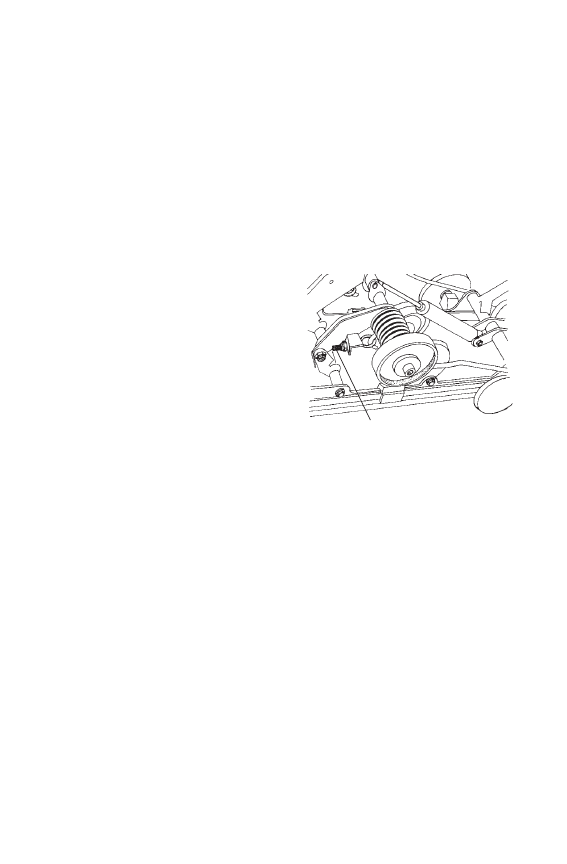

4. Compensate for heavy or light

drivers or cargo loads by
adjusting the rear spring eye
bolt length. Adjust spring
tension so there is equal tension
on the long leg of each spring.

• Tighten the bolt for more

spring tension.

• Loosen the bolt for less spring

tension.

Tip: Rear spring settings affect ski-to-ground pressure. If ski pressure is too

light, tighten the rear springs.

Eye Bolt

37

THE PERFECT FIT

Handlebar Adjustments

Standard Handlebar

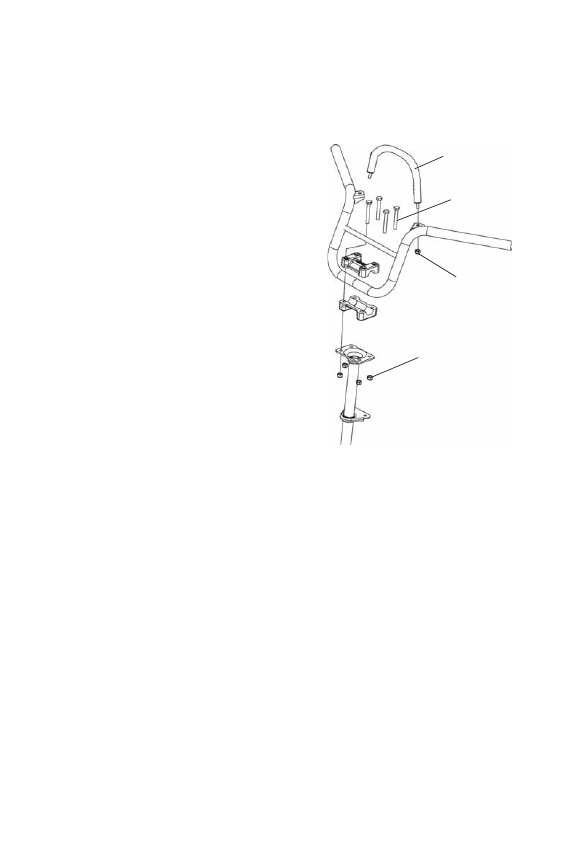

Follow these steps to adjust handlebar angle at the handlebar block.

1. Remove the mountain bar by

removing nuts.

2. Using a 7/16-inch wrench,

loosen the four nuts on the
bottom of the adjuster block
(turn the handlebar either left
or right for access to the rear
nuts). If necessary, pry the
blocks apart with a
screwdriver.

3. Adjust the handlebar to the

desired angle. Be sure the
handlebar, brake lever and
throttle lever operate
smoothly and do not hit the
gas tank, windshield or any
other part of the snowmobile
when the handlebar is turned
fully to the left or right.

4. Torque the front bolts first, then torque the rear bolts. Torque the

bolts to 11-13 ft. lbs. (15-18 Nm).

5. Reinstall the mountain bar.

Traction Products

Carbide Skags

A skag is a replaceable bar attached to the underside of the ski to assist
in turning the snowmobile and to prevent ski wear caused by contact
with roads and other bare terrain.

Inspect skags frequently. Worn skags may reduce steering and braking
control on hard-packed snow and ice. Replace worn skags to maintain
proper balance and vehicle control.

WARNING! Loss of control can result in serious injury or death. Proper balance
of traction products on the skis and track must be maintained to obtain proper
vehicle control on hard-packed snow or ice. See your dealer for assistance.

Bar

Nuts

Bolts

Nuts
