FEATURES AND CONTROLS

Cargo Rack

Always secure cargo before operating. Do not exceed the rack weight
limit specified on the cargo rack label. Do not allow a passenger to sit on
the seat back or the cargo rack.

Whenever towing or operating with a heavy load, place the transmission
in low gear. See page 59.

NOTICE: When operating in low gear, never exceed 25 MPH (40 km/h). Serious

engine damage may occur.

31

THE PERFECT FIT

Front Suspension Adjustments

Break in the suspension for approximately 150 miles (240 km) and re-
grease all suspension parts before making any fine-tuning adjustments.

Settings will vary from rider to rider, depending on rider weight, vehicle
speed, riding style, and trail conditions. We recommend starting with
factory settings and then customizing each adjustment individually to
suit rider preference. The snowmobile should be methodically tested
under the same conditions after each adjustment (trail and snow
conditions, vehicle speed, riding position, etc.) until the best ride is
achieved. Adjustments should be made to one area at a time in order to
properly evaluate the change.

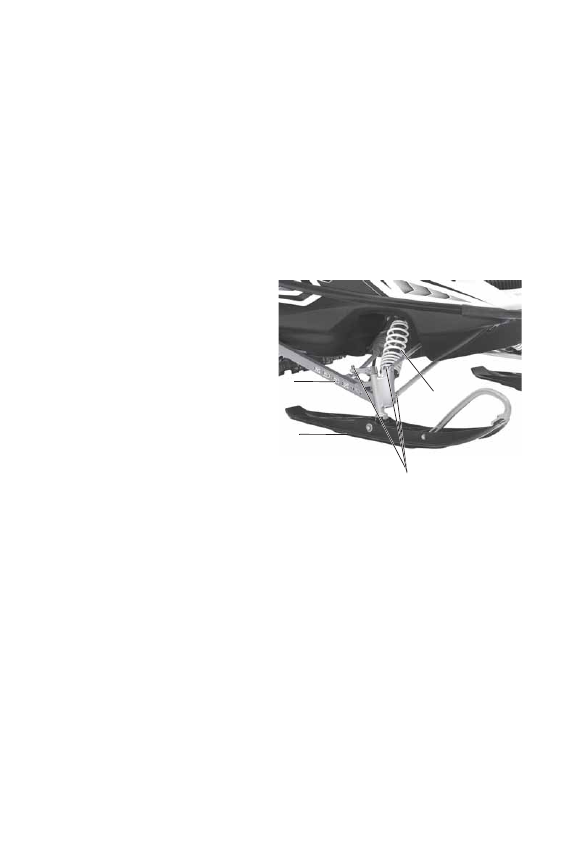

IFS Components

1.

Skis

2.

Front shocks and springs

3.

Rod ends

4.

Trailing arms

IFS Adjustment Options

• Front shock spring preload
• Optional springs

1

2

3

4

32

THE PERFECT FIT

Front Suspension Adjustments

Always verify ski alignment before making adjustments to the IFS. See
page 93 to check alignment. If the skis are misaligned, see your dealer,
as the camber adjustment may also be affected.

The tension at which the shock coil spring is set is called spring preload.
For the best ride, the spring preload should be set as low as possible to
use the full travel of the ski shock, with occasional light bottoming. To
determine if your snowmobile is using full travel of the ski shock, push
the jounce bumper down as far as it will go on the shock rod and test
ride the snowmobile. The bumper will move up on the rod in direct
relation to the amount of travel. If the shock travel is full, the bumper
will be seated at the top of the shock.

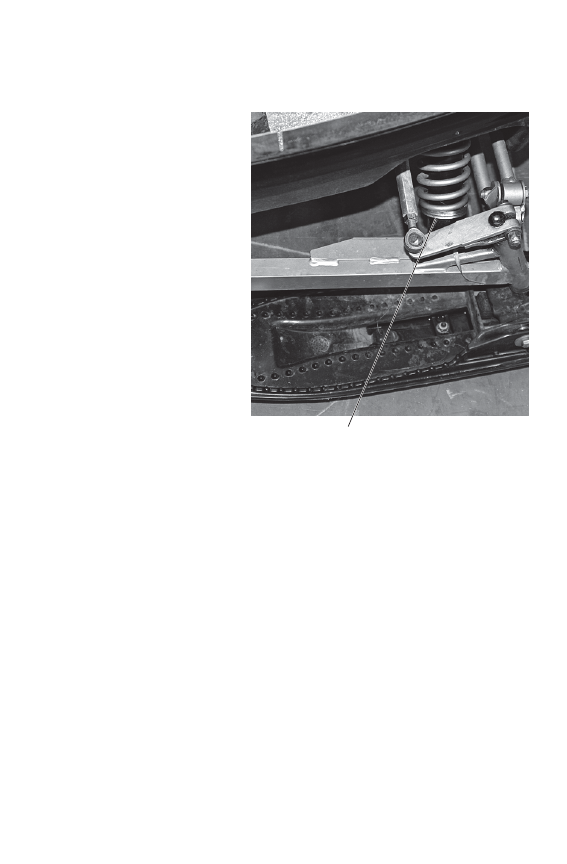

Shock Components

1.

Retainer

2.

Shock Rod

3.

Jounce Bumper

4.

Body

5.

Spring Preload Adjuster Nut

1

2

4

3

5

33

THE PERFECT FIT

Front Suspension Adjustments

Shock Spring Preload

Increasing spring preload
will increase ski-to-ground
pressure. Decreasing spring
preload will decrease ski-
to-ground pressure.

Front Springs

For models without
externally adjustable or
revalvable shocks, the front
springs can be changed if
spring preload alone isn’t
sufficient and further
adjustment is desired to
control suspension
stiffness. Special tools are
required to adjust front
springs. If you feel that
your front suspension needs
adjustment see your
POLARIS dealer for more
information.

Front Shock Washers
