MAINTENANCE

Clutch System

Drive Belt Installation

1. Drop the drive belt over the drive

clutch and pull back the slack.
The belt cord line should be flush
with, or slightly above, the outer
circumference of the driven clutch
sheaves. The belt will seat itself in
the driven clutch during the
break-in period. Adjust the belt
ride-out after the break-in period
by readjusting belt deflection.

Tip: To ensure satisfactory belt life, install belts so they operate in the same

direction of rotation by positioning the identification numbers so that you
can read them. If required, separate the sheaves as outlined in the belt
removal procedures.

2. Rotate the L-wrench counter-clockwise to tighten the sheaves while

working the belt to the outer edge of the sheaves.

3. Remove the wrench.

4. Reinstall the side panel.

5. Close and secure the hood.

6. Break in the new belt. See page 76.

128

MAINTENANCE

Track Replacement

When replacing the track, always install a track having the lug size rec-
ommended for your model. See your POLARIS dealer.

NOTICE: Installing tracks with larger lugs on snowmobiles equipped with

coolers will result in damage to the cooler or tunnel. Always install a
track having the lug size recommended for your model.

Track Inspection

WARNING! Broken track rods can cause a rotating track to come off the
snowmobile, which could cause serious injury or death. Never operate with a
damaged track. Never rotate a damaged track under power.

1. Using a hoist, safely lift and sup-

port the rear of the snowmobile
off the ground.

2. Rotate the track by hand to check

for damage.

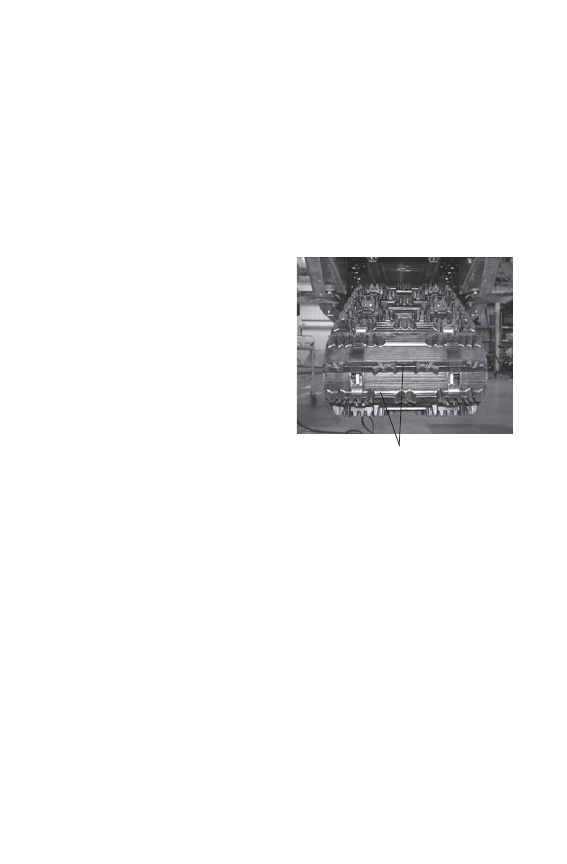

3. Carefully examine the track along

the entire length of each rod.
Bend the track to check for break-
age.

4. Replace the track if any rod dam-

age is found.

Rods

129

MAINTENANCE

Track Lubrication

WARNING! Operating with insufficient lubrication between the rail slide and
track guide clips can cause track failure, loss of vehicle control and loss of
braking ability, which can result in serious injury or death. Avoid operating for
extended periods on ice and other surfaces that have little or no snow for
lubrication.

The slide rail requires adequate snow cover for sufficient lubrication.
Excessive wear indicates insufficient lubrication. A new rail slide can
cause faster heat build-up in limited lubrication, resulting in excessive
wear.

Track damage or failure caused by operation on ice or under other poor
lubrication conditions will void the track warranty.

NOTICE: High speed use on hard-packed surfaces is not recommended for

models equipped with a deep lug track. Track lug damage may occur.
Keep high speed use to a minimum, including frequent slow-speed
intervals for track cooling.

130

MAINTENANCE

Track Tension

WARNING! Moving parts can cut and crush body parts. When performing the
checks and adjustments recommended on the following pages, stay clear of all
moving parts. Never perform track measurement or adjustments with the engine
running.

Track adjustment is critical for proper handling. Always maintain cor-
rect tension and alignment.

Tip: Tension adjustments should be

made only after the track is
warmed up and limber.

1. Turn the engine off.

2. Lift the rear of the snowmo-

bile and safely support it off
the ground.

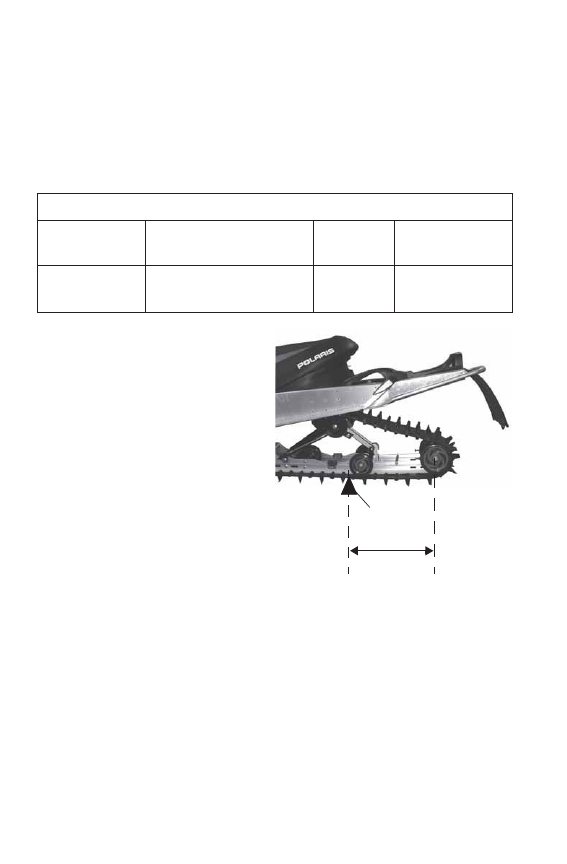

3. Place the recommended

weight or downward pressure
on the track at the specified
distance (see chart) ahead of
the center of the rear idler
wheel.

Tip: Measure at the point where the

weight is hanging.

TRACK TENSION DATA CHART

Suspension

Slack Measurement

Weight

Measurement

Location

IQ Comfort

7/8”-1 1/8” (2.2-2.9 cm)

10 lbs.

(4.54 kg)

16” (40 cm)

ahead of rear

idler shaft

10 lbs.

(4.54 kg)

16” (40 cm)
