Snowmobile Polaris FRONTIER CLASSIC (2004 year). Manual - part 8

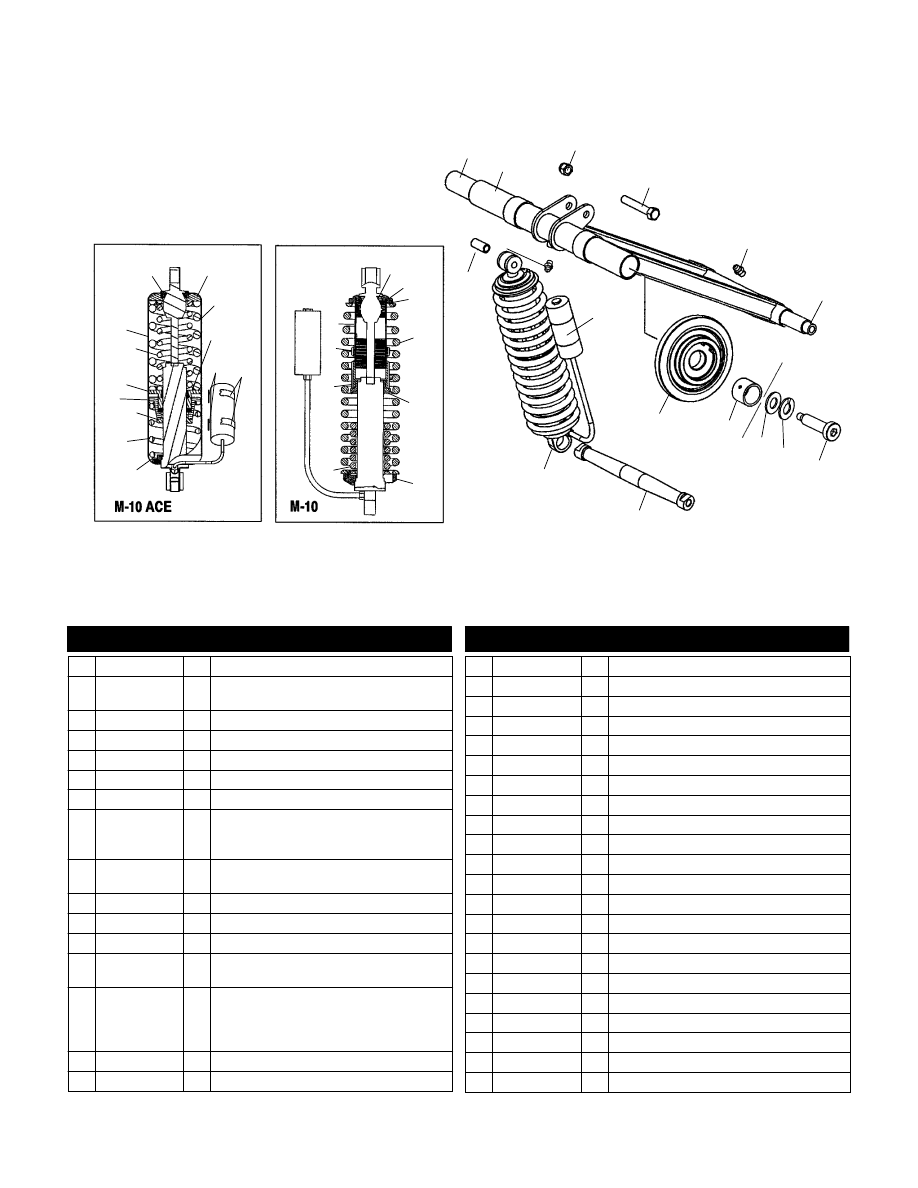

REAR TORQUE ARM (M-10)

FRONTIER CLASSIC S04ND7DS and FRONTIER CLASSIC S04ND7DSA

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.. Description

Ref. Part No.

Qty.. Description

1 5132578

1 Shaft, Upper Torque Arm

2 1541527-067

1541894-067

Arm, Torque, M-10

Arm, Torque, M-10 ACE

3 7542439

1 Nut, Nylok

4 7515415

1 Screw

5 7080424

2 Fitting, Lubrication

6 5133093

1 Shaft< Rear Torque Arm, Lower

7 7079432

1 Decal, M-10, Fox

8 1590308

3514330

7710486

Asm., Wheel, Off-Set

Bearing

Ring, Retaining

9 5132582

7512257

Collar, Bearing Lock, Rear

Screw, Socket Set

10 7555984

2 Washer, Flat

11 7552614

2 Washer, Lock

12 7517815

2 Screw, Socket Head

13 --------------

1 Shaft, Tapered (See Rear Suspension

M-10 Pg. B13, Ref. 25)

14 7042216

7042149

Shock, Rear Track (See Shock, Rear

Track, M-10 Pg. C4 for Details)

Shock, Rear Track (See Shock, Rear

Track, M-10 ACE Pg. C3 for Details)

15 5333905

1 Sleeve

16 5244747

1 Cap, Ice (M-10)

17 5020618

1 Retainer, Spring Slotted (M-10)

18 5132645

1 Nut, Preload (M-10)

19 7041935-067

1 Spring, Shock, Rear, M-10

20 5433882

1 Bushing, Overload Depressor

21 5133032

1 Retainer, Spring, Rear

22 7041936-067

1 Spring, Overload, Rear, M-10

23 5132625

1 Ring, Adjuster (M-10)

24 5132643

1 Nut, Ring Adjuster (M-10)

25 5132794

1 Sleeve, Overload Depressor (M-10)

26 5133746

1 Retainer, Spring, Lower, M-10 ACE

27 7042208-067

1 Spring, Compression (M-10 ACE)

28 5434896

1 Bushing, Nylon (M-10 ACE)

29 5812432

2 Pad, Rubber (M-10 ACE)

30 7081119

2 Clamp, Hose (M-10 ACE)

31 5133747

1 Retainer, Spring, Upper, M-10 ACE

32 7042207-067

1 Spring, Compression (M-10 ACE)

33 5433882

1 Bushing, Overload Depressor, M-10 ACE

34 5133744

1 Retainer, Spring, Preload Adjust (M-10 ACE)

35 5133745

1 Collar, Spring, Preload Adjust (M-10 ACE)

36 7042206-067

1 Spring, Compression (M-10 ACE)

37 2683223

1 Cover, M-10 (ACE)

38 5133778

1 Collar, Spring, Slotted (M-10 ACE)

8/03

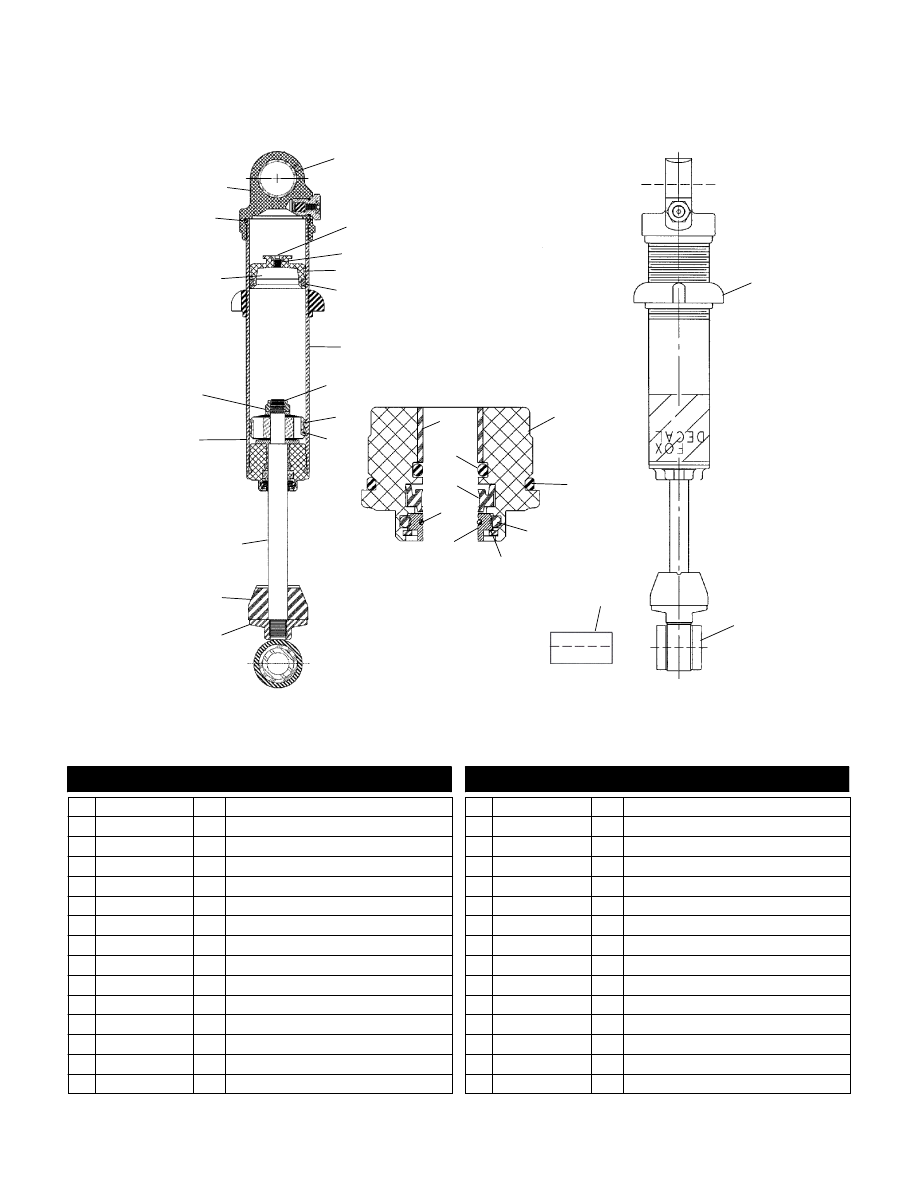

SHOCK (FRONT TRACK) (M-10)

FRONTIER CLASSIC S04ND7DS and FRONTIER CLASSIC S04ND7DSA

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

7042224

1 Shock, Front Track, M-10 (Incl. All)

1 1500443

1 Asm., Body Cap

2 1500108

1 O-Ring

3 1500187

1 Piston, Floating

4 1500015

1 Plate, Backup

5 1500017

1 Plate, Top-Out

6 1500247

1 Shaft

7 1500441

1 Bumper

8 1500164

1 Eyelet

9 1500310

1 Sleeve

10 1500309

2 Bushing

11 1500494

1 Nut, Adjusting, Front Shock

12 1500545

1 Asm., Bearing, FIST (Incl. 13-20)

13 1500020

1 O-Ring

14 1500483

1 O-Ring

15 1500486

1 Ring, Snap

16 1500485

1 Scraper, FIST

17 1500484

1 O-Ring

18 1500266

1 U-Cup

19 1500021

1 O-Ring

20 1500488

1 Bearing

21 1500002

1 Bearing

22 2200618

1 Kit, Piston Valving

23 1500016

1 Nut, Lock

24 1500442

1 Body

25 1500003

1 O-Ring

26 1500006

1 Bearing

27 1500022

1 O-Ring

28 1500018

1 Screw

29 1500444

1 Bearing

8/03

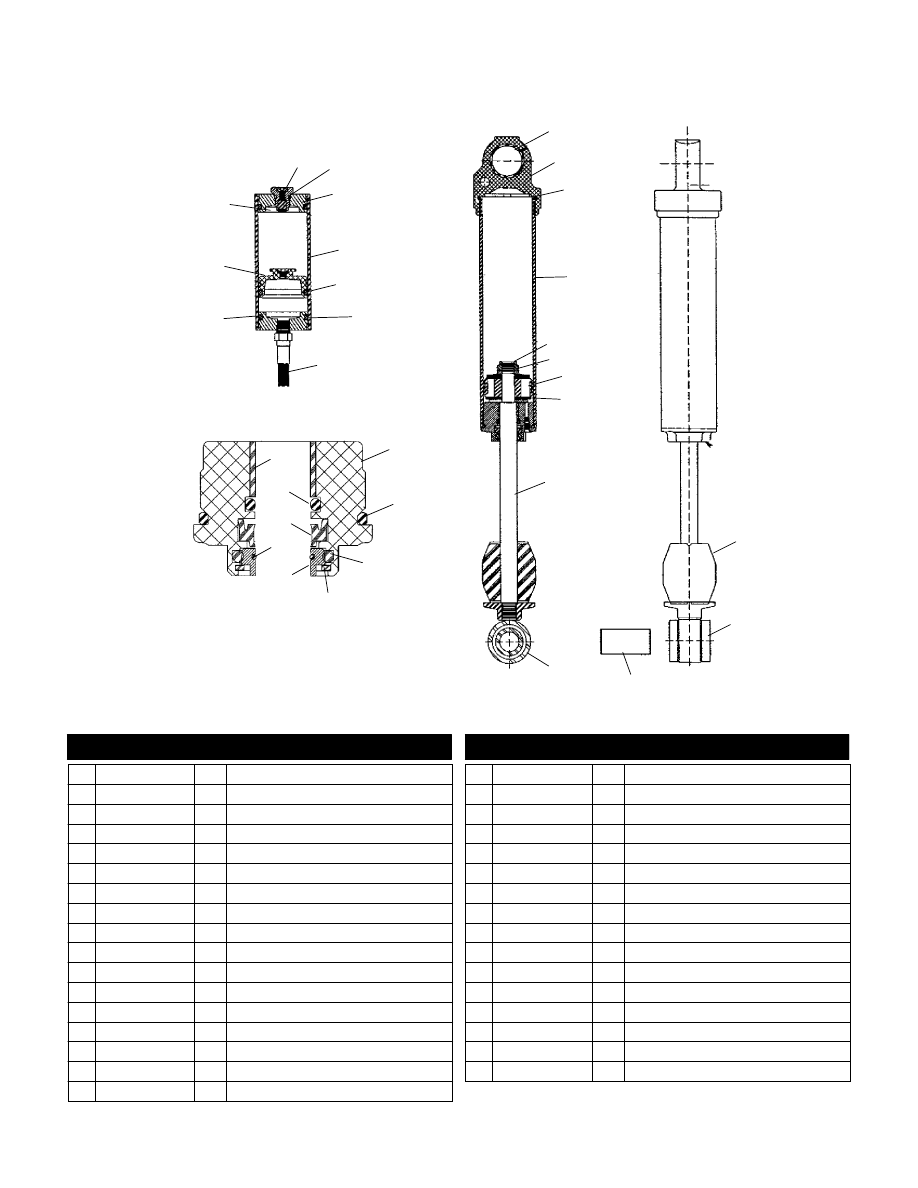

SHOCK (REAR TRACK)(M-10 ACE)

FRONTIER CLASSIC S04ND7DS and FRONTIER CLASSIC S04ND7DSA

25
26

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

7042149

1 Shock, Rear Track (Incl. All)

1500449

1 Asm., Reservoir (Incl. 1-9)

1 1500450

1 Seal, O-Ring

2 1500187

1 Piston, Floating

3 1500560

1 Hose

4 1500163

1 Asm., Cap, Reservoir

5 1500003

1 O-Ring

6 1500451

1 Reservoir

7 1500160

1 Asm., Cap, Reservoir

8 1500023

1 O-Ring

9 1500014

1 Asm., Air Valve

10 1500545

1 Asm., Bearing, FIST (Incl. 11-18)

11 1500020

1 O-Ring

12 1500483

1 O-Ring

13 1500486

1 Ring, Snap

14 1500485

1 Scraper, FIST

15 1500484

1 O-Ring

16 1500266

1 U-Cup

17 1500021

1 O-Ring

18 1500488

1 Bearing

19 1500444

1 Bearing

20 1500563

1 Asm., Cap, Body

21 1500108

1 O-Ring

22 1500561

1 Body

23 1500016

1 Nut, Lock

24 1500015

1 Plate, Backup

25 1500002

1 Bearing

26 1500017

1 Plate, Top-Out

27 1500562

1 Shaft

28 1500564

1 Eyelet

29 5410855

1 Bumper, Jounce

30 1500309

2 Bushing

31 1500310

1 Sleeve

8/03

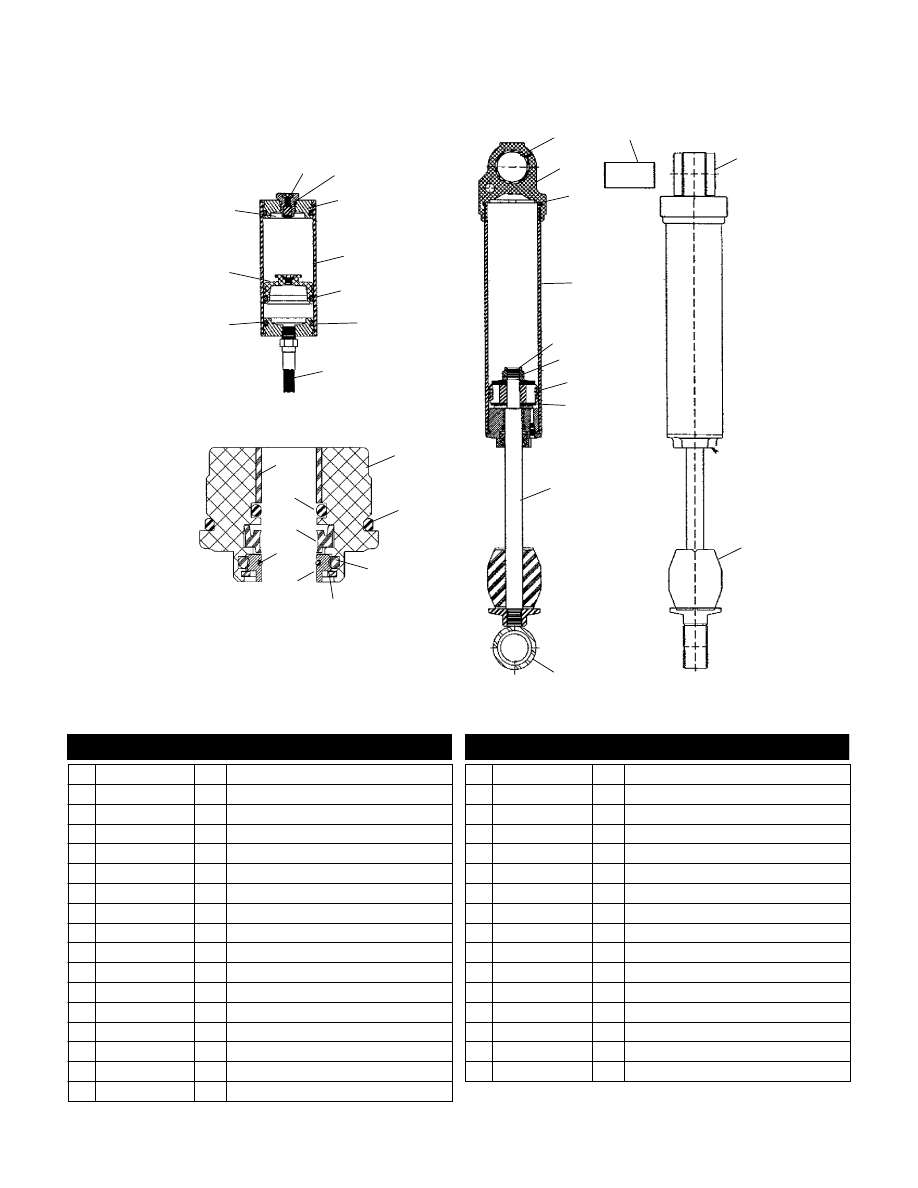

SHOCK (REAR TRACK)(M-10)

FRONTIER CLASSIC S04ND7DS and FRONTIER CLASSIC S04ND7DSA

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

7042216

1 Shock, Rear Track, M-10 (Incl. All)

1500449

1 Asm., Reservoir (Incl. 1-9)

1 1500450

1 Seal, O-Ring

2 1500187

1 Piston, Floating

3 1500445

1 Hose

4 1500163

1 Asm., Cap, Reservoir

5 1500003

1 O-Ring

6 1500451

1 Reservoir

7 1500160

1 Asm., Cap, Reservoir

8 1500023

1 O-Ring

9 1500014

1 Asm., Air Valve

10 1500545

1 Asm., Bearing, FIST (Incl. 11-18)

11 1500020

1 O-Ring

12 1500483

1 O-Ring

13 1500486

1 Ring, Snap

14 1500485

1 Scraper, FIST

15 1500484

1 O-Ring

16 1500266

1 U-Cup

17 1500021

1 O-Ring

18 1500488

1 Bearing

19 1500444

1 Bearing

20 1500448

1 Asm., Cap, Body

21 1500108

1 O-Ring

22 1500446

1 Body

23 1500016

1 Nut, Lock

24 1500015

1 Plate, Backup

25 1500002

1 Bearing

26 1500017

1 Plate, Top-Out

27 1500447

1 Shaft

28 1500164

1 Eyelet

29 1500310

1 Sleeve

30 1500309

2 Bushing

31 5410855

1 Bumper, Jounce

8/03
