84

MAINTENANCE

Periodic Maintenance Interval Table

I - Inspect (clean, adjust, tighten, lubricate, replace if necessary)
C - Clean

R - Replace

L - Lubricate

Bolt Torque Inspection

To maintain proper chassis performance, see your POLARIS dealer for
a bolt torque inspection every 1000 miles (1600 km).

Item

See

Page

Frequency

150 mi.

(240 km)

500 mi.

(800 km)

1000 mi.

(1600 km)

2000 mi.

(3200 km)

Pre-

Season

CHASSIS

Ski Toe Alignment

--

I

I

I

Suspension Mounting
Bolts

--

I

I

I

I

I

Bolt Torques

See your dealer every 1000 mi. (1600 km) for inspection

Steering Fasteners

--

I

I

I

I

C

Rear Suspension
Fasteners

--

I

I

I

I

I

Rear Suspension
Bushings

112

I

I

I

Suspension Shock Oil

--

R

Rear Shock Threads

85

L

Cooling Fins and
Shroud

--

I

I

I

I

Skags (Wear Bars)

111

I

I

I

I

I

Ski Saddle/Spindle Bolts

--

I

I

I

I

I

Drive Chain Tension

95

I

I

I

I

I

Hood and Side Panel
Fasteners

85

I

I

I

I

I

Rear Wheel Idler Bolts

107

I

I

I

I

I

Idler Bolt Jam Nut

107

I

I

I

I

I

Rear Suspension Pivot
Shaft

112

L

L

L

Camber Alignment

--

I

I

I

Handlebar Centering

--

I

Tether Switch and Strap

66

I

I

I

I

I

Track Tension

106

I

I

I

I

I

Track Alignment

108

I

I

I

I

I

Front Limiter Strap

--

I

I

I

I

I

Rail Slide Condition

112

I

Chaincase Oil

86

I

R

I

R

I

Item

Description

Engine Mounting Bolts

Remove drive clutch and resonator for access to all bolts

Chaincase Mounting Bolts

Two (2) TORX-head bolts on forward side of chaincase

Four (4) rear chaincase nuts

85

MAINTENANCE

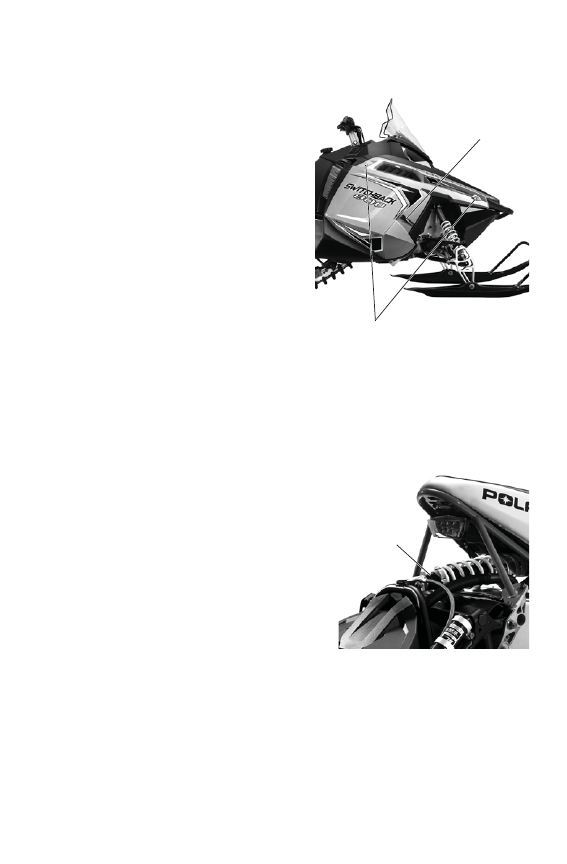

Hood/Side Panel

The hood and side panels of the
snowmobile protect the operator
from moving parts. Never operate
a snowmobile with the side panels
open or removed. Always ensure
that the hood and side panels are
securely in place before starting
the engine.

To open a side panel, rotate the
two 1/4-turn fasteners at the upper
edges of the side panel. Release
the side panel strap at the lower
edge of the panel.

To remove an open side panel, pull
the panel outward to release the
tabs at the lower edge of the panel.

Removing the hood is not recommended. Any service requiring the
removal of the hood should be performed by an authorized POLARIS
dealer.

Lubrication

Rear Shock Body Threads

Lubricate rear shock body threads
seasonally with a low-temperature
synthetic grease.

Driveshaft Bearing

This model has sealed bearings that
require no additional lubrication.

Strap

1/4-Turn Fasteners

Threads

86

MAINTENANCE

Lubrication

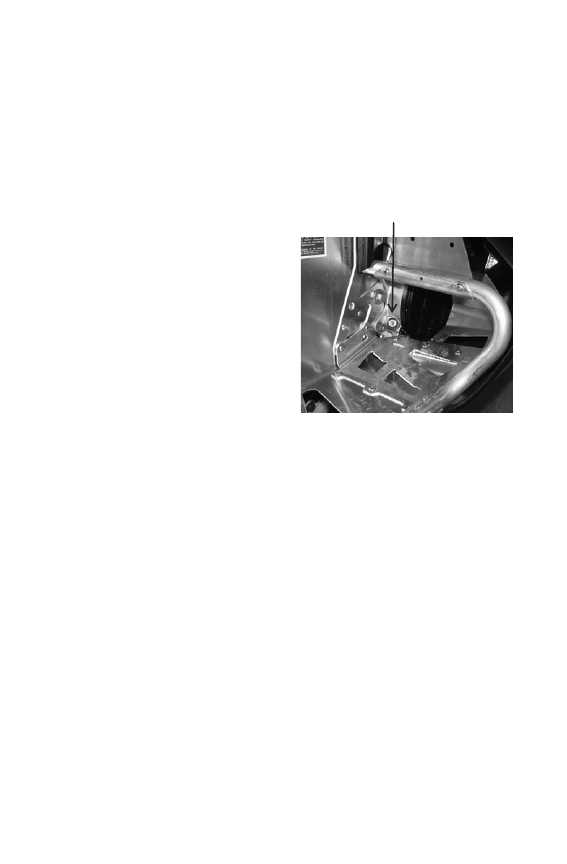

Chaincase Oil

Check and change the chaincase oil at the intervals outlined in the main-
tenance charts beginning on page 81. Maintain the oil level at the top of
the fill plug hole. POLARIS recommends the use of POLARIS Syn-
thetic Chaincase Lube. See page 116 for the part numbers of POLARIS
products.

Oil Level

1. Position the vehicle on a level

surface.

2. Remove the fill plug.

3. Using a funnel, slowly add the

recommended oil until the fluid
begins to overflow.

4. Wipe the fill area with a clean

cloth.

5. Reinstall the fill plug. Torque to

6-10 ft. lbs. (8-13 Nm).

Oil Change

1. Position the vehicle on a level surface.

2. Place a drain pan under the drain plug. Remove the drain plug.

Allow the oil to drain completely.

3. Clean off all metal shavings from the plug.

TIP: The sealing surfaces on the drain plug and the oil tank should be clean and

free of burrs, nicks or scratches.

4. Reinstall the drain plug. Torque to 6-10 ft. lbs. (8-13 Nm).

5. Remove the fill plug. Clean off all metal shavings from the plug.

6. Using a funnel, slowly add the recommended oil until the fluid

begins to overflow. Fluid capacity is 9 oz. (266 ml).

7. Wipe the fill area with a clean cloth.

8. Reinstall the fill plug. Torque to 6-10 ft. lbs. (8-13 Nm).

Fill Plug

87

MAINTENANCE

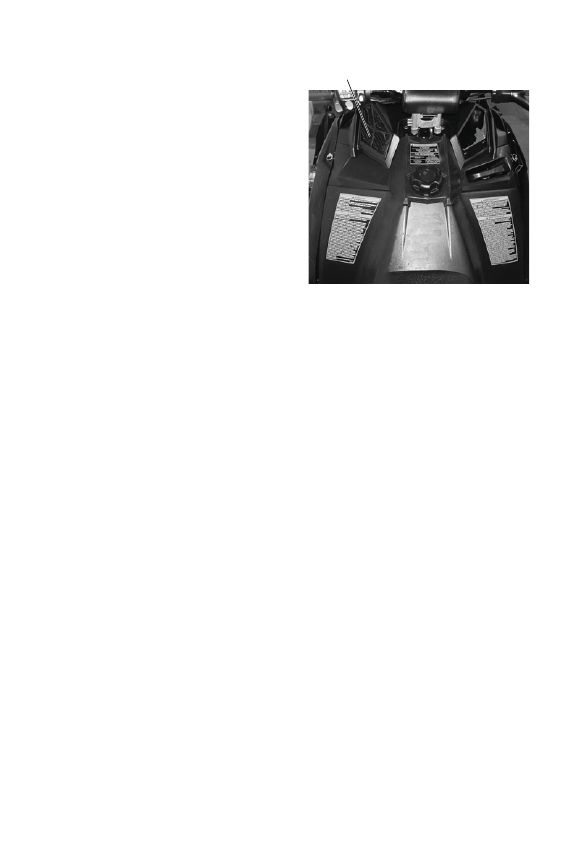

Intake Filters

The intake foam filters limit
snow ingestion into the intake
system. When operating in loose
powder snow, check the foam
filters periodically to remove
any accumulation of snow.

Fuel Pump

All fuel pump service must be
performed by an authorized
POLARIS dealer. Do not
attempt to service the fuel
pump.

Fuel Filter/Fuel Lines

See your POLARIS dealer for replacement of the fuel filter at the inter-
vals outlined in the Periodic Maintenance Table beginning on page 81.

Contaminated or poor quality fuel will shorten the life of the fuel filter
and result in poor engine performance. Always store fuel in clean fuel
containers. If low fuel pressure or reduced engine performance occurs
between the recommended fuel filter service intervals, the filter may
need replacement. See your dealer.

Inspect the fuel lines regularly for signs of deterioration or damage.
Always check fuel line condition after periods of storage. Normal dete-
rioration from weather and fuel compounds may occur. Replace worn or
damaged fuel lines promptly.

NOTICE: Kinking the fuel lines or using a pliers or similar tools to remove fuel

lines may cause damage to the lines. If a fuel line has been damaged
or kinked, replace it promptly.

Foam Filters
