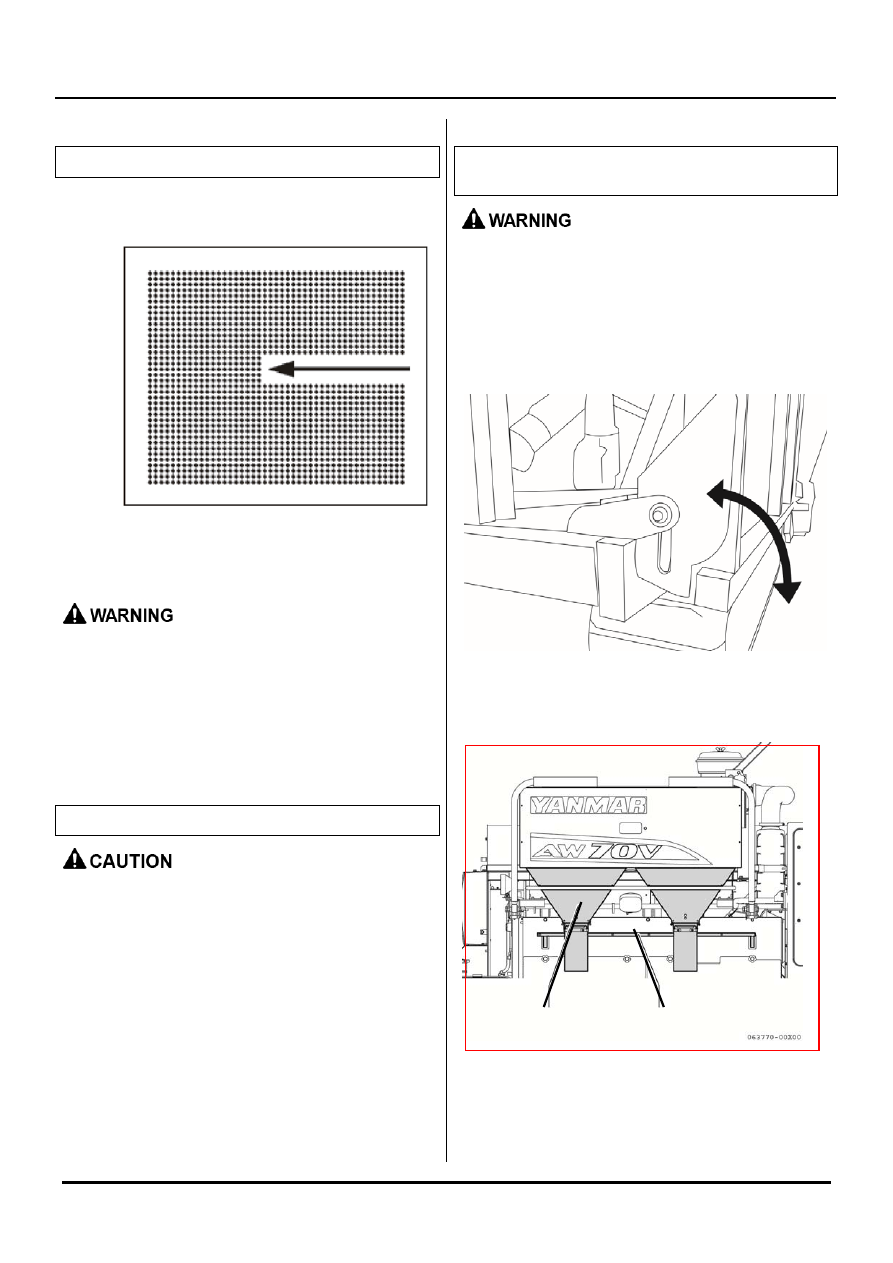

Harvesting in a broad field



For a broad field, the method of middle harvesting is
suggested to improve the harvesting efficiency.








3. Preparation before harvesting





The Reaping section, conveying chain, cutters,
threshing section, drive belt and other moving
parts may cause accident or personal injury
during cleaning and checking. Therefore,
make sure to turn off the engine and engage
the brake pedal lock before cleaning and
checking.





Cutter and chain oiling







Be sure to turn off the engine before oiling the
moving parts, or personal injury may be
caused. Add oil to cutters and chains before
operation and every 2 hours during operation.















Auxiliary assist grain deck and grain

bag







The auxiliary assist grain deck can bear the
maximum load of 180kg. If overloaded, the
deck may break and cause personal injuries.
Do not pile any filled grain bags on it.


1- Raise the auxiliary receiving platform to the operating

position.



2- Hang 20-30 bags on the fixed hooks.
3- Mount 1 sack on each outlet.
4- Open the grain discharging shutter.











Discharging shutter

Fixed hook

Middle harvesting

Operation



50





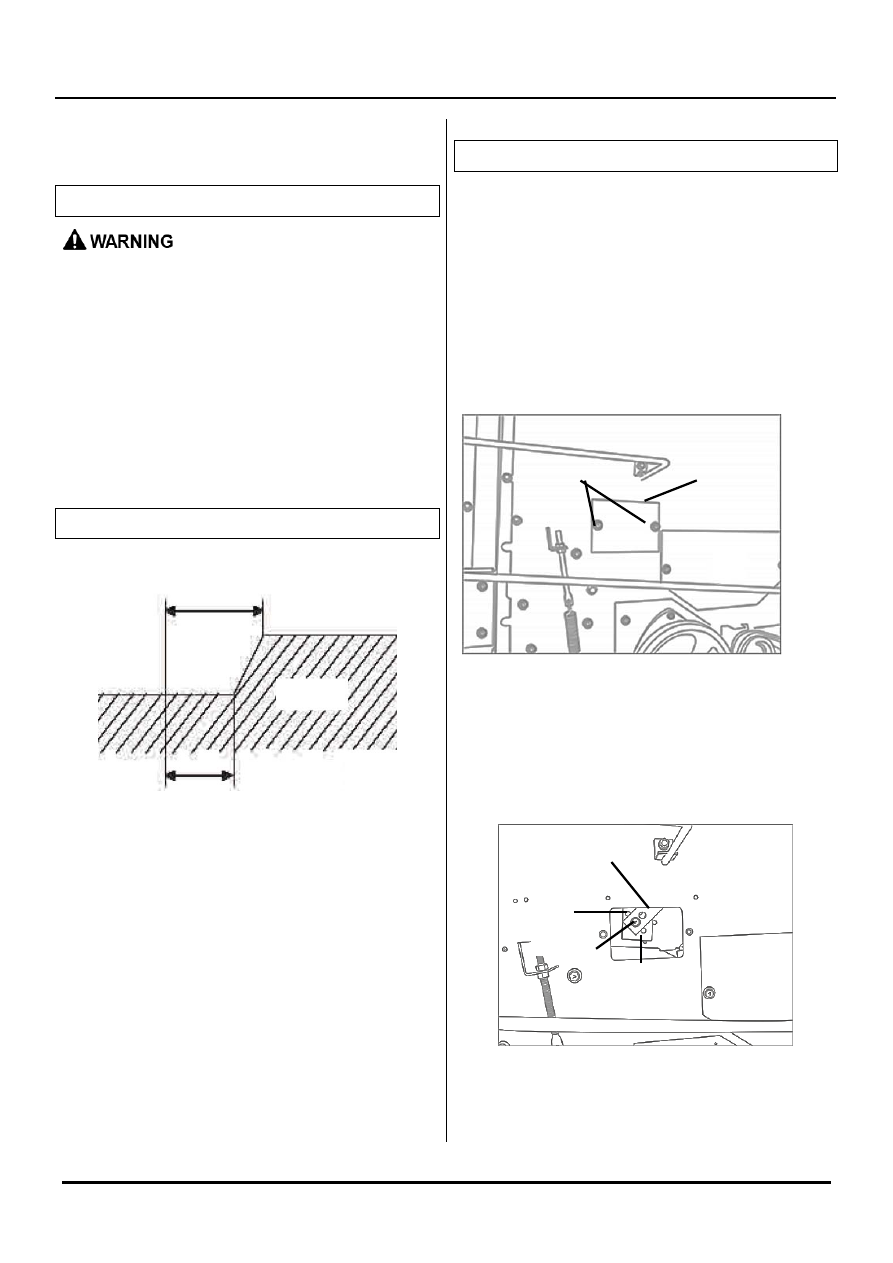

4. Harvesting



Moving in and out of the field









  Use the  “Forward” gear for

ascending and  “Reverse” for
descending a steep slope, and drive
slowly. Otherwise, the machine may
fall over.
Set the range shift lever to “Low” and
main shift lever to “1” to cross
straightly the ridge.



  Use the ramp boards if the ridge is

over 10cm high.



Harvesting by the ridge




Harvest manually within the areas 30cm from the ridge.



Pay attention to the crops not harvested near the ditch
and outside the track.


















Order of operation





(1) Adjusting the swing separator pieces



The swing separator is used to separate grains from
chaff after threshing. Adjust the angle of chaff sieves of
the screen according to the crop variety and threshing
condition.

1- Remove the left rear cover of the threshing section.
2- Unfasten two bolts to take down the cover plate of

swing separator.






3- Turn the chaff sieve clearance adjust lever to change

the angle of chaff sieves.



  “Open”

In case of heavy loss



 “Standard”  Standard

rice



  “Close”

When the 2nd conveyer outlet is

             blocked. Grain selection is poor.



[Reference]
Adjust the lever to “Standard” when delivery.

4- Replace the cover plate after adjustment.

Chaff sieve clearance

adjust lever

Close

Standard

Open



Cover plate

Bolt

Ridge

Operation



51





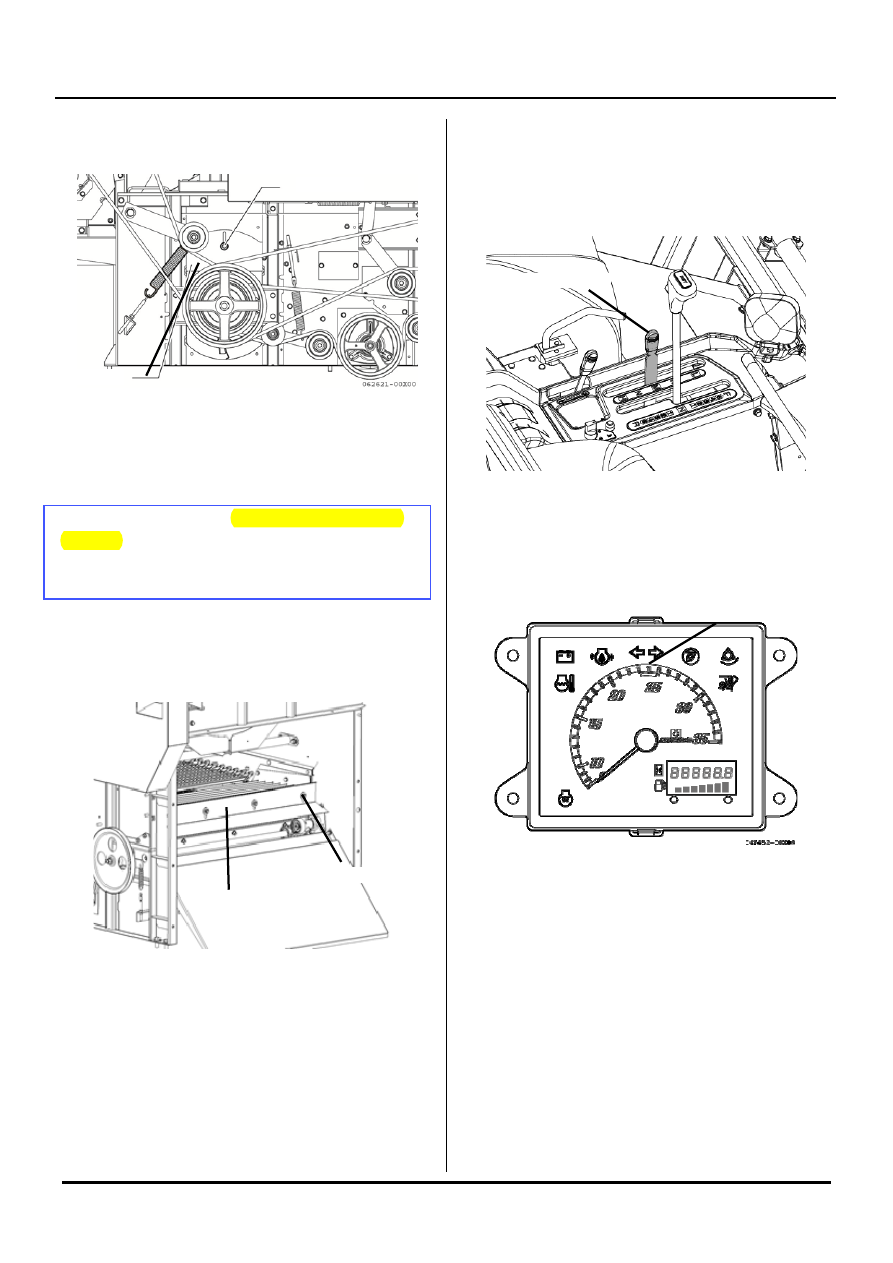

(2) Adjusting the screening air volume







Loosen the fixing bolt and move the damper up and
down to adjust the air volume. Remove the damper in
case of poor screening.
Close the damper in case of much back loss.
If light grain is still a loss from the back side of the
machine even when the damper is completely closed,
attach the winnower shutter (accessory) and decrease
the screening air volume.



(3) Adjusting the end plate of swing

separator up and down





Loosen the 4 fixing bolts at the end of swing separator
to move the adjustment plate up and down. Move the
plate upward in case of much scattering at the rear of
the machine, or downward in case of poor screening.






(4) Put the range shift lever to “Standard”,

“Low” or “High” according to the
condition of crop.







(5) Use the accelerator lever to adjust the

engine speed to the point that
tachometer hand falls in the “Green
Zone” of tachometer.





[Precaution]
Threshing may be incomplete and low in efficiency, and
the threshing section may be blocked if the engine speed
is below the rated level. The percentage of broken grain
may rise if the engine speed is too high.


(6) Put the threshing clutch lever and

header clutch lever to “ON”.








Fixing bolt



Damper



Fixing bolt



End adjustment plate



Range shift lever

Green zone

Operation



52




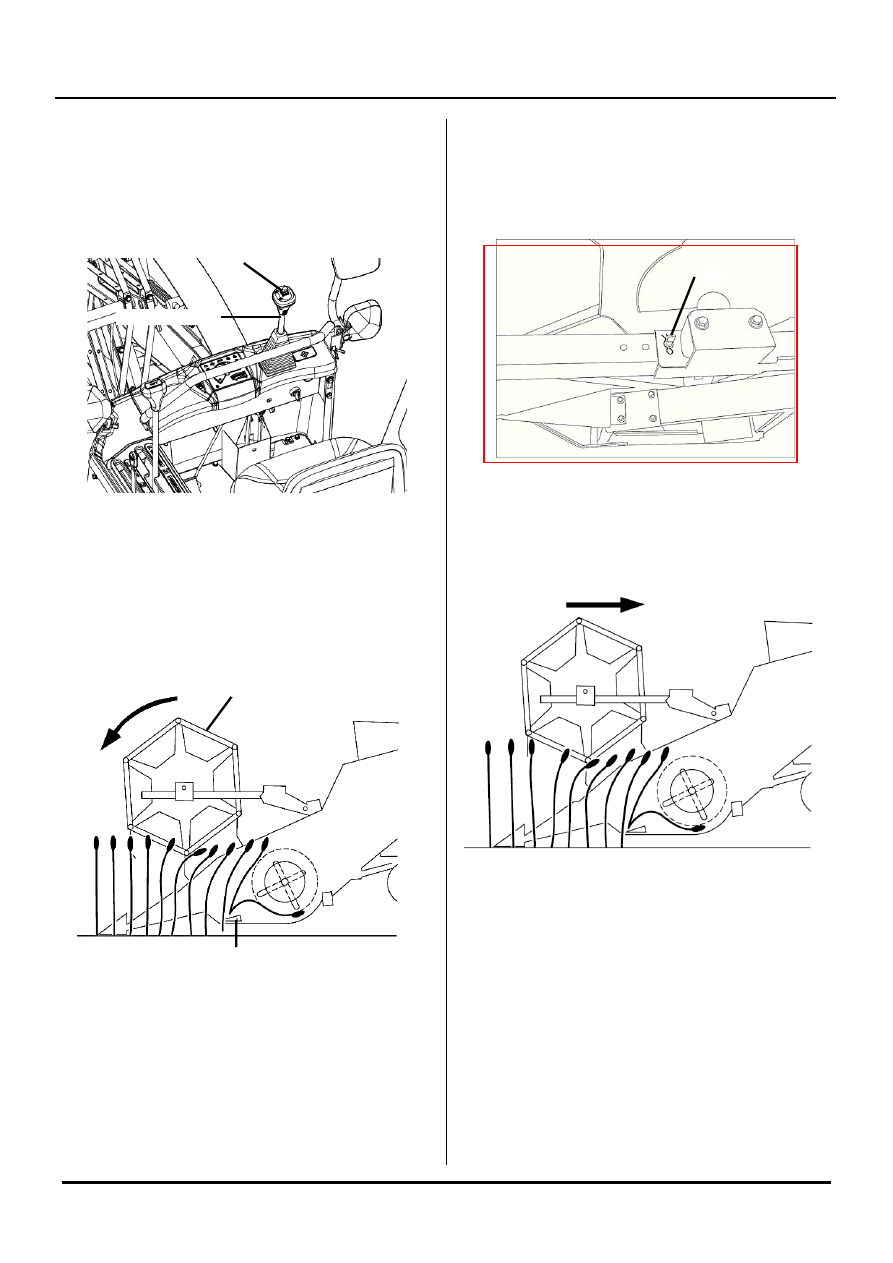

(7) Operate the main shift lever to lower

down the header to prevent missing
any rice spike during harvesting.











(8) Adjust the reel by height control switch

the lift button to ensure that the reel
tines touch the stalk below spike when
cutting, and the reel is in the position
available for gripping crops.






















(9) The reel can be flexibly adjusted

forward and backward by changing the
position of pin hole.







[Note]
Number of pin holes

: 3

Standard position

: Rear hole





Main shift lever



Reel height control switch



Reel tine shaft



Cutter blade



To the rear end

Pin
