Driving



41




5- Release your hands quickly from the key switch after

start-up of the engine. Both the oil pressure
indicator and the charging indicator will be lit before
start-up, and will go out immediately after start-up.

6- Put the accelerator lever to “Low”, and add no load

within 5 minutes after start-up of the engine. (Be
sure to warm up the engine)



[Precaution]





Do not use continuously for over 10 seconds as
large current is required for starting up the
engine. (If the engine is not started up within 10
seconds, shut down the switch, wait for one
minute, and then repeat the operations in step
4

)





Do not pull the key switch to “Start” during
operation of the engine. Otherwise, the
machine may be damaged.









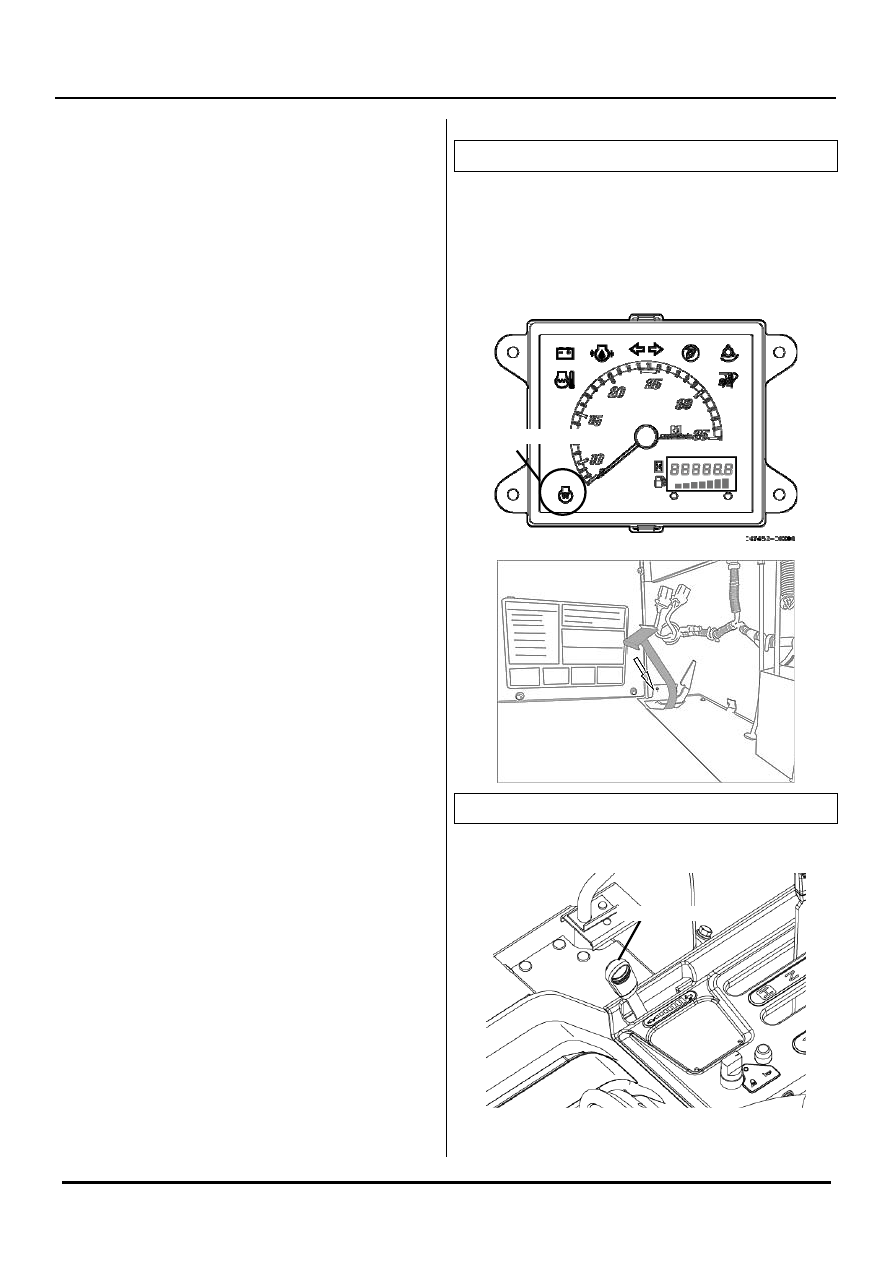

Starting the engine under cold condition


1- Operate as instructed in steps 1to3 “Starting the engine”.
2- Turn the key switch to “ON”.
3- After the warm-up indicator on the instrument panel

is off, Step the brake pedal to the floor quickly, and
turn the key switch to “Start”.





Stopping the engine


1- Put the accelerator lever to “Low”.



2- The engine will be stopped after the key switch is

turned to “OFF”.

Accelerator lever

Warm-up indicator

Driving



42





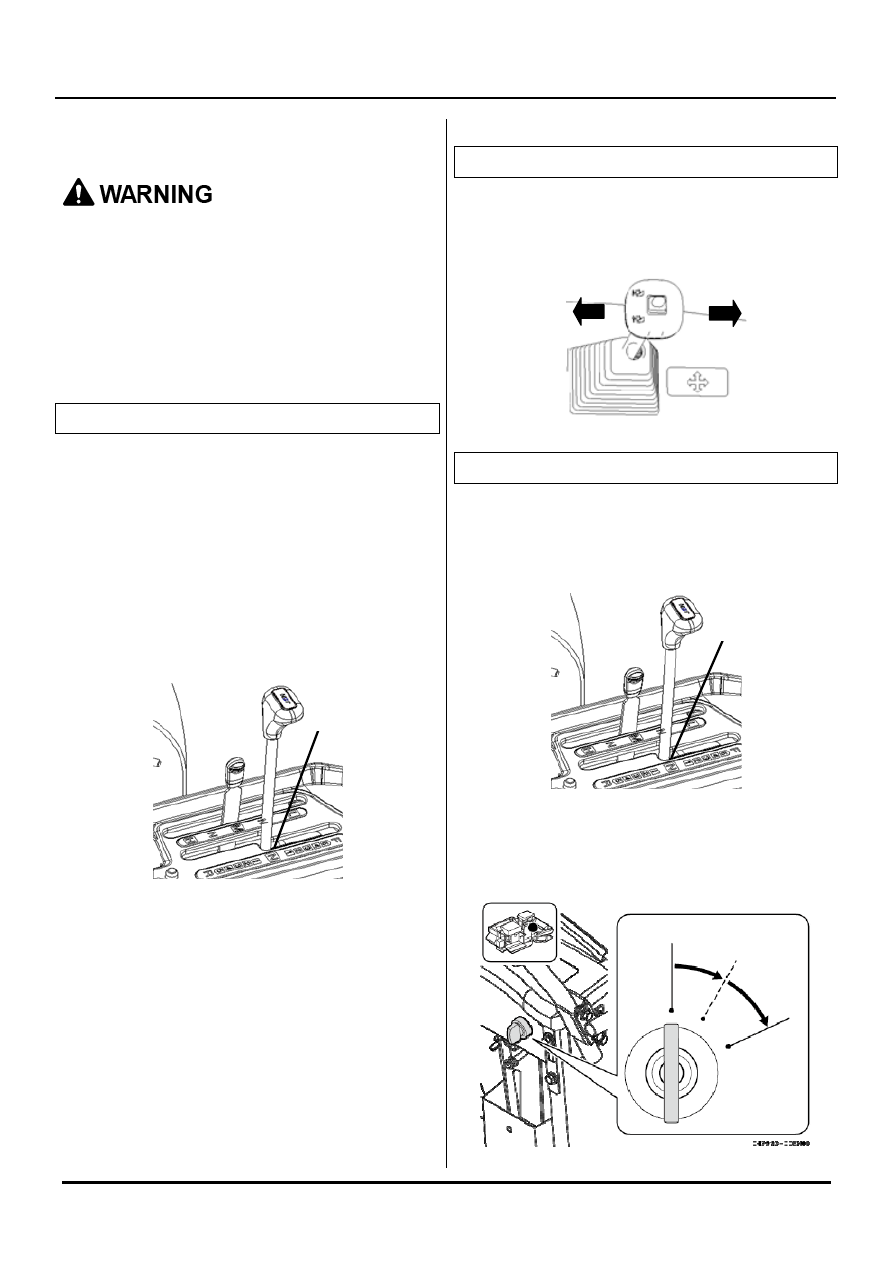

3. Starting, turning and parking



●

Check the around the machine before
starting the machine.

●

Wear the safety helmet during
operation and moving for your safety.

●

Be sure to warm up the engine after
start-up of the engine for operation
under low temperature.



Starting


1- Start the engine.
2- Increase the engine speed by the accelerator lever.
3- Raise the header.
4- Put the range shift lever to the appropriate position.

  Operate the main shift lever and range shift lever

only after the engine speed is over 1600 rpm.


5- Push forward the main shift lever from “N” slowly to

move the machine.





[Precaution]
Move the main shift lever from “Forward” to
“Reverse” or from “Reverse” to “Forward” after the
machine is completely stopped. The machine may
be damaged if the lever is operated before the
machine is completely stopped.









Turning



Move the steering lever to the side of turning, and the
machine will turn to the corresponding direction.





Stopping and parking



1- Put the main shift lever to “N”.
2- Put the range shift lever to “N”.




3- Lower down the header.
4- Pull the accelerator lever to “Low”.
5- The engine will be stopped after the key switch is

turned to “OFF”.



Neutral
Position

Turn

Right

Turn

Left

Neutral
Position

OFF

ON

START

UP

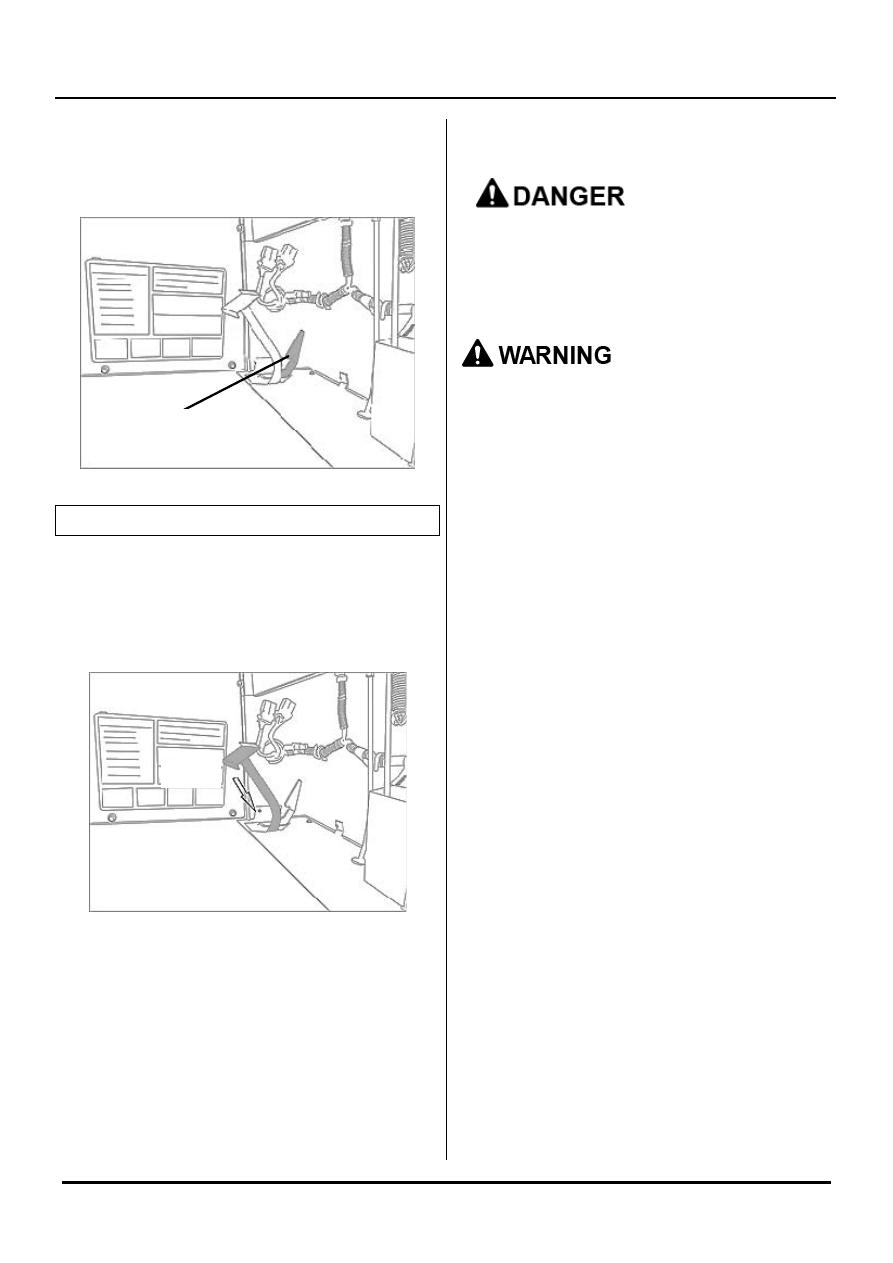

Driving



43




6- Turn off the key for your safety.
7- Be sure to engage the brake pedal lock before

leaving the combine.





Emergency stopping

1- If emergency stopping is required while the main

shift lever is in “Forward” or “Reverse”, step the
brake pedal to the floor, and the machine will be
stopped.

  The linked main shift lever and brake pedal will

return to “N” automatically.





[Precaution]





Main shift lever can not return to “N”, and the
machine can not be stopped if the brake pedal
is not stepped to the floor.





Emergency stopping has only the function of a
traveling. Neither a threshing part nor a header
part stops.







4. Traveling





The center of gravity of this machine rises
when there is a paddy in the grain tank,
there is fear of the fall, and it is very
dangerous. Empty the tank.





●

No person other than the driver is
allowed to get on the machine.

●

Do not drive the machine on a ground
with an inclination over 10 degrees in
the four directions. Otherwise, the
machine may fall over.

●

Check the surroundings before starting.

●

Wear the safety helmet for your safety.

●

Pay full attention to the road side and drive
slowly on a slope, narrow road or those
road segments with thick growth of grass.

●

When changing the direction of
traveling, be sure to give hand signals,
and notify the moving direction of
others or the machine.

●

Avoid long-distance traveling that may
cause damage to the crawler.


1- Fold the co-worker backrest upward and retract it.
2- Withdraw the assist grain deck.
3- Put the threshing clutch lever and header clutch

lever to “OFF”.

4- Raise the engine speed by the accelerator lever.

[Precaution]
Be sure to adjust the engine speed to the point that
tachometer hand falls in the “Green Zone”. Otherwise,
the machine may be damaged.

5- Raise the header from the ground to 30cm or more..
6- Put the main shift lever to “N” and the auxiliary lever

to the appropriate position.

7- Check the surroundings when starting, push forward

the main shift lever slowly to raise the speed
gradually.

Brake pedal lock



Step



Driving



44





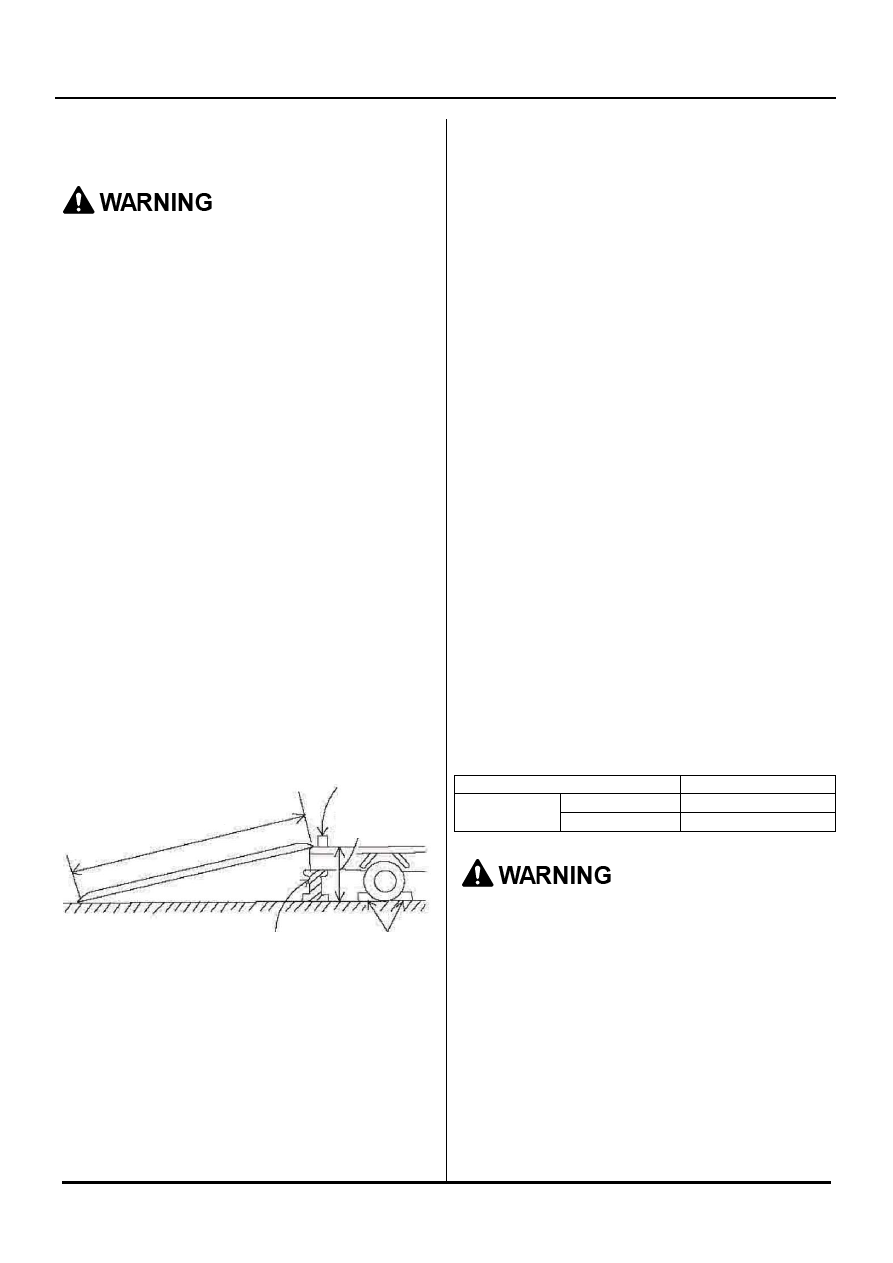

5. Loading/unloading on truck







●

Do not change the moving direction on
gangplank. Otherwise, the track may
break away from the gangplank to cause
fall-over.



●

An even and safe place without
hazardous materials around should be
selected for loading/unloading.



●

Secure the ramp boards hook to avoid
height difference with the truck body.



●

Do not stand in front of or behind the
combine to prevent dangers caused by
sudden sliding.



●

Be careful of the sudden change in gravity
center when the combine crosses the
joint between gangplank and truck.
The machine may fall over especially
when the moving speed is high. So put
the auxiliary shift lever to “Low” and
move slowly.
(Preparation of truck)



●

The parking brake of truck should be
locked, and anti-skid devices be placed
against the wheels.













Use proper saddle to support the rear part
of truck body to ensure the body strength.









Gangplank specification
Length: Over 4 times of truck body
height
Width: Over 45cm
Strength: Able to bear loads over
3000kg
Surface should be roughened and can
not be too smooth. There should be no
sharp angles to prevent damaging the
track.



[Note]







Operate as specified for traveling above.





Put the range shift lever to “Low”.





Be sure to adjust the engine speed of the
tachometer in the “Green Zone”.





Perform loading/unloading slowly in the direction of
lamp boards. Return to original position and adjust
the direction of the track deviates from the lamp
boards.





Step the brake pedal to the floor in case of sudden
stalling of engine or emergency stop.





Step the brake pedal and apply the pedal lock after
loading on truck. Fold the sunshade after engine
stalling.





Perform loading/unloading in the moving directions
listed below.



 Moving

direction

Traveling

direction

Loading Forward

Unloading Reverse





●

Secure a strong rope on the “rope hook”
of the combine.



●

Be sure to keep the traveling direction of
combine in line with the direction of lamp
boards to make the track pass through
the center of lamp boards during
unloading of the combine. Additionally,
unload the combine slowly.















Over 4times of the

truck body height

Square rod

Truck body

height



Saddle



Anti-skid

device
