Function of parts



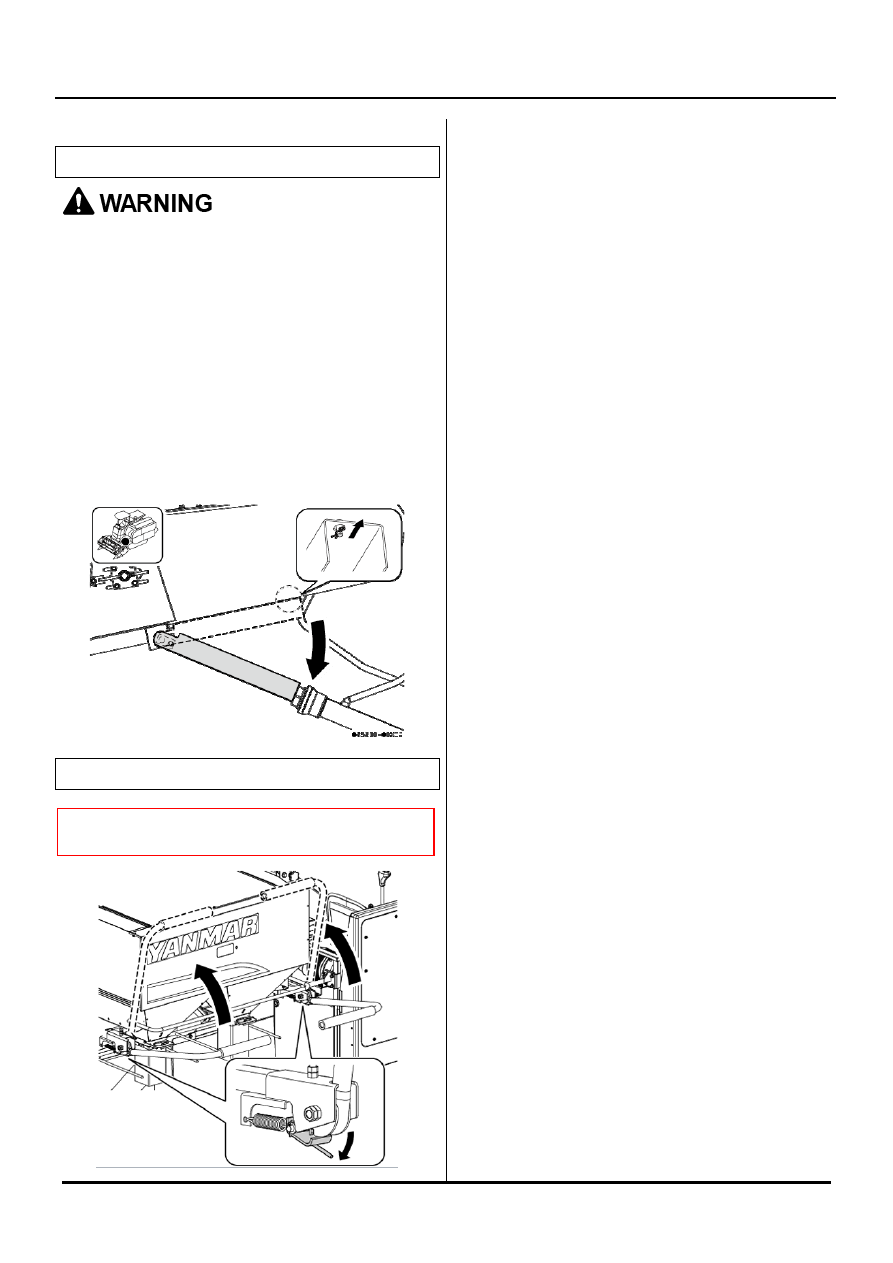

37





3



Safety lock of header





When checking, maintaining and adjusting
the lifted header, be sure to use the safety
lock to prevent unexpected fall of the
header. Otherwise, personal injury may be
caused.




[Precaution]





Raise the header to the highest position.





Pull of the pin on one end of the safety lock,
and secure the end on one end of the oil
cylinder shell.





Replace the lock after inspection, maintenance
and adjustment.







4



Co-worker backrest




Press the fixing lever and pull down the backrest to the
setting position.







Lock

Driving



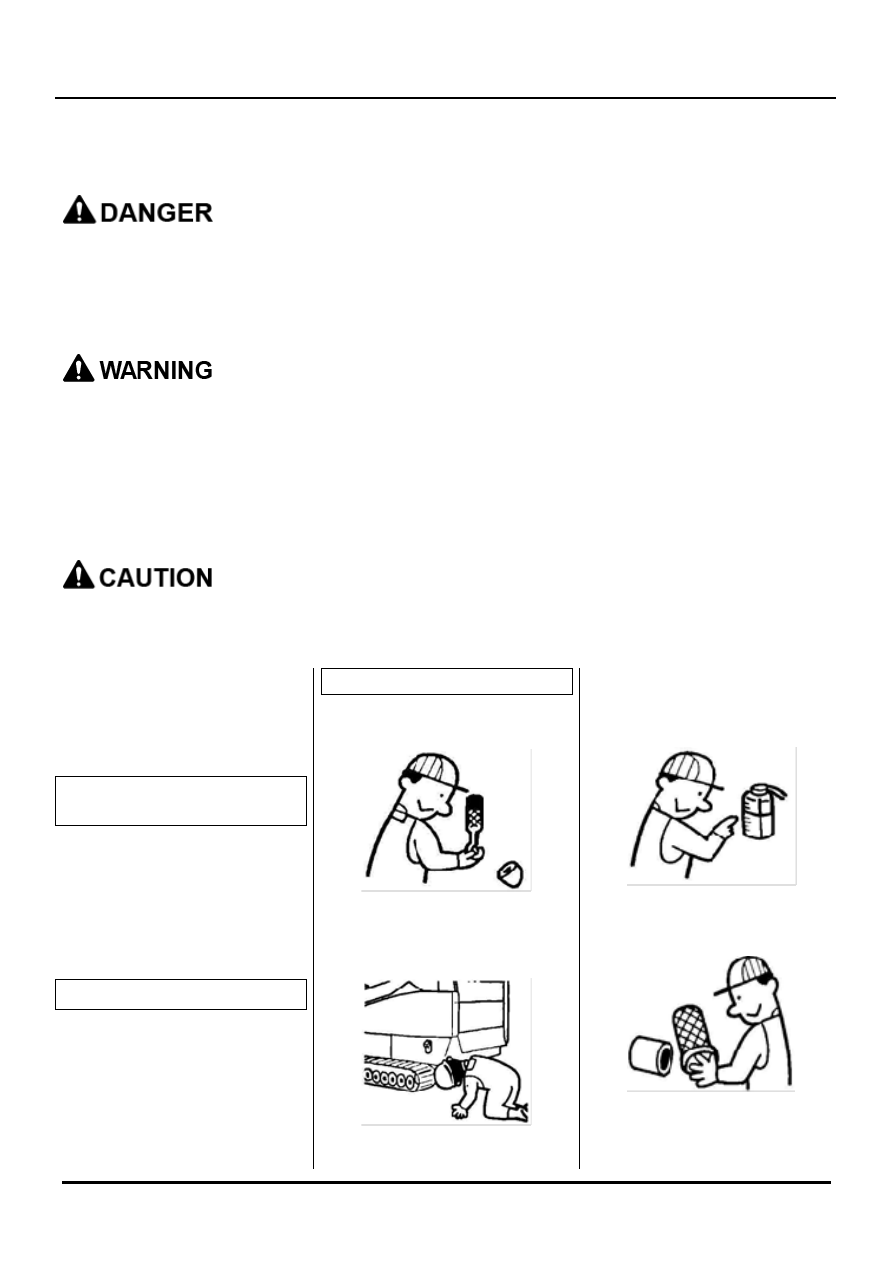

38




1. Pre-operation checks









●

Never refuel or lubricate with the engine at high temperature.

●

Keep all smoking and naked bulbs away while handling fuel.

●

Shut the fuel cap and wipe off spilled fuel immediately, when refilled.
Otherwise, fuel or oil may catch and cause a fire.





●

Be sure to turn off the engine, and lock the brake pedal before check and
maintenance.

●

When checking and maintaining and adjusting, put the machine on a firm level
surface. Otherwise, it may result in injury.

●

When checking and maintaining and adjusting, stop the engine and apply
parking-brake. Otherwise, it may result in injury by rolled in.





●

Install covers that were once removed for checking.
Otherwise, it may result in injury by rolled in.


Check the machine before daily
operation to ensure safe and
comfortable work.
Check in the following order:

1  Abnormal parts in previous

day

In case of any abnormal parts in
the previous day, check whether
they will affect operation.
Perform check, maintenance or
repair of the abnormal parts before
operation.

2 Around

the

machine

●

Check any damaged or
contaminated parts and
loose bolts.

●

Clean and check tension of
the track section, and add
lubricant.





3 Operation the engine room

●

Quantity, cleanness and
leakage of engine oil.





●

Fuel quantity and leakage or
water leakage if any.



●

Cooling water quantity and
leakage, and any damage to
the hose.



●

Dirt in the air filter and
pre-cleaner of engine.







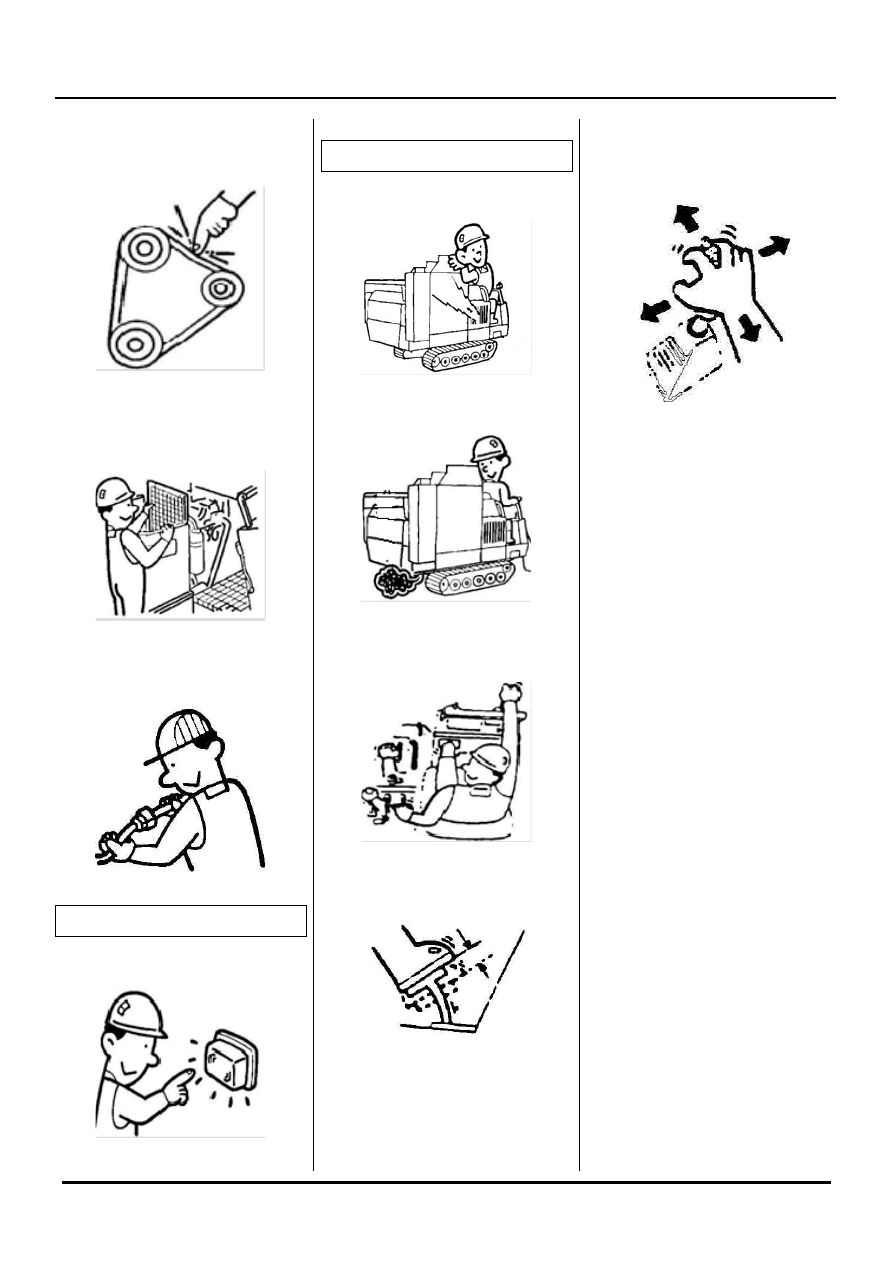

Driving



39





●

Tension and damage of
cooling fan belt.





●

Dust and dust on the dust
screen of radiator, oil cooler
and in the engine body.





●

Damage of wire harness and
loose connection





4 Operator’s

seat

●

Functioning of indicators,
instruments and switches







5  Starting the engine

●

Abnormal sound after
start-up of engine





●

Color of exhaust gas





●

Functioning of clutches and
switches





●

Functioning of brake pedal







●

Functioning of steering lever





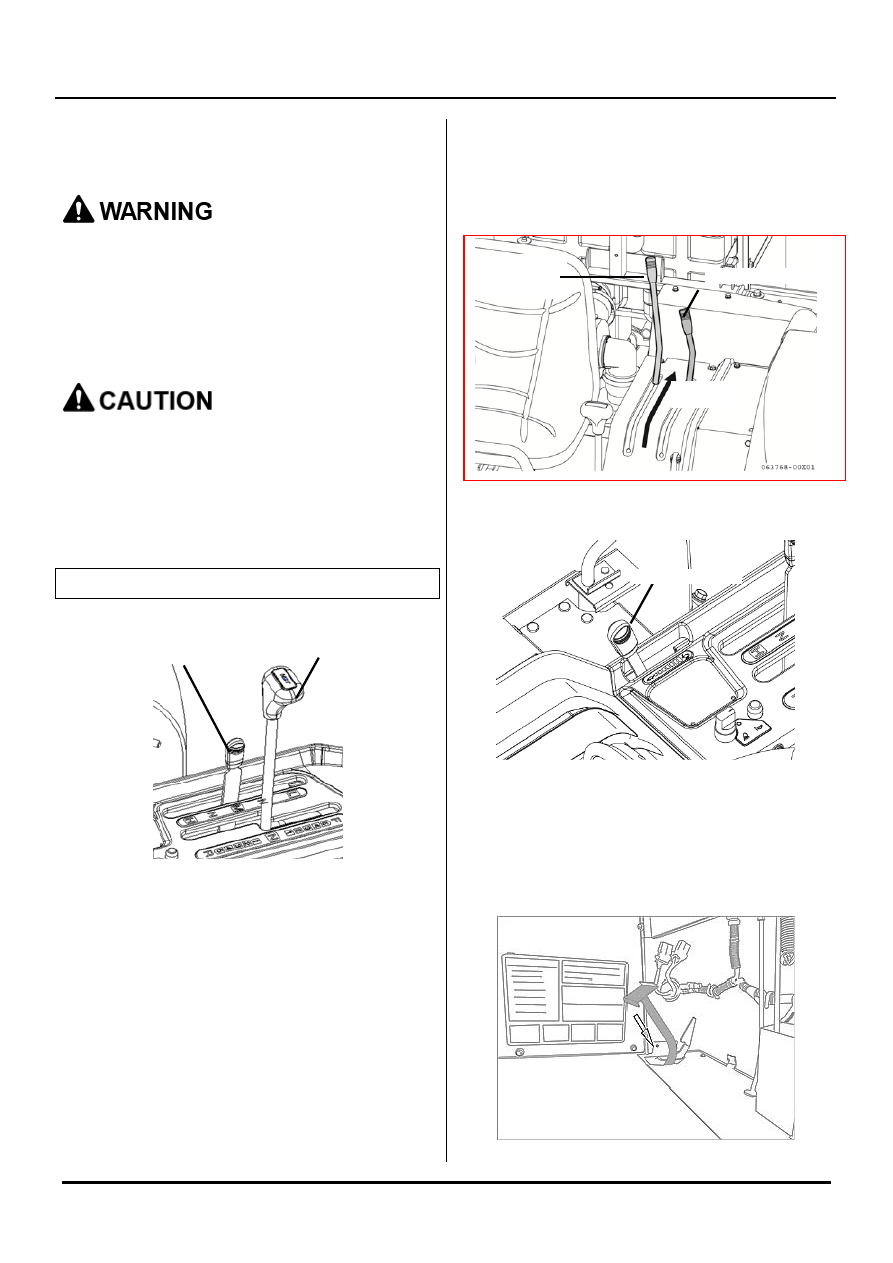

Driving



40




2. Starting and stopping the engine







●

Low-speed drive, and start rapidly or
neither rapid turn nor never stop
rapidly.

●

Do not high-speed drive in the road
where a lot of slopes, ruggedness, and
curves exist.



●

When starting, it signals to
surroundings, and it starts while
confirming safety slowly.

●

When being working and moving, the
helmet is worn for safety.



Starting the engine

1- Put the main shift lever and range shift lever to “N”.




















2- Pull the threshing clutch lever and header clutch

lever to “OFF”.



The engine cannot be started up if the two levers
are set in the “ON” position.





3- Set the accelerator lever to “Low”.




4- Step the brake pedal to the floor, and pull the key

switch to “Start”.



The safety switch will not work and the engine can
not be started up if the brake pedal is not stepped
to the floor.



Main shift lever

Range shift lever

Header clutch lever

Threshing
clutch lever

OFF

Accelerator lever
