Engine Components

Sensor Location

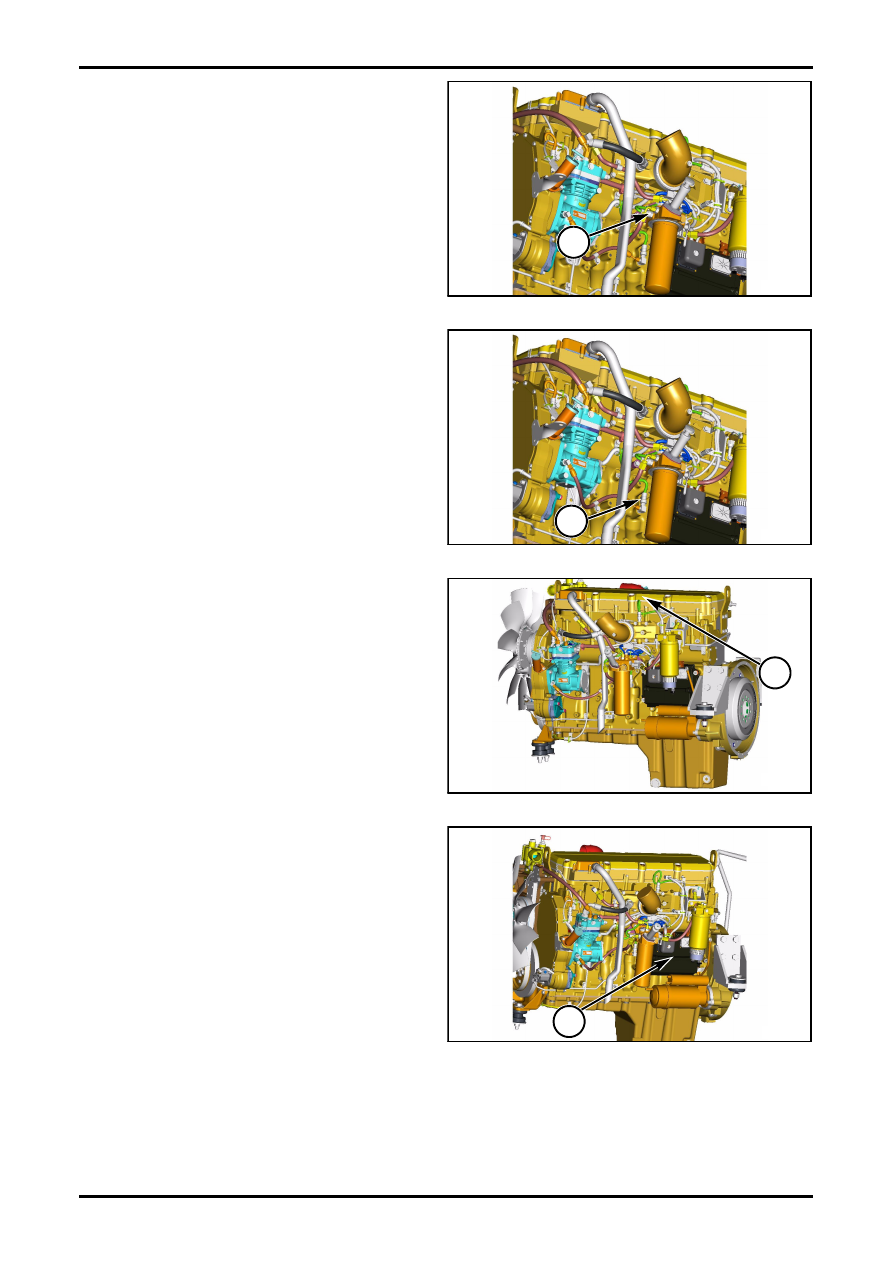

FIG. 4:

1. Crankshaft Speed/Timing Sensor;

FIG. 5:

2. Camshaft Speed/Timing Sensor;

FIG. 6:

3. Timing Cal probe, Adapter, Cable;

FIG. 7:

4. Fuel Temperature Sensor

FIG. 4

Q000020S

1

FIG. 5

Q000021S

2

FIG. 6

Q000024S

3

FIG. 7

Q000024S

4

Engine Components

2-8

627333-A

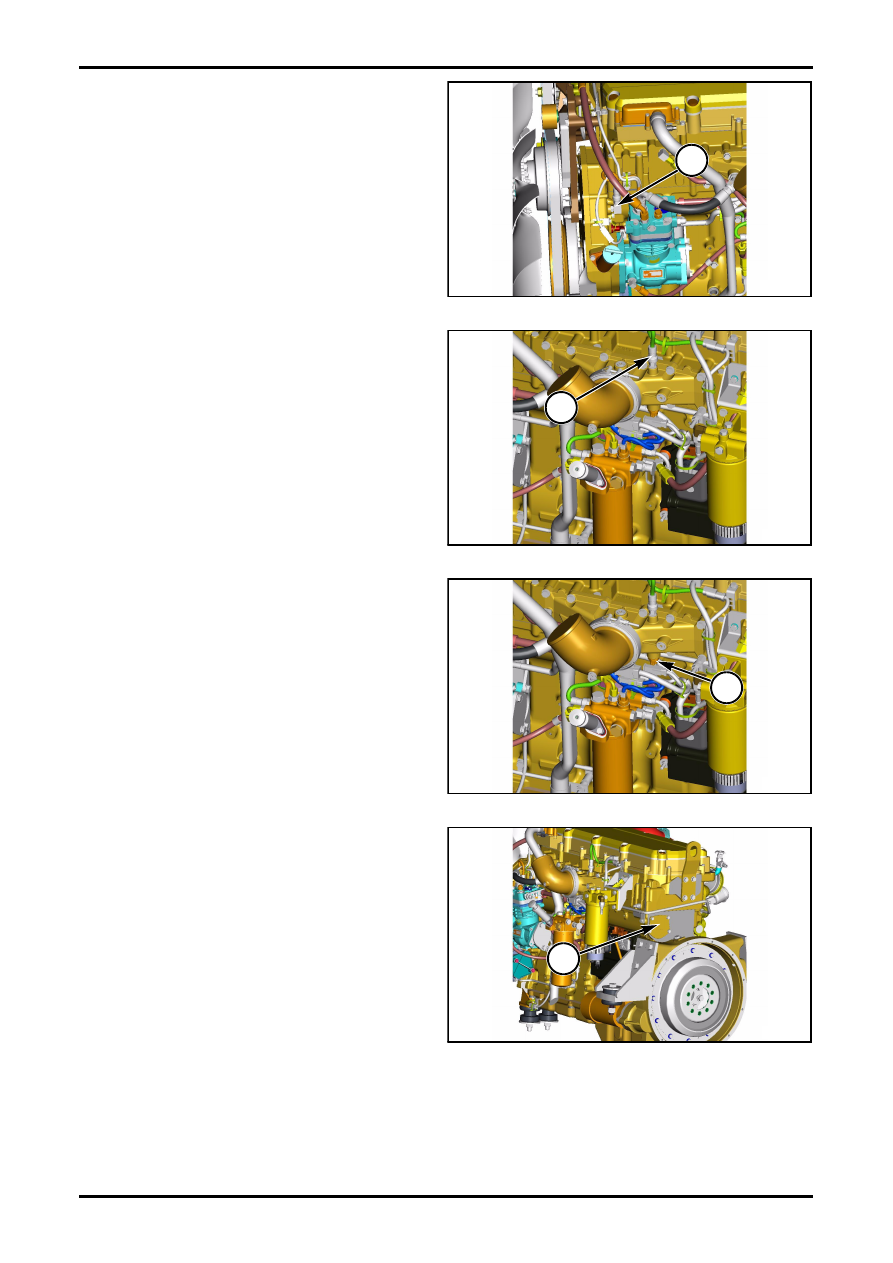

FIG. 8:

5. Atmospheric Pressure;

FIG. 9:

6. Intake Manifold (boost) Pressure;

FIG. 10:

7. Intake Manifold Air Temperature;

FIG. 11:

8. Coolant Temperature;

FIG. 8

Q000021S

5

FIG. 9

Q000024S

6

FIG. 10

Q000024S

7

FIG. 11

Q000026S

8

627333-A

2-9

Engine Components

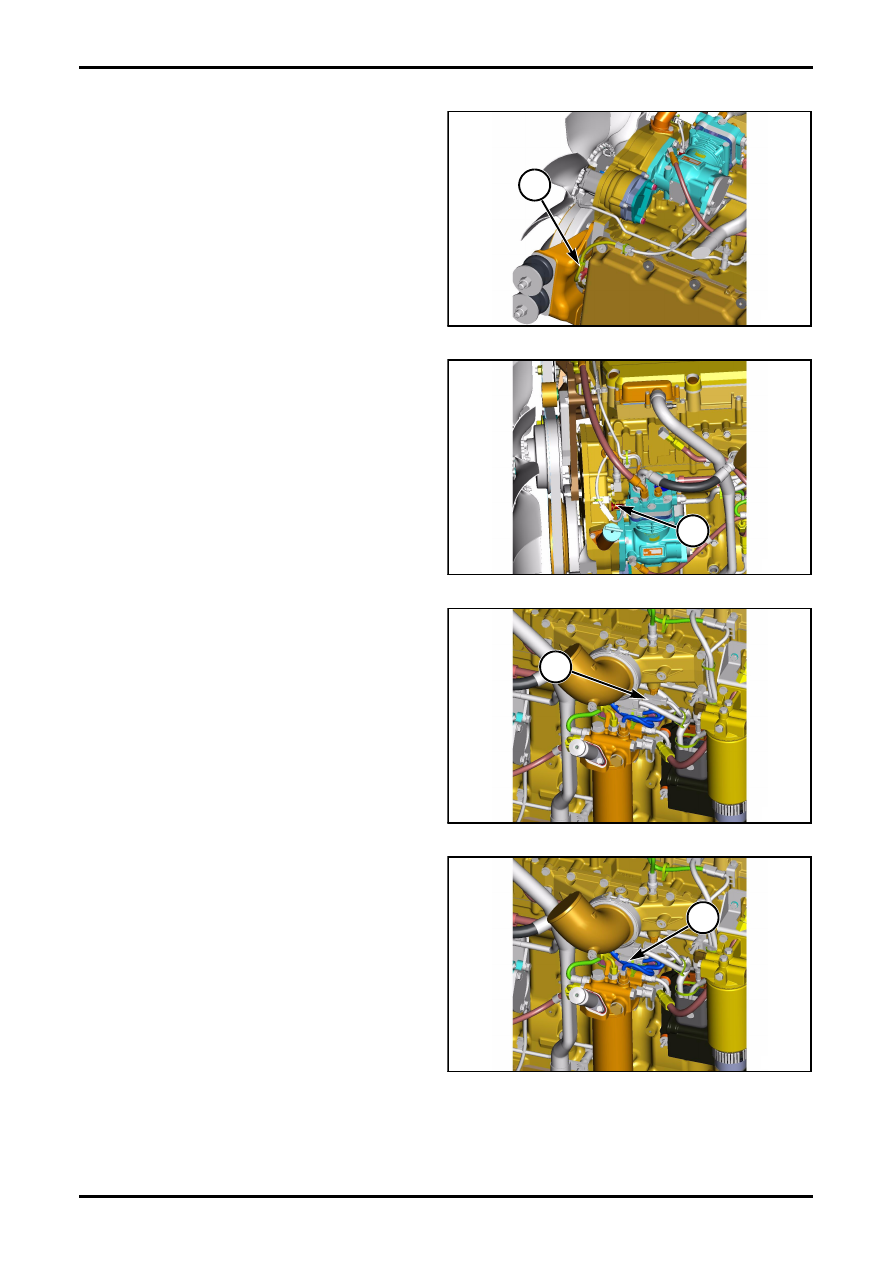

FIG. 12:

9. Fuel Pressure;

FIG. 13:

10. Oil Pressure;

FIG. 14:

11. Injectors;

FIG. 15:

12. ECU.

FIG. 12

Q000023S

9

FIG. 13

Q000023S

10

FIG. 14

Q000016S

11

FIG. 15

Q000025S

12

Engine Components

2-10

627333-A

COOLING

m

WARNING: The cooling system operates

under pressure which is controlled by the

radiator pressure cap. Removing the cap

while the system is hot may allow the

escape of hot coolant and steam, causing

serious burns. Before you remove the

radiator cap allow the system to cool. Use

a thick cloth and turn the radiator cap

slowly to the first stops to allow pressure

to escape before fully removing the cap.

Avoid contact with coolant.

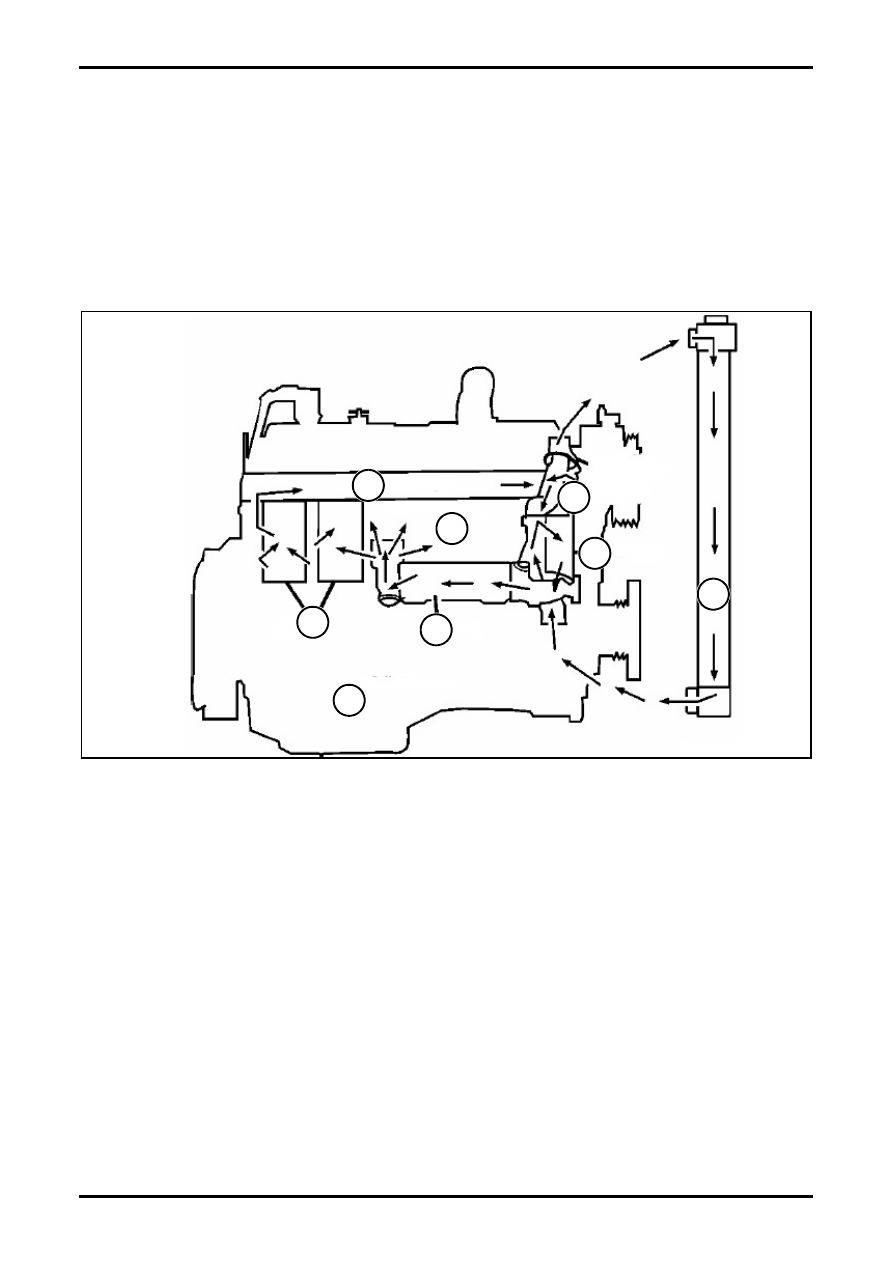

1. Cylinder Head;

2. Coolant Bypass;

3. Coolant Temprature Regulator Housing;

4. Water Pump;

5. Oil Cooler;

6. Cylinder Liners;

7. Cylinder Block;

8. Radiator.

FIG. 16

Q000018S

6

5

7

8

4

3

2

1
