Challenger Terra Gator 3244 Chassis. Manual - part 19

627333-A

2-3

Engine Components

ENGINE COMPONENTS

ENGINE COMPONENT LOCATIONS

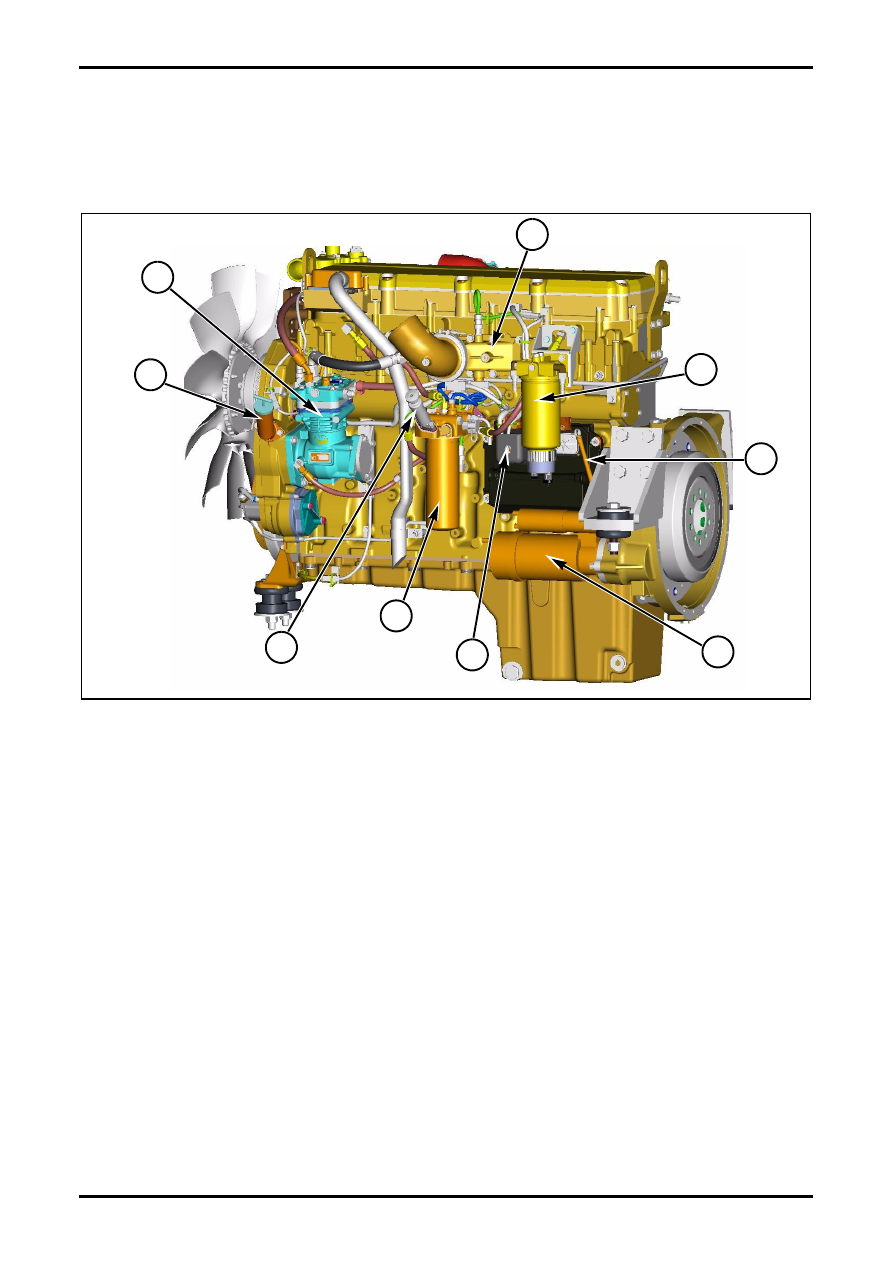

Left Side

1. Air Inlet;

2. Compressor;

3. Oil Fill Point;

4. Primary Fuel Filter;

5. Secondary Fuel Filter;

6. ECU;

7. Starter Motor;

8. Fuel Prime Pump;

9. Dipstick.

FIG. 1

Q000016S

9

1

2

3

4

5

6

7

8

Engine Components

2-4

627333-A

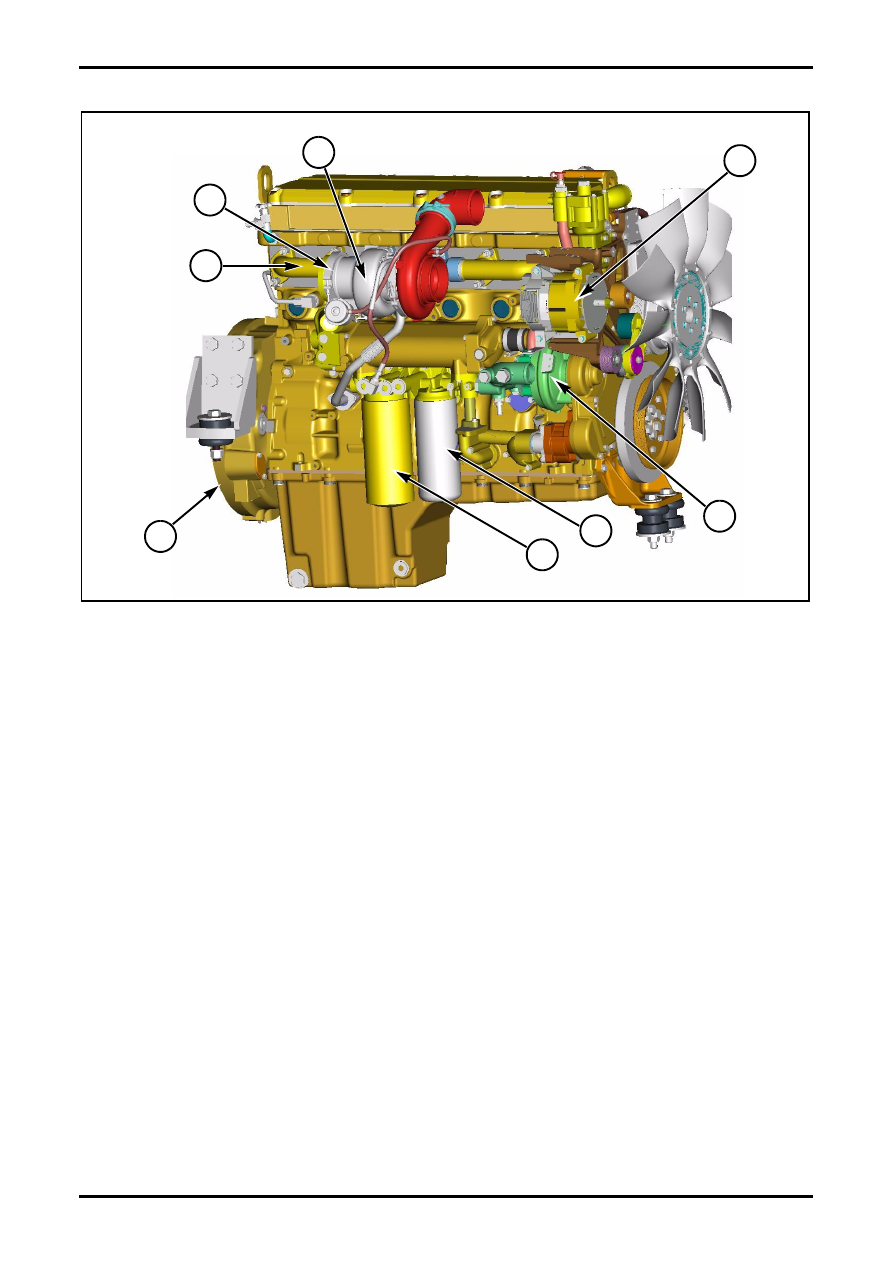

Right Side

10. Oil Filter;

11. Oil Fiter Bypass;

12. Turbo Charger;

13. Exhaust Manifold;

14. Dynamo Fix Plate;

15. Cool Water Pump;

16. Exhaust Pipe Connection;

17. Output Power to Transmission.

FIG. 2

Q000017S

16

12

13

17

14

15

11

10

627333-A

2-5

Engine Components

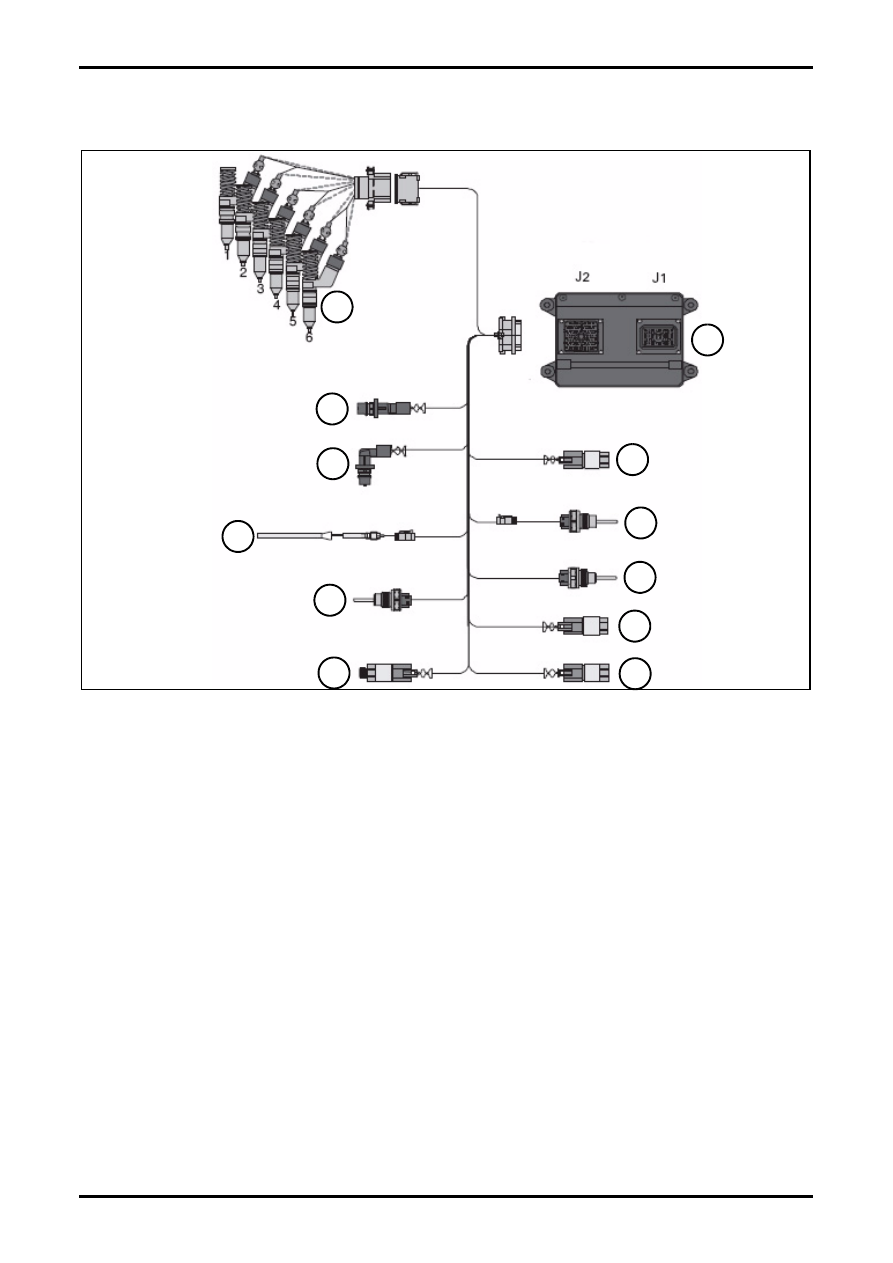

SENSOR

Sensor Overview

Senors on the engine

1. Crankshaft Speed/Timing;

2. Camshaft Speed/Timing;

3. Timing CAL probe;

4. Fuel Temperature Sensor;

5. Atmospheric Temperature Pressure;

6. Intake Manifold (boost) Pressure;

7. Intake Manifold Air Pressure;

8. Coolant Temperature;

9. Fuel Pressure Sensor;

10. Oil Pressure;

11. Injectors;

12. ECU.

FIG. 3

Q000027S

11

1

2

3

4

5

10

9

8

7

6

12

Engine Components

2-6

627333-A

Replacement Senors

m

WARNING: Ensure that the engine can

not be started while this maintenance is

being performed.

Hot engine components can cause burns.

Allow additional time for the engine to

cool before measuring/adjusting valve

lash clearance.

m

WARNING: Personal injury can result

from fluid pressure and hot oil.

Hydraulic oil pressure can remain in the

hydraulic system after the engine has

been stopped. Serious injury can be

caused if this pressure is not released

before any service is done on the

hydraulic system.

Make sure all of the attachments have

been lowered, oil is cool before removing

any components or lines. Remove the oil

filler cap only when the engine is

stopped, and the filler cap is cool enough

to touch with your bare hand.

Don’t use extreme forces when disconnecting or

removing a sensor.
