OptiX OSN 7500 Intelligent Optical Switching System. Technical Manual - part 3
3-14
The dimensions of the OptiX OSN 7500 subrack is 757 mm (H) x 497 mm (W) x 295
mm (D). A single empty subrack weighs 20 kg.

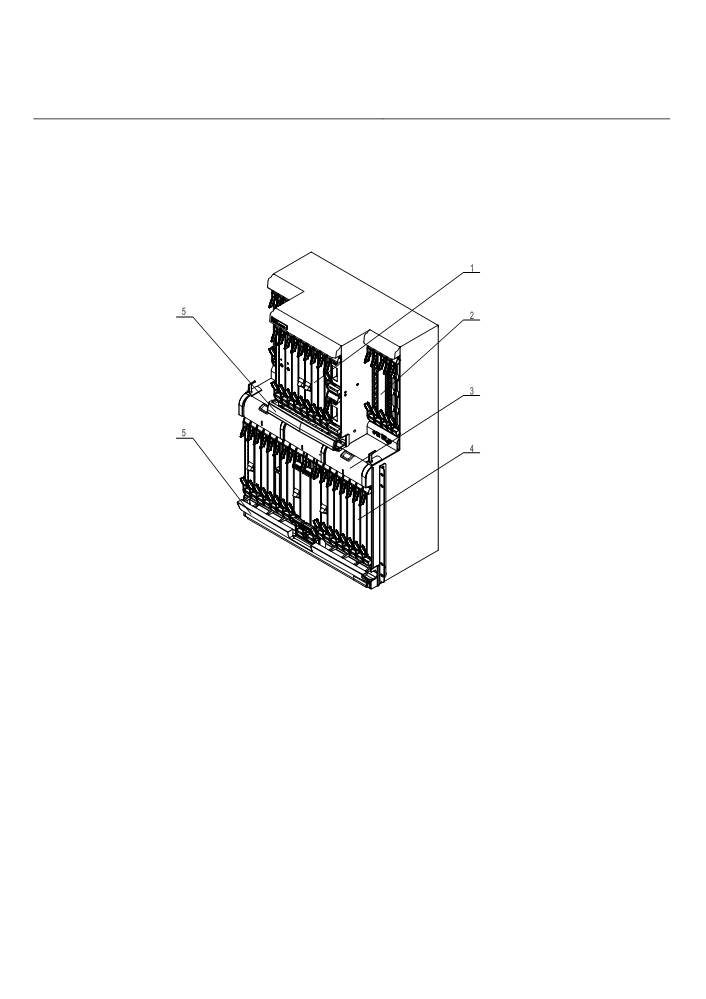

The OptiX OSN 7500 provides two-layer subracks, composed of processing board
area, interface board area, fan area, and fiber routing area, as shown in Figure 3-2.
1. Processing board area in upper layer
2. Interface board area
3. Fan area
4. Processing board area in lower layer
5. Fiber routing area
Figure 3-2 Structure of the OptiX OSN 7500 subrack
3-15
Boards
This chapter introduces the board types of the OptiX OSN 7500, and the slots in which
they can be installed. It covers:
Board type
Installation slot
4.1 Type
The OptiX OSN 7500 consists of SDH interface unit, PDH interface unit, data service
(Ethernet/ATM/SAN/Video) interface unit, SDH cross-connect matrix unit (the core
part), synchronous timing unit, SCC unit, overhead processing unit, power input unit
and auxiliary interface unit. Figure 4-1 shows the system architecture of the OptiX
OSN 7500, and Figure 4-1 shows the boards and functions of each unit. For details,
refer to OptiX OSN 7500 Intelligent Optical Switching System Hardware Description
Manual.
4-1
processing unit
STM-N
SDH interface
synchronous
External clock
optical
unit
SDH cross-connect
timing unit
signal
matrix unit
SCC
NM
PDH
PDH
signal
interface unit
Interboard
communication
and power
backup unit
Ethernet
- 48V/ -60V DC
Power input
Data service
ATM signal
unit
interface unit
SAN/Video
Auxiliary
interface unit
Service bus
Controlled bus
Input/outputsignal

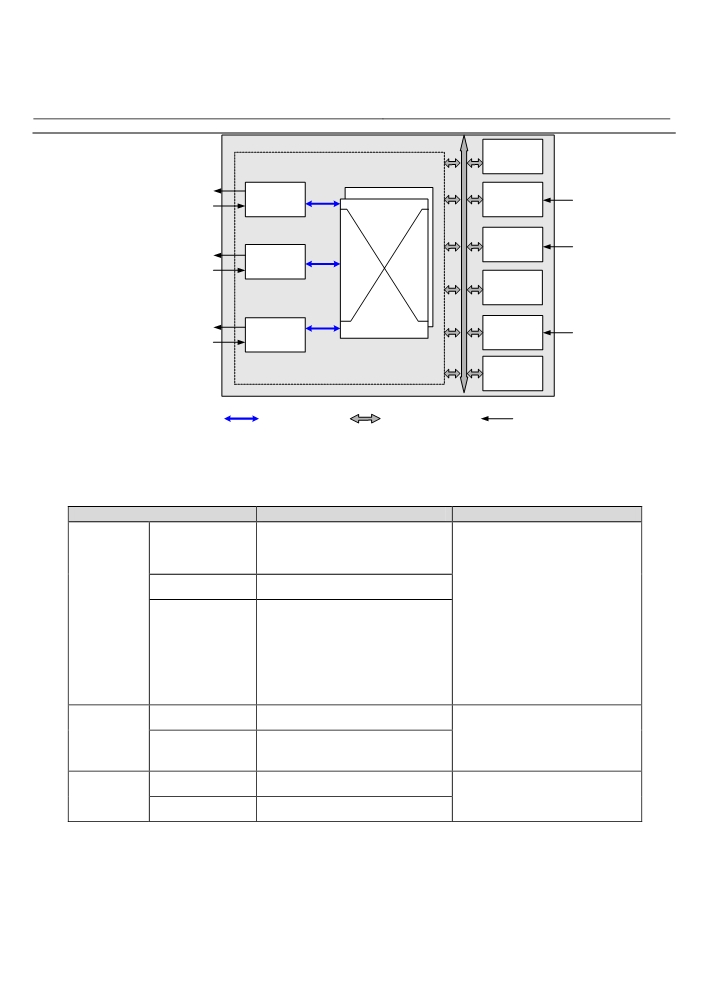

Figure 4-1 System architecture of the OptiX OSN 7500
Table 4-1 Boards and functions of the units
Unit
Constituent board
Function
SDH
Processing board
SF64, SL64, SLQ16, SF16, SL16,
Access and process
interface unit
SLQ4, SLD4, SL4, SLH1, SLT1,
STM-1/STM-4/STM-16/STM-64
SLQ1, SL1, SEP1
optical signals and
STM-4c/STM-16c/STM-64c
Interface board
EU08, EU08A, OU08, EU04
concatenated optical signals.
Protection
TSB8
Access and process
switching board
STM-16/STM-64 optical signals
with FEC.
Access and process STM-1
electrical signals, and conduct
TPS protection for them.
PDH
Processing board
SPQ4, PD3, PL3, PQ1, PQM
Access and process E1, E1/T1,
interface unit
E3/DS3, E4/STM-1 electrical
Interface board
MU04, D34S, C34S, D75S, D12S,
signals, and conduct TPS
D12B
protection for them.
Ethernet
Processing board
EGS2, EGT2, EFT8, EFS0, EFS4
Access and process
interface unit
1000BASE-SX/LX/ZX,
Interface board
ETF8, EFF8
100BASE-FX, 10/100BASE-TX
4-2
Constituent board
Function
Ethernet signals, and conduct
Protection
ETS8
TPS protection for them.
switching board
Ethernet
Processing board
EMR0, EGR2
Access and process
interface unit
1000BASE-SX/LX/ZX,
(RPR)
Interface board
ETF8, EFF8
100BASE-FX, 10/100BASE-TX
Ethernet signals. Support RPR
Protection
ETS8
and conduct TPS protection for
switching board
Ethernet signals.
ATM interface unit
ADL4, ADQ1, IDL4, IDQ1
Access and process STM-4,
STM-1 ATM signal. ID series
boards provide IMA function.
GE, SAN and Video interface unit
MST4
Access and process GE,
FC/FICON, ESCON or DVB-ASI
service.
WDM unit
MR2A, MR2C
Provide add/drop multiplexing of
any two adjacent wavelengths.
LWX
Implement conversion between
client signaling wavelengths of
any rate (10 Mbit/s to 2.7 Gbit/s
NRZ code signal) and those
wavelengths complying with
G.692 standard.
SDH cross-connect matrix unit
GXCSA, GXCSB
Implement cross connection
between the SDH and PDH/data
Synchronous timing unit
signals and provide the
equipment with system clock.
SCC unit
GSCC
Provide interface for connecting
the equipment with the NM
Overhead processing unit
system and process the overhead
of SDH signals.
Support intelligent feature.
Power input unit
PIU
Provide power supply and protect
the equipment against abnormal
power.
Inter-board communication and
AUX
Implement centralized power
power backup unit
backup function and provide
auxiliary interfaces externally (F1,
alarm and external clock).
EOW
Implement communication
between boards and provide
4-3
Constituent board
Function
auxiliary interfaces externally
(orderwire, broadcast, external
clock).
Fan unit
FANA
Dissipate heat for the system.
Other
Optical booster
BA2, BPA
Amplify or pre-amplify the optical
functional
amplifier board
power.
units
Case-basedoptical
61COA and 62COA
Amplify the optical power and
amplifier
installed in the cabinet.
Dispersion
DCU
Compensate dispersion for
compensation
STM-64 optical signals.
board
4.2 Slot

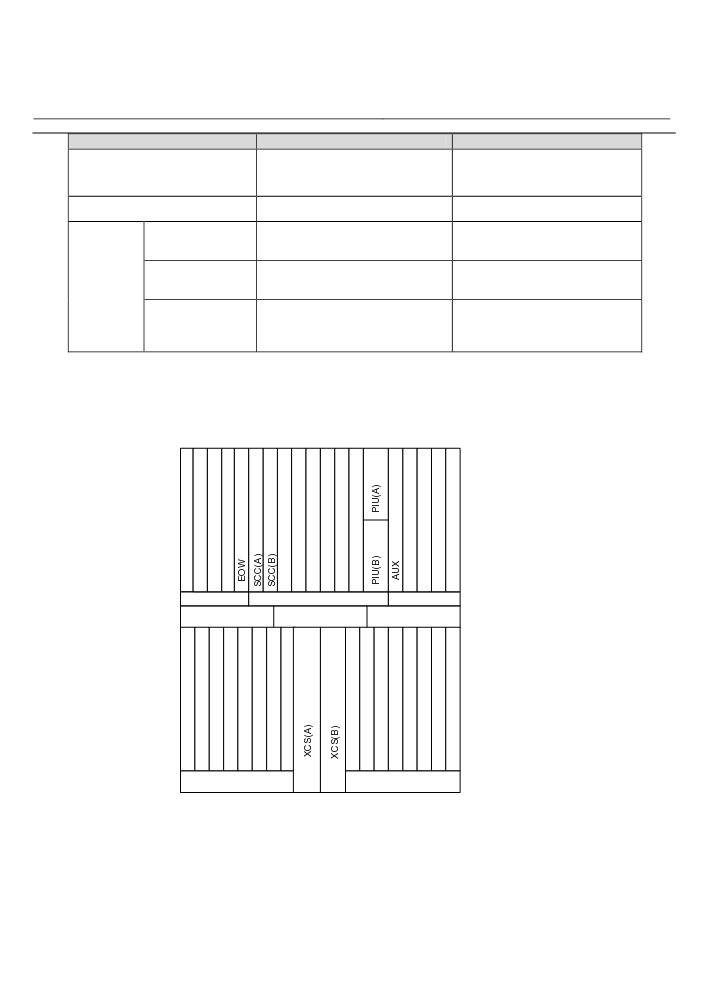

Figure 4-2 shows the slot layout of the OptiX OSN 7500.
S
S
S
S
S
S
S
S
S
S
S
S
S
SLOT
S
S
S
S
S
L
L
L
L
L
L
L
L
L
L
L
L
L
32
L
L
L
L
L
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
T
T
T
T
T
T
T
T
T
T
T
T
T
T
T
T
T
T
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
9
0
1
2
3
4
5
6
7
8
9
0
1
4
5
6
7
8
SLOT
33
Fiber routing
Fiber routing
Fiber routing
FAN
FAN
FAN
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
T
T
T
T
T
T
T
T
T
T
T
T
T
T
T
T
T
T
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
0
1
2
3
4
5
6
7
8
Fiber routing
Fiber routing
(A) in the figure means primary board and (B) is standby one.
4-4
Table 4-2 shows the paired slots of the OptiX OSN 7500.
Table 4-2 Paired slots of the OptiX OSN 7500
Cross connect capacity
Paired slots
Upper layer of subrack
(slot 8, slot 11), (slot 7, slot 12), (slot 6, slot 13), (slot 5, slot 14),
(slot 4, slot 15), (slot 3, slot 16), (slot 2, slot 17), (slot 1, slot 18)
Lower layer of subrack
(slot 26, slot 27), (slot 28, slot 29), (slot 30, slot 31)
4.2.1 SDH Interface Unit
Table 4-3 shows SDH processing boards and their available slots, and Table 4-4
shows SDH interface boards and their available slots.
Table 4-3 SDH processing boards and slots available
Board
Full name
Slots available
Outlet mode
Interface type
Connector
SF64
STM-64 (with
slot 4-slot 8,
Led out from
Support fixed
LC
FEC) optical
the front panel
wavelength output
slot 11-slot 16,
interface board
and Ue-64.2c,
Ue-64.2d
slot 26-slot 31
SL64
STM-64 optical
slot 3-slot 8,
Led out from
Support fixed
LC
interface board
the front panel
wavelength output
slot 11-slot 16,
and I-64.1, S-64.2b,
L-64.2b, Le-64.2,
slot 26-slot 31
Ls-64.2, V-64.2b
SLQ16
4 x STM-16
slot 3-slot 8,
Led out from
Support fixed
LC
optical interface
the front panel
wavelength output
board
slot 11-slot 16,
and I-16, S-16.1,
L-16.1, L-16.2
slot 26-slot 31
SF16
STM-16 (with
slot 3-slot 8,
Led out from
Support fixed
LC
FEC) optical
the front panel
wavelength output
slot 11-slot 16,
interface board
and Ue-16.2c,
Ue-16.2d, Ue-16.2f
slot 26-slot 31
4-5
Full name
Slots available
Outlet mode
Interface type
Connector
SL16
STM-16 optical
slot 3-slot 8,
Led out from
Support fixed
LC
interface board
the front panel
wavelength output
slot 11-slot 16,
and I-16, S-16.1,
L-16.1, L-16.2,
slot 26-slot 31
L-16.2Je, V-16.2Je ,
U-16.2Je
SLQ4
4 x STM-4 optical
slot 3-slot 8,
Led out from
I-4, S-4.1, L-4.1, L-4.2,
LC
interface board
the front panel
Ve-4.2
slot 11-slot 16,
slot 26-slot 31
SLD4
2 x STM-4 optical
slot 1-slot 8,
Led out from
I-4, S-4.1, L-4.1, L-4.2,
LC
interface board
the front panel
Ve-4.2
slot 11-slot 18,
slot 26-slot 31
SL4
STM-4 optical
slot 1-slot 8,
Led out from
I-4, S-4.1, L-4.1, L-4.2,
LC
interface board
the front panel
Ve-4.2
slot 11-slot 18,
slot 26-slot 31
SLQ1
4 x STM-1 optical
slot 1-slot 8,
Led out from
I-1, S-1.1, L-1.1, L-1.2,
LC
interface board
the front panel
Ve-1.2
slot 11-slot 18,
slot 26-slot 31
SLH1
16 x STM-1 line
slot 2-slot 3,
Led out from
I-1.1, S-1.1 or 75 ohm
SC, LC and
processing board
the interface
STM-1 electrical
SMB
slot 17-slot 18
board
interface
SLT1
12 x STM-1
slot 1-slot 8,
Led out from
Ie-1, I-1.1, S-1.1,
LC
(Note1)
optical interface
the front panel
L-1.1, L-1.2, Ve-1.2
slot 11-slot 18,
board
slot 26-slot 31
SL1
STM-1 optical
slot 1-slot 8,
Led out from
I-1, S-1.1, L-1.1, L-1.2,
LC
interface board
the front panel
Ve-1.2
slot 11-slot 18,
slot 26-slot 31
SEP1
STM-1 line
slot 1-slot 8,
Led out from
75 ohm STM-1
SMB
(Note 2)
processing board
the front panel
electrical interface
slot 11-slot 18,
slot 26-slot 31
4-6
Full name
Slots available
Outlet mode
Interface type
Connector
SEP
STM-1 line
slot 2-slot 3,
Led out from
I-1, S-1.1 optical
LC, SC and
(Note 2)
processing board
the interface
interface and 75 ohm
SMB
slot 17-slot 18
board
STM-1 electrical
interface
BA2/
Optical booster
slot 1-slot 8,
Led out from
—
LC
amplifier
the front panel
BPA
board/optical
slot 11-slot 18,
booster &
slot 26-slot 31
pre-amplifier
DCU
Dispersion
slot 1-slot 8,
Led out from
—
LC
compensation
the front panel
slot 11-slot 18,
board
slot 26-slot 31
Note1: If the number of optical interfaces used by the SLT1 is more than eight, the SLT1 can only be iserted in slot 3-slot 8, slot
11-slot 16, or slot 26-slot 31.
Note 2: The SEP1 and SEP are the boards of the same type. They are displayed as “SEP” on the T2000 when used with the
interface board, or “SEP1” when the signal is directly led out from the front panel.
Table 4-4 SDH interface boards and their available slots
Board
Full name
Available slot
Interface type
Used with
EU08
8 x STM-1 electrical
slot 19-slot 22, slot 35-slot 38
SMB
SEP
interface board
EU08A
8 x STM-1 electrical
slot 19-slot 22, slot 35-slot 38
SMB
SLH1
interface board
OU08
8 x STM-1 optical
slot 19-slot 22, slot 35-slot 38
SMB
SLH1, SEP
interface board
EU04
4 x STM-1 electrical
slot 19-slot 22, slot 35-slot 38
SMB
SEP
interface board
TSB8
8 interface switching &
slot 37 and slot 38
None
EU08, EU04 and
bridging board
SEP, SLH1
Table 4-5 shows the interface boards and their available slots.
Table 4-5 Processing board slots and corresponding interface board slots
Processing
Corresponding interface
Processing
Corresponding
board slot
board slot
board slot
interface board slot
slot 2
slots 19, 20
slot 3
slots 21, 22
slot 17
slots 35, 36
slot 18
slots 37, 38
4-7
Table 4-6 shows the PDH processing boards and their available slots, and Table 4-7
shows the PDH interface boards and their available slots.
Table 4-6 PDH processing boards and available slots
Board
Full name
Available slot
Outlet mode
Interface type
Connector
SPQ4
4 x E4/STM-1
slot 2-slot 3, slot
Led out from the
75 ohm E4/STM-1
SMB
processing board
17-slot 18
interface board
electrical interface
PD3
6 x E3/DS3
slot 2-slot 3, slot
Led out from the
75 ohm E3/DS3
SMB
processing board
17-slot 18
interface board
electrical interface
PL3
3 x E3/DS3
slot 2-slot 3, slot
Led out from the
75 ohm E3/DS3
SMB
processing board
17-slot 18
interface board
electrical interface
PQ1
63 x E1 processing
slot 1-slot 3, slot
Led out from the
120 ohm and 75
DB44
board
17-slot 18
interface board
ohm E1 interface
PQM
63 x T1/E1
slot 1-slot 3, slot
Led out from the
120 ohm E1
DB44
processing board
17-slot 18
interface board
interface and 100
ohm T1 interface
Table 4-7 PDH interface boards and their available slots
Boa rd
Full name
Available slot
Interface
Used with
type
MU04
4 x E4/STM-1 electrical
slot 19-slot 22, slot 35-slot 38
SMB
SPQ4
interface board
TSB8
8 interface switching &
slot 37-slot 38
None
MU04, D34S,
bridging board
C34S and PD3,
PL3
D34S
6 x E3/DS3 PDH interface
slot 19-slot 22, slot 35-slot 38
SMB
PD3
switching board
C34S
3 x E3/DS3 interface
slot 19-slot 22, slot 35-slot 38
SMB
PL3
switching board
D75S
32 x 75 ohm E1/T1
slot 19-slot 22, slot 35-slot 38
DB44
PQ1
interface switching board
D12S
32 x 120 ohm E1/T1
slot 19-slot 22, slot 35-slot 38
DB44
PQ1, PQM
interface switching board
4-8
Full name
Available slot
Interface
Used with
type
D12B
32 x E1/T1 electrical
slot 19-slot 22, slot 35-slot 38
DB44
PQ1, PQM
interface board
4.2.3 Data service Interface Unit
Table 4-8 shows the data service processing boards and their available slots, and
Table 4-9 shows the data service interface boards and their available slots.
Table 4-8 Data service processing boards and their available slots
Board
Full name
Slot available
Outlet mode
Interface type
Connector
EGS2
2-port Gigabit
slot 1-slot 8,
Led out from
1000BASE-SX/LX/ZX
LC
Ethernet
the front panel
interface board
slot 11-slot 18,
slot 26-slot 31
EFS0
Fast Ethernet
slot 2-slot 3,
Led out from
10/100BASE-TX
RJ-45
interface board
the interface
slot 17-slot 18
with LAN switch
board
EFS4
4-port fast
slot 1-slot 8,
Led out from
10/100BASE-TX
RJ-45
Ethernet
the front panel
slot 11-slot 18,
interface board
with LAN switch
slot 26-slot 31
EGT2
2-port Gigabit
slot 1-slot 8,
Led out from
1000BASE-SX/LX/ZX
LC
Ethernet
the front panel
transparent
slot 11-slot 18,
transmission
slot 26-slot 31
board
EFT8
8-port fast
slot 1-slot 8, slot
Led out from
10/100BASE-TX
RJ-45
Ethernet
11-slot 18, slot
the front panel
transparent
26-slot 31
transmission
board
EMR0
12 FE + 1 GE
slot 2-slot 3,
Led out from
10/100BASE-TX,
RJ-45, LC
Ethernet ring
the front panel
1000BASE-SX/LX/ZX
slot 17-slot 18
network board
or the interface
board
4-9
