OptiX OSN 7500 Intelligent Optical Switching System. Technical Manual - part 1
HUAWEI
V100R001
Summary of Updates
This section provides the update history of this manual and introduces the contents of
subsequent updates.
Update History
Manual Version
Notes
T2-040284-20050308-C-1.10
Initial field trial release
Related Manuals
Manual
Volume
Usage
OptiX OSN 7500 Intelligent Optical
System
Introduces the functionality, structure,
Switching System Technical Manual
Description
performance, specifications, and theory of
the product.
Networking and
Introduces the networking, configuration and
Application
application of the product.
OptiX OSN 7500 Intelligent Optical
Introduces the hardware of the product,
Switching System Hardware
including cabinet, subrack, power, fan,
Description Manual
board, and a variety of interfaces.
OptiX OSN 7500 Intelligent Optical
Introduces the way of data configuring on the
Switching System Service Configuration
T2000.
Guide
OptiX OSN 7500 Intelligent Optical
Guides the on-site installation of the product
Switching System Installation Manual
and provides the information of the structural
parts.
OptiX OSN 7500 Intelligent Optical
Introduces equipment commissioning
Switching System Commissioning
process, including hardware, software,
Guide
service operation.
OptiX OSN 7500 Intelligent Optical
Troubleshooting
Guides the analysis and troubleshooting of
Switching System Maintenance Manual
common faults.
Alarm and
Performance
Event
Routine
Maintenance
ix
Volume
Usage
OptiX OSN 7500 Intelligent Optical
Covers all the preceding manuals. Acrobat
Switching System Electronic
Reader is attached.
Documentation (CD-ROM)
Organization
The manual is organized as follows:
Chapter
Description
Chapter 1 Overview of
This part presents a brief introduction to the OptiX OSN 7500
the OptiX OSN 7500
and its position in the network.
Chapter 2 Functions
This part introduces the typical functions and features of the
OptiX OSN 7500.
Chapter 3 Hardware
This part introduces the mechanical structure and the
adaptable cabinet installation of the OptiX OSN 7500.
Chapter 4 Boards
This part lists all the available boards in the OptiX OSN 7500
and introduces their installation slots.
Chapter 5 Software
This part introduces the system software structure and
functions of each part.
Chapter 6 Data
This part introduces the data features, including function list,
Features
application and protection for Ethenet, RPR and ATM.
Chapter 7 Intelligent
This part introduces the intelligent features and applications of
Features
the OptiX OSN 7500.
Chapter 8 Protection
This part presents protection modes (including equipment
level and network level) and characteristics supported by the
OptiX OSN 7500.
Chapter 9 OAM
This part introduces main technical characteristics of the OptiX
OSN 7500 in terms of safe operation, maintenance and
centralized management.
Chapter 10 Technical
This chapter consolidates all technical parameters and
Specifications
specifications of the OptiX OSN 7500.
Appendix A Compliant
This chapter lists international standards to which the OptiX
Standards
OSN 7500 conforms in terms of design and performance.
Appendix B
The appendix lists all abbreviations used in the system
Abbreviations
description together with their full names to help with the
comprehension.
x
This manual is intended for:
Network planner
Network designer
Network administrator
Conventions
The manual uses the following conventions.
Symbol Conventions
Symbol
Description
A warning notice with this symbol indicates a risk of personal injury.
Warning
A caution notice with this symbol indicates a risk to equipment
Caution
damage or loss of data.
Important
An important note notice with this symbol helps you avoid an
Note:
undesirable situation or indicates important supplementary
information.
Note:
A note notice with this symbol indicates additional, helpful,
non-critical information.
xi
Overview of the OptiX OSN 7500
This chapter describes the positioning and application of the OptiX OSN 7500
intelligent optical switching system (the OptiX OSN 7500 for short) in the optical
transmission network.
The OptiX OSN 7500 is a piece of new generation equipment that Huawei develops
based on what the metropolitan area network (MAN) is like and its development trend
in the future. It is a piece of optical core switching (OCS) equipment and mainly used
on the service grooming node at the backbone layer of the MAN as an intelligent
optical switching platform. It features large switching capacity with a maximum of 240
Gbit/s higher order cross connection and 40 Gbit/s lower order cross connection.
In addition, the OptiX OSN 7500 provides intelligent features that are convenient and
flexible to implement. The intelligent features help the OptiX OSN 7500 to realize
dynamic switching and allocation of bandwidth, intelligent service routing and
end-to-end service configuration, and therefore bandwidth utilization is improved
effectively.
The OptiX OSN 7500 integrates synchronous digital hierarchy (SDH), plesiochronous
digital hierarchy (PDH), wavelength division multiplexing (WDM), Ethernet,
asynchronous transfer mode (ATM), storage area network (SAN) and digital video
broadcasting (DVB), thus capable of transmitting voice, data, SAN and video services
efficiently on the same platform.

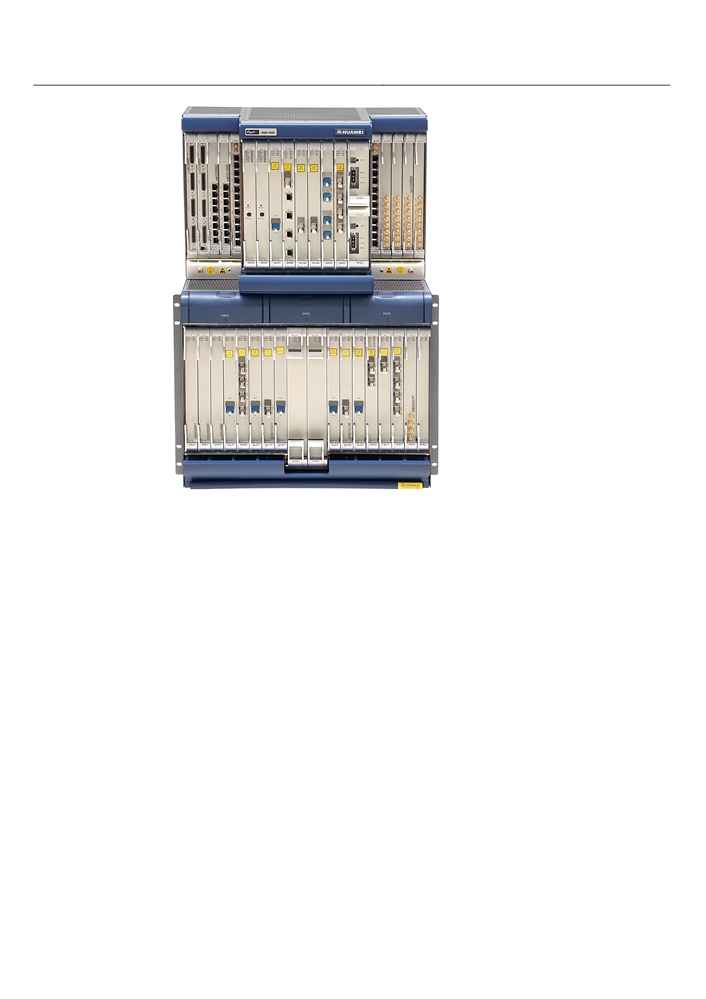

Figure 1-1 shows the outer view of the OptiX OSN 7500.
1-1
As an intelligent optical core switching system with large capacity, the OptiX OSN
7500 is mainly used at the backbone layer of the MAN to groom and transmit various
services with different granules. It is used with the OptiX OSN 9500 and OptiX OSN

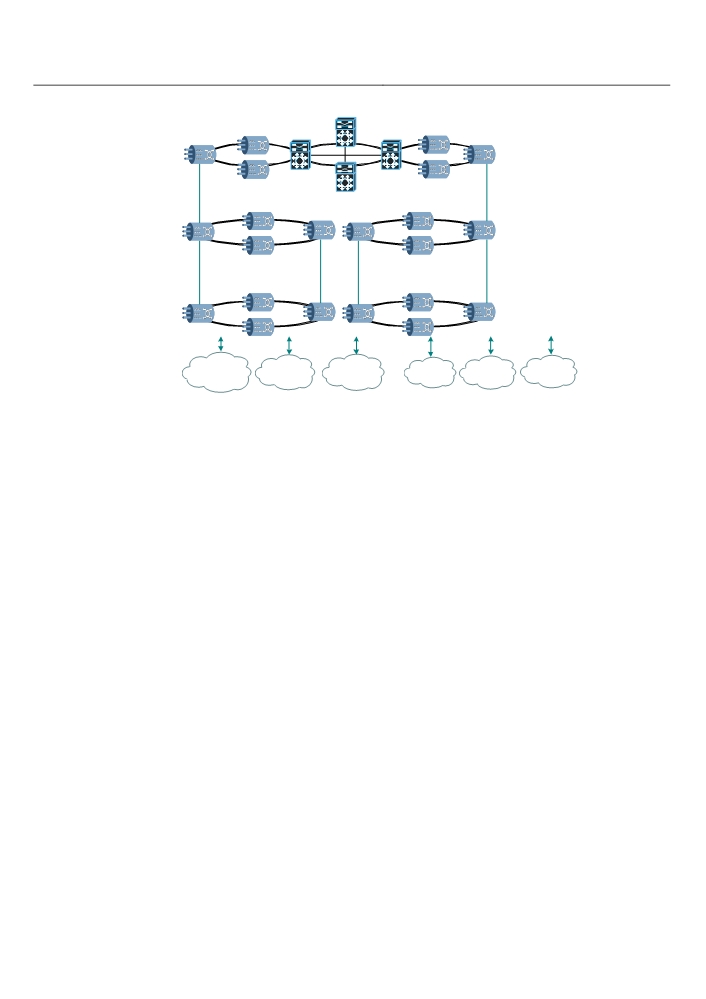

3500/2500/1500 to provide a complete MAN solution. Figure 1-2 shows how the OptiX
OSN 7500 is applied in the transmission network.
1-2
OptiX OSN 3500
OptiX OSN 3500
Backbone
layer
OptiX OSN 3500
OptiX OSN 2500
Convergence
layer
OptiX OSN 1500
OptiX OSN 2500
Access layer
GSM/CDMA/
PSTN
Ethernet . . .
ATM
DDN
SAN
WCDMA
Figure 1-2 Application of the OptiX OSN 7500 in the network
The OptiX OSN 7500 is gradually used on the core convergence node of large cities,
the optical core switching (OCS) of medium and small cities, and service grooming on
provincial trunks.
1-3
Functions
This chapter introduces the functions of the OptiX OSN 7500 as follows:
Capacity
Service
Interface
Intelligent features
Networking
Resilient packet ring
Protection
2.1 Capacity
2.1.1 Cross-Connect Capacity
The OptiX OSN 7500 provides two types of SDH cross-connect board: GXCSA and
GXCSB. Table 2-1 shows their cross-connect capacity.
2-1
Board
Higher-order
Lower-order cross-connect
Access
cross-connect capacity
capacity
capacity
GXCSA
240 Gbit/s
20 Gbit/s (128 x 128 VC-4),
200 Gbit/s
(1280 x
(1536 x 1536 VC-4)
equivalent to (8064 x 8064 VC-12)
1280 VC-4)
or (384 x 384 VC-3)
GXCSB
240 Gbit/s
40 Gbit/s (256 x 256 VC-4),
200 Gbit/s
(1280 x
(1536 x 1536 VC-4)
equivalent to (16128 x 16128
1280 VC-4)
VC-12) or (768 x 768 VC-3)
2.1.2 Slots Access Capacity
The OptiX OSN 7500 provides 22 service slots, with the maximum access capacity of
200 Gbit/s. Figure 2-1 shows the access capacity of each slot.
2-2
