                                                                                                                          2. Vehicle Body, Muffler

Front Vent Grille

Remove:



--Front fender (

2-8)

--Bumper (

2-13)

--Bolt 1, Bolt 2, Bolt 3, Bolt 4
--Front vent grille


Note: For removal of front vent grille only,

Just remove 2 fixing bolts

of bumper and 2 center fixing bolts,

then pull bumper down



Installation:

Reverse the removal procedure for installation



Fuel Tank



Warning: Gasoline is highly flammable, therefore

smoke and fire are strictly forbidden in the work place.

Special attention should also be paid to sparks.

Gasoline may also be explosive when it is vaporized,

so operation should be done in a well-ventilated place.



Remove:


--Left and right side panel (

2-6)

--Front fender (

2-8)

--Fuel tank top cover (

2-8)

--Bolt 1, Bolt 2

Disconnect 3P connectors of fuel sensor


















   2-15

                                                                                                                          2. Vehicle Body, Muffler

Remove Bolt 3, Bolt 4





Remove:
--Fuel hose I and Clamp
--Fuel tank


Installation:

Reverse the removal procedure for installation.


Note:

Be careful not to damage main cable,

pipes and hoses. Main cable, cables,

pipes and hoses should be routed properly

according to the routing drawing.

Take precaution against fuel leakage

when removing fuel Fuel Hose I



















Fuel Tank Bottom Plate,



Remove:

--Fuel tank (

2-15)

--Bolt 1
--Bolt 2
--Fuel tank top cover



Installation:

Reverse the removal procedure for installation.

Note:

Be careful not to damage main cable, pipes and hoses.

Main cable, cables, pipes should be routed properly

according to the routing drawing












2-16

                                                                                                                          2. Vehicle Body, Muffler

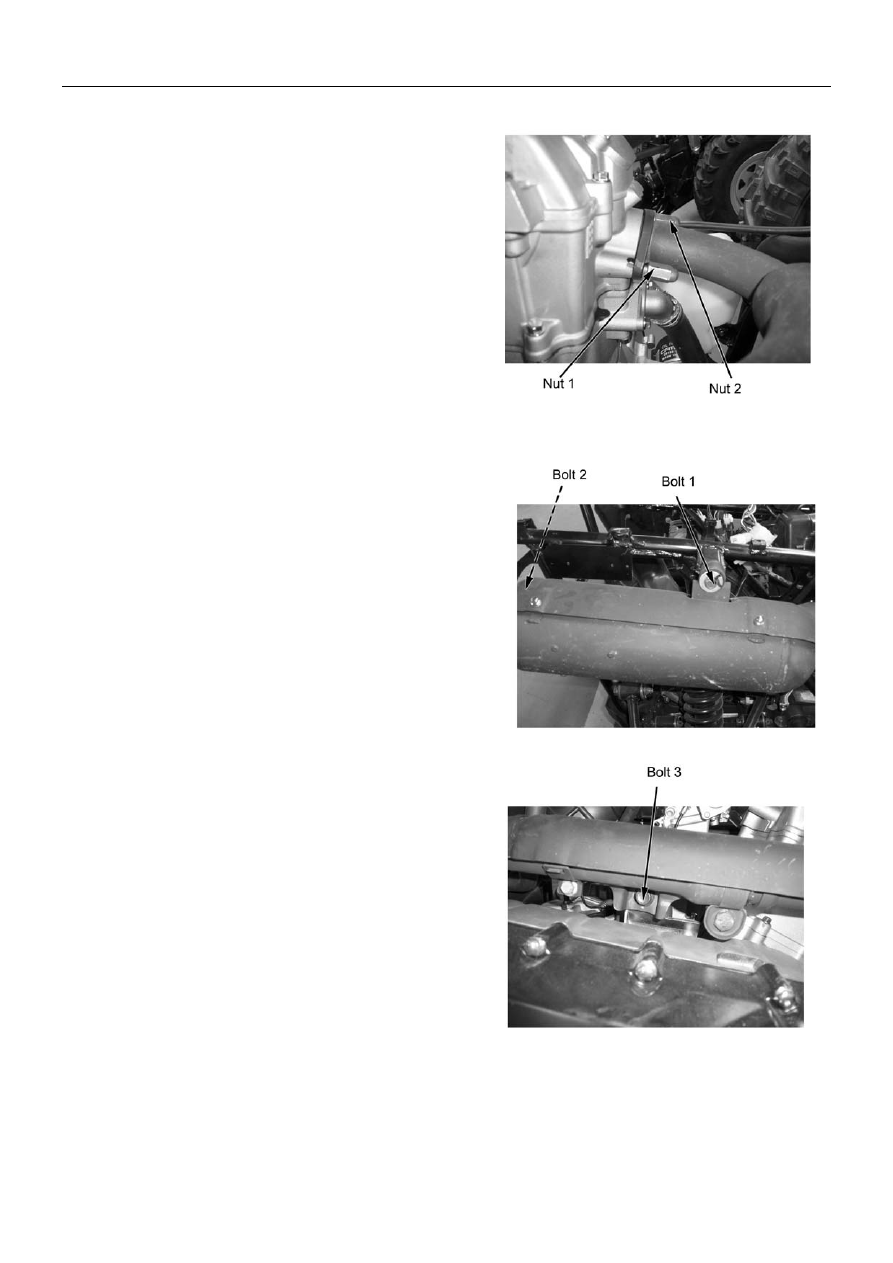

Muffler

Caution: Perform disassembly only

after the muffler is cooled down.



Remove:


--Seat (2-3)
--Right side panel (2-7)
--Nut1, Nut 2 for exhaust pipe elbow






Remove Bolt 1







Remove Bolt 2, Bolt 3
Remove muffler






Installation:



Reverse the removal procedure for installation.


Note:

Replace sealing gasket when installing the muffler.


















            2-17

                                                                                                                          2. Vehicle Body, Muffler

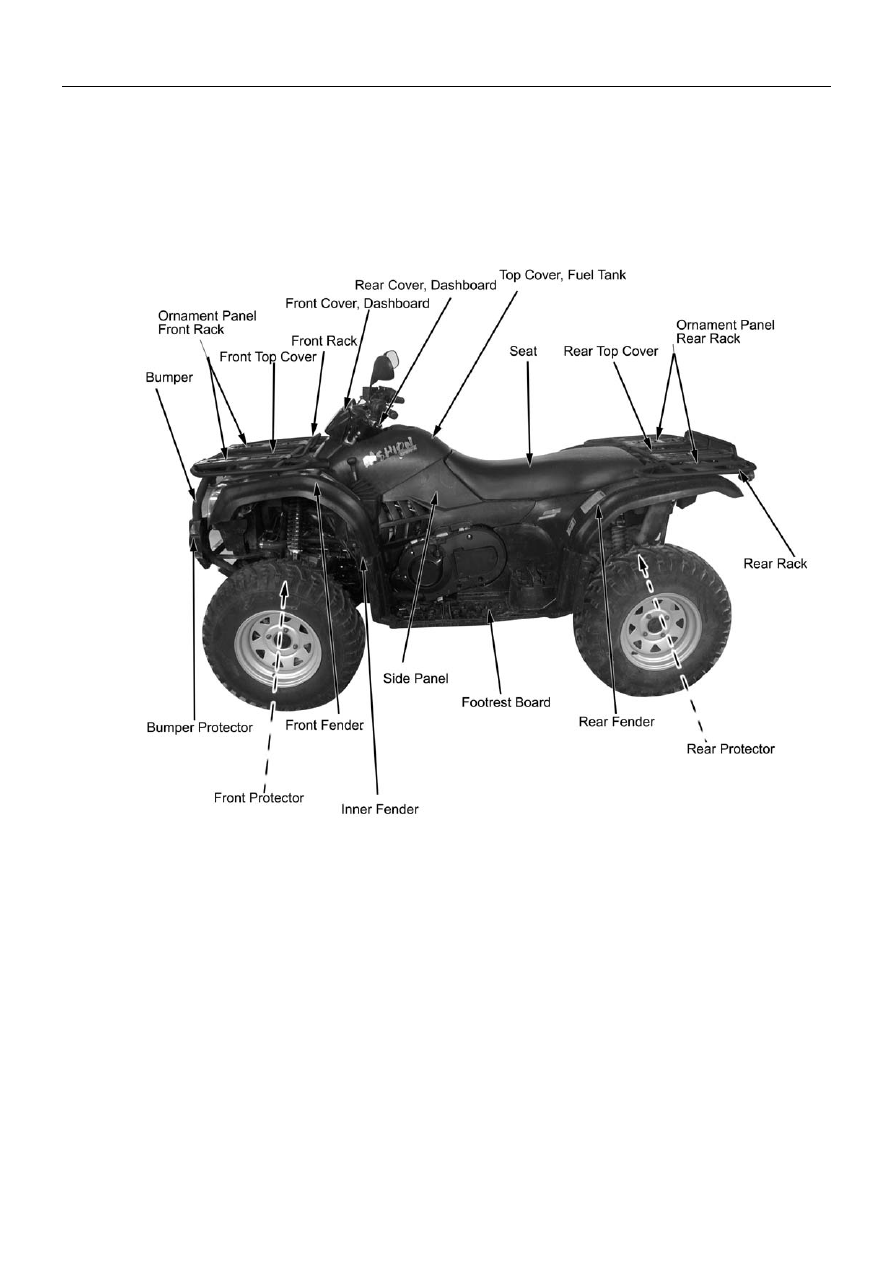

Visible Parts





















              2-18

                                                            3. Checks & Adjustment

Overhaul Info……………………………..3-1
Inspection & Maintenance………………3-2
Steering Stem, Brake System…………..3-5
Wheels…………………………………….3-7

Suspension System…………………..3-9
Gear Shifting, Fuel Device…………...3-10
Cooling System..………………………3-12
Lighting System...……………………...3-14

Overhaul info
Operation Cautions
Note

z

  DO NOT keep the engine running for long time in a poorly ventilated or enclosed place

because of the harmful components like CO, etc, in the exhaust gas.

z

  The muffler and engine are still very hot when the engine is just stopped. Careless contact

may cause serious burn. Be sure to wear fatigue dress with long sleeves and gloves if the
work has to be done after the engine is just stopped.

z

  Gasoline is highly flammable, smoking is strictly forbidden in the work place. Keep alert on

the electrical sparks. Besides, vaporized gasoline is highly explosive, so work should be
done in a well-ventilated place.

z

  Be careful that your hands or clothes not get nipped by the turning or movable parts of the

driving system.

Note
The vehicle should be parked on hard and level ground



Periodic Maintenance Table

The table below lists the recommended intervals for all the required periodic maintenance work
necessary to keep the vehicle at its best performance and economy. Maintenance intervals are
expressed in terms of kilometer, miles and hours, whichever occurs first.
Note: More frequent maintenance may be required on vehicles that are used in severe
conditions.

Km

Initial 200

Every 1000

Every 2000

Miles

Initial 100

Every 600

Every 1200

Interval


Item

Hours

Initial 20

Every 40

Every 80

Remark

Valve Clearance

I --  I

IN: 0.05~0.10
EX:0.17~0.22

Idle Speed

1300±100r/Min

-- --  I

Spark Plug

Replace every 6000Km

No carbon deposit
Gap: 0.8~0.9mm

Air Filter

--

Replace every 2000Km

Fuel Hose, Carburetor

--

--

Replace every 4 years

Clutch --

--



Drive Belt

--



Oil Filter

--



Coolant Level



Water Hose & Pipes



Coolant

Replace every 2 years

I=Inpection and adjust, or replace if necessary
R=Replace
C=Clean                                                                                                                                      3-1

                                                            3. Checks & Adjustment

Inspection & Maintenance

: Interval



Item Intervals

Part Item

Daily 1/2

Year

A n n u a l



Standard

Handlebar

Operation
agility









Damage









Installation

condition of

steering

system









Steering

System

Steering system

Sway of ball

stud









Free play









Front: lever end 0mm
Rear : lever end 0mm

Brake lever

Brake

Efficiency









Connecting rod,

oil pipe & Hose

Looseness,

Slack and

damage









Front and rear

brake fluid

level







Brake fluid should be
above LOWER limit

Brake

System

Hydraulic brake

and brake disc

Brake disc

damage and

wear







Replace when the
thickness of front
brake disc is less than
2.5mm, rear brake
less than 6.5mm.

Tire pressure







Front tire: 35kPa
(0.350kgf/

2

Rear tire:
35kPa
(0.35kgf/

2

Chap and
damage









Groove depth
and abnormal
wear







No wear indication on
the surface of tire (the
remained depth of
groove should not be
less than 1.6mm)

Loosened
wheel nut and
axle









Sway of front
wheel bearing









Driving



System

Wheel

Sway of rear
wheel bearing












        3-2

                                                            3. Checks & Adjustment







Suspension

arm

Sway of

Joint parts,

rocker arm

damage









Shock

absorber

Oil leakage

and damage









Buffer

System

 Function









Front axle

Transmissio

n, lubrication









Rear axle

Transmissio

n, lubrication









Gear box

Transmissio

n, lubrication







Remove filling bolt,

add oil till oil level

reaches edge of

filling hole.

Looseness

of joint parts









Drive

Train

Final shaft



(Drive shaft)

Sway of

Spline









Spark plug







Spark plug gap:

0.8-0.9mm

Ignition

Device

Ignition

timing









Battery

Terminal

Joint









Electrical

System

Wiring

Looseness

and damage

of joints









Fuel leakage









Fuel device




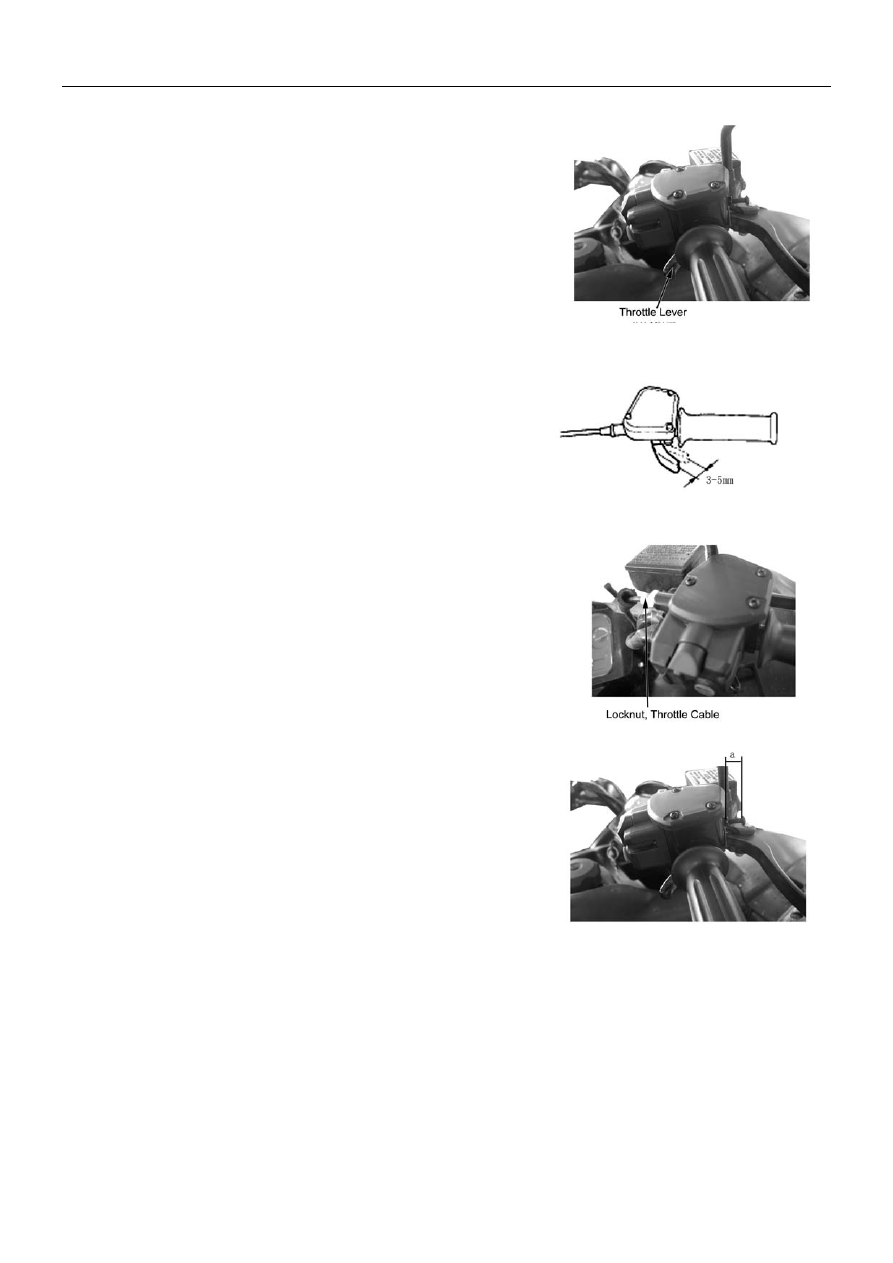

Throttle



Throttle grip

clearance: 3~5mm

Coolant level









Engine

Cooling

system

Coolant

leakage












                                                                                                                                                        3-3

                                                            3. Checks & Adjustment

Lighting

device and

turning

indictors

Function









Alarm and

lock device

Function







Instruments Function









Looseness or damage

caused by improper

installation









Exhaust pipe

and muffler

Function of muffler









Frame

Looseness and/or

damage









Others

Lubrication & grease of

frame parts









Abnormal

parts which

can be

determined

when driving

Make sure if there is any

abnormal with relative

parts.

































                                                                                                                                                        3-4

                                                            3. Checks & Adjustment

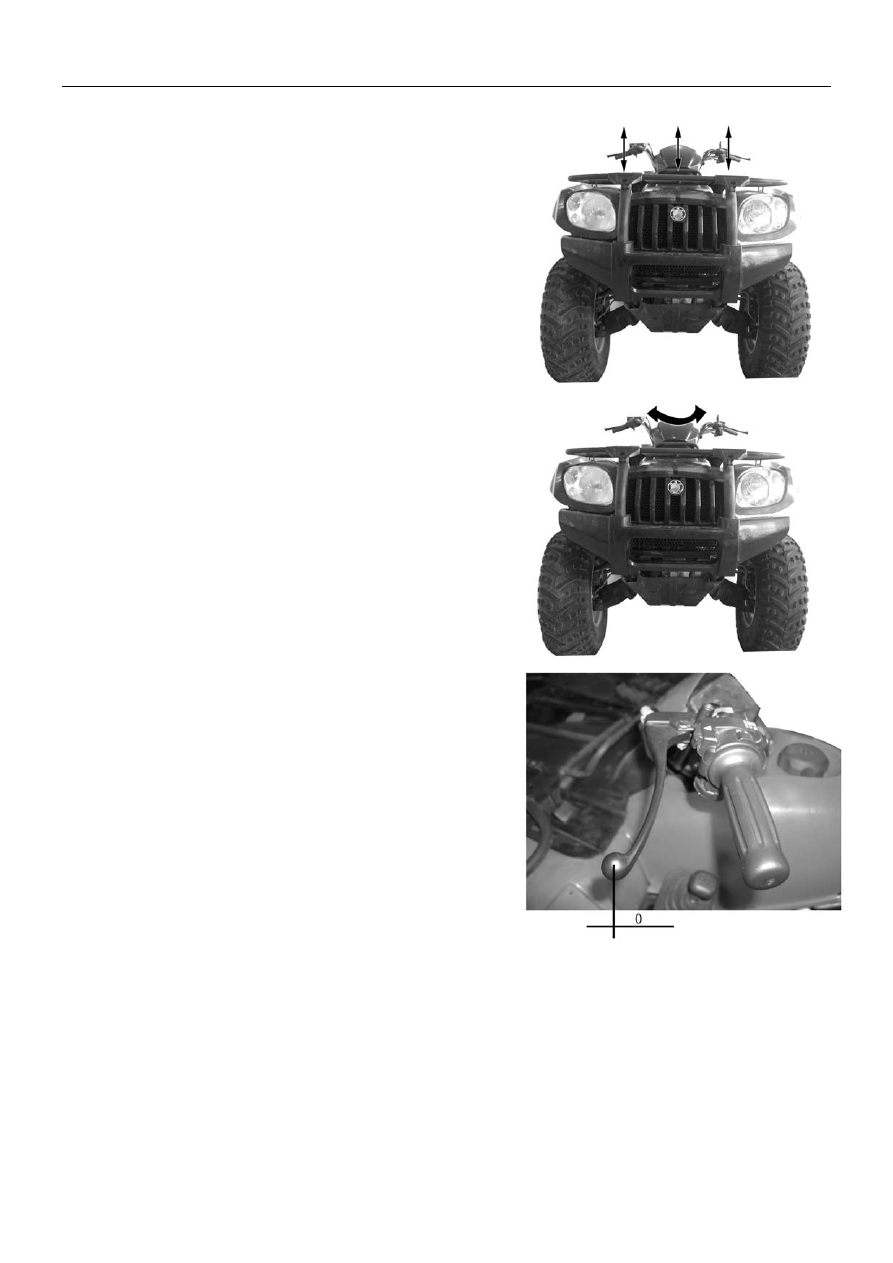

Steering Stem

Park the vehicle on level place, hold steering handlebar,
and shake in the direction as illustrated on the right and see
if there is any sway.

In case of any sway, check if it is the problem of the steering
stem or other parts and then do the maintenance
accordingly.

In case of sway of the steering stem, tighten the locknut or
disassemble the steering stem for further check.

Park the vehicle on level place, slowly turn the handlebar
left and right to see if it can turn freely.

In case there is any hindrance, check if it is from the main
cable assembly or other cables.

If no, check the steering tie-rod end, and check if the
steering stem bearing is damaged.





Note:

Make sure the steering can be operated freely.

An accident may occur

if the handlebar is out of control.



Brake system

Front brake lever free play

Operate front brake lever and check brake efficiency and

brake lever function.

Check free play of front lever end.



Free play: 0mm





























3-5

                                                            3. Checks & Adjustment

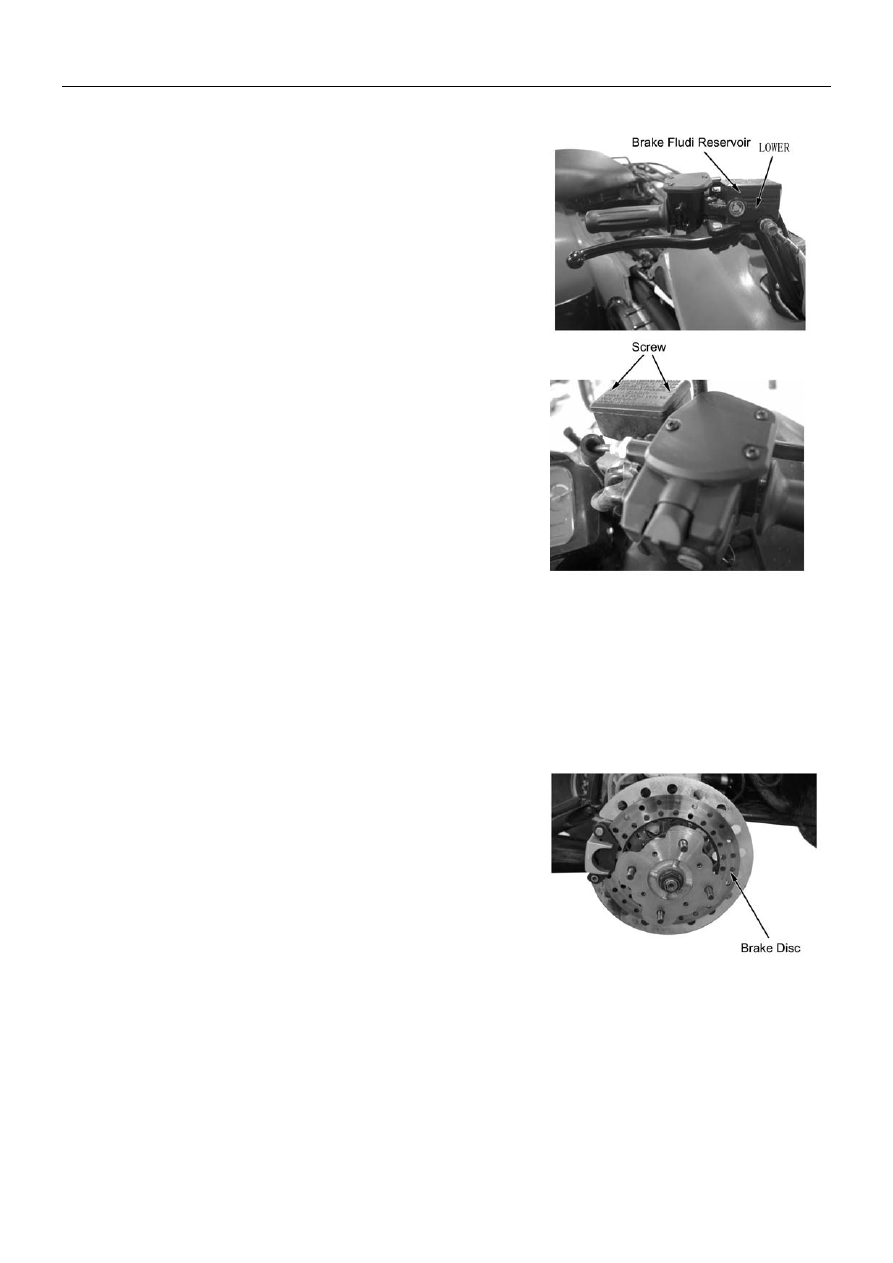

Master Cylinder


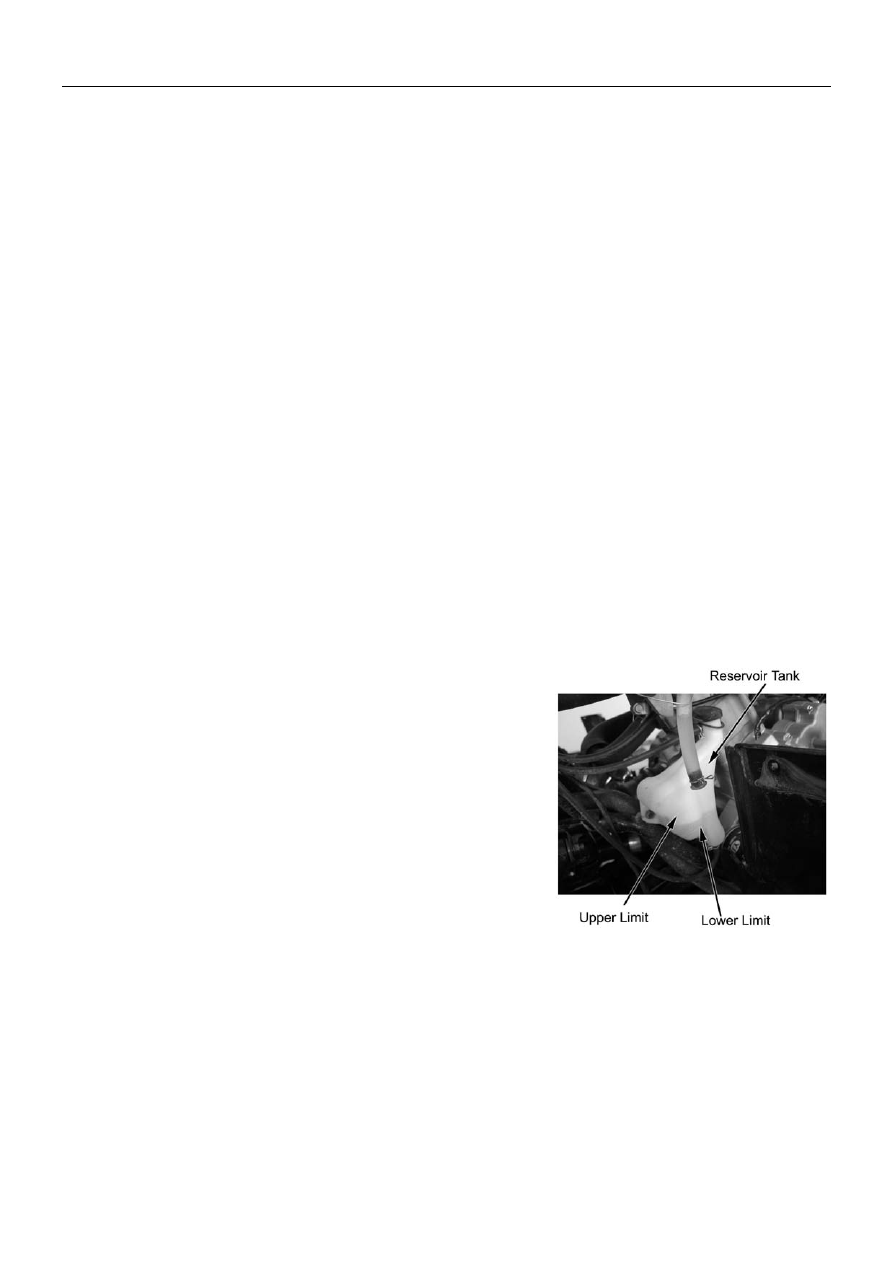

<Fluid level>




Check the brake fluid level




When the brake fluid level is near to the lower limit line, check
master cylinder, brake hoses and joints for leakage. Remove the
two mounting screws on fluid reservoir cap.

Remove the cap, add DOT3 or DOT4 brake liquid till the upper
limit line.


·

Do not mix with dust or water when adding brake fluid.

·

Use only the recommended of brake fluid
to avoid chemical reaction.

·

Brake fluid may cause damages to the surface of the
plastic and rubber parts.
Keep the fluid away from these parts.

·

Slightly turn the handlebar left and right till the master
cylinder is in horizontal, then remove the fluid reservoir cap.



Brake Disc, Brake Pad



< Wear of brake pad>
Check the brake pad wears from the mark as indicated.

Replace the brake pad if the wear has reached position of wear
limit trough.


Note
The brake pad must be replaced with a whole set.


Checking and replacing the brake disc
Front brake disc thickness:

2.5 mm

Replace

Rear brake disc:

6.5 mm

Replace


Min. limited thickness of the front brake disc: 2.5mm
Min. limited thickness of the rear brake disc: 6.5mm



Change the Brake Fluid

< Changing Brake Fluid>

Change the brake fluid once every year.















3-6

                                                            3. Checks & Adjustment

Wheels



Lift front wheel on level place, and make sure there is no loading
on the wheels.

Shake the front wheel left and right to check whether the joint of
front wheel is tightened and check whether it sways.

Not tighten enough:

Tighten it

Sway:

Replace the rocker arm

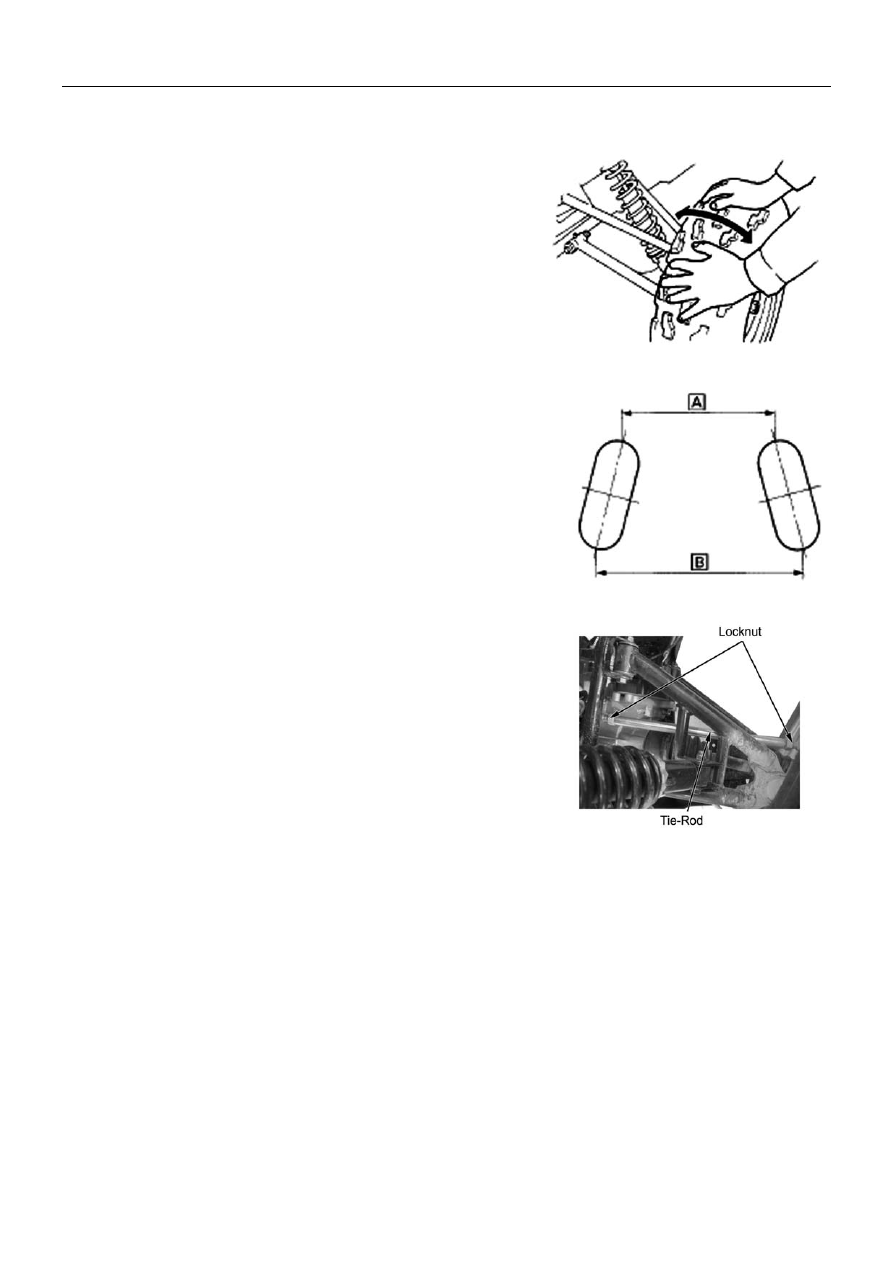

Front Toe-in size



Park the vehicle on level place, measure the front toe-in
Toe-in: B-A=0-10mm





Toe-in out of the range:

 Adjust the locknut of tie-rod








Note:

After the toe-in has been adjusted, slowly run the vehicle to
check whether the direction of vehicle can be controlled by
handlebar.



















                                  3-7

                                                            3. Checks & Adjustment

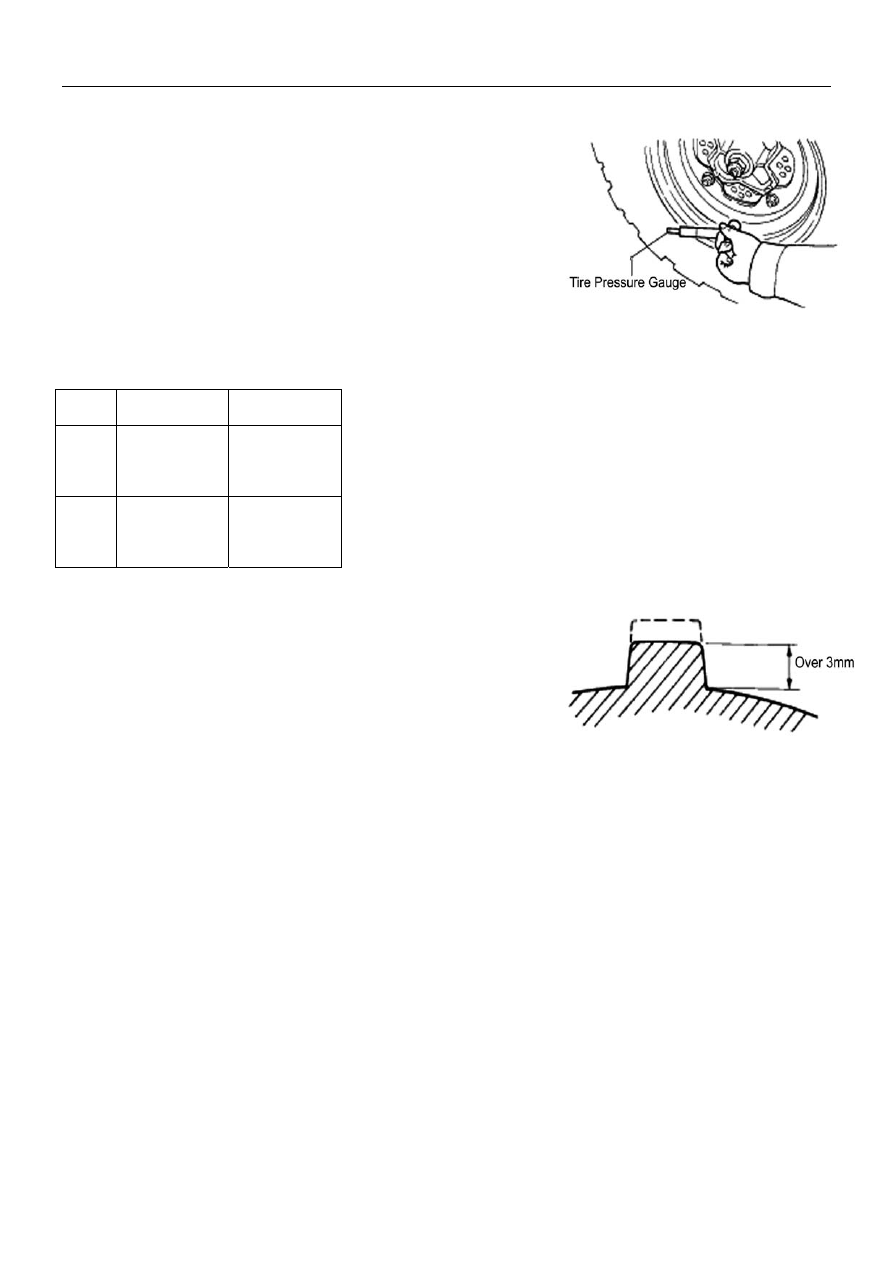

Tire Pressure

Check the pressure of the tires with a pressure gauge.

Note

Check the tire pressure after tires are cooled.



Driving under improper tire pressure will reduce the comfort

of operation and riding, and may cause deflected wear of the

tires.

Specified pressure /tire



Front wheel    Rear wheel

Press

ure

35kPa(.035k

gf/cm

2

35kPa(0.50k

gf/cm

2

Tire

Size

25×8-12 25×10-12







Tire Tread

Check the tire tread.



Tread Height: < 3mm

Replace with new tires

Note:

When the tread height is less than 3mm,
the tire should be replaced immediately.



















































                    3-8



                                                            3. Checks & Adjustment

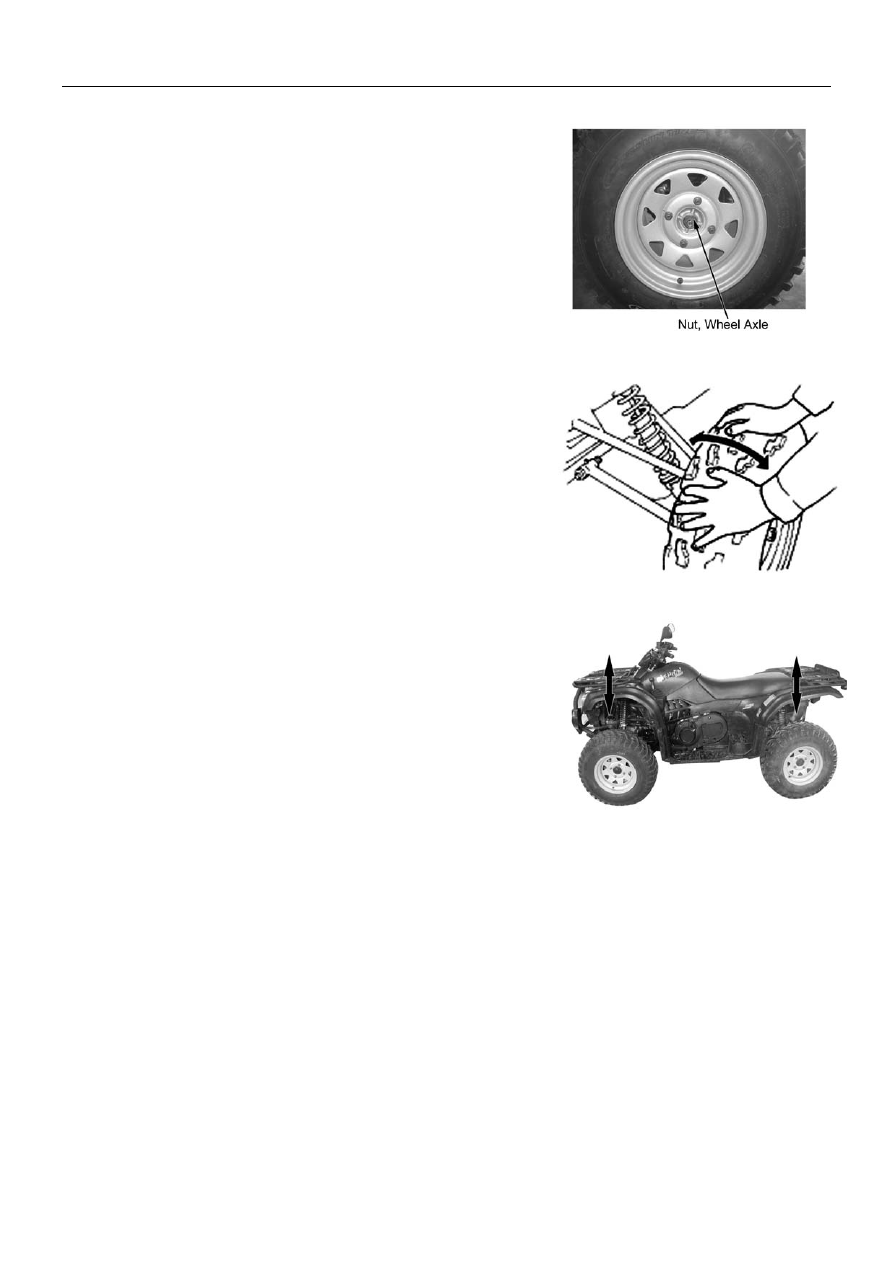

Wheel Nut and Wheel Axle

Check front and rear wheel axle nuts for looseness

Loosened axle nuts:

Tighten

Tightening Torque:

Front wheel axle nut:

110-130N

·

m(11.2kgf

·

m-13.3kgf

·

m)

Rear wheel axle nut:

110-130N

·

m(11.2kgf

·

m-13.3kgf

·

m)





Sway of Wheel Bearing

Lift the front wheel

Make sure there is loading on the vehicle

Shake the wheel in axial direction for any sway



In case of any sway,

disassemble the front wheel and check the bearing



Suspension System

Park the vehicle on lever place, press the vehicle Several times up
and down as illustrated on the right.

In case of any rocking or abnormal noise, check whether there is
any oil leakage from absorbers, or any damage or looseness of
tightening parts.





























                          3-9

                                                            3. Checks & Adjustment

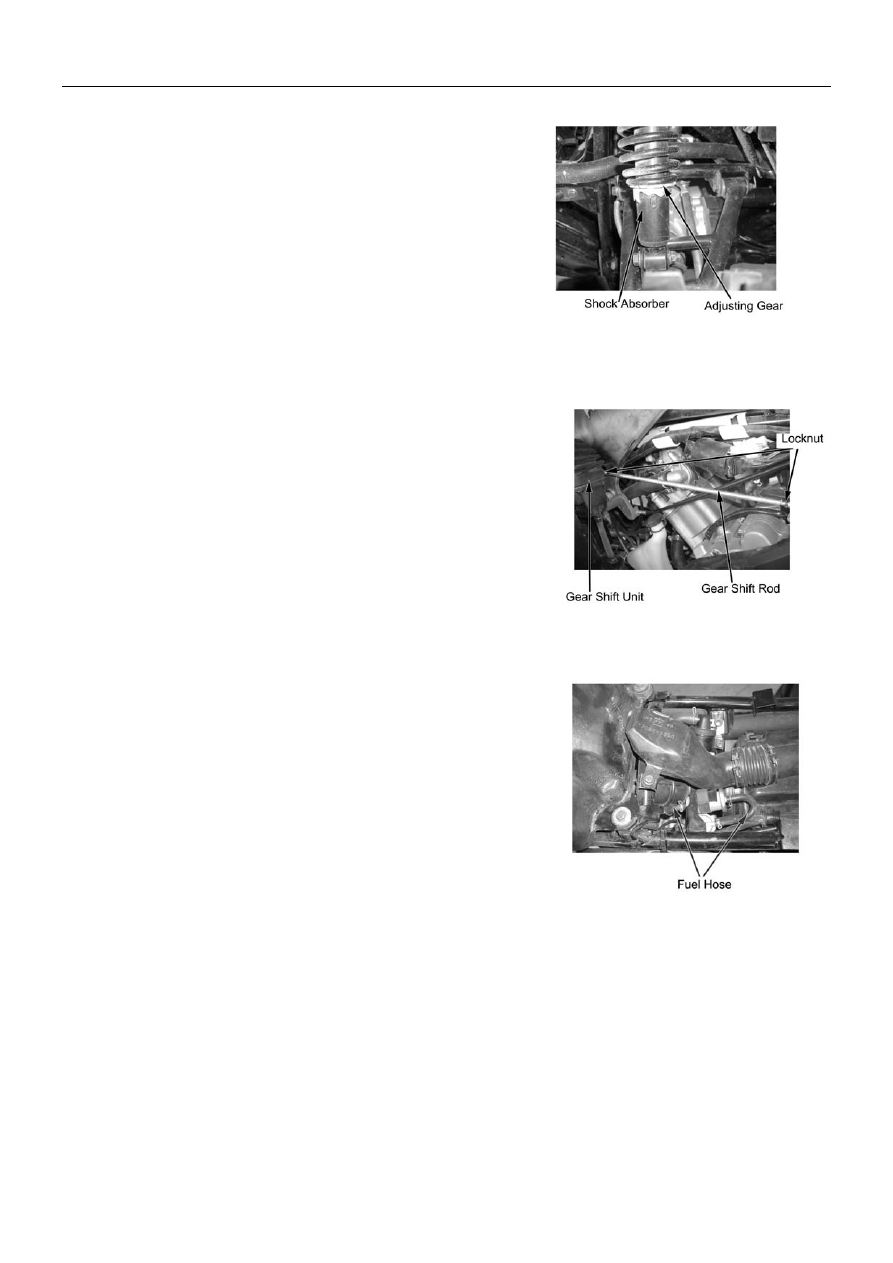

Adjusting the Absorber


Use special tools to adjust the length of absorber
according to loading requirement

Turn clockwise to adjust from high to low











Gear Shifting


Shift the gear to check for flexibility and gear engagement

Adjust the gearshift rod if necessary

Release the locknut to adjust the length of gearshift rod








Fuel Device



Status of the fuel system

Remove the seat (

2-3)

Check the fuel hose for any aging or damage.

Aged or damaged fuel hose:

 Replace

Check if there is cracks or bending with the vacuum tube.

Cracked or bended vacuum tube:

 Replace























                  3-10

                                                            3. Checks & Adjustment

Checking the Throttle Lever













Check the free play of throttle lever



Free play: 3-5mm



Out of range:

Adjust



Loosen locknut of throttle cable
turn the regulator and adjust free play of throttle lever


After adjusting, tighten locknuts and install throttle cable sleeve



Replace with a new throttle cable if the specified free play could
not be acquired by adjusting the regulator or if there is still
stickiness with the throttle.





Adjusting the Speed Limiter



The speed limiter is to limit the opening of throttle

Check the maximum length of limiter screw thread

Maximum screw thread: a=12mm

Adjust with a cross driver.



Note:

For beginners, the speed limit should be fully tightened.

Drivers with certain skills may adjust
the throttle with speed limiter


Maximum length of screw thread is 12mm.

It is recommended to adjust the thread length to 3-5mm.













      3-11



                                                            3. Checks & Adjustment

Cooling System

Note

z

  Check coolant level from reservoir tank.

Do not check from radiator.

If the radiator cap is opened while the engine is hot (over 100

), the pressure of the cooling system will drop down and the

coolant will get boiled rapidly.

DO NOT open the radiator cap until the coolant temperature
drops down.

z

  Coolant is poisonous, DO NOT drink or splash it to skin, eyes,

and clothes.

In case the coolant gets to the skin and clothes, wash with
soap immediately.

In case the coolant gets into eyes, rinse with plenty of water
and go to consult the doctor

In case of swallowing the coolant, induce vomit and consult
the doctor.

z

  Keep the coolant in a safe place and away from reach of

children.



Coolant level

Coolant might reduce due to natural evaporation.
Check the coolant level regularly.

Note

z

  Coolant can prevent rust and resist freeze. Ordinary water

may cause engine rust or cracks in winter due to freezing.

z

  Park the vehicle on level ground for checking of the coolant.

Inclined vehicle body will cause incorrect judging of the
coolant level.

z

  Check the coolant after the engine is warmed up.

Start and warm up engine.



Stop the engine.



Remove left side panel (

2-6)



Check if the coolant level is between the upper and lower

limit.





























































 3-12

















Content      ..     1      2      3      4      ..
