CFMoto ATV CF500-5C/CF625-C 4x4. Service Manual - part 4

47

-

-

NOTE

：

●

When switch is in “lock”position, dashboard light shows continuously;

●

In case light shines,4WD is not locked and ATV should be driven in low speed. High speed



drive will probably cause injury or even death;

●

When ATV is in “4WD-LOCK”position, maximum speed should be 35km/h;

●

In order to accquire full power, press the assistor switch and

  disable the speed limitator  of “4WD-LOCK” switch



throttle tie-rod

①

When engine is working, pulling tie-rod will improve
engine speed to adjust ATV speed. ATV will decrease the
speed because of the spring-equipped throttle. And engine will be in idle speed when the
throttle is released.
Check the throttle is running smoothly before starting the engine. Make sure engine is in idel
speed after releasing the throttle tie-rod.

All-wheel drive（AWD）System

1

FEATURES AND CONTROLS

CAUTION

Check throttle tie-rod before starting the engine. In case of problems, check and solve
the reasons before riding the ATV. Contat local dealer if necessary.

Speed limitator
Spped limitator can provent throttle full open
even if throttle is in highest position:Turn
bolt

②

 gain highest power to decrease max

speed of the ATV.

CAUTION

Never adjust the bolt longer than 12mm, make sure
throttle clearance is between 3-5mm.

48

-

-

All-wheel drove（AWD) System

FEATURES AND CONTROLS

Main switch

Functions:

ON

：

Start the engine and key cannot be taken out in this position;

OFF

:

Close all electric circuits and key can be taken out in this position.

49

-

-

FEATURES AND CONTROLS

50

-

-

Indicator light and caution light

4WD indicator lights

①



Switch

“(2

WD

)/(4

WD

)”

onto position

“(4

WD

)",

the indicator light shows;



Switch

“

LOCK

-”-“(4

WD

)”

onto

“

LOCK

-(4

WD

)”

,the indicator light shows.

NOTE：

Due to the synchornizing mechanism in front gear box

，

4WD indicator light will show

Only after ATV starts moving;

Low gear indicator

“

L

”

③

In low gear, the indicator

“

L

”

shows;

High gear

“

H

”

When in high gear, indicator

“

H

”

shows and

Neutral

“

N

”

In neutral gear, the indicator shows

“

N

”.

4

FEATURES AND CONTROLS

51

-

-

Indicators and caution lights

Parking gear indicator

“

R

”

⑥

When gear in position

“

R

”,

the indicator shows;

Parking indicator

“

P

”

⑦

When gear is in

“

P

”

position, the indicator shows;

Assistor light indicator

⑨

Switch on the assistor, the indicator shows;
High beam indicator

⑩

Swith on front light

“    ”,

the indicator shows;

Position
Press position  l igh

t

“

”,

the  indicator  shows;

NOTE

：

In case of indicator or speedometer does not show the speed while driving, contact local
dealer if necessary;

Trouble     in case of trouble, see Page 134.

FEATURES AND CONTROLS

5

52

-

-

Dashboard

Coolant temperature indicator
When the temperature indicator is in the white area of side C, it means that
the temperture is normal. The red area of the side H indicates temperature is
high.If so please stop the engineuntil temperature is down. In case temperature
frequently goes high, check coolant capacity or contact the dealer.

CAUTION：

●

Engine may overheat if ATV is overlaoaded. Reduce



Weight to specification in case of this.

●

After restarting, make sure the temperature in the

 White area of side C. Continuous use while temperature

Speedometer

：

shows speed

；

Odometer

：

show total

distance traveled;

。

Fuel sensor

：

remaining fuel

；“

F

”

total amount;

Total capacity is

18

L

；

Refuel when indicator shows on

Red area. Red means remaining fuel is only

4.0

L

Indicator in the red area of H will damage engine

FEATURES AND CONTROLS

Puller electric outlet,



position

,

power

Output :12V

This spare electric loutlet provides
power for rearlights, rear
turning lights etc of the the
puller.

（

CF625

-

B

/

CF625

-

C

)

1

1

53

-

-

FEATURES AND CONTROLS

6.

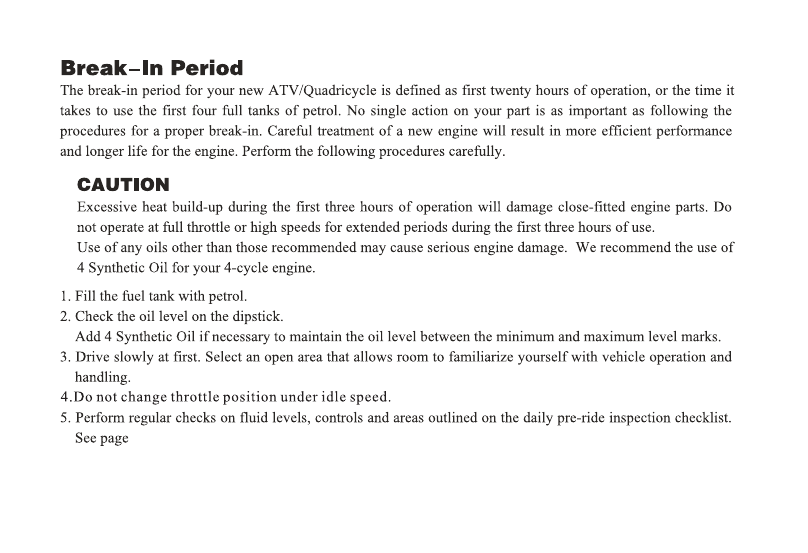

Less load ,more better.

7.

check oil and filter by Each 25 hours or each month during break-in period.

54

-

-

Driving

55.

Pre-Ride Inspection

Pre-Ride Checklist

Item

Brake system/lever travel

Brake fluid

Front suspension

Rear suspension

Steering

Tires

Wheels/fasteners

Remarks

See page

37，105

38

116

116

-

32

110

Ensure proper operation

Ensure proper level

inspect,lubricate if necessary

inspect,lubricate if necessary

Ensure free operation

Inspect condition and pressure

Inspect,ensure fastener tightness

55

-

-

Driving

If a  proper  inspection  is  not done  before  each  use ,severe  injury or  death  could result.always

inspect  the  vehicle  before  each  use  to  ensure  it s  in  proper  operating  c o n d io n

.

,

Pre-Ride Inspection

Frame nuts,bolts,fasteners

Fuel and oil

Coolant level

Coolant hoses

Throttle

Indicator lights/swithches

Air filter

Air box sediment tube

Headlamp

brake light/tail lamp

Riding accessories

Inspect,ensure tightness

Ensure proper level

Ensure proper level

Inspect for leaking

Ensure proper operation

Ensure proper operation

Inspect,clean

Drain deposits whenever visible

Check operation

Check operation

Wear helmet,goggles,protective clothing

-

86
91

-

47

35，50

97

-

113
115

34

56

-

-

Driving

Driving

57

-

-

NOTE：

●

●

58

-

-

Driving

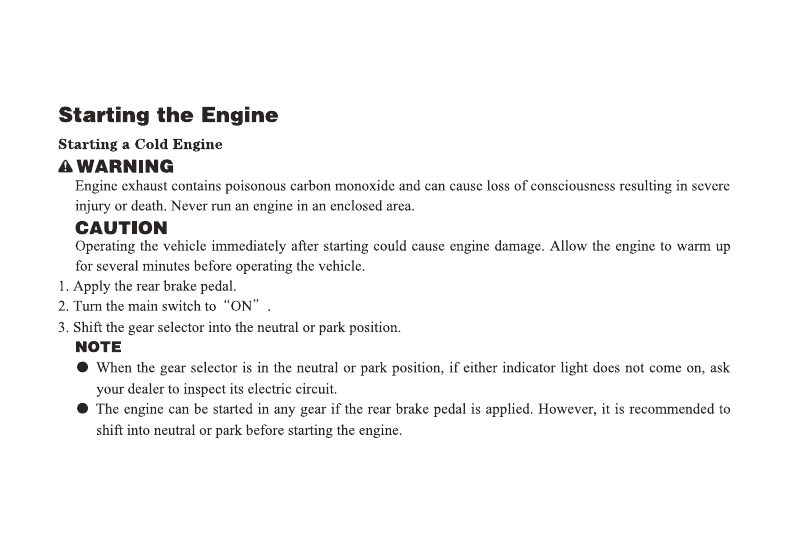

Starting engine

4.release throttle completely and puse the srart switch.

If the engine fails to start, release the start switch,then
push the start switch again.pause a few seconds before
the next attempt.Each cranking should be as short as
possible to preserve battery energy.Do not crank the
engine more than 10 seconds on each attempt.

If the battery is discharged,pull the recoil starter to
start the engine.

59

-

-

Driving

60

-

-

Driving

●
●

●
●

●

●

61

-

-

Driving

When you shift into reverse,make sure there are no obstacles or people  behind you.

When it is safe to proceed,go slowly.

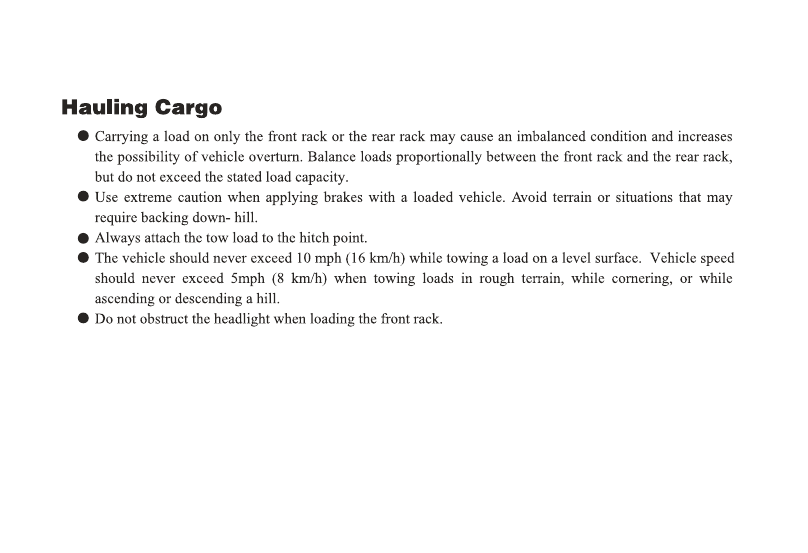

Hauling Cargo

Carrying a load on only the front rack or the rear rack may cause an imbalanced condition and increases

 the possibility of vehicle overturn.

do not exceed the stated load capacity.

speed-down and keeping longer distance for breaking.
speed-down and less loading when driving in rough treeain or hill.
load distribution.

rear rack should as far forward as possible,as lower as possbile;
Carry a higher load can increase barycenter and reduce the stability that can not.
it s better  less  loading  in this  condition.make  the  load  stablely  that  can  not

ensure if the barycenter removal.be particularly careful when handling.

,

fix all loads before driving.

Unfixed loads may move when driving and cause unstable condition and make the
vehicle loss control.

be particularly careful
In the  transport  is longer  than  the  rack,can  effect  the  vehicle

,

s stability  and  flexibility,even case

vehicle turn over.

62

-

-

Driving
