If your vehicle becomes immersed, major engine damage can result if the machine is not thoroughly
inspected.  Take the vehicle to your dealer before starting the engine.

If it s impossible to take your ATV to a dealer before starting it, follow the steps outlined below.

1. Move the ATV to dry land or at the very least, to water below the footrests.
2. Remove the spark plug.
3. Check the air box and drain if water is present.
4. Loosen the carburetor drain screw.
5. Turn the engine over several times using the electric start.
6. Dry the spark plug and reinstall, or replace it with a new plug.
7. Tighten the carburetor drain screw.
9. Attempt to start the engine.  If necessary, repeat the drying procedure.
10. Take the ATV to your dealer for service as soon as possible, whether you succeed in starting it or not.

If water has been ingested into the CVT, follow the procedure on page 104 for drying out the CVT.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Keeping your ATV clean will not only improve its appearance but it can also extend the life of various
components. With a few precautions, your ATV can be cleaned much like an automobile.

The best and safest way to clean your ATV is with a garden hose and a pail of mild soap and water.  Use a
professional type washing mitten, cleaning the upper body first and the lower parts last.  Rinse with water
frequently and dry with a chamois to prevent water spots.

 If warning and safety labels are damaged, contact your dealer for replacement.

Your ATV does not recommend the use of a high pressure type car wash system for washing the ATV.  If a high
pressure system is used, exercise extreme care to avoid water damage to the wheel bearings, transmission seals,
body panels, brakes and warning labels.

Grease all zerk fittings immediately after washing, and allow the vehicle to run for a while to

evaporate any water that may have entered the engine or exhaust system.

Your ATV can be waxed with any non-abrasive automotive paste wax. Avoid the use of harsh cleaners since
they can scratch the body finish.

Certain products, including insect repellants and chemicals, will damage plastic surfaces. Use caution when
using these products near plastic surfaces.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Starting the engine during the storage period will disturb the protective film created by fogging and damage
could occur. Never start the engine during the storage period.

Make necessary repairs and then clean the ATV thoroughly with mild soap and warm water to remove all dirt
and grime.  Don t use harsh detergents or high pressure washers. Some detergents deteriorate rubber parts. Use

dish soap type cleaners only.  High pressure washers may force water past seals.

Fill the fuel tank. Add Carbon Clean Fuel Treatment or Fuel Stabilizer. Follow the instructions on the container
for the recommended amount. (Carbon clean will also reduce the possibility of bacterial growth in the fuel
system.)  Allow 15-20 minutes of operation for the stabilizer to disperse through the fuel in the tank and
carburetor and then drain the carburetor bowl.

Warm the engine and change the oil and filter.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Inspect and clean or replace the pre-cleaner and air filter.  Clean the air box and drain the sediment tube.

Inspect and clean or replace the breather filter.

Inspect the following fluid levels and change if necessary: front gear case; transmission; brake fluid (change
every two years or as required if fluid looks dark or contaminated).

Remove the spark plug and add 2

3 tablespoons of 4 Synthetic 0W40 engine oil.  To access the plug hole, use

a section of clear 1/4  hose and a small plastic squeeze bottle filled with the pre-measured amount of oil.

 Do this carefully! If you miss the plug hole, oil will drain from the spark plug cavity into the hole at

the front of the cylinder head, and appear to be an oil leak.  Install the spark plug and pull the
engine over slowly with the recoil starter. Oil will be forced in and around the piston rings and ring
lands, coating the cylinder with a protective film of fresh oil.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If you choose not to use Fogging Oil, perform the following procedure.
1. Support the front end of the machine so the engine is level or tilted slightly rearward.
2. Remove the spark plug. Rotate the piston to BDC and pour approximately two ounces of oil into the cylinder.
3. Apply dielectric grease to the inside of the spark plug cap and install the cap onto the plug.
4. Turn the engine over several times to ensure coverage of piston rings, cylinder walls and crankshaft bearings.
5. Treat the fuel system with Carbon Clean.
6. If fuel system additive is not used, fuel tank, fuel lines, and carburetor should be completely drained of

gasoline. To eliminate any fuel remaining in the carburetor, run the engine until it stops.

Inspect all cables and lubricate with Cable Lubricant. Follow lubrication guidelines in the maintenance section
of the service or owner s manual to completely grease and lubricate the entire vehicle with All Season Grease.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Remove the battery from the vehicle and ensure that it's fully charged before placing it in storage.
Engine Anti-Freeze
Test engine coolant strength and change if necessary. Coolant should be replaced every two years.



Set the tire pressure and safely support the ATV with the tires 1

2 off the ground. Be sure the storage area is

well ventilated, and cover the machine with a ATV cover.

Do not use plastic or coated materials. They do not allow enough ventilation to prevent condensation,

and may promote corrosion and oxidation.

Follow these procedures when transporting the vehicle.
1. Turn off the engine and remove the key to prevent loss during transporting.
2. Always place the transmission in park.
3. Be sure the fuel cap, oil cap and seat are installed correctly.
4. Always tie the frame of the ATV to the transporting unit securely using suitable straps or rope.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Proper maintenance will protect chrome wheels from corrosion, preserve wheel life and ensure a

like new

appearance for many years.
1. Wash chrome rims frequently. Use a mild detergent to remove any salt, dirt, mud or grime. Never use abrasive

cleaners on plated or painted surfaces.

2. Polish the clean chrome wheels periodically. Use an automotive grade chrome polish.
3. Routinely and liberally apply a weather resistant wax to each polished chrome wheel.

Choose a product suitable for chrome finishes. Read and follow the product labels and instructions.

4. Chrome wheels exposed to road salt ( or salt in the air in coastal areas ) are more susceptible to corrosion if

not properly cleaned. Clean chrome wheels more often if they're exposed to salt or other corrosive elements.

If light rust is found on the chrome finish, use steel wool ( # 0000

 OTT grade ) to remove it.  Gently rub the

affected areas with the steel wool until the corrosion has been removed.  Clean and polish the wheel as outlined
above.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving the ATV onto a pickup or tall
trailer in high range.

Starting out going up a steep incline.

Driving at low RPM or low ground speed
(at approximately 3-7 MPH).

Insufficient warm-up of ATVs exposed to
low ambient temperatures.

Slow and easy clutch engagement.

Utility use/plowing snow, dirt, etc.

Towing/pushing at lowRPM/low ground
speed.

Shift transmission to low range during loading of the



ATV



to prevent belt

burning.

When starting out on an incline, use low range or dismount the ATV (after
first applying the park brake) and perform the K-turn as described on page
73.

Drive at a higher speed or use low range more frequently. The use of low
range is highly recommended for cooler CVT operating temperatures and
longer component life.

Warm the engine at least 5 minutes. With the transmission in park, advance
the throttle to about 1/8 throttle in short bursts, 5 to 7 times.  The belt will
become more flexible and prevent belt burning.

Use the throttle quickly and effectively for efficient engagement.

Use low range only.

Use low range only.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Stuck in mud or snow.

Climbing over large objects from a
stopped position.

Belt slippage from water or snow
ingestion into the CVT system.

Shift



the



transmission



to



low



range,



and



carefully



use



fast,



aggressive

throttle



application



to



engage



clutch.





Excessive



throttle

may cause loss of control and vehicle overturn.

Shift the transmission to low range, and carefully use fast, brief, aggressive
throttle application to engage clutch.





Excessive throttle may

cause loss of control and vehicle overturn.

Shift



the



transmission



to



park.  Using



the throttle,



vary the



engine



RPM

from



idle



to



full



throttle.  Repeat



several



times



as



required.  During this

procedure,



the throttle should not be held at the full position for more than

10seconds. Clutch seals should be inspected for damage if repeated leaking
occurs.

Clutch malfunction.

Contact your dealer for inspection of clutch components.

Check



for



fouled



plugs



or



foreign



material



in



gas



tank,



fuel



lines,



or

carburetor.  Contact your dealer for service.

Poor engine performance.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Contact



your



dealer



for



service



if



you're



unable



to



identify



solutions



using



the



following



charts.







Tripped circuit breaker

Low battery voltage

Loose battery connections

Loose solenoid connections

Reset the breaker

Recharge battery to 12.5 VDC

Check all connections and tighten

Check all connections and tighten

Out of fuel

Clogged fuel valve or filter

Water is present in fuel

Fuel valve is out of use

Old or non-recommended fuel

Fouled or defective spark plug(s)

No spark to spark plug

Refuel

Inspect and clean or replace

Drain the fuel system and refuel

Replace

Replace with new fuel

Inspect plug(s), replace if necessary

Inspect plug(s), verify stop switch is on

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Crankcase filled with water or fuel

Overuse of choke

Clogged fuel filter

Low battery voltage

Mechanical failure

Immediately see your dealer

Inspect, clean and/or replace spark plugs

Replace the filter

Recharge battery to 12.5 VDC

See your dealer

Poor quality or low octane fuel

Incorrect ignition timing

Incorrect spark plug gap or heat range

Replace with recommended fuel

See your dealer

Set gap to specs or replace plugs

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Weak spark from spark plugs

Incorrect spark plug gap or heat range

Old or non-recommended fuel

Incorrectly installed spark plug wires

Incorrect ignition timing

Mechanical failure

Inspect, clean and/or replace spark plugs

Set gap to specs or replace plugs

Replace with new fuel

See your dealer

See your dealer

See your dealer

Fouled or defective spark plugs

Worn or defective spark plug wires

Incorrect spark plug gap or heat range

Loose ignition connections

Water present in fuel

Low battery voltage

Inspect, clean and/or replace spark plugs

See your dealer

Set gap to specs or replace plugs

Check all connections and tighten

Replace with new fuel

Recharge battery to 12.5 VDC

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Kinked or plugged fuel vent line

Incorrect fuel

Clogged air filter

Reverse speed limiter malfunction

Electronic throttle control malfunction

Other mechanical failure

Low or contaminated fuel

Low octane fuel

Clogged fuel filter

Incorrect jetting

Overuse of choke

Fuel is very high octane

Incorrect jetting

Inspect and replace

Replace with recommended fuel

Inspect and clean or replace

See your dealer

See your dealer

See your dealer

Add or change fuel, clean the fuel system

Replace with recommended fuel

Replace filter

See your dealer

Inspect, clean and/or replace spark plugs

Replace with lower octane fuel

See your dealer

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Out of fuel

Kinked or plugged fuel vent line

Water present in fuel

Overuse of choke

Fouled or defective spark plugs

Worn or defective spark plug wires

Incorrect spark plug gap or heat range

Loose ignition connections

Low battery voltage

Incorrect fuel

Clogged air filter

Reverse speed limiter malfunction

Electronic throttle control malfunction

Other mechanical failure

refuel

Inspect and replace

Replace with new fuel

Inspect, clean and/or replace spark plugs

Inspect, clean and/or replace spark plugs

See your dealer

Set gap to specs or replace plugs

Check all connections and tighten

Recharge battery to 12.5 VDC

Replace with recommended fuel

Inspect and clean or replace

See your dealer

See your dealer

See your dealer

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Overheated engine

Clean radiator screen and core if equipped

Clean engine exterior

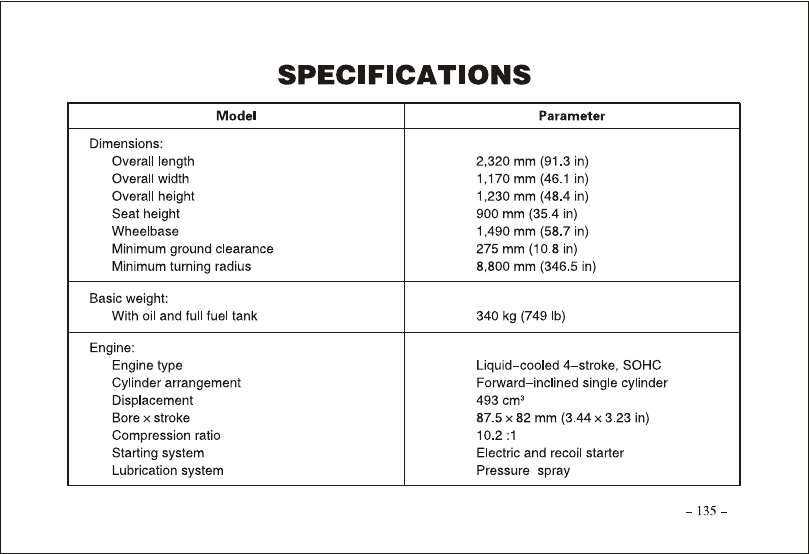

See your dealer

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------
