CFMoto ATV HX500-S, HX500-L 4x4. Service Manual - part 5

Frequent immersion in mud, water or sand
Racing or race-style high RPM use
Prolonged low speed, heavy load operation
Extended idle
Short trip cold weather operation

Pay special attention to the oil level. A rise in oil level during cold weather can indicate contaminants collecting
in the oil sump or crankcase. Change oil immediately if the oil level begins to rise. Monitor the oil level, and if
it continues to rise, discontinue use and determine the cause or see your dealer.

Perform these procedures more often for vehicles subjected to severe use.
Have an authorized dealer perform these services.

Improperly performing the procedures marked with a



could result in component failure and lead to

serious injury or death. Have an authorized dealer perform these services.

Perform all services at whichever maintenance interval is reached first.

Steering

Front suspension

Rear suspension

Tyres

Brake fluid level

Brake lever/pedal travel

Brake systems

Wheels/fasteners

Frame fasteners

Engine oil level

Air filter, pre-filter

Air box sediment tube

Pre-Ride

Pre-Ride

Pre-Ride

Pre-Ride

Pre-Ride

Pre-Ride

Pre-Ride

Pre-Ride

Pre-Ride

Pre-Ride

Daily

Daily

Make adjustments as needed.  See
Pre-Ride Checklist on page 58.

Inspect; clean often

Drain deposits when visible

Coolant

Headlamp/tail lamp

Air filter, main element

Recoil housing

Brake pad wear

Battery

Front gear case oil

Rear gear case oil

Transmission oil

Daily

Daily

Weekly

Weekly

Monthly

Monthly

Monthly

Monthly

Monthly

1 M

3 M

10H

20H

25H

25H

25H

25 H

50 H

60 (100)

125 (200)

155 (250)

155 (250)

155 (250)

Check level daily, change coolant
every 2 years

Check operation; apply dielectric
grease if replacing

Inspect; replace as needed

Inspect periodically

Check terminals; clean; test

Inspect level; change yearly

Inspect level; change yearly

Inspect level; change yearly

Drain water as needed, check often
if operating in wet conditions

Engine oil change
(break-in)

General lubrication

155 (250)

310 (500)

Perform a break-in oil change at
one month

Lubricate all fittings, pivots, cables,
etc.

Shift Linkage

Steering

Front suspension

Rear suspension

6 M

1 M

6 M

3 M

6 M

6 M

6 M

6 M

6 M

6 M

6 M

28H

50H

50H

50H

50H

50H

50H

50 H

50H

50H

100H

310 (500)

310 (500)

310 (500)

310 (500)

310 (500)

310 (500)

310 (500)

310 (500)

310 (500)

310 (500)

620 (1000)

Inspect, lubricate, adjust

Lubricate

Lubricate

Lubricate

Carburetor float bowl

Throttle Cable/ ETC
Switch

Choke cable

Carburetor air intake
ducts/ flange

Drive belt

Cooling system

Engine oil change

Drain bowl periodically and prior
to storage

Inspect; adjust; lubricate;replace if
necessary

Inspect; adjust; lubricate;replace if
necessary

Inspect ducts for proper sealing/air
leaks

Inspect; adjust; replace as needed

Inspect coolant strength seasonally;
pressure test system yearly

Perform a break-in oil change at 25
hours/one month

Oil filter change

Fuel filter

Spark plug

Ignition Timing

Wiring

Oil tank vent hose

Radiator

Valve clearance

Cooling hoses

Engine mounts

Exhaust muffler/pipe

12 M

12 M

6 M

12 M

12 M

12 M

12 M

12 M

12 M

12 M

12 M

12 M

100H

100H

100H

100H

100H

100H

100H

100H

100H

100H

100H

100H

620 (1000)

620 (1000)

620 (1000)

620 (1000)

620 (1000)

620 (1000)

620 (1000)

620 (1000)

620 (1000)

620 (1000)

620 (1000)

Replace with oil change

Inspect routing, condition

Inspect; adjust

Replace yearly

Inspect; clean external surfaces

Inspect for leaks

Inspect

Inspect

Inspect; replace as needed

Inspect

Fuel system

Check for leaks at tank cap, lines,
fuel valve, filter, carburetor; replace
lines every two years

620 (1000)

Inspect for wear, routing, security;
apply dielectric grease to connectors
subjected to water, mud, etc.

Clutches

 (drive and driven)

Wheel bearings

Brake fluid

Spark arrestor

Idle speed

Toe adjustment

Auxiliary brake

Headlight aim

12 M

12 M

24 M

36 M

100H

100 H

200 H

300 H

620 (1000)

1000 (1600)

1240 (2000)

1860 (3000)

Inspect; clean; replace worn parts

Inspect; replace as needed

Change every two years

Clean out

Adjust as needed

Adjust as needed

Inspect periodically; adjust when
parts are replaced

Inspect daily; adjust as needed

Check and lubricate all components at the intervals outlined in the Periodic Maintenance Chart beginning on
page 83.  Items not listed in the chart should be lubricated at the General Lubrication interval.

More often under severe use, such as wet or dusty conditions
All Season Grease
Use U-Joint Lube every 500 miles, before long periods of storage, or after pressure washing or submerging

Engine

Brakes

Front Gear case

Rear Gear case

Ball Joint

SAE15W-40/SF

DOT3 or DOT4 fluid

SAE15W/40 SF or SAE80W/90 GL-4

SAE15W/40 SF or SAE80W/90 GL-4

Grease

Add to proper level on dip- stick.

Maintain level between fill lines. See page 42.

See Page 93.

See page 92.

Locate fitting on back side of struts and grease
with grease gun.

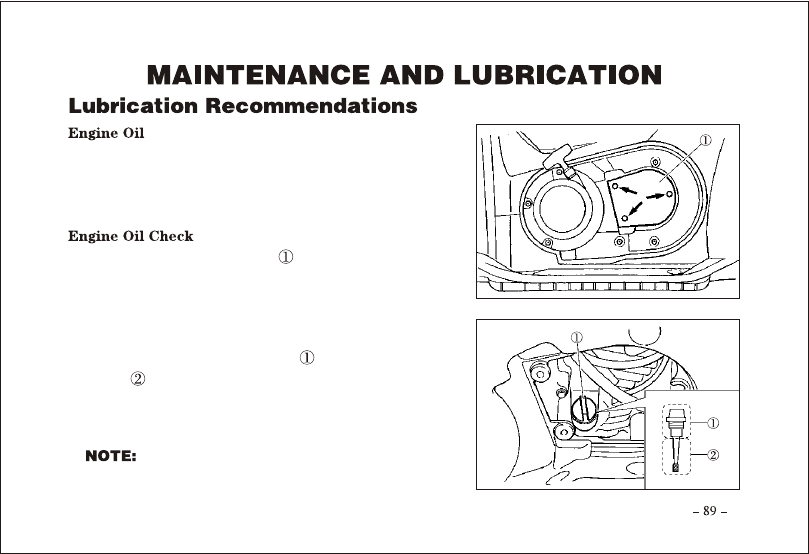

Always check and change the engine oil at the intervals
outlined in the Periodic Maintenance Chart beginning on
page 83.  Always change the oil filter whenever changing oil.

1. Pull outward on the areas shown

.

2. Position the ATV/Quadricycle on a level surface.
3. Start the engine and let it idle for 20-30 seconds. Stop the

engine.

4. Wait a few minutes until the oil settles.
5. Remove the engine oil filler cap

 and wipe off the

dipstick

 with a clean rag.

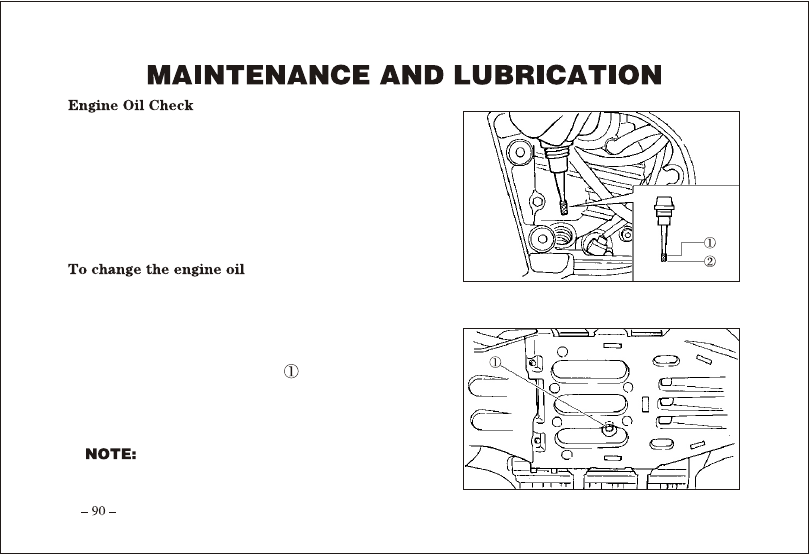

6. Insert the dipstick in the oil filler hole and screwing it in,

then remove it again to check the oil level.

The engine oil should be between the upper and

lower limit marks.

7. If the engine oil is at or below the lower limit mark, add

sufficient oil of the recommended type to raise it to the
correct level.

8. Insert the dipstick into the oil filler hole, and then tighten

the oil filler cap.

9. Install the panel.

1. Start the engine, warm it up for several minutes, and then

turn it off.

2. Place an oil pan under the engine to collect the used oil,

and then remove the engine oil filler cap.

3. Remove the engine oil drain bolt

 to drain the oil from

the crankcase.

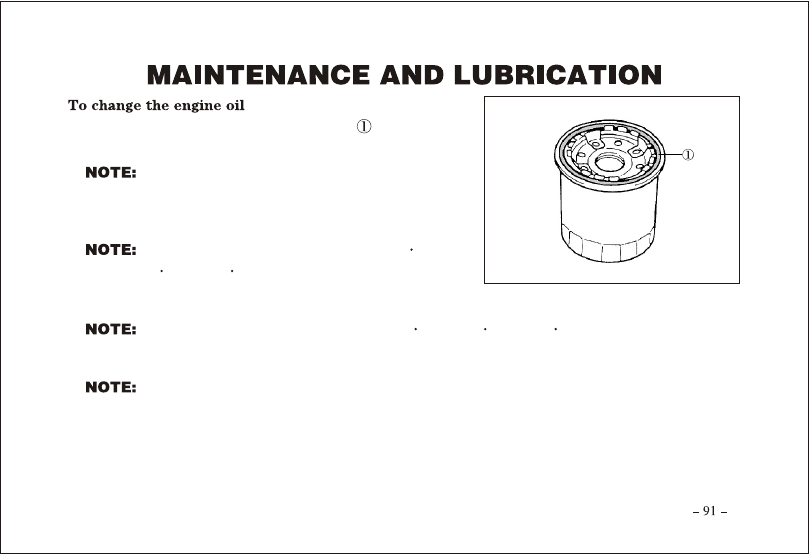

6. Remove the oil filter cartridge with an oil filter wrench.

An oil filter wrench is available at a nearby dealer.

7. Apply a light coat of engine oil to the O-ring

 of the new oil

filter cartridge.

 Make sure the O-ring is seated properly.

8. Install the new oil filter cartridge with an oil filter wrench, and

then tighten it to the specified torque with a torque wrench.

 Oil filter cartridge tightening torque: 17 N

m (1.7

m

kgf, 12 ft

lbf)

10. Install the engine oil drain bolt, and then tighten it to the specified torque.

 Engine oil drain bolt tightening torque: 30 N

m (3.0 m

kgf, 22 ft

lbf)

11. Add the specified amount of recommended engine oil, and then install the engine oil filler cap and tighten it.

Without oil filter cartridge replacement oil quantity: 1.8 L (1.58 Imp qt, 1.90 US qt)

With oil filter cartridge replacement oil quantity: 1.9 L (1.67 Imp qt, 2.01 US qt)

12. Start the engine and warm it up for several minutes. While warming up, check for oil leakage. If oil leakage

is found, turn the engine off immediately and check for the cause.

13. Turn the engine off, and then check the oil level and correct it if necessary.

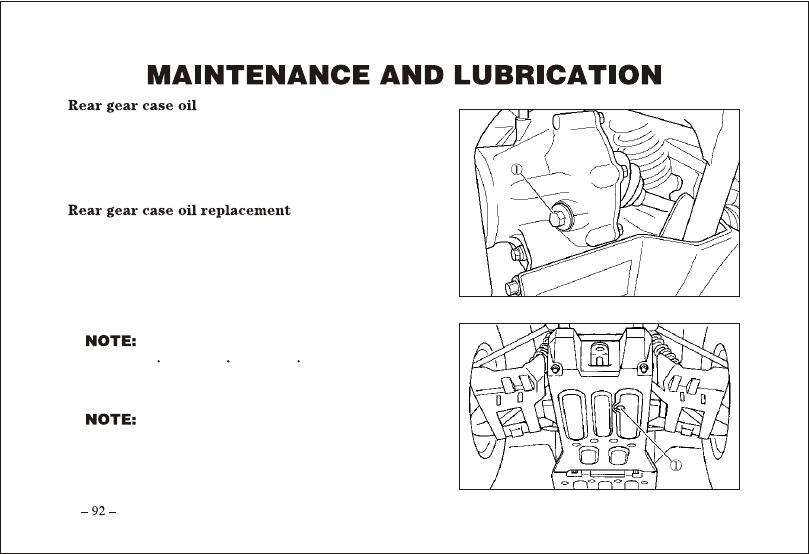

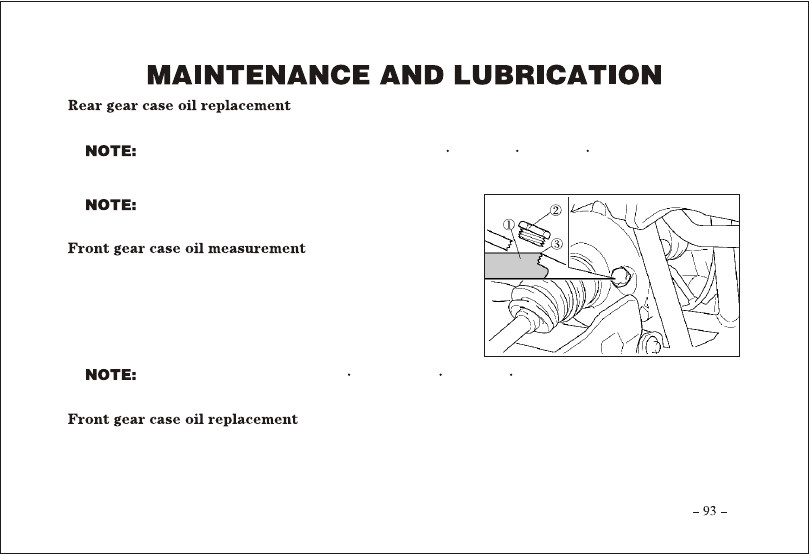

The rear gear case must be checked for oil leakage before
each ride. If any leakage is found, have your dealer check
and repair the ATV/Quadricycle.

1. Place the machine on a level place.
2. Place a container under the rear gear case to collect the

used oil.

3. Remove the oil filler bolt and the drain bolt to drain the oil.
4. Install the drain bolt and tighten it to the specified torque.

 Drain bolt (rear gear case) tightening torque: 23

N

m (2.3 m

kgf, 16 ft

lbf)

5. Fill the rear gear case with oil.

 Periodic oil change oil quantity:

0.25 L (0.22 Imp qt, 0.26 US qt)
Total amount oil quantity:
0.30 L (0.26 Imp qt, 0.32 US qt)

6. Install the filler bolt and tighten to the specified torque.

 Filler bolt (rear gear case) tightening torque: 23 N

m (2.3 m

kgf, 16 ft

lbf)

7. Check for oil leakage. If oil leakage is found, check for the cause.

 Be sure no foreign material enters the rear gear case.

1. Place the machine on a level place.
2. Remove the oil filler bolt and check the oil level. It should be

up to the brim of the hole. If the level is low, add sufficient oil
to raise it to the specified level.

3. Install the oil filler bolt and tighten it to the specified torque.

 Oil filler bolt tightening torque: 2

3 Nm (2.3 m

kgf, 16 ft

lbf)

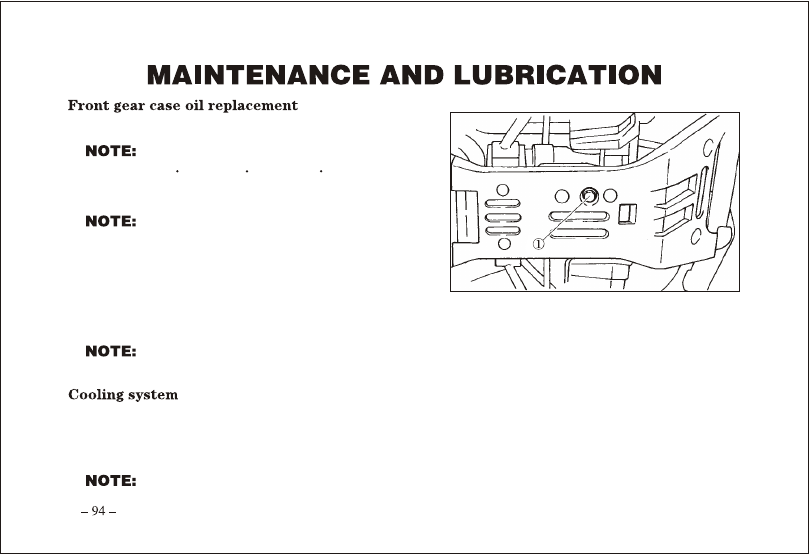

1. Place the machine on a level place.
2. Place a container under the front gear case to catch the oil.
3. Remove the filler bolt and drain bolt to drain the oil.

4. Install the drain bolt and tighten it to the specified torque.

Drain bolt tightening torque:

10 N

m (1.0 m

kgf, 7.2 ft

lbf)

5. Fill the front gear case with oil.

Periodic oil change oil quantity:

0.28 L (0.25 Imp qt, 0.3 US qt)
Total amount oil quantity:
0.33 L (0.29 Imp qt, 0.35 US qt)

6. Install the filler bolt and tighten it to the specified torque.
7. Check for oil leakage. If oil leakage is found, check for the cause.

 Be sure no foreign material enters the front gear case.

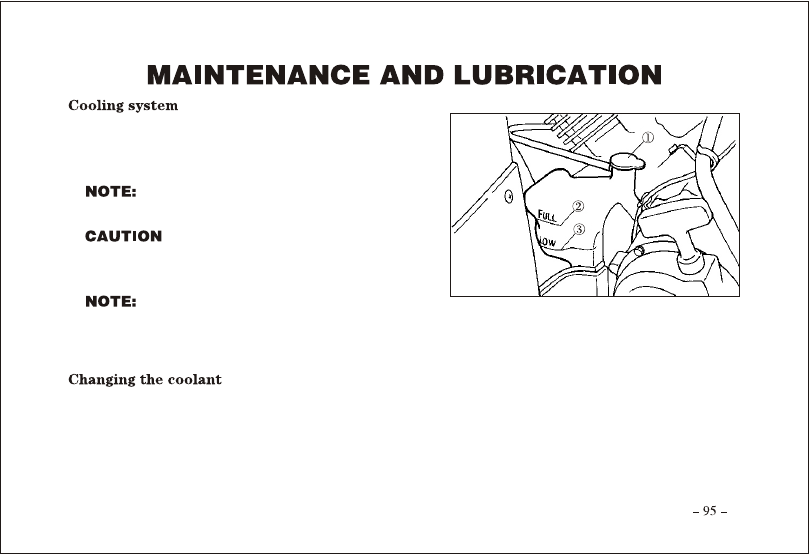

1. Place the ATV/Quadricycle on a level surface.
2. Check the coolant level in the coolant reservoir when the engine is cold as the coolant level will vary with

engine temperature.

The coolant should be between the upper and lower limit marks.

3. If the coolant is at or below the lower limit mark, remove

the reservoir cap, add coolant to the upper limit mark,
install the reservoir cap, and then install the panel.

 Coolant reservoir capacity(up to the upper limit

mark):0.3 L (0.26 Imp qt, 0.32 US qt)

Hard water or salt water is harmful to the engine. You
may use soft water if you can not get distilled water.

If water is added, have your dealer check the

antifreeze content of the coolant as soon as possible. The radiator fan operation is completely
automatic. It is switched on or off according to the coolant temperature in the radiator.

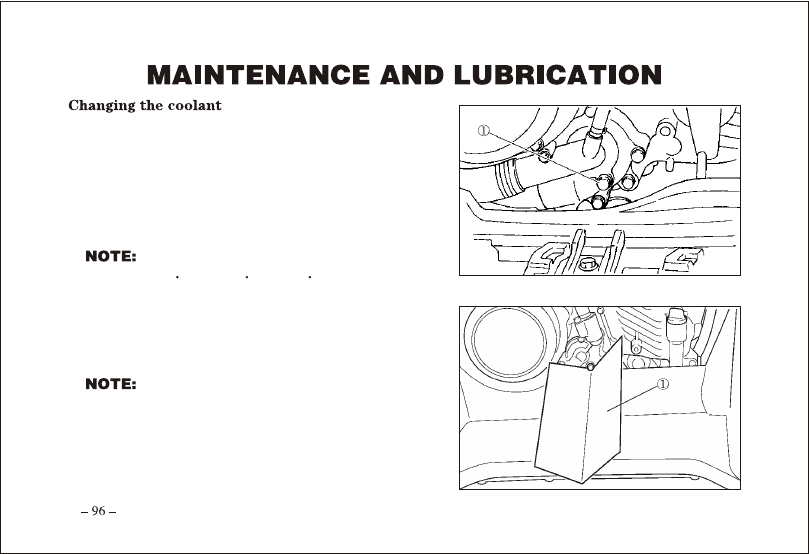

1. Place the ATV/Quadricycle on a level surface.
2. Place a container under the engine, and then remove the coolant drain bolt. (Use a trough or a similar object

as shown to prevent coolant from spilling on the footrest.)

3. Remove the radiator cap.
4. Remove the coolant reservoir cap.

5. Disconnect the hose on the coolant reservoir side, and then

drain the coolant from the coolant reservoir.

6. After draining the coolant, thoroughly flush the cooling

system with clean tap water.

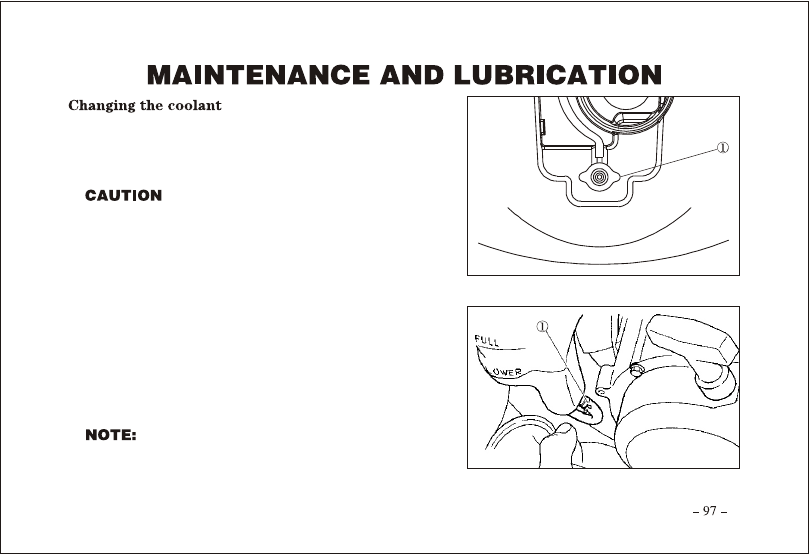

7. Replace the coolant drain bolt washer if it is damaged, and

then tighten the coolant drain bolt to the specified torque.

 Coolant drain bolt tightening torque:

10 N

m (1.0 m

kgf, 7 ft

lbf)

10. Install the coolant reservoir hose.
11. Fill the recommended coolant into the radiator until it is

full.

 Recommended antifreeze:

High quality ethylene glycol antifreeze containing
corrosion inhibitors for aluminum engines.
Antifreeze and water mixing ratio:1:1
Total amount:1.9 L (1.67 Imp qt, 2.00 US qt)

Coolant reservoir capacity
(up to the upper limit mark):
0.3 L (0.26 Imp qt, 0.32 US qt)

Hard water or salt water is harmful to the engine. You may
use soft water if you can not get distilled water.

12. Install the radiator cap.
13. Start the engine and let it idle for several minutes. Stop the

engine, and then check the coolant level in the radiator. If
it is low, add more coolant until it reaches the top of the
radiator.

14. Fill the coolant reservoir with coolant up to the upper limit.
15. Install the coolant reservoir cap and check for coolant

leakage.

If any leakage is found, have your dealer check

the cooling system.

16. Install the panels and the front rack.
