SEAT LOCK

Insert the key into the ignition switch and turn the key clockwise to open the seat.
Open the glove box, use the lever to open the seat by manual when power cut.

Notice: lock the seat when driving

Trunk:

1. Open the seat and the trunk



will



be



opened

Raincoat

tools, books and some newspapers can

be put in.
2. Max. Load capacity is 10.0 kg.
3. Close the seat, and the trunk will be locked.

-12-

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-13-

INSPECTION BEFORE DRIVING

To ensure the performance and safety, a routine



inspection shall be performed before daily drive.

FUEL LEVEL

Once the fuel is insufficient, please refill the fuel



tank in time. (Refer to fuel gauge on Page 9

)

Fuel tank capacity

.       .

Insert



the key into the lock and open the cap

turn the key anticlockwise, remove



the



fuel



tank



cover

and



then



refill



fuel

.

Align the fuel tank cover at bayonet of fuel tank, and then press into the fuel tank port. The fuel tank



cover



will be locked when hearing the

kacha

”.

NOTICE:

●Use gasoline with octane number 93 or above, do



not



mix



gasoline



and



engine



oil



or



alcohol

.

Be careful not to allow any dust ,water or other pollutants into fuel tank when refilling.

12.5L

Fuei level cannot be over fuel retainer when filling fuel.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-14-

Warning

Gasoline is flammable and it may be exploded under certain conditions, therefore refilling shall

be made in a well-ventilated area after the engine has been shut down. No smoking or lighting of

 spark is permitted in gas station



or



fuel



storage



area

.

Do not over fill the tank, the amount of refilled fuel shall be kept below the fuel level mark lock the

 cap after refilling

Gasoline is poisonous. Faint or death may occur if gasoline is swallowed, do



keep



your



skin



away



from



gasoline

do



not



breathe



in



the



vapor



of



gasoline

Keep gasoline



away



from



reach



of



children

if



gasoline



is



swallowed

 ,

see



a



doctor immediately and do not try to induce vomit.

CHECKING ENGLINE OIL
CHECK ENGINE OIL LEVEL

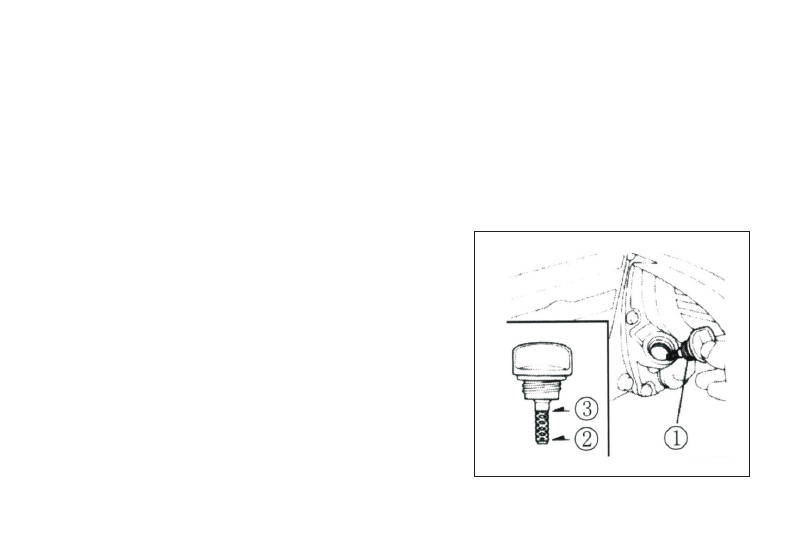

1. Park the scooter on a level surface and support it
with its central



stand. Remove the oil dip rod

(1)

and

 clean it with a rag. Insert the oil



dip rod without screwing

tight. Remove again and check oil level.
2. If the oil level is at the Lower Limit

 ( 2 ) ,

fill



the



crankcase



with



SAE15W-40/SG engine oil till the

 oil level is between Upper



Limit

 ( 3)

and



Lower



Limit

Install



and



tighten



the



oil



dip



rod

Check



for any



leakage

.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-15-

BRAKE
FRONT & REAR BRAKES

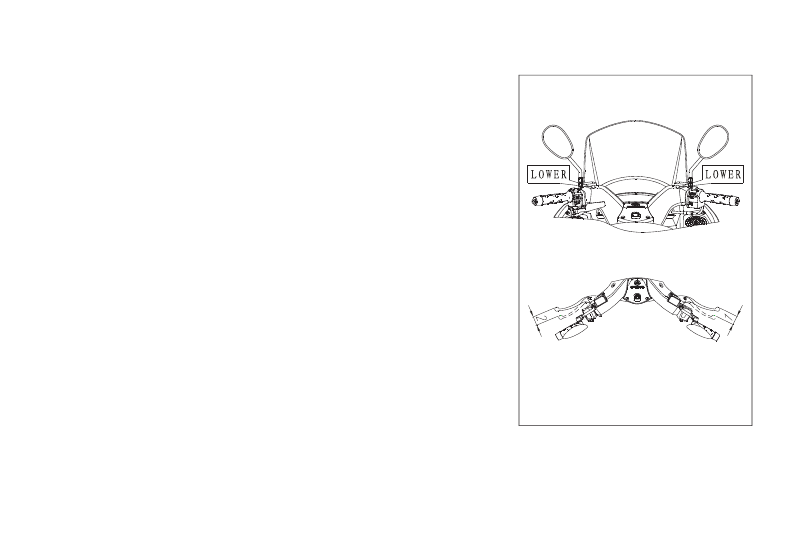

Check the brake fluid level: Brake fluid should be above the

 LOWER mark.

Notice: Use only DOT3 or DOT4 brake fluid

FREE PLAY OF THE BRAKE LEVERS

Brake lever free play:10~20mm

(

at



brake



lever



end

)

Notice: The free play of the brake lever should be 10 to 20 mm

.



If



the



free



is



out



of



this



range

please



consult



the



local



dealer

.

BRAKE DISK WEARING

Replace the front and rear brake disk if the thickness is less

 than 3mm

.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-16-

TIRE

This scooter is assembled



with



tubeless



tires

Only



tires



marked



with

 “

TUBELESS TIRES

APPLICABLE

”

can



be



used

.

Proper tire pressure will provide you maximum stability, comfort riding and longer tire life. Please

 check the tire pressure periodically and adjust if necessary.

Notice: Check the tire pressure while the tire is cool.



Tubeless



tire



has



a



certain



self

-

sealing



function

If



the



tire



is



punctured

it



will



leak



slowly

Check



the



tire



frequently



if



the



tire



is



punctured



especially



when



the



tire



cannot



be



inflated



properly.

Check the tires for any cut, nail or other sharp objects, and the rim for any indentation or deformation.
In case of any damage, consult the local dealer for repairing, replacing and adjustment of the wheel

 balance.

Tire Size

Tire pressure under cool condition

Front tire

120/70-15M/C

230±23

280±28

140/60-14M/C

Rear tire

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-17-



Over



inflation



will



cause



irregular



wear



of



the



thread

which



may



result



in



accident



while



low



inflation



pressure



may



cause



the



trip



and



make



the



tire



come



off



the



rim.

Driving with excessively worn-out tire may cause danger due to decreased adhesion and steering
stability.

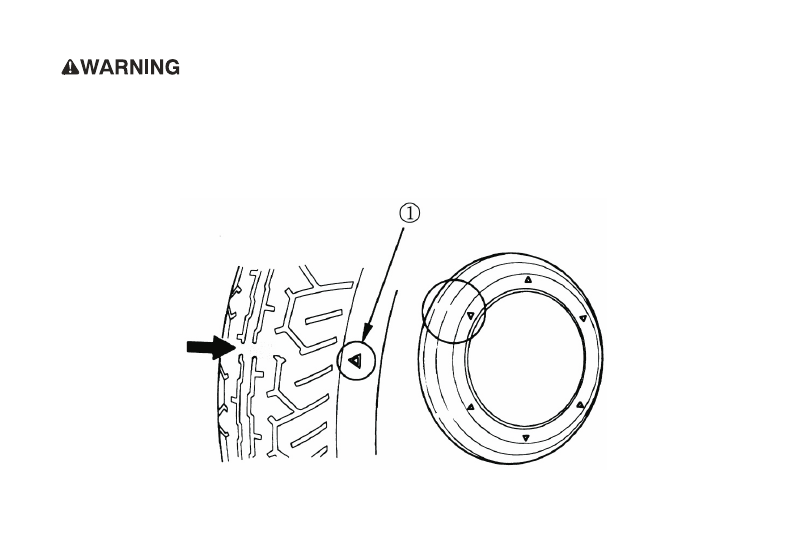

When the tread height of the tire reaches the mark

“ △ ”,

the



tire



should



be



replaced

.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-18-

STARTING THE ENGINE

Rear wheel may run if it is not braked.



A



running



wheel



may



cause



injury

.

Insert the key into main switch, and turn to “         ”
Turn kill switch to “        ”

Return side



stand

Hold the rear brake to lock the rear wheel.
Press start button to start engine.

Notice:

Release the start button as soon as the



engine



is



started

Do



not press the start button while the

 engine is running. Otherwise the engine may be damaged.

Only when the sides stand returns and brake lever is held, the engine



can



be



started

.

The start button must not be pressed for longer than 3 seconds. If the engine can not be started,

 release the start button for 10 seconds.

If the motorcycle



has



been



suspended



from



service



for



a



long



time



or



there



is



not



fuel



in



the



tank

the



starting



time



will



be



longer

.

Do not release the rear brake



lever



before



start

.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-19-

DRIVE THE SCOOTER

During driving or after the engine has just stooped, the muffler is very hot. Contacting the muffler

 may cause serious burn. Therefore please wear trousers, avoid contacting the uncovered part of
 the muffler.

Do not wear slack cloths, which may result in sleeves or trousers getting caught with pedals, wheels
and tires.
Any attachments installed on the scooter must be in accordance with the regulations of local

 authorities.

Any attempt to refit or disassemble



the



original



parts



to



or



from



the



scooter



is



illegal



and mat



cause



danger

.

Driving

Notice

Do



not



keep



the



engine



running



at



idle



for



a



long



time

.

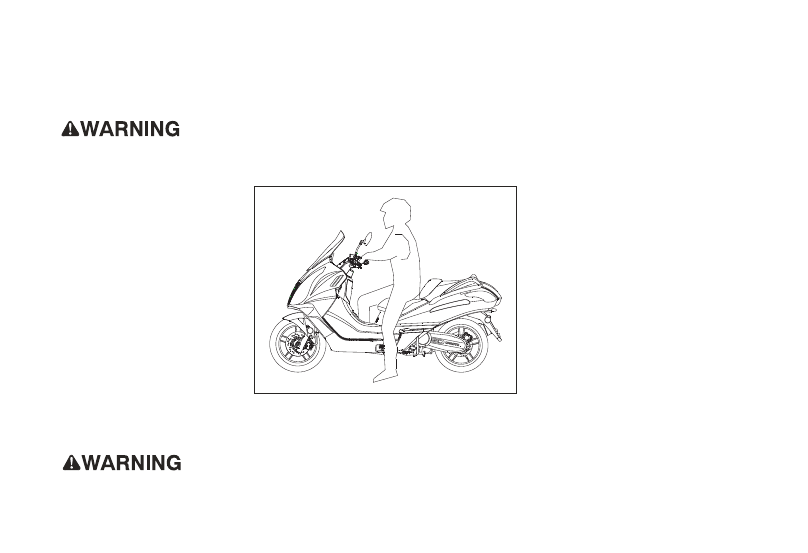

1.Push scooter forward, and hold the main stand.
2.Sit on the seat with right foot on the footrest and left foot on the ground.
3.Release rear brake lever.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-20-

NOTE:

Don

'

t



increase



throttle



suddenly



before



starting



the



scooter

.

4. Increase



throttle



slowly

and



the



scooter



will start to run

;

5.



Turn



or



release throttle for acceleration or deceleration.

Body injury may occur when contacting the running wheel. Don

'

t



accelerate



the



scooter



sharply

which



may



result



in



losing



control

 BRAKING

1.Throttle down
Throttle down to lower speed, and it

'

s important to engage the front and rear brake simultaneously

.

When driving on wet or soft ground or in rain, take care when making a turn, acceleration or braking.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-21-

2.Engage the front and rear brake simultaneously.
When driving down a steep slope, release the throttle, and engage the front and rear bake simulta-
neously.



Don

'

t



brake



continuously

otherwise



the



brake



will



be



overheated



which



will



result



in



lower



brake



efficiency

.

The front and rear brake should be engaged simultaneous

The



brake



efficiency



may



be



decreased



if



only



one



brake



is



applied

Engaging



brake



frequently



will



seize



the



wheel

as



well



as



decreasing



the



performance



of



scooter

.

PARKING

When you want to park the scooter, release the throttle, then engage the front and rear brake simu-
ltaneous



till



the



scooter



is stopped. Turn the start key to “        ”

stop the engine. Step on the main

 stand with right foot, lift the scooter by holding the rear bracket and park the scooter.

Lock the handlebar and pull out the key(Refer to page 8).

Park



the



scooter



on



solid



on



level



ground



to



avoid



injury



or



damage



to



the



scooter

.

ANTI-THEFT

1. Lock the handlebar and never leave the key in the main switch.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-22-

2.If possible, park the scooter in the garage.
3.Use high quality anti-theft device.

MAINTANENCE INTERVALS

The maintenance interval is based on the accumulated



mileage



and



is



the



guideline



for



mainte-

nance



and



lubrication



of



the



scooter

The



maintenance



interval



shall



be



shorter



if



the



scooter



always works in foul conditions at high speed. Please consult our local dealer for maintenance. If

 the scooter has been overhauled or collided, please consult technicians of the local dealer to check
 the main parts such as the frame, steering part, and suspension.

NOTICE:

To maintain the reliability and safety of the scooter, never refit it.

If necessary to adjust the emission, consult a specialized center

.

To avoid injury, maintenance shall be performed after the engine has been stopped and the scooter
 has been kept in stable position.

NOTICE:

If the scooter shall be suspended from service for more than one month or in winter, mai-

ntenance shall be carried out to prevent the fuel, the tire, and the battery from deteriorated or eroded.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-23-

MAINTENANCE INTERVAL TABLE

Perform the instructions in the Inspection Before
Driving section

(

Refer



to



P13

prior



to



each



periodical



maintenance

.

I

Inspecting

cleaning

adjusting

lubricating



or



replacing



when



necessary

.

C: Cleaning     R: Replacing
A: Adjusting    L: Lubricating

*

Consult



the



local



dealer



for



maintenance



or



repairing



unless



the



driver



or



the



owner



has



the



full



set



of



special



tools



or



is



a



qualified



technician

.

* *

We



recommend



that



the



technicians of the

 local dealers do the maintenance of the items

.

NOTE:

(

1

If



the



odometer



reading



reaches



is



more



than



specified

repeat



the



periodical



maintenance

.

(

2

If



environment



is



humid or dusty, the maintenance

 interval shall be shorter

(

3

If



riding



frequently



on



bumpy



road

maintenance



must



be



performed

.

(

4

To



be



replaced



every 2



years



by



experienced



technicians

.

Item

Intervals

Whichever

Km

ever y

Number

of month

Fule line

Throttle operation

Spank plug

Valve clearance

Engine oil(during break-in

 period)

Engine oil

Oil filter

Idle speed

Radiator coolant

Cooling system

Cvt belt

Oil,gear-reduction case

Wear of brake disc

Brake system

Switch,brake light

Parking operation

Headlight

Wear of brake shoes

Main stand side stand

Suspension system

Bnut,bolt and tightening

 parts

Wheel and tire

Steering bearing

Battery

Air filter

Initial:

1000Km/C

2000Km/C 20000Km/R

Initial:

1000Km/

Initial:

1000Km/

2000Km/

6000Km/

6000Km/R

2000Km/R

6000Km/R

2000Km/C

2000Km/

Initial:

6000Km/R
Initial:

6000Km/

2000Km/

2000Km/

2year/R

Initial:

1000Km/

Run-in period:

 1000Km/R

10000Km/R

5000 Km /R

Pre-ride/

Pre-ride/

Pre-ride/

Pre-ride/

Pre-ride/

Pre-ride/

Pre-ride/

3000Km/

Note2

Note4

Note3

5 0 0

Km

、1 0 0 0

Km same intervals/ R

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-24-

MAINTENANCE

AIR CLEANER
Air cleaner is located up under the seat.

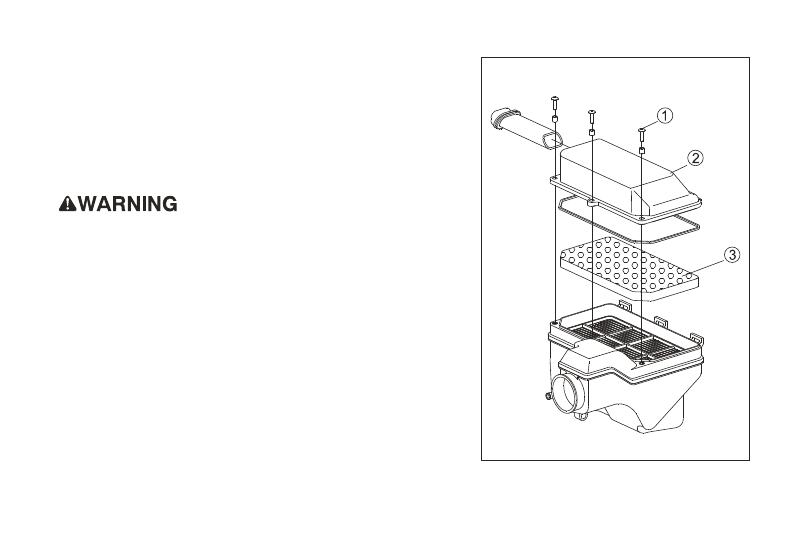

1. Remove air cleaner bolts

①;

2. Remove top cover

② ;

3. Take out air cleaner filter element

③ ;

4. Clean filter element with non-combustible or high flash



point



solvent

and



then



air-dry



it

.

Never clean the filter element with gasoline or low flash

 point solvent.

NOTICE:

  Clean the dust and oil stains on the filter

element with cleaning detergent.Squeeze

 dry the detergent.Soak the element in oil.

Do not fully dry the oil-soaked element.
Replace the filter element it is damaged.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-25-

RADIATOR

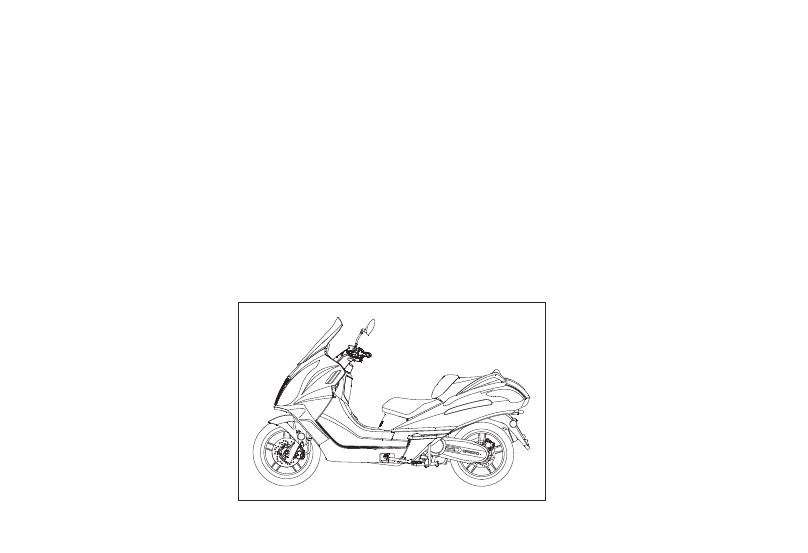

Radiator is located at the front of direction, clean the dust and mud from the radiator periodically

 according to the road condition.

COOLANT TYPE

Only use the high quality Ethylene Glycol based antifreeze with erosion inhibitor, which is



special



for



aluminum



engines

This



scooter



has



been



filled



with



coolant



contains

 5 0%

anti

-

freezer



and

 5 0 %

water

.

NOTICE:

Coolant



should



not



be



substituted



with



water



or



other



liquid



to



avoid



damage



to



the



engine

.

CHECKING COOLANT CAPACITY

1, Remove



the



front storage cover, check auxiliary radiator coolant storage capacity.(Refer to page 4).

2, If the coolant level is at the L mark, remove the auxiliary radiator cover to add coolant untill the
 coolant level is up to the H mark.
3, The coolant capacity between H and L is 130ml-300ml.
4, Cooling circulating system liquid capacity: 2100ml.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-26-

ENGINE OIL

High quality engine oil is of ideal performance. Only high quality scooter engine oil SG with high

 de-pollution performance can be used, no additive



is



needed

.

RECOMMENDED ENGINE OIL:

SG Grade

VISCOCITY

The viscocity of the engine oil shall be in accordance with the local climate condition. The figure on

 the right provided a guideline for selecting the engine oil viscocity for different atmospheric temp-

eratures.

SAE10W-30
SAE15W-40
SAE20W-50

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-27-

REPLACING AND CLEANING OF THE FIRST, SECOND ENGINE OIL FILTER

ENGINE OIL CAPACITY

●The first engine oil filter position see pic1. The second engine oil filter position see pic2.

Pic3: At the position of pic1, remove the filter screen cover 1, O ring 2, compression spring 3, filter

 screen 4 from the right crankcase comp 5, check the O ring damage(if damaged, replace), clean the
 filter screen cover, O ring, filter screen compression spring.

Filter screen: In cold weather, replace the engine crankcase oil, warm-up the engine in idle speed

 5-10 mins, then start to replace the enigne crankcase oil.


First filter


Second fiter

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..      1      2      3      ..
