FIG NO. ：Y1660-01A0

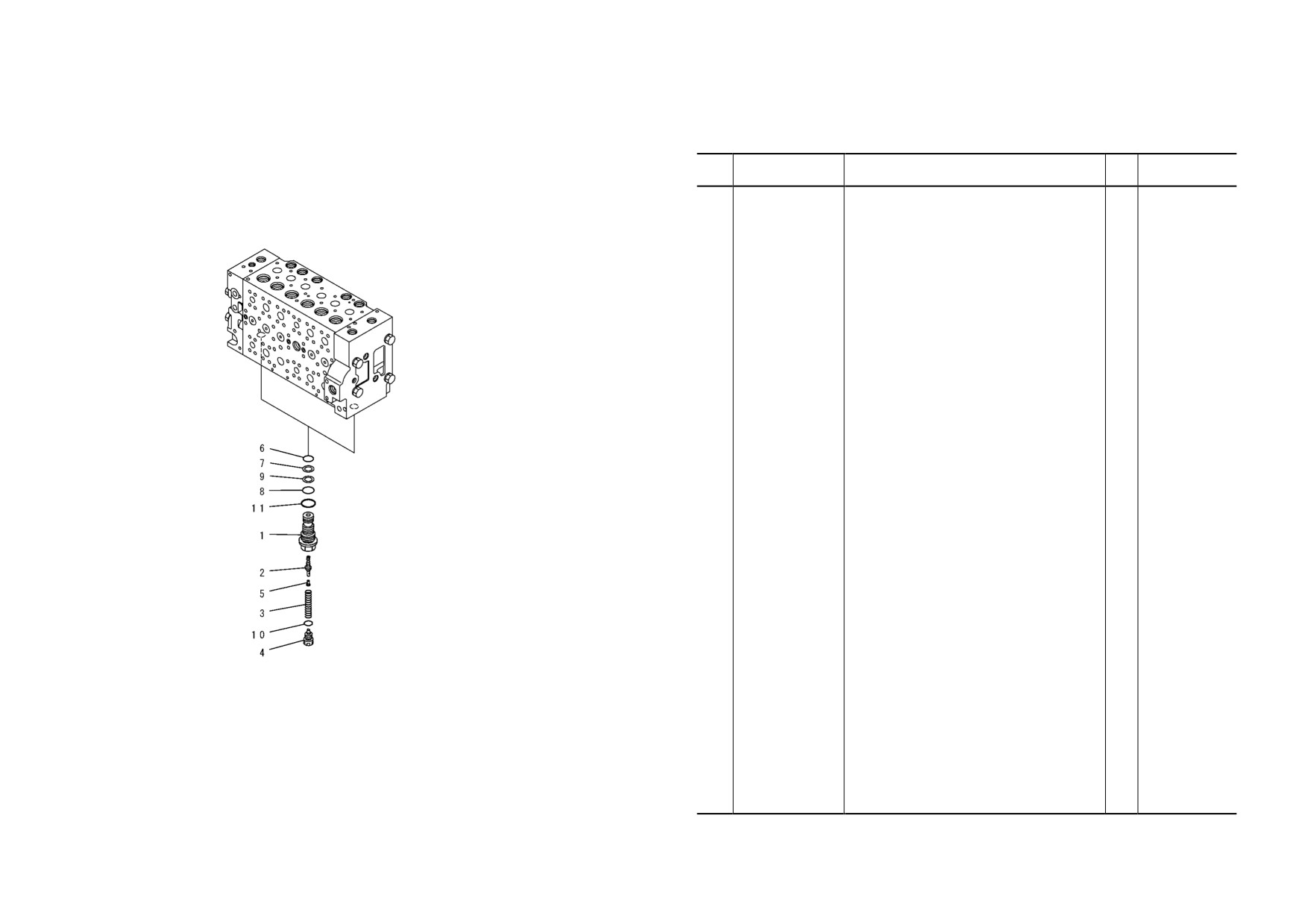

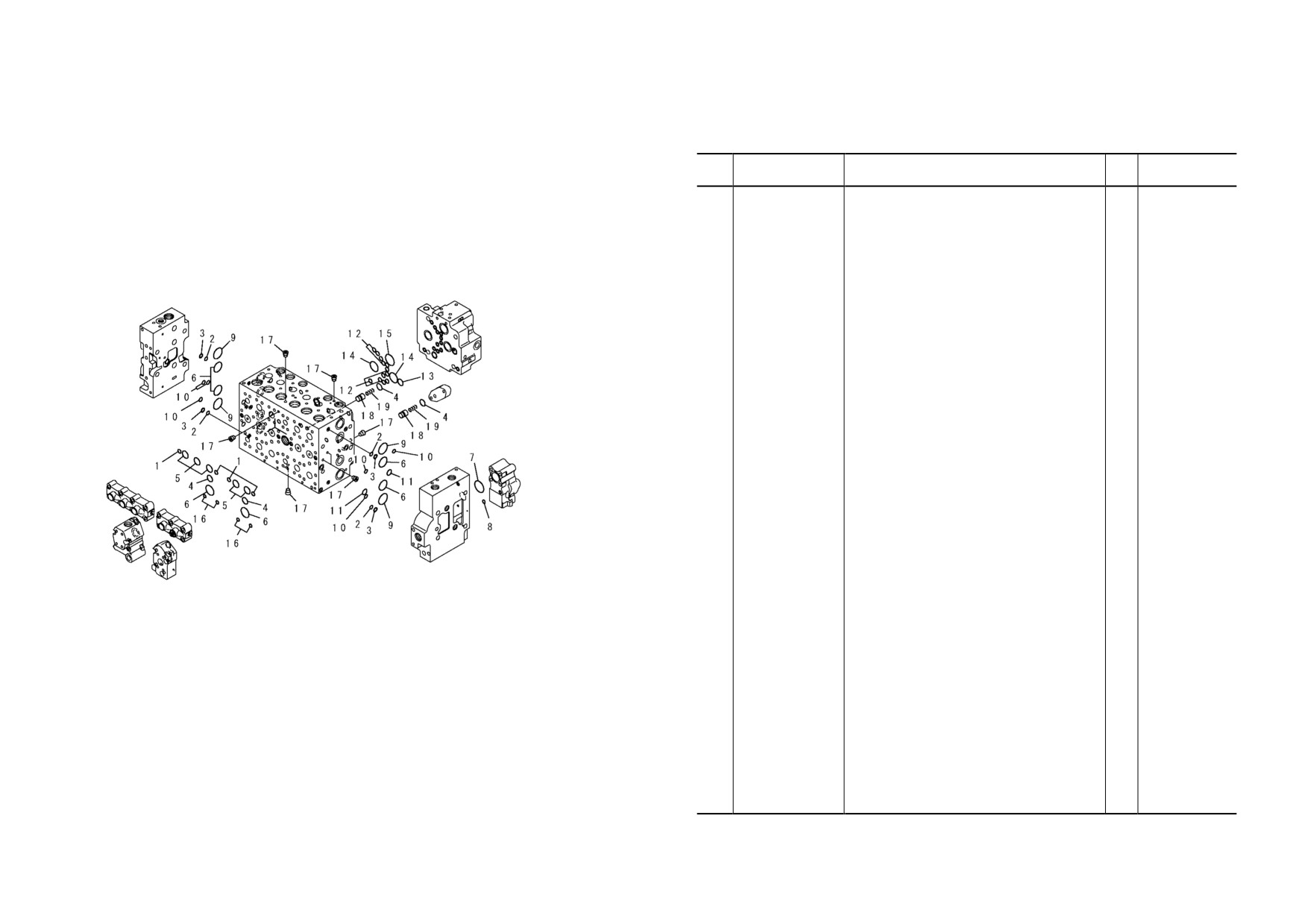

FIG. Y1660-01A0 MAIN VALVE (1/16)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
723-46-20403
VALVE ASS' Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1660-01A0 TO Y1660-16A0
☆
. BODY SUB ASS' Y
1
DBB0001~
1
☆
.. BLOCK, VALVE
1
DBB0001~
2
☆
.. SPOOL
1
DBB0001~
3
☆
.. SPOOL
2
DBB0001~
4
☆
.. SPOOL
1
DBB0001~
5
☆
.. SPOOL
1
DBB0001~
6
☆
.. SPOOL
1
DBB0001~
7
723-46-15130
.. PLUG
8
DBB0001~
8
723-46-15140
.. PLUG
4
DBB0001~
9
07002-10823
.. O-RING
12
DBB0001~
10
708-7T-16460
.. BALL
8
DBB0001~
11
723-46-15120
.. RETAINER
5
DBB0001~
12
723-46-15690
.. RETAINER
7
DBB0001~
13
723-46-14110
.. SPRING
8
DBB0001~
14
723-46-14270
.. SPRING
2
DBB0001~
15
723-46-14131
.. SPRING
2
DBB0001~
PW5H645
YO- 68
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 69
FIG NO. ：Y1660-02A0

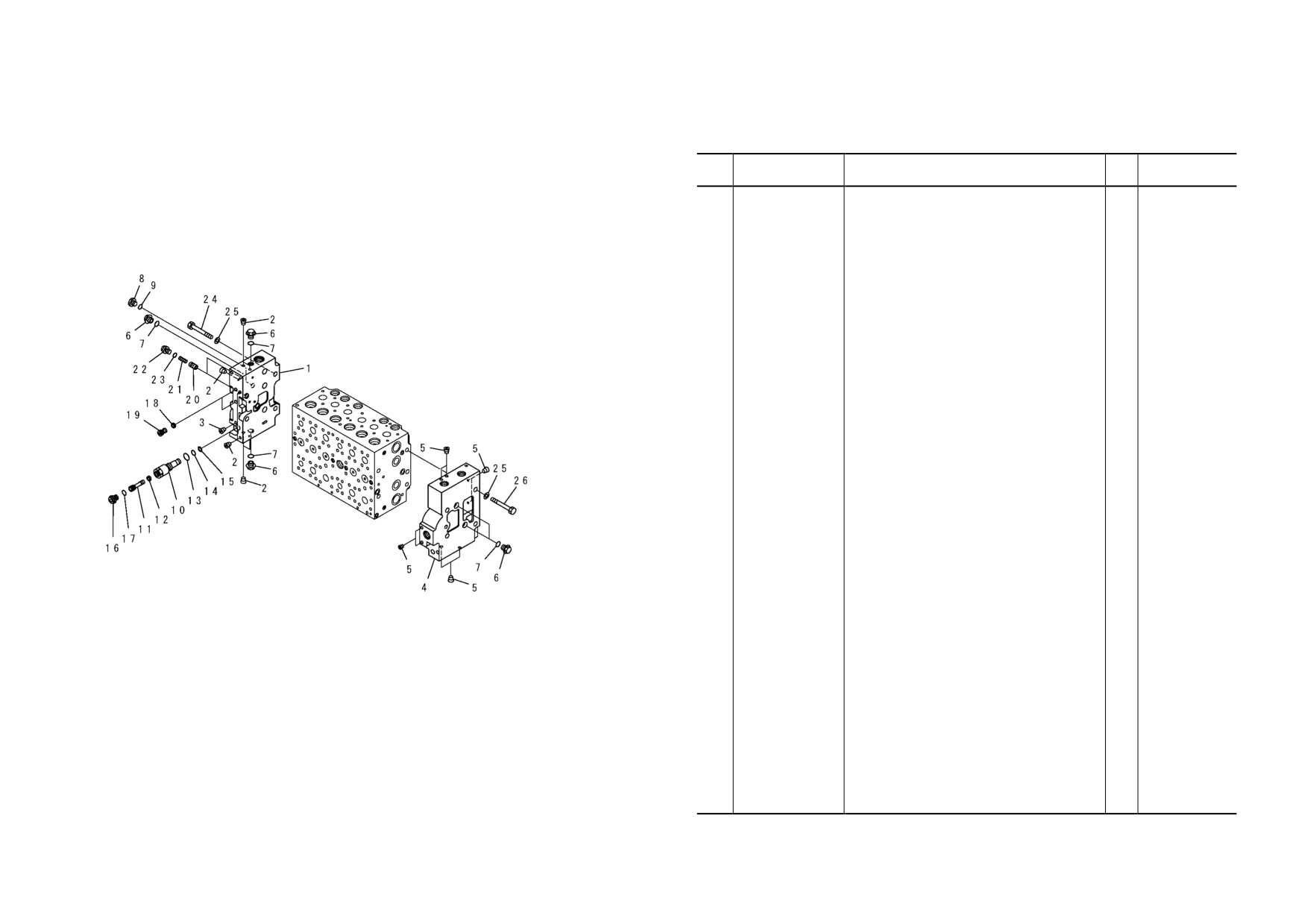

FIG. Y1660-02A0 MAIN VALVE (2/16)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
(723-46-20403)
VALVE ASS' Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1660-01A0 TO Y1660-16A0
☆
. BODY SUB ASS' Y
1
DBB0001~
723-46-18300
.. CASE SUB ASS' Y
1
DBB0001~
1
☆
... CASE
1
DBB0001~
2
☆
... PISTON
1
DBB0001~
3
☆
... SEAL
1
DBB0001~
4
723-46-15630
... PLUG
1
DBB0001~
5
723-46-17340
... PLUG
1
DBB0001~
6
07000-13024
... O-RING
2
DBB0001~
7
☆
... SCREW
3
DBB0001~
8
723-46-17320
... SPOOL
1
DBB0001~
9
723-46-17330
... SPRING
1
DBB0001~
723-46-18100
.. CASE SUB ASS' Y
1
DBB0001~
10
☆
... CASE
1
DBB0001~
11
☆
... PISTON
1
DBB0001~
12
☆
... SEAL
1
DBB0001~
13
723-46-15630
... PLUG
2
DBB0001~
14
07000-13024
... O-RING
2
DBB0001~
15
☆
... SCREW
1
DBB0001~
PW5H646
YO- 70
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 71
FIG NO. ：Y1660-03A0

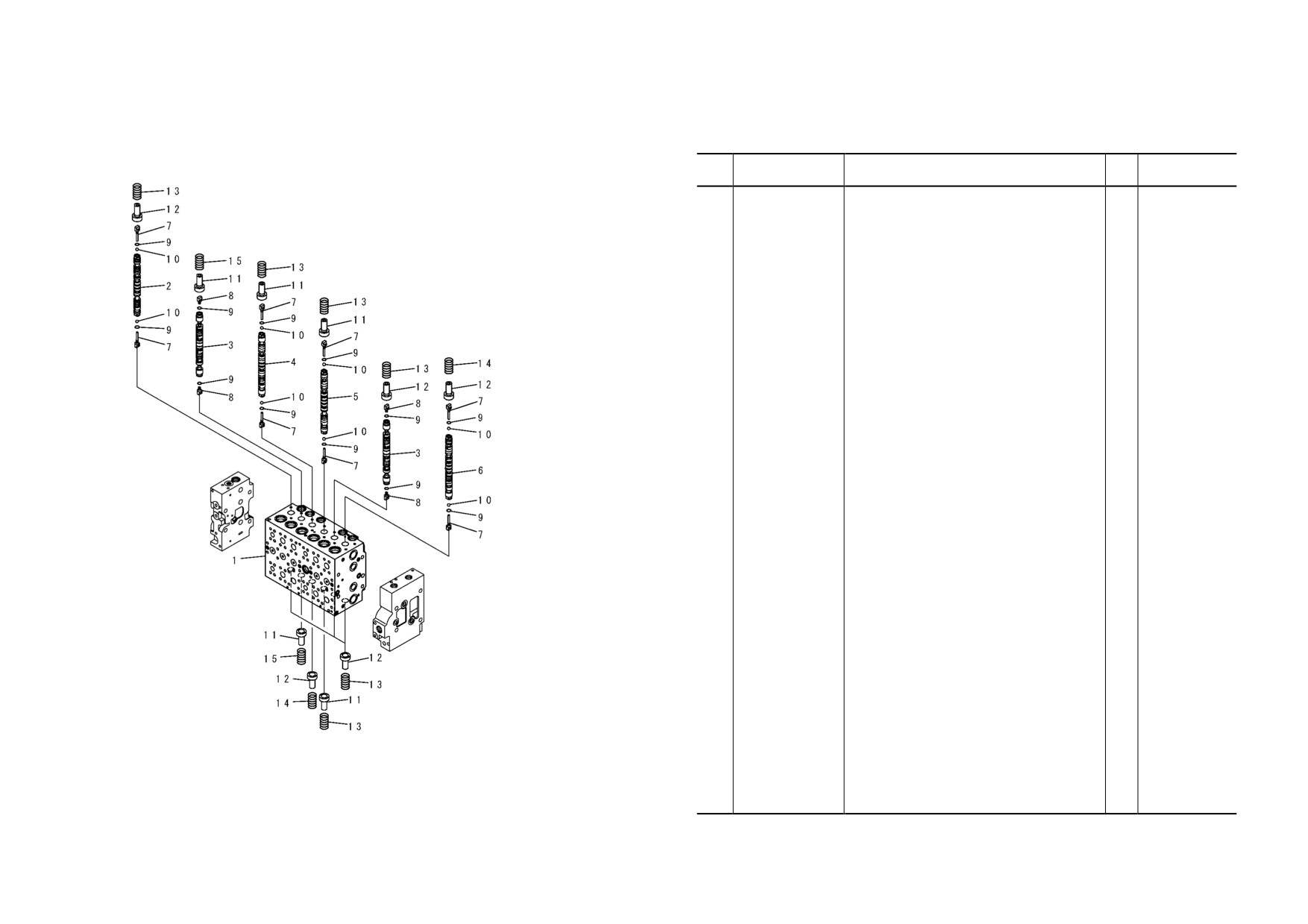

FIG. Y1660-03A0 MAIN VALVE (3/16)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
(723-46-20403)
VALE ASS' Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1660-01A0 TO Y1660-16A0
☆
. BODY SUB ASS' Y
1
DBB0001~
723-46-18400
.. CASE SUB ASS' Y
1
DBB0001~
1
☆
... CASE
1
DBB0001~
2
☆
... PISTON
1
DBB0001~
3
☆
... SEAL
1
DBB0001~
4
723-46-17320
... SPOOL
1
DBB0001~
5
723-46-17330
... SPRING
1
DBB0001~
6
723-46-15630
... PLUG
1
DBB0001~
7
723-46-17340
... PLUG
1
DBB0001~
8
07000-13024
... O-RING
2
DBB0001~
9
☆
... SCREW
3
DBB0001~
723-46-18200
.. CASE SUB ASS' Y
1
DBB0001~
10
☆
... CASE
1
DBB0001~
11
723-46-15630
... PLUG
1
DBB0001~
12
07000-13024
... O-RING
1
DBB0001~
PW5H647
YO- 72
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 73
FIG NO. ：Y1660-04A0

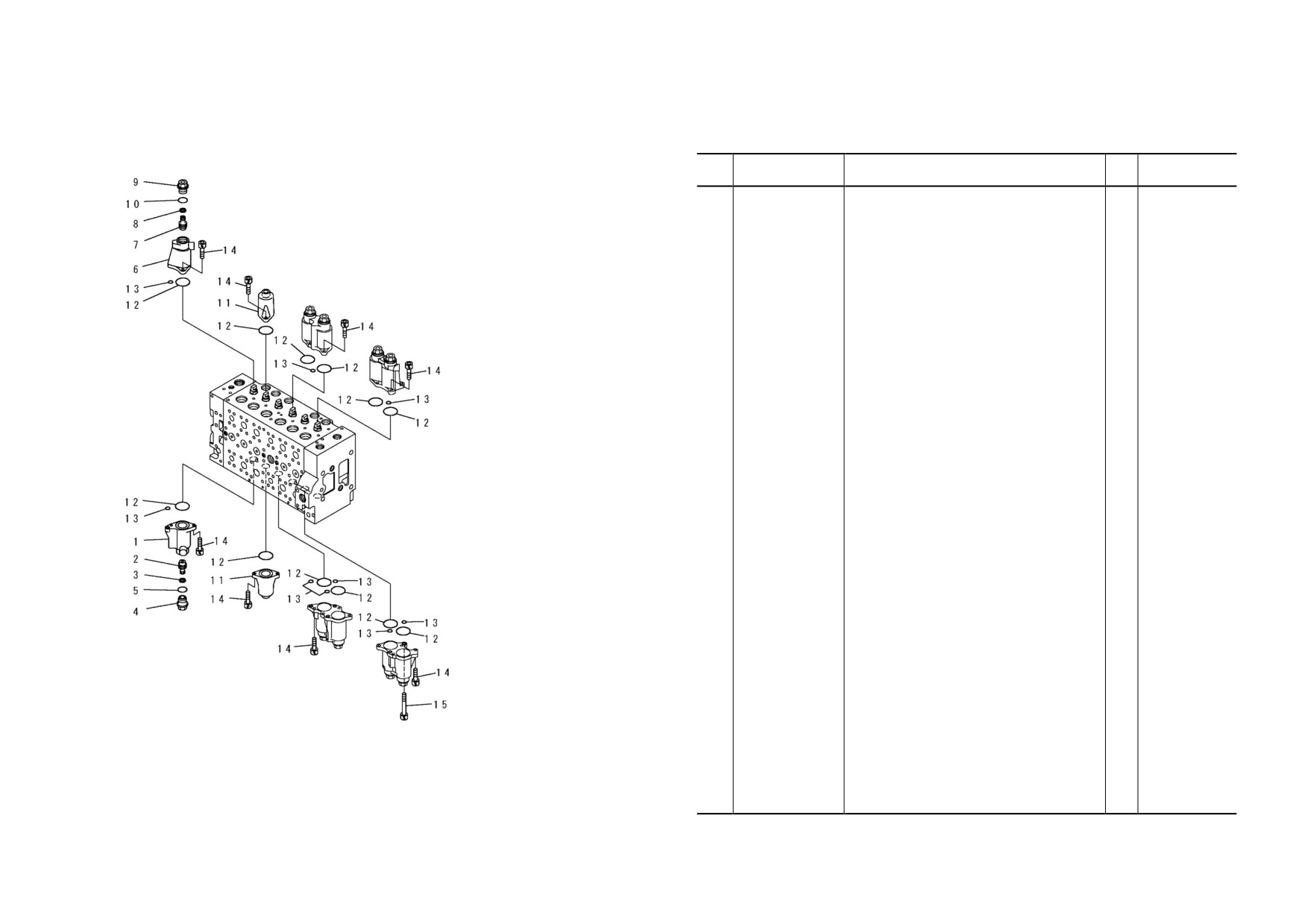

FIG. Y1660-04A0 MAIN VALVE (4/16)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
(723-46-20403)
VALVE ASS' Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1660-01A0 TO Y1660-16A0
☆
. BODY SUB ASS' Y
1
DBB0001~
723-46-18500
.. CASE SUB ASS' Y
1
DBB0001~
1
☆
... CASE
1
DBB0001~
2
☆
... PISTON
1
DBB0001~
3
☆
... SEAL
1
DBB0001~
4
723-46-15630
... PLUG
1
DBB0001~
5
... O-RING
1
DBB0001~
07000-13024
.. CASE SUB ASS' Y
1
DBB0001~
723-46-18600
6
... CASE
1
DBB0001~
☆
7
... PISTON
1
DBB0001~
☆
8
... SEAL
1
DBB0001~
☆
9
... PLUG
1
DBB0001~
723-46-15630
10
... O-RING
1
DBB0001~
07000-13024
11
.. CASE
2
DBB0001~
723-46-15111
12
.. O-RING
12
DBB0001~
07430-71380
13
.. O-RING
9
DBB0001~
702-16-53920
14
.. BOLT
22
DBB0001~
01252-60820
15
.. BOLT
2
DBB0001~
723-46-17350
PW5H648
YO- 74
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 75
FIG NO. ：Y1660-05A0

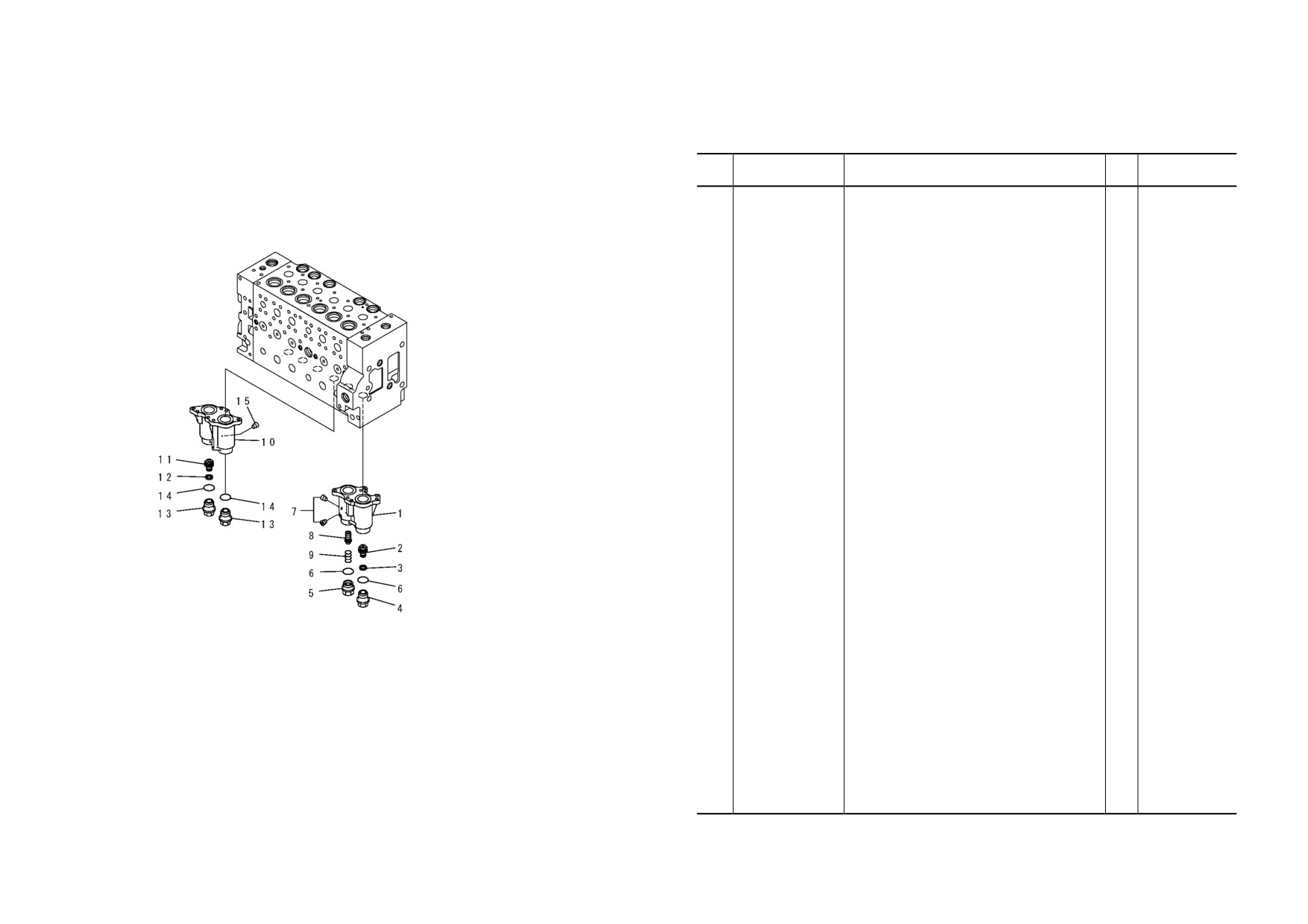

FIG. Y1660-05A0 MAIN VALVE (5/16)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
(723-46-20403)
VALVE ASS' Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1660-01A0 TO Y1660-16A0
☆
. BODY SUB ASS' Y
1
DBB0001~
1
07000-12012
.. O-RING
4
DBB0001~
2
723-11-19130
.. O-RING
4
DBB0001~
3
723-46-17520
.. RING, BACK-UP
4
DBB0001~
4
07000-12021
.. O-RING
4
DBB0001~
5
07000-13028
.. O-RING
5
DBB0001~
6
07000-13032
.. O-RING
6
DBB0001~
7
07000-13038
.. O-RING
1
DBB0001~
8
07000-11010
.. O-RING
1
DBB0001~
9
723-46-17510
.. O-RING
4
DBB0001~
10
723-46-17530
.. O-RING
6
DBB0001~
11
723-11-18150
.. O-RING
2
DBB0001~
12
07000-12012
.. O-RING
12
DBB0001~
13
07000-12021
.. O-RING
1
DBB0001~
14
07000-13032
.. O-RING
2
DBB0001~
15
07000-13036
.. O-RING
1
DBB0001~
16
702-16-53920
.. O-RING
4
DBB0001~
17
☆
..PLUG
17
DBB0001~
18
723-46-15150
. VALVE
2
DBB0001~
19
723-46-14150
. SPRING
2
DBB0001~
PW5H649
YO- 76
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 77
FIG NO. ：Y1660-06A0

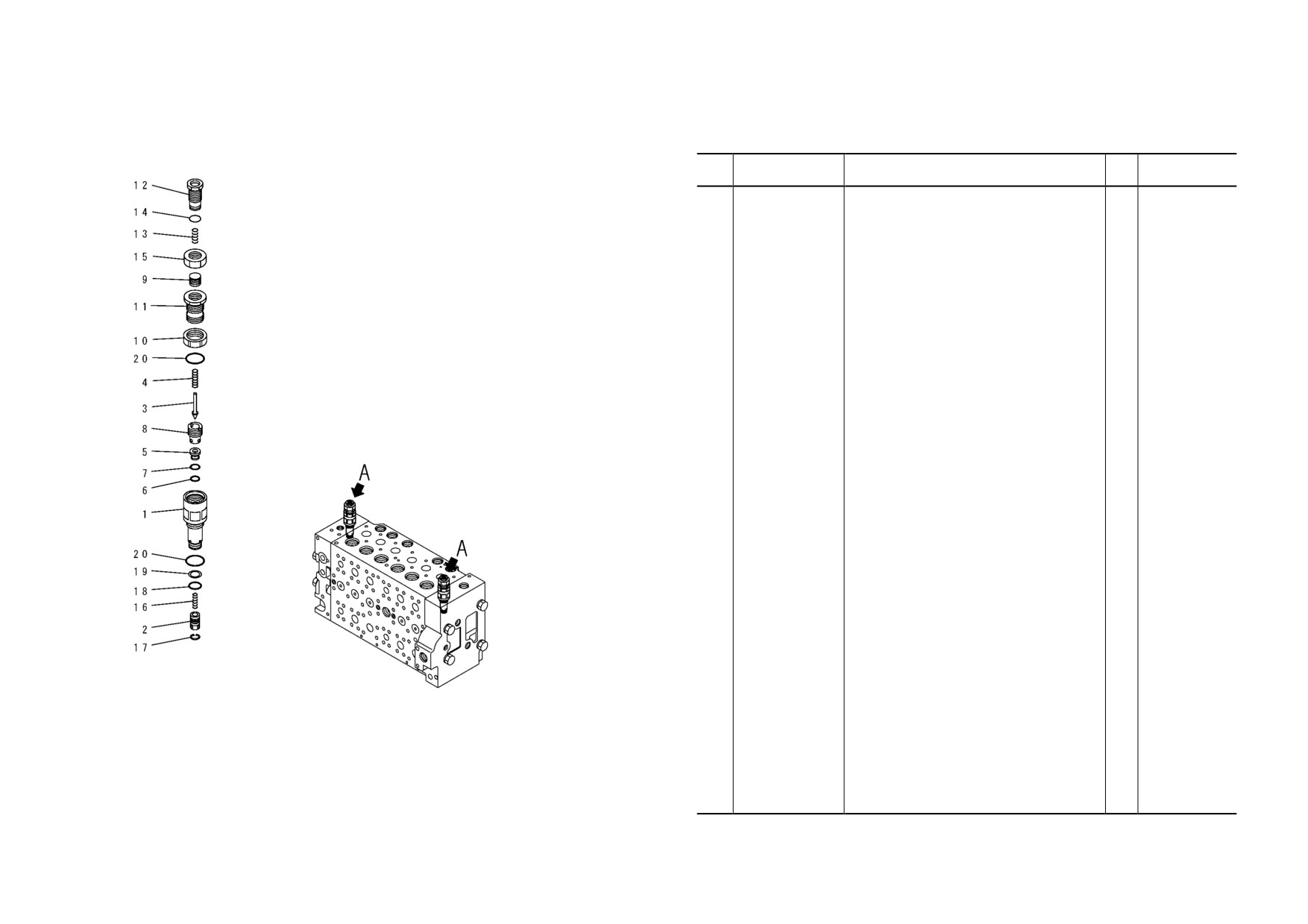

FIG. Y1660-06A0 MAIN VALVE (6/16)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
(723-46-20403)
VALVE ASS' Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1660-01A0 TO Y1660-16A0
☆
. BODY SUB ASS' Y
1
DBB0001~
1
723-46-41110
.. VALVE
6
DBB0001~
2
723-46-41120
.. VALVE
1
DBB0001~
723-46-40100
.. VALVE ASS' Y
1
DBB0001~
3
☆
... SLEEVE
1
DBB0001~
4
☆
... PISTON SUB ASS' Y
1
DBB0001~
5
☆
... SPRING
1
DBB0001~
6
☆
... SEAL
2
DBB0001~
7
700-93-11320
... O-RING
1
DBB0001~
8
723-46-41950
... RING
2
DBB0001~
9
07002-13634
... O-RING
1
DBB0001~
723-46-42700
.. ALVE ASS' Y
4
DBB0001~
Detail A
Detail B
Detail C
Detail D
Detail E
10
☆
... SLEEVE
1
DBB0001~
11
☆
... VALVE
1
DBB0001~
12
☆
... SPRING
1
DBB0001~
13
☆
... SEAL
1
DBB0001~
14
700-93-11320
... O-RING
1
DBB0001~
15
723-46-41950
... RING
2
DBB0001~
16
07002-13634
... O-RING
1
DBB0001~
723-46-41100
.. VALVE ASS' Y
2
DBB0001~
17
☆
... SLEEVE
1
DBB0001~
18
☆
... PISTON SUB ASS' Y
1
DBB0001~
19
☆
... SPRING
1
DBB0001~
20
☆
... SEAL
2
DBB0001~
21
700-93-11320
... O-RING
1
DBB0001~
22
723-46-41950
... RING
2
DBB0001~
23
07002-13634
... O-RING
1
DBB0001~
723-46-45100
.. VALVE ASS' Y
1
DBB0001~
24
☆
... SLEEVE
1
DBB0001~
25
☆
... PISTON SUB ASS' Y
1
DBB0001~
Detail F
Detail G
Detail H
26
☆
... SPRING
1
DBB0001~
27
☆
... SEAL
2
DBB0001~
PW5H650
28
700-93-11320
... O-RING
1
DBB0001~
29
723-46-41950
... RING
2
DBB0001~
30
07002-13634
... O-RING
1
DBB0001~
YO- 78
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 79
FIG NO. ：Y1660-06A0
FIG. Y1660-06A0 MAIN VALVE (6/16)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
723-46-46300
.. VALVE ASS' Y
1
DBB0001~
31
☆
... SLEEVE
1
DBB0001~
32
☆
... PISTON SUB ASS' Y
1
DBB0001~
33
☆
... SPRING
1
DBB0001~
34
☆
... SEAL
2
DBB0001~
35
700-93-11320
... O-RING
1
DBB0001~
36
723-46-41950
... RING
2
DBB0001~
37
07002-13634
... O-RING
1
DBB0001~
723-46-43400
.. VALVE ASS' Y
1
DBB0001~
38
☆
... SLEEVE
1
DBB0001~
39
☆
... VALVE SUB ASS' Y
1
DBB0001~
40
☆
... SPRING
1
DBB0001~
Detail A
Detail B
Detail C
Detail D
Detail E
41
☆
... SEAL
2
DBB0001~
42
700-93-11320
... O-RING
1
DBB0001~
43
723-46-41950
... RING
2
DBB0001~
44
07002-13634
... O-RING
1
DBB0001~
723-46-43100
.. VALVE ASS' Y
1
DBB0001~
45
☆
... SPRING
1
DBB0001~
46
☆
... PISTON SUB ASS' Y
1
DBB0001~
47
☆
... SPRING
1
DBB0001~
48
☆
... SEAL
2
DBB0001~
49
700-93-11320
... O-RING
1
DBB0001~
50
723-46-41950
... RING
2
DBB0001~
51
07002-13634
... O-RING
1
DBB0001~
723-46-46101
.. VALVE ASS' Y
1
DBB0001~
52
☆
... SLEEVE
1
DBB0001~
53
☆
... PISTON SUB ASS' Y
1
DBB0001~
Detail F
Detail G
Detail H
54
☆
... SPRING
1
DBB0001~
PW5H650
55
☆
... SEAL
2
DBB0001~
56
700-93-11320
... O-RING
1
DBB0001~
57
723-46-41950
... RING
2
DBB0001~
58
07002-13634
... O-RING
1
DBB0001~
YO- 80
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 81

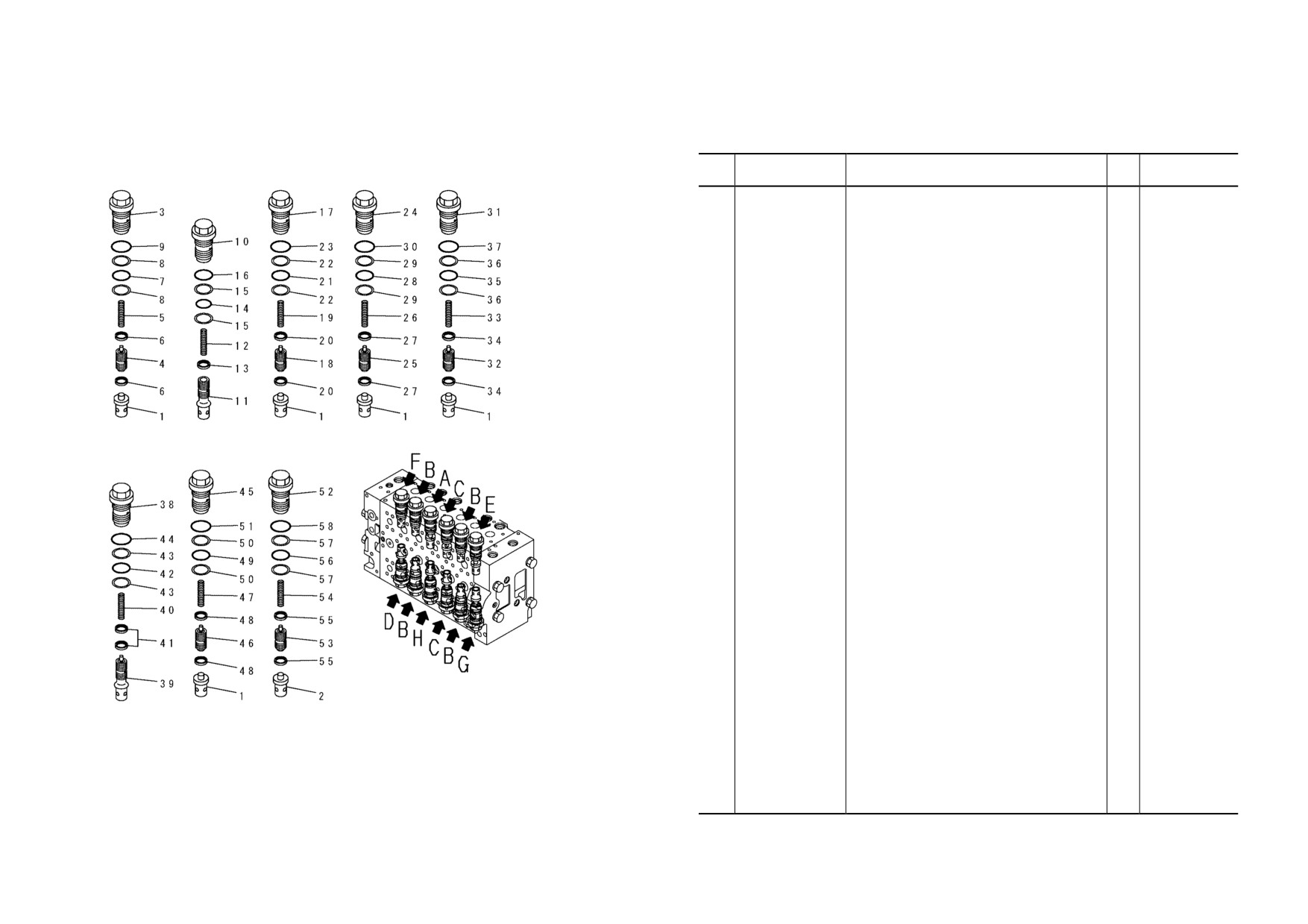

FIG NO. ：Y1660-07A0
FIG. Y1660-07A0 MAIN VALVE (7/16)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
(723-46-20403)
VALVE ASS' Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1660-01A0 TO Y1660-16A0
723-46-00750
. COVER ASS' Y
1
DBB0001~
1
☆
.. COVER, A
1
DBB0001~
2
☆
.. PLUG
7
DBB0001~
3
☆
.. PLUG
1
DBB0001~
723-46-00742
. COVER ASS' Y
1
DBB0001~
4
☆
.. COVER, B
1
DBB0001~
5
☆
.. PLUG
8
DBB0001~
6
723-46-15180
. PLUG
5
DBB0001~
7
07002-11823
. O-RING
5
DBB0001~
8
708-8H-11530
. PLUG
1
DBB0001~
9
07002-11423
. O-RING
1
DBB0001~
723-46-17600
. PLUG ASS' Y
1
DBB0001~
10
723-46-17610
.. SLEEVE
1
DBB0001~
11
723-46-17640
.. PLUG
1
DBB0001~
12
702-21-55760
.. FILTER
1
DBB0001~
13
07002-11423
.. O-RING
1
DBB0001~
14
07000-11007
.. O-RING
1
DBB0001~
15
07001-01007
.. RING, BACK-UP
1
DBB0001~
16
708-8E-16160
.. PLUG
1
DBB0001~
17
07002-11023
.. O-RING
1
DBB0001~
18
723-40-82220
. FILTER
2
DBB0001~
19
723-46-17550
. PLUG
2
DBB0001~
20
723-46-15190
. VALVE
2
DBB0001~
21
723-46-14140
. SPRING
2
DBB0001~
22
708-8E-16160
. PLUG
2
DBB0001~
23
07002-11023
. O-RING
2
DBB0001~
24
01010-61490
. BOLT
4
DBB0001~
25
01643-31445
. WASHER
8
DBB0001~
PW5H277
26
01010-61490
. BOLT
4
DBB0001~
YO- 82
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 83
FIG NO. ：Y1660-08A0
FIG. Y1660-08A0 MAIN VALVE (8/16)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
(723-46-20403)
VALVE ASS' Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1660-01A0 TO Y1660-16A0
723-40-56302
. UNLOAD VALVE ASS' Y
2
DBB0001~
1
☆
.. SLEEVE
1
DBB0001~
2
☆
.. VALVE
1
DBB0001~
3
☆
.. SPRING
1
DBB0001~
4
☆
.. PLUG
1
DBB0001~
5
☆
.. PLUG
1
DBB0001~
6
07000-12014
.. O-RING
1
DBB0001~
7
723-40-56350
.. RING
1
DBB0001~
8
07000-12016
.. O-RING
1
DBB0001~
9
723-60-22230
.. RING, BACK-UP
1
DBB0001~
10
☆
.. O-RING
1
DBB0001~
11
07002-12434
.. O-RING
1
DBB0001~
PW5H278
YO- 84
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 85
FIG NO. ：Y1660-09A0
FIG. Y1660-09A0 MAIN VALVE (9/16)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
(723-46-20403)
VALVE ASS' Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1660-01A0 TO Y1660-16A0
723-40-91101
. VALVE ASS' Y, RELIEF
2
DBB0001~
1
☆
.. SLEEVE
1
DBB0001~
2
☆
.. VALVE
1
DBB0001~
3
☆
.. POPPET
1
DBB0001~
4
☆
.. SPRING
1
DBB0001~
5
☆
.. SEAT
1
DBB0001~
6
☆
.. O-RING
1
DBB0001~
7
☆
.. RING
1
DBB0001~
8
☆
.. HOLDER
1
DBB0001~
9
☆
.. RETAINER
1
DBB0001~
10
☆
NUT
1
DBB0001~
11
☆
.. HOLDER
1
DBB0001~
12
☆
.. PLUG
1
DBB0001~
13
☆
.. SPRING
1
DBB0001~
14
☆
.. O-RING
1
DBB0001~
15
☆
.. NUT
1
DBB0001~
16
☆
.. SPRING
1
DBB0001~
17
☆
.. RING
1
DBB0001~
18
700-22-11410
.. O-RING
1
DBB0001~
19
700-80-64220
.. RING
1
DBB0001~
20
07002-12434
.. O-RING
2
DBB0001~
Detail A
PW5H279
YO- 86
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 87















Content      ..     42      43      44      45     ..
