Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 43

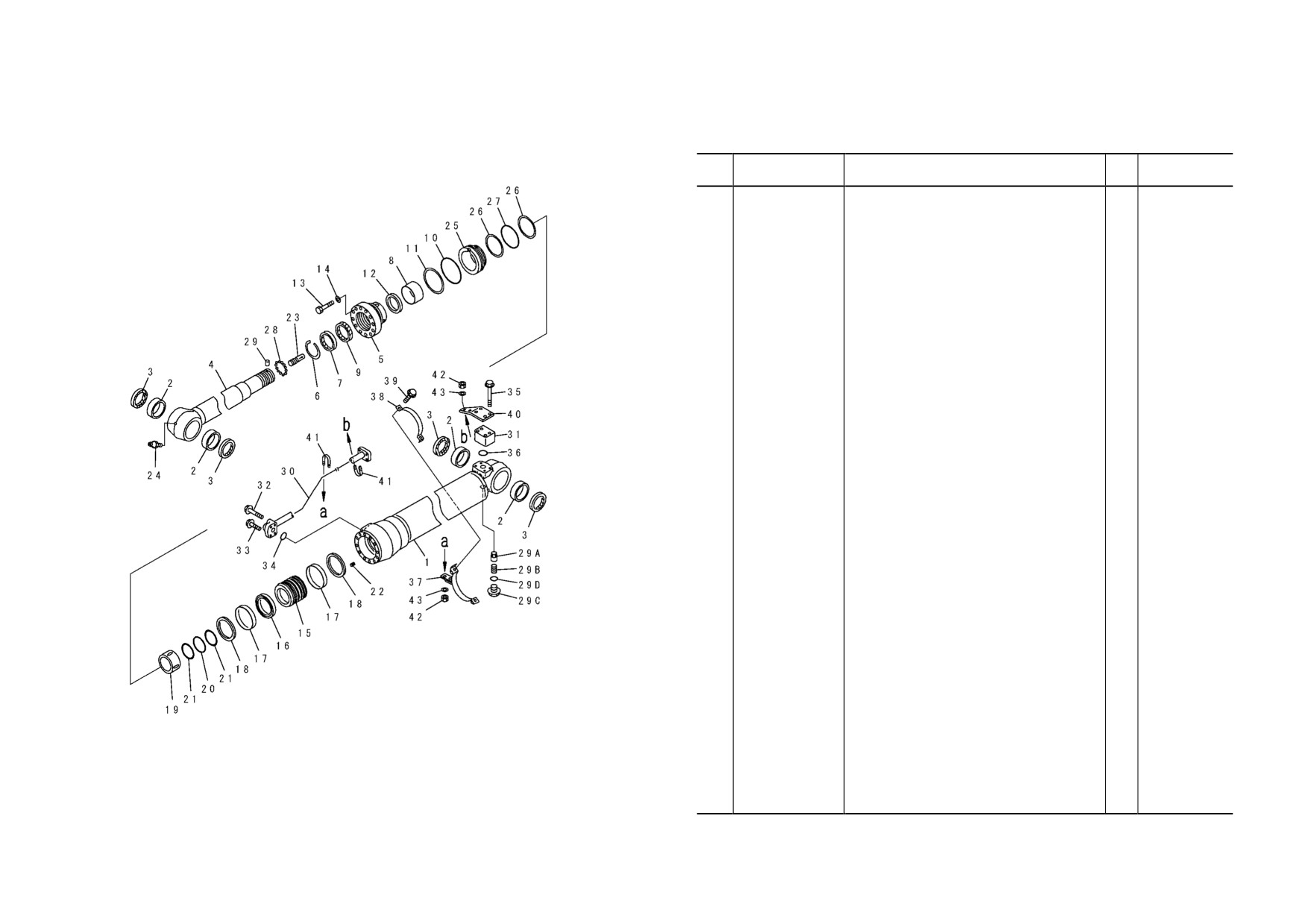

FIG NO. ：Y1620-11A0
FIG. Y1620-11A0 ARM CYLINDER
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
G-1
(⊙707-01-XZ841)
CYLINDER GROUP (FINAL COAT)
1
DBB0001~
(⊙707-01-XA981)
CYLINDER GROUP (UNDER COAT)
1
DBB0001~
==========
707-01-XA311
CYLINDER ASS' Y
1
DBB0001~
1
707-13-13540
. CYLINDER
1
DBB0001~
2
707-76-80470
. BUSHING
4
DBB0001~
3
07145-00080
. SEAL, DUST (KIT)
4
DBB0001~
4
707-58-95161
. ROD, PISTON
1
DBB0001~
5
707-27-13961
. HEAD, CYLINDER
1
DBB0001~
6
07179-13109
. RING, SNAP
1
DBB0001~
7
707-56-95510
. EAL, DUST (KIT)
1
DBB0001~
8
707-52-90720
. BUSHING
1
DBB0001~
9
707-51-95030
. PACKING, ROD (KIT)
1
DBB0001~
10
07000-15125
. O-RING (KIT)
1
DBB0001~
11
707-35-91370
. RING, BACK-UP (KIT)
1
DBB0001~
12
707-51-95640
. RING, BUFFER (KIT)
1
DBB0001~
13
01010-81875
. BOLT
12
DBB0001~
14
707-41-11840
. WASHER
12
DBB0001~
15
707-36-13771
. PISTON
1
DBB0001~
16
707-44-13280
. RING, PISTON (KIT)
1
DBB0001~
17
707-39-13530
. RING, WEAR (KIT)
2
DBB0001~
18
707-44-13920
. RING
2
DBB0001~
19
707-71-61070
. PLUNGER
1
DBB0001~
20
07000-15085
. O-RING (KIT)
1
DBB0001~
21
707-35-90960
. RING, BACK-UP (KIT)
2
DBB0001~
22
01310-01216
. SCREW
1
DBB0001~
23
707-71-70270
. PLUNGER
1
DBB0001~
24
07020-00000
. FITTING, GREASE
1
DBB0001~
25
707-71-32770
. COLLAR
1
DBB0001~
26
707-35-91370
. RING, BACK-UP (KIT)
2
DBB0001~
27
07000-15125
. O-RING (KIT)
1
DBB0001~
28
04260-00635
. BALL
12
DBB0001~
29
707-71-91270
. CAP
1
DBB0001~
29A
707-83-13010
. VALVE
1
DBB0001~
PWL5547
29B
07750-01628
. SPRING
1
DBB0001~
29C
707-87-14070
. PLUG
1
DBB0001~
29D
07002-12034
. O-RING (KIT)
1
DBB0001~
YO- 48
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 49
FIG NO. ：Y1620-11A0
FIG. Y1620-11A0 ARM CYLINDER
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
30
707-86-66270
TUBE
1
DBB0001~
31
20D-62-17860
ELBOW
1
DBB0001~
32
01435-01055
BOLT
2
DBB0001~
33
01435-01040
BOLT
2
DBB0001~
34
07000-13030
O-RING (KIT)
1
DBB0001~
35
01435-01075
BOLT
4
DBB0001~
36
07000-13035
O-RING (KIT)
1
DBB0001~
37
707-88-22530
BRACKET
1
DBB0001~
38
707-88-21261
BAND
1
DBB0001~
39
01435-01030
BOLT
2
DBB0001~
40
707-88-11560
PLATE
1
DBB0001~
41
07283-22738
CLIP
2
DBB0001~
42
01599-01011
NUT
4
DBB0001~
43
01643-31032
WASHER
4
DBB0001~
==========
707-99-57160
SERVICE KIT
1
DBB0001~
PWL5547
YO- 50
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 51

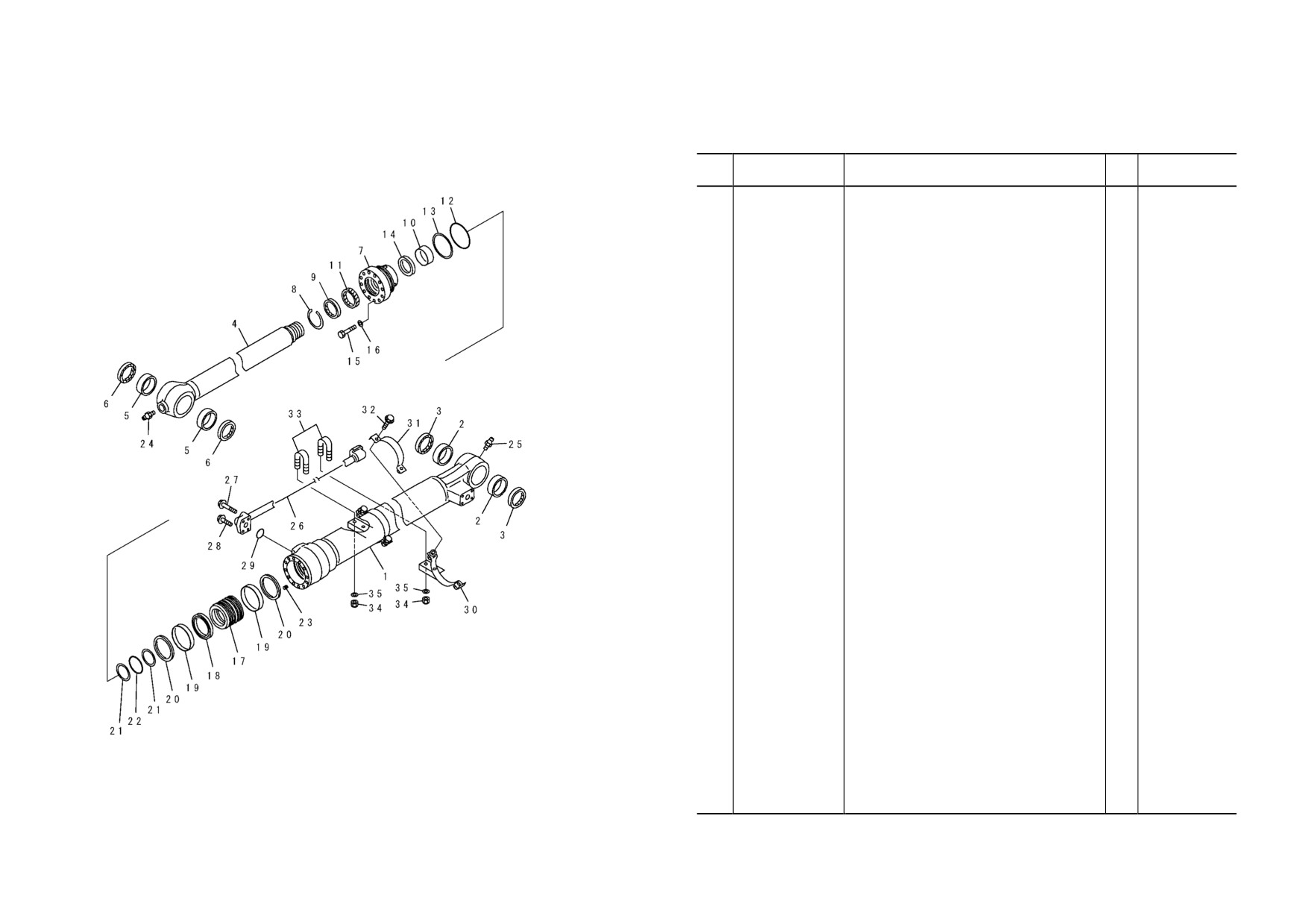

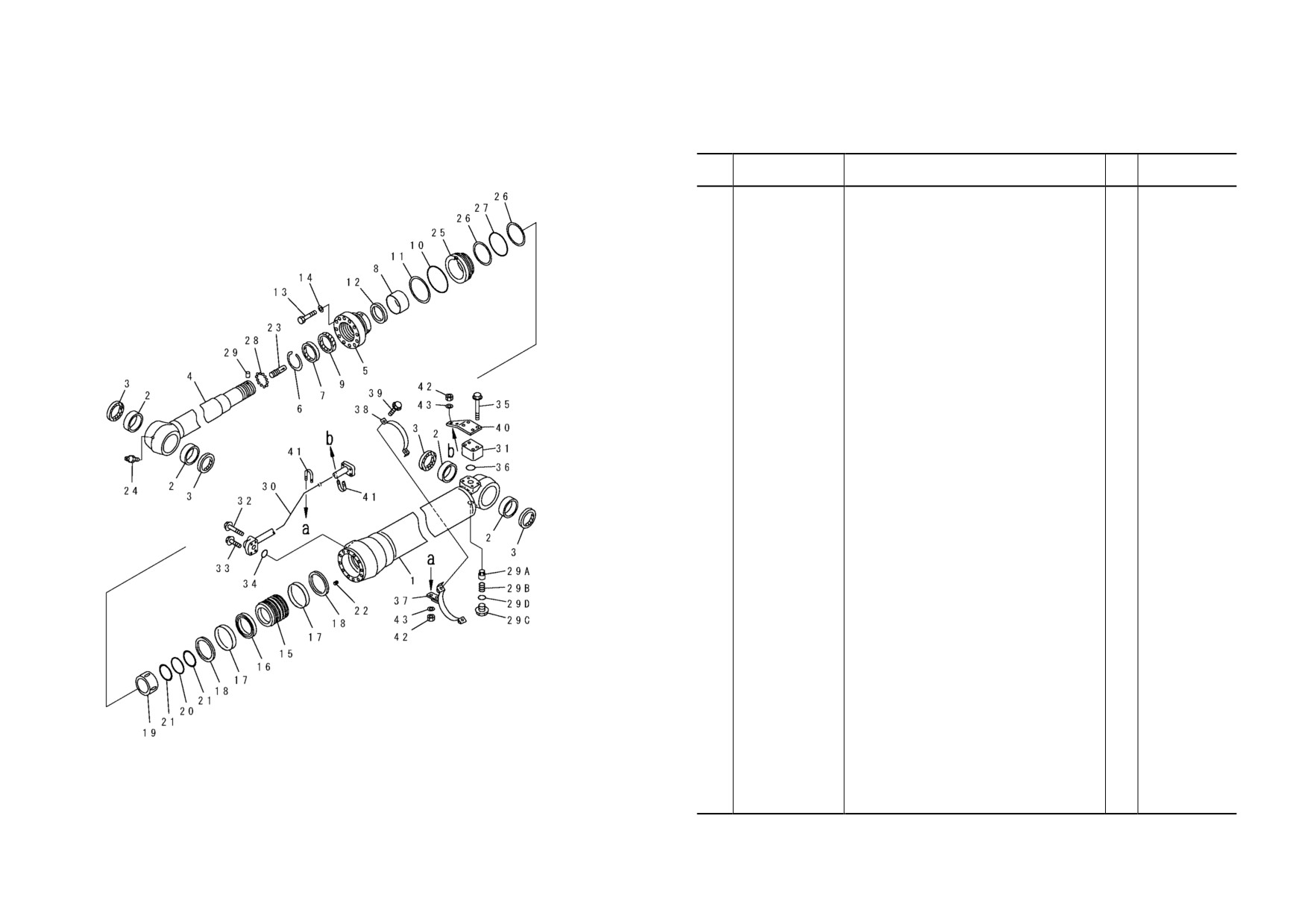

FIG NO. ：Y1620-41A0
FIG. Y1620-41A0 BUCKET CYLINDER
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
G-1
（⊙707-01-XZ851）
CYLINDER GROUP (FINAL COAT)
1
DBB0001~
（⊙707-01-XA991）
CYLINDER GROUP (UNDER COAT)
1
DBB0001~
==========
707-01-XA320
CYLINDER ASS' Y
1
DBB0001~
1
707-13-11560
. CYLINDER
1
DBB0001~
2
707-76-70690
. BUSHING
2
DBB0001~
3
07145-00070
. SEAL, BUST (KIT)
2
DBB0001~
4
707-58-80651
. ROD, PISTON
1
DBB0001~
5
707-76-70690
. BUSHING
2
DBB0001~
6
20Y-70-23220
. SEAL, DUST (KIT)
2
DBB0001~
7
707-27-11981
. HEAD, CYLINDER
1
DBB0001~
8
07179-13094
. RING, SNAP
1
DBB0001~
9
195-63-92190
. SEAL, DUST (KIT)
1
DBB0001~
10
707-52-90560
. BUSHING
1
DBB0001~
11
707-51-80030
. PACKING, ROD (KIT)
1
DBB0001~
12
07000-15105
. O-RING (KIT)
1
DBB0001~
13
707-35-91150
. RING, BACK-UP (KIT)
1
DBB0001~
14
707-51-80640
. RING, BUFFER (KIT)
1
DBB0001~
15
01010-81670
. BOLT
12
DBB0001~
16
01643-51645
. WASHER
12
DBB0001~
17
707-36-11851
. PISTON
1
DBB0001~
18
707-44-11280
. RING, PISTON (KIT)
1
DBB0001~
19
707-39-11530
. RING, WEAR (KIT)
2
DBB0001~
20
707-44-11920
. RING
2
DBB0001~
21
707-35-90360
. RING(KIT)
2
DBB0001~
22
07000-15070
. O-RING (KIT)
1
DBB0001~
23
01310-01216
. SCREW
1
DBB0001~
24
07020-00000
. FITTING, GREASE
1
DBB0001~
25
07020-00000
. FITTING, GREASE
1
DBB0001~
26
707-86-66280
TUBE
1
DBB0001~
27
01435-01055
BOLT
2
DBB0001~
28
01435-01040
BOLT
2
DBB0001~
29
07000-13030
O-RING (KIT)
1
DBB0001~
30
707-88-22570
BRACKET
2
DBB0001~
31
707-88-21271
BAND
2
DBB0001~
32
01435-01030
BOLT
4
DBB0001~
33
07283-22738
CLIP
2
DBB0001~
34
01599-01011
NUT
4
DBB0001~
PWL5549
35
01643-31032
WASHER
4
DBB0001~
==========
707-99-45230
SERVICE KIT
1
DBB0001~
YO- 52
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 53

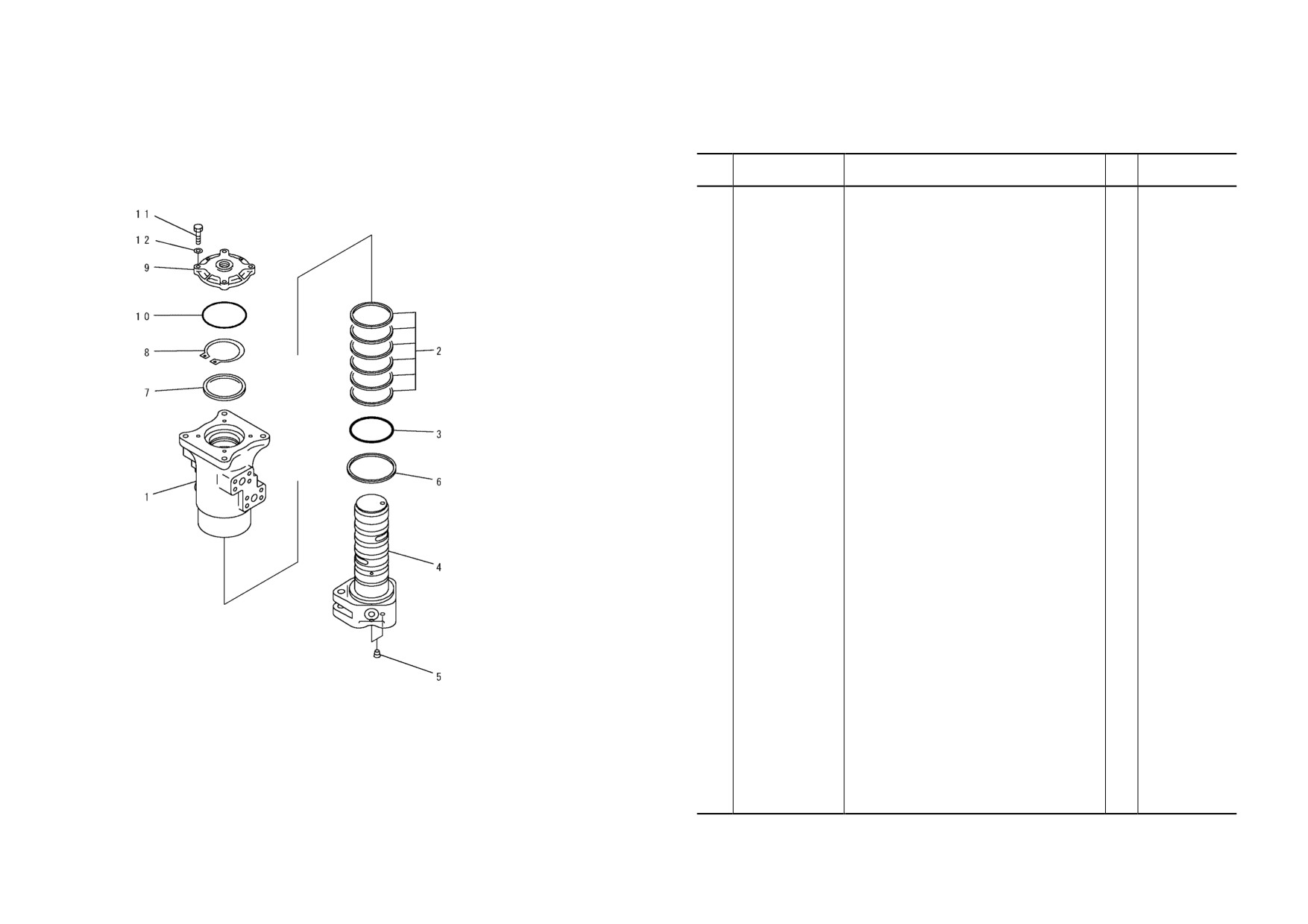

FIG NO. ：Y1627-01A0
FIG. Y1627-01A0 SWIVEL JOINT
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
703-08-33610
SWIVEL JOINT ASS' Y
1
DBB0001~
1
☆
. ROTOR
1
DBB0001~
2
703-08-95620
. SEAL
6
DBB0001~
3
07000-15080
. O-RING
1
DBB0001~
4
☆
. SHAFT
1
DBB0001~
5
703-13-98930
.. PLUG
2
DBB0001~
6
703-09-98130
. SEAL
1
DBB0001~
7
703-08-94510
. RING
1
DBB0001~
8
04064-07525
. RING, SNAP
1
DBB0001~
9
☆
. COVER
1
DBB0001~
10
07000-12105
. O-RING
1
DBB0001~
11
01010-80835
. BOLT
4
DBB0001~
12
01643-30823
. WASHER
4
DBB0001~
PWL5220
YO- 54
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 55

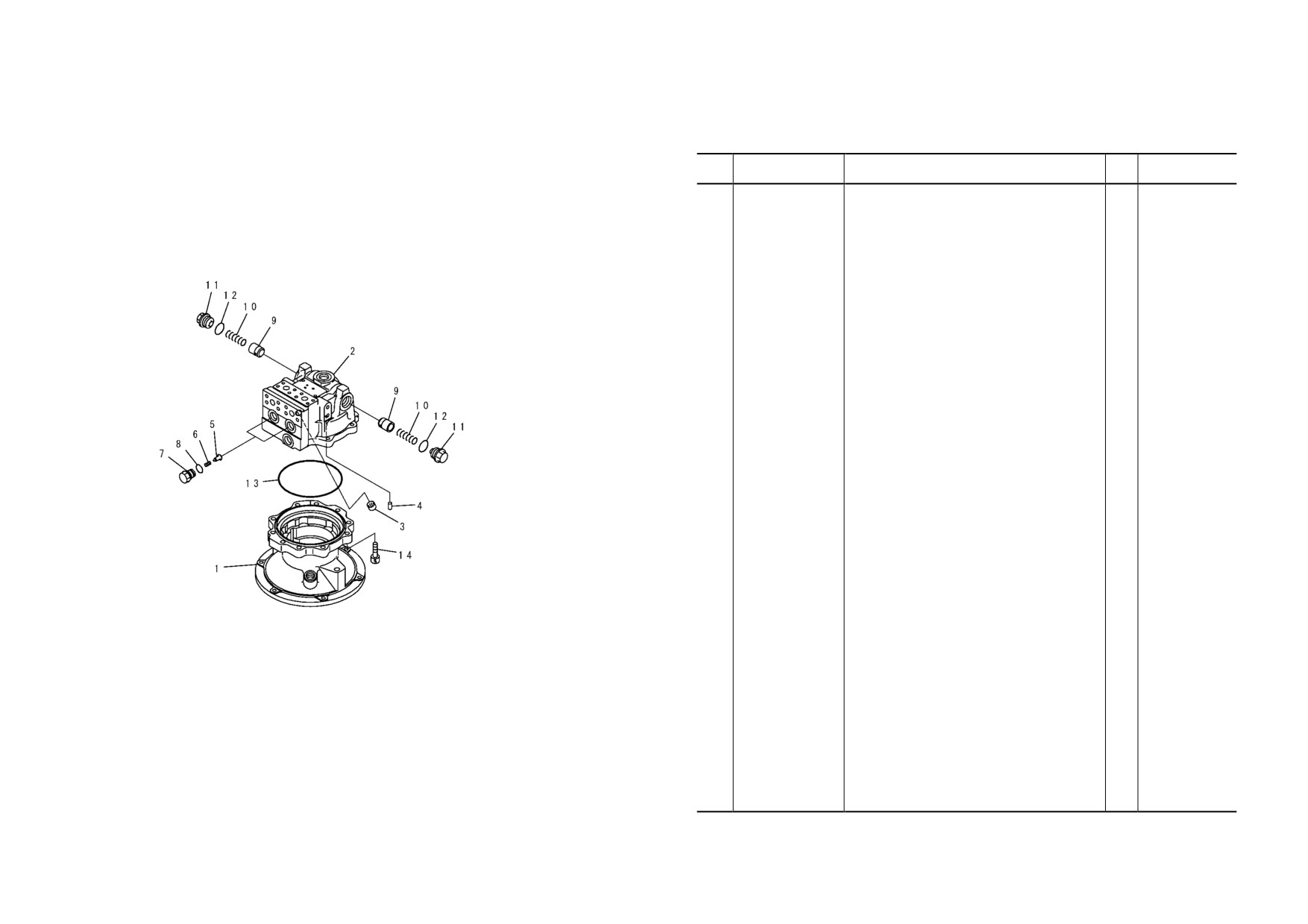

FIG NO. ：Y1640-01A0
FIG. Y1640-01A0 SWING MOTOR (1/3)
INDEX
PART NO
Q’TY
SERIAL NO
ESCRIPTION
706-7G-01070
MOTOR ASS’ Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1640-01A0 TO Y1640-03A0
706-7G-03050
. MOTOR SUB ASS’Y
1
DBB0001~
1
(★706-7G-41111)
.. CASE
1
DBB0001~
2
(★706-7G-71130)
.. HOUSING
1
DBB0001~
3
(★706-7G-40010)
.. BEARING
1
DBB0001~
4
(★706-75-42820)
.. PIN, DOWEL
1
DBB0001~
5
709-25-11650
.. VALVE, CHECK
2
DBB0001~
6
709-25-11361
.. SPRING
2
DBB0001~
7
709-25-11640
.. PLUG
2
DBB0001~
8
07000-12020
.. O-RING
2
DBB0001~
9
706-75-74540
.. VALVE
2
DBB0001~
10
706-7G-71550
.. SPRING
2
DBB0001~
11
706-75-74850
.. PLUG
2
DBB0001~
12
07002-13334
.. O-RING
2
DBB0001~
13
(★706-75-42370)
.. O-RING
1
DBB0001~
14
01252-61245
.. BOLT
10
DBB0001~
PW5S042
YO- 56
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 57

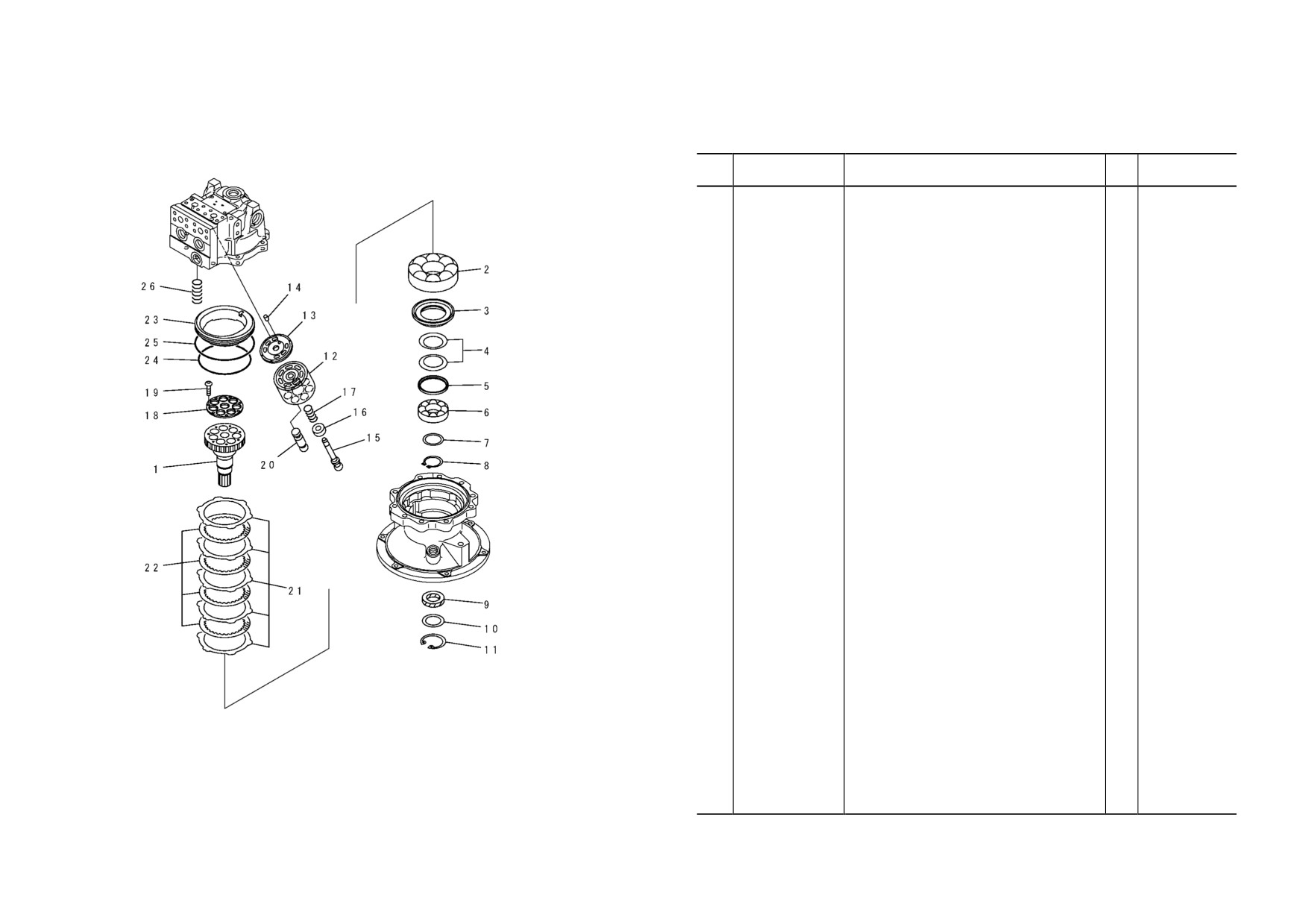

FIG NO. ：Y1640-02A0
FIG. Y1640-02A0 SWING MOTOR (2/3)
INDEX
PART NO
Q’TY
SERIAL NO
ESCRIPTION
(706-7G-01070)
MOTOR ASS’ Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1640-01A0 TO Y1640-03A0
(706-7G-03050)
. MOTOR SUB ASS’Y
1
DBB0001~
1
(★706-7G-41610)
.. SHAFT, DRIVE
1
DBB0001~
2
(★706-75-42880)
.. BEARING
1
DBB0001~
3
(★706-75-43810)
.. SPACER
1
DBB0001~
4
(★706-7E-11260)
.. SPRING
2
DBB0001~
5
(★706-7E-11270)
.. SEAT
1
DBB0001~
6
(★706-76-40890)
.. BEARING
1
DBB0001~
7
(★706-75-05040)
.. SPACER KIT
1
DBB0001~
8
04064-04518
.. RING, SNAP
1
DBB0001~
9
706-7E-11280
.. SEAL, OIL
1
DBB0001~
10
706-75-43720
.. SPACER
1
DBB0001~
11
04065-06220
.. RING
1
DBB0001~
12
(★706-7G-41210)
.. BLOCK, CYLINDER
1
DBB0001~
13
(★706-7G-41710)
.. PLATE, VALVE
1
DBB0001~
14
(★706-75-43750)
.. PIN, DOWEL
1
DBB0001~
15
(★706-7G-41120)
.. SHAFT, CENTER
1
DBB0001~
16
(★706-7G-41130)
.. RING, CENTER
1
DBB0001~
17
(★706-7G-41140)
.. SPRING
1
DBB0001~
(★706-7G-05010)
.. RETAINER KIT
1
DBB0001~
18
☆
…RETAINER
1
DBB0001~
19
☆
…SCREW
7
DBB0001~
20
(★706-7G-41160)
.. PISTON SUB ASS’Y
7
DBB0001~
21
(★706-7G-91340)
.. PLATE
5
DBB0001~
PW5S043
22
(★706-7G-91350)
.. DISC
4
DBB0001~
23
(★706-7G-91110)
.. PISTON, BRAKE
1
DBB0001~
24
(★706-77-40370)
.. O-RING
1
DBB0001~
25
(★708-8F-31610)
.. O-RING
1
DBB0001~
26
(★706-7G-91360)
.. SPRING
6
DBB0001~
YO- 58
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 59

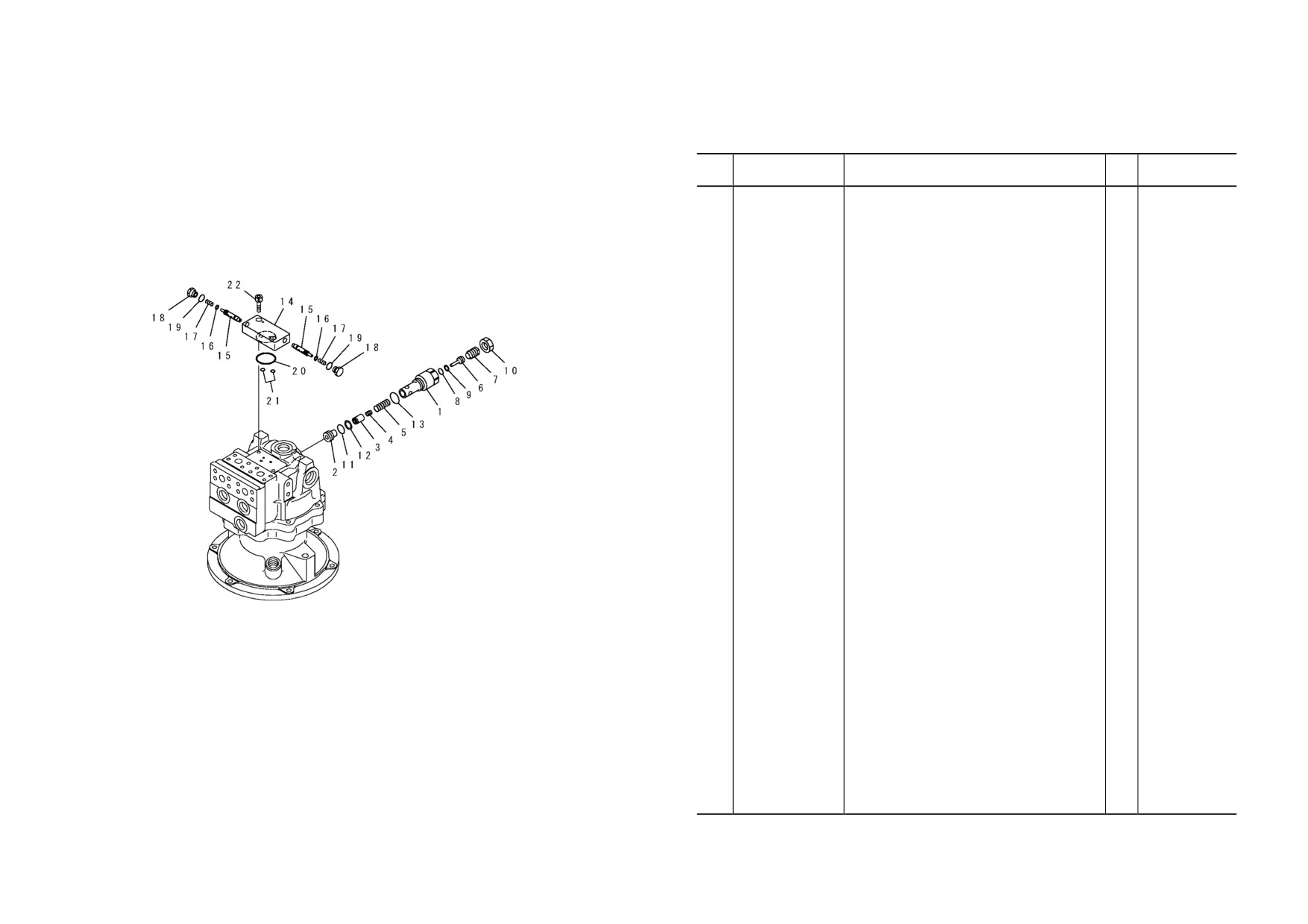

FIG NO. ：Y1640-03A0
FIG. Y1640-03A0 SWING MOTOR (3/3)
INDEX
PART NO
Q’TY
SERIAL NO
ESCRIPTION
（706-7G-01070）
MOTOR ASS’Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1640-01A0 TO Y1640-03A0
702-75-01250
. VALVE ASS’Y, SAFETY
1
DBB0001~
1
☆
.. SLEEVE
1
DBB0001~
2
☆
.. SEAT, VALVE
1
DBB0001~
3
☆
.. VALVE
1
DBB0001~
4
☆
.. PISTON
1
DBB0001~
5
☆
.. SPRING
1
DBB0001~
6
☆
.. ROD
1
DBB0001~
7
☆
.. SCREW
1
DBB0001~
8
☆
.. O-RING
1
DBB0001~
9
☆
.. RING, BACK-UP
1
DBB0001~
10
☆
.. NUT
1
DBB0001~
11
07000-F2020
.. O-RING
1
DBB0001~
12
07001-02020
.. RING, BACK-UP
1
DBB0001~
13
07002-13034
.. O-RING
1
DBB0001~
702-15-77000
. VALVE ASS’Y
1
DBB0001~
14
☆
.. BODY
1
DBB0001~
15
☆
.. SPOOL
2
DBB0001~
16
709-70-71610
.. SEAL
2
DBB0001~
17
702-15-71130
.. SPRING
2
DBB0001~
18
702-15-71140
.. PLUG
2
DBB0001~
19
07002-01423
.. O-RING
2
DBB0001~
20
07000-03042
. O-RING
1
DBB0001~
21
07000-11009
. O-RING
2
DBB0001~
22
01252-60825
. BOLT
2
DBB0001~
PW5S044
YO- 60
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 61

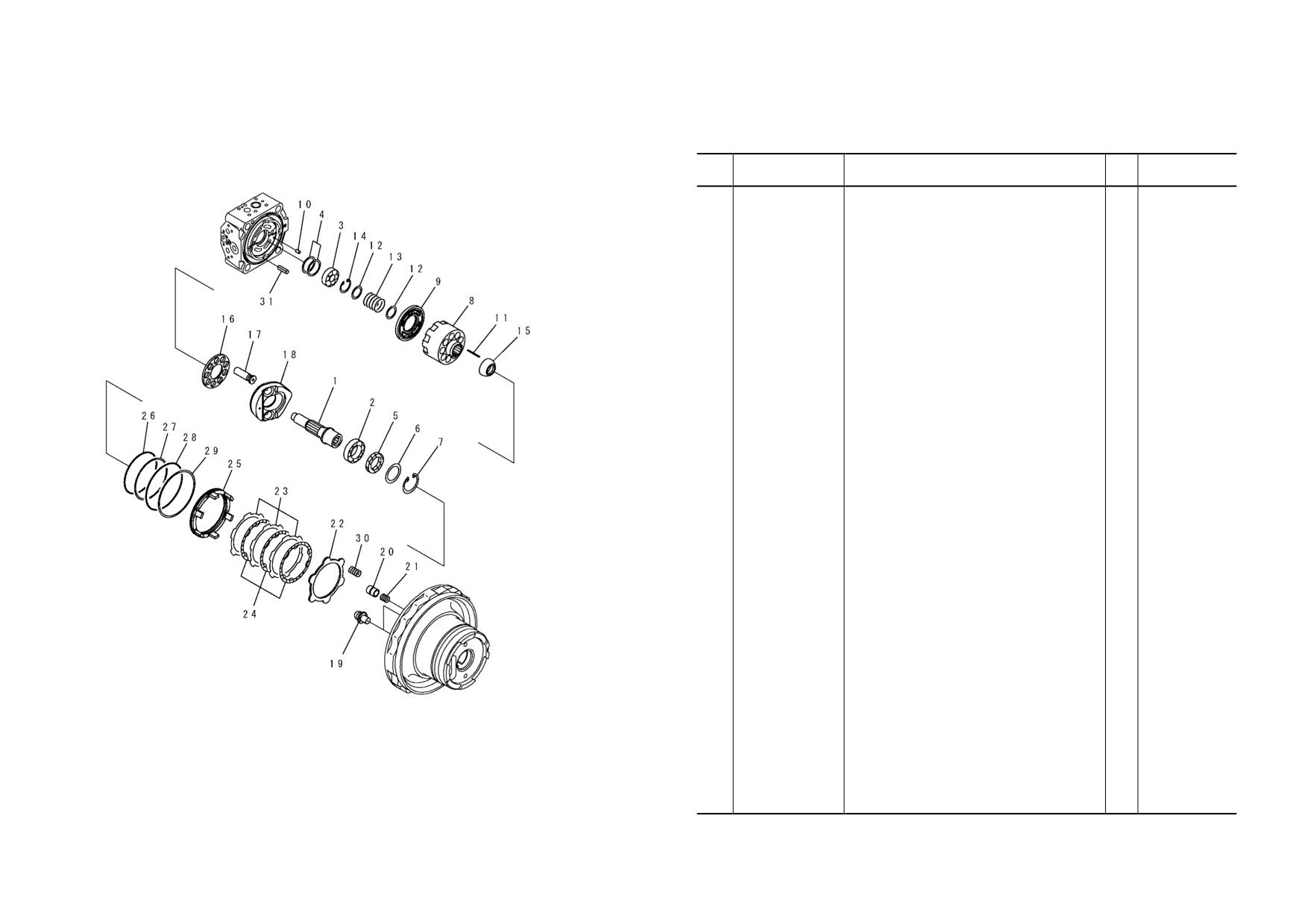

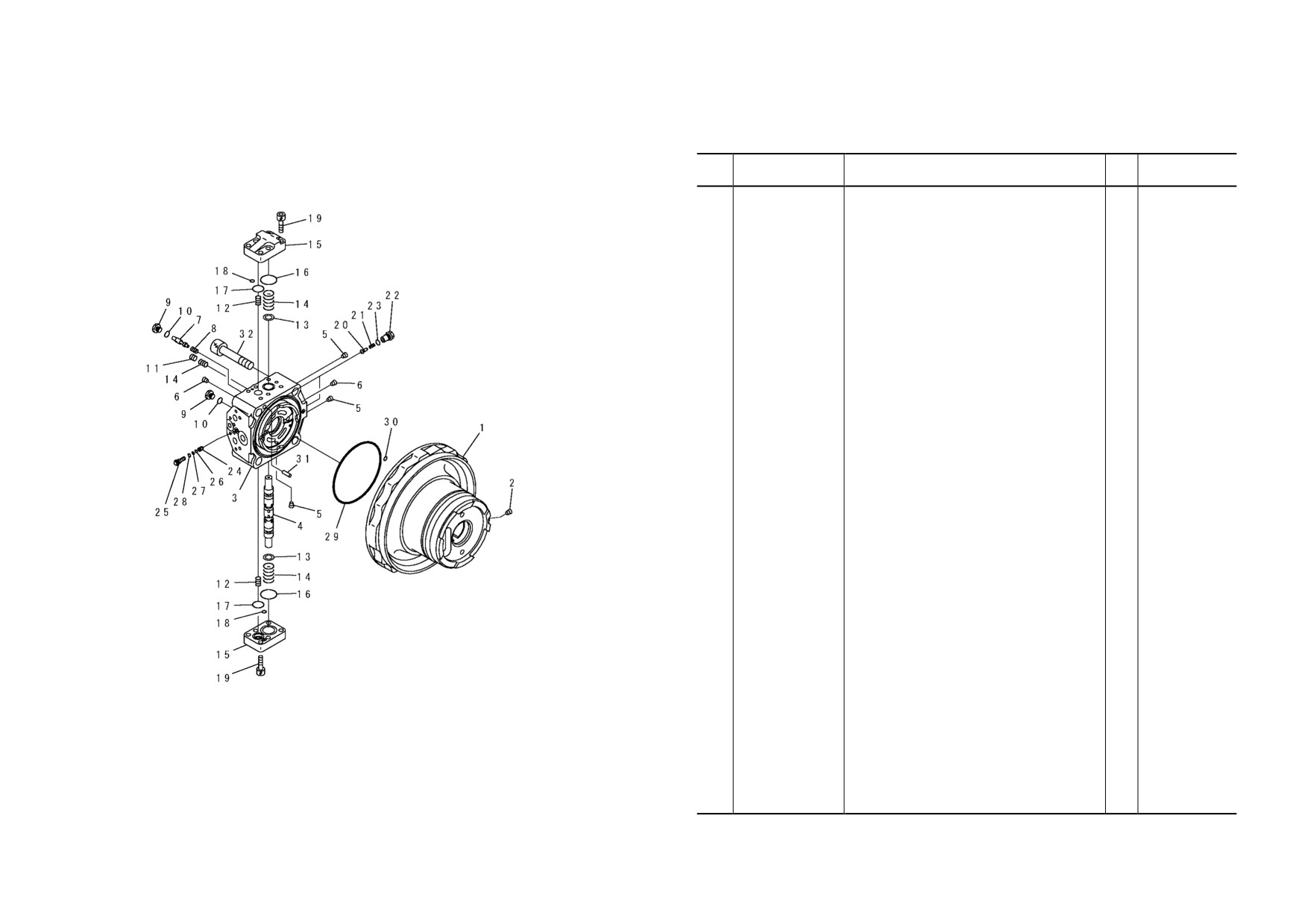

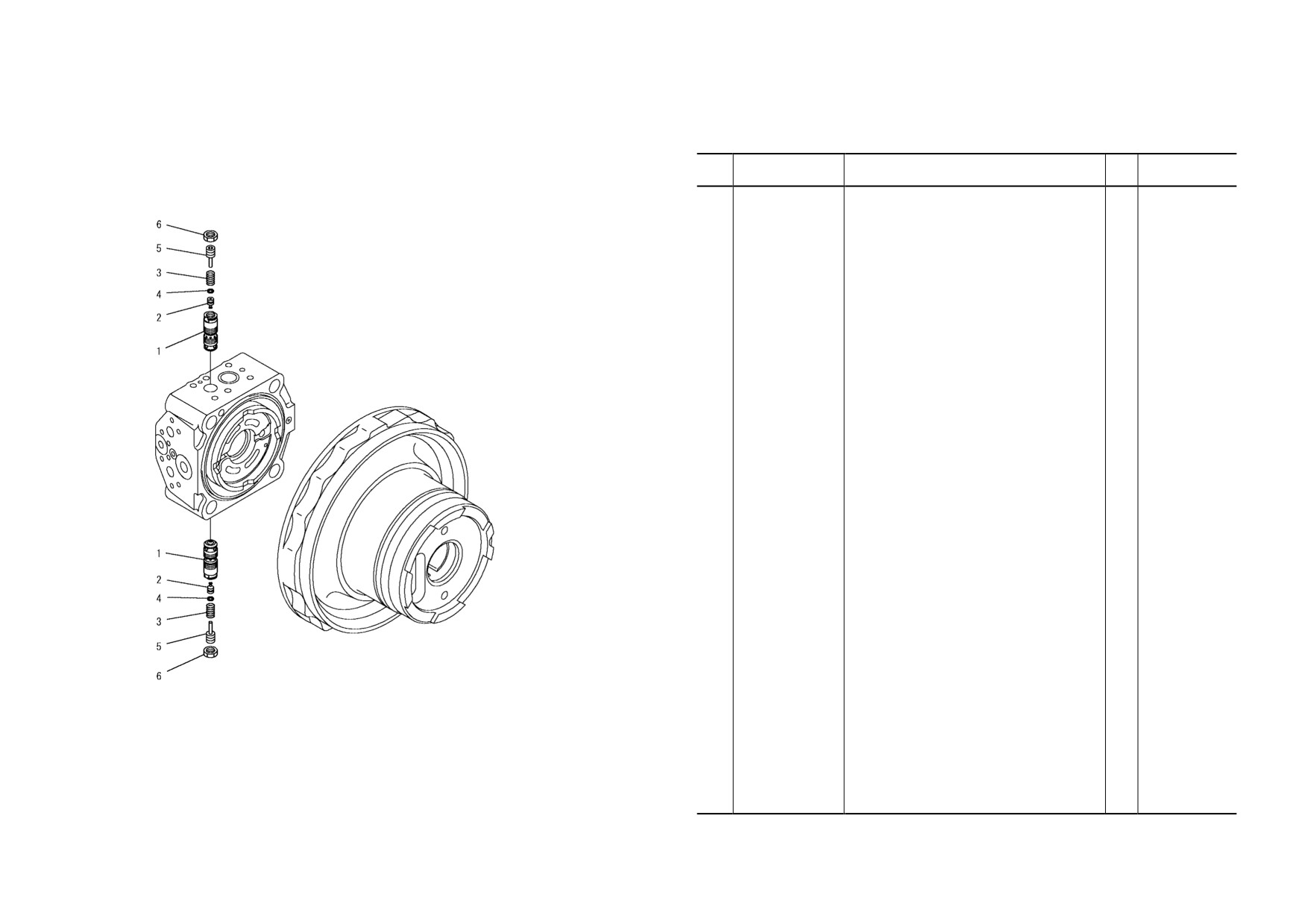

FIG NO. ：Y1641-01A0
FIG. Y1641-01A0 TRAVEL MOTOR (1/3)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
708-8F-00171
MOTOR ASS' Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1641-01A0 TO Y1641-03A0
（★708-8F-04660）
. CASE SUB ASS' Y
1
DBB0001~
1
☆
.. CASE, MOTOR
1
DBB0001~
2
☆
.. PLUG
1
DBB0001~
（★708-8F-04180）
. END COVER SUB ASS' Y
1
DBB0001~
3
☆
.. COVER, END
1
DBB0001~
4
☆
.. SPOOL
1
DBB0001~
5
☆
.. PLUG
3
DBB0001~
6
☆
.. PLUG
2
DBB0001~
7
☆
.. SPOOL
1
DBB0001~
8
（★708-8F-34220）
.. SPRING
1
DBB0001~
9
708-8H-11530
. PLUG
3
DBB0001~
10
07002-11423
. O-RING
3
DBB0001~
11
20B-27-11210
. BLEEDER
1
DBB0001~
12
708-8F-36611
. SPRING
2
DBB0001~
13
☆
. RING
2
DBB0001~
14
708-8H-36121
. SPRING
2
DBB0001~
15
708-8F-36311
. COVER
2
DBB0001~
16
07000-13040
. O-RING
2
DBB0001~
17
700-93-11320
. O-RING
2
DBB0001~
18
07000-11009
. O-RING
2
DBB0001~
19
01252-61235
. BOLT
12
DBB0001~
20
708-8F-34120
. VALVE
2
DBB0001~
21
722-10-91130
. SPRING
2
DBB0001~
22
708-8F-34110
. PLUG
2
DBB0001~
23
07002-11823
. O-RING
2
DBB0001~
24
708-8E-16180
. VALVE
1
DBB0001~
25
708-8F-31650
. PLUG
1
DBB0001~
26
07000-11006
. O-RING
1
DBB0001~
27
07001-01006
. RING
1
DBB0001~
28
07002-11223
. O-RING
1
DBB0001~
PW5S045
29
708-8F-31610
. O-RING
1
DBB0001~
30
07000-11009
. O-RING
1
DBB0001~
31
（★04020-01228）
. PIN
1
DBB0001~
32
708-8F-31210
. BOLT
4
DBB0001~
YO- 62
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 63
FIG NO. ：Y1641-02A0
FIG. Y1641-02A0 TRAVEL MOTOR (2/3)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
（708-8F-00171）
MOTOR ASS' Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1641-01A0 TO Y1641-03A0
1
（★708-8F-32121）
. SHAFT
1
DBB0001~
2
（★708-8F-12151）
. BEARING
1
DBB0001~
3
（★708-7L-12140）
. BEARING
1
DBB0001~
4
（★708-7L-05010）
. SPACER KIT
1
DBB0001~
5
706-7G-11291
. SEAL, OIL
1
DBB0001~
6
708-8F-12230
. SPACER, 3.2 MM
1
DBB0001~
7
04065-07225
. RING
1
DBB0001~
8
☆
. BLOCK, CYLINDER
1
DBB0001~
9
☆
. PLATE, VALVE
1
DBB0001~
10
☆
. PIN
1
DBB0001~
11
（★708-8F-33360）
. PIN
3
DBB0001~
12
（★708-7L-13140）
. SEAT
2
DBB0001~
13
（★708-8F-33160）
. SPRING
1
DBB0001~
14
（★04065-04818）
. RING, SNAP
1
DBB0001~
15
（★708-8F-33350）
. GUIDE, RETAINER
1
DBB0001~
16
（★708-8F-33340）
. RETAINER, SHOE
1
DBB0001~
17
（★708-8F-33310）
. PISTON
9
DBB0001~
18
（★708-8F-33480）
. CAM, ROCKER
1
DBB0001~
19
（★708-8F-33710）
. BALL, RETAINER
2
DBB0001~
20
（★708-8F-34141）
. PISTON
1
DBB0001~
21
（★708-8F-34150）
. SPRING
1
DBB0001~
22
（★708-8F-35110）
. PLATE
1
DBB0001~
23
（★708-8F-35130）
. PLATE
3
DBB0001~
24
（★708-8F-35120）
. DISC
3
DBB0001~
25
（★708-8F-35140）
. PISTON, BRAKE
1
DBB0001~
26
（★708-8F-35160）
. O-RING
1
DBB0001~
27
（★708-8F-35170）
. RING, BACK-UP
1
DBB0001~
28
（★708-8F-35180）
. O-RING
1
DBB0001~
29
（★708-8F-35190）
. RING, BACK-UP
1
DBB0001~
PDB3485
30
（★708-8F-35150）
. SPRING
6
DBB0001~
31
（★04025-00324）
. PIN, SPRING
1
DBB0001~
YO- 64
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 65
FIG NO. ：Y1641-03A0
FIG. Y1641-03A0 TRAVEL MOTOR (3/3)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
（708-8F-00171）
MOTOR ASS' Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1641-01A0 TO Y1641-03A0
702-73-02112
. VALVE ASS' Y, SAFETY
2
DBB0001~
1
☆
.. SLEEVE
1
DBB0001~
2
☆
.. VALVE
1
DBB0001~
3
☆
.. SPRING
1
DBB0001~
4
☆
.. SEAL
1
DBB0001~
5
☆
.. SCREW
1
DBB0001~
6
☆
.. NUT
1
DBB0001~
PDB3486
YO- 66
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 67
