Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 40

FIG NO. ：W1200-01A0

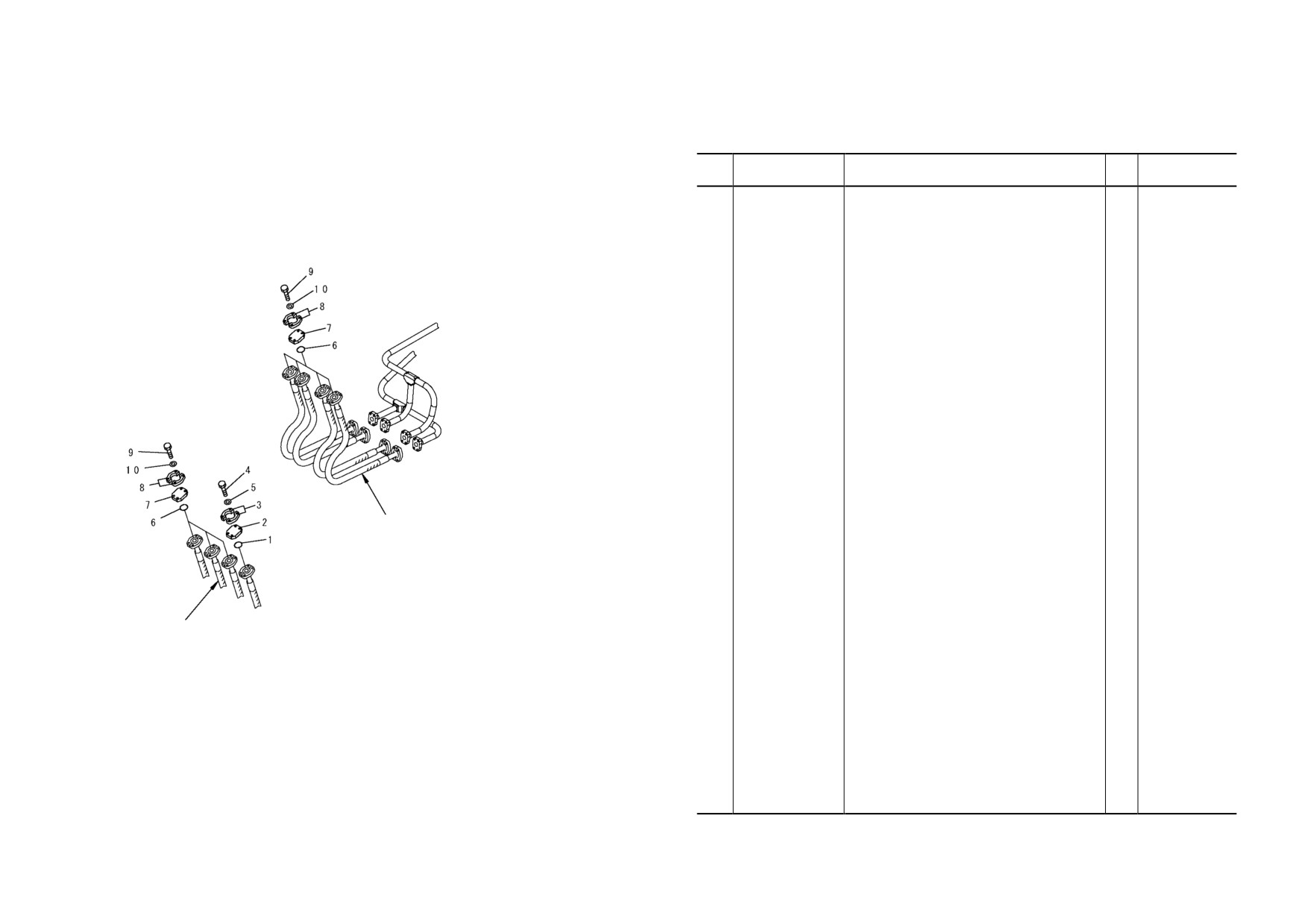

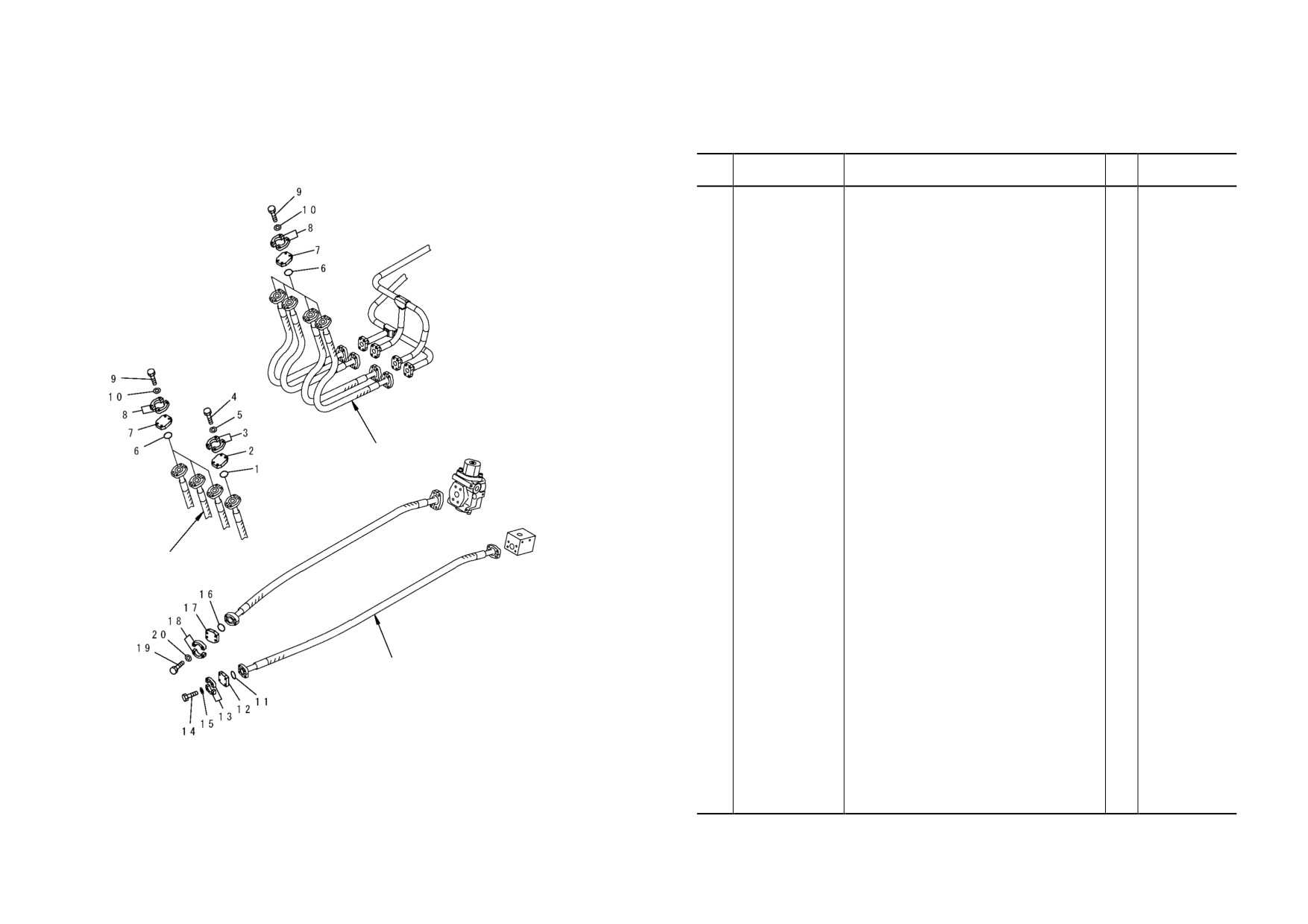

FIG. W1200-01A0 BLIND PARTS (BODY) (OPT)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

21T-09-11460

O-RING

1

DBB0001~

2

07379-01044

FLANGE

1

DBB0001~

3

07371-31049

FLANGE

2

DBB0001~

4

07372-21035

BOLT

4

DBB0001~

5

01643-51032

WASHER

4

DBB0001~

6

21T-09-11430

O-RING

7

DBB0001~

7

07379-00640

FLANGE

7

DBB0001~

8

07371-30640

FLANGE

14

DBB0001~

9

07372-21035

BOLT

28

DBB0001~

10

01643-51032

WASHER

28

DBB0001~

See Fig. H1210-02A0

See Fig. H1220-01A0

PW1D245

WO- 4

PC200, 210(LC)-7

PC200, 210(LC)-7

WO- 5

FIG NO. ：W1201-01A0

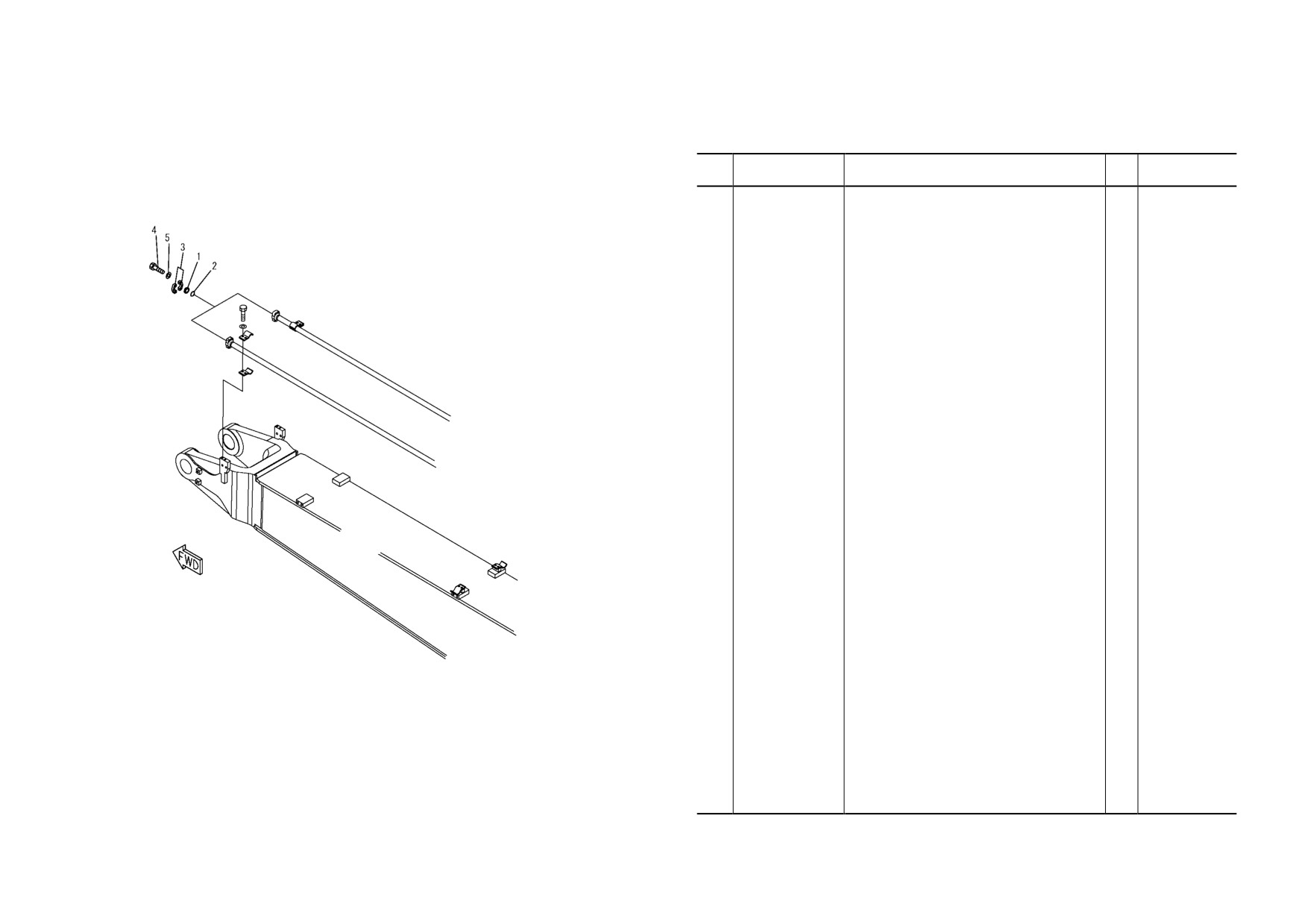

FIG. W1201-01A0 BLIND PARTS (BOOM) (OPT)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

07378-10600

HEAD

2

DBB0001~

2

07000-13025

O-RING

2

DBB0001~

3

07371-30640

FLANGE

4

DBB0001~

4

07372-21035

BOLT

8

DBB0001~

5

01643-51032

WASHER

8

DBB0001~

Boom

PW1D075

WO- 8

PC200, 210(LC)-7

PC200, 210(LC)-7

WO- 9

FIG NO. ：W1201-01A2

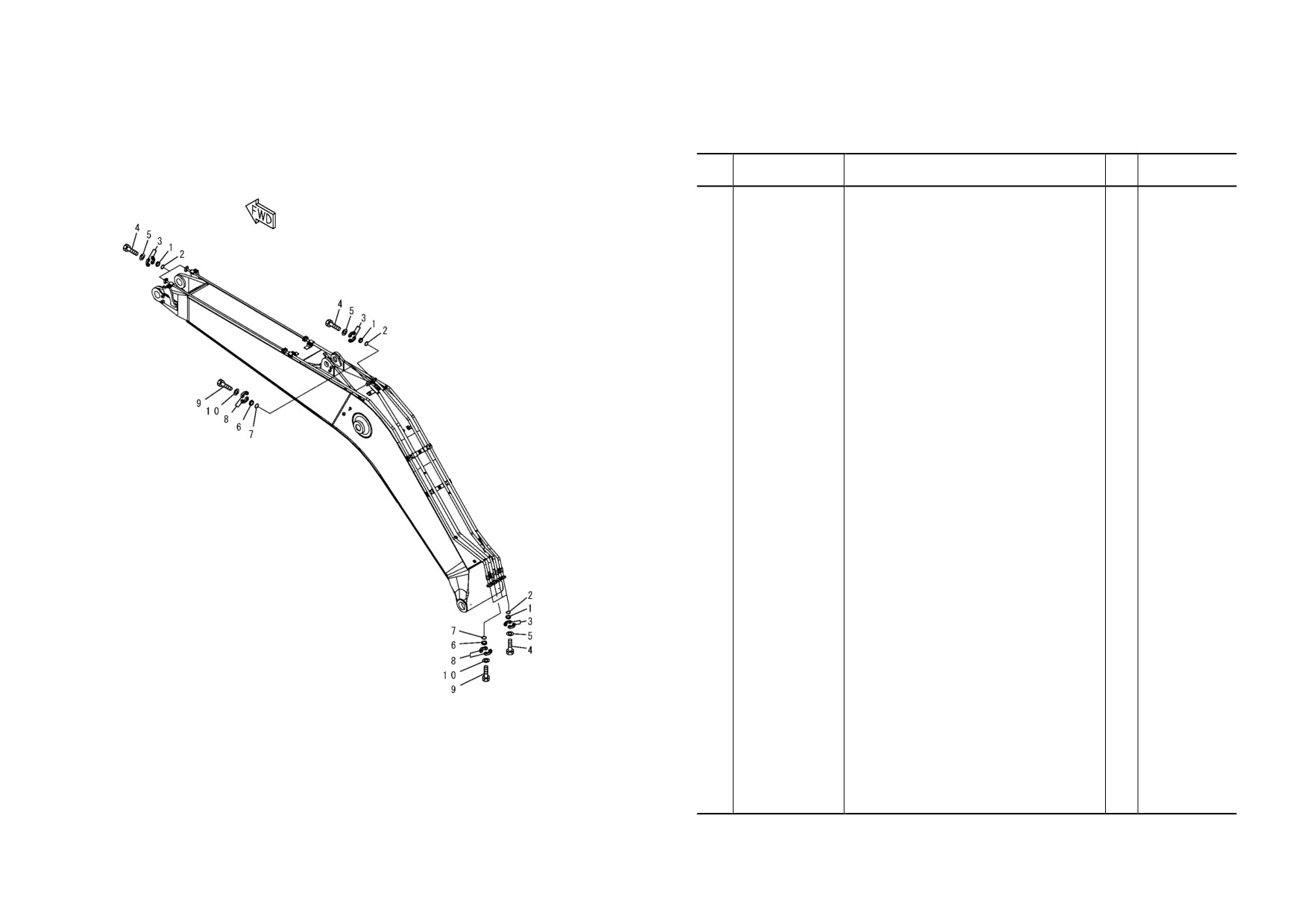

FIG. W1201-01A2 BLIND PARTS (BOOM) (FOR COMPONENT) (OPT)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

07378-10600

HEAD

6

DBB0001~

2

07000-13025

O-RING

6

DBB0001~

3

07371-30640

FLANGE

12

DBB0001~

4

07372-21035

BOLT

24

DBB0001~

5

01643-51032

WASHER

24

DBB0001~

6

07378-11000

HEAD

2

DBB0001~

7

07000-13032

O-RING

2

DBB0001~

8

07371-31049

FLANGE

4

DBB0001~

9

07372-21035

BOLT

8

DBB0001~

10

01643-51032

WASHER

8

DBB0001~

BOOM

PW1D247

WO- 12

PC200, 210(LC)-7

PC200, 210(LC)-7

WO- 13

FIG NO. ：W1202-01A0

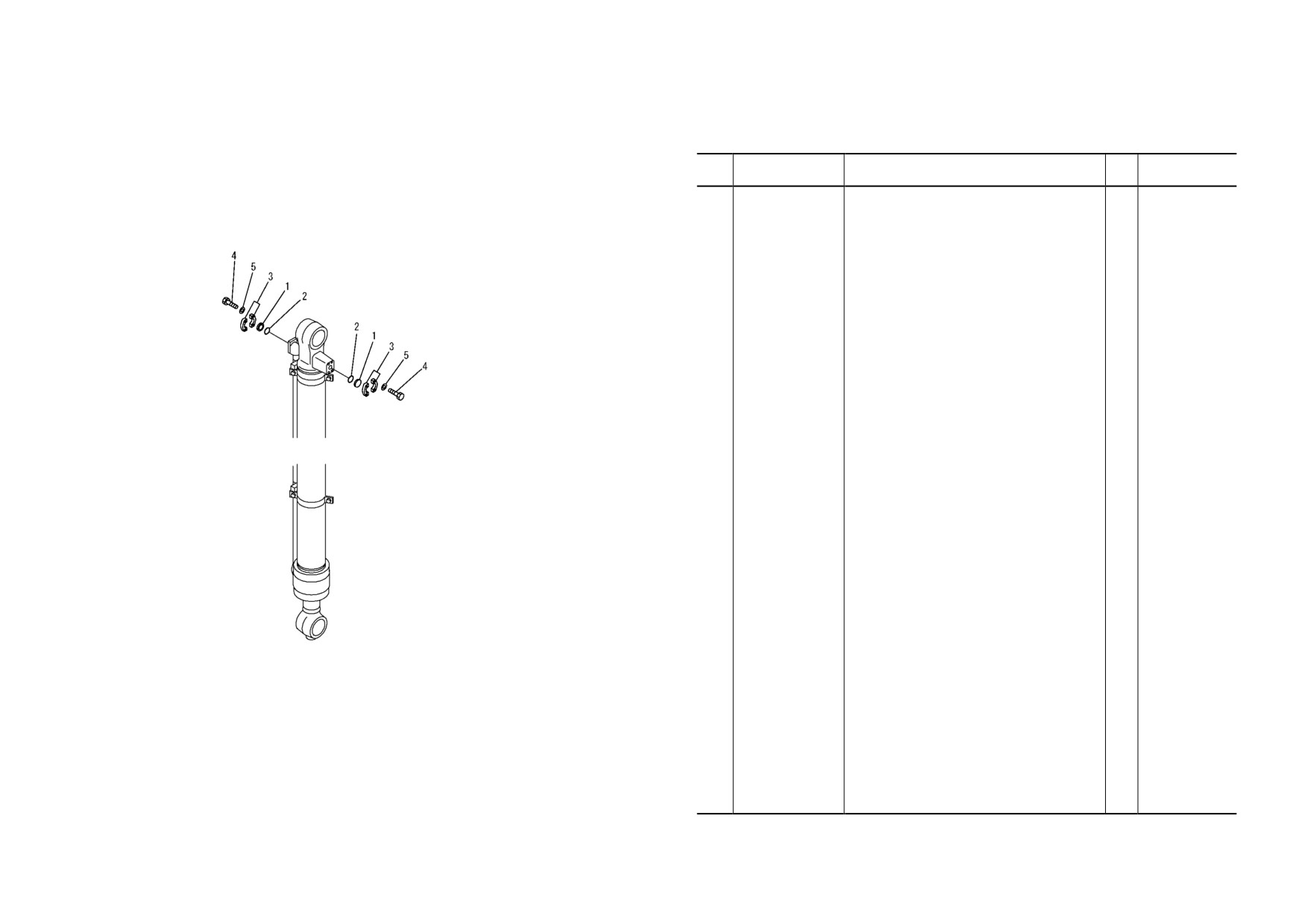

FIG. W1202-01A0 BLIND PARTS (BOOM CYLINDER) (OPT)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

07378-10600

HEAD

4

DBB0001~

2

07000-13025

O-RING

4

DBB0001~

3

07371-30640

FLANGE

8

DBB0001~

4

07372-21035

BOLT

16

DBB0001~

5

01643-51032

WASHER

16

DBB0001~

Boom Cylinder

PW1D249

WO- 16

PC200, 210(LC)-7

PC200, 210(LC)-7

WO- 17

FIG NO. ：W1203-01A0

FIG. W1203-01A0 BLIND PARTS (ARM) (OPT)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

07378-10600

HEAD

2

DBB0001~

2

07000-13025

O-RING

2

DBB0001~

3

07371-30640

FLANGE

4

DBB0001~

4

07372-21035

BOLT

8

DBB0001~

5

01643-51032

WASHER

8

DBB0001~

Bucket Cylinder

PW1D250

WO- 18

PC200, 210(LC)-7

PC200, 210(LC)-7

WO- 19

FIG NO. ：W1200-01A1

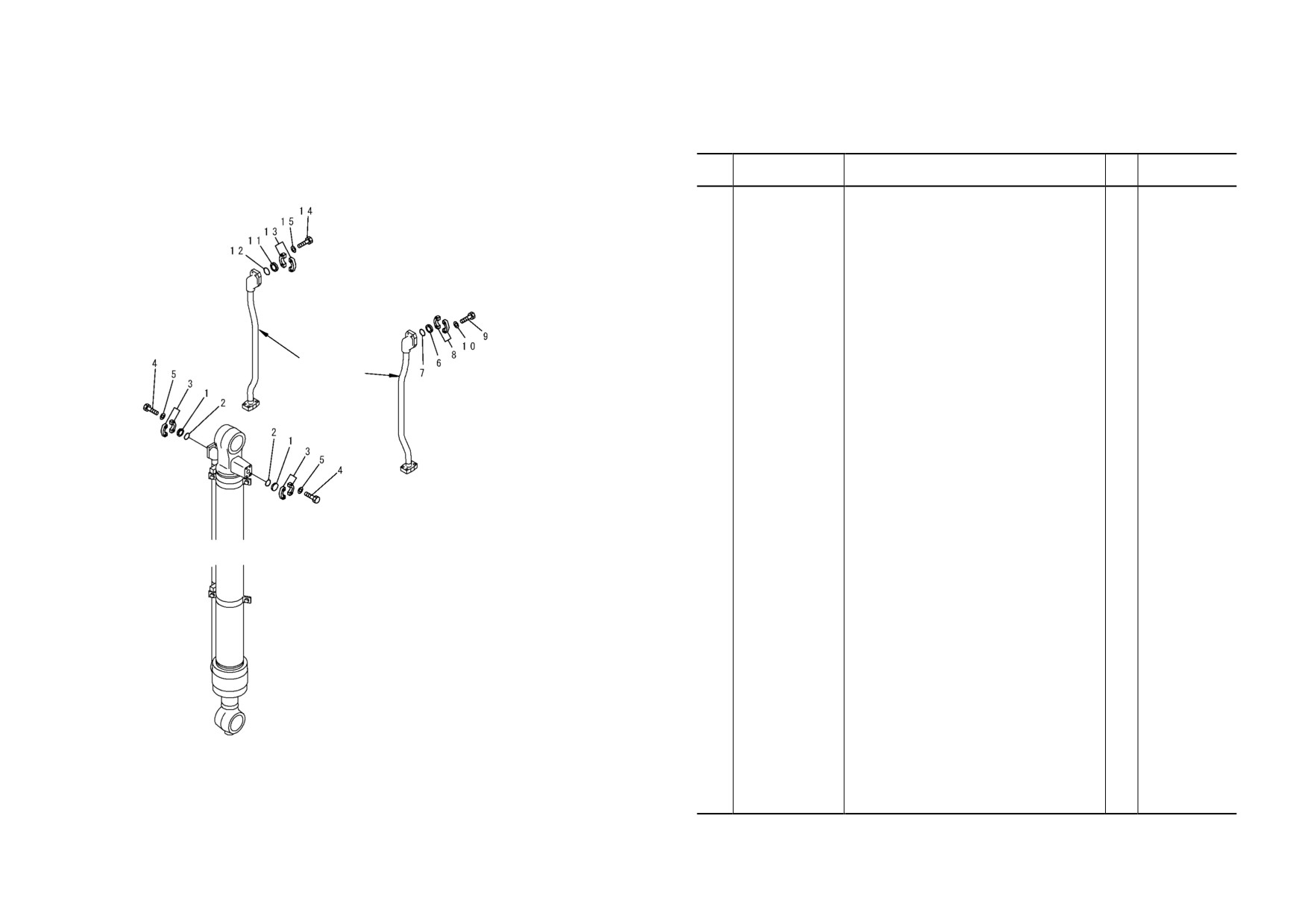

FIG. W1200-01A1 BLIND PARTS (BODY) (1 ACTUATOR) (OPT)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

21T-09-11460

O-RING

1

DBB0001~

2

07379-01044

FLANGE

1

DBB0001~

3

07371-31049

FLANGE

2

DBB0001~

4

07372-21035

BOLT

4

DBB0001~

5

01643-51032

WASHER

4

DBB0001~

6

21T-09-11430

O-RING

7

DBB0001~

7

07379-00640

FLANGE

7

DBB0001~

8

07371-30640

FLANGE

14

DBB0001~

9

07372-21035

BOLT

28

DBB0001~

10

01643-51032

WASHER

28

DBB0001~

11

07000-13032

O-RING

1

DBB0001~

12

07379-01044

FLANGE

1

DBB0001~

13

07371-31049

FLANGE

2

DBB0001~

See Fig. H1210-02A0

14

07372-21035

BOLT

4

DBB0001~

15

01643-51032

WASHER

4

DBB0001~

16

07000-13038

O-RING

1

DBB0001~

17

07379-01260

FLANGE

1

DBB0001~

18

07371-51260

FLANGE

2

DBB0001~

19

07372-21245

BOLT

4

DBB0001~

See Fig.H1220-01A0

20

01643-51232

WASHER

4

DBB0001~

See Fig.H1270-01A0

PW1D246

W1- 6

PC200, 210(LC)-7

PC200, 210(LC)-7

W1- 7

FIG NO. ：W1201-01A1

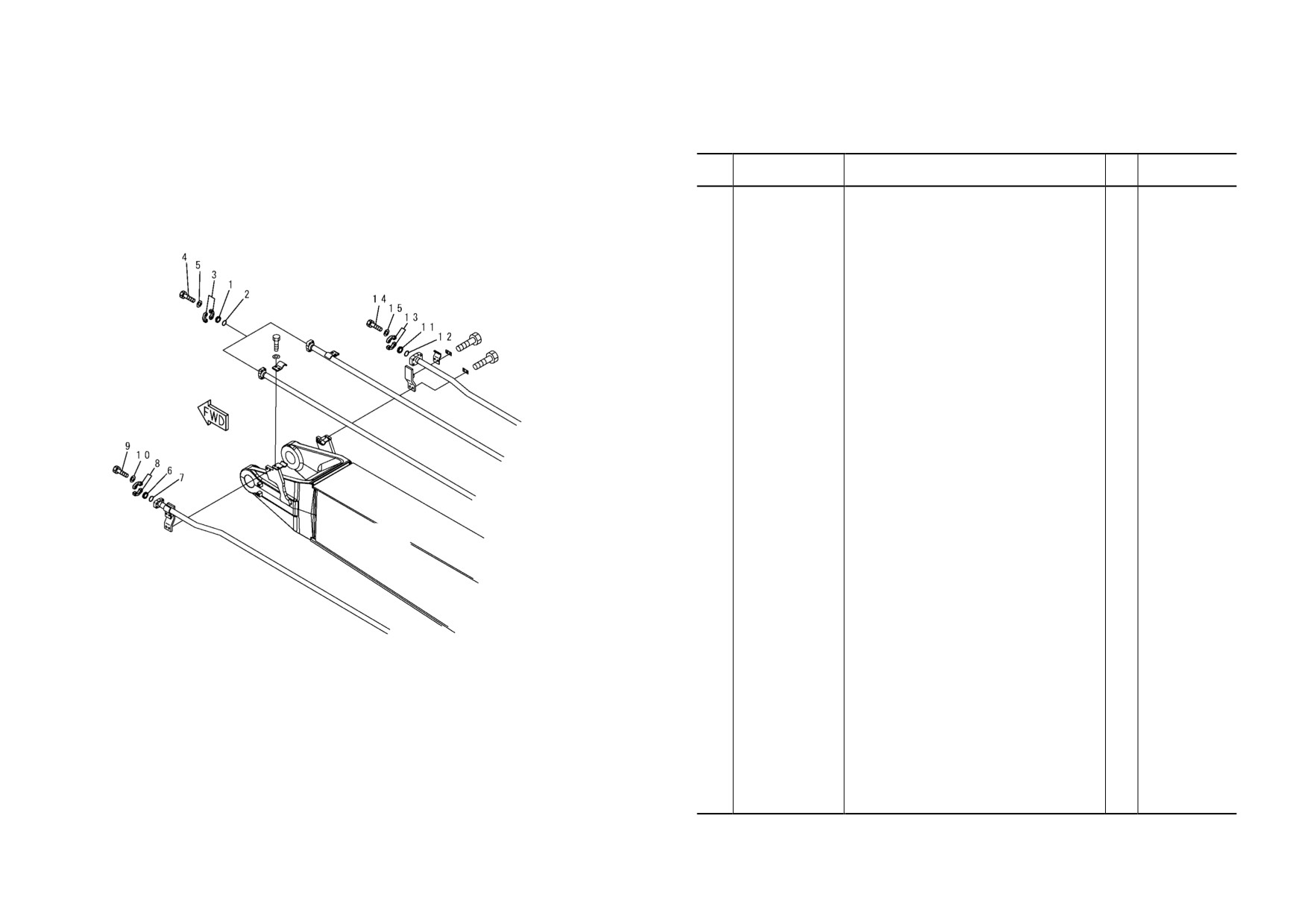

FIG. W1201-01A1 BLIND PARTS (BOOM) (1 ACTUATOR) (OPT)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

07378-10600

HEAD

2

DBB0001~

2

07000-13025

O-RING

2

DBB0001~

3

07371-30640

FLANGE

4

DBB0001~

4

07372-21035

BOLT

8

DBB0001~

5

01643-51032

WASHER

8

DBB0001~

6

07378-11000

HEAD

1

DBB0001~

7

07000-13032

O-RING

1

DBB0001~

8

07371-31049

FLANGE

2

DBB0001~

9

07372-21035

BOLT

4

DBB0001~

10

01643-51032

WASHER

4

DBB0001~

11

07378-11210

HEAD

1

DBB0001~

12

07000-13038

O-RING

1

DBB0001~

13

07371-51260

FLANGE

2

DBB0001~

14

01010-81245

BOLT

4

DBB0001~

15

01643-31232

WASHER

4

DBB0001~

Boom

PW1D260

W1- 10

PC200, 210(LC)-7

PC200, 210(LC)-7

W1- 11

FIG NO. ：W1201-01A3

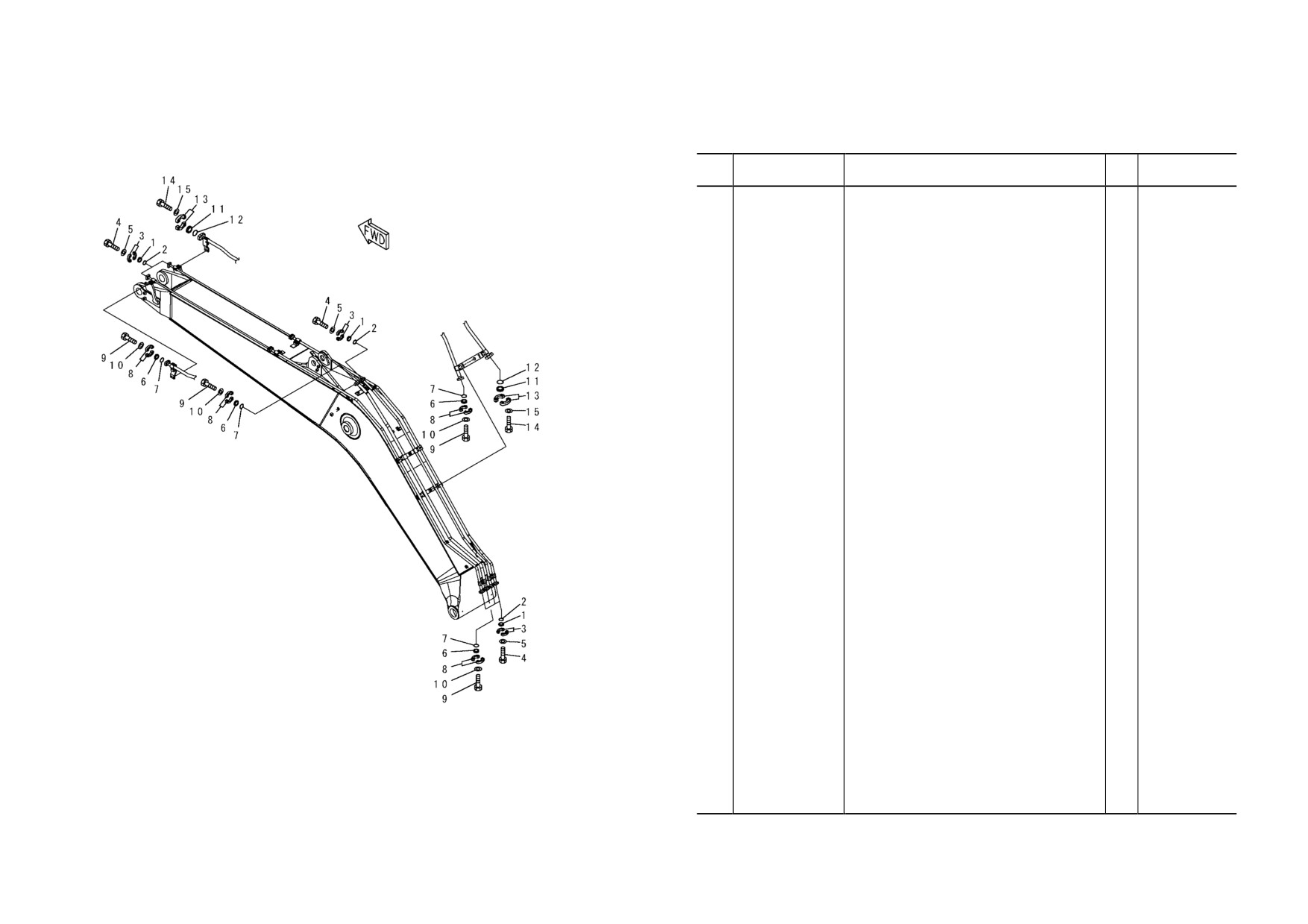

FIG. W1201-01A3 BLIND PARTS (BOOM) (1 ACTUATOR) (FOR COMPONENT) (OPT)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

07378-10600

HEAD

6

DBB0001~

2

07000-13025

O-RING

6

DBB0001~

3

07371-30640

FLANGE

12

DBB0001~

4

07372-21035

BOLT

24

DBB0001~

5

01643-51032

WASHER

24

DBB0001~

6

07378-11000

HEAD

4

DBB0001~

7

07000-13032

O-RING

4

DBB0001~

8

07371-31049

FLANGE

8

DBB0001~

9

07372-21035

BOLT

16

DBB0001~

10

01643-51032

WASHER

16

DBB0001~

11

07378-11210

HEAD

2

DBB0001~

12

07000-13038

O-RING

2

DBB0001~

13

07371-51260

FLANGE

4

DBB0001~

BOOM

14

01010-81245

BOLT

8

DBB0001~

15

01643-31232

WASHER

8

DBB0001~

PW1D248

W1- 14

PC200, 210(LC)-7

PC200, 210(LC)-7

W1- 15

FIG NO. ：W1203-01A1

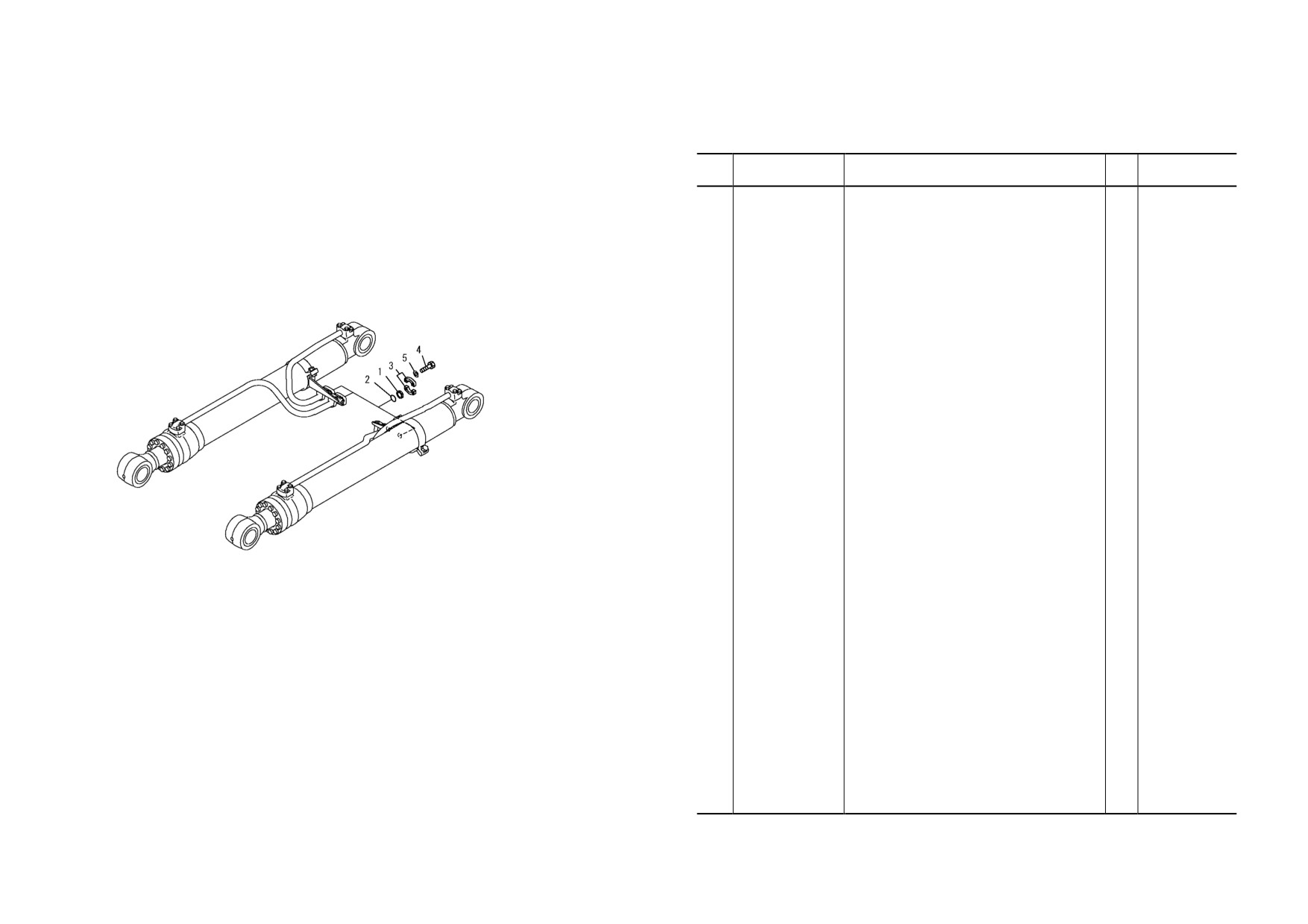

FIG. W1203-01A1 BLIND PARTS (ARM) (1 ACTUATOR) (OPT)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

07378-10600

HEAD

2

DBB0001~

2

07000-13025

O-RING

2

DBB0001~

3

07371-30640

FLANGE

4

DBB0001~

4

07372-21035

BOLT

8

DBB0001~

5

01643-51032

WASHER

8

DBB0001~

6

07378-11000

HEAD

1

DBB0001~

7

07000-13032

O-RING

1

DBB0001~

8

07371-31049

FLANGE

2

DBB0001~

9

07372-21035

BOLT

4

DBB0001~

See Fig. T1200-04A2

10

01643-51032

WASHER

4

DBB0001~

11

07378-11210

HEAD

1

DBB0001~

12

07000-13038

O-RING

1

DBB0001~

13

07371-51260

FLANGE

2

DBB0001~

14

01010-81245

BOLT

4

DBB0001~

15

01643-31232

WASHER

4

DBB0001~

Bucket Cylinder

PW1D251

W1- 20

PC200, 210(LC)-7

PC200, 210(LC)-7

W1- 21
