FIG NO. ：U0550-01A1
FIG. U0550-01A1 PLATE (AIR CLEANER, DOUBLE ELEMENT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
09637-90163
PLATE, INSTRUCTION
1
DBB0001~
View Z
PW1B930
UO- 28
PC200, 210(LC)-7
PC200, 210(LC)-7
UO- 29

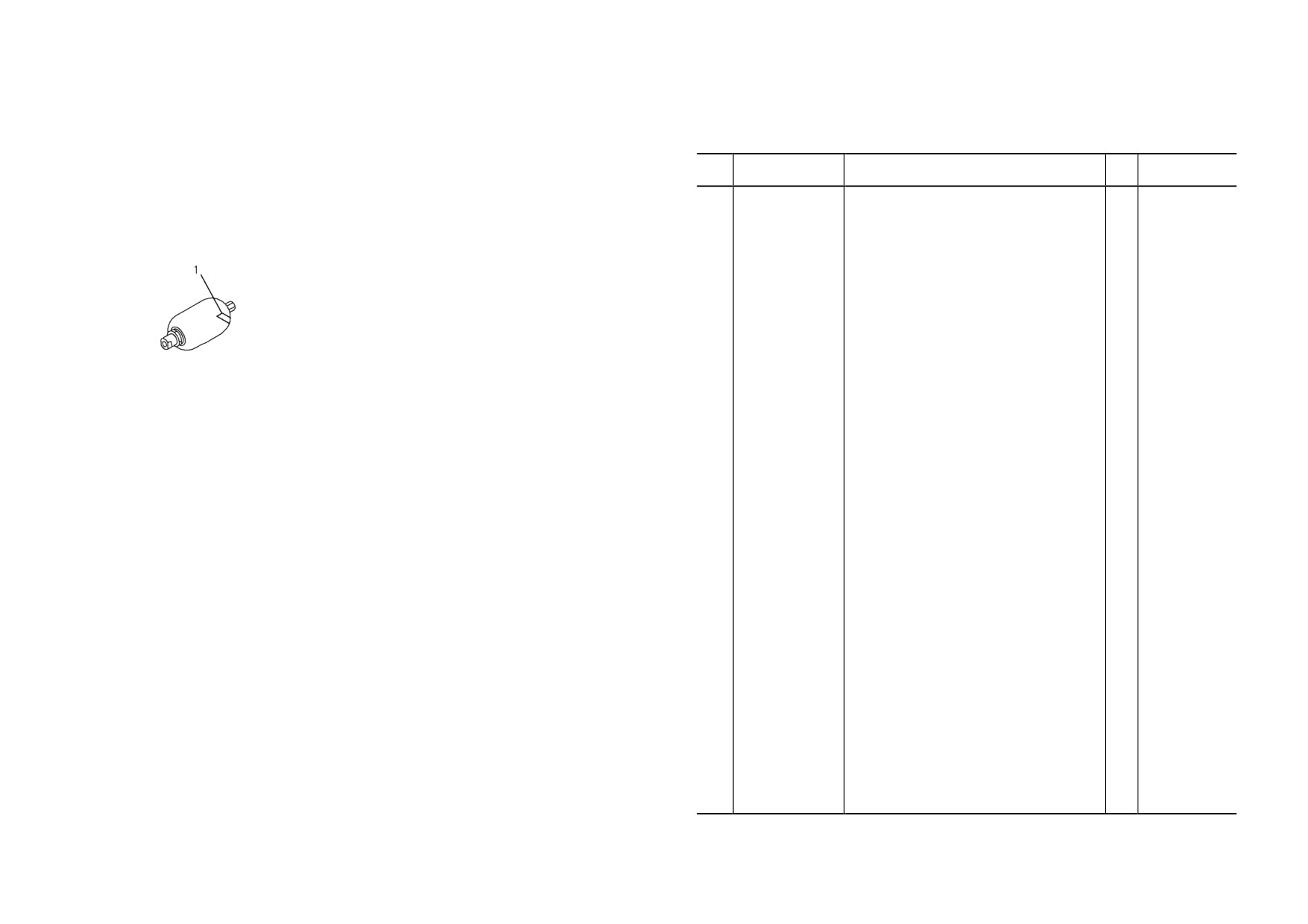

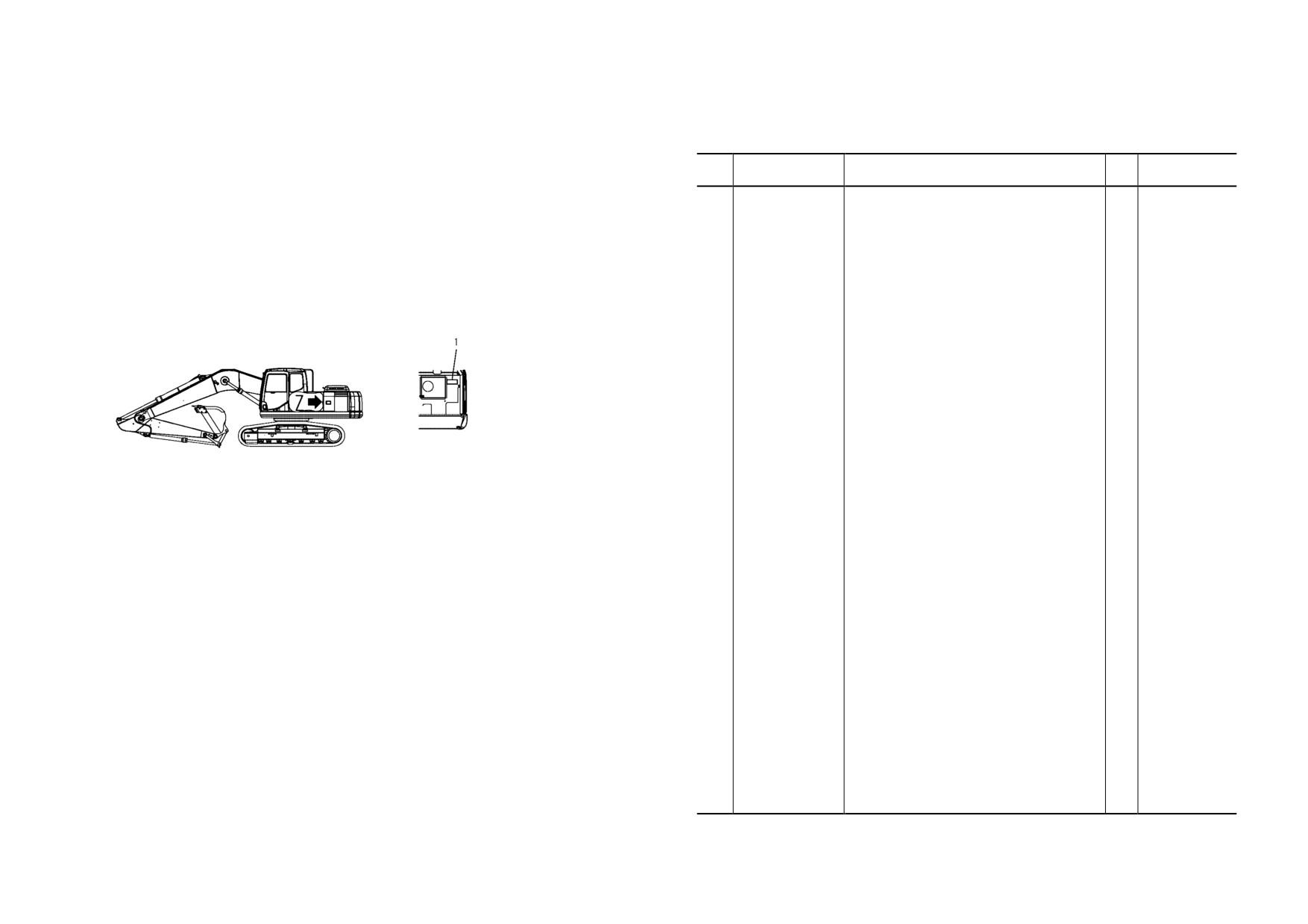

FIG NO. ：U0580-01A0
FIG. U0580-01A0 PLATE (WITH ACCUMLATOR) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
09659-A057A
PLATE, SAFETY, (JAPANESE)
1
DBB0001~
09659-A057B
PLATE, SAFETY, (PICTOLIAL)
1
DBB0001~
09659-53000
PLATE, SAFETY, (ENGLISH) (LETTERING TYPE)
1
DBB0001~
PW1B973
UO- 30
PC200, 210(LC)-7
PC200, 210(LC)-7
UO- 31

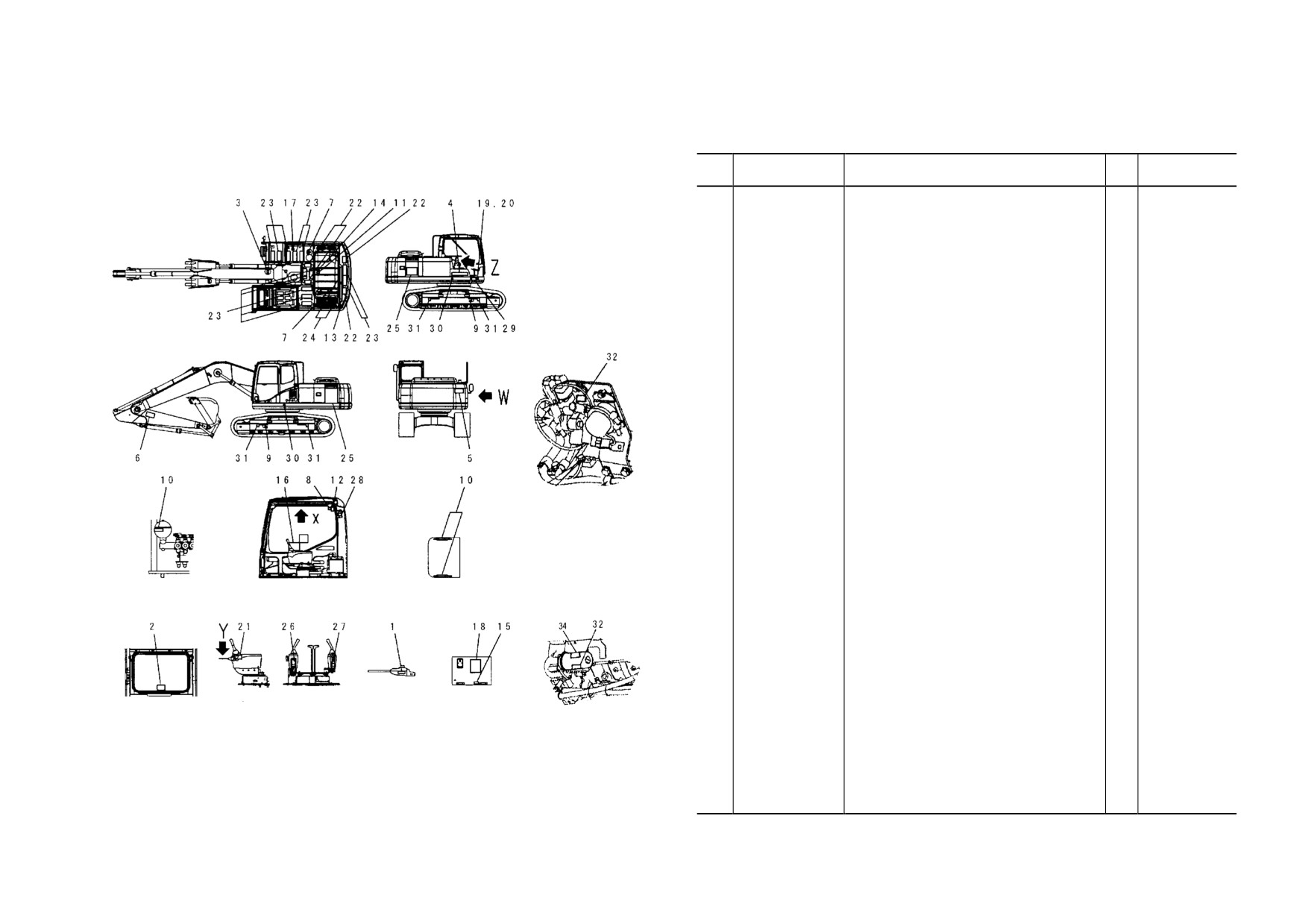

FIG NO. ：U0100-01A2
FIG. U0100-01A2 DECAL AND PLATE (CHINESE) (For Russia)
(PC200-7)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
09685-00002
PLATE, OPERATING
1
DBB0001~
2
20Y-00-D1240
PLATE
1
DBB0001~
3
09690-M0063
PLATE, MARK
1
DBB0001~
4
09690-P0630
PLATE, MARK
1
DBB0001~
5
09133-A3281
PLATE, SAFETY
1
DBB0001~
6
09134-A1681
PLATE, CAUTION
2
DBB0001~
7
09653-A0481
PLATE, SAFETY
2
DBB0001~
9
09657-A0881
PLATE, SAFETY
2
DBB0001~
View W
10
09659-A057B
PLATE, SAFETY
3
DBB0001~
11
09667-A0481
PLATE, SAFETY
1
DBB0001~
12
09803-A0481
PLATE, SAFETY
1
DBB0001~
13
09805-A0881
PLATE, SAFETY
1
DBB0001~
14
09805-C0481
PLATE, SAFETY
1
DBB0001~
15
09808-A0881
PLATE, SAFETY
1
DBB0001~
16
20Y-00-31950
PLATE
1
DBB0001~
17
09669-0000E
PLATE, CAUTION
1
DBB0001~
18
20Y-00-31130
PLATE
1
DBB0001~
Relay
19
09601-200C1
PLATE, NAME
1
DBB0001~
20
04418-13060
SCREW
4
DBB0001~
21
09963-A1640
TAG
1
DBB0001~
22
203-00-51170
SEAT
4
DBB0001~
23
154-54-23260
SEAT
12
DBB0001~
Accumulator
R. H. Window Inside
View X
24
20Y-00-31110
SHEET
2
DBB0001~
25
20Y-00-31120
PLATE
2
DBB0001~
26
20Y-00-31960
PLATE
1
DBB0001~
27
20Y-00-31970
PLATE
1
DBB0001~
28
20Y-00-31980
PLATE
1
DBB0001~
29
20Y-00-31840
PLATE
1
DBB0001~
View Y
30
21U-98-D1160
PLATE, MARK
2
DBB0001~
Control Stand L. H.
View Z
Rear Window Inside
31
21U-98-D1150
PLATE, MARK
4
DBB0001~
STARTING MOTOR
32
09842-A0481
PLATE SAFETY
3
DBB0001~
PW1C949
UR- 2
PC200-7
PC200-7
UR- 3
FIG NO. ：U0550-01A1
FIG. U0550-01A1 PLATE (AIR CLEANER, DOUBLE ELEMENT) (For Russia)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
09637-40163
PLATE, INSTRUCTION
1
DBB0001~
View Z
PW1B930
UR- 28
PC200, 210(LC)-7
PC200, 210(LC)-7
UR- 29
ACCESSORY

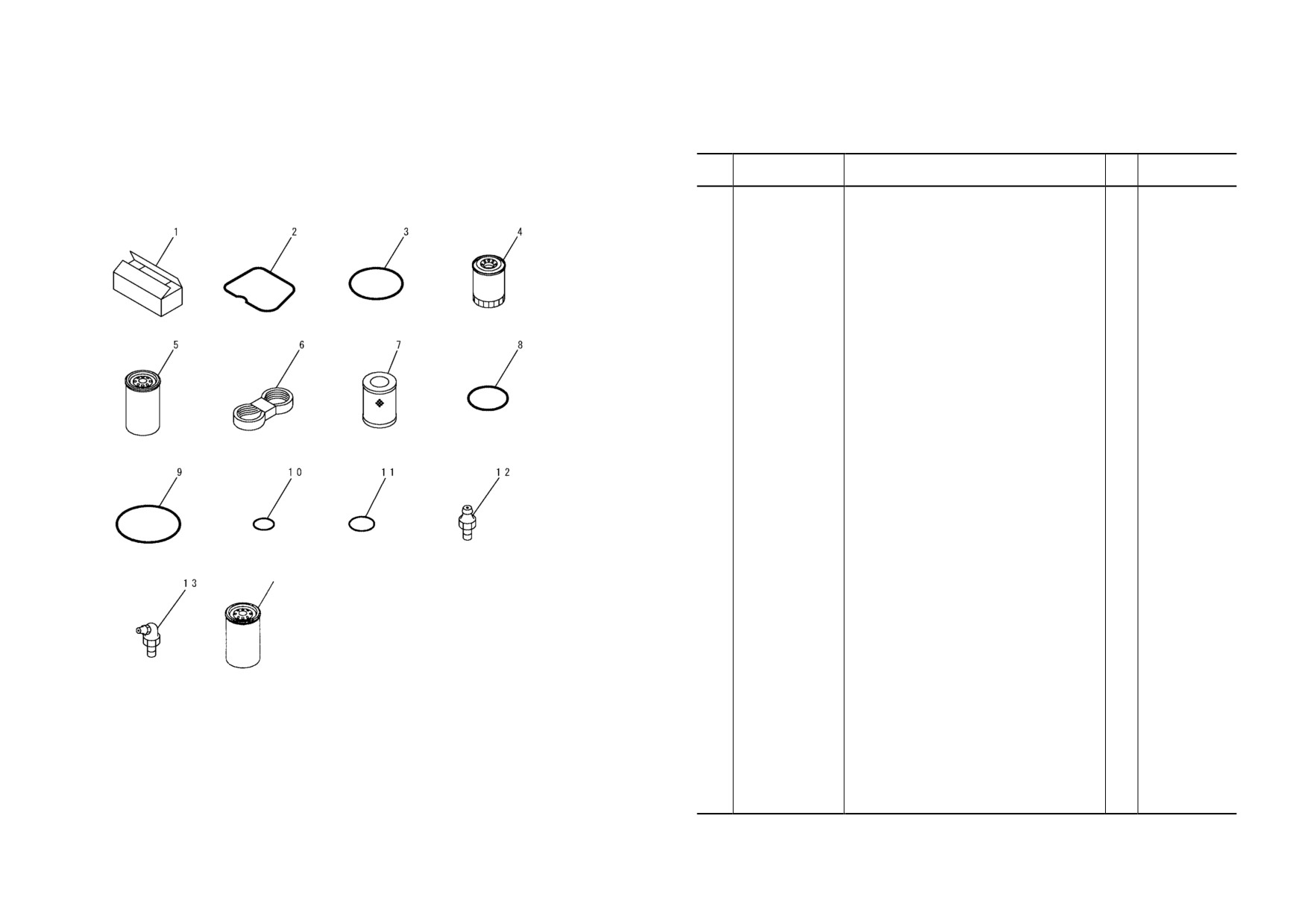

FIG NO. ：V0100-01A0
FIG. V0100-01A0 SPARE PARTS
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-00-D1331
BOX
1
DBB0001~
2
6732-11-8181
GASKET
6
DBB0001~
3
6732-11-8210
GASKET
6
DBB0001~
4
6736-51-5142
CARTRIDGE
1
DBB0001~
5
6732-71-6111
CARTRIDGE
1
DBB0001~
6
6732-81-4170
BELT
1
DBB0001~
7
207-60-71180
ELEMENT
1
DBB0001~
8
07000-15160
O-RING
1
DBB0001~
9
07000-15195
O-RING
1
DBB0001~
10
07002-11223
O-RING
1
DBB0001~
11
07002-12434
O-RING
5
DBB0001~
12
07020-00000
FITTING
4
DBB0001~
13
07020-00675
FITTING
4
DBB0001~
14
600-311-9121
CARTRIDGE
1
DBB0001~
14
PW1C919
VO- 2
PC200, 210(LC)-7
PC200, 210(LC)-7
VO- 3
FIG NO. ：V0200-01A0
FIG. V0200-01A0 CAP AND OVERALL
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
09980-92550
CAP AND OVERALL KIT
1
DBB0001~
1
09980-10550
. OVERALL
1
DBB0001~
2
09982-20057
. CAP
1
DBB0001~
PEB0040
VO- 4
PC200, 210(LC)-7
PC200, 210(LC)-7
VO- 5

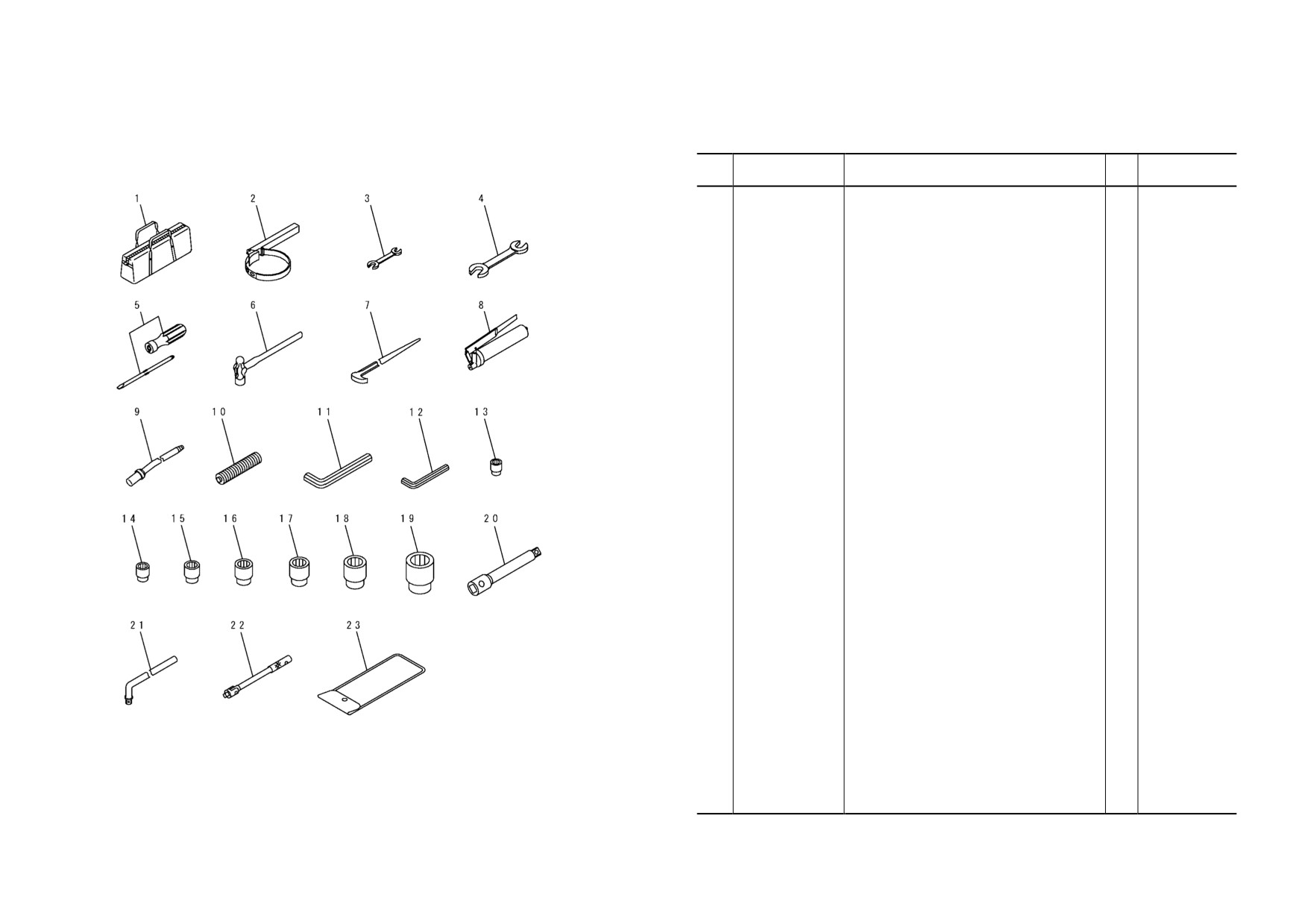

FIG NO. ：V0300-01A0
FIG. V0300-01A0 TOOL KIT
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
09056-04613
BAG
1
DBB0001~
2
09019-08035
WRENCH
1
DBB0001~
3
09002-01417
WRENCH, 14×17
1
DBB0001~
4
09002-03032
WRENCH, 30×32
1
DBB0001~
5
09033-00190
DRIVER
1
DBB0001~
6
09039-00150
HAMMER
1
DBB0001~
7
09055-10390
BAR
1
DBB0001~
07952-70004
GREASE PUMP ASS' Y
1
DBB0001~
8
07950-10450
. PUMP
1
DBB0001~
9
07951-41017
. NOZZLE
1
DBB0001~
10
07950-90403
CARTRIDGE
1
DBB0001~
11
09007-00836
WRENCH, 8
1
DBB0001~
12
09007-00425
WRENCH, 4
1
DBB0001~
20Y-98-21130
TOOL KIT
1
DBB0001~
13
09021-01219
. SOCKET, 12
1
DBB0001~
14
09021-01422
. SOCKET, 14
1
DBB0001~
15
09021-01725
. SOCKET, 17
1
DBB0001~
16
09021-01928
. SOCKET, 19
1
DBB0001~
17
09021-02233
. SOCKET, 22
1
DBB0001~
18
09021-02436
. SOCKET, 24
1
DBB0001~
19
09021-03044
. SOCKET, 30
1
DBB0001~
20
09022-00150
. EXTENSION
1
DBB0001~
21
09023-00300
. HANDLE
1
DBB0001~
22
09024-00300
. HANDLE
1
DBB0001~
23
20Y-98-21140
. BAG
1
DBB0001~
PW1B931
VO- 6
PC200, 210(LC)-7
PC200, 210(LC)-7
VO- 7
MISCELLANEOUS

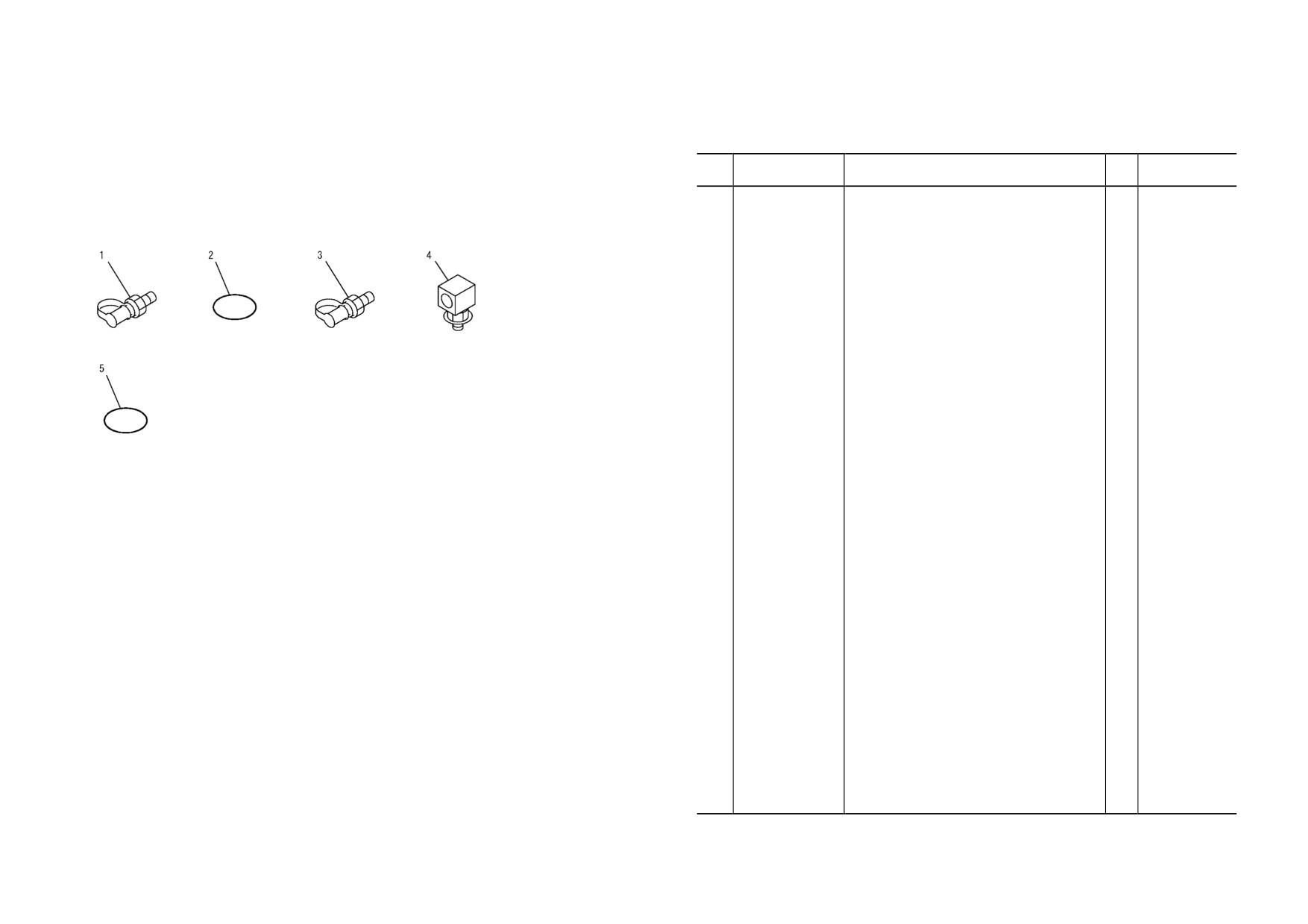

FIG NO. ：W0111-01A0
FIG. W0111-01A0 PREVENTIVE MAINTENANCE CLINIC PARTS (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
799-101-5220
NIPPLE
9
DBB0001~
2
07002-11023
O-RING
9
DBB0001~
3
195-49-36120
NIPPLE
1
DBB0001~
4
207-62-72820
ELBOW, SEMS
1
DBB0001~
5
07002-11023
O-RING
1
DBB0001~
PW1C964
WO- 2
PC200, 210(LC)-7
PC200, 210(LC)-7
WO- 3
