Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 17





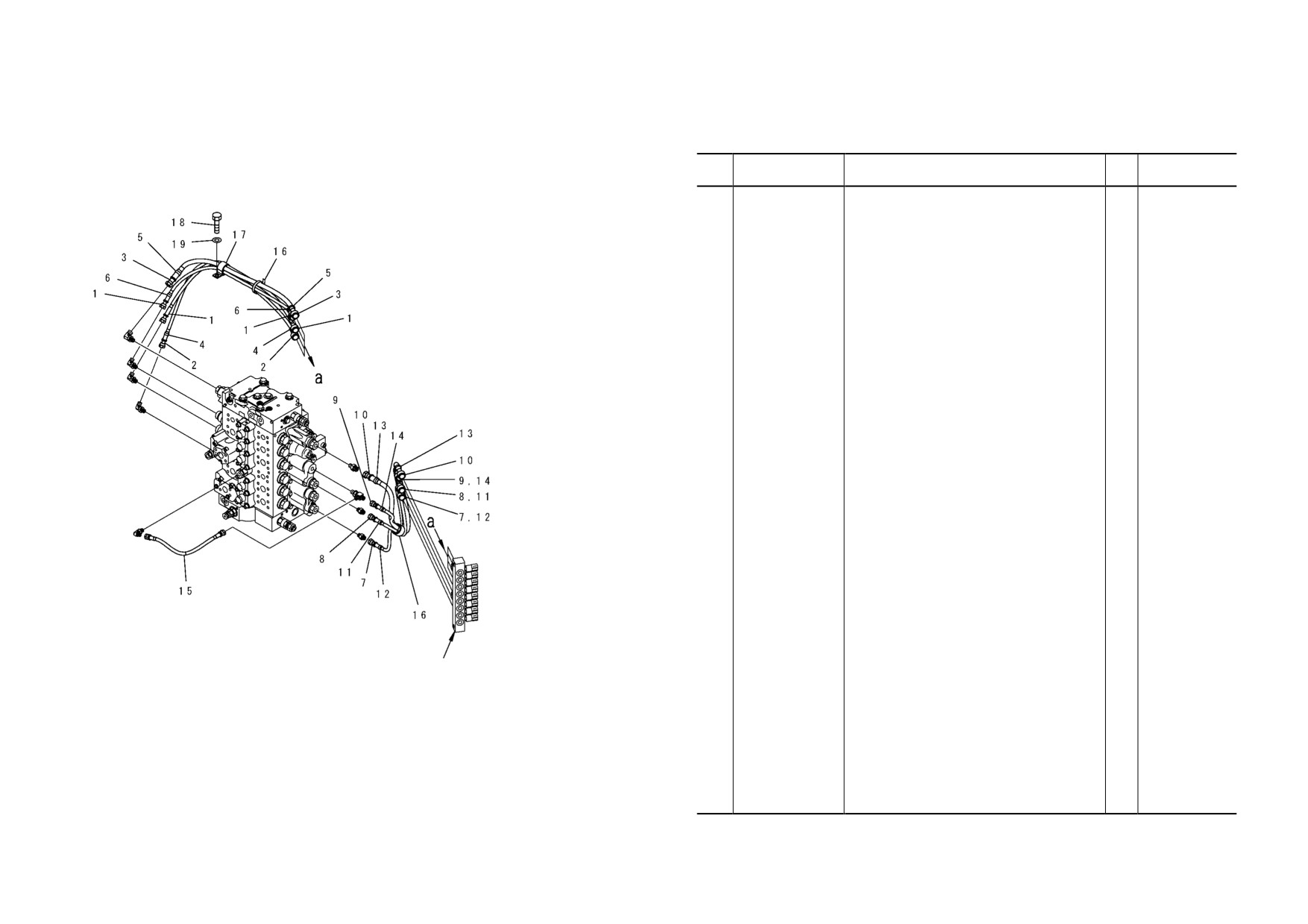

FIG NO. ：H1840-01A0

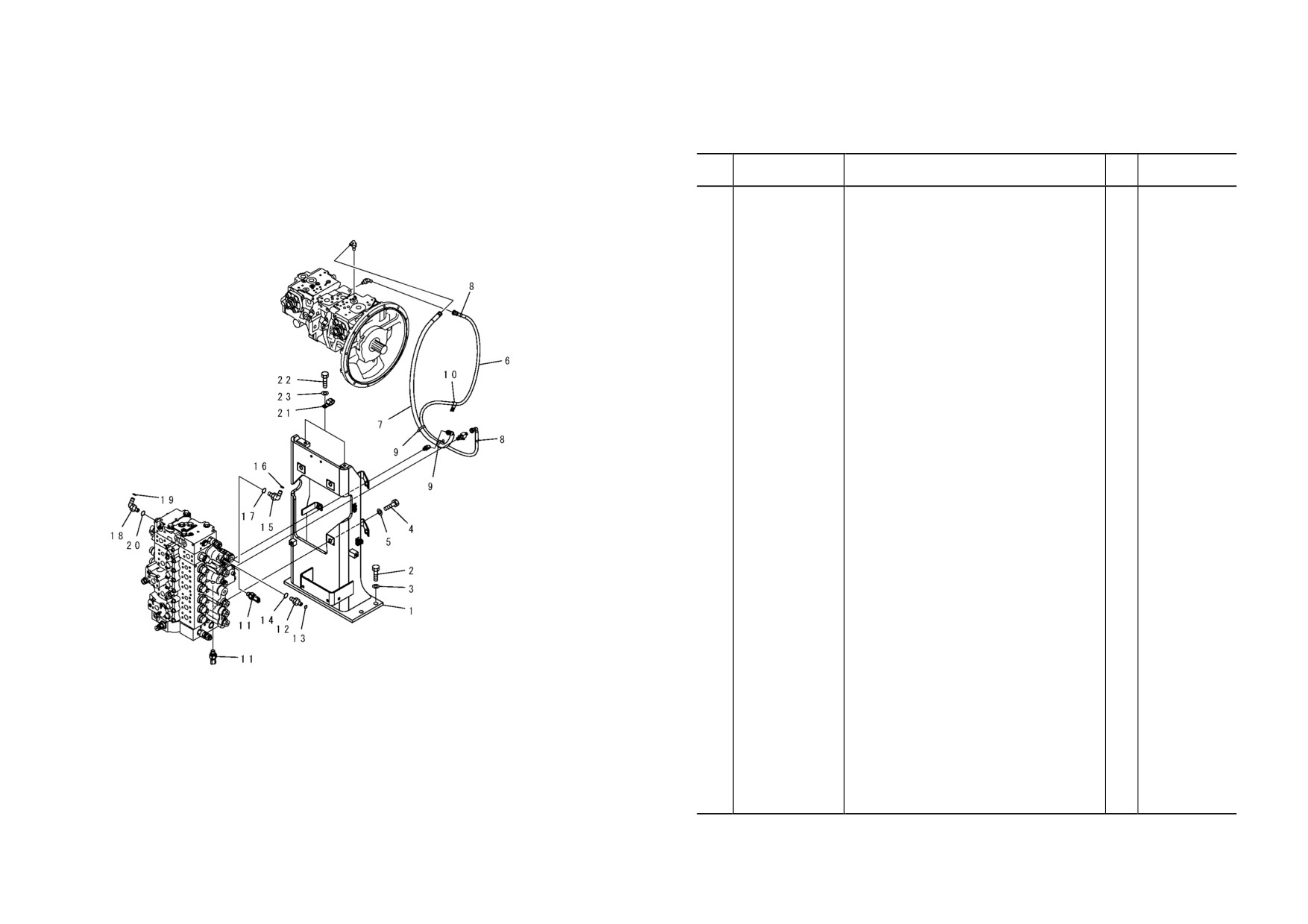

FIG. H1840-01A0 PPC MAIN LINE (HOSE)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
02760-002A7
HOSE, 750 MM, 750 MM
2
DBB0001~
2
02760-00209
HOSE, 900 MM, 900 MM
1
DBB0001~
3
20Y-62-42530
HOSE, 700 MM, 700 MM
1
DBB0001~
4
20Y-62-22820
BAND, BLUE
2
DBB0001~
5
20Y-62-22830
BAND, WHITE
2
DBB0001~
6
20Y-62-22860
BAND, BROWN
2
DBB0001~
7
02760-00208
HOSE 800 MM, 800 MM
1
DBB0001~
8
02760-002A8
HOSE, 850 MM, 850 MM
1
DBB0001~
9
02760-002A9
HOSE, 950 MM, 950 MM
1
DBB0001~
10
20Y-62-42540
HOSE, 1050 MM, 1050 MM
1
DBB0001~
11
20Y-62-22790
BAND, RED
2
DBB0001~
12
20Y-62-22810
BAND, YELLOW
2
DBB0001~
13
20Y-62-22840
BAND, BLACK
2
DBB0001~
14
20Y-62-22850
BAND, GREEN
2
DBB0001~
Main Valve
15
02760-00204
HOSE
1
DBB0001~
16
08034-20536
BAND
2
DBB0001~
17
113-899-7950
CLIP
1
DBB0001~
18
01010-81225
BOLT
1
DBB0001~
19
01643-31232
WASHER
1
DBB0001~
See Fig. H1833-01A0
PW1B823
HO- 86
PC200, 210(LC)-7
PC200, 210(LC)-7
HO- 87

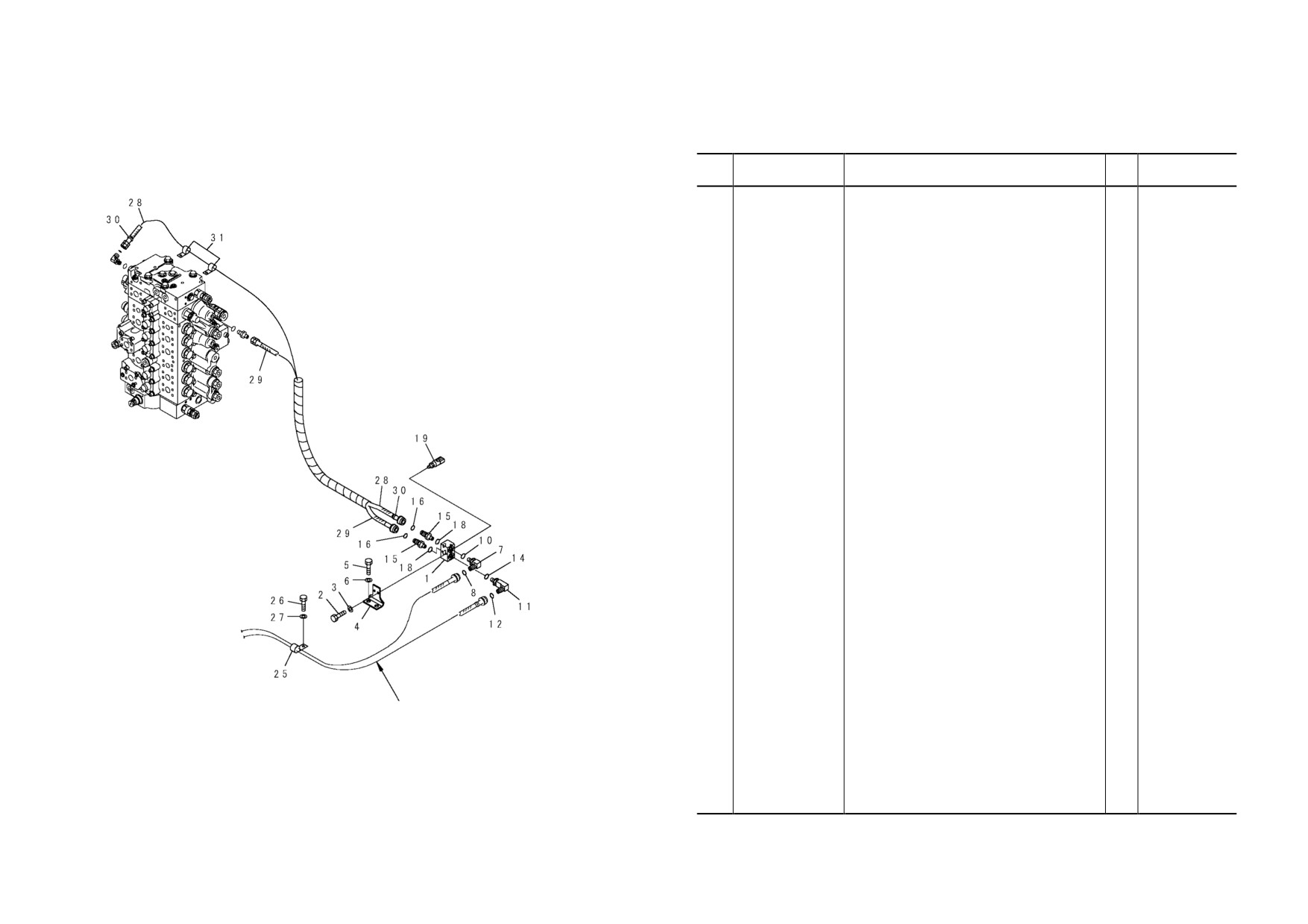

FIG NO. ：H1840-02A1
FIG. H1840-02A1 PPC MAIN LINE (BLOCK ) (SPECIAL PIPING FOR BREAKER) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-62-43430
BLOCK
1
DBB0001~
2
01010-80820
BOLT
2
DBB0001~
3
01643-30823
WASHER
2
DBB0001~
4
20Y-62-43440
BRACKET
1
DBB0001~
5
01010-81025
BOLT
2
DBB0001~
6
01643-31032
WASHER
2
DBB0001~
7
11Y-62-12160
ELBOW
1
DBB0001~
8
02896-11008
O-RING
1
DBB0001~
10
07002-01423
O-RING
1
DBB0001~
11
20Y-62-D1850
ELBOW
1
DBB0001~
12
02896-11008
O-RING
1
DBB0001~
14
07002-01423
O-RING
1
DBB0001~
Main Valve
15
11Y-62-12130
NIPPLE
2
DBB0001~
16
02896-11008
O-RING
2
DBB0001~
18
07002-01423
O-RING
2
DBB0001~
19
206-06-61130
SWITCH
1
DBB0001~
25
04434-51612
CLIP
1
DBB0001~
26
01010-81225
BOLT
1
DBB0001~
27
01643-31232
WASHER
1
DBB0001~
28
02760-00221
HOSE, 2100 MM
1
DBB0001~
29
02760-00214
HOSE, 1400 MM
1
DBB0001~
30
20Y-62-22810
BAND, YELLOW
2
DBB0001~
31
04435-51612
CLIP
2
DBB0001~
See Fig. K1110-04A1
PW1C042
HO- 88
PC200, 210(LC)-7
PC200, 210(LC)-7
HO- 89
FIG NO. ：H0110-01A1

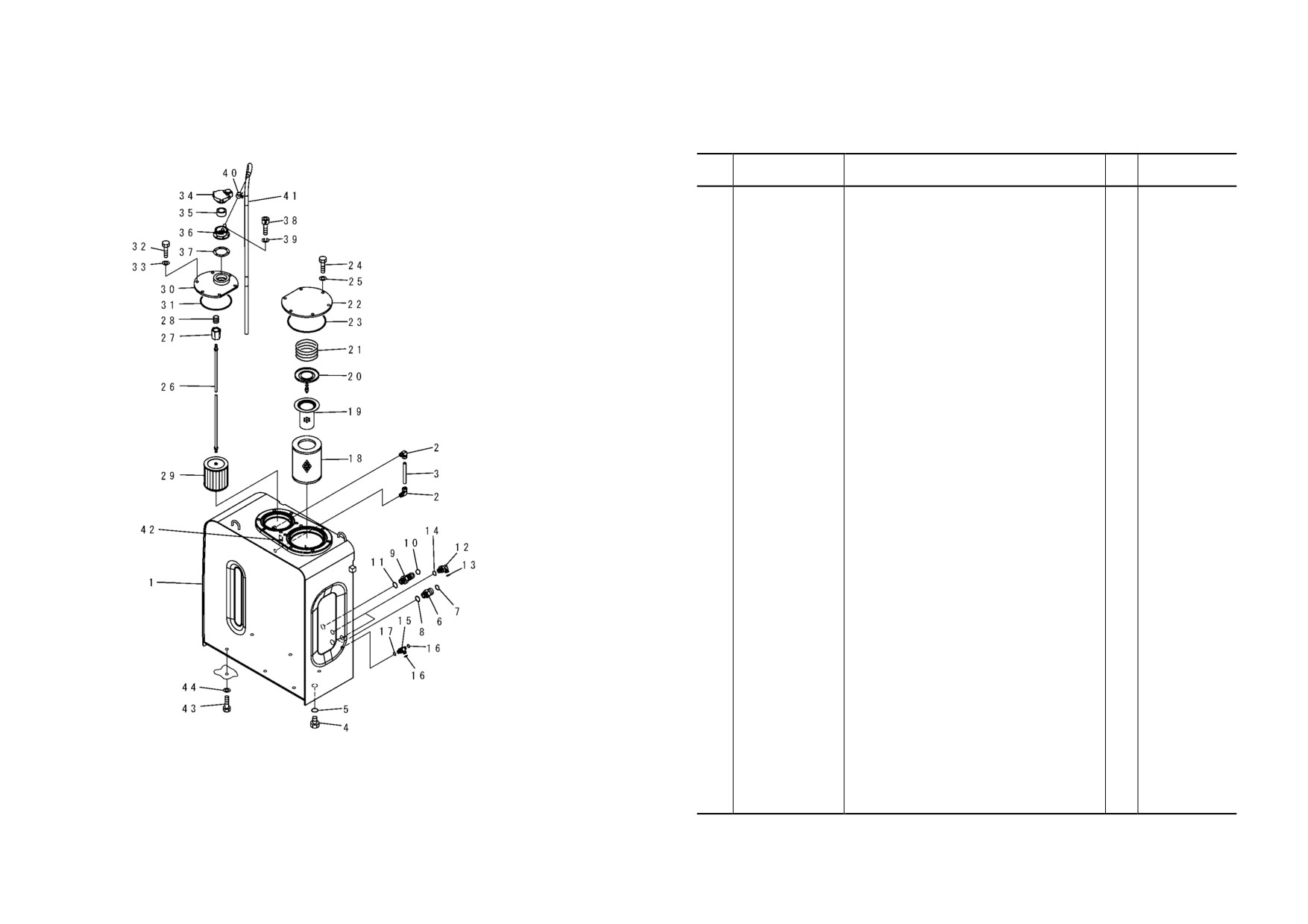

FIG. H0110-01A1 HYDRAULIC TANK (1 ACTUATOR) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-60-31111
TANK
1
DBB0001~
2
203-60-31100
ELBOW ASS’ Y
2
DBB0001~
3
203-60-31160
TUBE
1
DBB0001~
4
07044-12412
PLUG
1
DBB0001~
5
07002-02434
O-RING
1
DBB0001~
6
02781-00628
UNION
1
DBB0001~
7
02896-11018
O-RING
1
DBB0001~
8
07002-12434
O-RING
1
DBB0001~
9
02782-10522
ELBOW
1
DBB0001~
10
02896-11015
O-RING
1
DBB0001~
11
07002-12434
O-RING
1
DBB0001~
12
02782-10315
ELBOW
2
DBB0001~
13
02896-11009
O-RING
2
DBB0001~
14
07002-12034
O-RING
2
DBB0001~
15
11Y-62-12330
TEE
1
DBB0001~
16
02896-11008
O-RING
2
DBB0001~
17
07002-11423
O-RING
1
DBB0001~
18
207-60-71180
ELEMENT
1
DBB0001~
19
20Y-60-31140
STRAINER
1
DBB0001~
20
20Y-60-31131
VALVE ASS’ Y
1
DBB0001~
21
20Y-60-21240
SPRING
1
DBB0001~
22
22U-60-21231
COVER
1
DBB0001~
23
07000-15195
O-RING
1
DBB0001~
24
01010-81230
BOLT
6
DBB0001~
25
01643-31232
WASHER
6
DBB0001~
20Y-60-31171
STRAINER ASS’ Y
1
DBB0001~
26
207-60-61150
. ROD ASS’ Y
1
DBB0001~
27
20Y-60-21230
.. HOLDER
1
DBB0001~
PW1B983
28
12R-60-11230
.. SPRING
1
DBB0001~
29
22B-60-11160
. STRAINER
1
DBB0001~
30
20Y-60-31161
COVER
1
DBB0001~
H1- 6
PC200, 210(LC)-7
PC200, 210(LC)-7
H1- 7

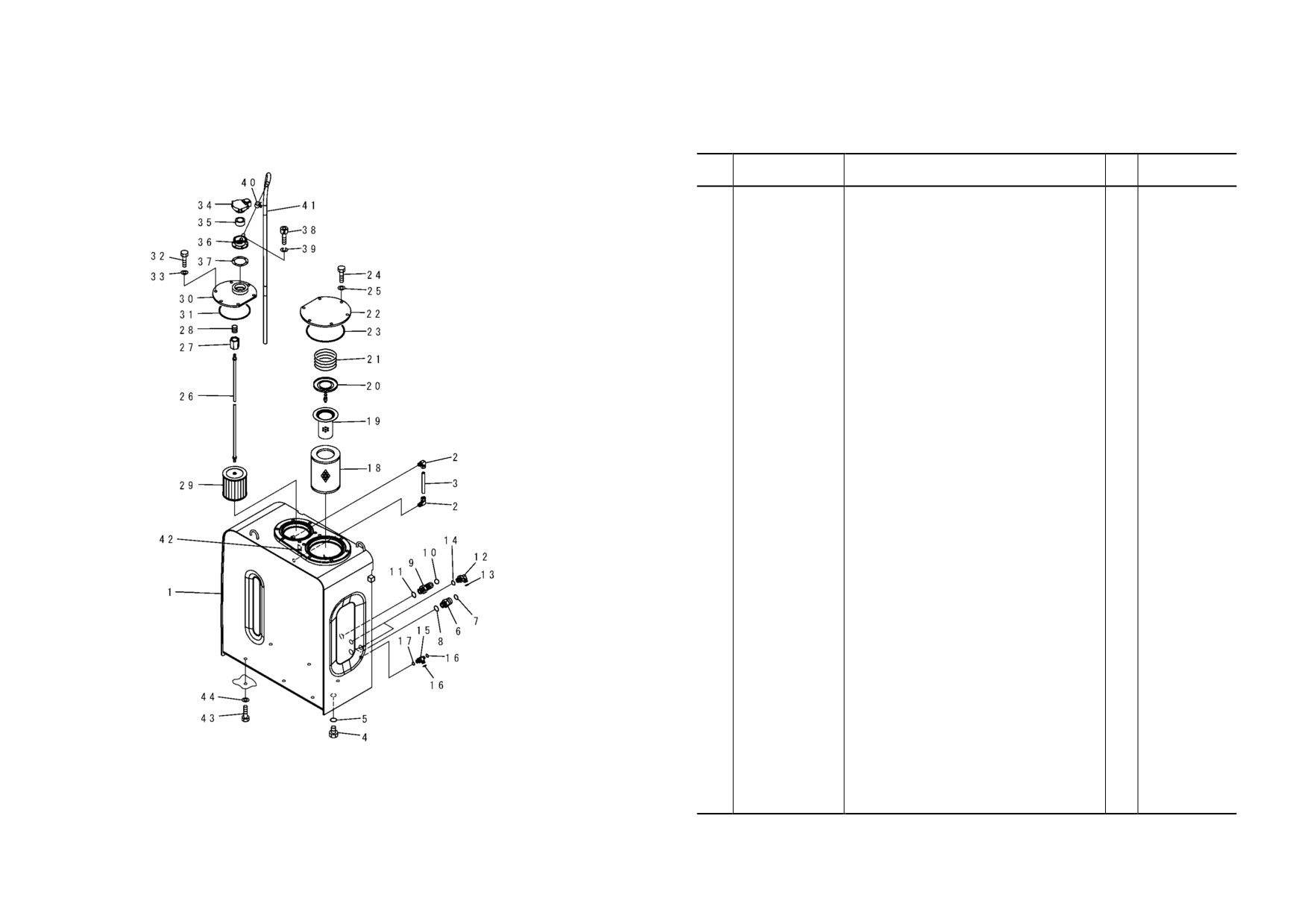

FIG NO. ：H0110-01A1
FIG. H0110-01A1 HYDRAULIC TANK (1 ACTUATOR)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
31
07000-15160
O-RING
1
DBB0001~
32
01010-81230
BOLT
6
DBB0001~
33
01643-31232
WASHER
6
DBB0001~
34
17A-60-11310
CAP ASS’ Y
1
DBB0001~
35
20Y-60-21470
. ELEMENT
1
DBB0001~
36
20Y-60-21460
NECK
1
DBB0001~
37
20Y-60-21340
GASKET
1
DBB0001~
38
01252-70516
BOLT
6
DBB0001~
39
01601-20513
WASHER
6
DBB0001~
40
07285-00155
CLIP
1
DBB0001~
41
07270-61411
TUBE
1
DBB0001~
42
205-00-73360
PLATE, OPERATING
1
DBB0001~
43
01010-81635
BOLT
6
DBB0001~
44
01643-31645
WASHER
6
DBB0001~
H1- 8
PC200, 210(LC)-7
PC200, 210(LC)-7
H1- 9

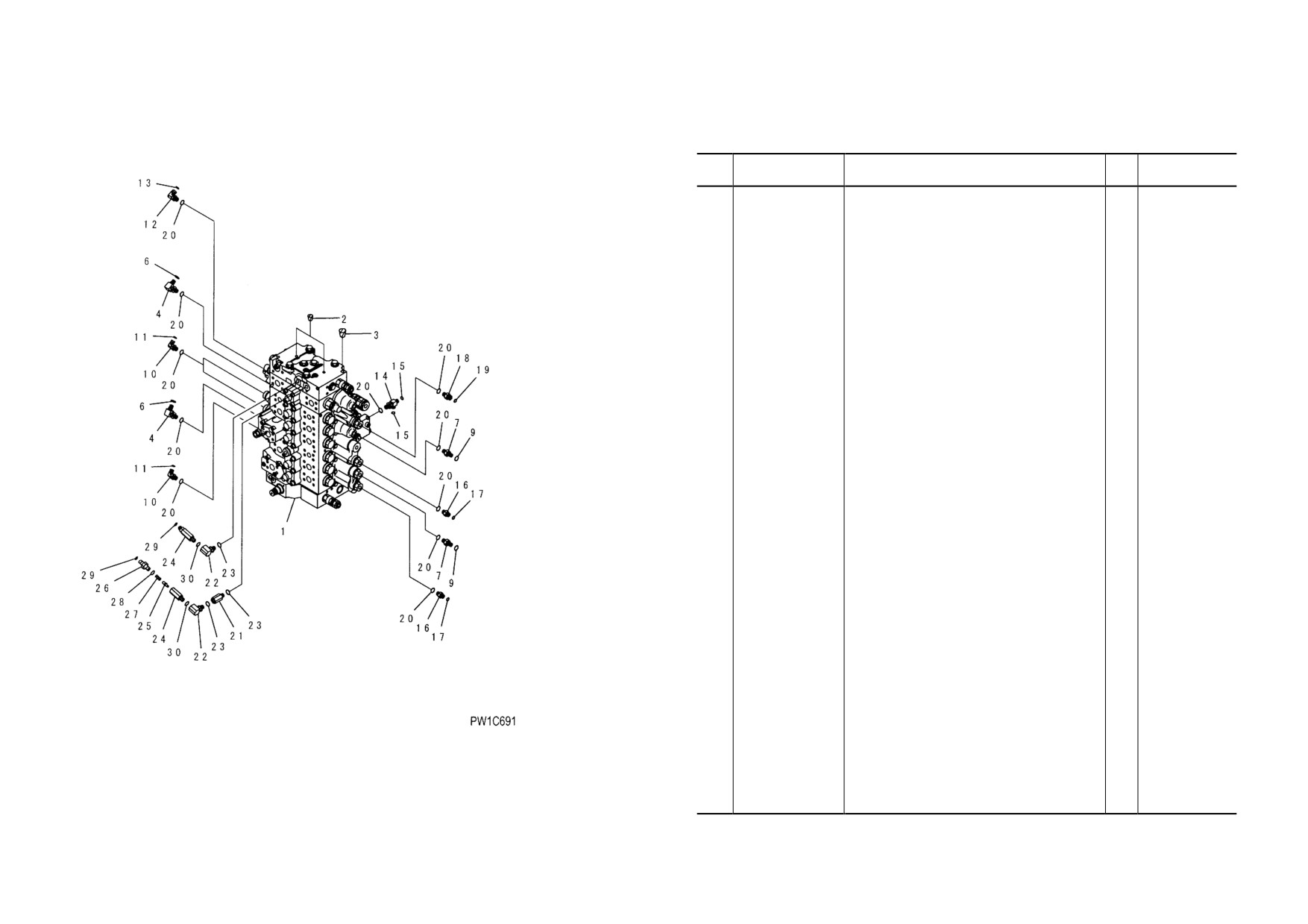

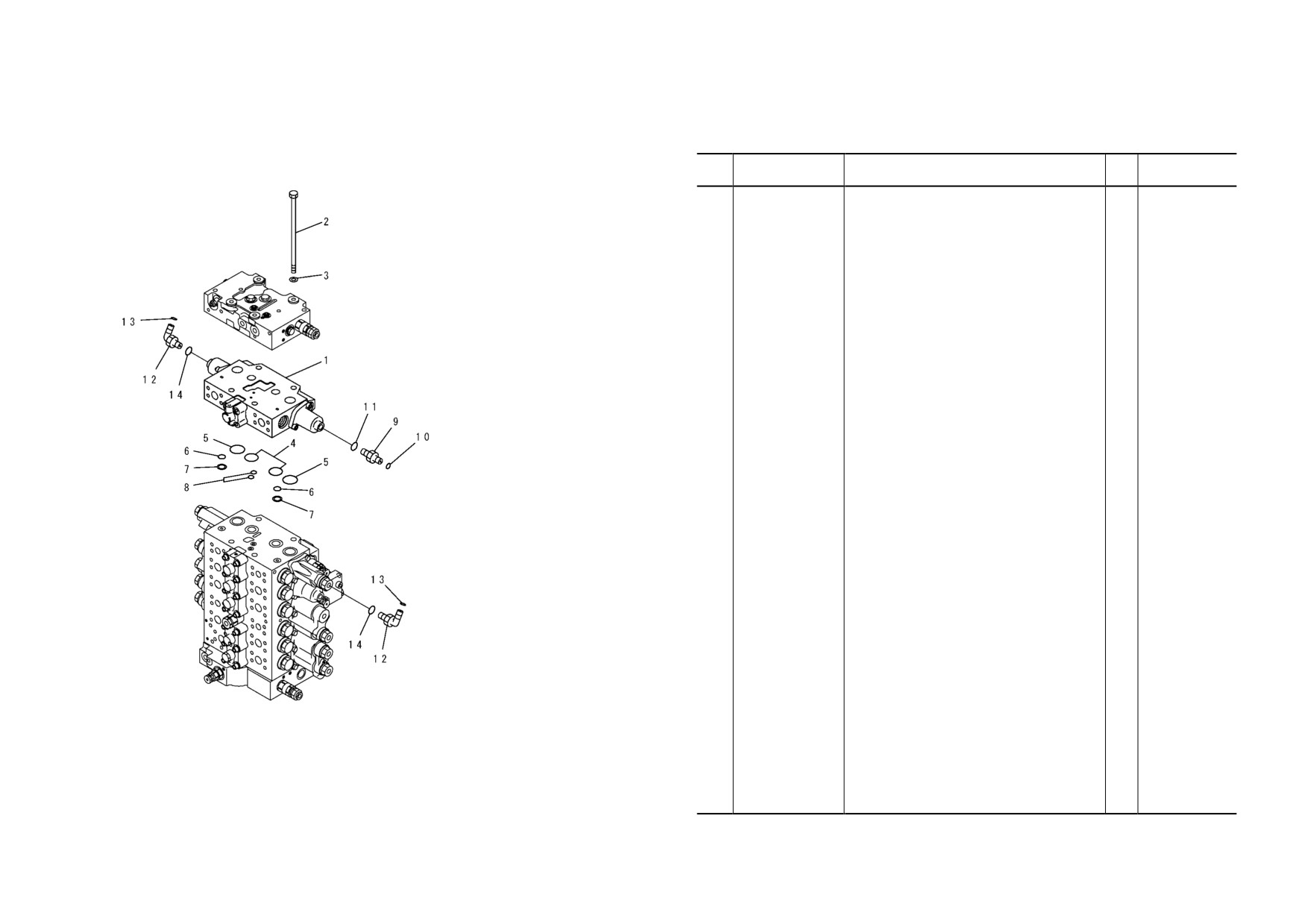

FIG NO. ：H0120-01A1
FIG. H0120-01A1 MAIN VALVE (CONNECTING PARTS) (1 ACTUATOR) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
(723-47-20402)
VALVE ASS’ Y
1
DBB0001~
2
07049-01012
PLUG
2
DBB0001~
3
07049-01215
PLUG
2
DBB0001~
4
20Y-62-45620
ELBOW
2
DBB0001~
6
02896-11008
O-RING
2
DBB0001~
7
20Y-62-45610
NIPPLE
2
DBB0001~
9
02896-11008
O-RING
2
DBB0001~
10
11Y-62-12160
ELBOW
3
DBB0001~
11
02896-11008
O-RING
3
DBB0001~
12
02782-10311
ELBOW
1
DBB0001~
13
02896-11009
O-RING
1
DBB0001~
14
11Y-62-12330
TEE
1
DBB0001~
15
02896-11008
O-RING
2
DBB0001~
16
11Y-62-12130
NIPPLE
2
DBB0001~
17
02896-11008
O-RING
2
DBB0001~
18
11Y-62-12520
NIPPLE
1
DBB0001~
19
02896-11009
O-RING
1
DBB0001~
20
07002-11423
O-RING
12
DBB0001~
21
20Y-62-22160
ADAPTER
1
DBB0001~
22
20F-61-12460
ELBOW
2
DBB0001~
23
07002-11423
O-RING
3
DBB0001~
20Y-62-41601
VALVE ASS’ Y
2
DBB0001~
24
☆
. BODY
1
DBB0001~
25
20Y-60-22270
. POPPET
1
DBB0001~
26
20Y-62-41970
. NIPPLE
1
DBB0001~
27
701-20-61230
. PRING
1
DBB0001~
28
07002-11423
. O-RING
1
DBB0001~
29
02896-11008
O-RING
2
DBB0001~
30
07002-11423
O-RING
2
DBB0001~
H1- 12
PC200, 210(LC)-7
PC200, 210(LC)-7
H1- 13
FIG NO. ：H0120-01A4
FIG. H0120-01A4 MAIN VALVE (ADDITIONAL SERVICE VALVE KIT) (1 ACTUATOR) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
(723-41-07600)
VALVE ASS’ Y, KIT
1
DBB0001~
2
01011-61455
BOLT
4
DBB0001~
3
01643-31445
WASHER
4
DBB0001~
4
(07000-13032)
O-RING
2
DBB0001~
5
(723-46-17510)
O-RING
2
DBB0001~
6
(723-11-19130)
O-RING
2
DBB0001~
7
(723-46-17520)
RING
2
DBB0001~
8
(723-46-17530)
O-RING
2
DBB0001~
9
11Y-62-12130
NIPPLE
1
DBB0001~
10
02896-11008
O-RING
1
DBB0001~
11
07002-11423
O-RING
1
DBB0001~
12
11Y-62-12160
ELBOW
2
DBB0001~
13
02896-11008
O-RING
2
DBB0001~
14
07002-11423
O-RING
2
DBB0001~
Main Valve
PW1C699
H1- 14
PC200, 210(LC)-7
PC200, 210(LC)-7
H1- 15

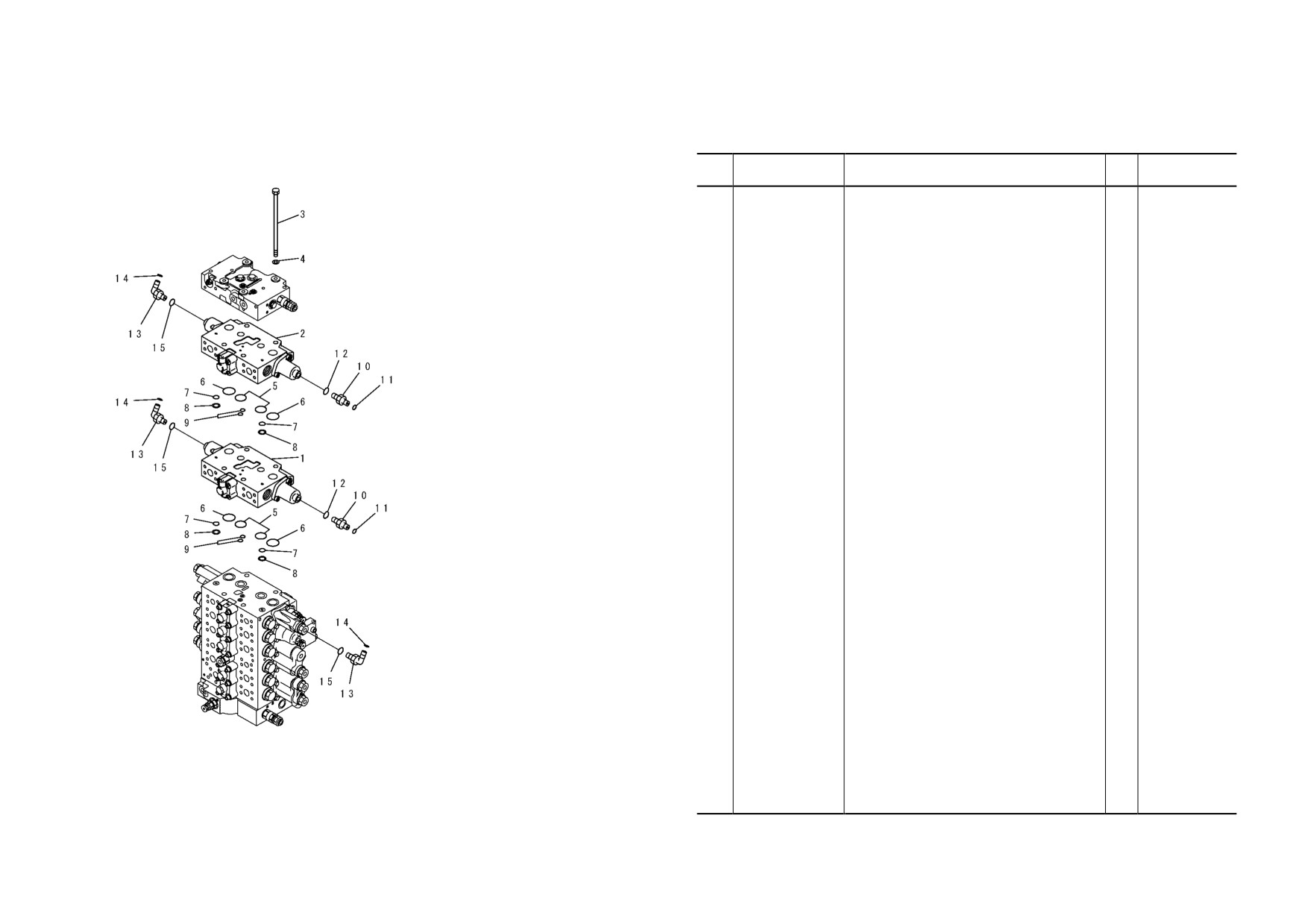

FIG NO. ：H0120-01A5
FIG. H0120-01A5 MAIN VALVE (ADDITIONAL SERVICE VALVE KIT) (2 ACTUATOR) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
(723-41-07600)
VALVE ASS’ Y, KIT
1
DBB0001~
2
(723-41-07400)
VALVE ASS’ Y, KIT
1
DBB0001~
3
723-46-15220
BOLT
4
DBB0001~
4
01643-31445
WASHER
4
DBB0001~
5
(07000-13032)
O-RING
4
DBB0001~
6
(723-46-17510)
O-RING
4
DBB0001~
7
(723-11-19130)
O-RING
4
DBB0001~
8
(723-46-17520)
RING
4
DBB0001~
9
(723-46-17530)
O-RING
4
DBB0001~
10
11Y-62-12130
NIPPLE
2
DBB0001~
11
02896-11008
O-RING
2
DBB0001~
12
07002-11423
O-RING
2
DBB0001~
13
11Y-62-12160
ELBOW
3
DBB0001~
14
02896-11008
O-RING
3
DBB0001~
15
07002-11423
O-RING
3
DBB0001~
Main Valve
PW1C700
H1- 16
PC200, 210(LC)-7
PC200, 210(LC)-7
H1- 17

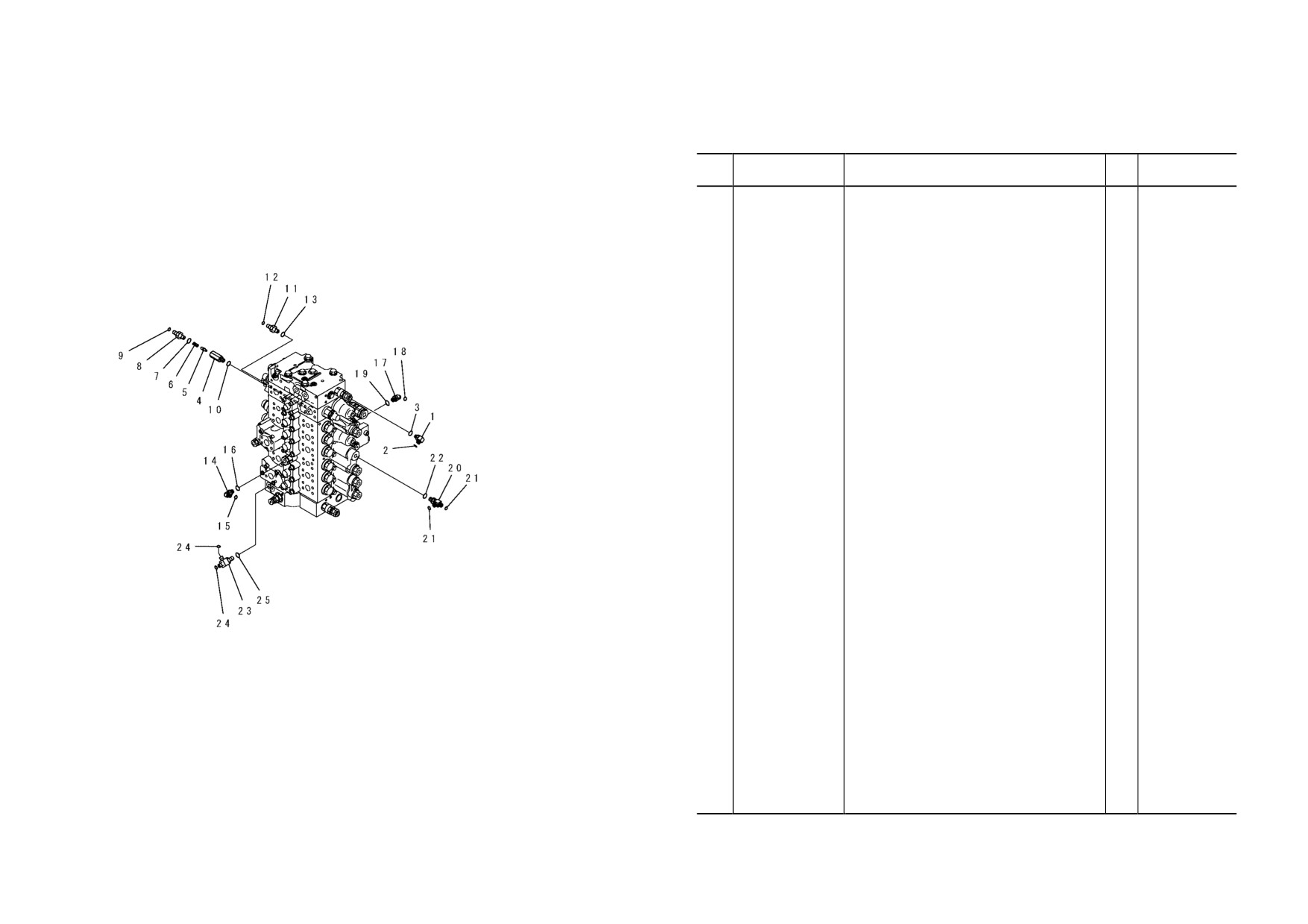

FIG NO. ：H0120-02A1
FIG. H0120-02A1 MAIN VALVE (CONNECTING PARTS) (1 ACTUATOR) (OPT) (2/2)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-62-41920
ELBOW
2
DBB0001~
2
02896-11008
O-RING
2
DBB0001~
3
07002-11223
O-RING
2
DBB0001~
20Y-62-41700
VALVE ASS’ Y
1
DBB0001~
4
20Y-60-22210
. BODY
1
DBB0001~
5
20Y-60-22270
. POPPET
1
DBB0001~
6
701-20-61230
. SPRING
1
DBB0001~
7
07002-11423
. O-RING
1
DBB0001~
8
11Y-62-12130
. NIPPLE
1
DBB0001~
9
02896-11008
O-RING
1
DBB0001~
10
07002-11423
O-RING
1
DBB0001~
11
11Y-62-12130
NIPPLE
1
DBB0001~
12
02896-11008
O-RING
1
DBB0001~
13
07002-11423
O-RING
1
DBB0001~
14
11Y-62-12160
ELBOW
1
DBB0001~
15
02896-11008
O-RING
1
DBB0001~
16
07002-11423
O-RING
1
DBB0001~
17
11Y-62-12240
ELBOW
1
DBB0001~
18
02896-11008
O-RING
1
DBB0001~
Main Valve
19
07002-11423
O-RING
1
DBB0001~
20
11Y-62-12330
TEE
1
DBB0001~
21
02896-11008
O-RING
2
DBB0001~
22
07002-11423
O-RING
1
DBB0001~
23
11Y-62-12330
TEE
1
DBB0001~
24
02896-11008
O-RING
2
DBB0001~
25
07002-11423
O-RING
1
DBB0001~
PW1C034
H1- 20
PC200, 210(LC)-7
PC200, 210(LC)-7
H1- 21
FIG NO. ：H0120-03A1
FIG. H0120-03A1 MAIN VALVE (VALVE BRACKET) (1 ACTUATOR) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-62-41112
BRACKET
1
DBB0001~
2
01010-81640
BOLT
6
DBB0001~
3
01643-31645
WASHER
6
DBB0001~
Main Pump
4
01010-81645
BOLT
3
DBB0001~
5
01643-31645
WASHER
3
DBB0001~
6
02761-00217
HOSE
1
DBB0001~
7
02777-00218
HOSE
1
DBB0001~
8
20Y-62-22810
BAND, YELLOW
2
DBB0001~
9
08034-00519
BAND
2
DBB0001~
10
04435-51612
CLIP
1
DBB0001~
11
7861-93-1650
SENSOR
2
DBB0001~
12
11Y-62-12130
NIPPLE
1
DBB0001~
13
02896-11008
O-RING
1
DBB0001~
14
07002-11423
O-RING
1
DBB0001~
15
11Y-62-12160
ELBOW
1
DBB0001~
16
02896-11008
O-RING
1
DBB0001~
17
07002-11423
O-RING
1
DBB0001~
18
11Y-62-12160
ELBOW
1
DBB0001~
19
02896-11008
O-RING
1
DBB0001~
20
07002-11423
O-RING
1
DBB0001~
21
04435-51512
CLIP
4
DBB0001~
22
01010-81225
BOLT
2
DBB0001~
23
01643-31232
WASHER
2
DBB0001~
Main Valve
PW1C035
H1- 24
PC200, 210(LC)-7
PC200, 210(LC)-7
H1- 25

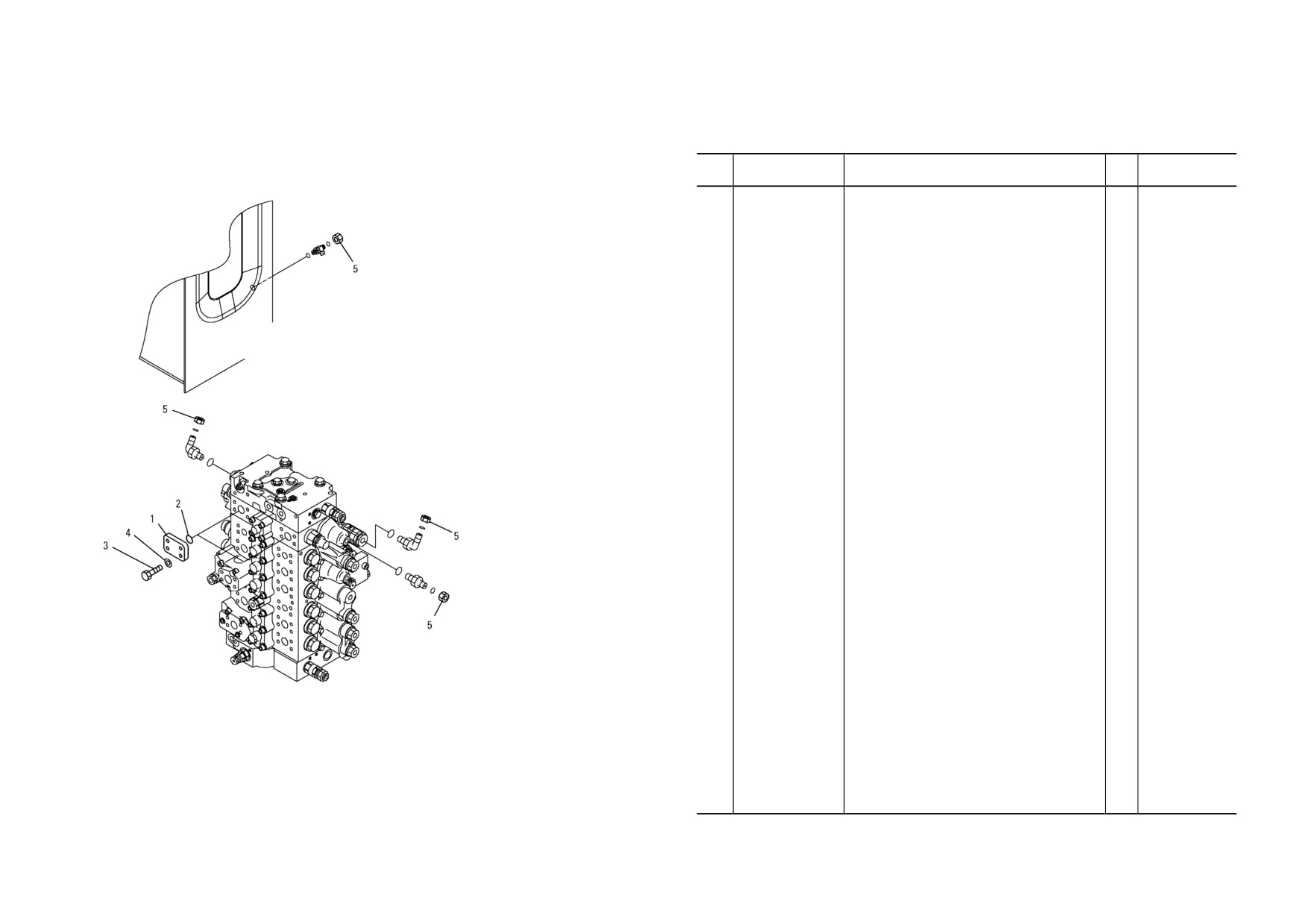

FIG NO. ：H0120-04A6
FIG. H0120-04A6 MAIN VALVE (SERVICE VALVE PLUG) (1 ACTUATOR) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
207-62-56190
FLANGE
2
DBB0001~
2
21T-09-11470
O-RING
2
DBB0001~
3
07372-21040
BOLT
8
DBB0001~
4
01643-51032
WASHER
8
DBB0001~
5
02789-00210
NUT
4
DBB0001~
Hydraulic Tank
Main Valve
PW1C875
H1- 26
PC200, 210(LC)-7
PC200, 210(LC)-7
H1- 27















Content      ..     15      16      17      18     ..
