Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 16

FIG NO. ：H1270-01A0

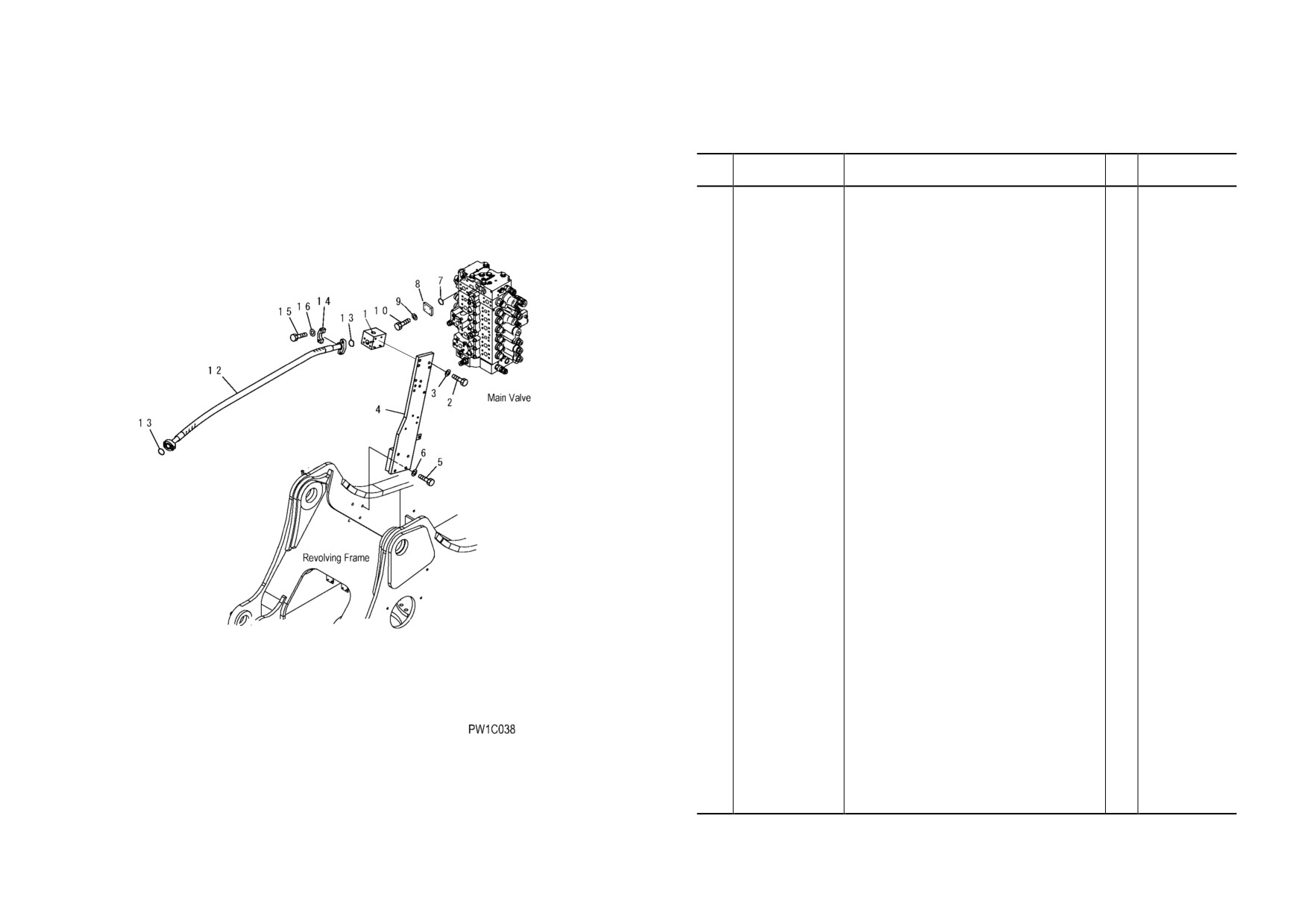

FIG. H1270-01A0 ATTACHMENT LINES (MAIN L. H.) (SPECIAL PIPING FOR BREAKER) (OPT)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

20Y-62-01970

BLOCK

1

DBB0001~

2

20Y-62-D1960

BRACKET

1

DBB0001~

3

01010-81265

BOLT

4

DBB0001~

4

01643-31232

WASHER

4

DBB0001~

5

07098-01007

HOSE

1

DBB0001~

6

21T-09-11460

O-RING

2

DBB0001~

7

07371-31049

FLANGE

4

DBB0001~

8

07372-21035

BOLT

8

DBB0001~

9

01643-51032

WASHER

8

DBB0001~

10

07097-21016

HOSE

1

DBB0001~

11

07000-13032

O-RING

2

DBB0001~

12

07371-31049

FLANGE

4

DBB0001~

13

07372-21035

BOLT

8

DBB0001~

14

01643-51032

WASHER

8

DBB0001~

HO- 56

PC200, 210(LC)-7

PC200, 210(LC)-7

HO- 57

FIG NO. ：H1270-01A2

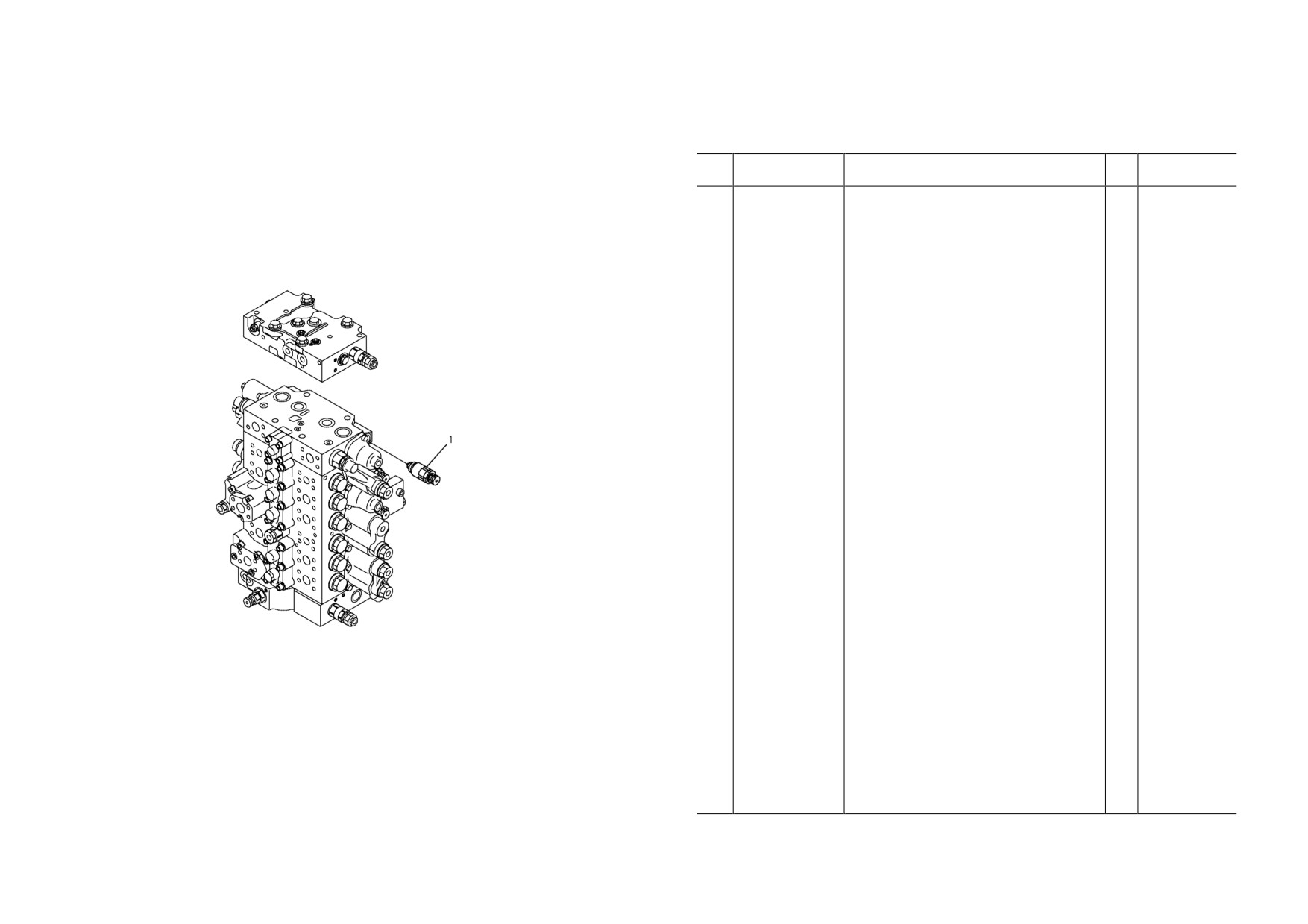

FIG. H1270-01A2 RELIEF VALVE (210 KG/CM2) (SPECIAL PIPING FOR BREAKER) (OPT)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

(723-90-61200)

RELIEF VALVE

1

DBB0001~

PW1C828

HO- 60

PC200, 210(LC)-7

PC200, 210(LC)-7

HO- 61

FIG NO. ：H1270-02A0

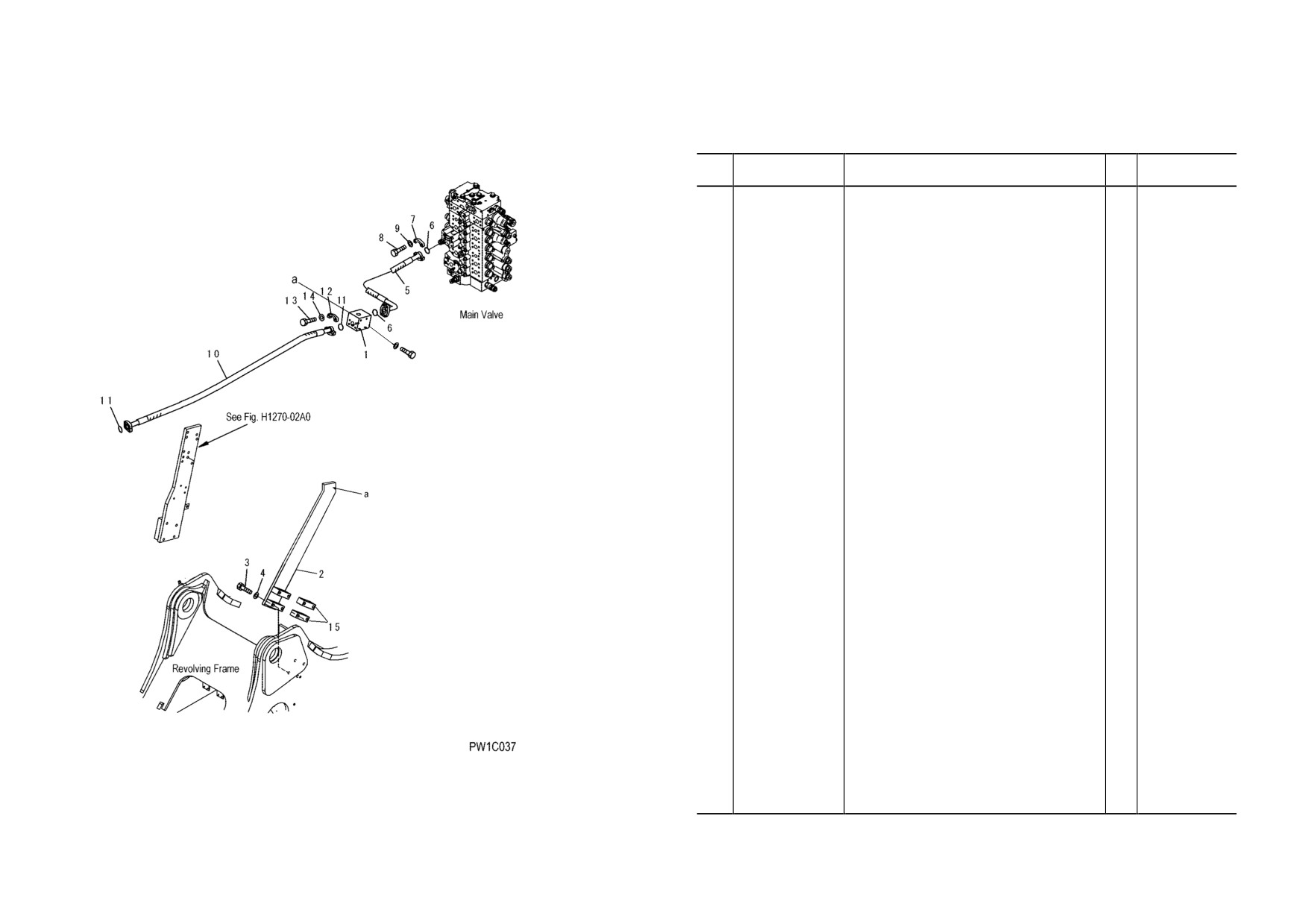

FIG. H1270-02A0 ATTACHMENT LINES (MAIN R. H.) (SPECIAL PIPING FOR BREAKER) (OPT)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

20Y-62-D1980

VALVE ASS’ Y

1

DBB0001~

2

01010-81035

BOLT

3

DBB0001~

3

01643-81232

WASHER

3

DBB0001~

4

20Y-62-43270

BRACKET

1

DBB0001~

5

01010-81285

BOLT

4

DBB0001~

6

01643-31232

WASHER

4

DBB0001~

7

207-62-56190

FLANGE

1

DBB0001~

8

21T-09-11470

O-RING

1

DBB0001~

9

07372-21040

BOLT

1

DBB0001~

10

01643-51032

WASHER

1

DBB0001~

12

07097-21217

HOSE

1

DBB0001~

13

07000-13038

O-RING

2

DBB0001~

14

07371-51260

FLANGE

4

DBB0001~

15

07372-21245

BOLT

8

DBB0001~

16

01643-31232

WASHER

8

DBB0001~

HO- 66

PC200, 210(LC)-7

PC200, 210(LC)-7

HO- 67

FIG NO. ：H1270-03A0

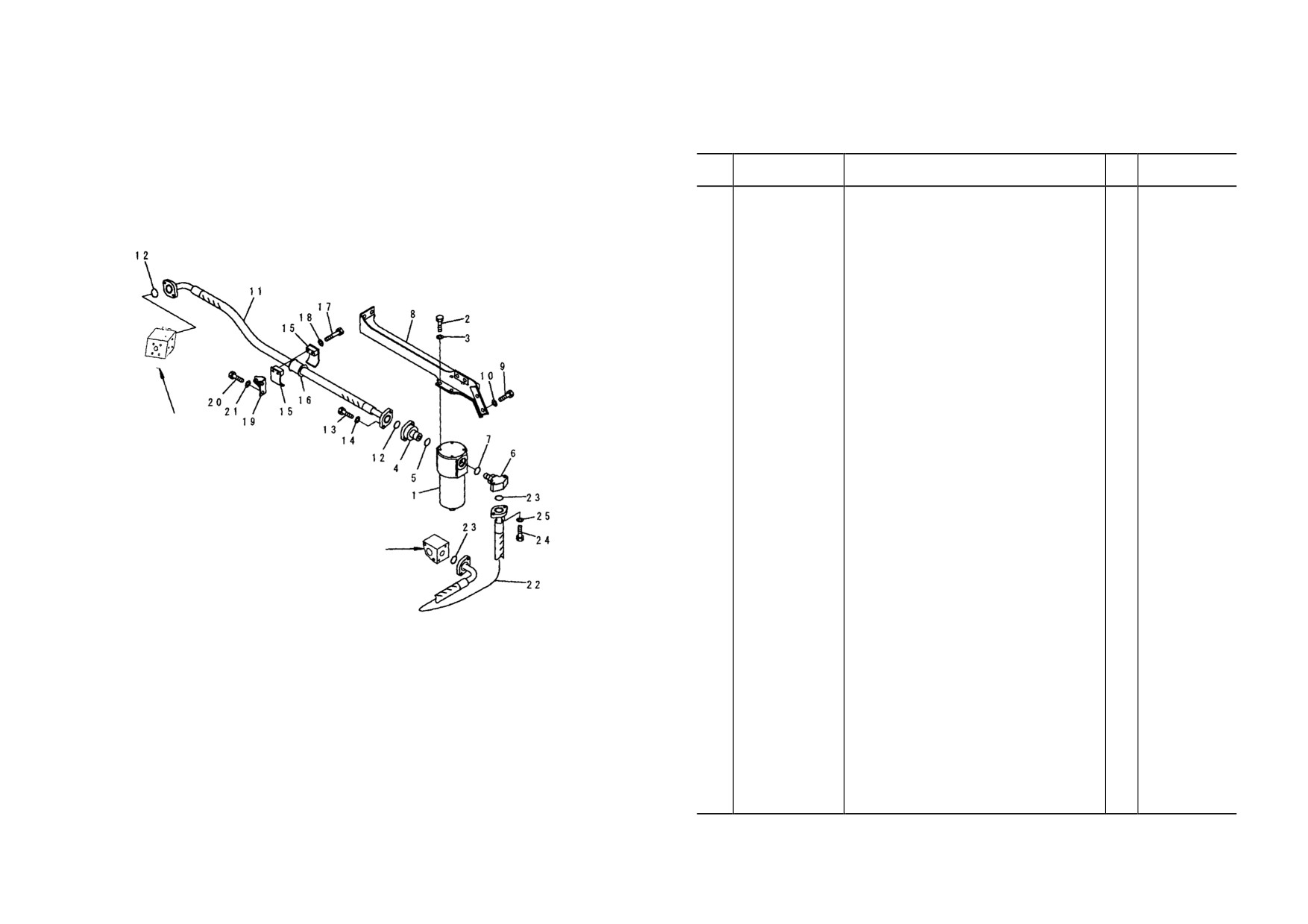

FIG. H1270-03A0 ATTACHMENT LINES (RETURN ) (SPECIAL PIPING FOR BREAKER) (OPT)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

(20Y-970-2700)

FILTER ASS’ Y

1

DBB0001~

2

01010-81230

BOLT

4

DBB0001~

3

01643-31232

WASHER

4

DBB0001~

4

20Y-62-43351

FLANGE

1

DBB0001~

5

07002-14234

O-RING

1

DBB0001~

6

20Y-62-43361

ELBOW

1

DBB0001~

7

07002-14234

O-RING

1

DBB0001~

8

20Y-62-43331

FRAME

1

DBB0001~

9

01010-81230

BOLT

4

DBB0001~

10

01643-31232

WASHER

4

DBB0001~

11

20Y-62-43311

HOSE, 1450 MM

1

DBB0001~

See Fig. H1270-02A0

12

07000-13038

O-RING

2

DBB0001~

13

01010-81035

BOLT

4

DBB0001~

14

01643-31032

WASHER

4

DBB0001~

15

07094-11024

CLAMP

2

DBB0001~

16

07095-01038

CUSHION

1

DBB0001~

17

01010-81280

BOLT

2

DBB0001~

18

01643-31232

WASHER

2

DBB0001~

See Fig. H0330-01A1

19

20Y-62-43320

BRACKET

1

DBB0001~

20

01010-81225

BOLT

2

DBB0001~

21

01643-31232

WASHER

2

DBB0001~

22

20Y-62-43381

HOSE, 1000 MM

1

DBB0001~

23

07000-13038

O-RING

2

DBB0001~

24

01010-81035

BOLT

4

DBB0001~

25

01643-31032

WASHER

4

DBB0001~

PW1C039

HO-68

PC200, 210(LC)-7

PC200, 210(LC)-7

HO- 69

FIG NO. ：H1310-01A0

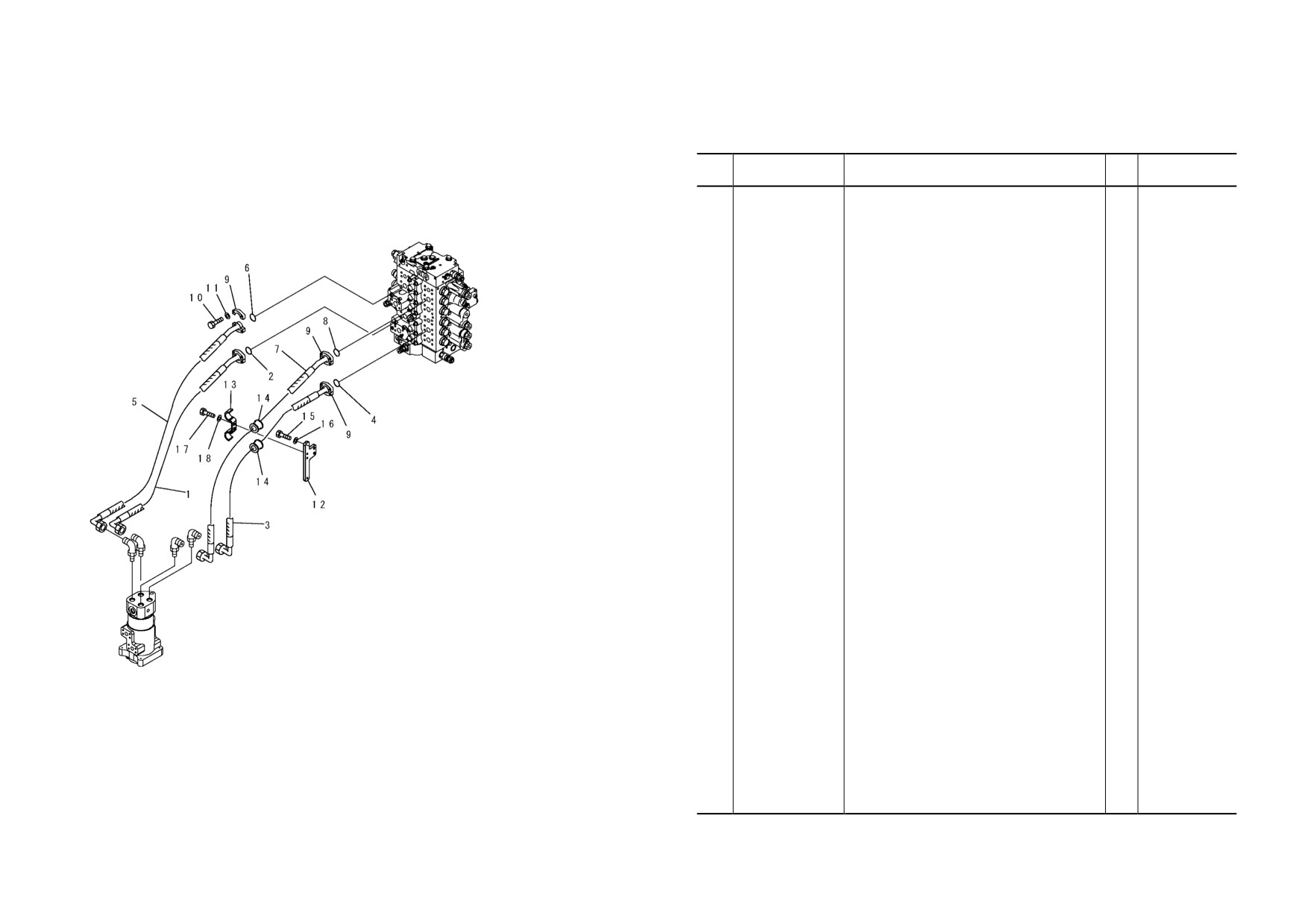

FIG. H1310-01A0 TRAVEL LINES

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

20Y-62-41191

HOSE, 1100 MM

1

DBB0001~

2

21T-09-11460

O-RING

1

DBB0001~

Main Valve

3

20Y-62-D1810

HOSE, 1270 MM

1

DBB0001~

4

21T-09-11460

O-RING

1

DBB0001~

5

20Y-62-41221

HOSE ,1250 MM

1

DBB0001~

6

21T-09-11460

O-RING

1

DBB0001~

7

20Y-62-D1820

HOSE, 1290 MM

1

DBB0001~

8

21T-09-11460

O-RING

1

DBB0001~

9

07371-31049

FLANGE

8

DBB0001~

10

07372-21035

BOLT

16

DBB0001~

11

01643-51032

WASHER

16

DBB0001~

12

20Y-62-41292

BRACKET

1

DBB0001~

13

206-62-71141

CLAMP

1

DBB0001~

14

07095-00628

CUSHION

2

DBB0001~

15

01010-81030

BOLT

2

DBB0001~

16

01643-31032

WASHER

2

DBB0001~

17

01010-81030

BOLT

2

DBB0001~

18

01643-31032

WASHER

2

DBB0001~

Swivel Joint

PW1B815

HO- 72

PC200, 210(LC)-7

PC200, 210(LC)-7

HO- 73

FIG NO. ：H1340-01A0

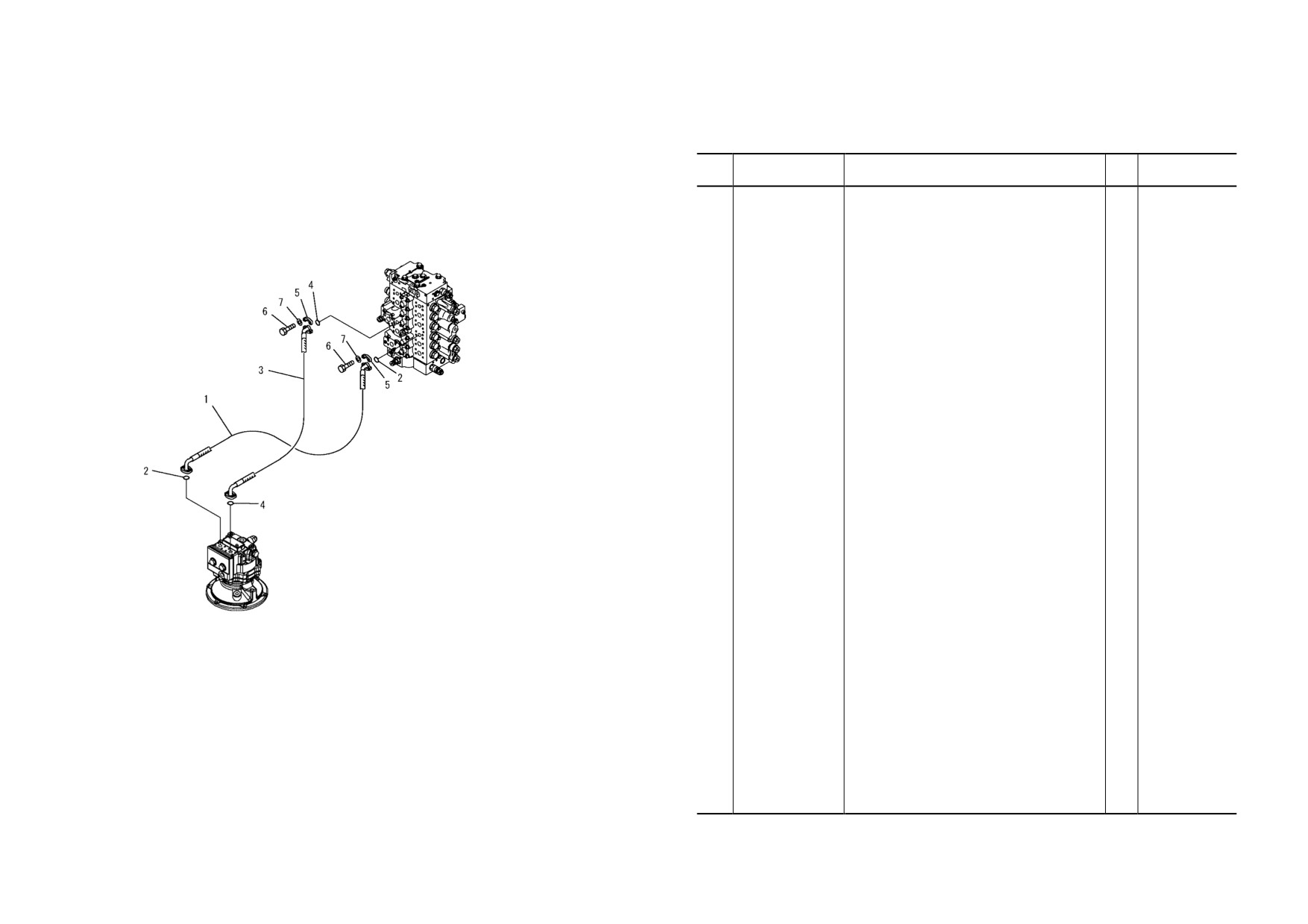

FIG. H1340-01A0 SWING LINES

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

20Y-62-41242

HOSE, 690 MM

1

DBB0001~

2

21T-09-11430

O-RING

2

DBB0001~

3

20Y-62-41252

HOSE, 650 MM

1

DBB0001~

4

21T-09-11430

O-RING

2

DBB0001~

5

07371-30640

FLANGE

8

DBB0001~

6

07372-21035

BOLT

16

DBB0001~

7

01643-51032

WASHER

16

DBB0001~

Main Valve

Swing Motor

PW1B816

HO- 74

PC200, 210(LC)-7

PC200, 210(LC)-7

HO- 75

FIG NO. ：H1810-01A0

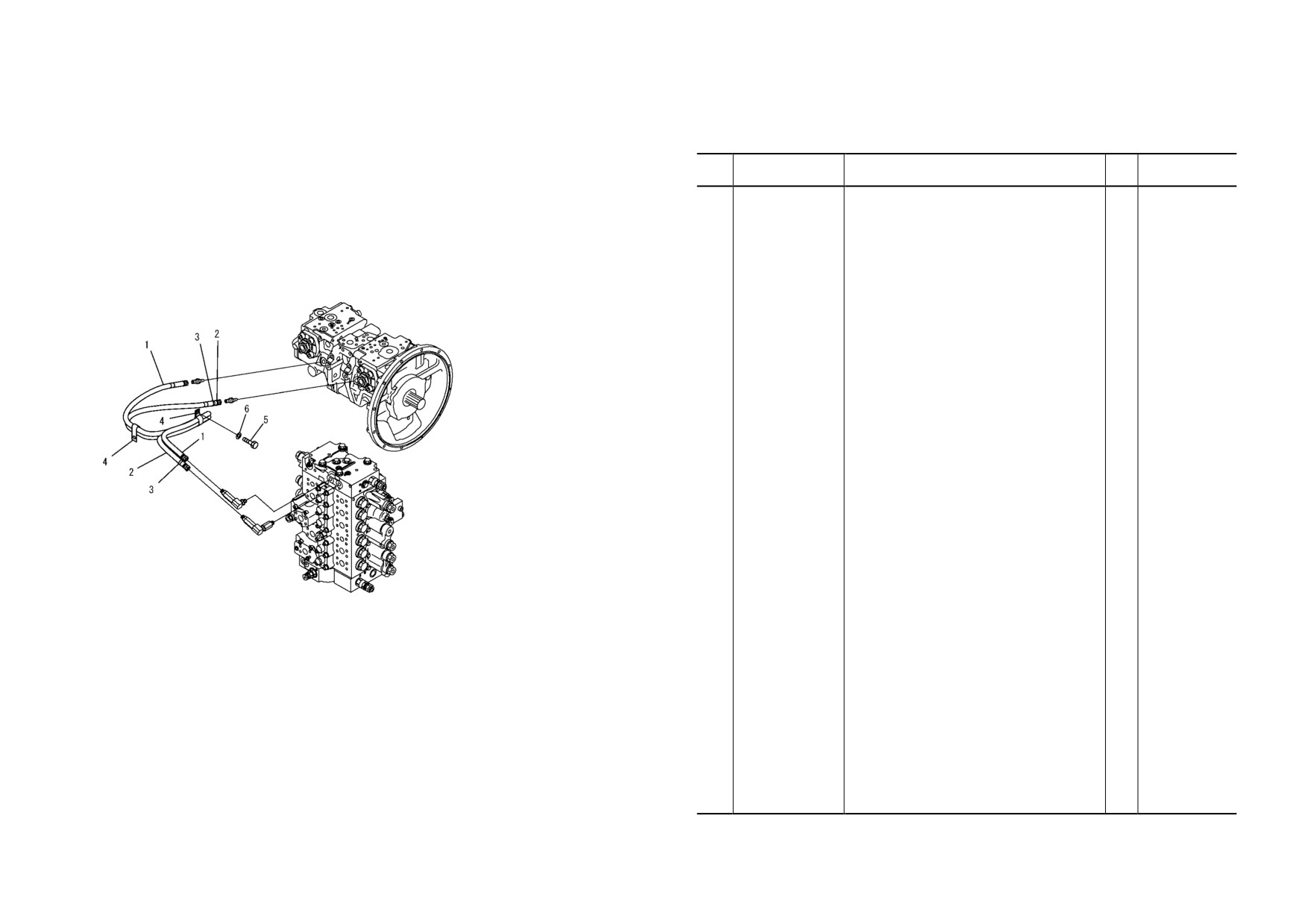

FIG. H1810-01A0 LS LINES

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

20Y-62-44420

HOSE

1

DBB0001~

2

20Y-62-44430

HOSE

1

DBB0001~

3

20Y-62-22790

BAND, RED

2

DBB0001~

4

04435-51612

CLIP

2

DBB0001~

5

01010-81225

BOLT

2

DBB0001~

6

01643-31232

WASHER

2

DBB0001~

Main Pump

Main Valve

PW1B819

HO- 76

PC200, 210(LC)-7

PC200, 210(LC)-7

HO- 77

FIG NO. ：H1831-01A0

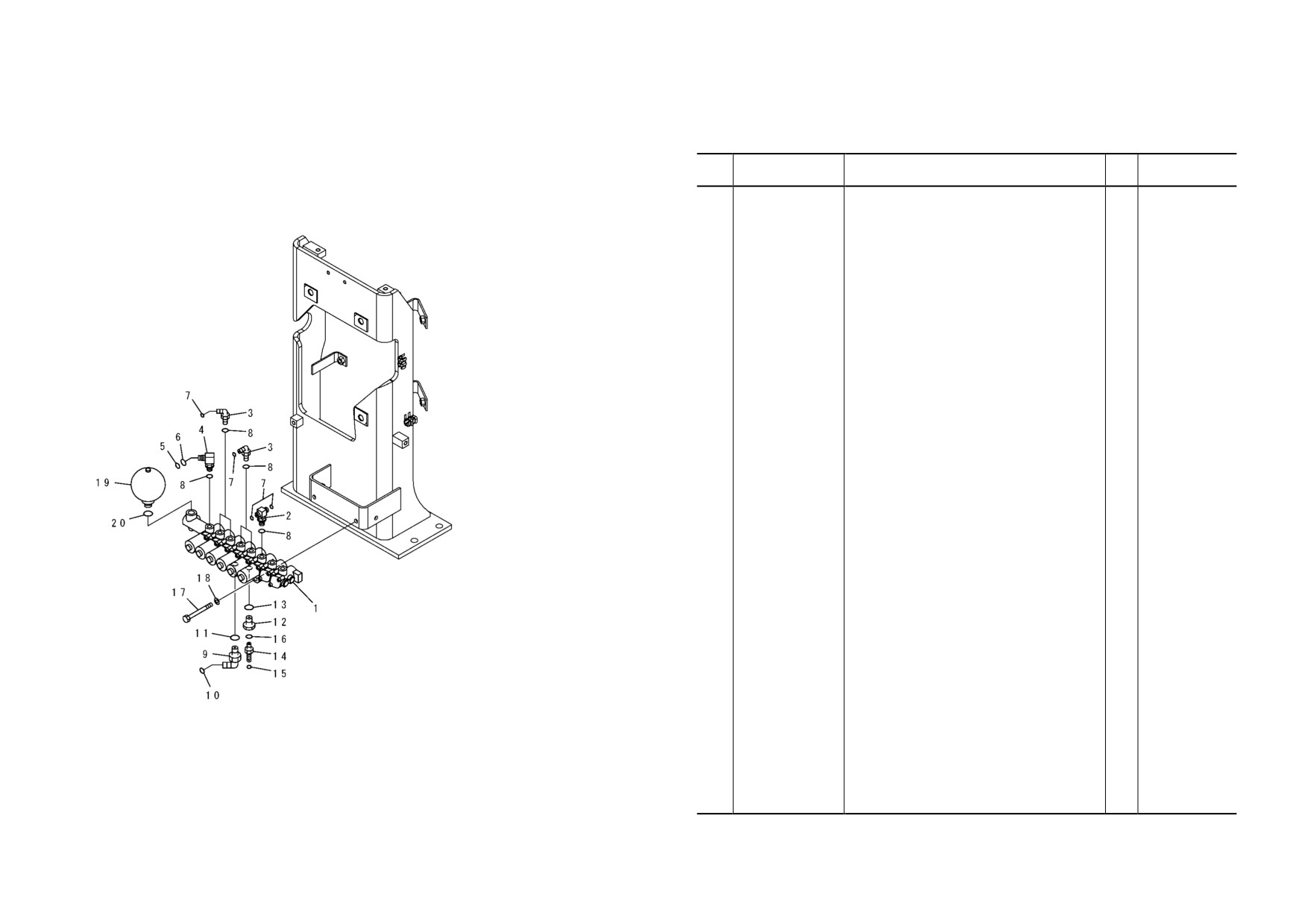

FIG. H1831-01A0 SOLENOID VALVE (VALVE)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

(20Y-60-31212)

VALVE ASS’ Y

1

DBB0001~

2

20Y-62-43690

TEE

1

DBB0001~

3

11Y-62-12160

ELBOW

4

DBB0001~

Main Valve Bracket

4

20Y-62-22271

ELBOW

1

DBB0001~

5

201-60-11390

. O-RING

1

DBB0001~

6

20Y-62-19560

. O-RING

1

DBB0001~

7

02896-11008

O-RING

6

DBB0001~

8

07002-11423

O-RING

6

DBB0001~

9

02782-10315

ELBOW

1

DBB0001~

10

02896-11009

O-RING

1

DBB0001~

11

07002-12034

O-RING

1

DBB0001~

12

20Y-62-21940

FILTER ASS’ Y

1

DBB0001~

13

07002-12034

O-RING

1

DBB0001~

14

11Y-62-12160

ELBOW

1

DBB0001~

15

02896-11008

O-RING

1

DBB0001~

16

07002-11423

O-RING

1

DBB0001~

17

01010-81095

BOLT

2

DBB0001~

18

01643-31032

WASHER

2

DBB0001~

19

22U-60-21330

ACCUMULATOR

1

DBB0001~

20

07002-12034

O-RING

1

DBB0001~

PW1B820

HO- 78

PC200, 210(LC)-7

PC200, 210(LC)-7

HO- 79

FIG NO. ：H1831-02A0

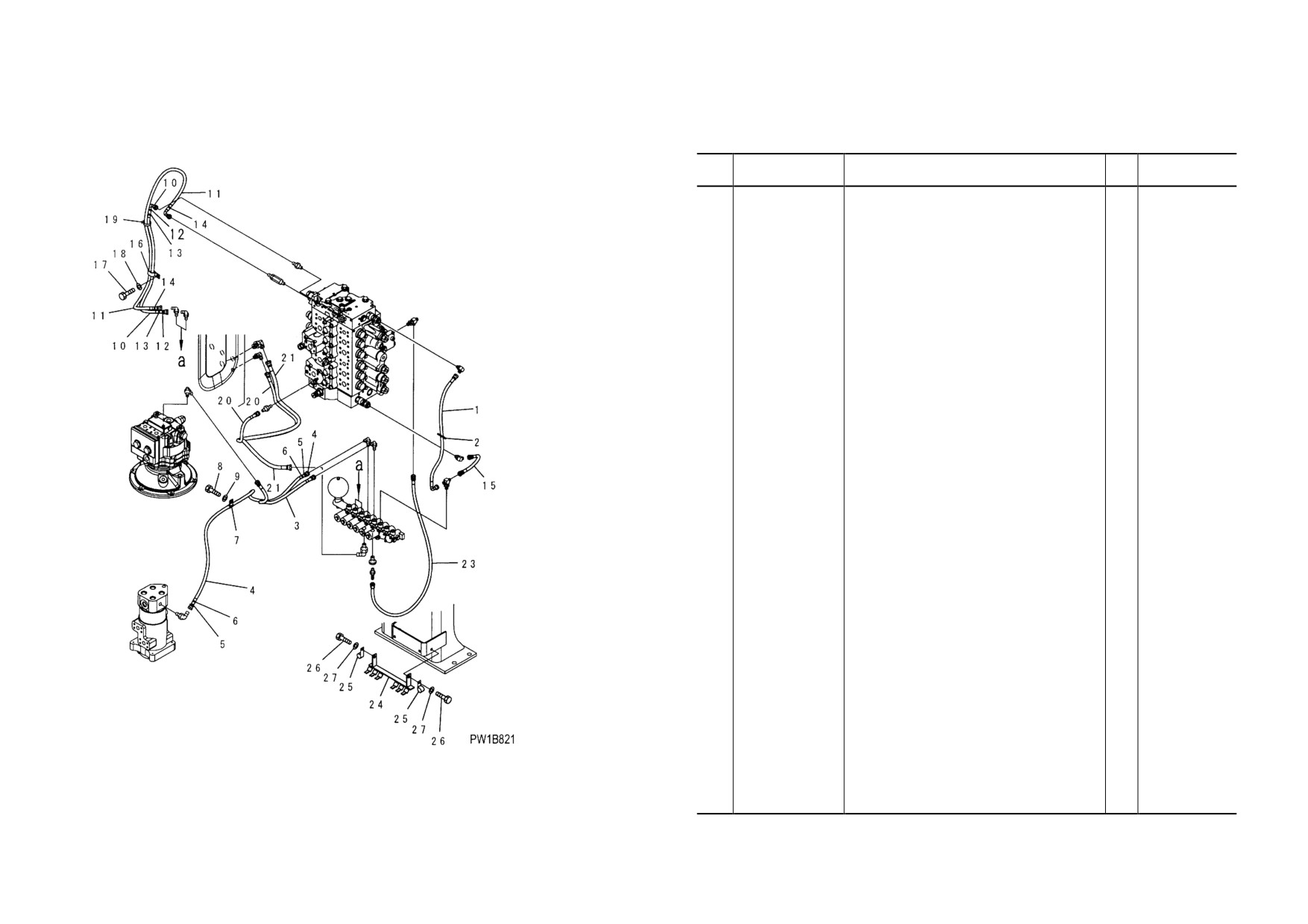

FIG. H1831-02A0 SOLENOID VALVE (HOSE AND BRACKET)

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

02761-002A7

HOSE

1

DBB0001~

2

08034-20536

BAND

1

DBB0001~

3

02760-002A5

HOSE

1

DBB0001~

4

02760-00213

HOSE

1

DBB0001~

Main Valve

5

20Y-62-22790

BAND, RED

2

DBB0001~

6

20Y-62-22810

BAND, YELLOW

2

DBB0001~

Hydraulic Tank

7

04434-51210

CLIP

1

DBB0001~

8

01010-81030

BOLT

1

DBB0001~

9

01643-31032

WASHER

1

DBB0001~

10

02761-00208

HOSE

1

DBB0001~

11

02761-00213

HOSE

1

DBB0001~

12

20Y-62-22810

BAND, YELLOW

2

DBB0001~

13

20Y-62-22820

BAND, BLUE

2

DBB0001~

14

20Y-62-22860

BAND, BROWN

2

DBB0001~

15

02760-00203

HOSE

1

DBB0001~

16

04435-51512

CLIP

1

DBB0001~

Swing Motor

17

01010-81225

BOLT

1

DBB0001~

18

01643-31232

WASHER

1

DBB0001~

19

08034-20536

BAND

2

DBB0001~

Solenoid Valve

20

02760-00211

HOSE

1

DBB0001~

21

02760-00312

HOSE

1

DBB0001~

Main Valve Bracket

23

02760-00211

HOSE

1

DBB0001~

24

20Y-06-31162

BRACKET

1

DBB0001~

25

04434-51210

CLIP

2

DBB0001~

26

01010-81025

BOLT

2

DBB0001~

Swivel Joint

27

01643-31032

WASHER

2

DBB0001~

HO- 82

PC200, 210(LC)-7

PC200, 210(LC)-7

HO- 83

FIG NO. ：H1833-01A0

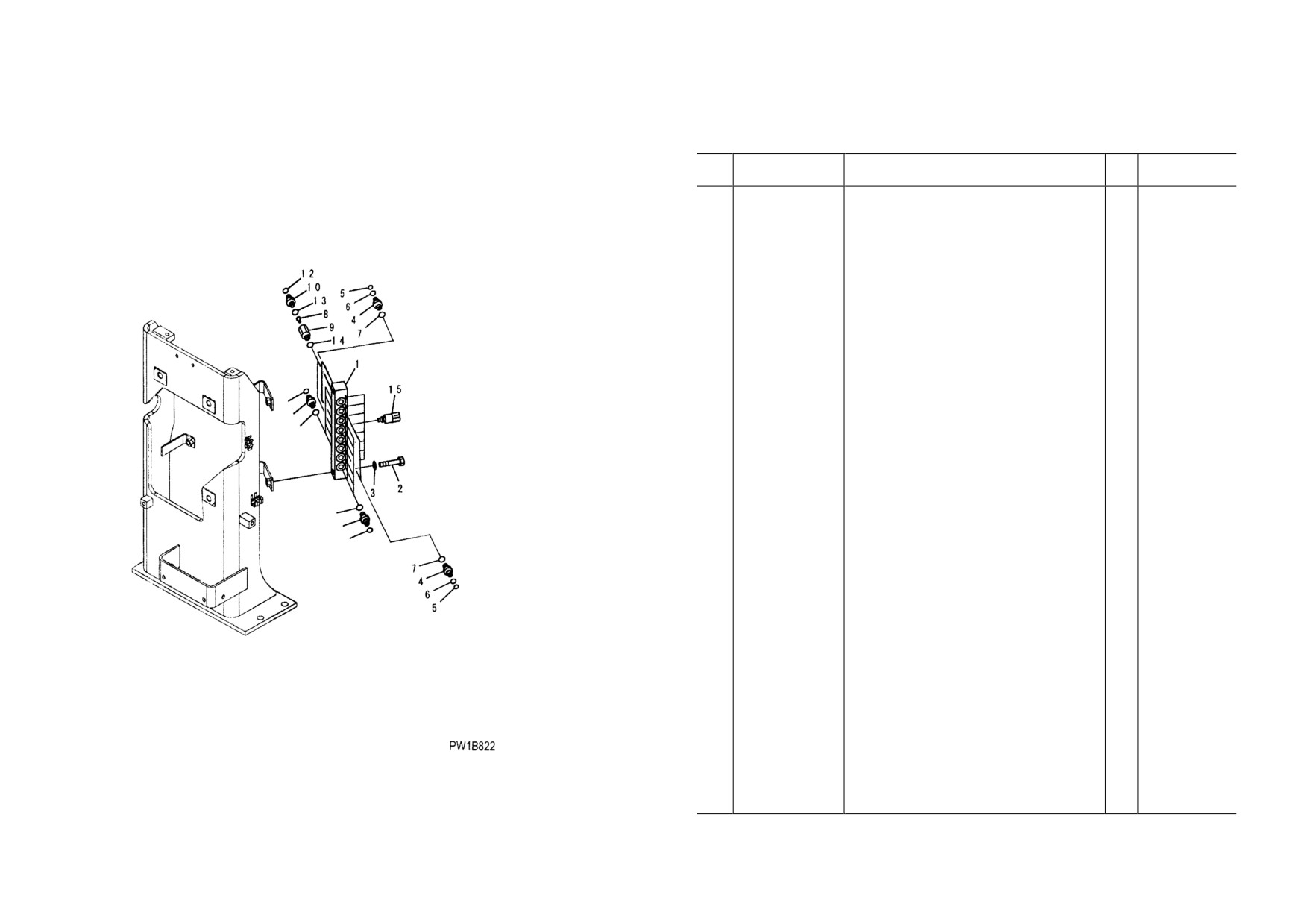

FIG. H1833-01A0 PRESSURE SWITCH

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

20Y-62-41550

BLOCK

1

DBB0001~

2

01010-81260

BOLT

2

DBB0001~

3

01643-31232

WASHER

2

DBB0001~

4

20Y-62-16630

NIPPLE

4

DBB0001~

5

201-60-11390

. O-RING

1

DBB0001~

6

20Y-62-19560

. O-RING

1

DBB0001~

7

07002-11423

O-RING

14

DBB0001~

Main Valve Bracket

20Y-60-32300

VALVE ASS’ Y

2

DBB0001~

8

20Y-62-41830

.POPPET

1

DBB0001~

9

☆

. BODY

1

DBB0001~

10

21W-62-43930

. NIPPLE

1

DBB0001~

17

16

12

02896-11008

O-RING

1

DBB0001~

7

13

07002-11423

. O-RING

1

DBB0001~

14

07002-11423

O-RING

2

DBB0001~

15

206-06-61130

SWITCH

8

DBB0001~

16

11Y-62-12130

NIPPLE

10

DBB0001~

17

02896-11008

O-RING

10

DBB0001~

16

17

HO- 84

PC200, 210(LC)-7

PC200, 210(LC)-7

HO- 85
