FIG NO. ：A281P-01A0

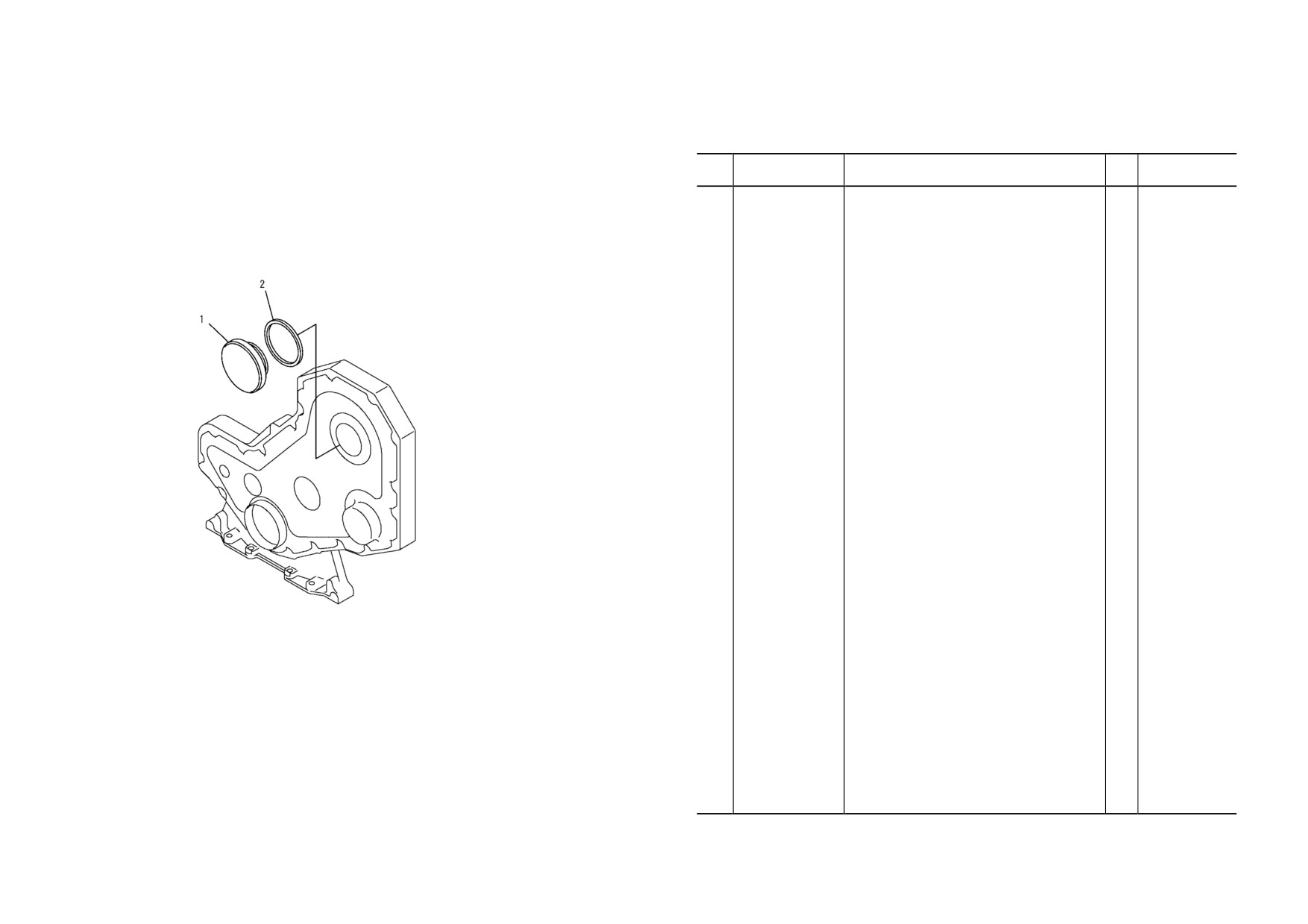

FIG. A281P-01A0 TACHOMETER DRIVE COVER
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6732-21-3190
COVER
1
26274903-
2
6732-21-3220
SEAL
1
26274903-
Front Cover
PMD1077
AA- 82
SAA6D102E-2
SAA6D102E-2
AA- 83
FIG NO. ：A283P-01A0

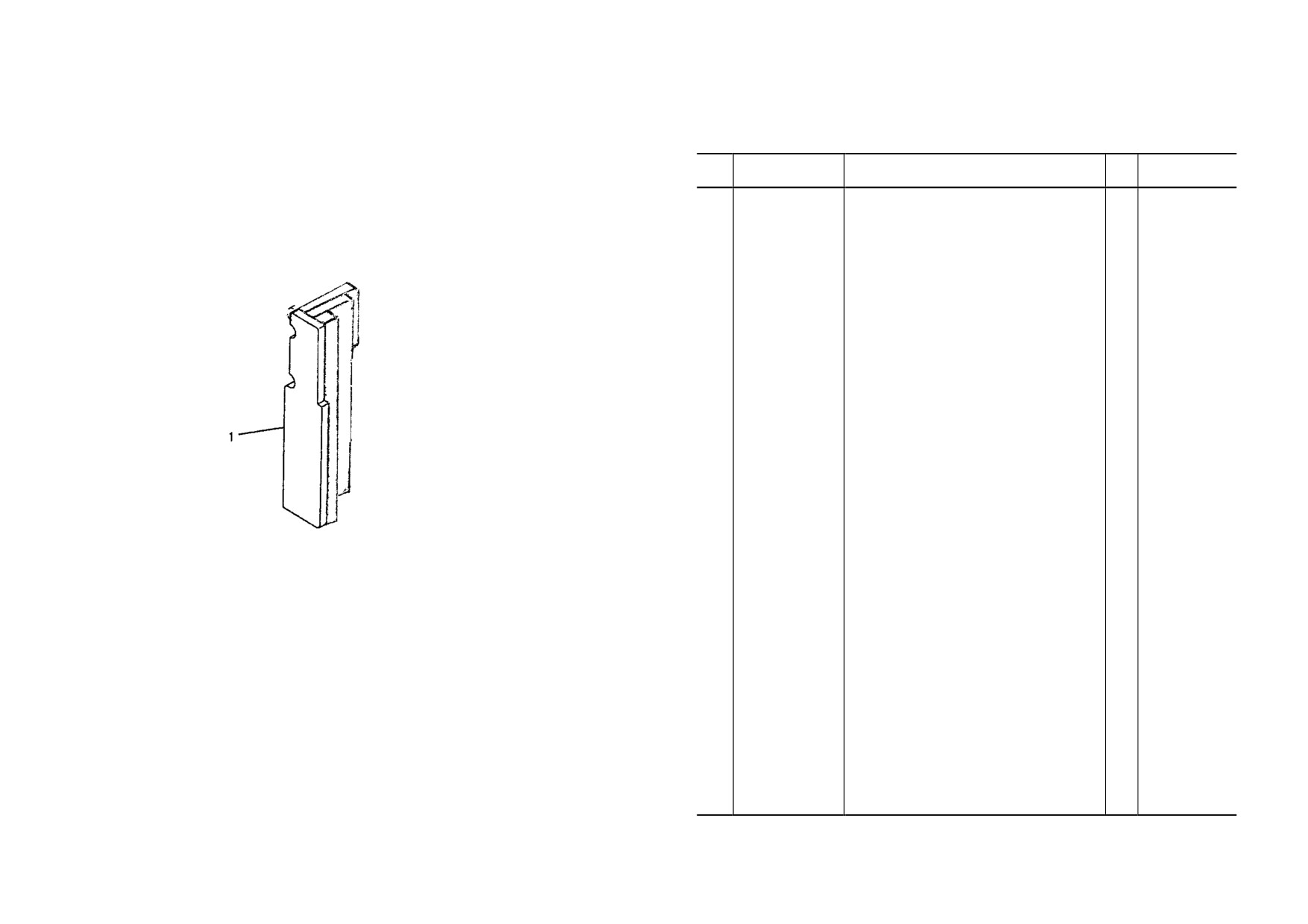

FIG. A283P-01A0 UNDER PLATE
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6735-21-5151
PLATE
1
26274903-
2
(09920-00150)
LIQUID GASKET, LG-7, 150G
AR
26274903-
LG-7 Coating
PMD1078
AA- 84
SAA6D102E-2
SAA6D102E-2
AA- 85
FIG NO. ：A283V-01A0

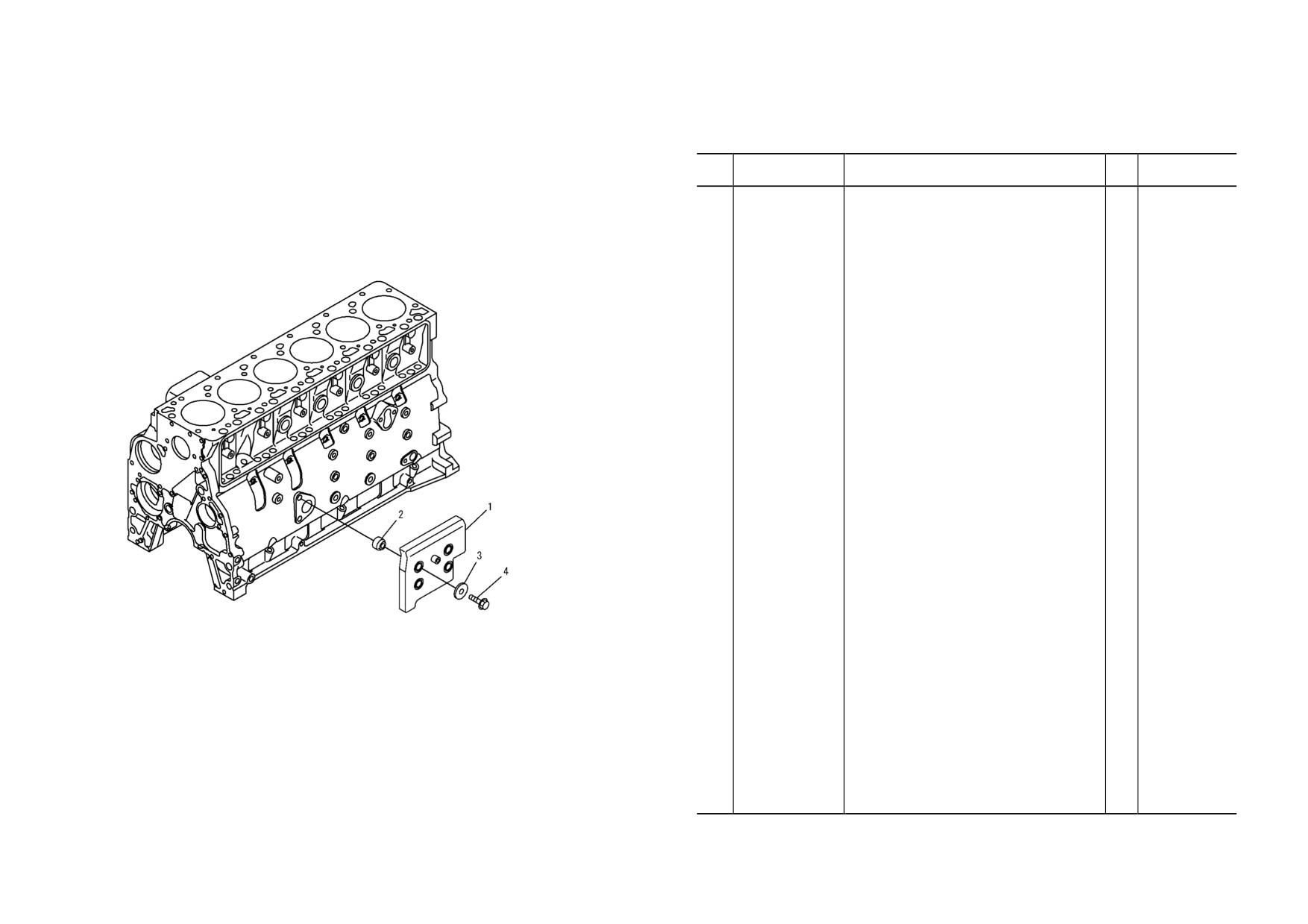

FIG. A283V-01A0 NOISE PANEL CYLINDER BLOCK
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6738-21-6810
PANEL
1
26274903-
2
6738-21-6890
SPACER
4
26274903-
3
6144-21-2420
WASHER
4
26274903-
4
01435-01240
BOLT
4
26274903-
PJ6B419
AA- 86
SAA6D102E-2
SAA6D102E-2
AA- 87
FIG NO. ：A301P-01A0

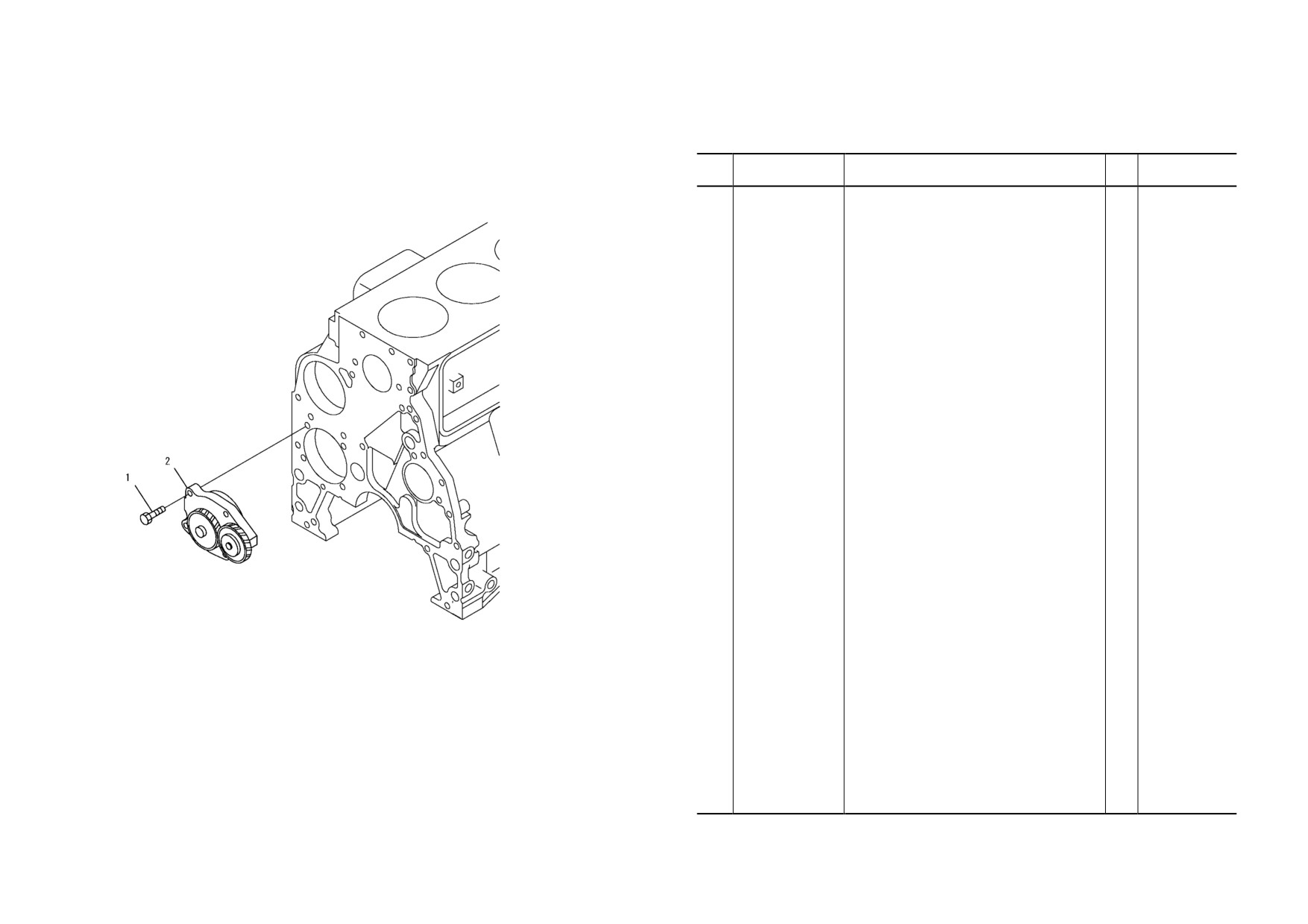

FIG. A301P-01A0 OIL PUMP
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6735-51-1120
BOLT
4
26274903-
2
6731-51-1111
OIL PUMP ASS’Y
1
26274903-
PM35943
AA- 88
SAA6D102E-2
SAA6D102E-2
AA- 89
FIG NO. ：A311P-01A1

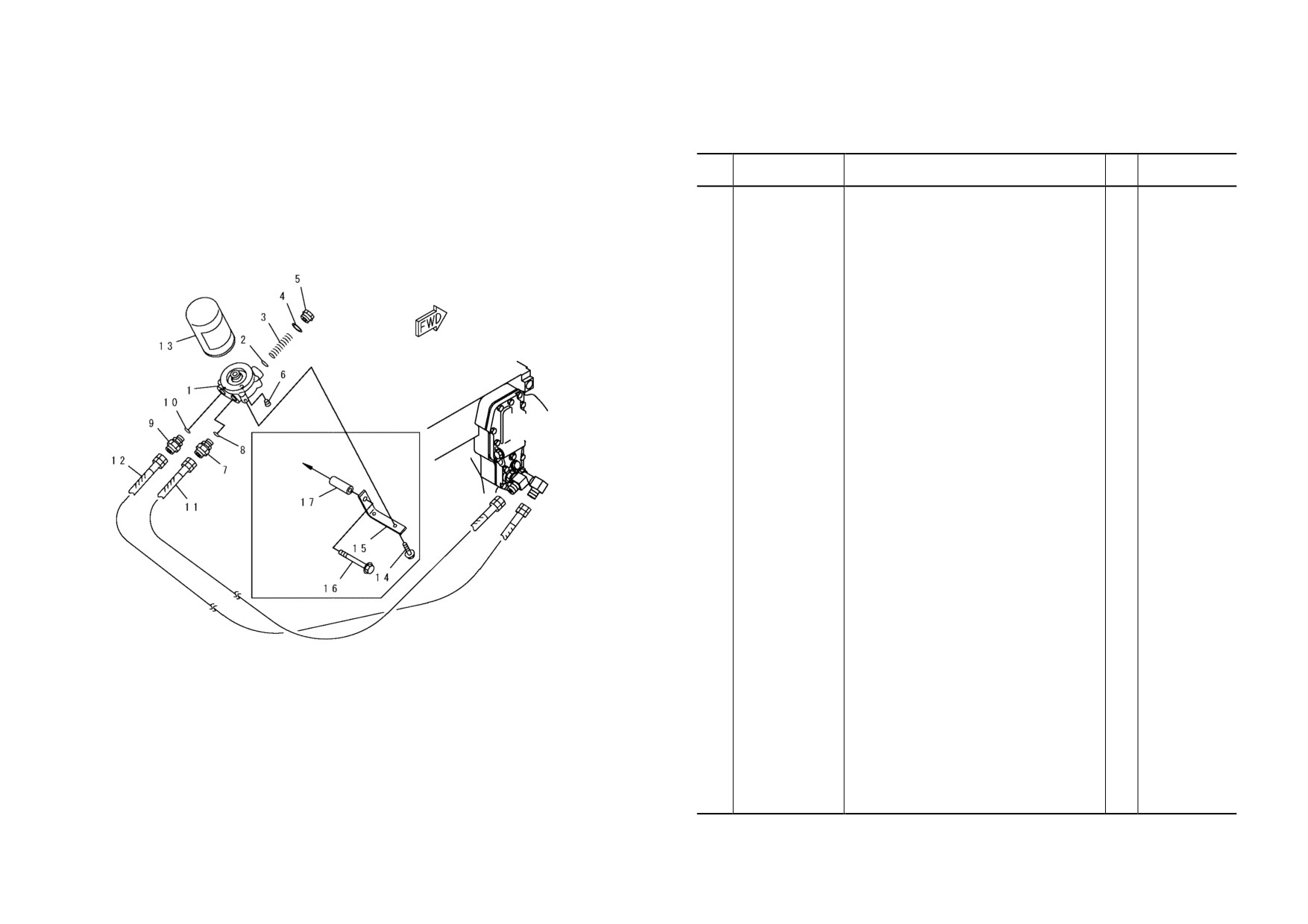

FIG. A311P-01A1 OIL FILTER AND PIPING
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
6731-51-5201
HEAD ASS’Y
1
26282900-
1
6731-51-5211
. HEAD
1
26282900-
2
6162-53-5450
. PACKING
1
26282900-
3
600-211-1870
. SPRING
1
26282900-
4
6162-53-5430
. PACKING
1
26282900-
5
6162-53-5420
. CAP
1
26282900-
6
07043-A0108
. PLUG
1
26282900-
7
6731-51-5260
NIPLE
1
26282900-
8
6731-51-5290
. O-RING
1
26282900-
9
6738-51-5260
NIPPLE
1
26282900-
10
6731-51-5290
. O-RING
1
26282900-
11
6731-51-9930
HOSE
1
26282900-
For Shipping
Oil Cooler
12
6738-51-9820
HOSE
1
26282900-
To Exhaust Manifold
13
6736-51-5141
CARTRIDGE
1
26282900-
14
6732-71-3220
BOLT, (FOR SHIPPING)
2
26282900-
15
6738-51-9950
BRACKET, (FOR SHIPP ING)
1
26282900-
16
01435-01095
BOLT, (FOR SHIPPING)
1
26282900-
17
6136-11-5120
SPACER, (FOR SHIPPING)
1
26282900-
PJ6C701
AA- 90
SAA6D102E-2
SAA6D102E-2
AA- 91

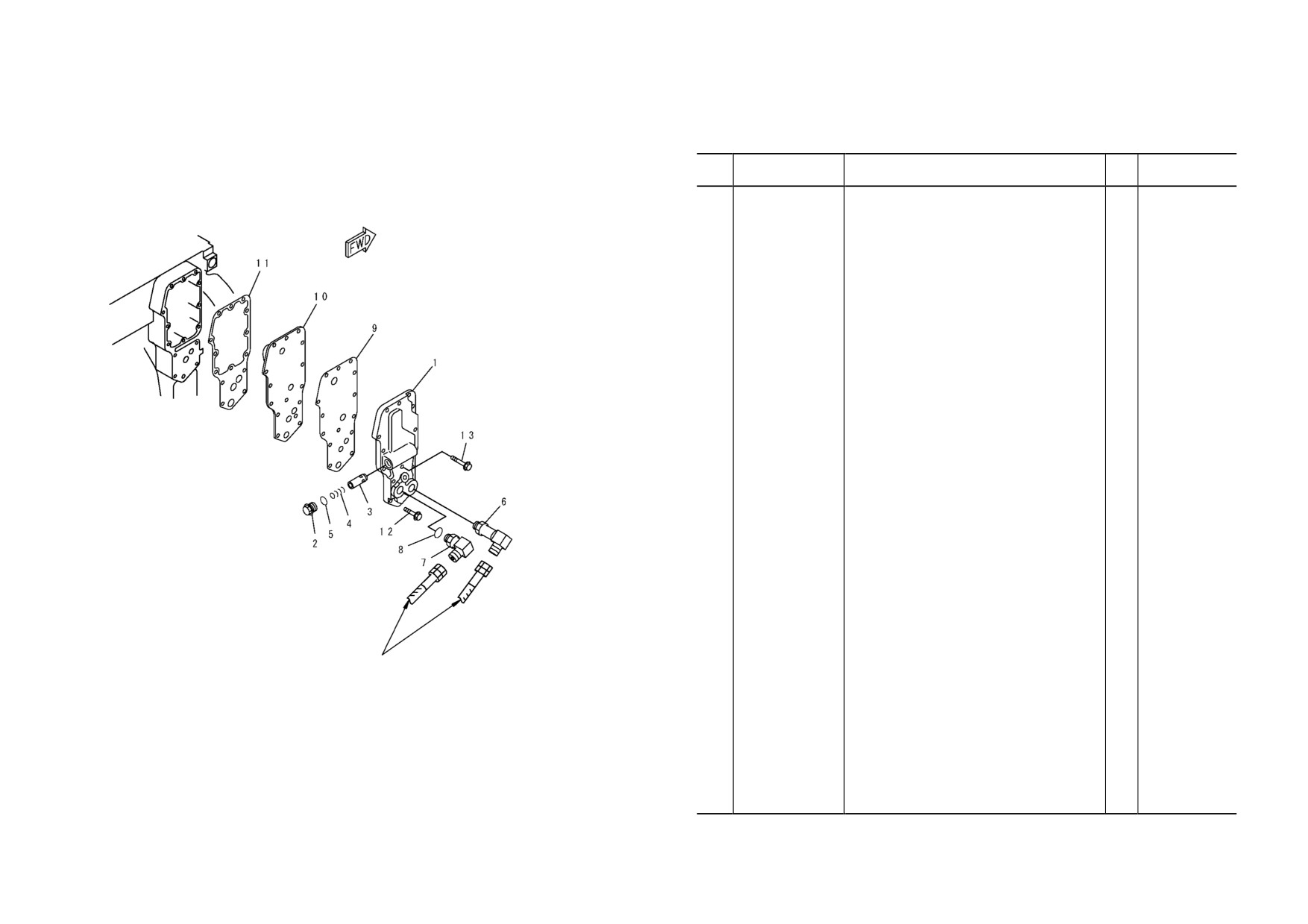

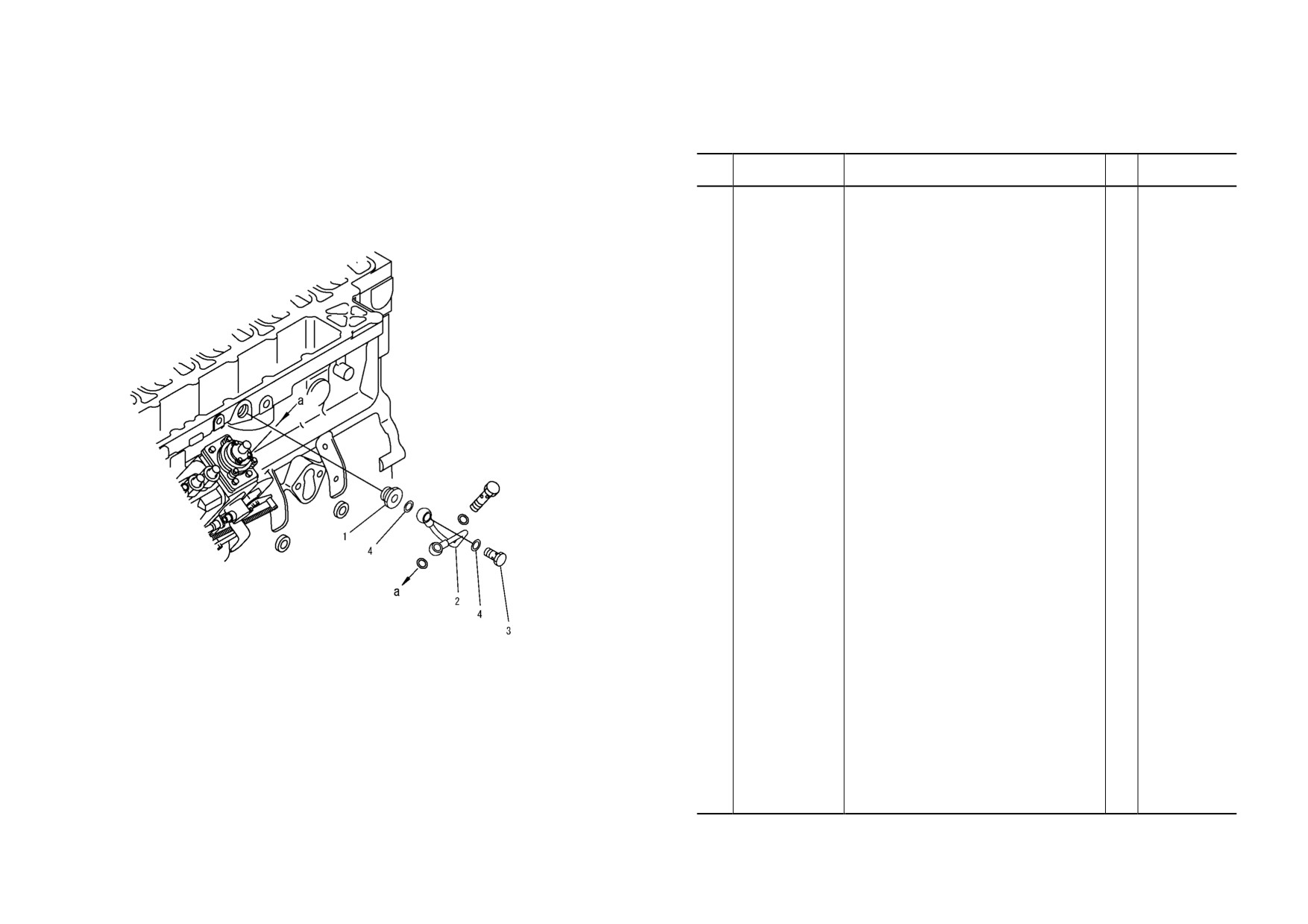

FIG NO. ：A331P-01A1
FIG. A331P-01A1 OIL COOLER COVER
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6735-61-2220
COVER
1
26282900-
2
6735-61-2140
PLUG
1
26282900-
3
6735-61-2160
PLUNGER
1
26282900-
4
6735-61-2190
SPRING
1
26282900-
5
6732-51-4420
O-RING
1
26282900-
6
6731-51-5250
ELBOW
1
26282900-
7
6738-51-5240
ELBOW
1
26282900-
8
6731-51-5290
. O-RING
1
26282900-
9
6732-51-4432
GASKET
1
26282900-
Cylinder Block
10
6735-61-2110
COER
1
26282900-
11
6732-61-2311
GASKET
1
26282900-
12
6732-61-6140
BOLT
13
26282900-
13
6735-61-2120
BOLT
1
26282900-
See Of Oil Filter and Piping
PJ6C702
AA- 92
SAA6D102E-2
SAA6D102E-2
AA- 93
FIG NO. ：A401P-01A0

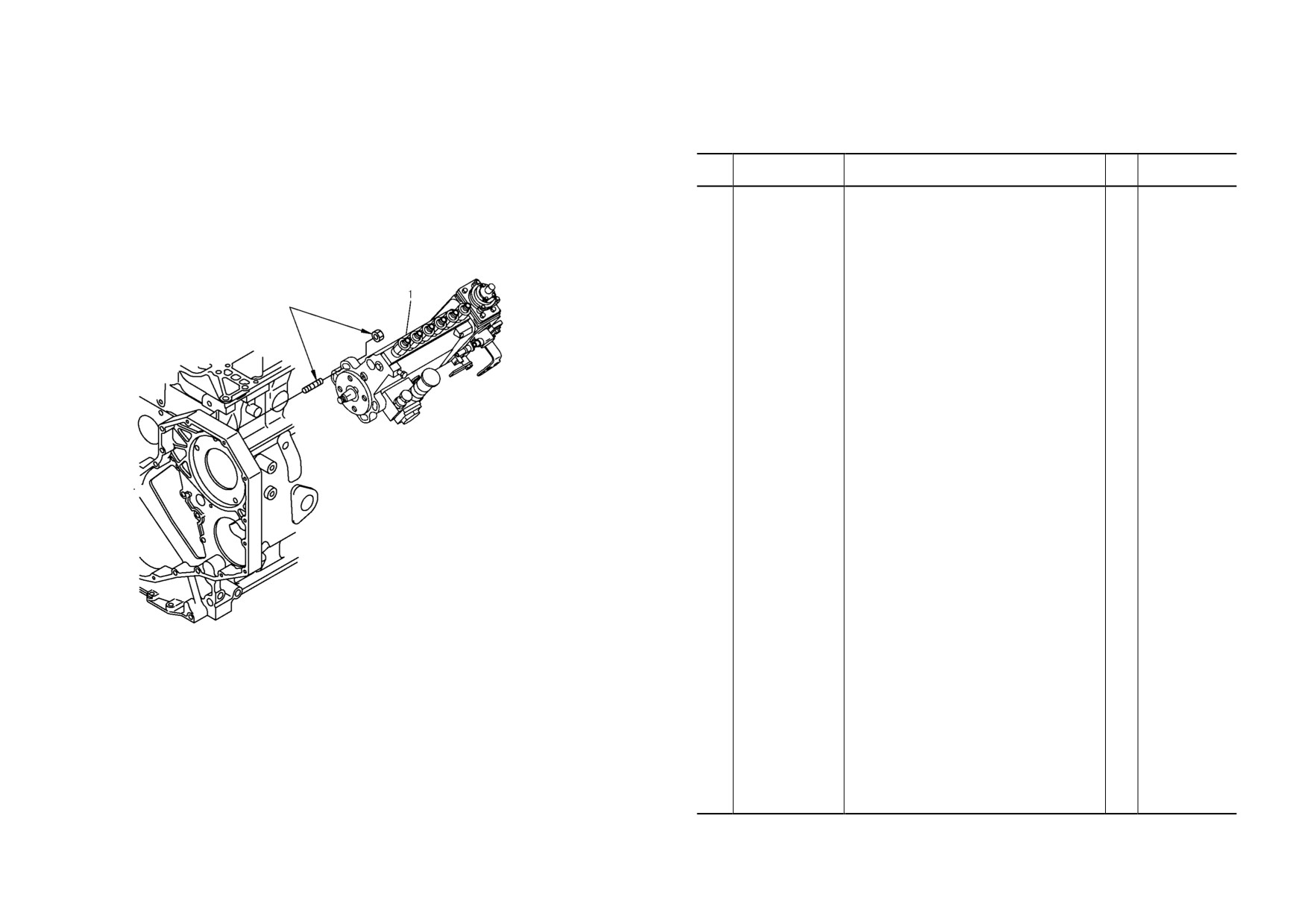

FIG. A401P-01A0 FUEL INJECTION PUMP
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6738-71-1110
INJECTION PUMP ASS’Y
1
26274903-
See of Fuel Injection Pump Mounting
Body, Gear Box
PJ6B408
AA- 94
SAA6D102E-2
SAA6D102E-2
AA- 95
FIG NO. ：A401R-01A0
FIG. A401R-01A0 BOOST TUBE
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6735-71-5460
NIPPLE
1
26274903-
2
6738-71-5450
TUBE
1
26274903-
3
6732-71-6510
BOLT, JOINT
1
26274903-
4
07005-01212
GASKET
2
26274903-
Cylinder Head
Injection Pump
PJ6B405
AA- 96
SAA6D102E-2
SAA6D102E-2
AA- 97
FIG NO. ：A401V-01A0
FIG. A401V-01A0 NOISE PANEL INJECTION PUMP
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6738-21-6710
ISOLATOR
1
DBB0001~DBB4708
6738-21-6711
ISOLATOR
1
DBB4709~
PJ6B420
AA- 98
SAA6D102E-2
SAA6D102E-2
AA- 99
FIG NO. ：A4010-01A0

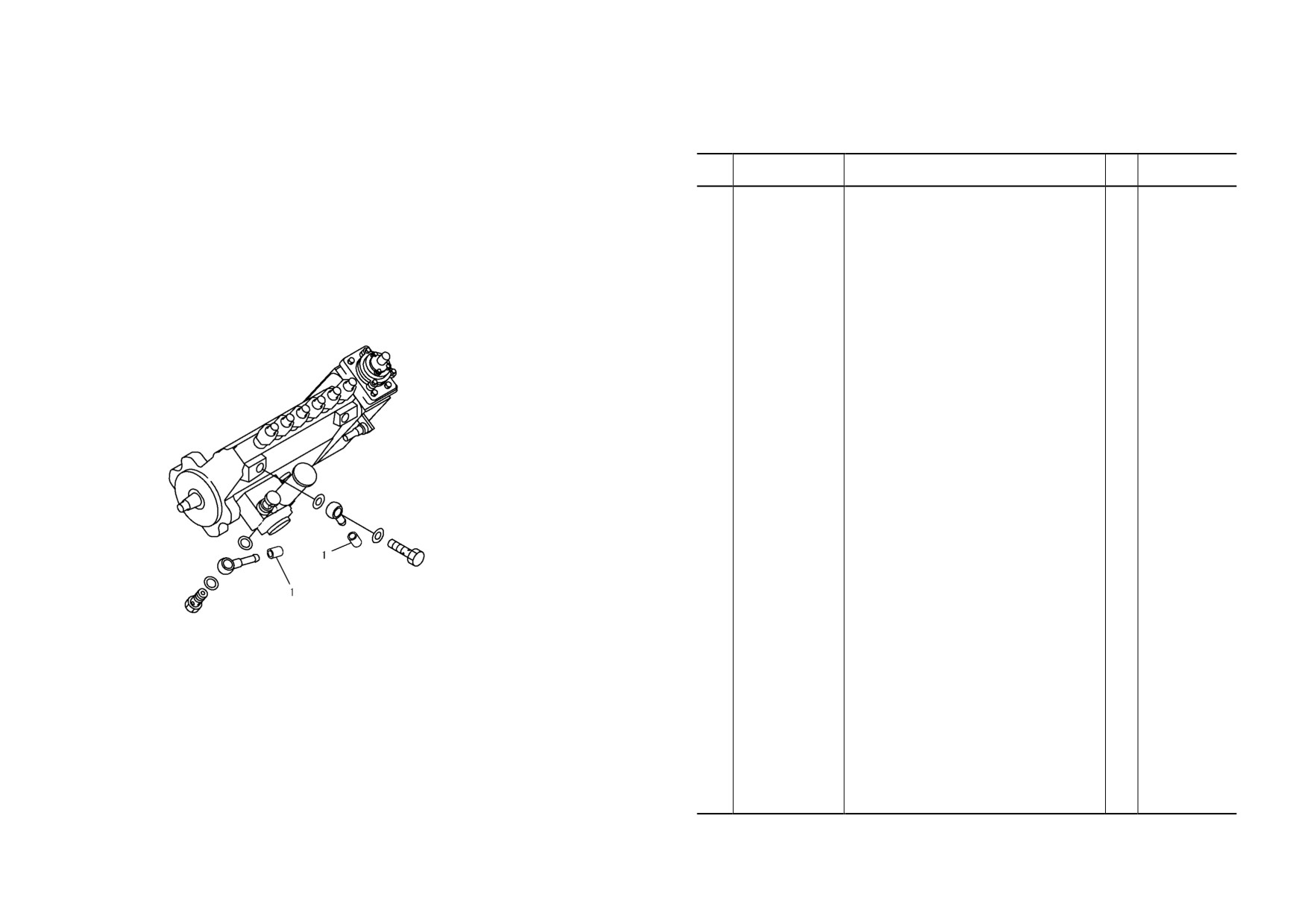

FIG. A4010-01A0 FUEL HOSE JOINT
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6732-71-5740
CAP, (FOR SHIPPING)
2
26274903-
Fuel Injection Pump
PJ6B431
AA- 100
SAA6D102E-2
SAA6D102E-2
AA- 101
