Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 4

FIG NO. ：A2040-01A0

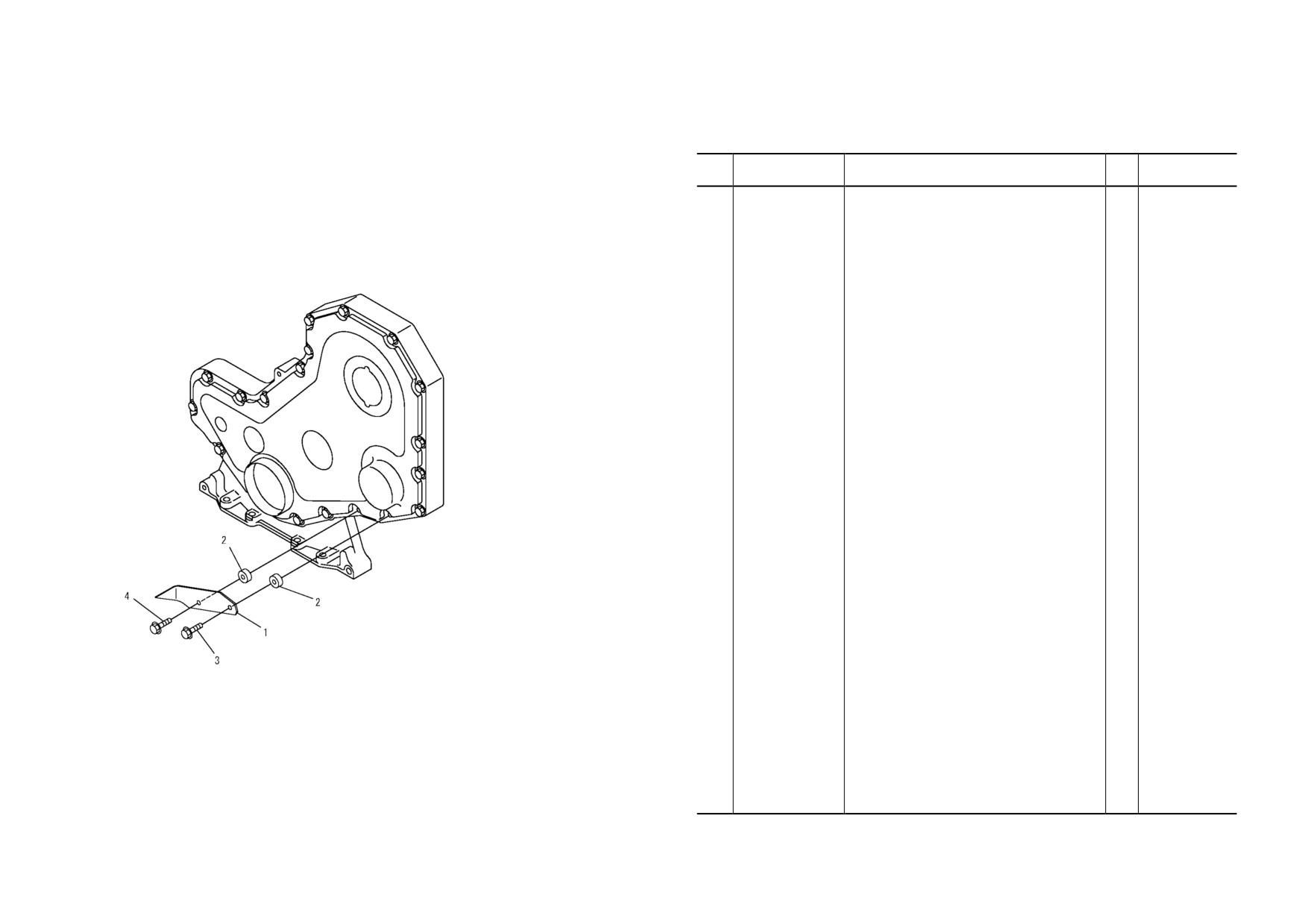

FIG. A2040-01A0 FRONT COVER POINTER

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

6738-21-3910

POINTER

1

26274903-

2

6130-12-1961

SPACER

2

26274903-

3

6732-21-5160

BOLT

1

26274903-

4

6736-21-3230

BOLT

1

26274903-

Front Cover

PJ6B429

AA- 42

SAA6D102E-2

SAA6D102E-2

AA- 43

FIG NO. ：A2049-01A0

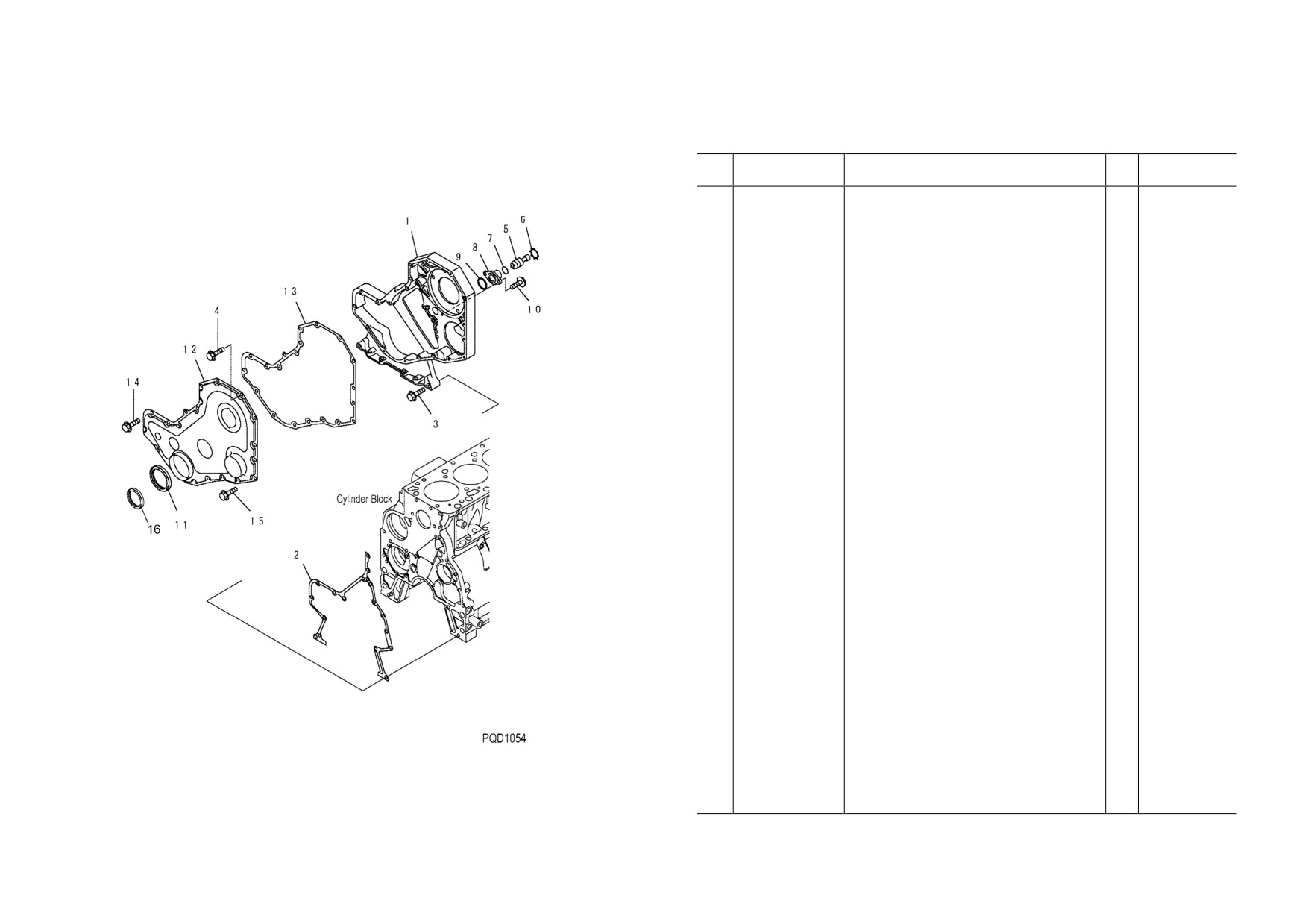

FIG. A2049-01A0 FRONT COVER

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

6738-21-3110

HOUSING, GEAR

1

26274903-

2

6732-21-3811

GASKET

1

26274903-

3

6736-21-3210

BOLT

2

26274903-

4

6736-21-5310

BOLT

5

26274903-

5

6732-21-3140

PIN

1

26274903-

6

6732-21-3150

RING

1

26274903-

7

6732-21-3870

O-RING

1

26274903-

8

6732-21-3180

HOUSING

1

26274903-

9

6732-21-3880

GASKET

1

26274903-

10

6732-21-3160

BOLT

2

26274903-

11

6735-21-3511

SEAL

1

26274903-

12

6735-21-3310

COVER, GEAR

1

26274903-

13

6736-21-3450

GASKET

1

26274903-

14

6736-21-3210

BOLT

9

26274903-

15

6736-21-5310

BOLT

11

26274903-

16

6731-81-8710

SHIELD, DUST

1

26274903-

AA- 44

SAA6D102E-2

SAA6D102E-2

AA- 45

FIG NO. ：A206P-01A0

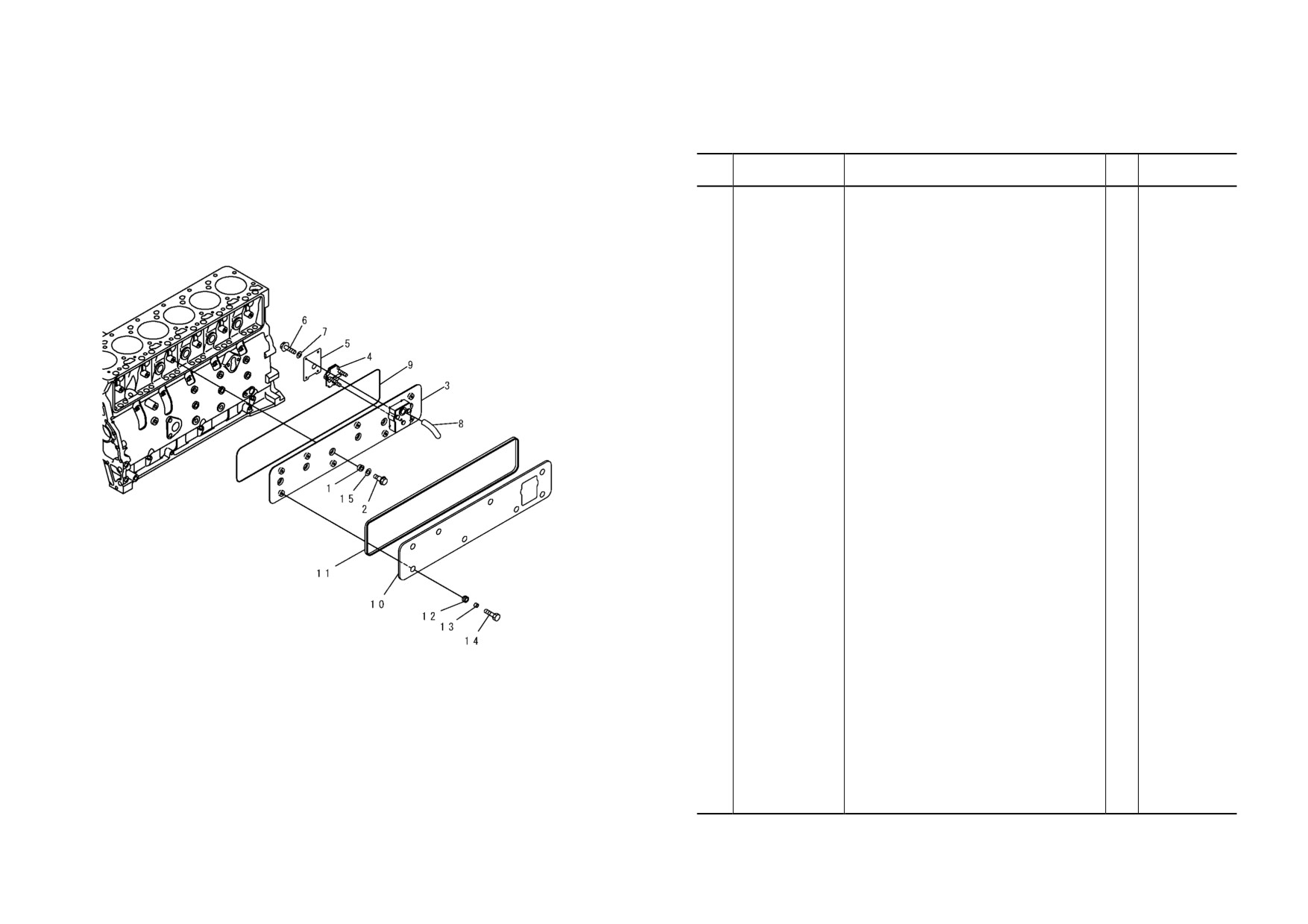

FIG. A206P-01A0 CAMFOLLOWER COVER

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

6732-11-8210

GASKET, SEAL

6

26277761-

2

6738-21-6280

BOLT

6

26274903-

6738-21-6100

COVER ASS’Y

1

26274903-

3

☆

. COVER

1

26274903-

4

6738-21-7710

. BREATHER

1

26274903-

5

6738-21-7780

. COVER

1

26274903-

6

01435-00616

. BOLT

4

26274903-

7

01640-20610

. WASHER

4

26274903-

8

6738-21-7810

. TUBE

1

26274903-

9

6738-21-6180

O-RING

1

26274903-

6738-21-6600

PLATE ASS’Y

1

26274903-

10

☆

. PLATE

1

26274903-

11

6738-21-6650

. GASKET

1

26274903-

12

6738-21-6660

. GASKET

8

26274903-

13

6738-21-6670

. SPACER

8

26274903-

14

6732-71-3220

BOLT

8

26274903-

15

6732-11-8150

WASHER

6

26277761-

PJ6C310

AA- 46

SAA6D102E-2

SAA6D102E-2

AA- 47

FIG NO. ：A2060-01A1

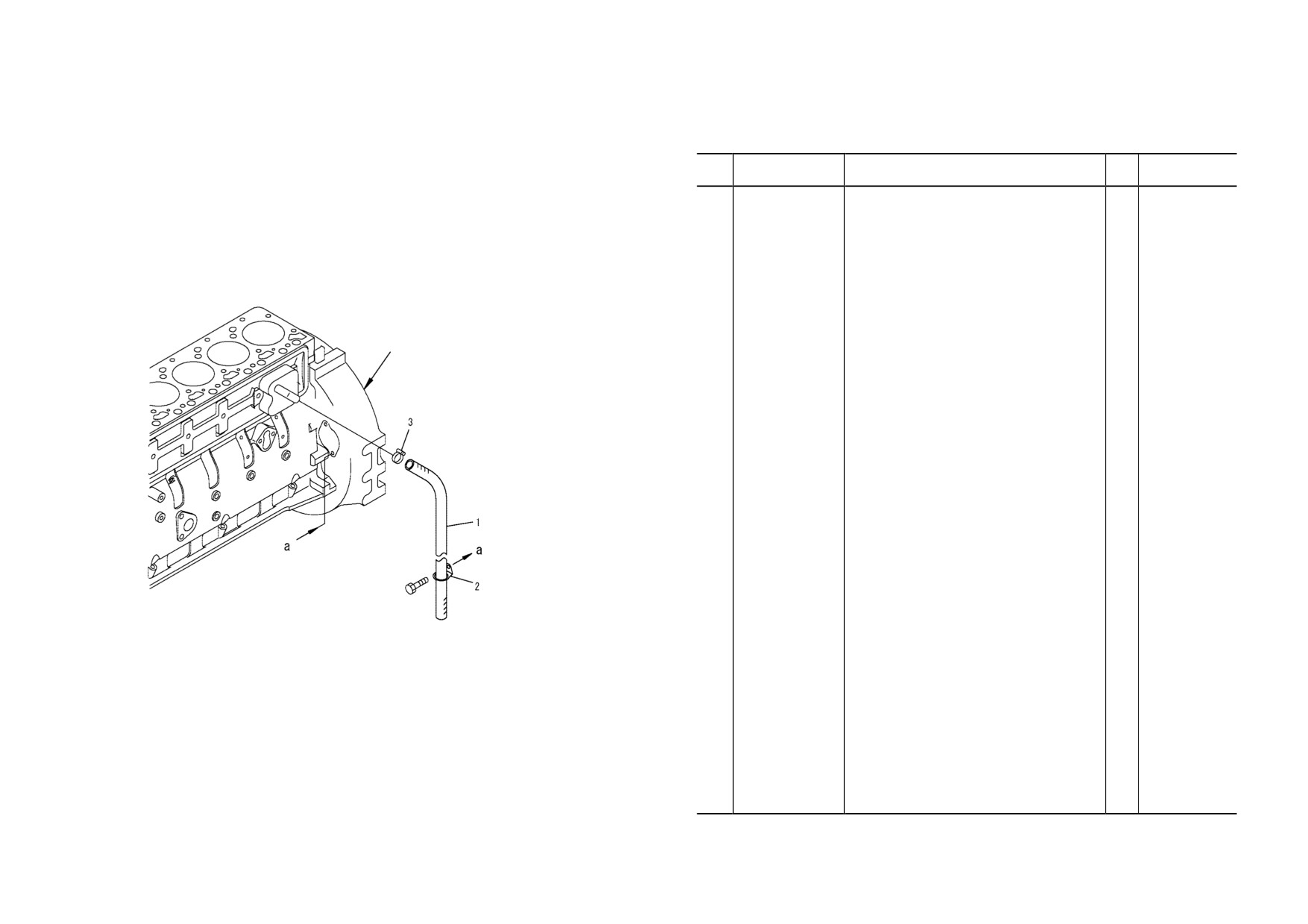

FIG. A2060-01A1 BREATHER HOSE

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

07286-01971

HOSE

1

26285649-

2

6735-21-4240

CLIP

1

26285649-

3

07285-00220

CLIP

1

26285649-

Flywheel Housing

PQD2604

AA- 48

SAA6D102E-2

SAA6D102E-2

AA- 49

FIG NO. ：A207P-01A0

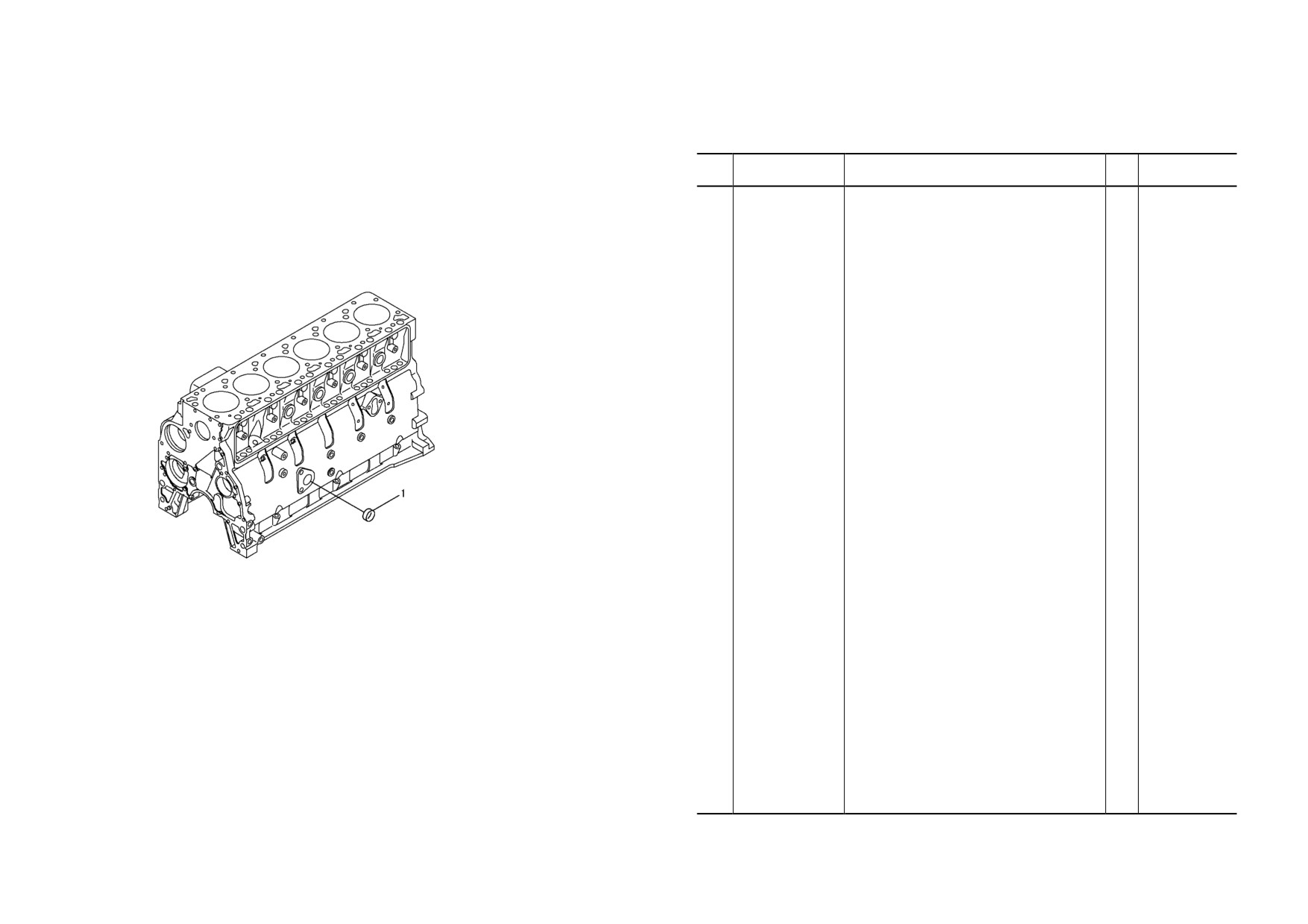

FIG. A207P-01A0 CYLINDER BLOCK BLIND PLUG

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

6732-21-6160

PLUG

1

26274903-

Cylinder Block

PMD1057

AA- 50

SAA6D102E-2

SAA6D102E-2

AA- 51

FIG NO. ：A211R-01A0

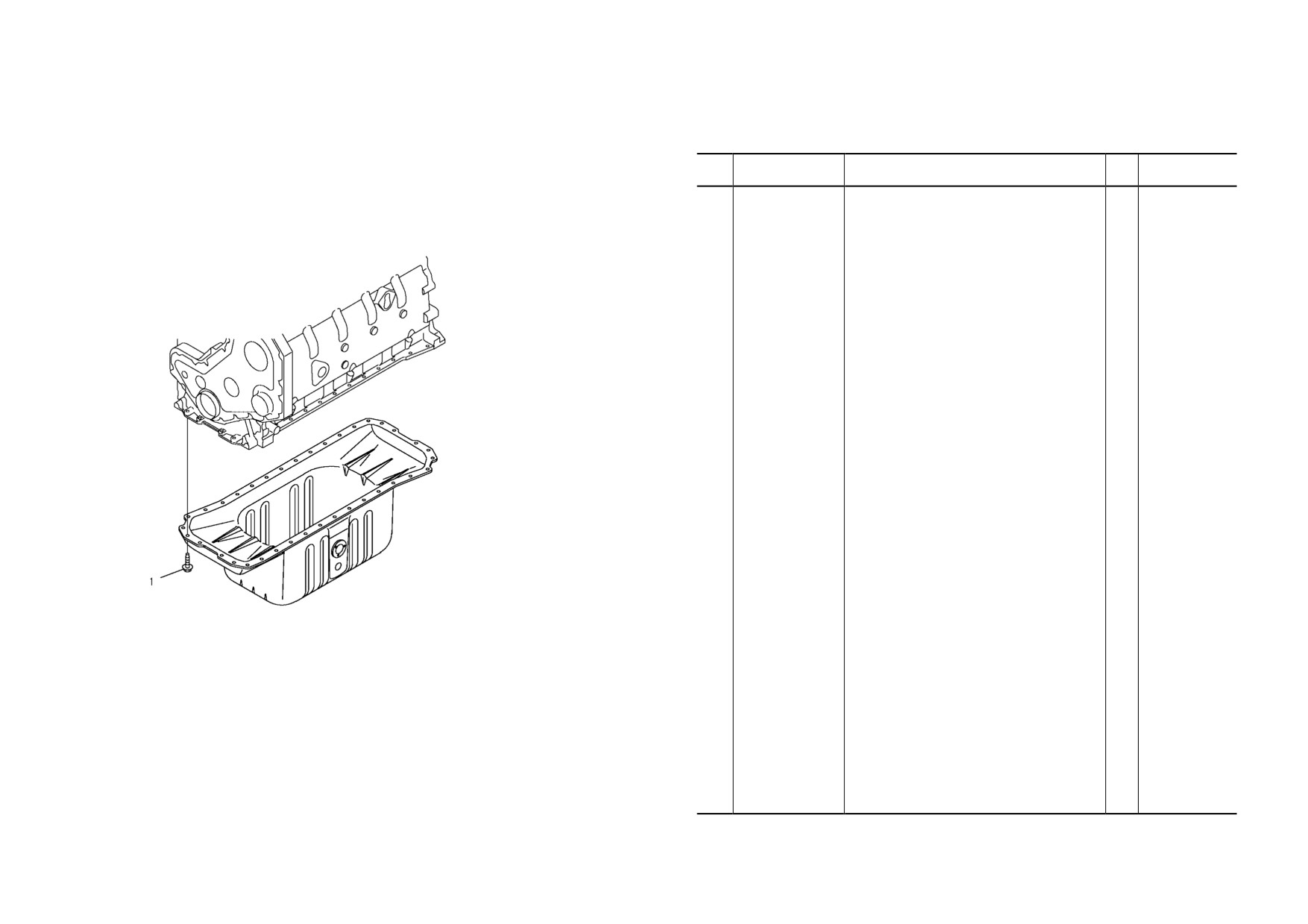

FIG. A211R-01A0 OIL PAN BOLT

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

6732-21-6610

BOLT

36

26274903-

Cylinder Block

Oil Pan

PMD1060

AA- 52

SAA6D102E-2

SAA6D102E-2

AA- 53

FIG NO. ：A211V-01A1

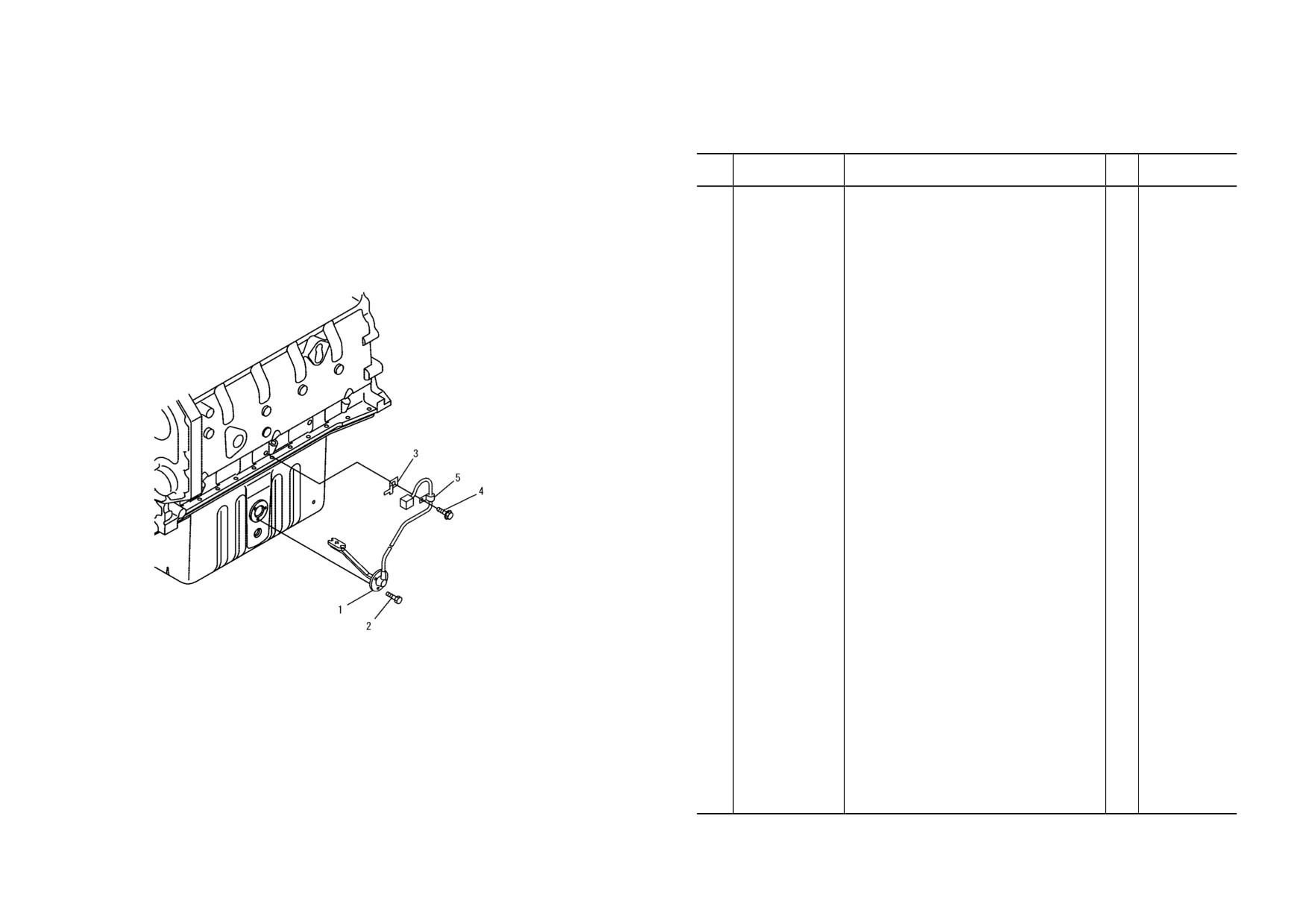

FIG. A211V-01A1 OIL LEVEL SENSOR

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

7861-93-4210

SENSOR

1

26282903-

2

6733-71-5680

BOLT

3

26282900-

3

08193-20010

CLIP

1

26282903-

4

6216-74-6180

BOLT

1

26282900-

5

04434-50608

CLIP

1

26282900-

PJ6B421

AA- 54

SAA6D102E-2

SAA6D102E-2

AA- 55

FIG NO. ：A2119-01A1

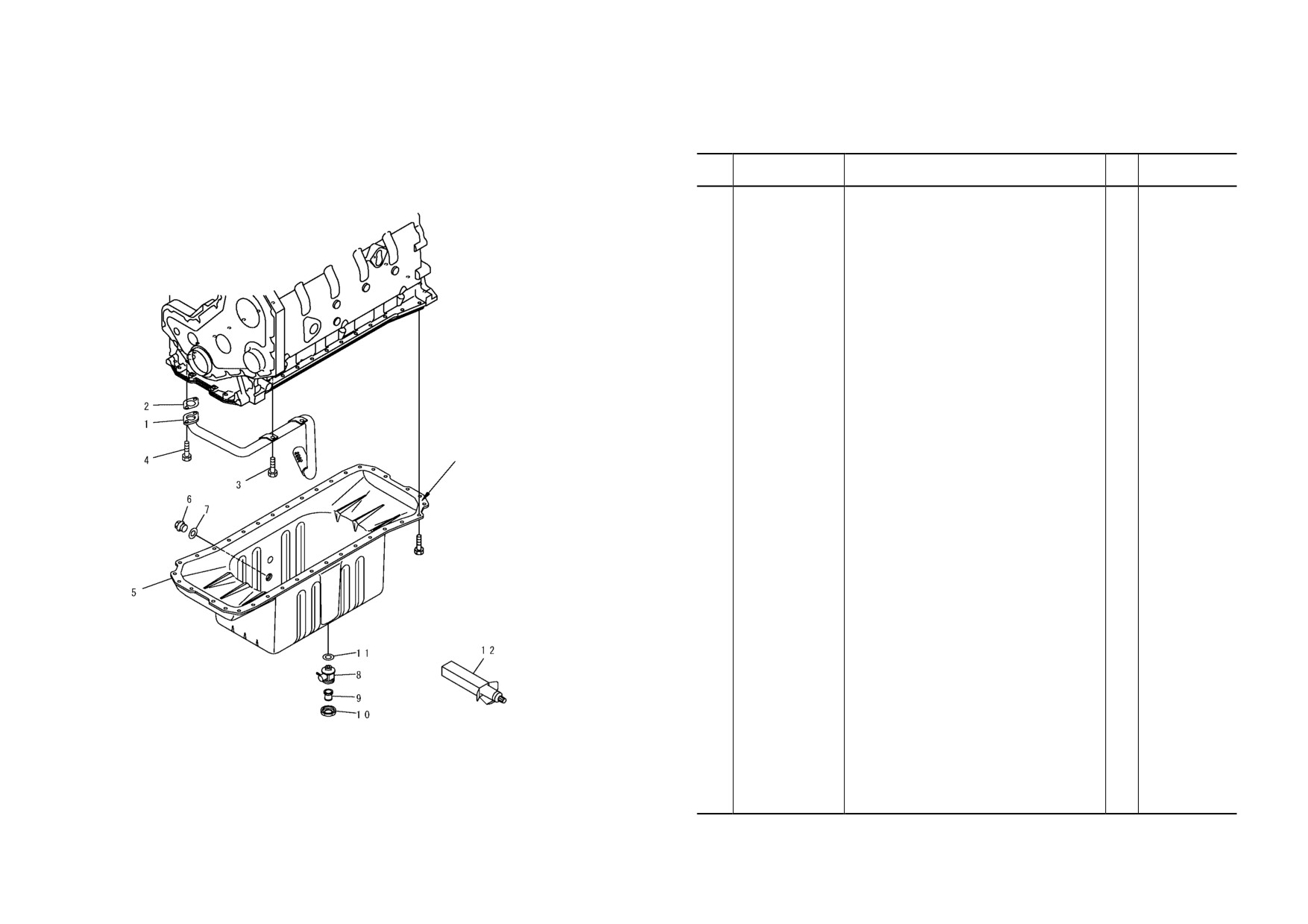

FIG. A2119-01A1 OIL PAN AND SUCTION TUBE

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

6735-51-5521

TUBE, SUCTION

1

26282900-

2

6732-21-5510

GASKET

1

26282900-

3

6732-71-3220

BOLT

2

26282900-

Cylinder Block

4

6732-21-5160

BOLT

2

26282900-

5

6735-21-5120

PAN, OIL

1

26282900-

6

6204-21-5180

PLUG

1

26282900-

7

07005-02216

GASKET

1

26282900-

6738-21-5610

COCK ASS’Y

1

26282900-

8

6738-21-5620

. COCK

1

26282900-

9

6738-21-5630

. JOINT

1

26282900-

10

6738-21-5640

. UNION

1

26282900-

11

07005-02216

GASKET

1

26274903-

12

09920-00150

LIQUID GASKET, LG-7,150G

AR

26274903-

LG-7 Coating

PJ6C700

AA- 56

SAA6D102E-2

SAA6D102E-2

AA- 57

FIG NO. ：A219P-01A0

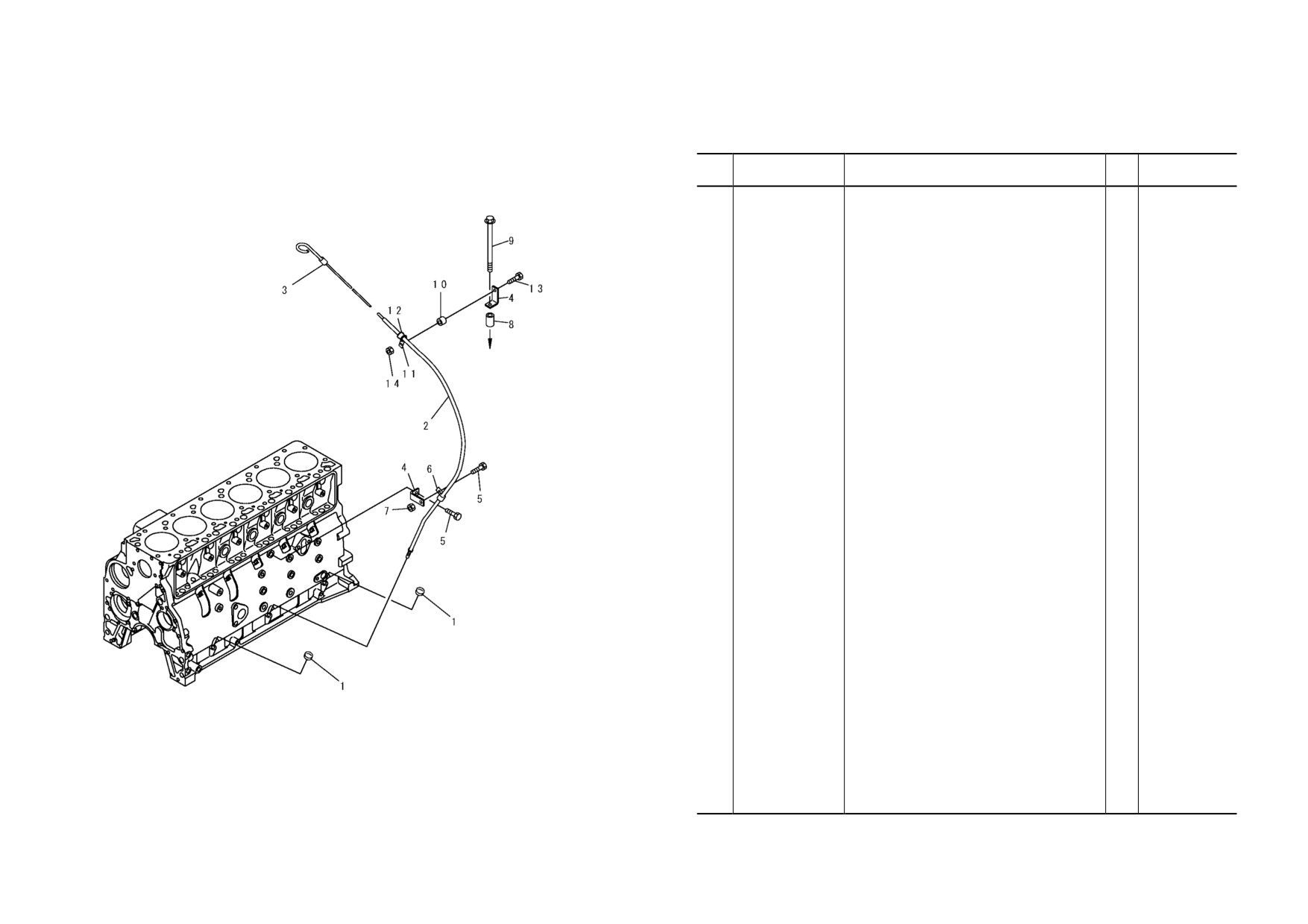

FIG. A219P-01A0 OIL LEVEL GAUGE

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

6732-21-5530

PLUG

2

26274903-

2

6732-21-5490

GUIDE

1

26274903-

3

6732-21-5641

GAUGE

1

26274903-

4

6205-51-8380

BRACKET

2

26274903-

5

6732-21-3120

BOLT

2

26274903-

6

04434-51208

CLIP

1

26274903-

7

6732-71-3210

NUT

1

26274903-

8

203-54-11170

SPACER

1

26274903-

To air Connector

9

6222-11-4910

BOLT

1

26274903-

10

6141-64-2560

SPACER

1

26274903-

11

04434-51708

CLIP

1

26274903-

12

07095-20211

CUSHION

1

26274903-

13

6732-61-6140

BOLT

1

26274903-

14

6732-71-3210

NUT

1

26274903-

PJ6B418

AA- 58

SAA6D102E-2

SAA6D102E-2

AA- 59

FIG NO. ：A221V-01A0

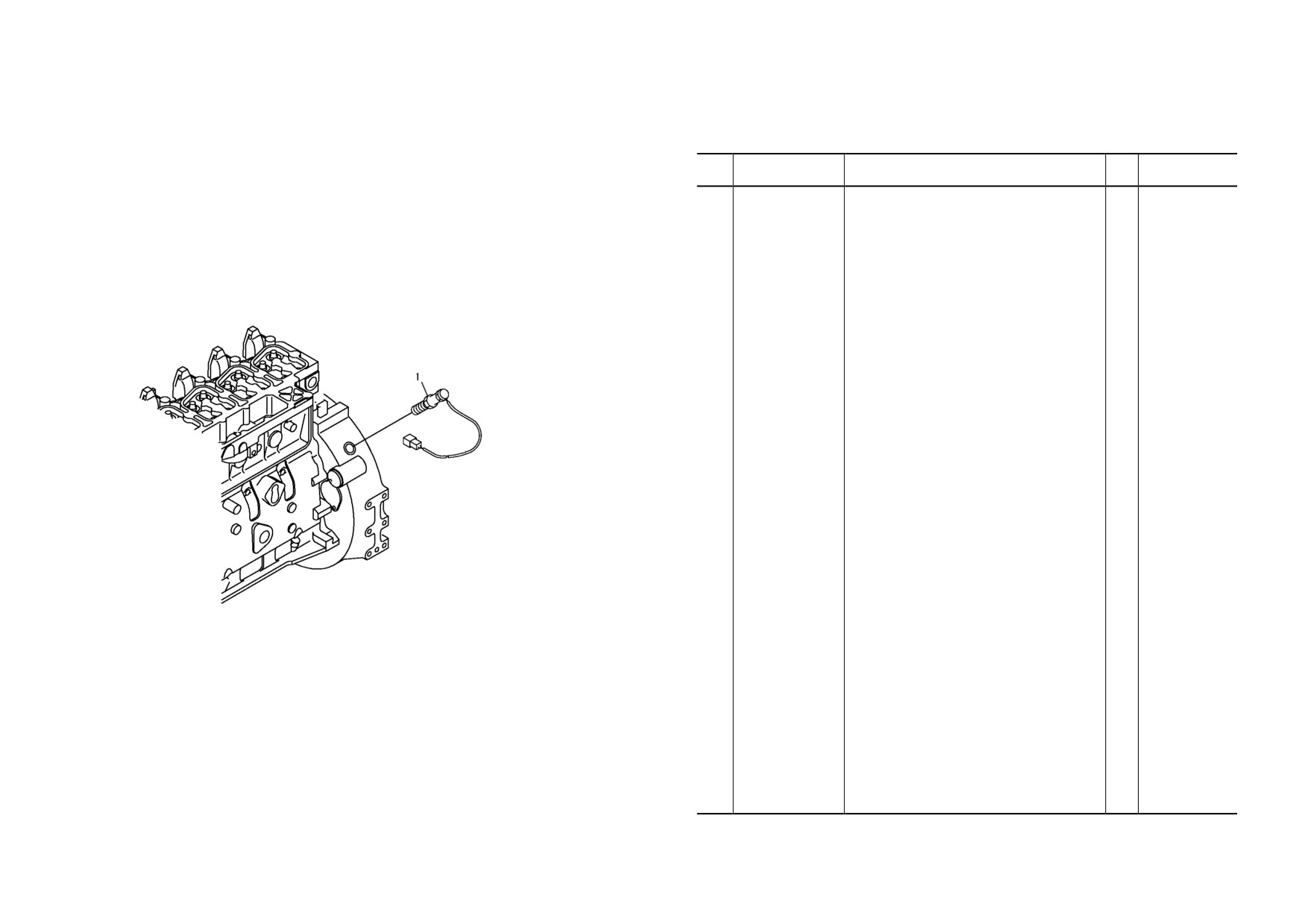

FIG. A221V-01A0 REVOLUTION SENSOR

INDEX

PART NO.

DESCRIPTION

Q’TY

SERIAL NO.

1

7861-93-2310

SENSOR, REVOLUTION

1

DBB0001~DBB4708

7861-93-2311

SENSOR, REVOLUTION

1

DBB4709~

Flywheel Housing

PJ6B402

AA- 60

SAA6D102E-2

SAA6D102E-2

AA- 61
