62.10

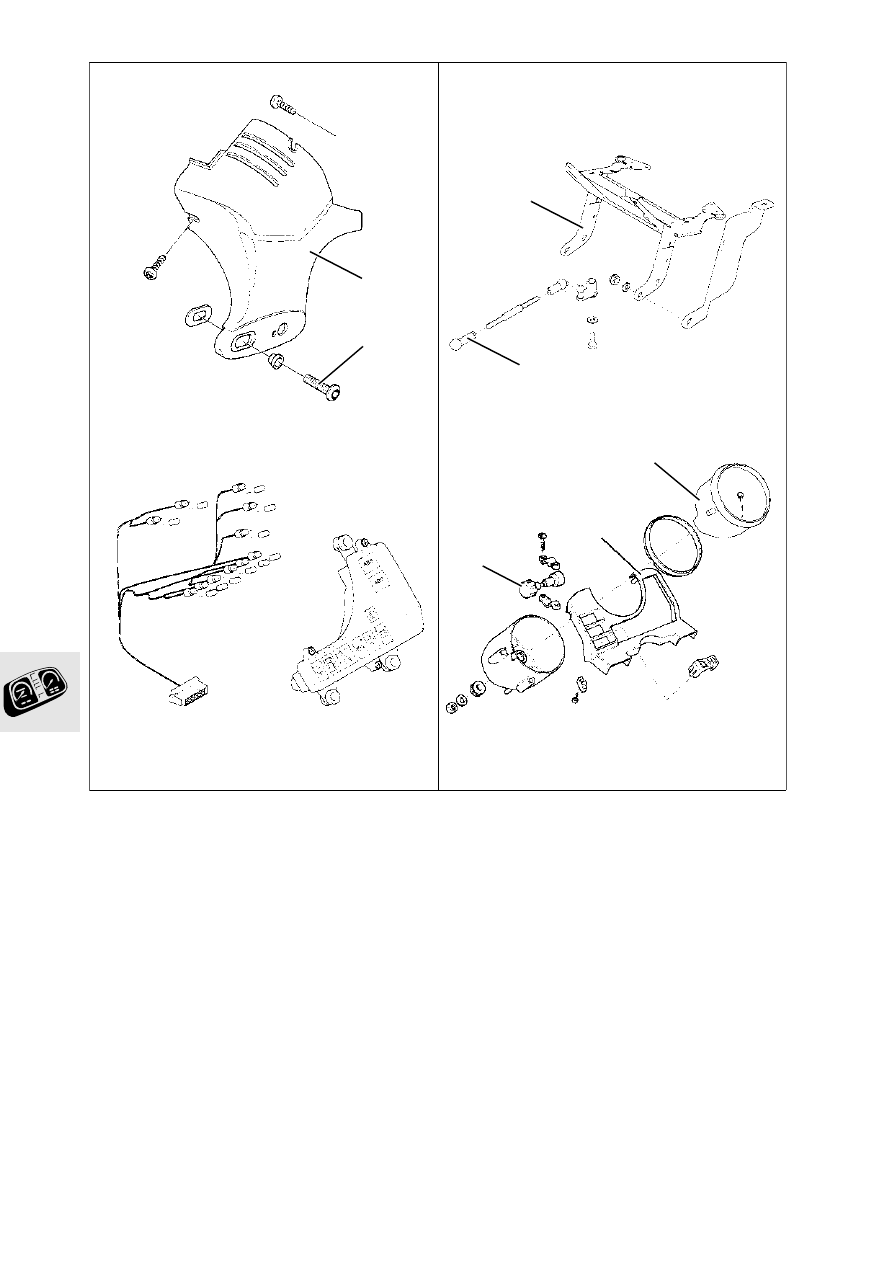

[R] Removing and installing
instrument cluster

•

Remove headlight mount (1) and adjuster (2).

•

Remove indicators.

•

Remove left (3) and right trims from instrument
cluster.

•

Remove speedometer reset extension (7).

•

Remove speedometer (4).

•

Remove upper trim (5) from instrument cluster.

•

Pull off instrument lighting and telltales.

•

Detach cable strap at headlight.

•

Remove handlebar.

•

Remove headlight holder (6).

•

Assemble in the reverse order of work.

5

4

6

2

1

3

7

RS620040

63.1

Contents

Page

63

Technica Data

................................................................................................................................. 3

[RT] Removing and installing headlight

...........................................................................7

Adjusting headlight

 .........................................................................................................................7

[RS] Removing and installing headlight

...........................................................................8

Adjusting headlight

 .........................................................................................................................8

[GS] Removing and installing headlight

...........................................................................9

Adjusting headlight

 .......................................................................................................................10

[GS] Removing and installing front flashing turn indicator

.................................10

[R] Removing and installing headlight

............................................................................10

Adjusting headlight

 .......................................................................................................................10

63 Lights

63.2

63.3

63

Technica Data

R 1100 RS

Headlight

rectangular, with halo-
gen bulb and manual
beam throw adjustment

Bulbs

High beam/low beam

H 4, 55/60 W halogen,
asymmetric

Parking light

12 V/5 W

Rear light

12 V/10 W

Brake light

12 V/21 W

Flashing turn indicator

12 V/21 W

63.4

Technica Data

R 1100 RT

Headlight

rectangular, with
halogen bulb

Bulbs

High beam/low beam

H 4, 55/60 W halogen,
asymmetric

Parking light

12 V/5 W

Rear light

12 V/10 W

Brake light

12 V/21 W

Flashing turn indicator

12 V/21 W

63.5

Technica Data

R 850 GS

R 1100 GS

Headlight

rectangular, with
halogen bulb

rectangular, with
halogen bulb

Bulbs

High beam/low beam

H 4, 55/60 W halogen,
asymmetric

H 4, 55/60 W halogen,
asymmetric

Parking light

12 V/4 W

12 V/4 W

Rear light

12 V/10 W

12 V/10 W

Brake light

12 V/21 W

12 V/21 W

Flashing turn indicator

12 V/21 W

12 V/21 W

63.6

Technica Data

R 850 R

R 1100 R

Headlight

circular, with halogen

circular, with halogen

Bulbs

High beam/low beam

H 4, 55/60 W halogen,
asymmetric

H 4, 55/60 W halogen,
asymmetric

Parking light

12 V/4 W

12 V/4 W

Rear light

12 V/10 W

12 V/10 W

Brake light

12 V/21 W

12 V/21 W

Flashing turn indicator

12 V/21 W

12 V/21 W

63.7

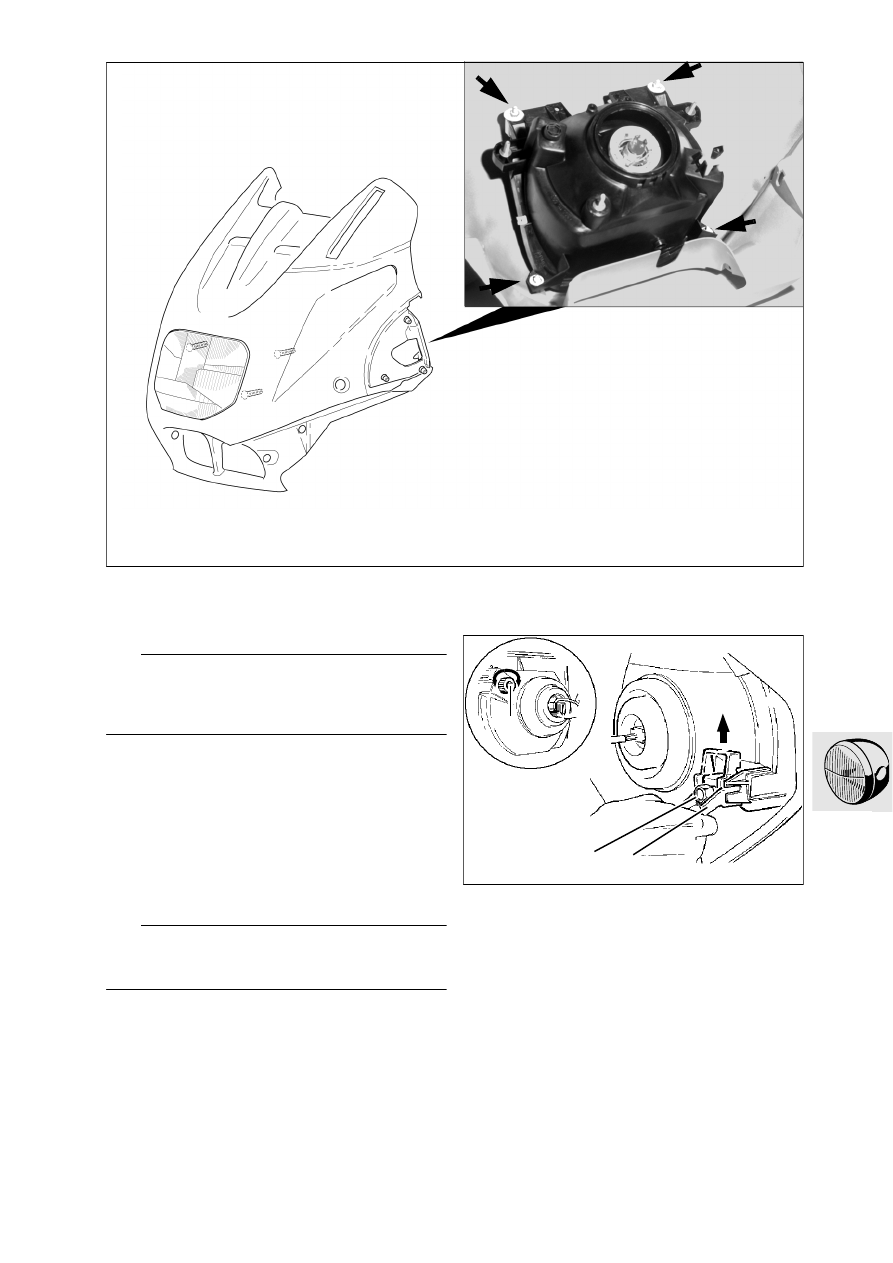

[RT] Removing and installing head-
light

e

 Caution:

Switch off ignition.
Disconnect ground (earth) lead from battery.
Insulate ground (earth) lead.

•

Remove dualseat.

•

Remove mirrors.

•

Remove side trim.

•

Remove inner cover for trim.

•

Detach windshield.

•

Pull off plug at headlight.

•

Remove upper section of fairing.

•

Remove headlight retaining screws (arrows).

•

Remove headlight.

•

Install in the reverse order of work.

e

 Caution:

Do not touch inner surface of reflector or bulbs with
bare hands.

Adjusting headlight

•

Move swivel lever (1) to top position.

•

Correct the headlight beam throw with adjusting
screw (2).

Counter-clockwise rotation: ....................... longer
Clockwise rotation: ....................................shorter
Adjustment distance:

..... -15 cm (5.91 in) at a distance of 10 m (32.81 ft)

•

Adjust side angle with adjusting screw (3).

RT630060

3

2

1

RT630020
