BMW Motorcycle (R1100RT, R1100RS, R850/1100GS, R850/1100R). Manual - part 56

62.2

62.3

62

Technical Data

R 1100 RS

Instrument cluster

Telltales for turn indicators/high beam

A 14 V 3 W

Instrument lighting / telltales

A 12 V 1,7 W

Speedometer drive

Speedometer drive ratio

I = 2,6

62.4

Technical Data

R 1100 RT

Instrument cluster

Telltales for turn indicators/high beam

A 14 V 3 W

Instrument lighting / telltales

A 12 V 1,7 W

Speedometer drive

Speedometer drive ratio

I = 2,6

62.5

Technical Data

R 850 GS

R 1100 GS

Instrument cluster

Telltales for turn indicators/high beam

A 14 V 3 W

A 14 V 3 W

Instrument lighting / telltales

A 12 V 1,7 W

A 12 V 1,7 W

Speedometer drive

Speedometer drive ratio

I = 3,0

I = 3,0

62.6

Technical Data

R 850 R

R 1100 R

Instrument cluster

Telltales for turn indicators/high beam

A 14 V 3 W

A 14 V 3 W

Instrument lighting / telltales

A 12 V 1,7 W

A 12 V 1,7 W

Speedometer drive

Speedometer drive ratio

Cast wheel I = 2,6

I = 2,6

Spoked wheel I = 3,0

I = 3,0

62.7

[RT] Removing and installing
instrument cluster

•

Remove dualseat.

•

Remove mirrors.

•

Remove side sections of fairing.

•

Remove inner fairing panel.

•

Remove windshield.

•

Remove upper section of fairing.

•

Detach speedometer shaft.

•

Detach instrument cluster (1) and lift
out of mount.

•

Disconnect plugs.

•

Install in the reverse order of work.

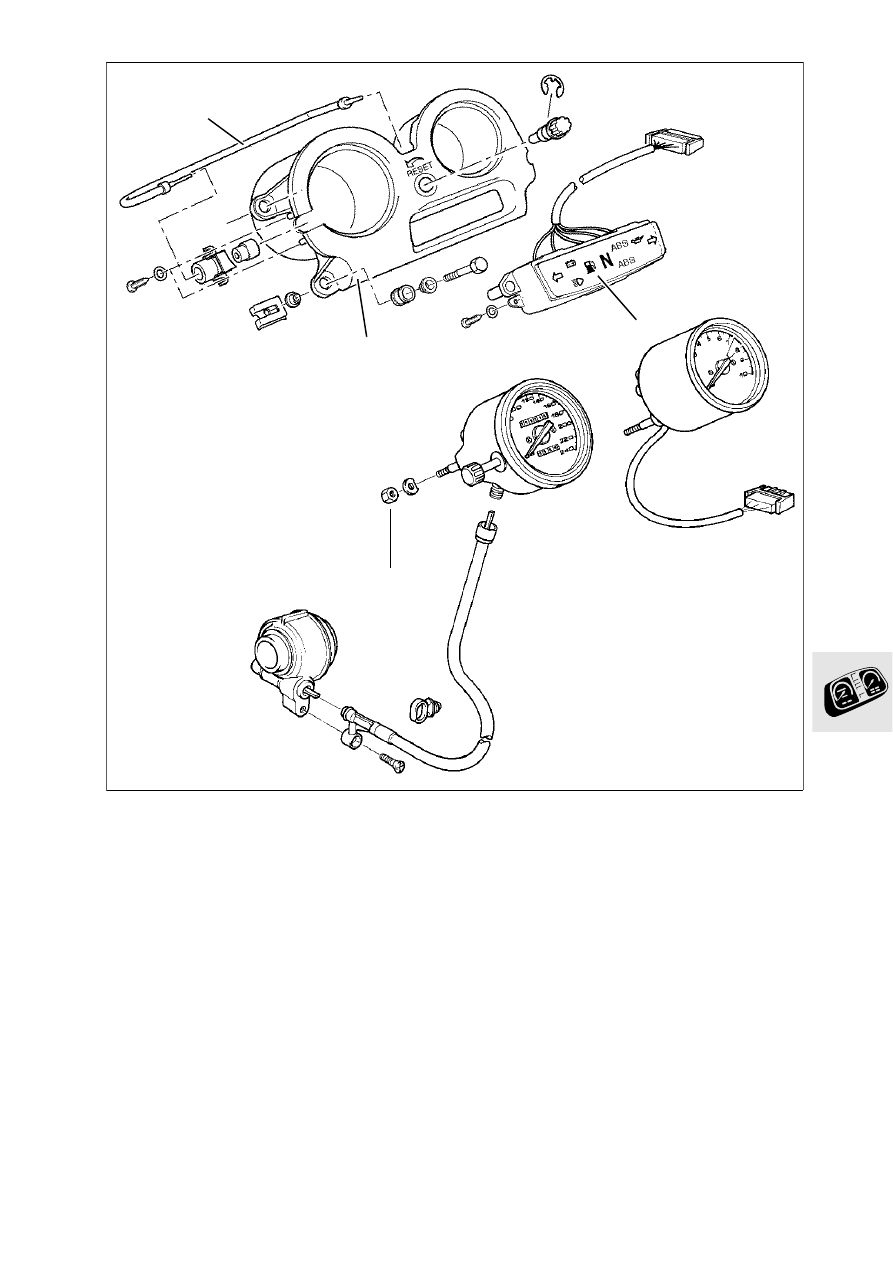

[RT] Dismantling and assembling
instrument cluster

•

Unscrew threaded connections at
instruments (2).

•

Detach trip distance recorder reset shaft (3) from
speedometer.

•

Pull off instrument lighting.

•

Remove monitor unit (4).

•

Assemble in the reverse order of work.

1

4

2

3

RT620050

62.8

[RS] Removing and installing
instrument cluster

•

Remove inner cover for trim.

•

[Windshield adjustment] Turn windshield
adjuster shaft to left/detach.

•

Detach instrument cluster (1) and pull up away
from mount.

•

Detach speedometer shaft.

•

Disconnect plugs.

•

Install in the reverse order of work.

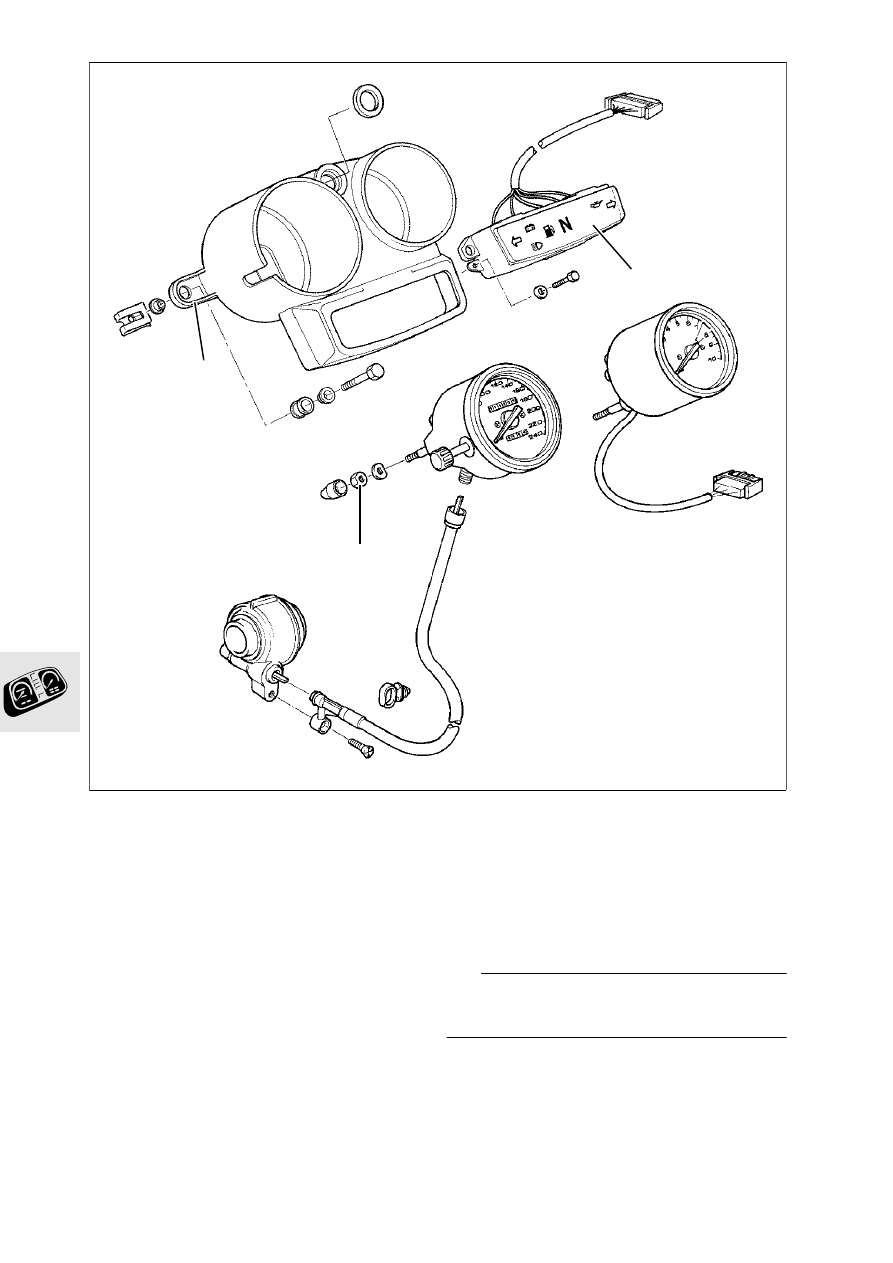

[RS] Dismantling and assembling
instrument cluster

•

Unscrew threaded connections at
instruments (2).

•

Pull off instrument lighting.

•

Remove monitor unit (3).

•

Assemble in the reverse order of work..

e

 Caution:

When installing the speedometer, note the grommet
on the trip distance recorder reset button.

1

3

2

RS620011

62.9

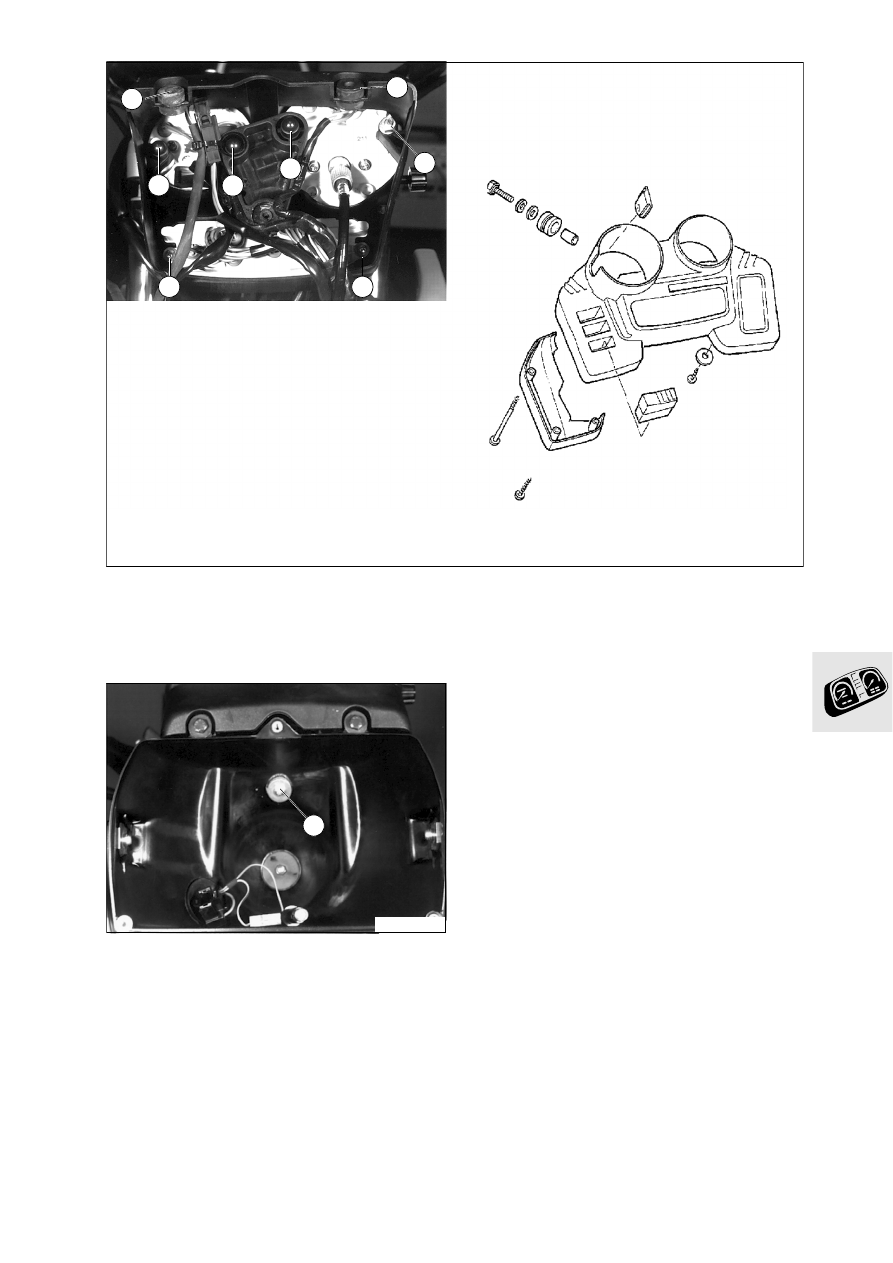

[GS] Removing and installing
instrument cluster

•

Remove windshield.

•

Remove headlight housing/detach instrument
cluster mount on inside of headlight housing (1).

•

Detach instrument cluster (2).

•

Detach speedometer shaft.

•

Remove left cover.

•

Disconnect plugs.

•

Install in the reverse order of work.

[GS] Dismantling and assembling
instrument cluster

•

Unscrew threaded connections (3) at instrument
cluster.

•

Pull off instrument lighting.

•

Remove monitor unit (4).

•

Remove telltales.

•

Assemble in the reverse order of work.

GS620030

2

4

4

2

3

3

3

3

G62002

1
